PCCooler YT1000 ATX v3.1 PSU Review

Box & Bundle

I received early samples, so photos of the box are not available at this time. This means I can use any photo I want here. This is a photo of my plane under the moon!

Product Photos

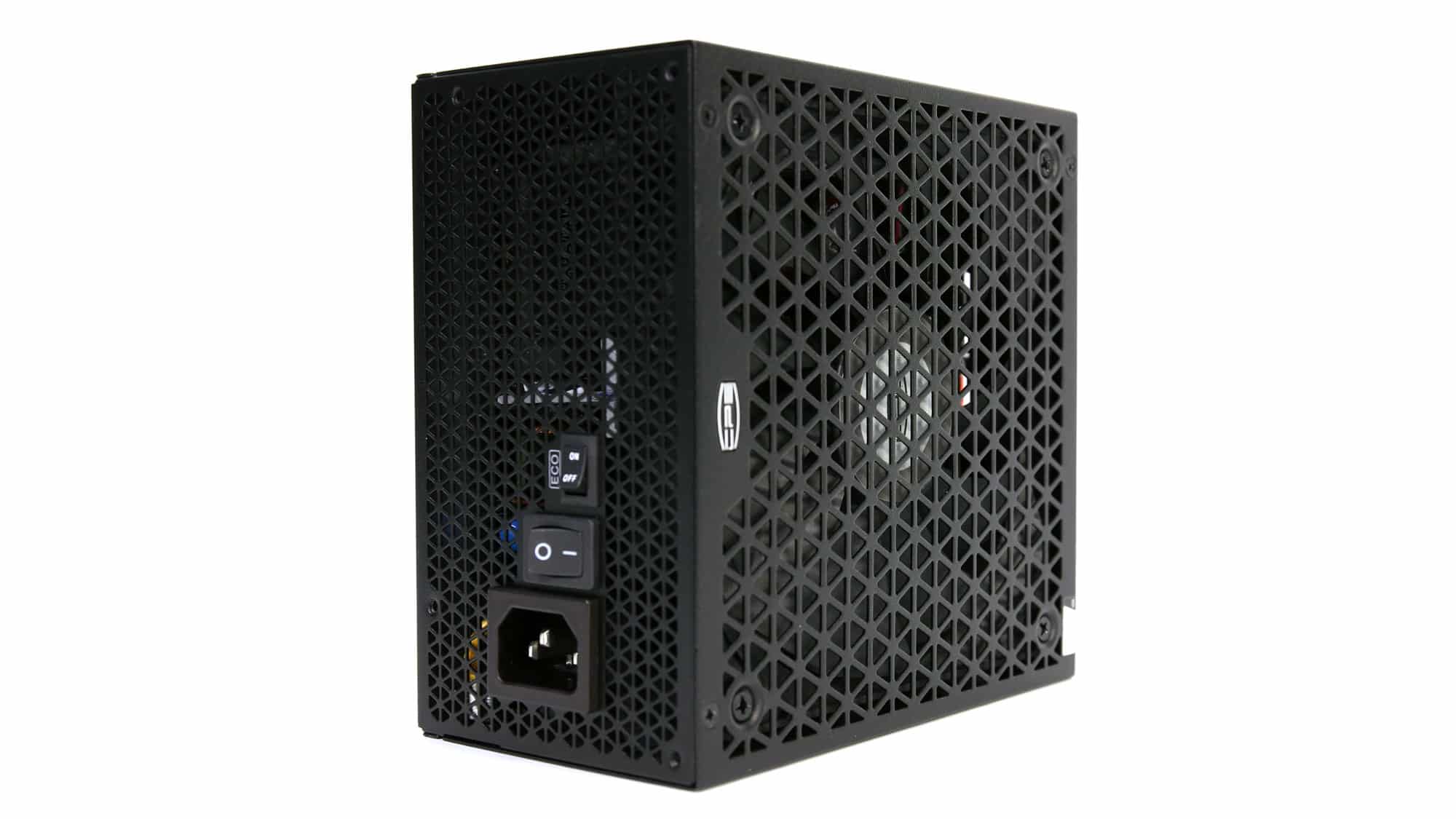

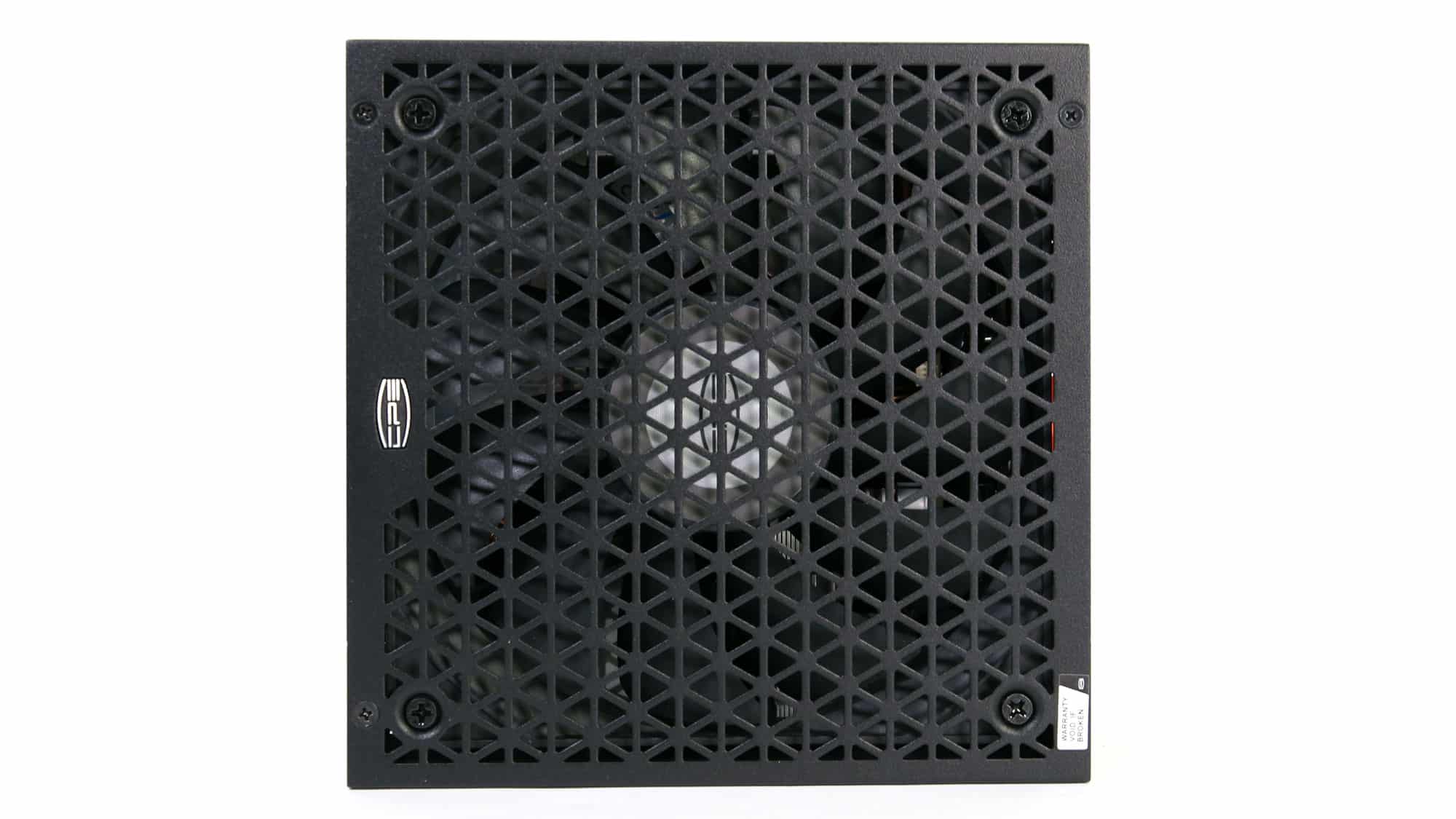

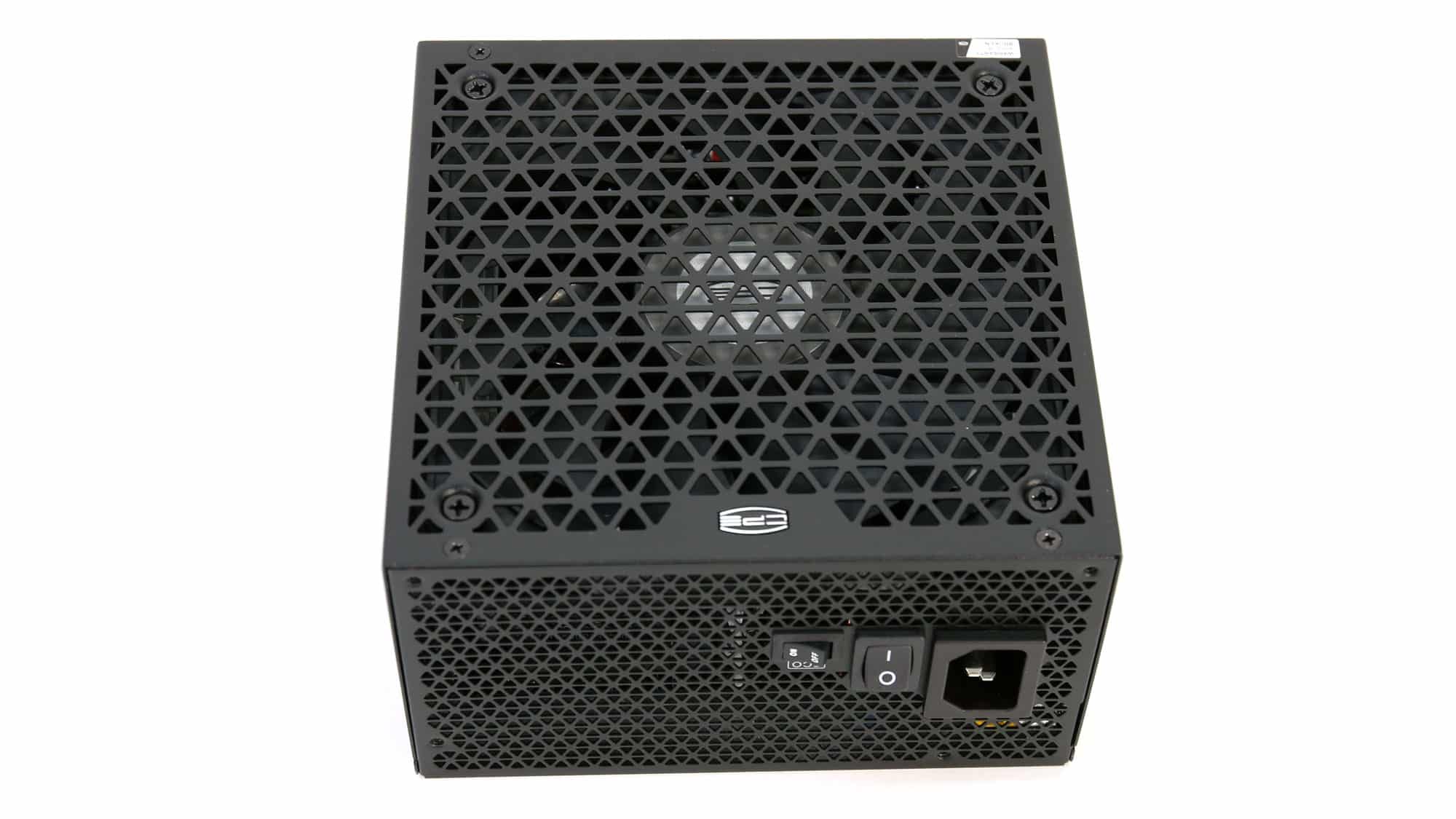

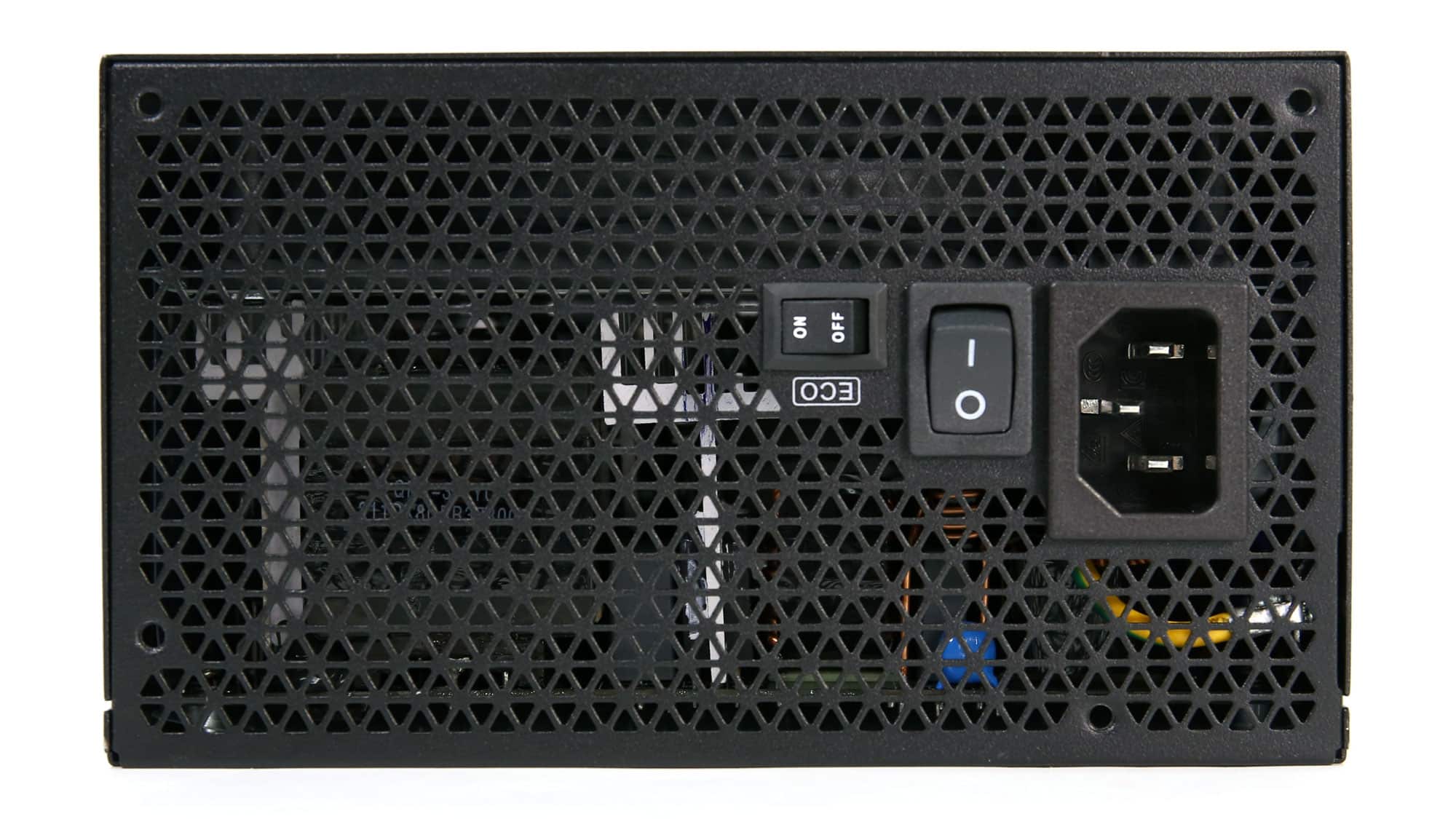

The exterior design stands out from the crowd due to the triangle perforations of the fan’s grille. On the front side, for the PSU’s exhaust, the same triangle-style perforations are used. On the same side, besides the AC receptacle and the power switch, you will also find a smaller switch for toggling the fan’s passive operation on or off.

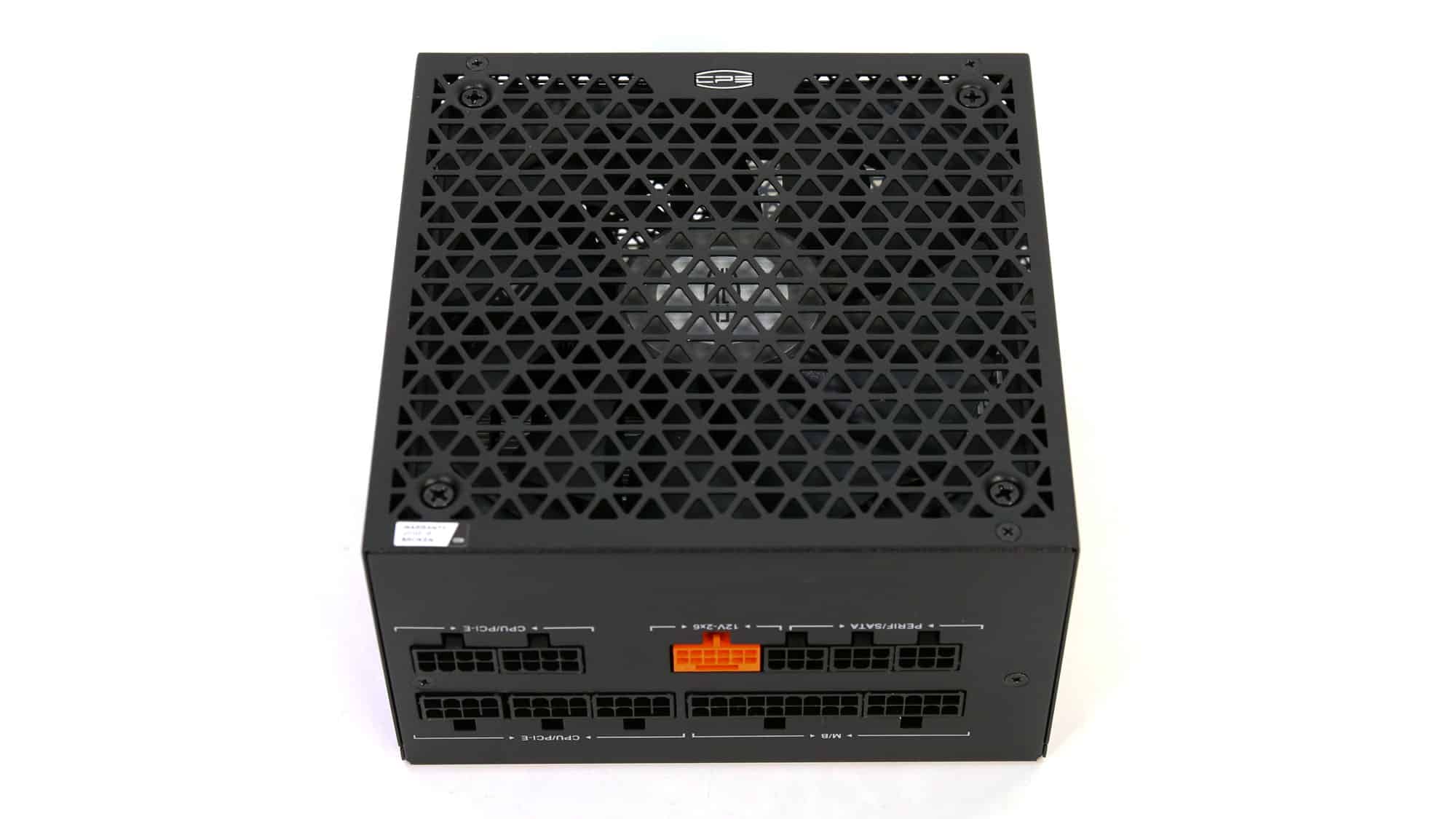

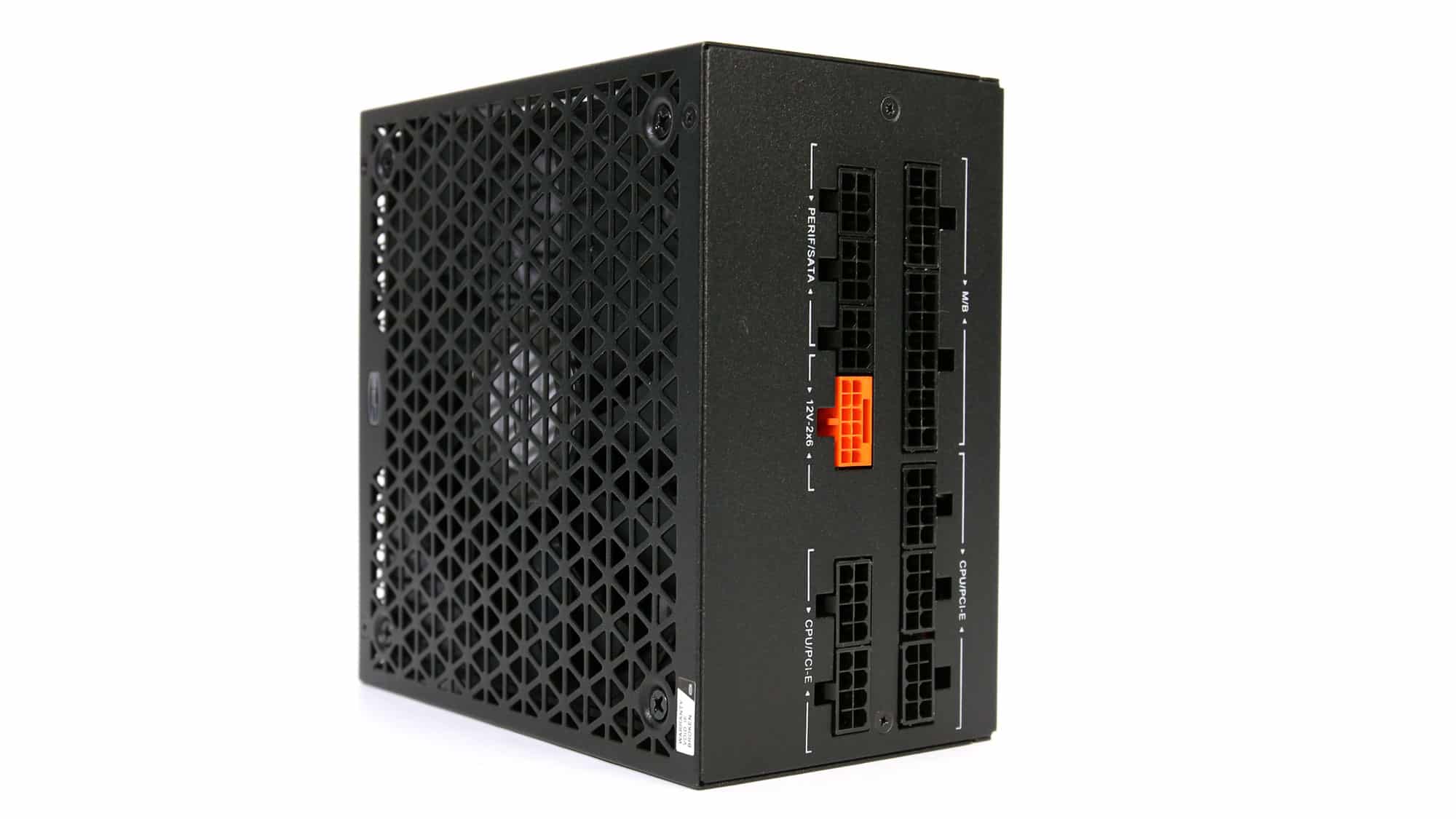

The modular panel has eleven sockets, including a native 12V-2×6 header.

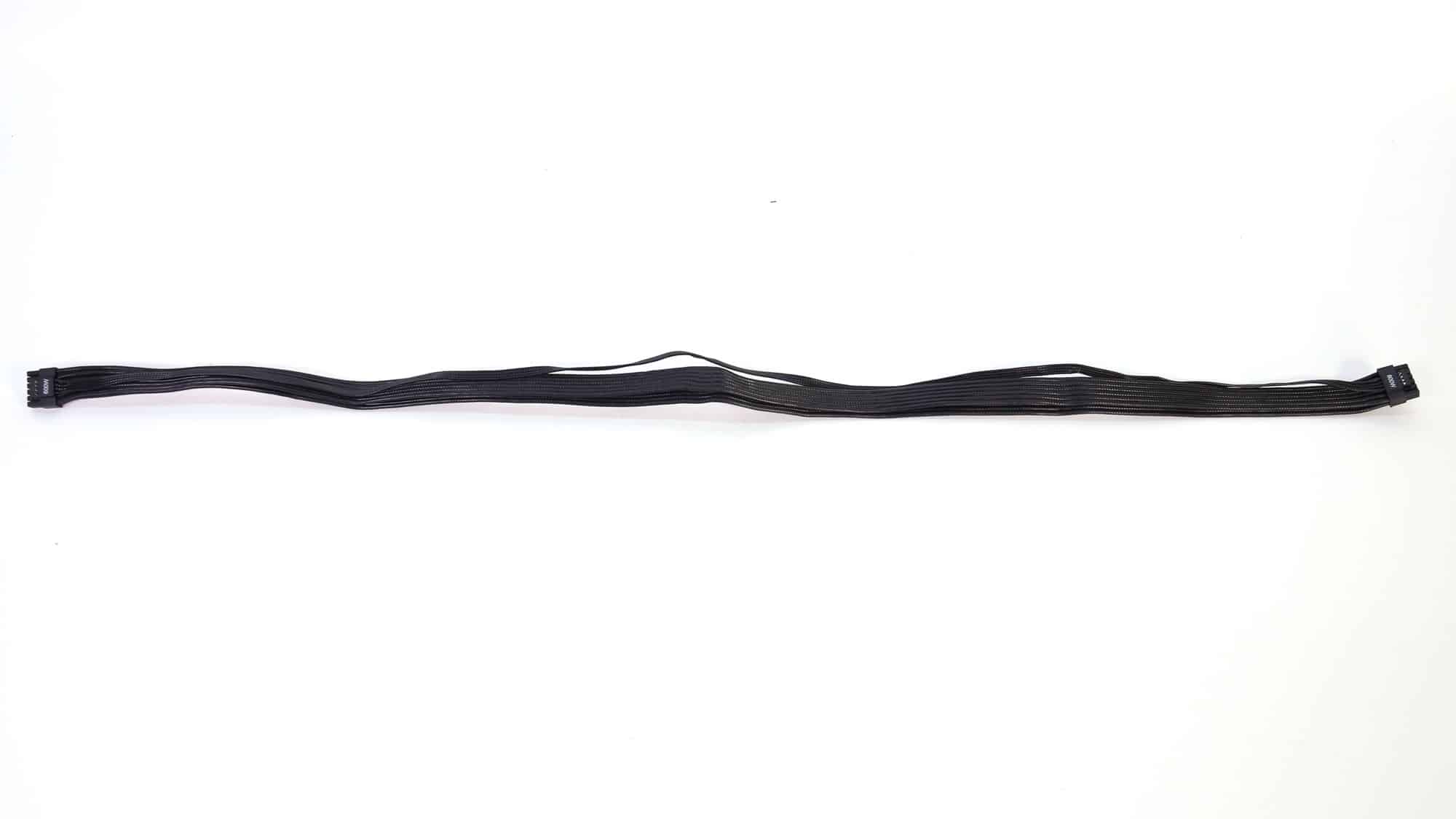

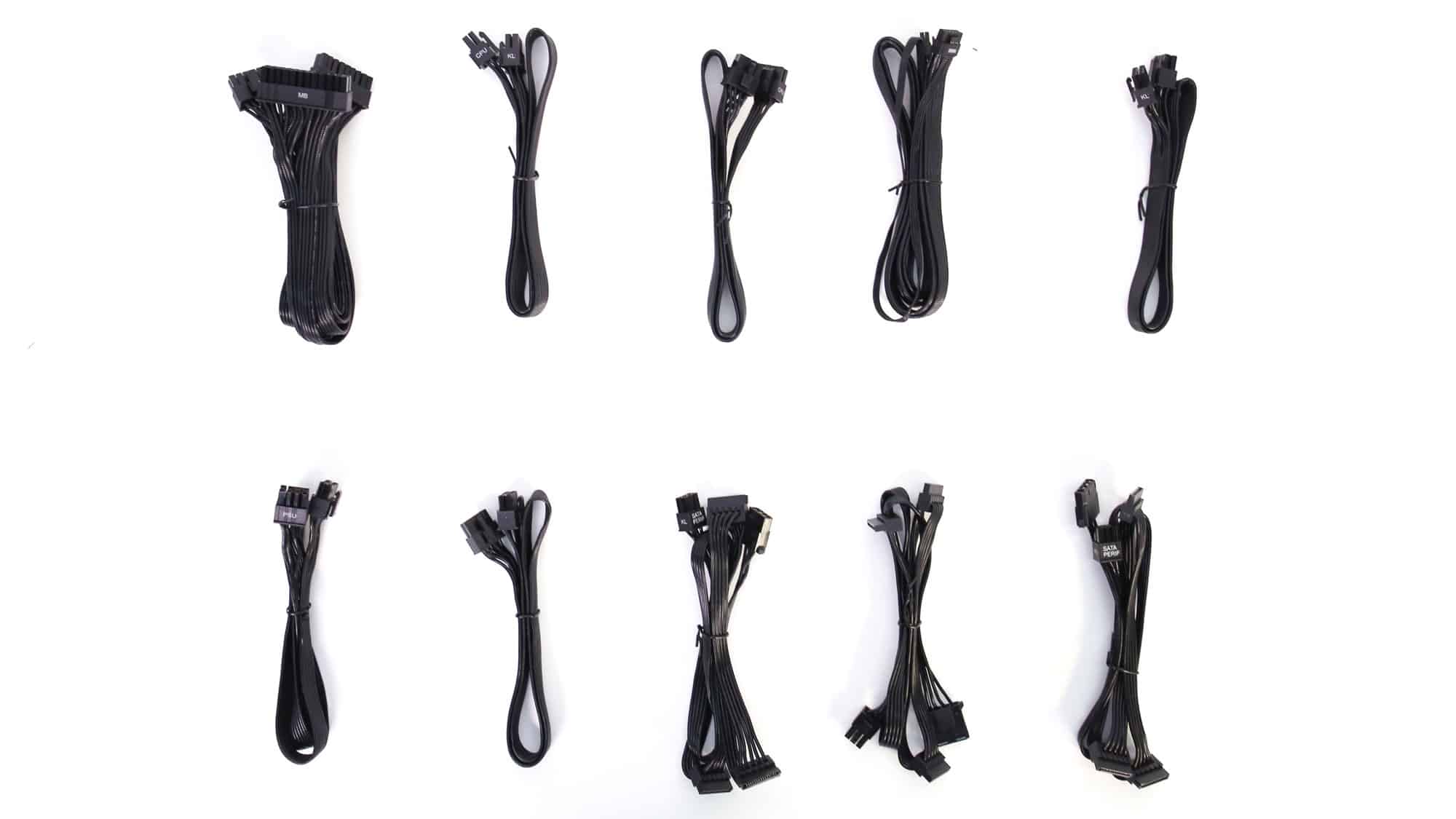

Modular Cables

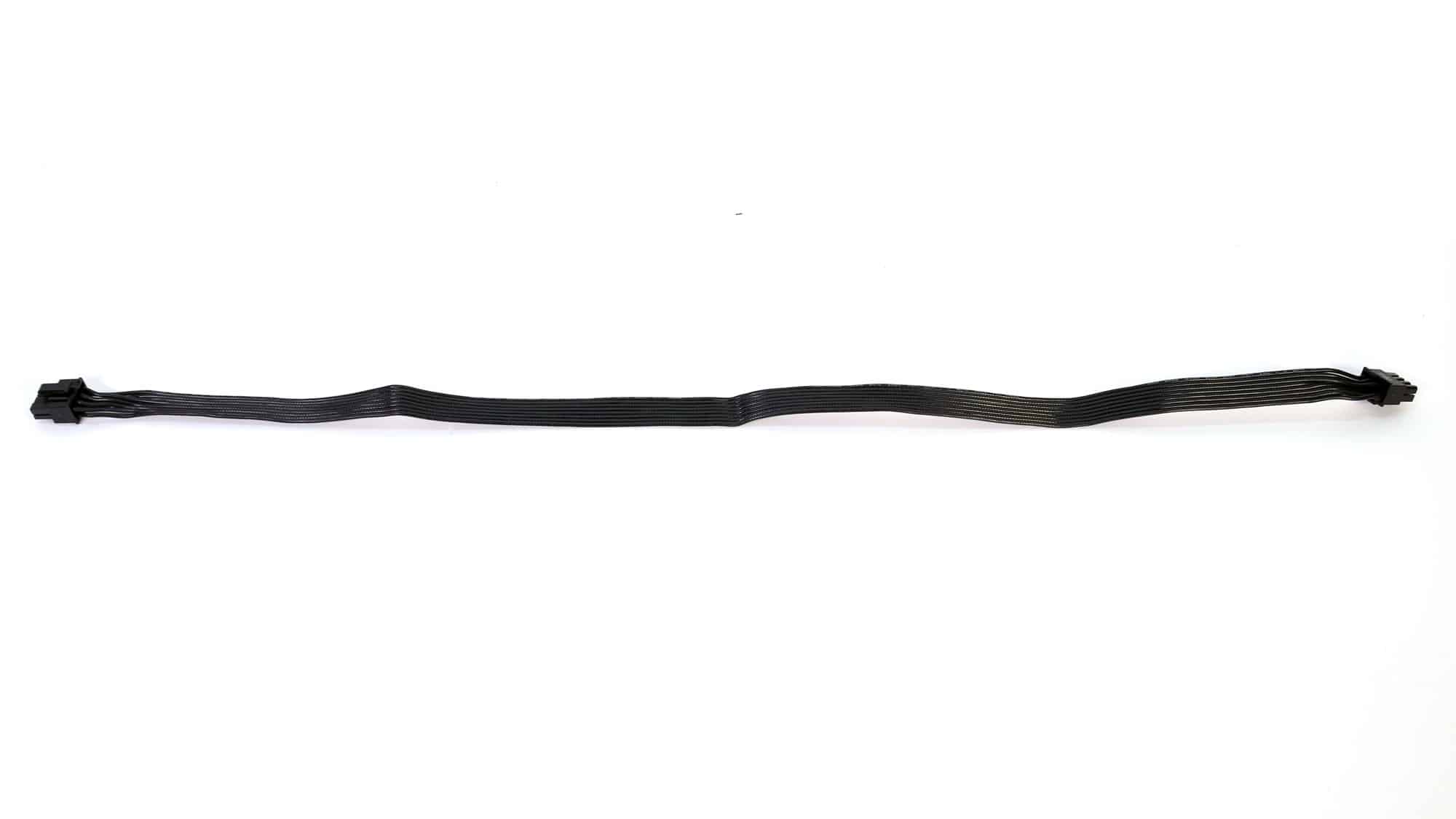

Description Cable Count Connector Count (Total) Gauge In Cable Capacitors

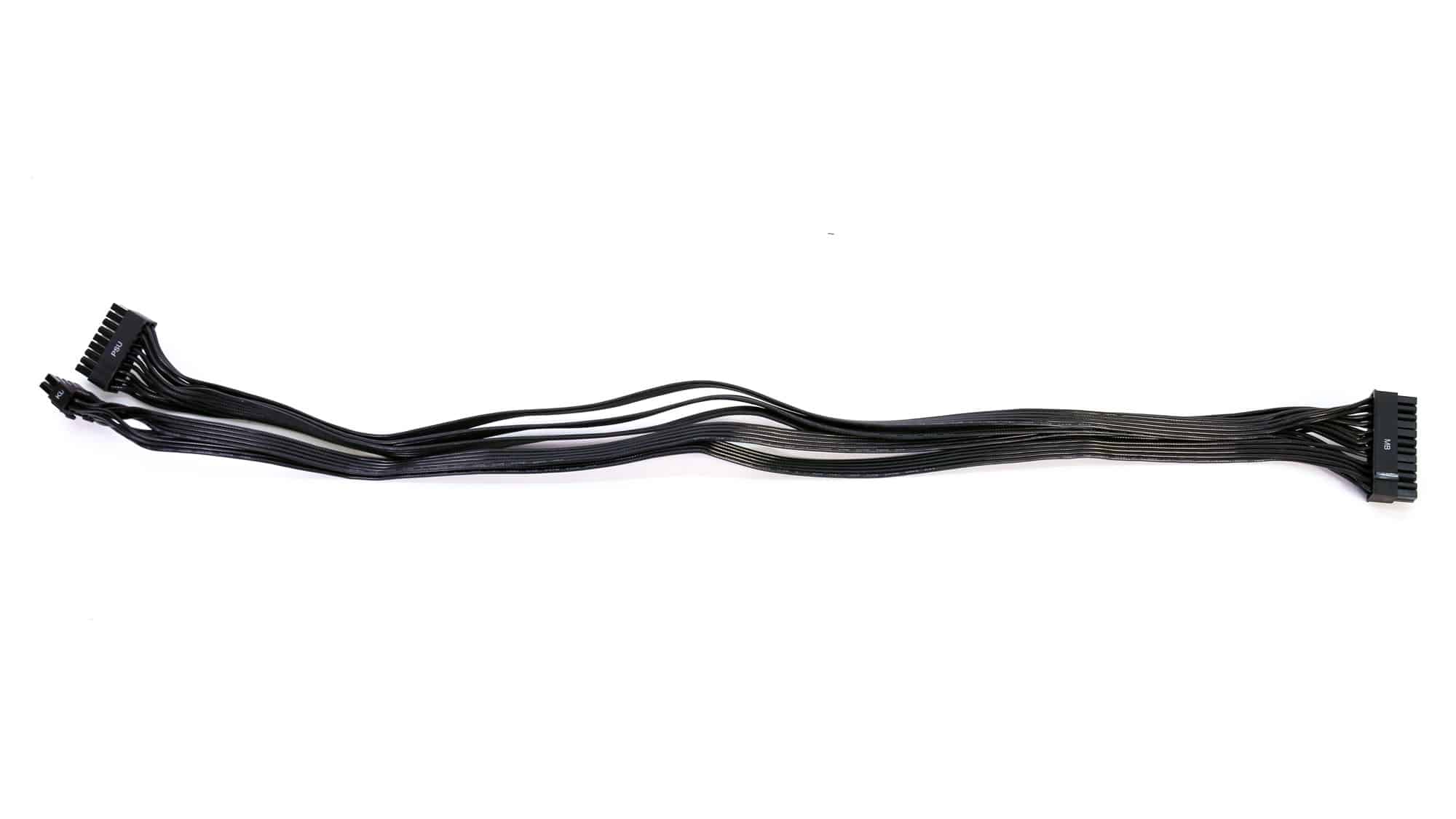

ATX connector 20+4 pin (600mm) 1 1 18AWG No

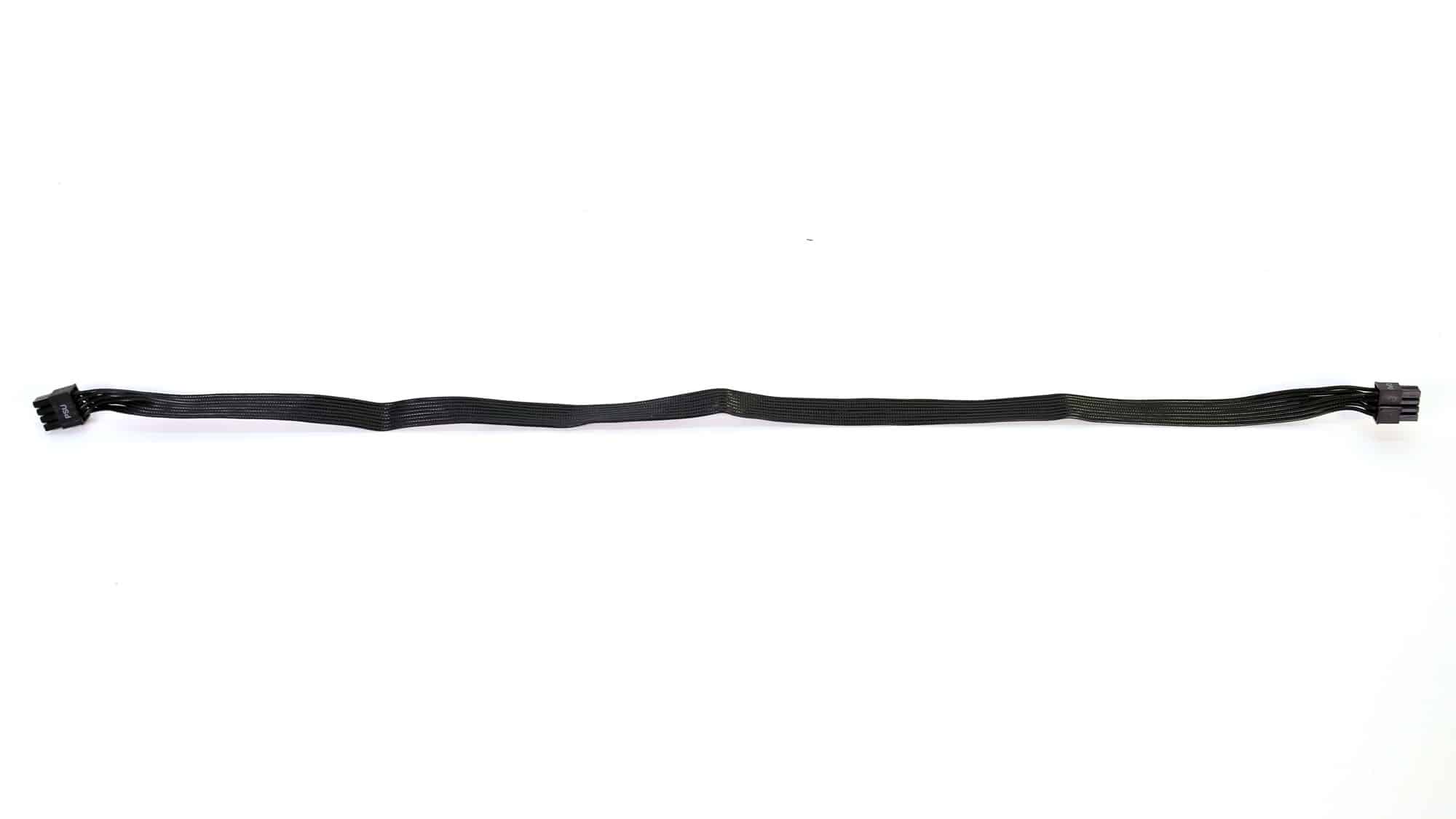

4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 3 3 18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No

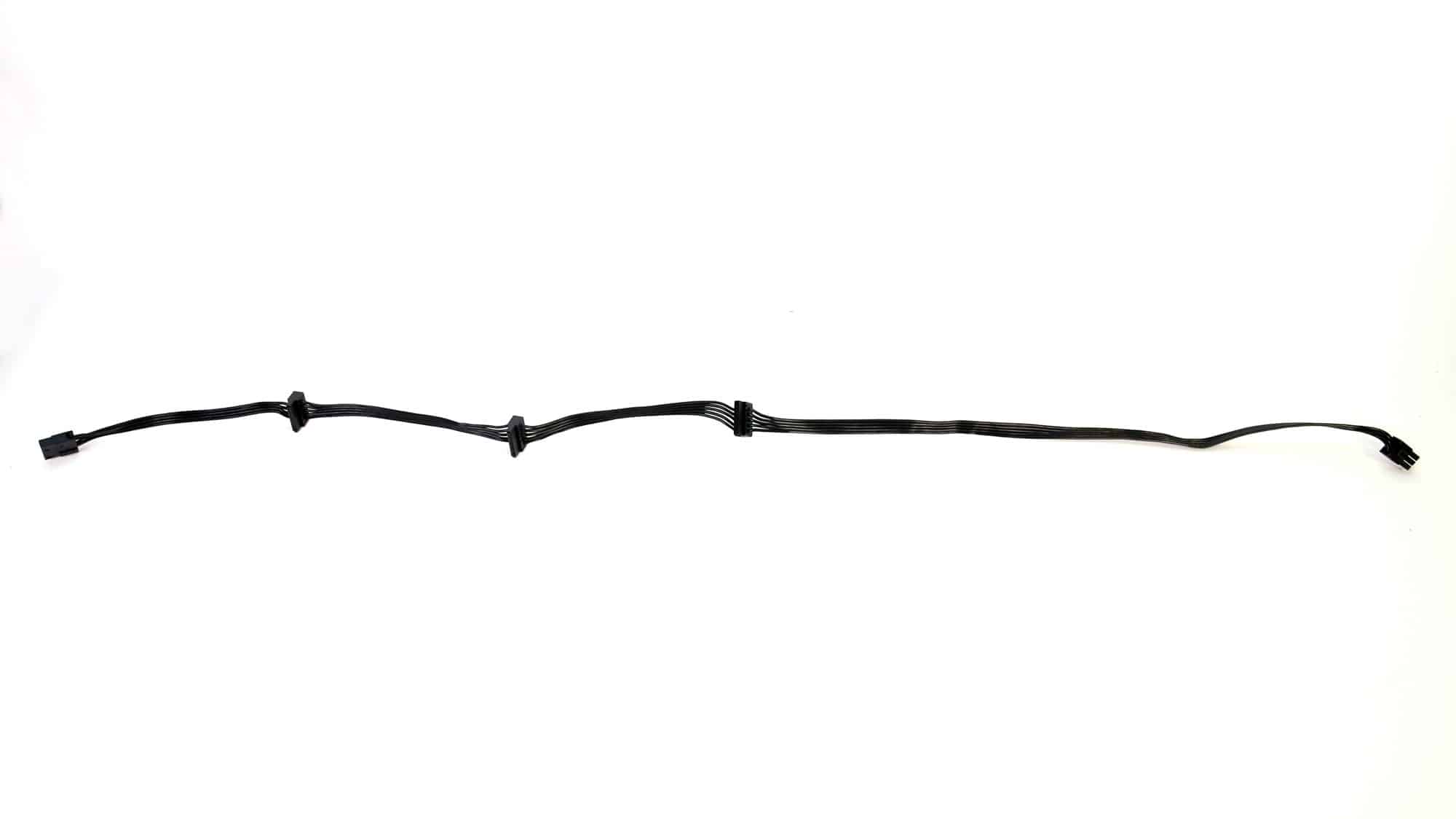

SATA (445mm+150mm+150mm) / 4-pin Molex (+150mm) 3 9 / 3 18AWG No

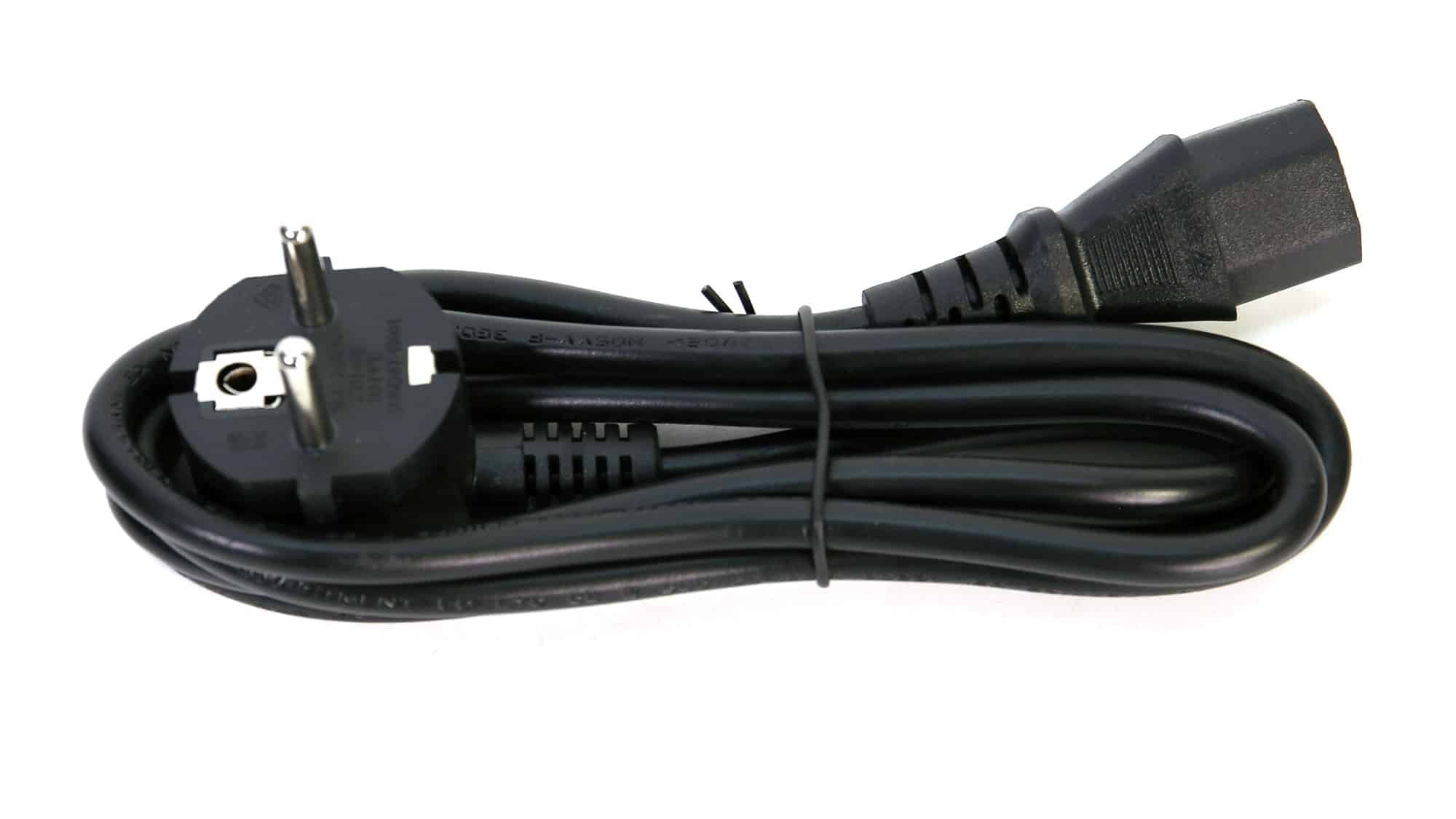

AC Power Cord (1380mm) – C13 coupler 1 1 18AWG

The cables are long enough, and unlike the YT1200 model, the high-power cables (except 12V-2×6) use the standard AWG18 gauges instead of thicker (AWG16), which would offer lower voltage drops at high loads. The number of peripheral connectors is sufficient, and the distance between them is identical, at 150mm.

Pages ( 2 of 11 ): « Previous1 2 34567891011Next »
