Box & Bundle

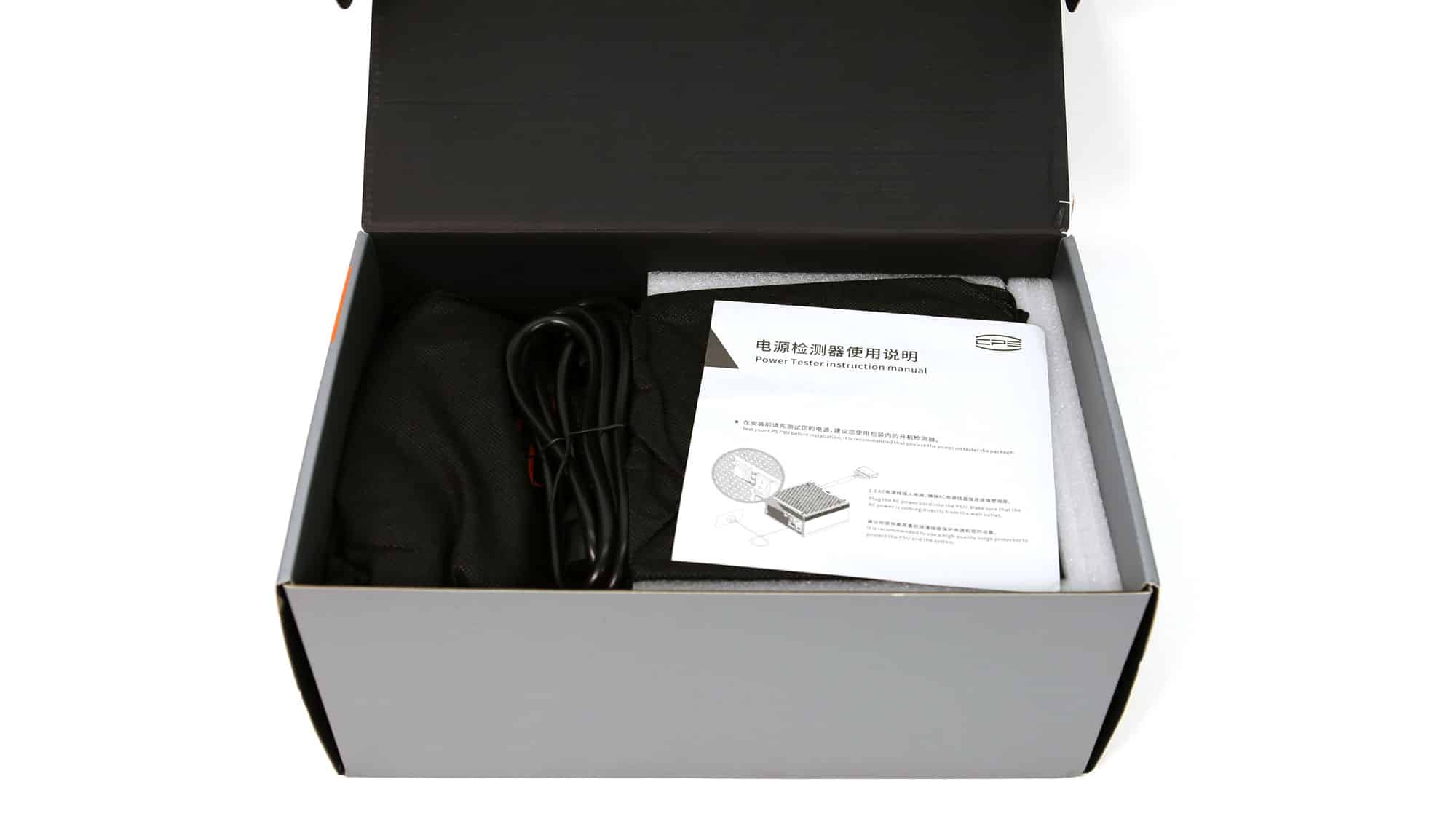

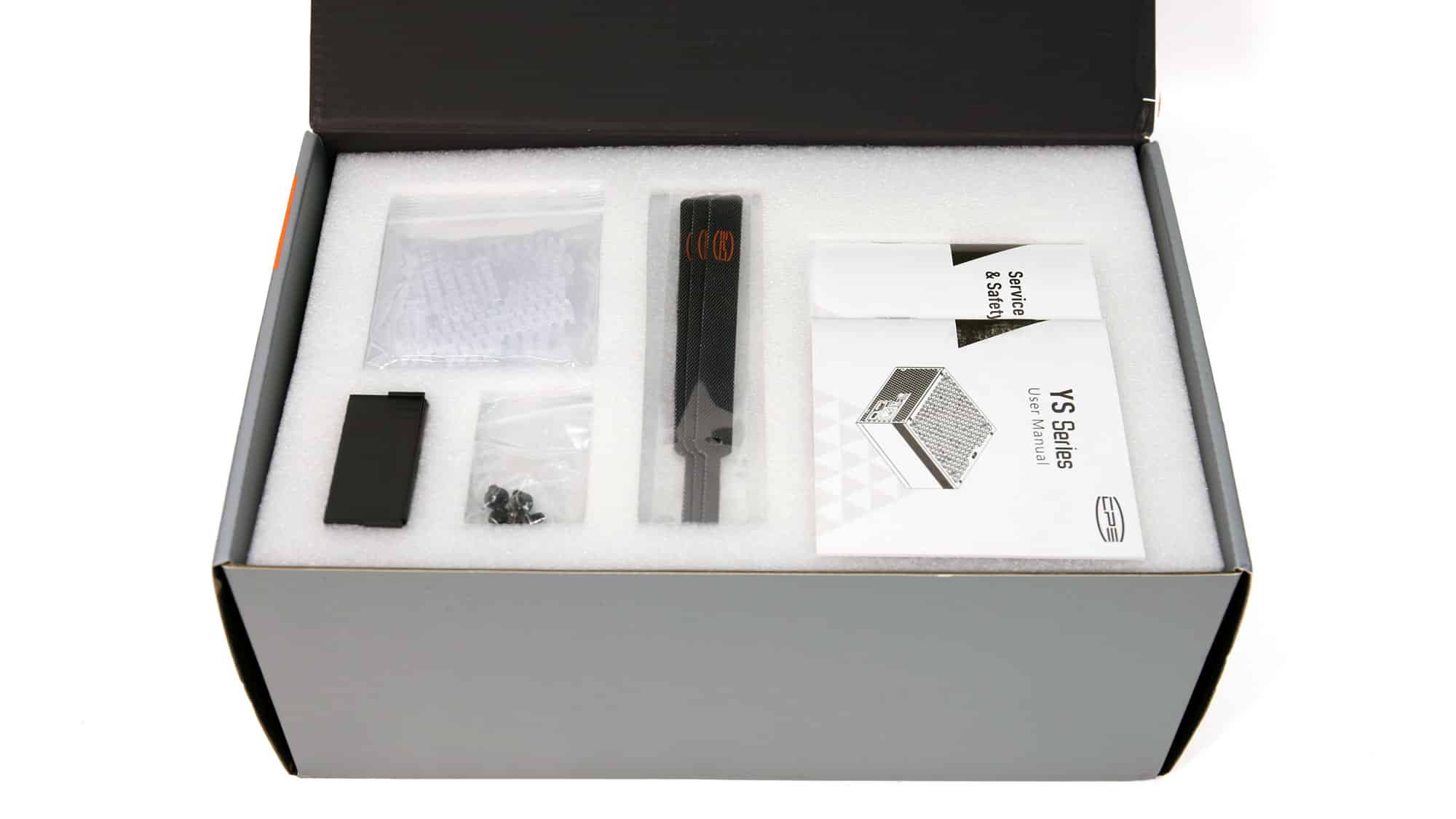

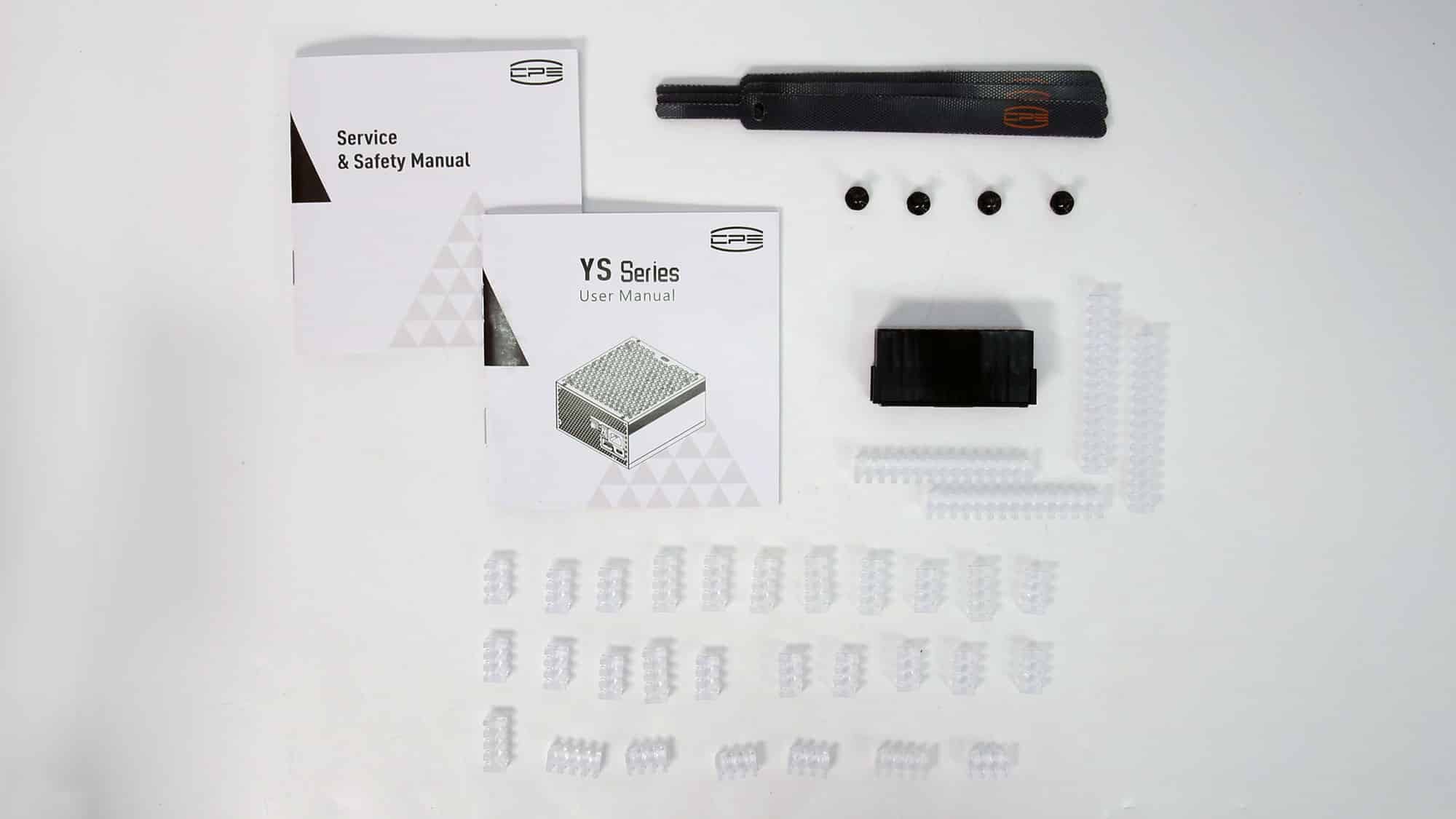

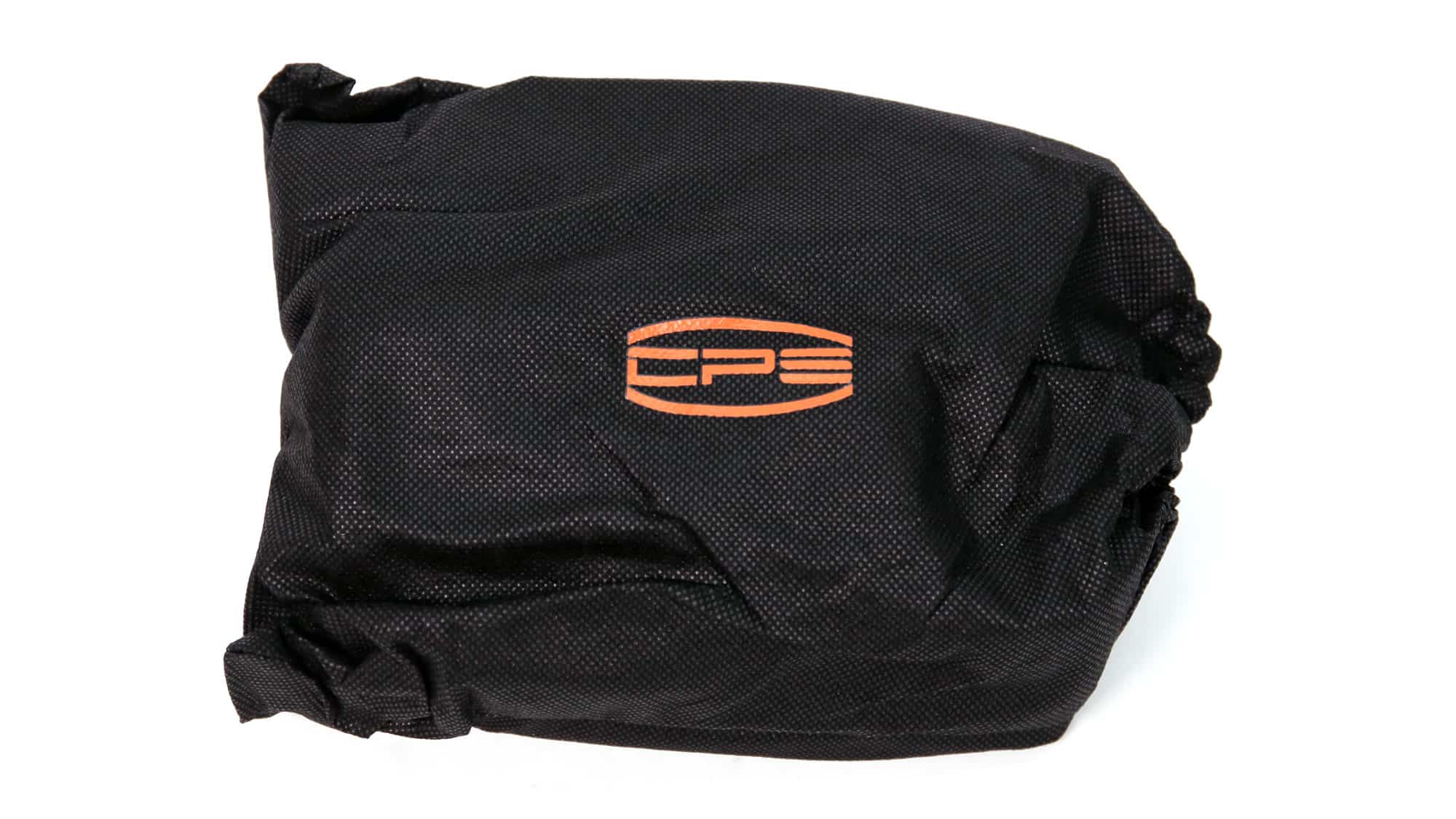

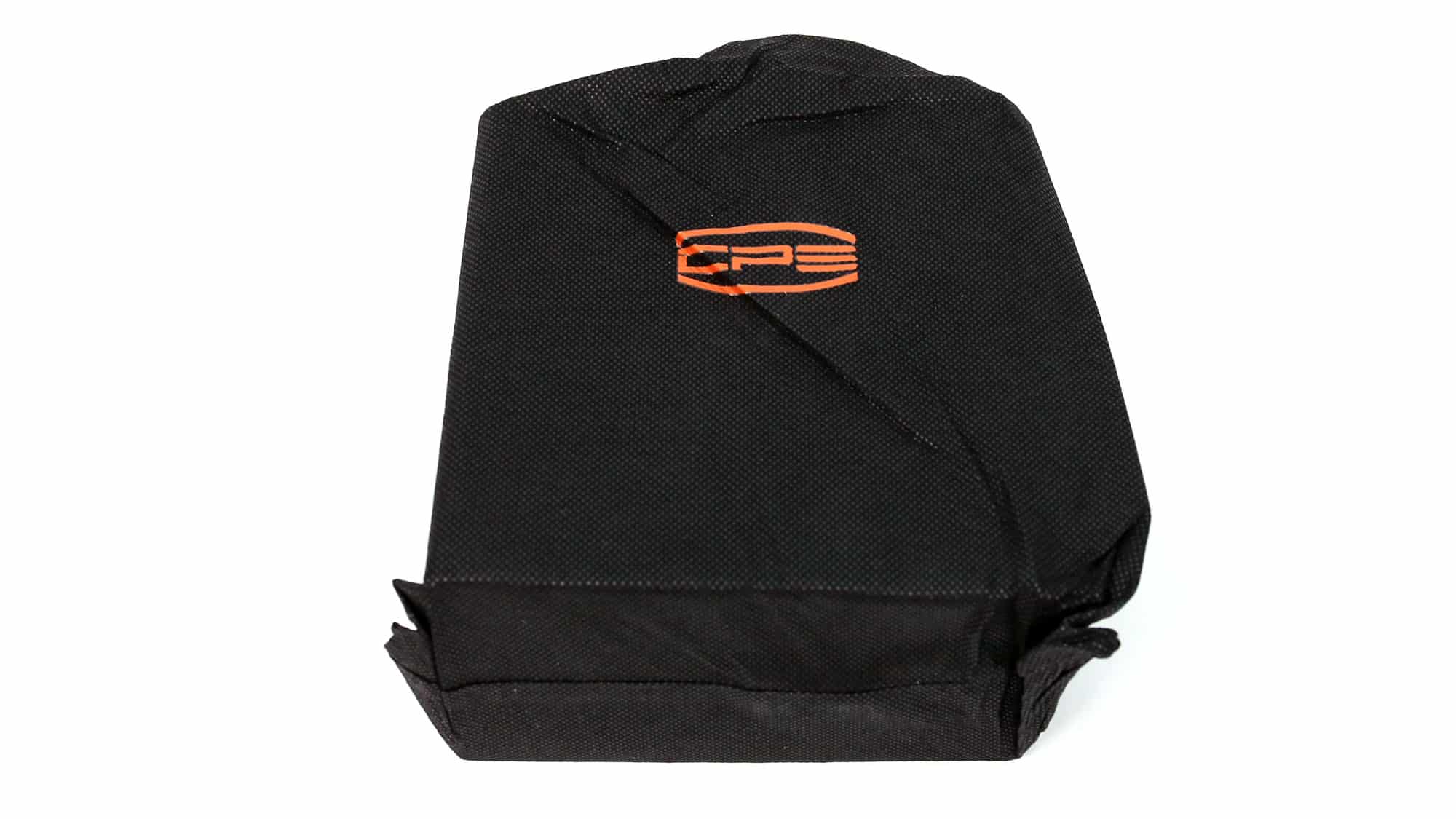

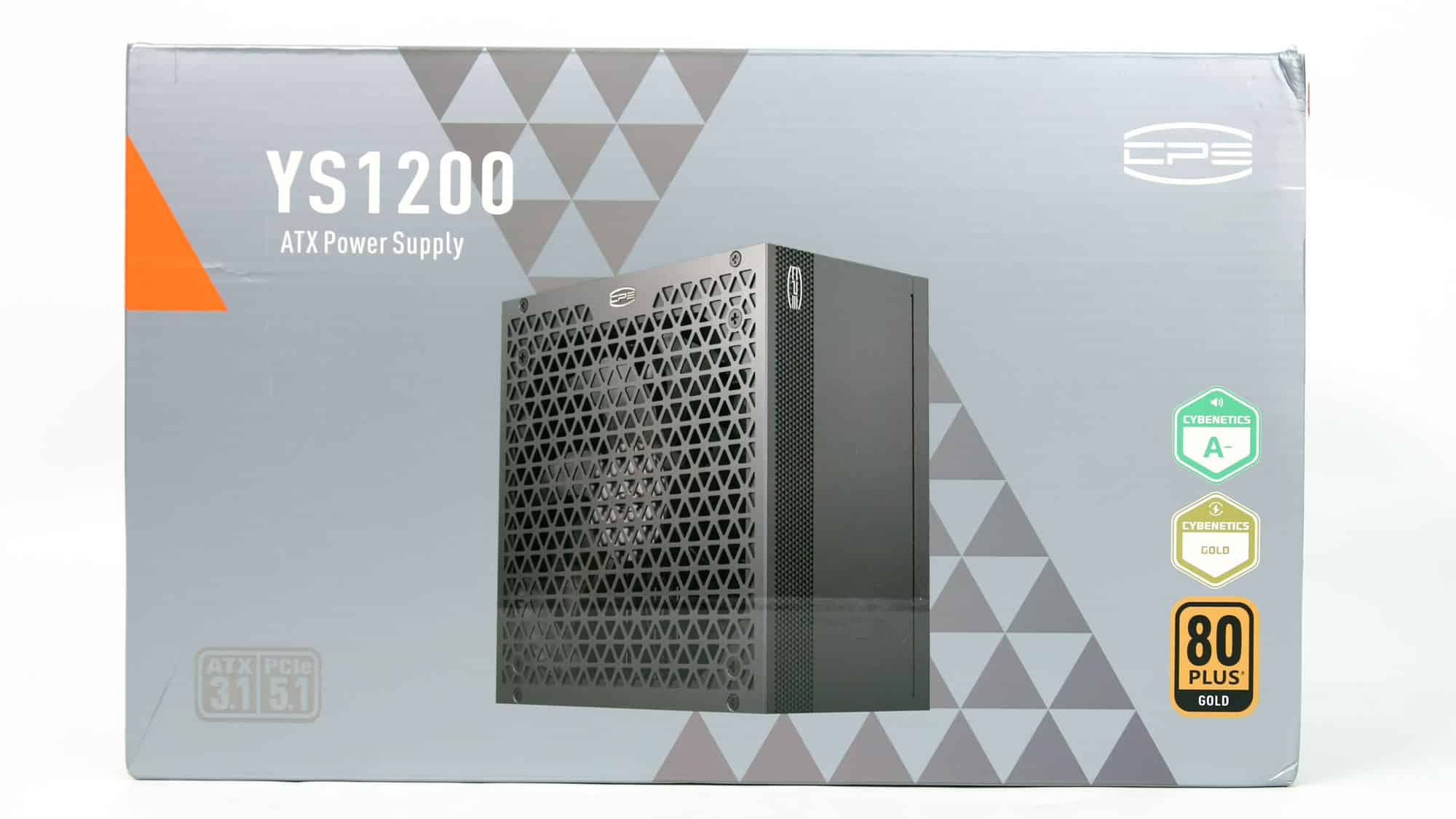

The box features a photo of the PSU on its face, along with three badges indicating the efficiency and noise certification levels it has achieved. Internally, the accessories are neatly arranged, and the provided protection is adequate. A pouch is also provided to store the modular cables. It will come in handy to keep the unused cables. The PSU is also shipped in a cloth bag.
Product Photos

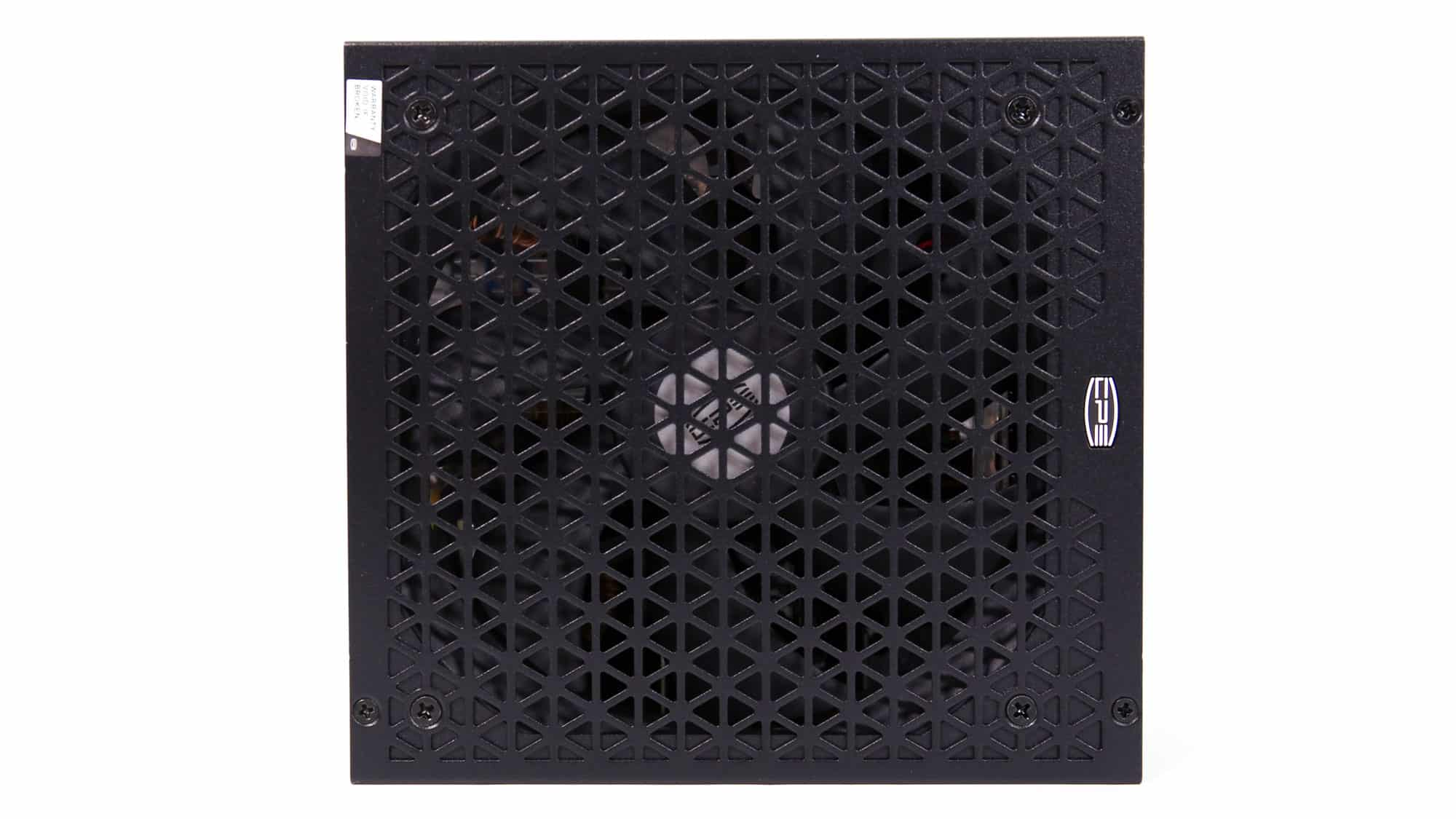

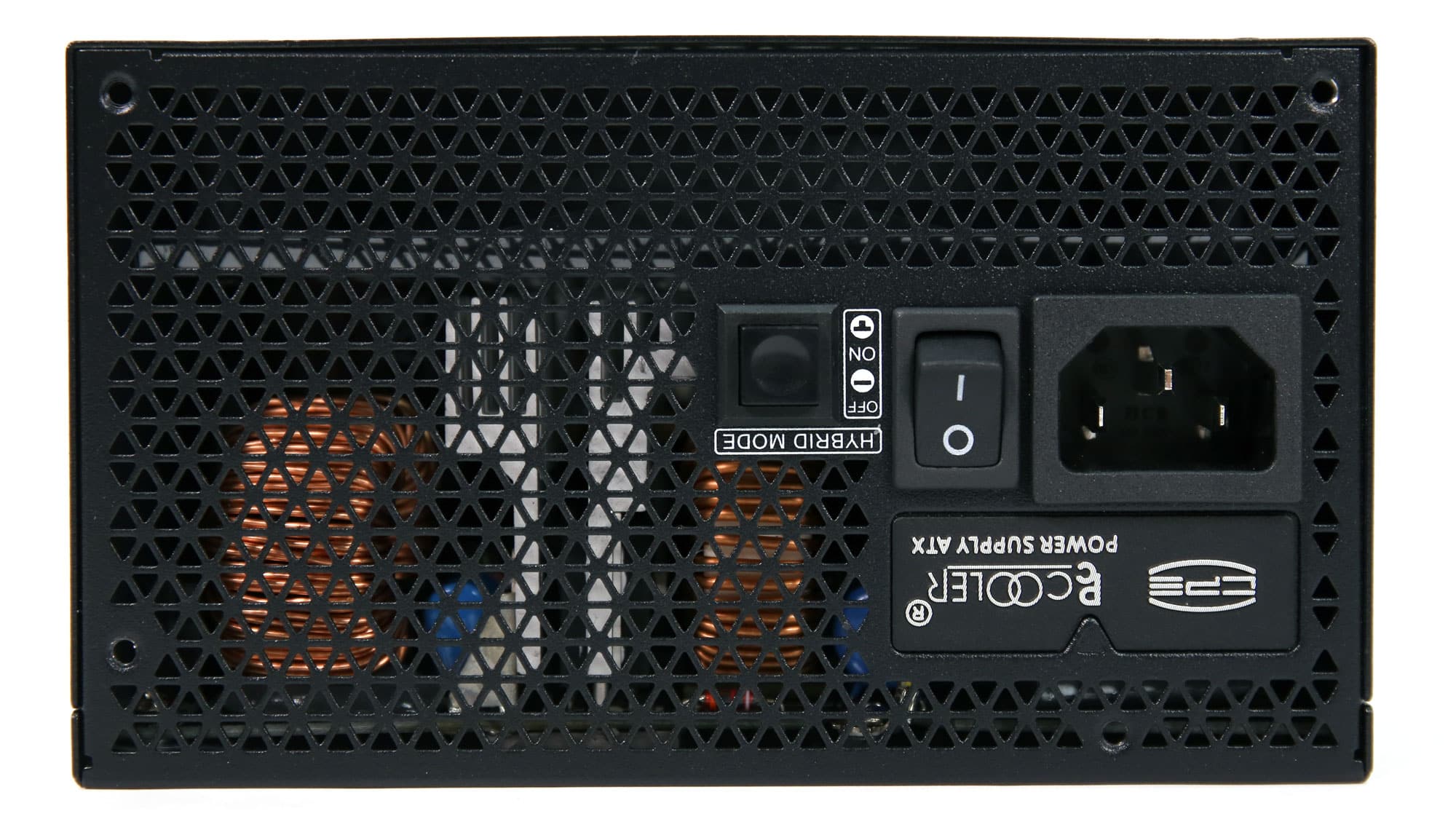

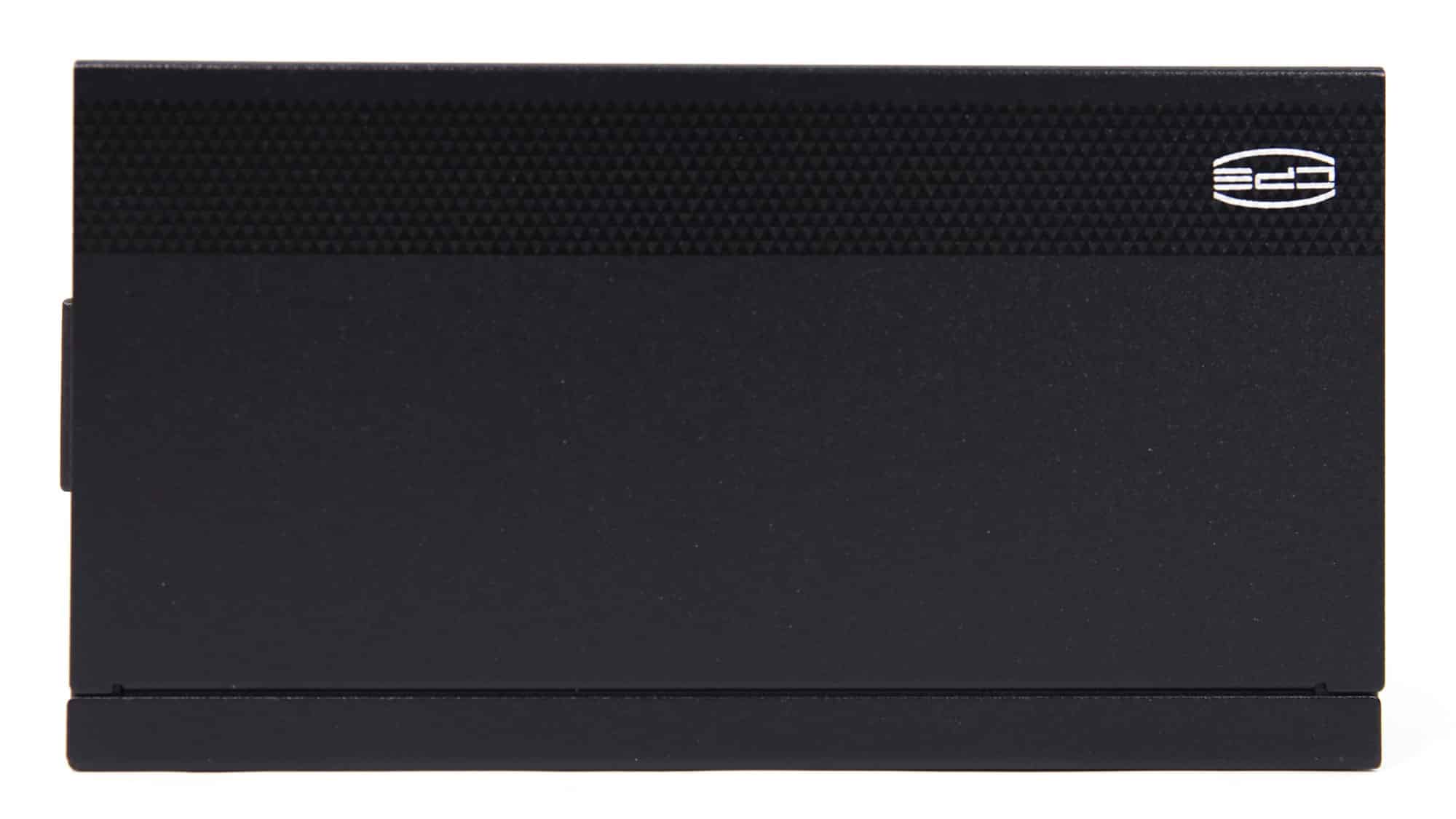

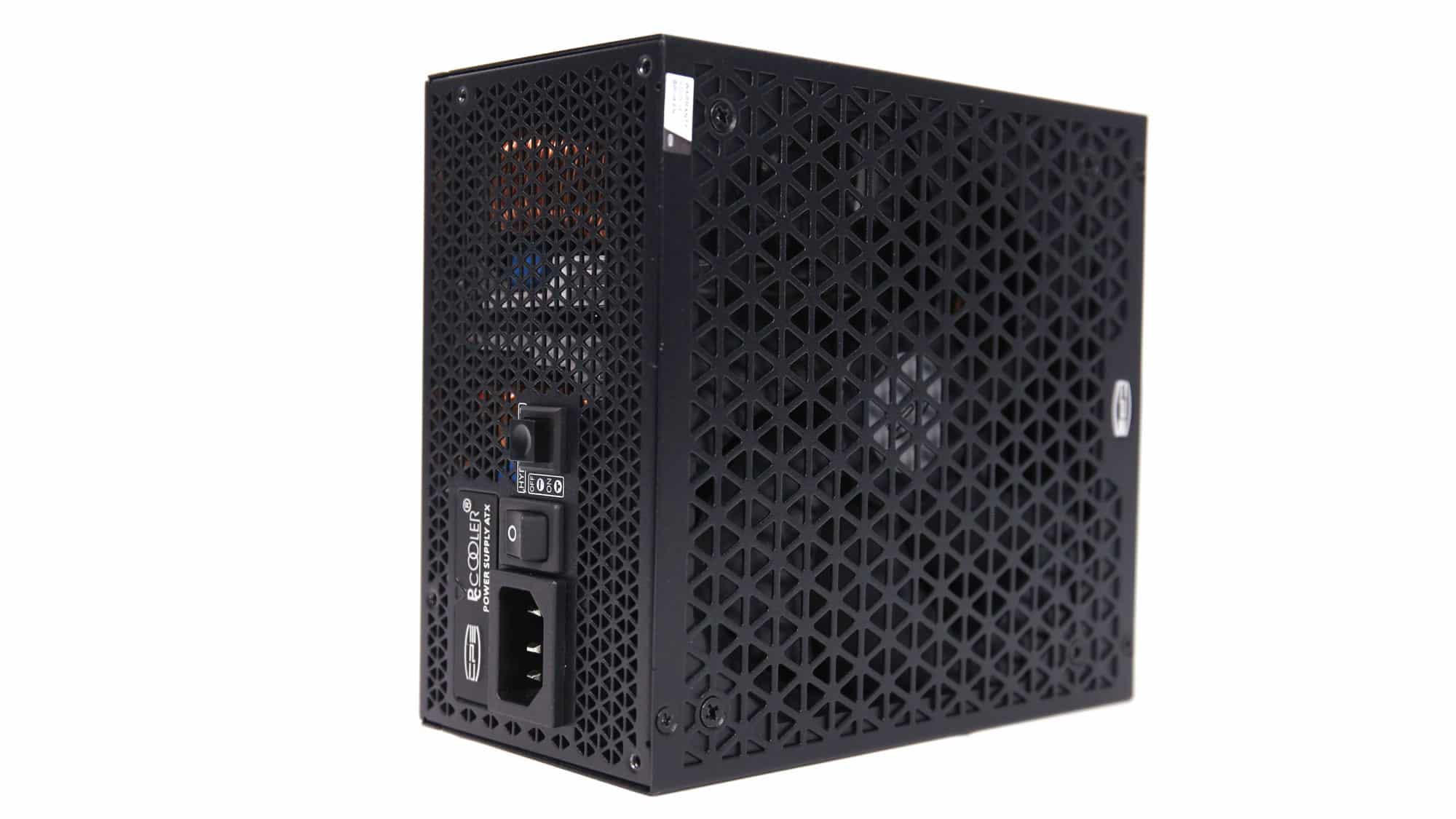

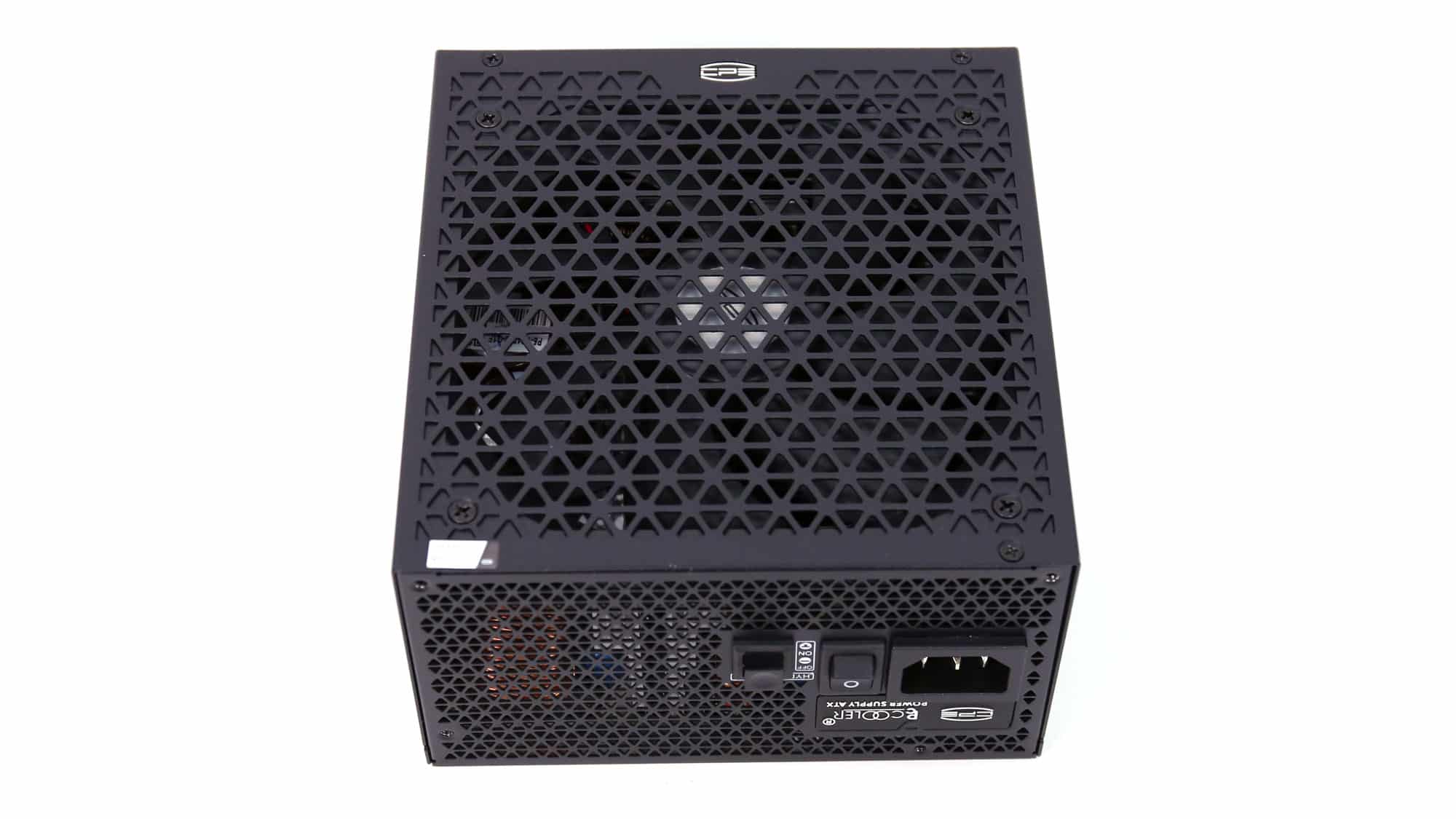

The exterior design stands out from the crowd thanks to the triangular perforations in the fan grille. On the front side, for the PSU’s exhaust, the same triangle-style perforations are used. On the same side, besides the AC receptacle and the power switch, you will also find a smaller switch for toggling the fan’s passive operation on or off.

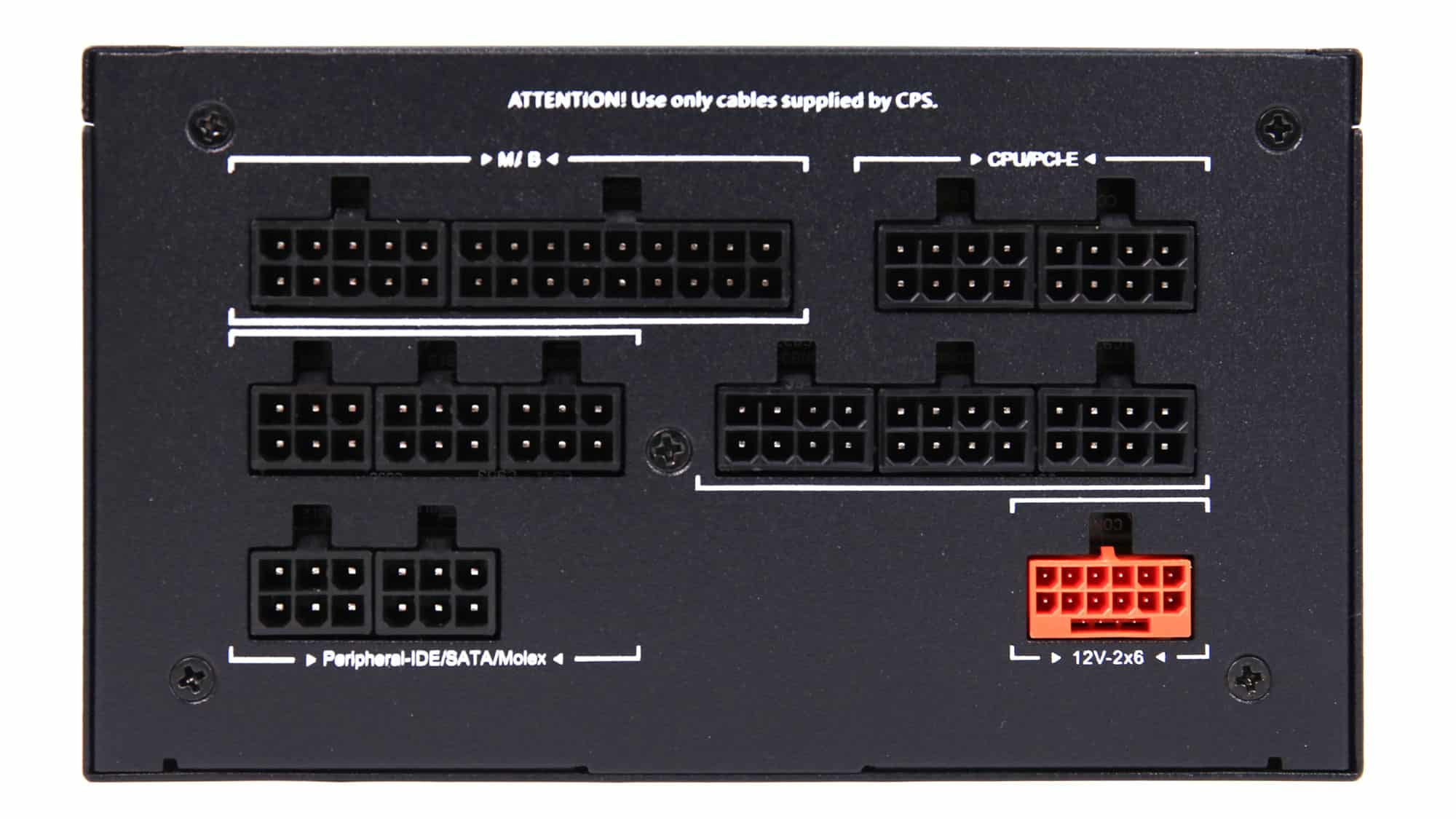

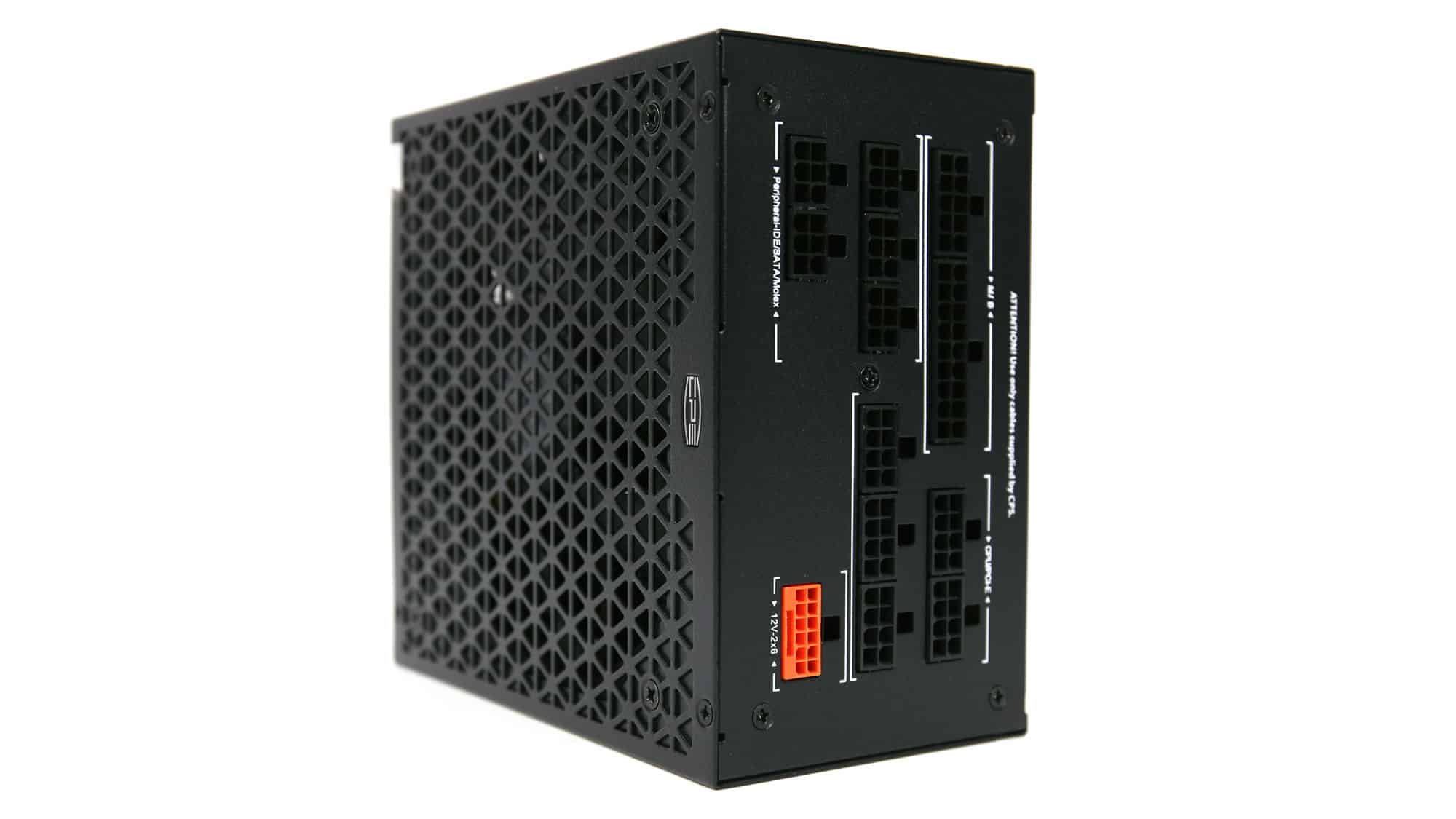

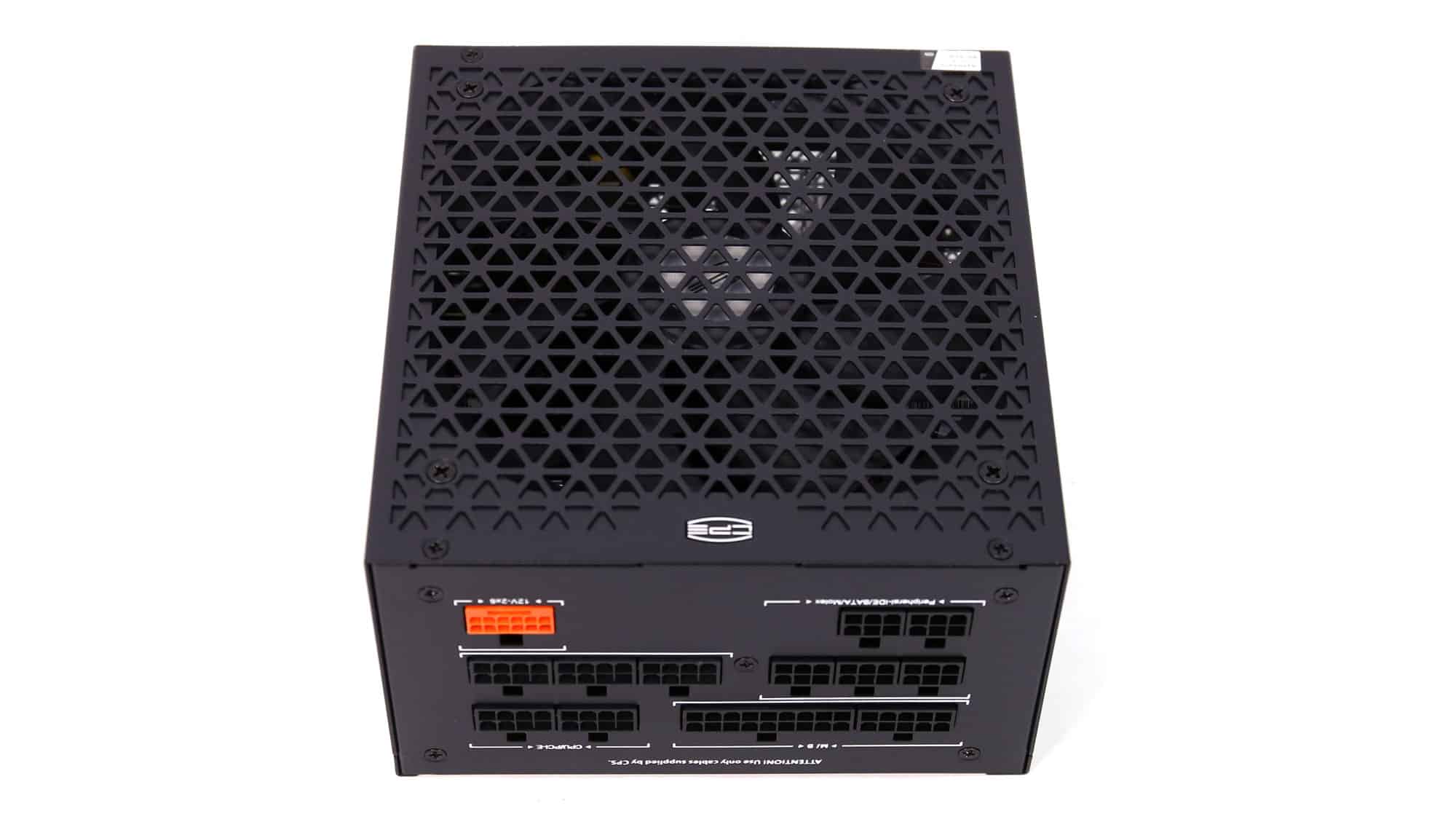

The modular panel has 13x sockets, including a native 12V-2×6 header.

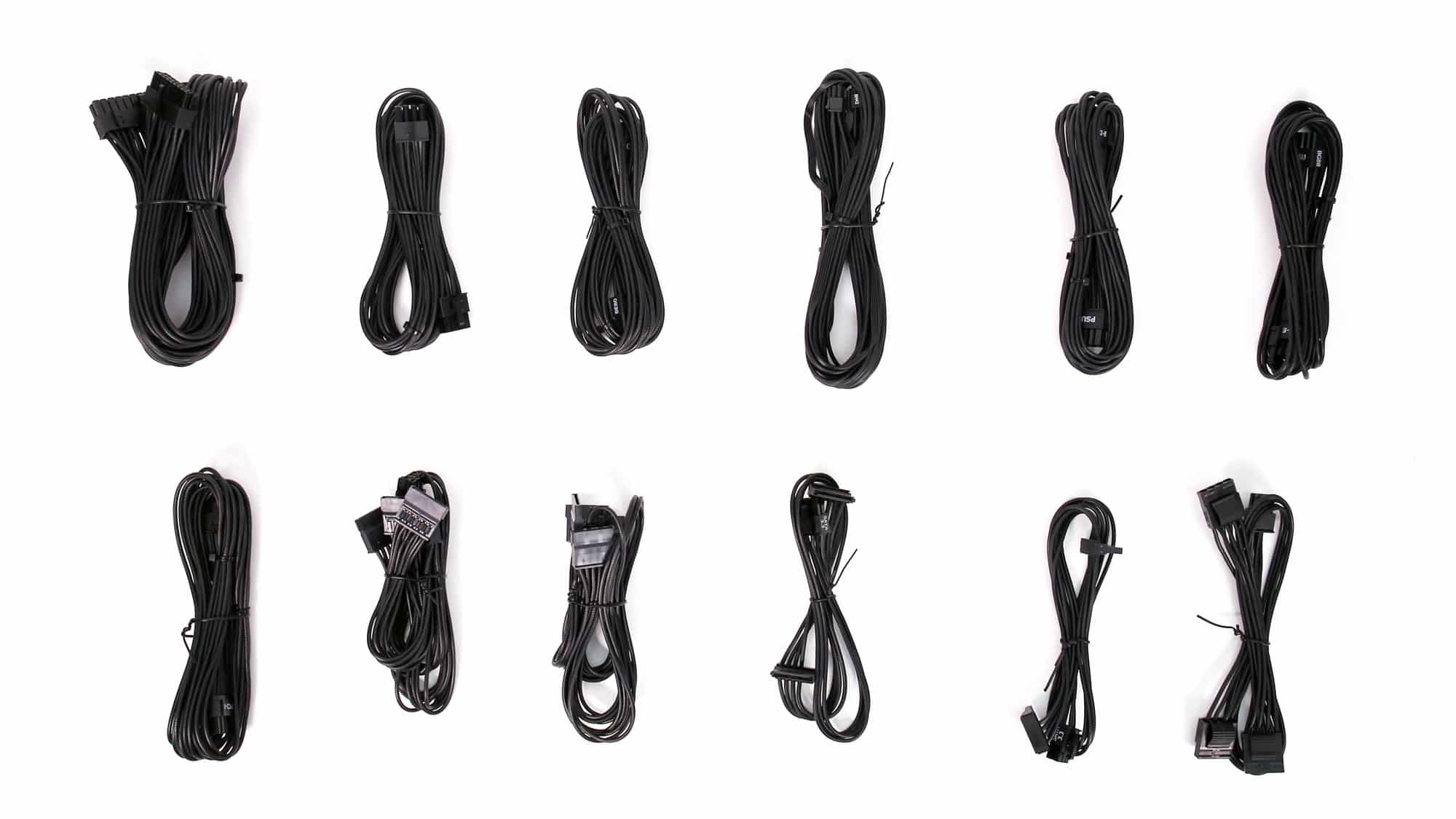

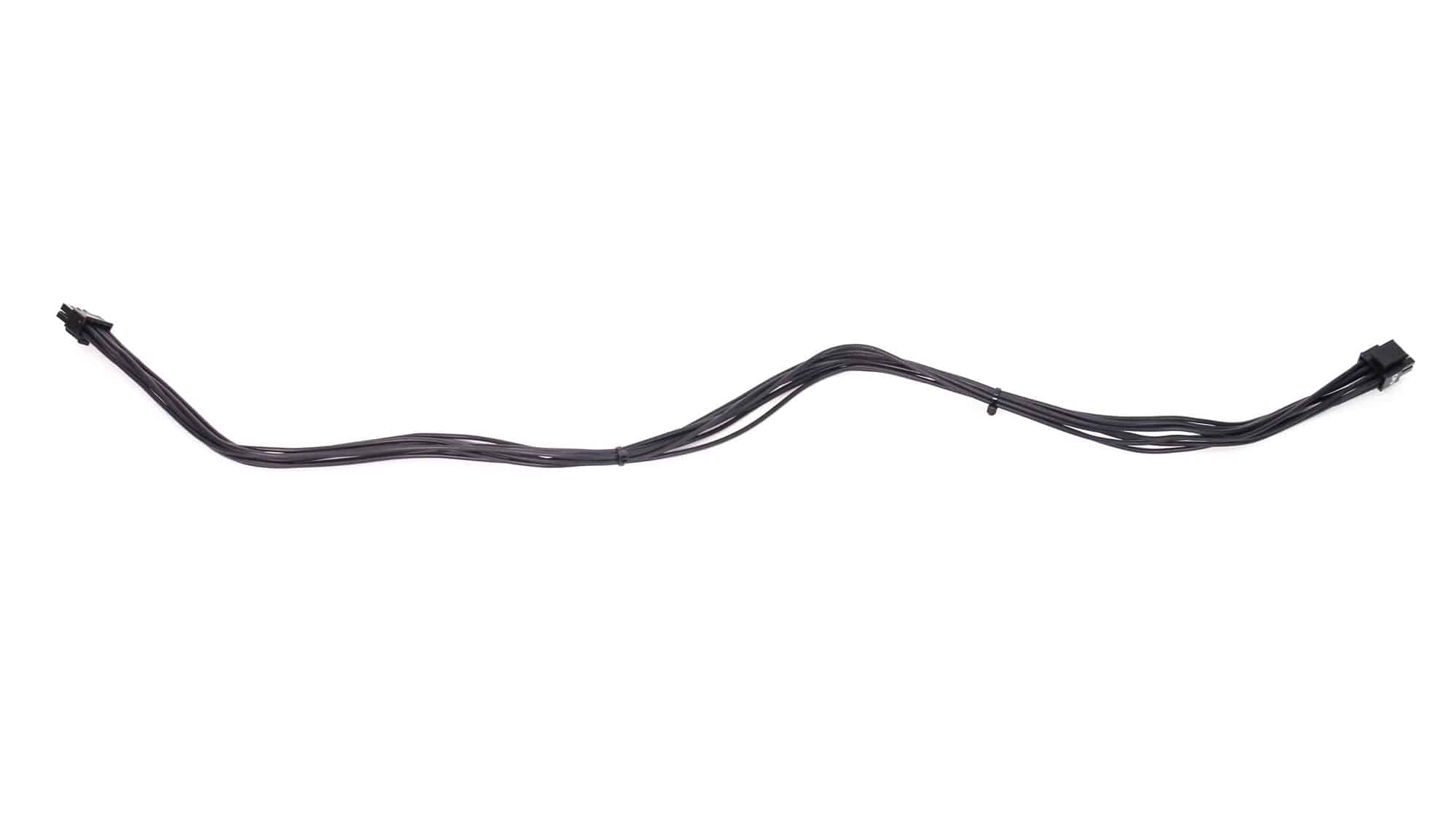

| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|

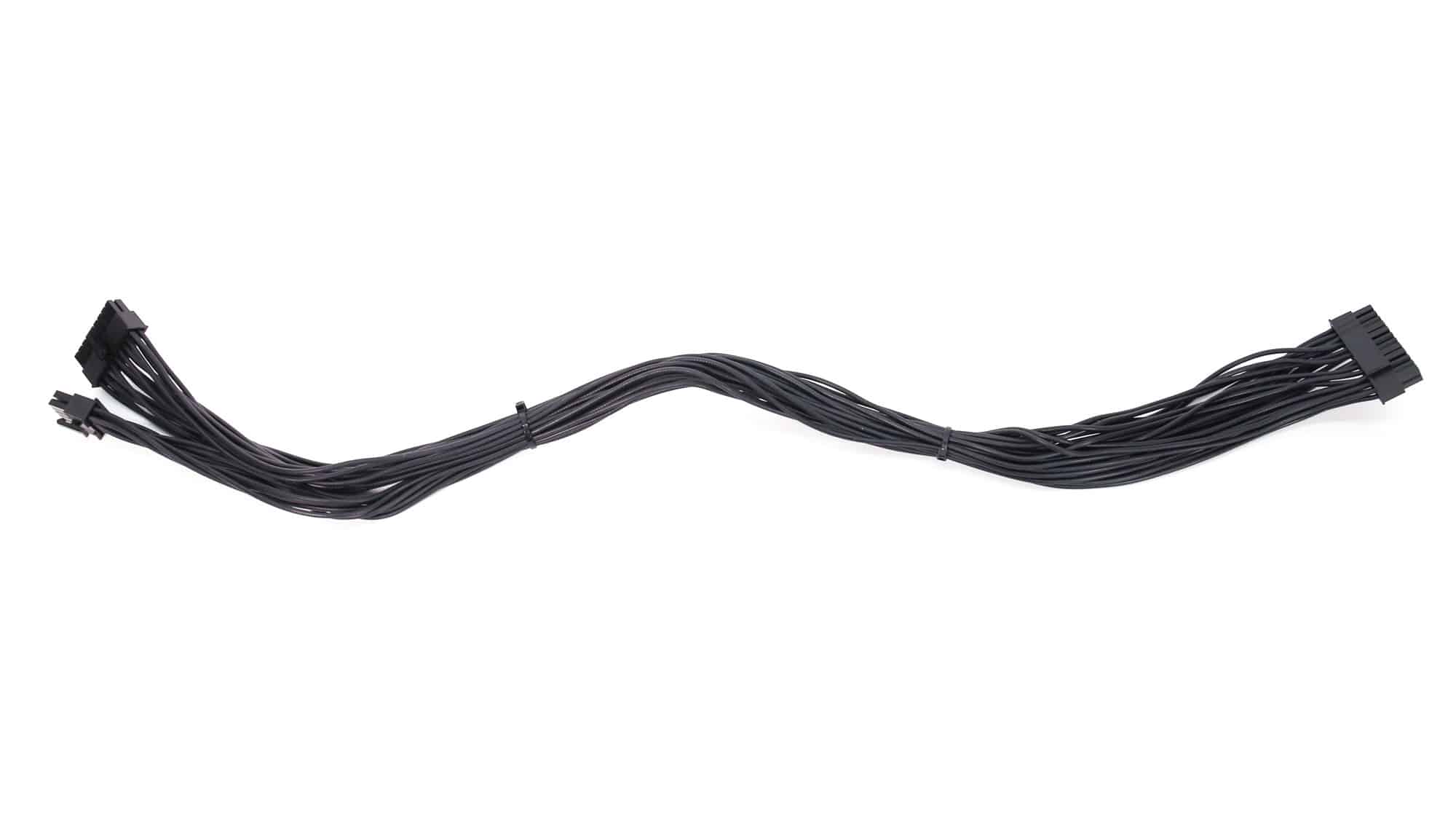

| ATX connector 20+4 pin (610mm) | 1 | 1 | 16-18AWG | No |
| 4+4 pin EPS12V (710mm) | 2 | 2 | 16AWG | No |

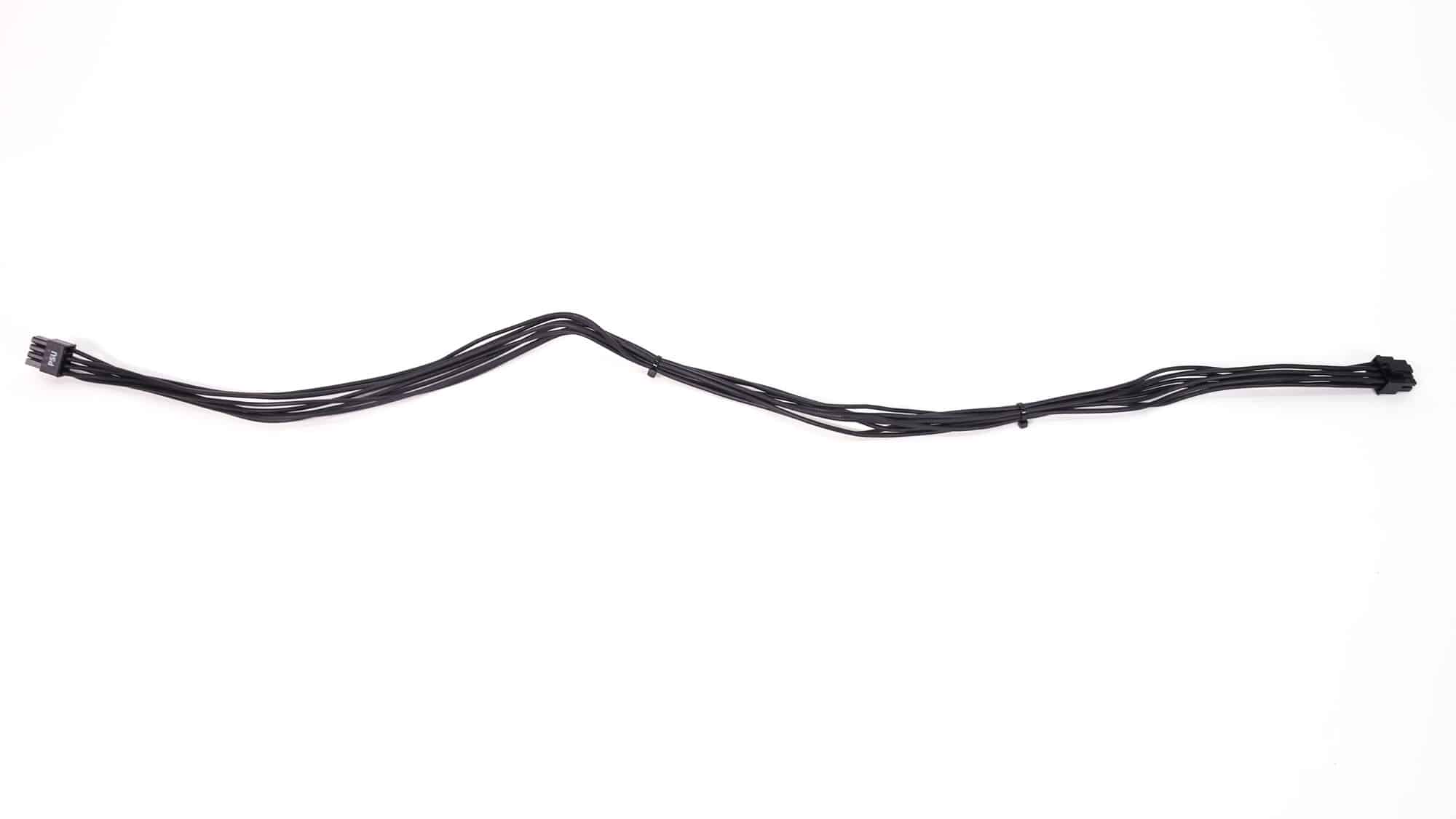

| 6+2 pin PCIe (760mm) | 2 | 2 | 16-18AWG | No |
| 12+4 pin PCIe (700mm) (600W) | 1 | 1 | 16-28AWG | No |

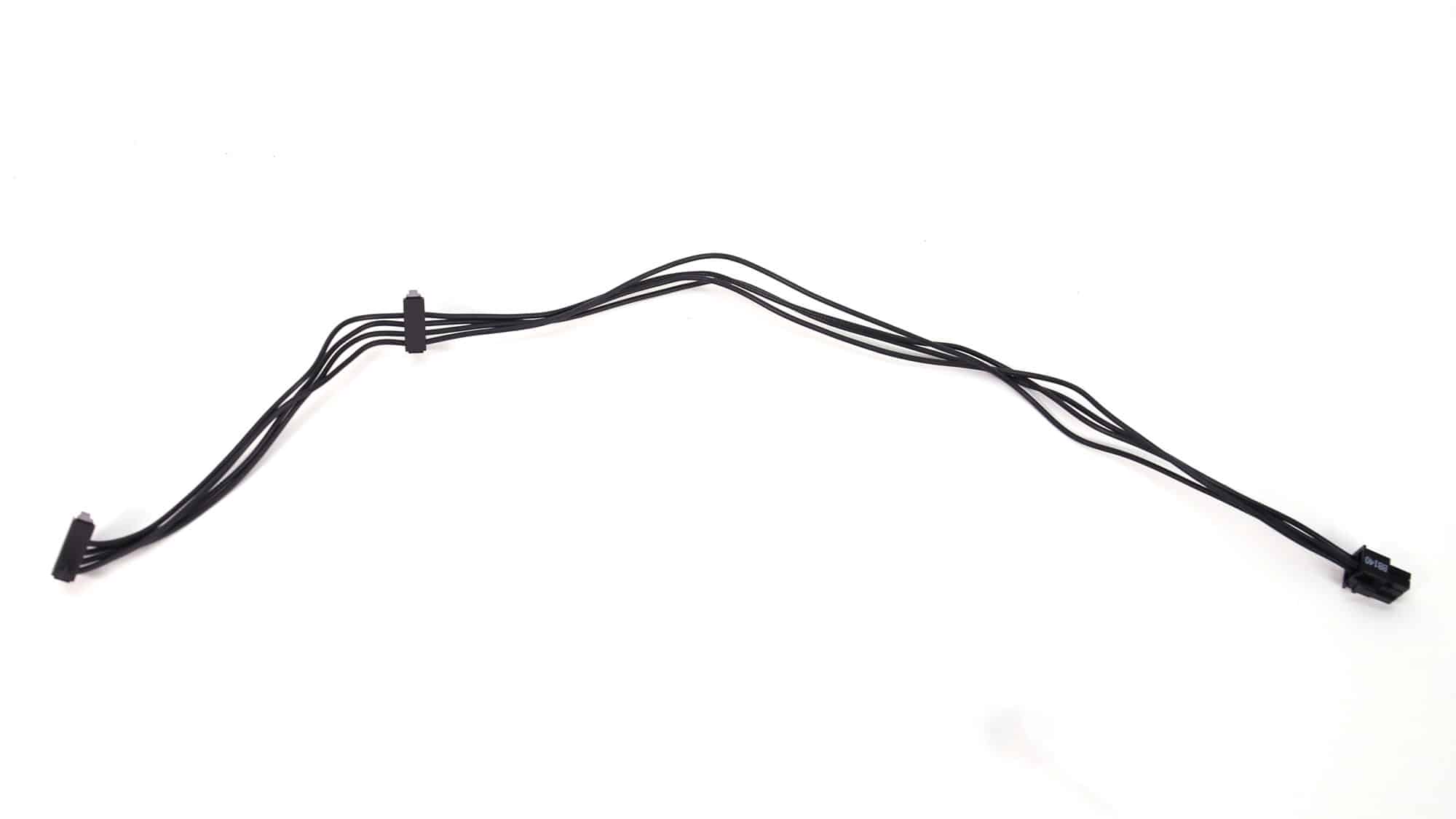

| SATA (410mm+155mm) | 1 | 2 | 18AWG | No |

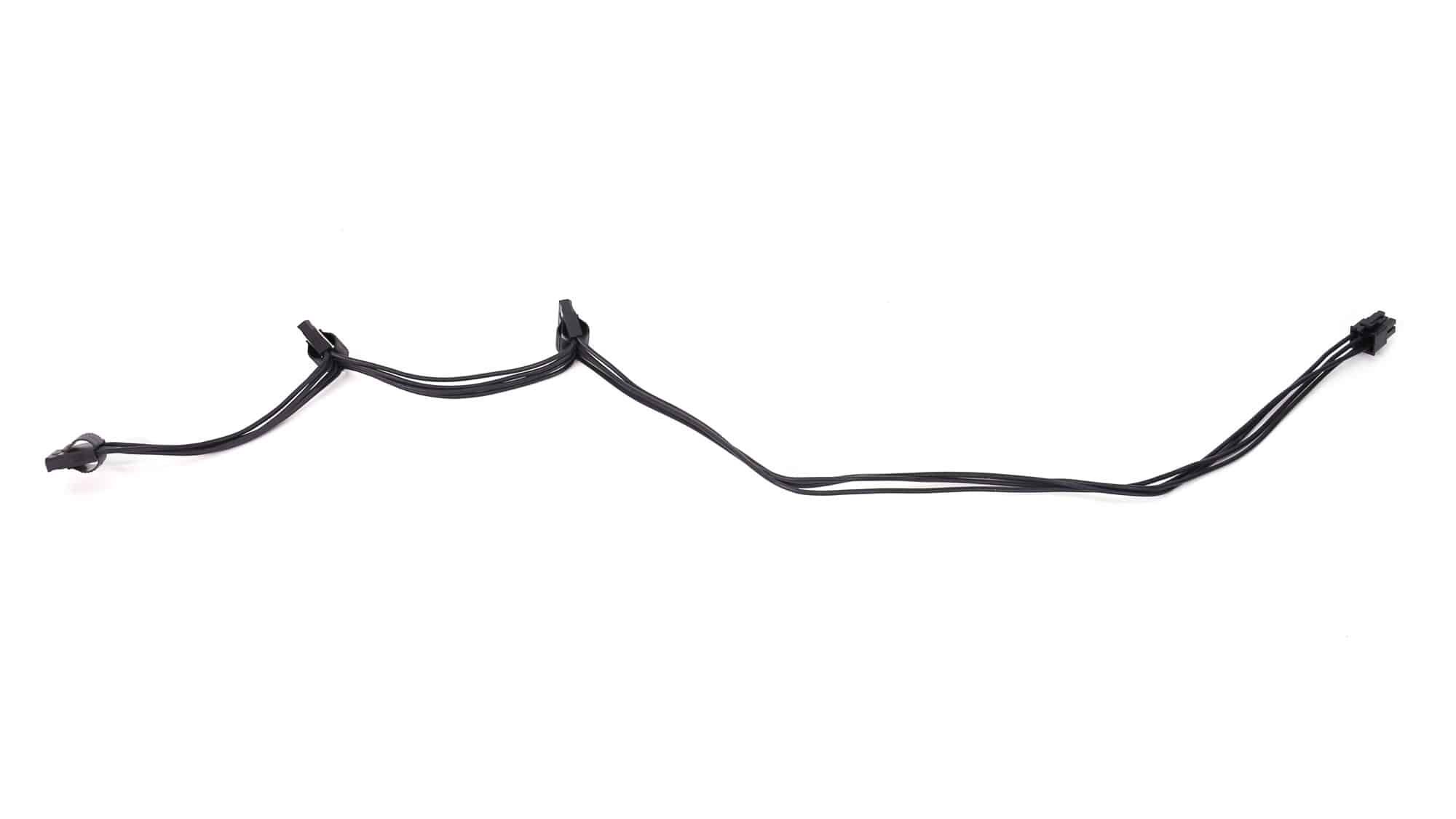

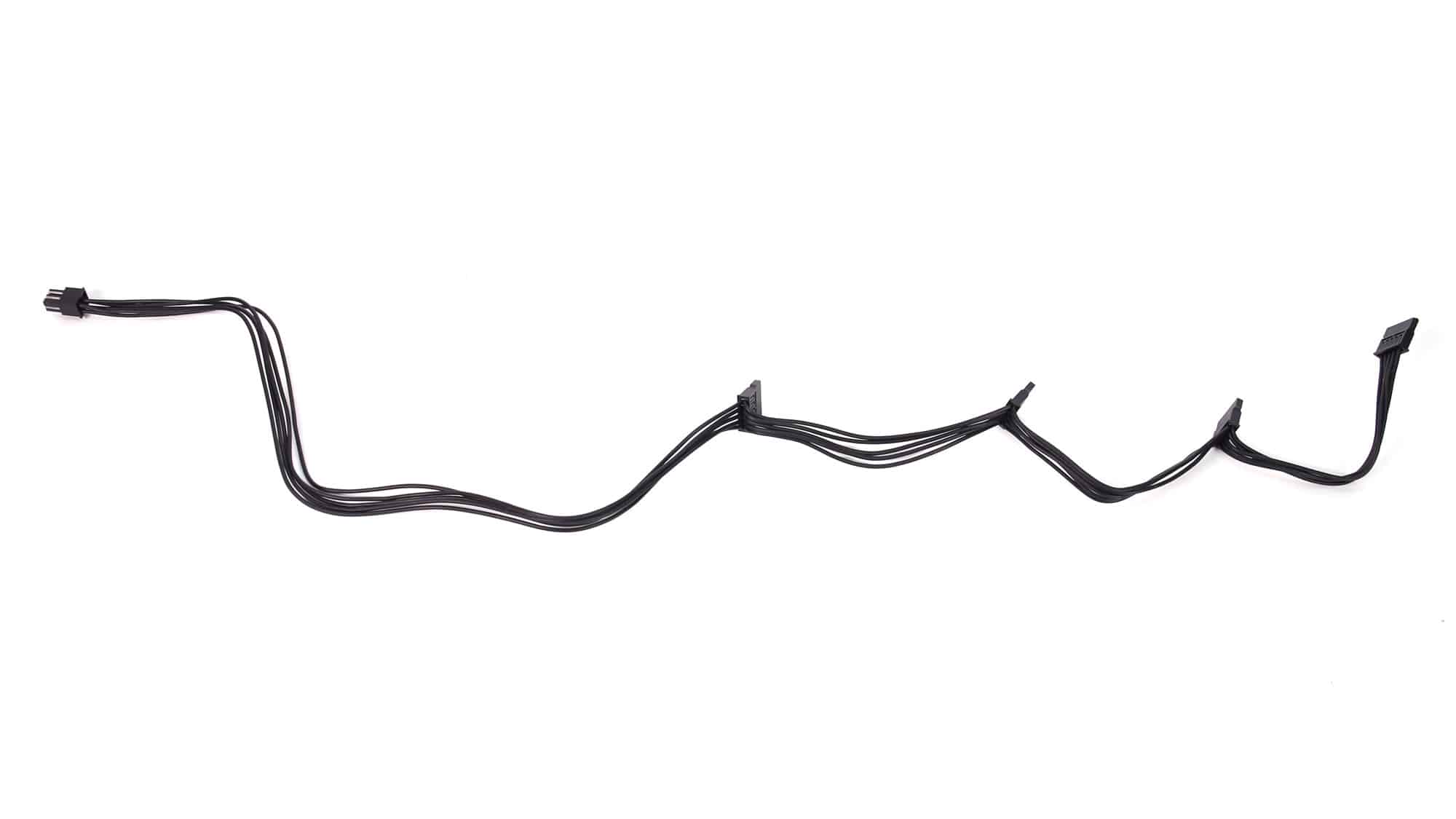

| SATA (500mm+155mm+155mm+155mm) | 2 | 8 | 18AWG | No |
| 4-pin Molex (450mm+125mm+125mm) | 1 | 3 | 18AWG | No |

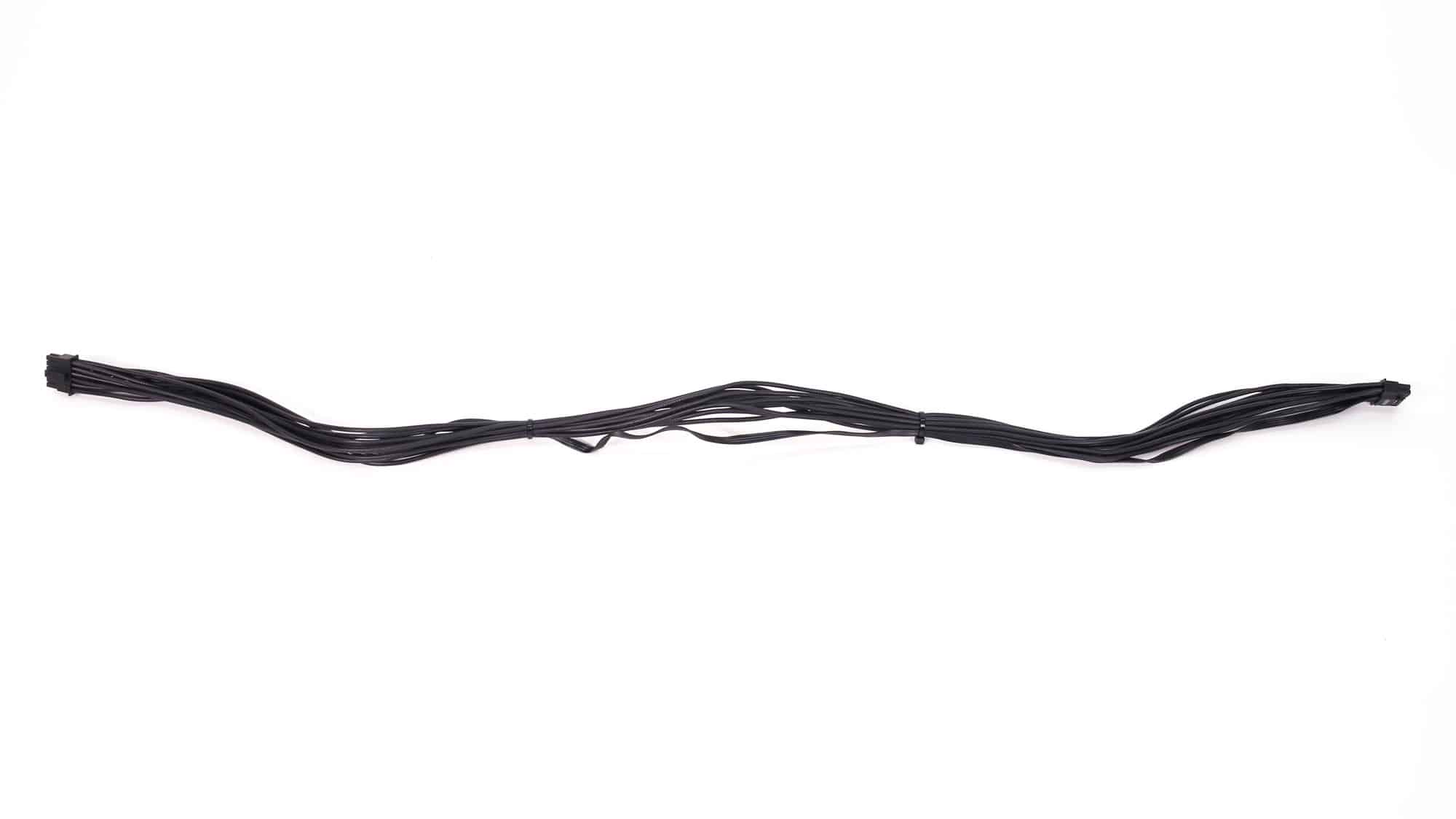

The cables are long enough, and the high-power cables use thicker, 16AWG, for lower voltage drops at high loads. The number of peripheral connectors is sufficient. The SATA connectors have adequate spacing, but there is less spacing between the 4-pin Molex connectors.
