Box & Bundle
I got early production units without the finalized box, so here is a photo of Hazelnut!
Product Photos

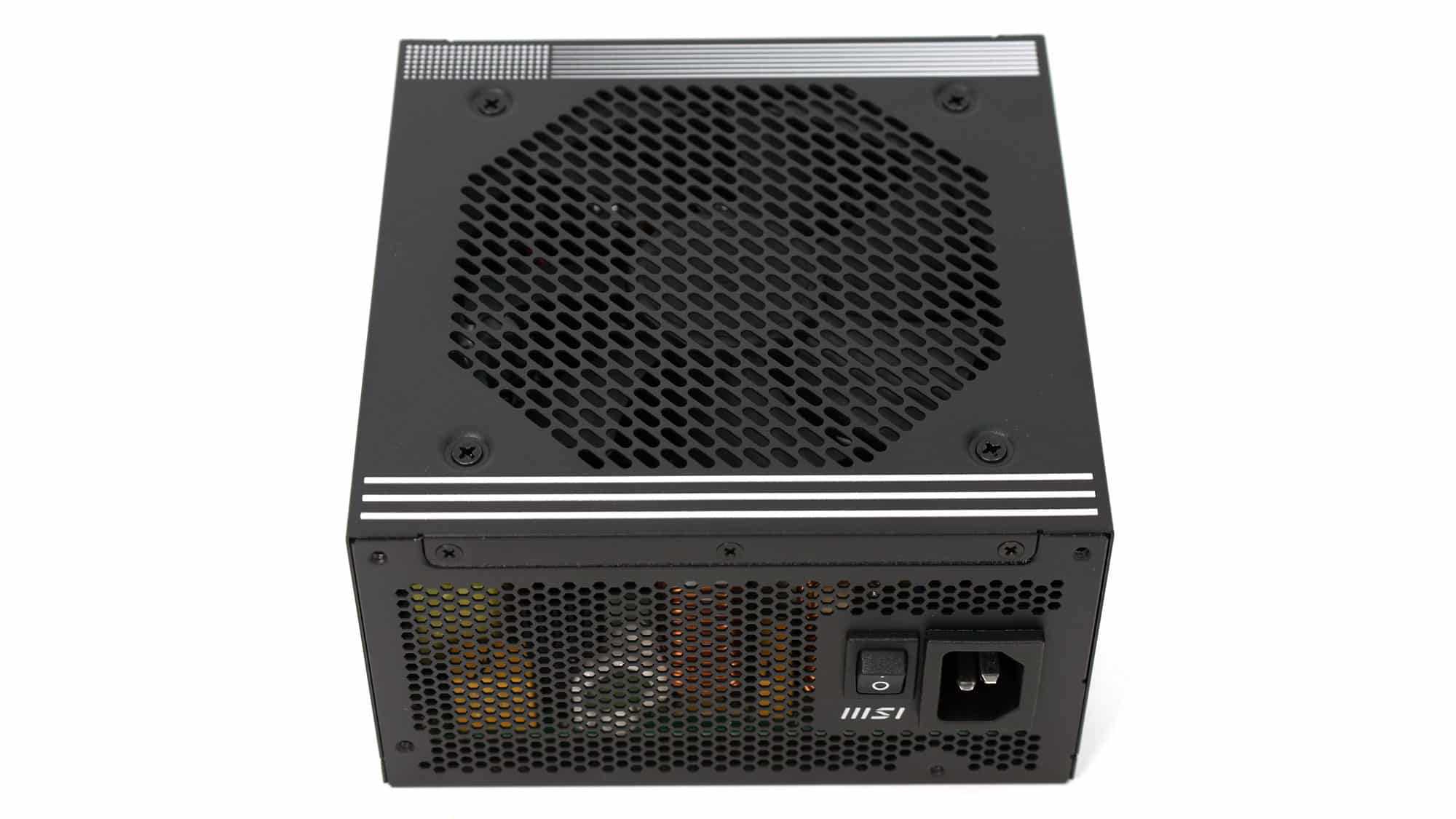

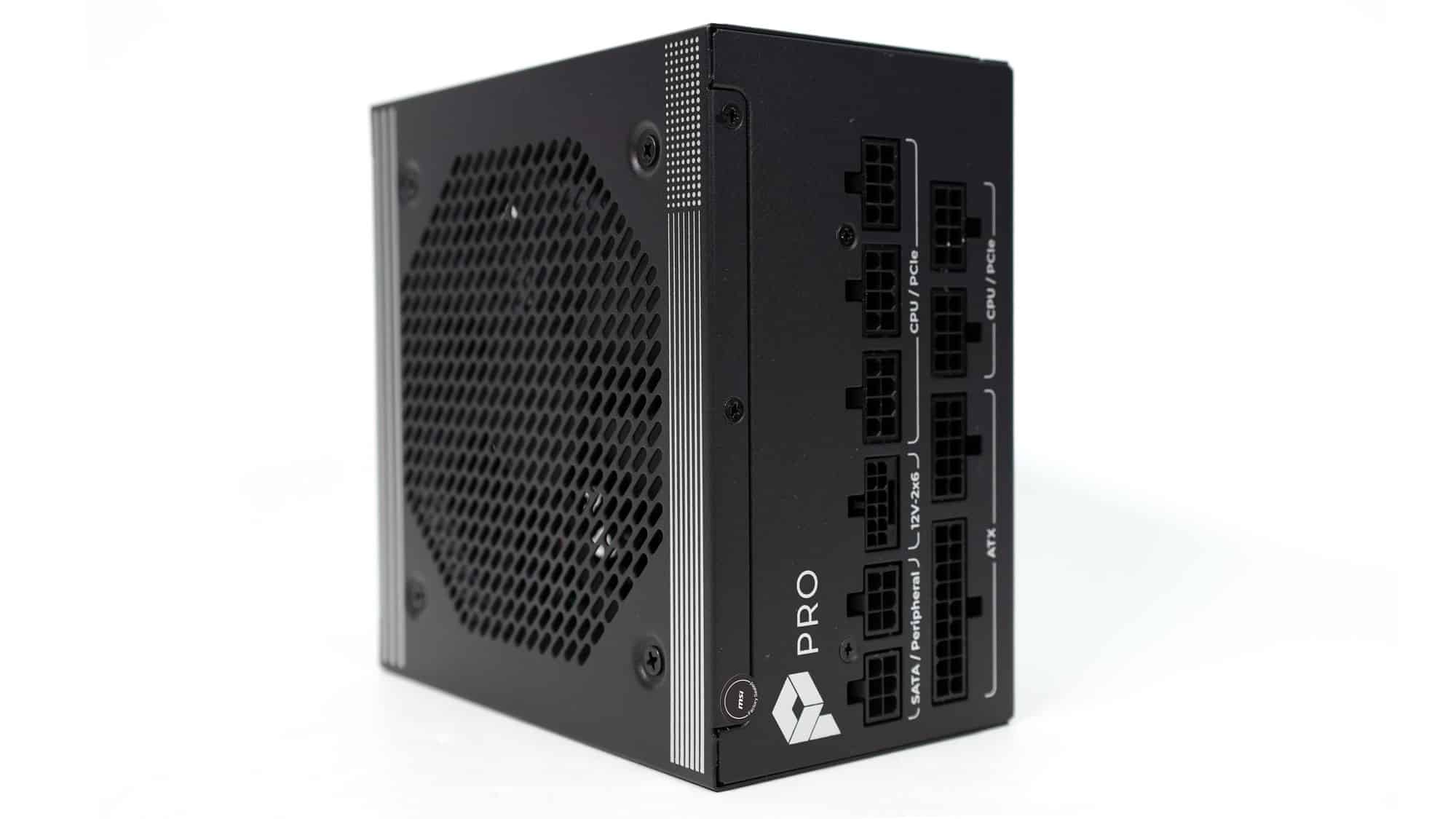

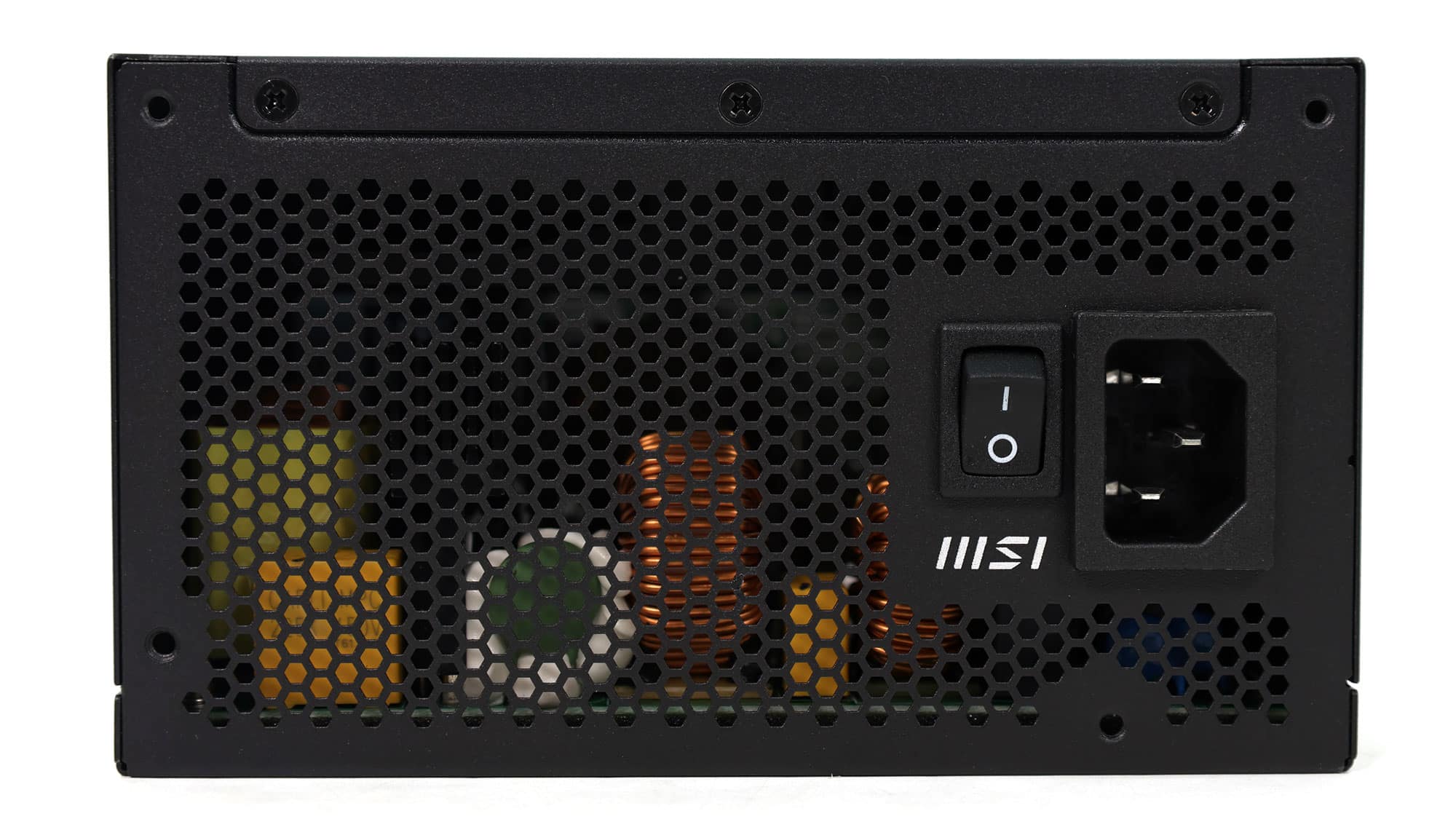

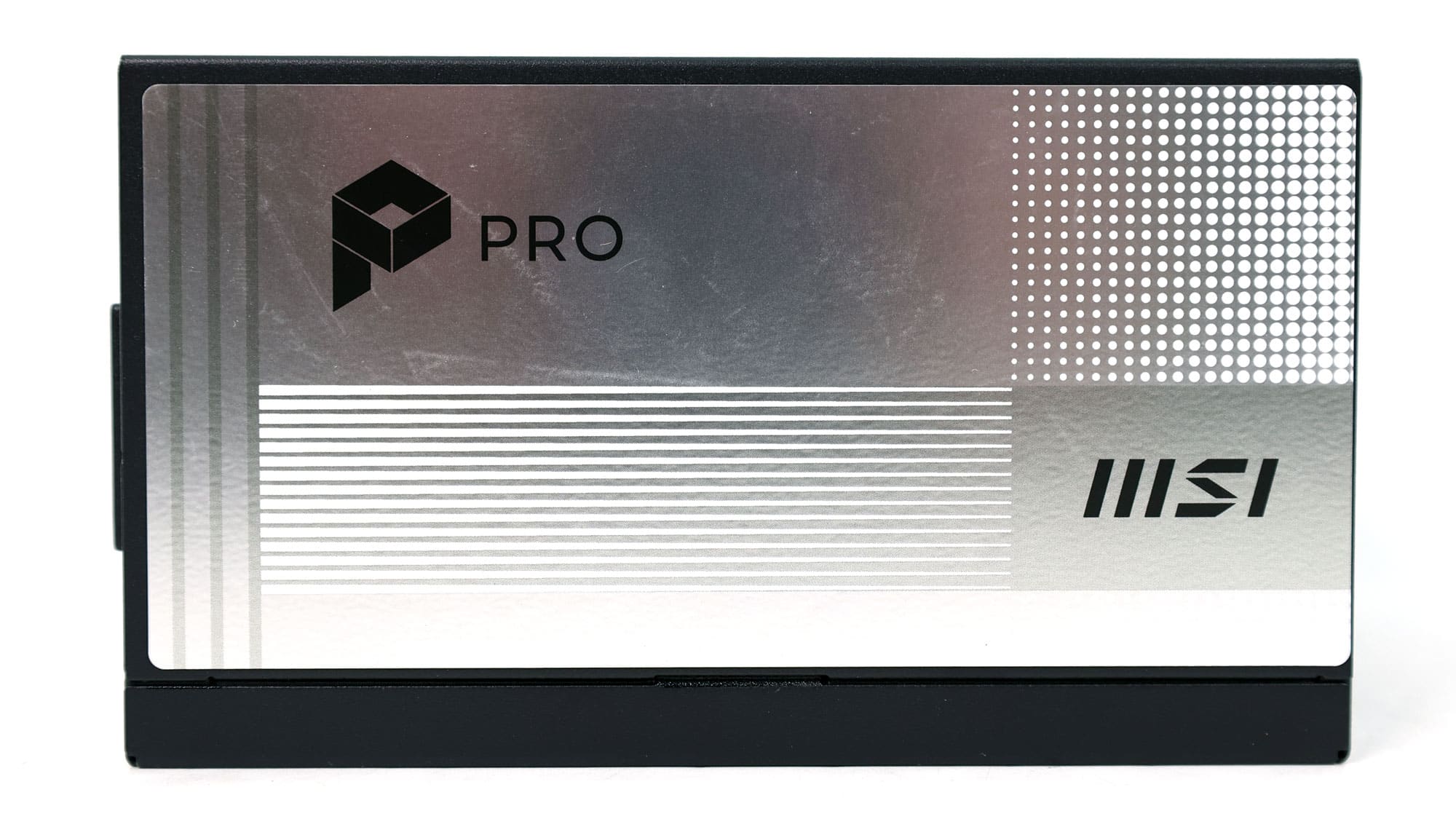

The PSU’s dimensions are normal to compact, I’d say, thanks to the 150mm depth. The exterior design gets a boost thanks to the silver side stickers. At the front is the power switch and the AC receptacle.

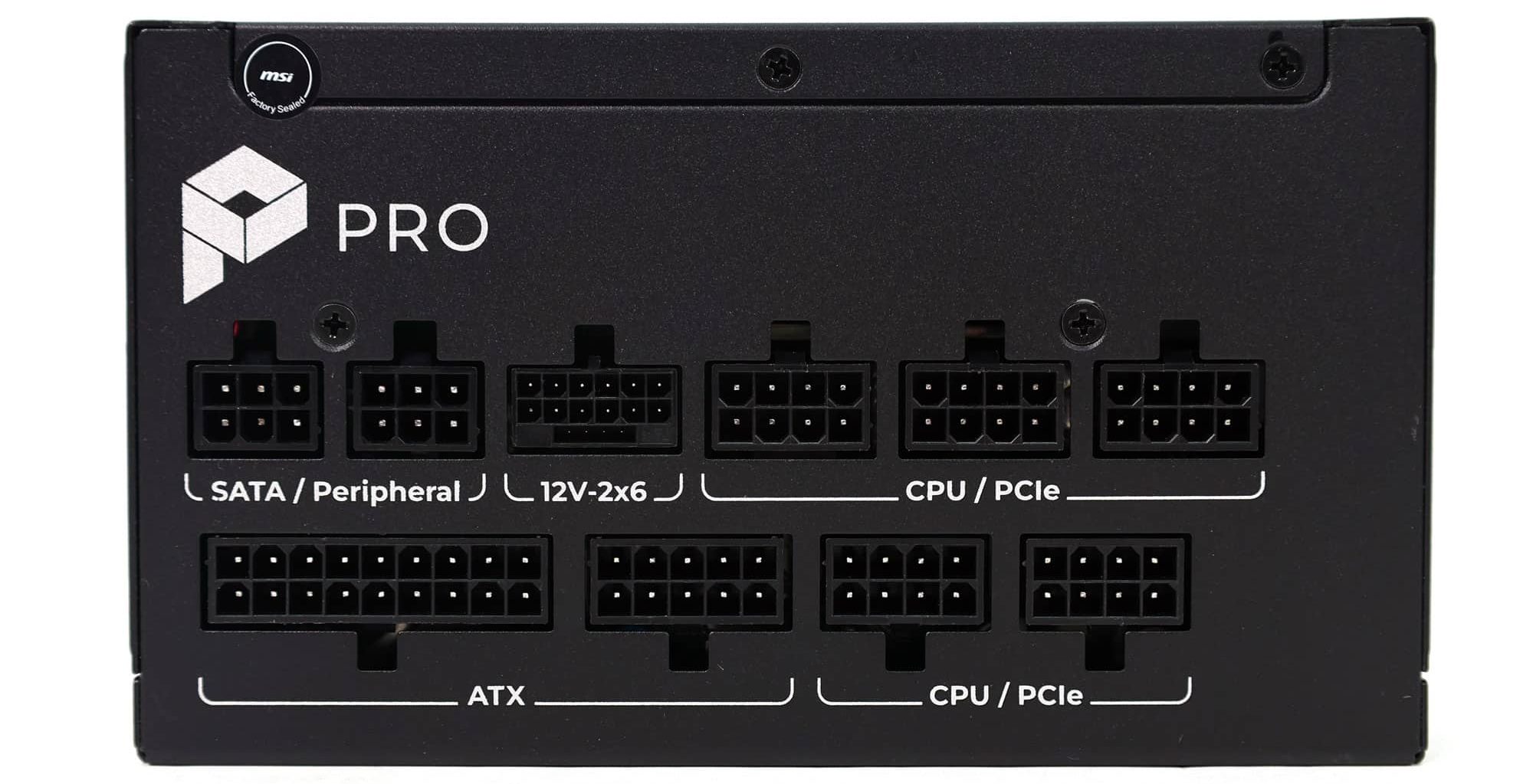

The modular panel has ten sockets, including a native 12V-2×6 header.
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
|---|---|---|---|---|
| ATX connector 20+4 pin (610mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm) | 3 | 3 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (605mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (450mm+120mm+120mm) / 4-pin Molex (+125mm) | 2 | 6 / 2 | 18AWG | Tinned Copper |
| AC Power Cord (1390mm) – C13 coupler | 1 | 1 | 18AWG | – |
The cables are long enough, and most use the standard 18AWG gauges. Thicker (16AWG) gauges provide lower voltage drop at high loads, so they are preferable for high-wattage PSUs and in connectors where high currents typically flow. This is why 16AWG gauges are imperative for 12V-2×6 cables.
The number of peripheral connectors is sufficient, but the spacing between them is not that long.
