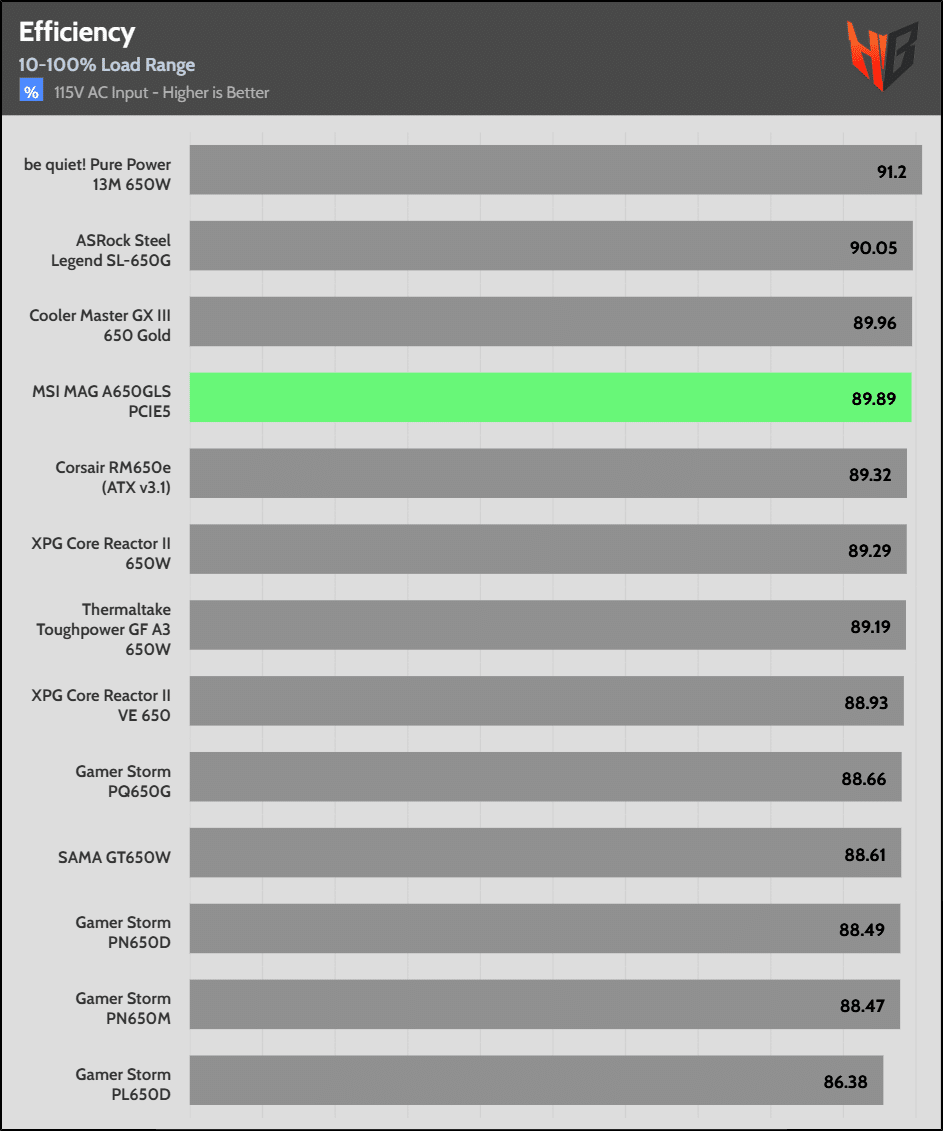

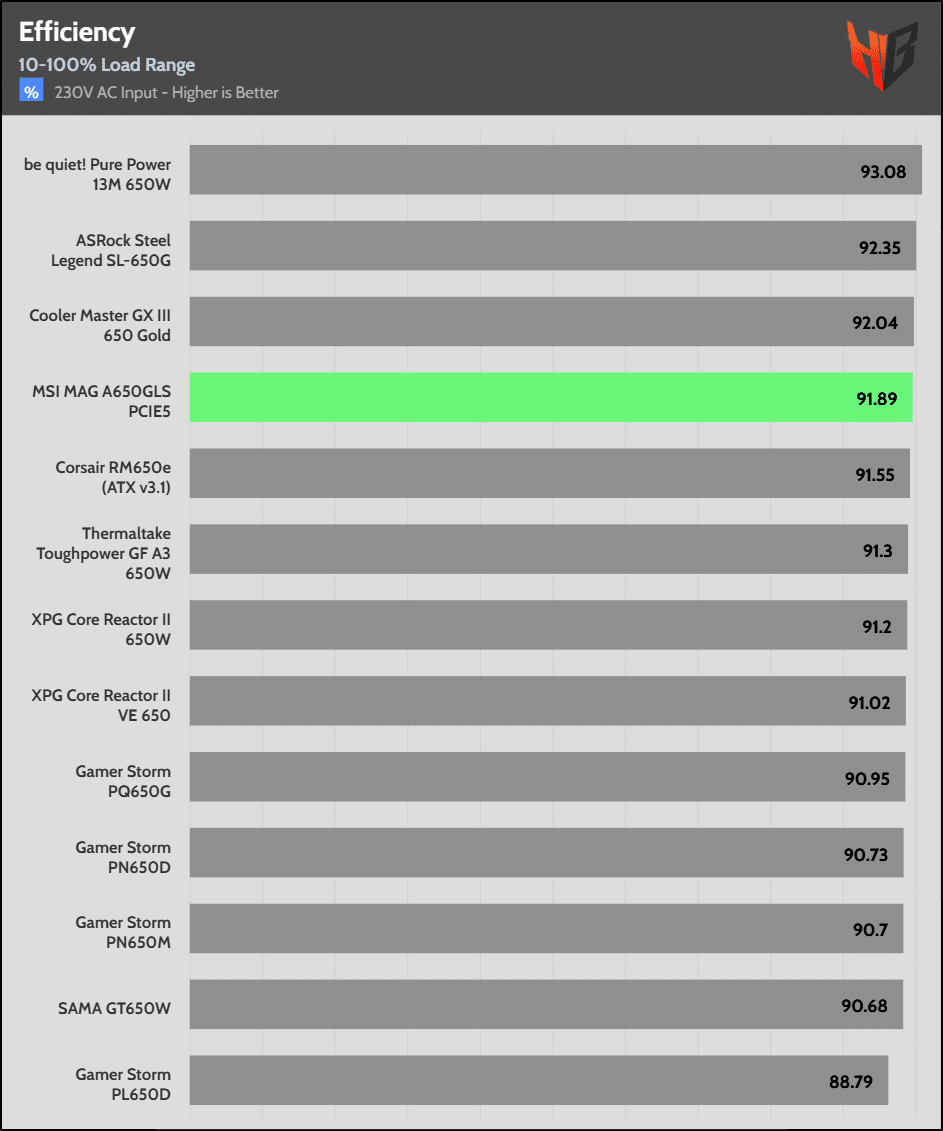

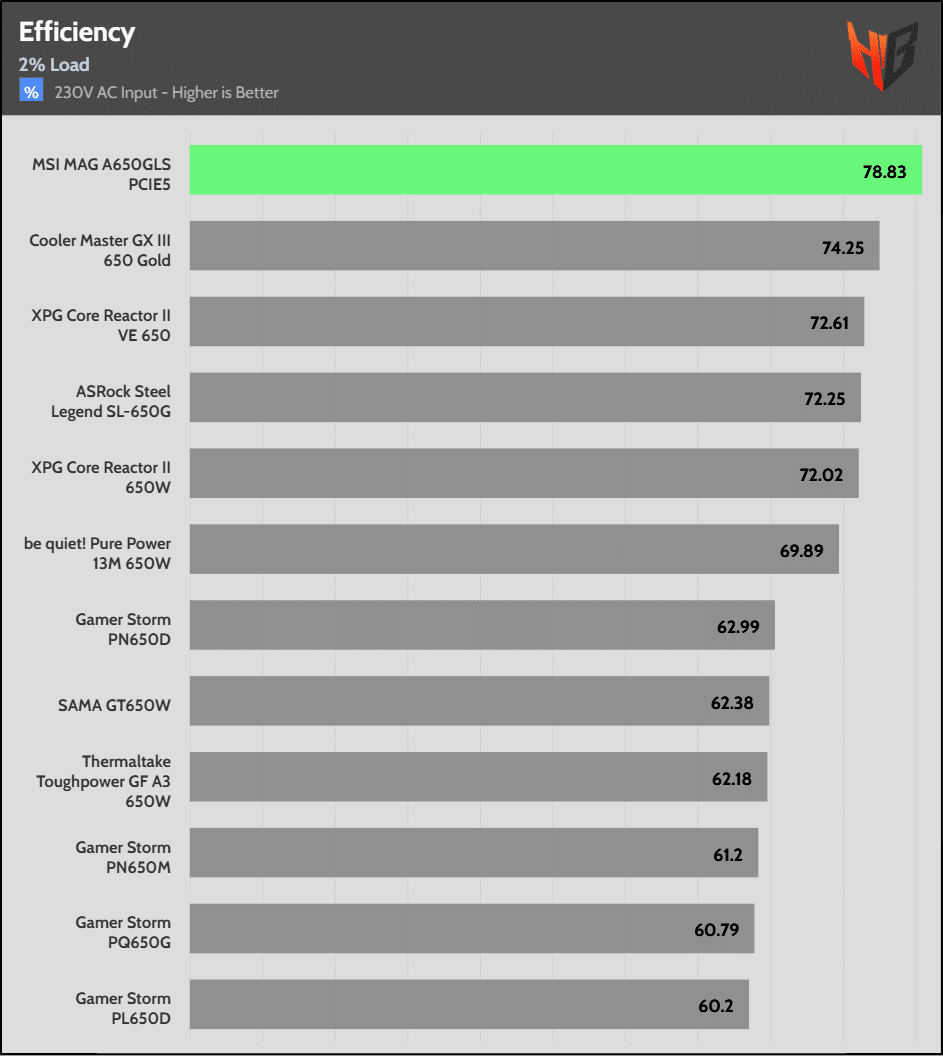

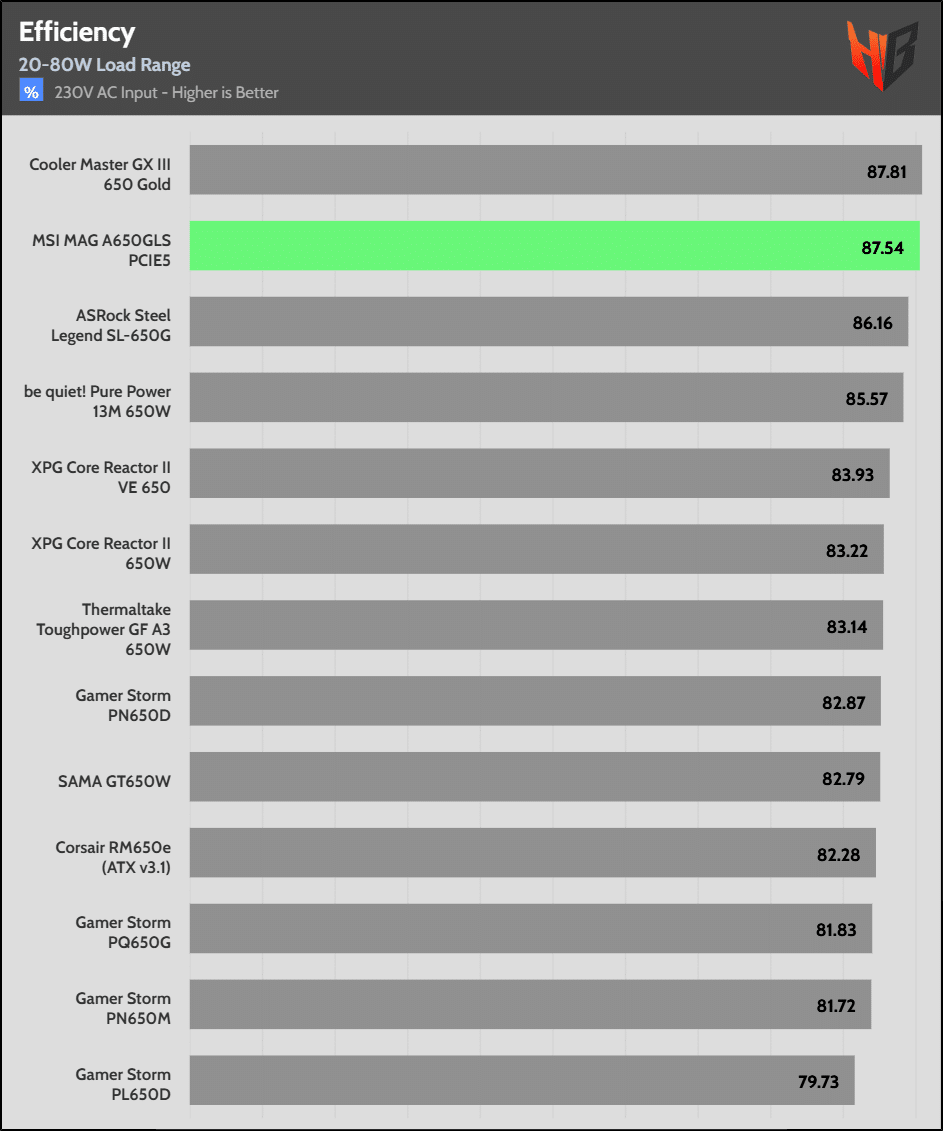

Efficiency Normal, Light & Super-Light Loads
Efficiency is high across all load ranges, particularly in the lighter ones.

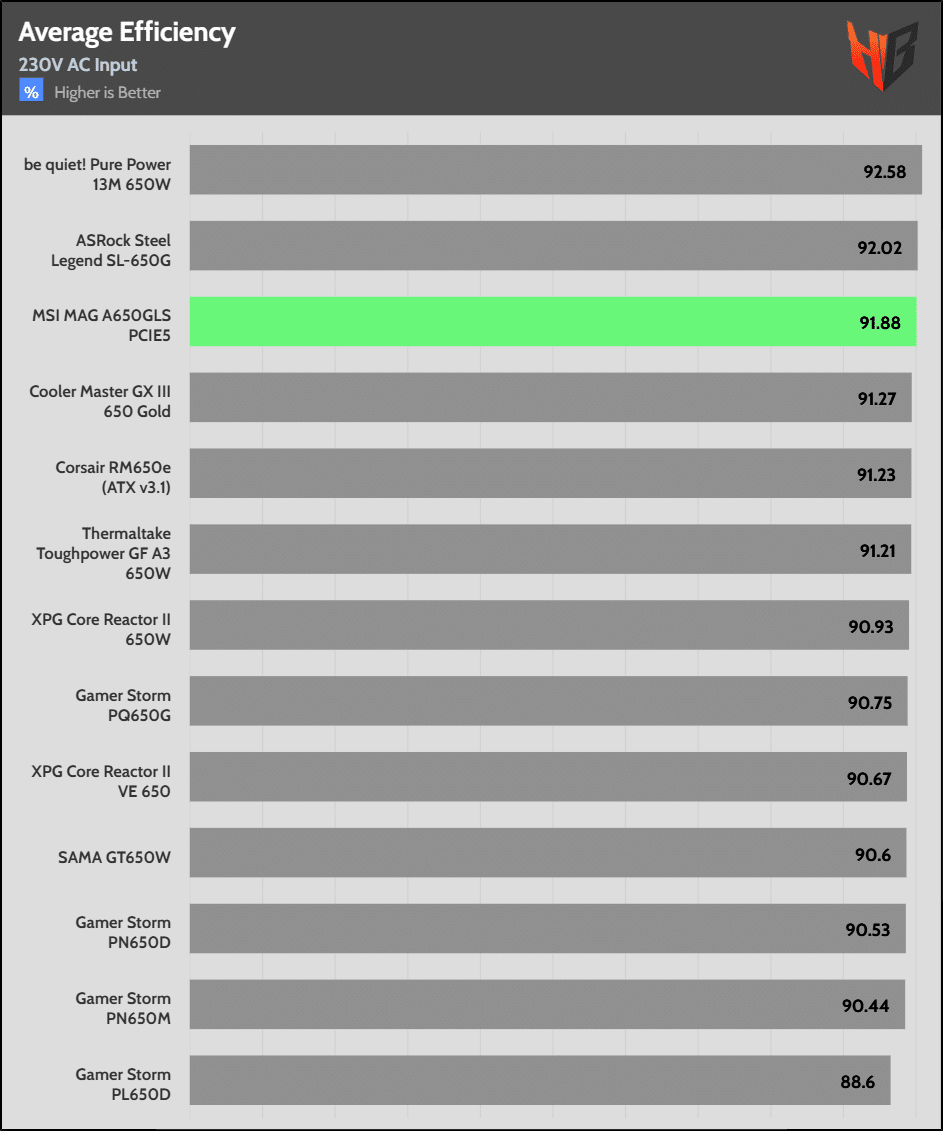

Average Efficiency
The average efficiency meets the Cybenetics Platinum criteria. Nonetheless, MSI decided to “downgrade” this badge to Gold.

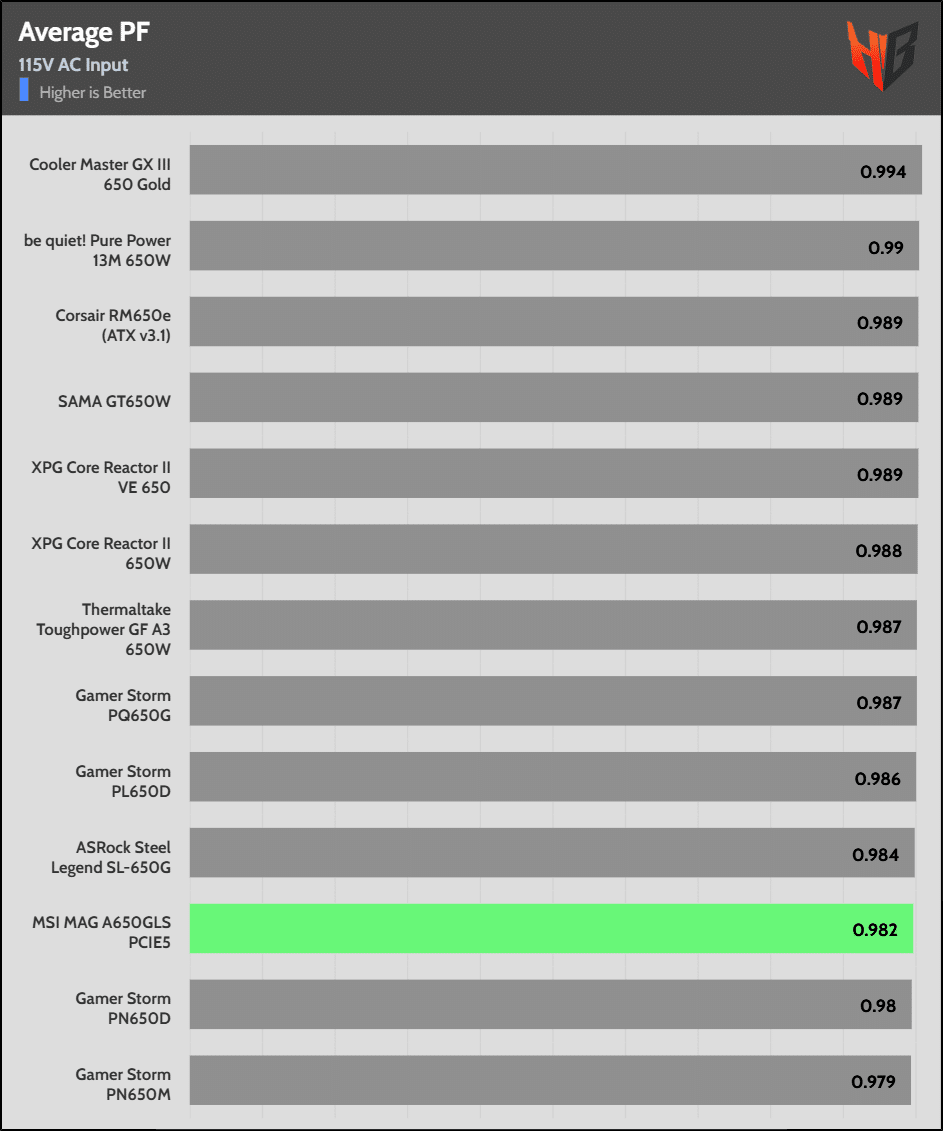

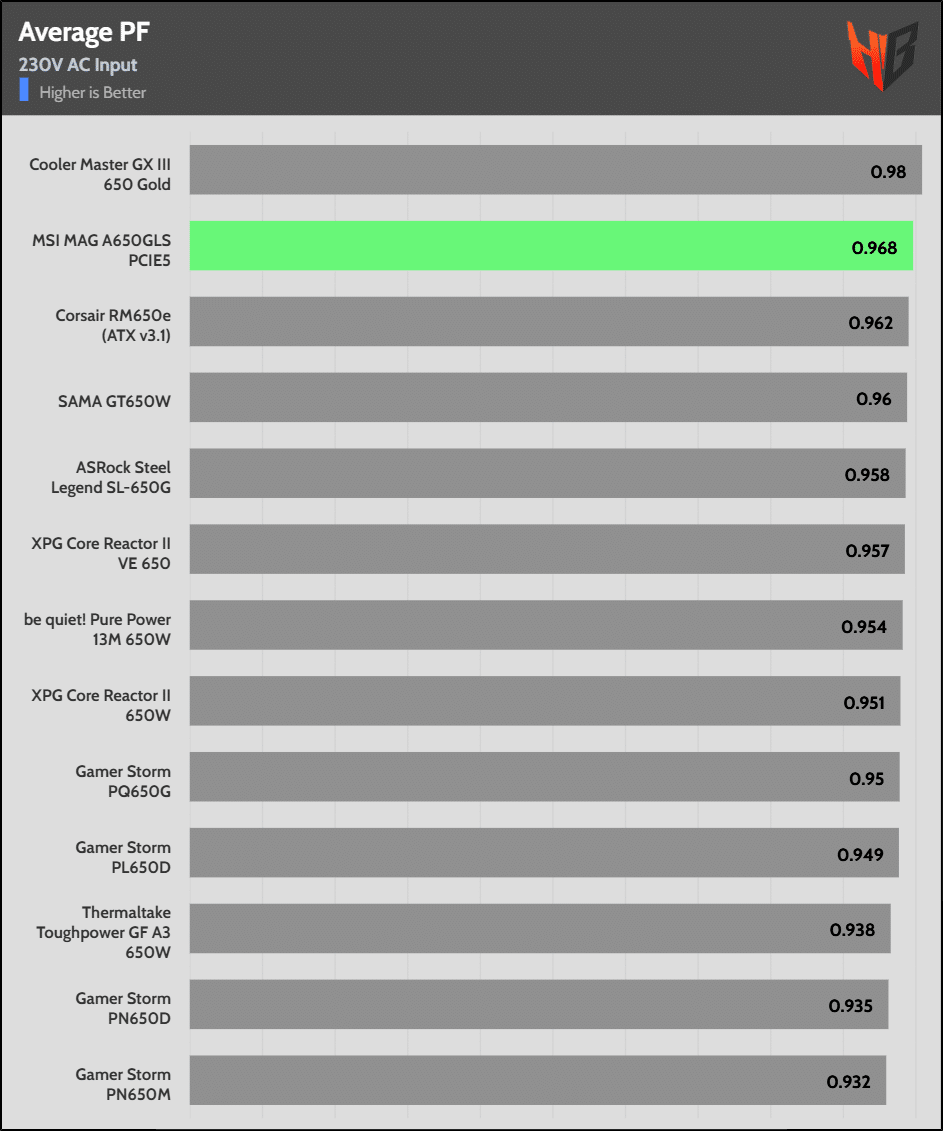

Average PF
The APFC converter has room for improvement at 115V, but it achieves good performance at 230V.

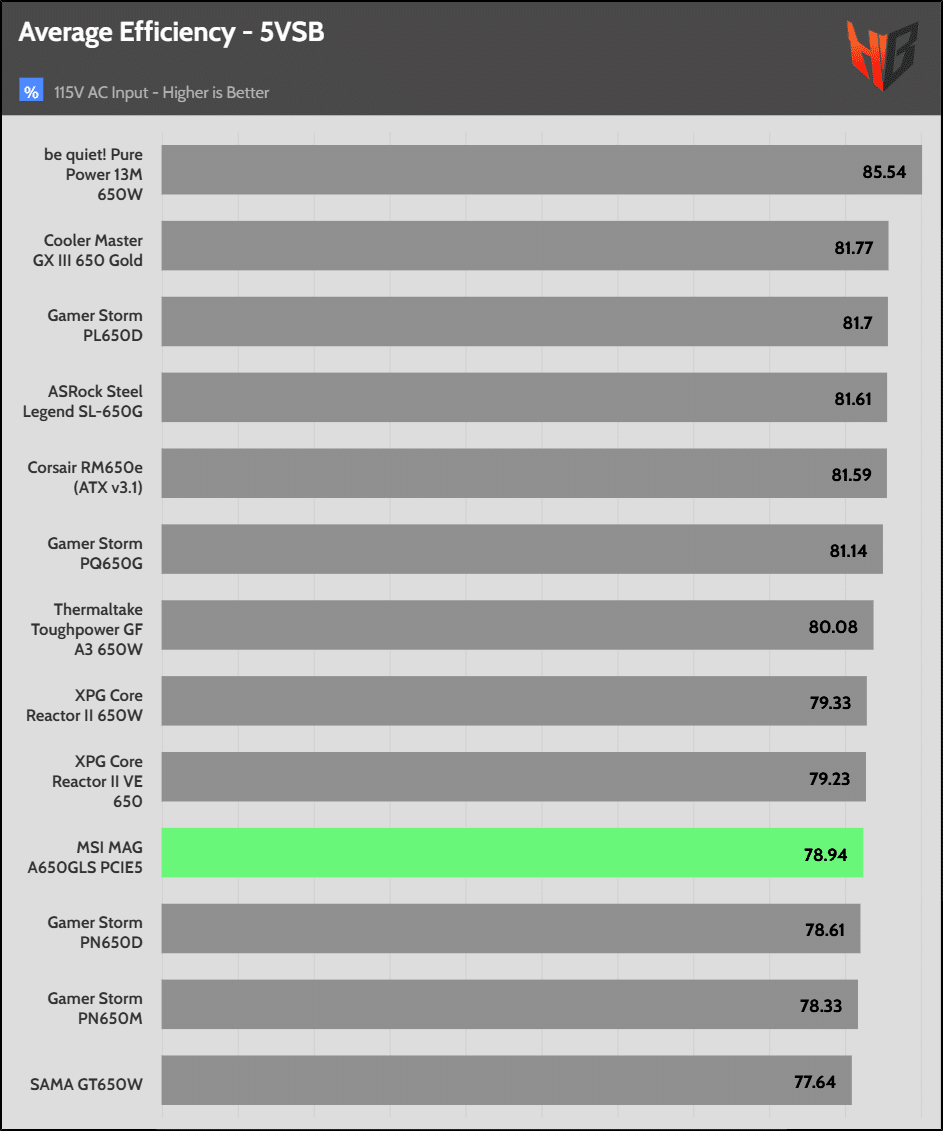

Average Efficiency 5VSB
The 5VSB rail’s efficiency is low.

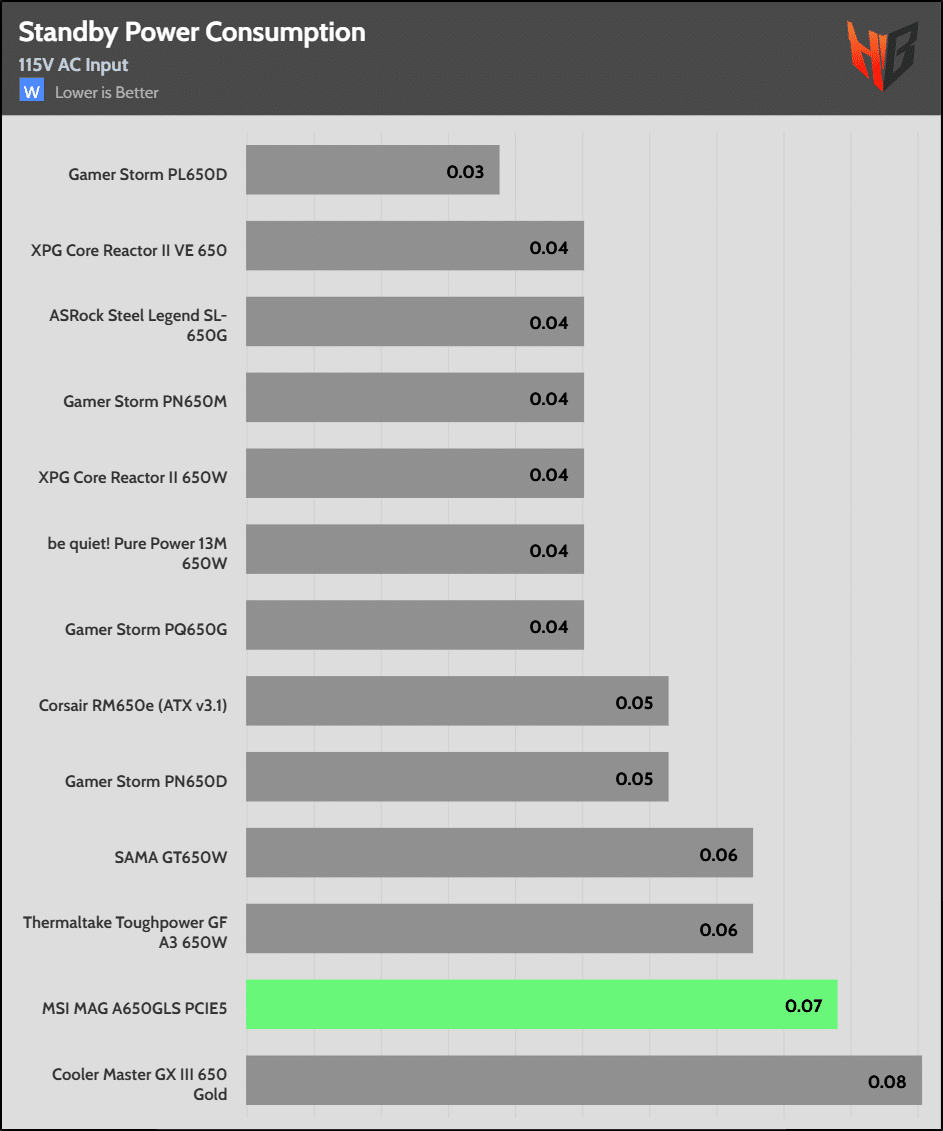

Vampire Power
Vampire power is increased, especially at 230V, where it exceeds 0.1W.
