Box & Bundle
I received early samples, so photos of the box are not available at this time. So it is high time to use any image I like above! This is Hazelnut sleeping on a gaming chair.
Product Photos
The exterior design stands out from the crowd due to the unusual perforations of the fan’s grille. On the front side, for the PSU’s exhaust, the standard honeycomb-style perforations are used. The huge power specifications label is on the unit’s bottom side, covering most of it.

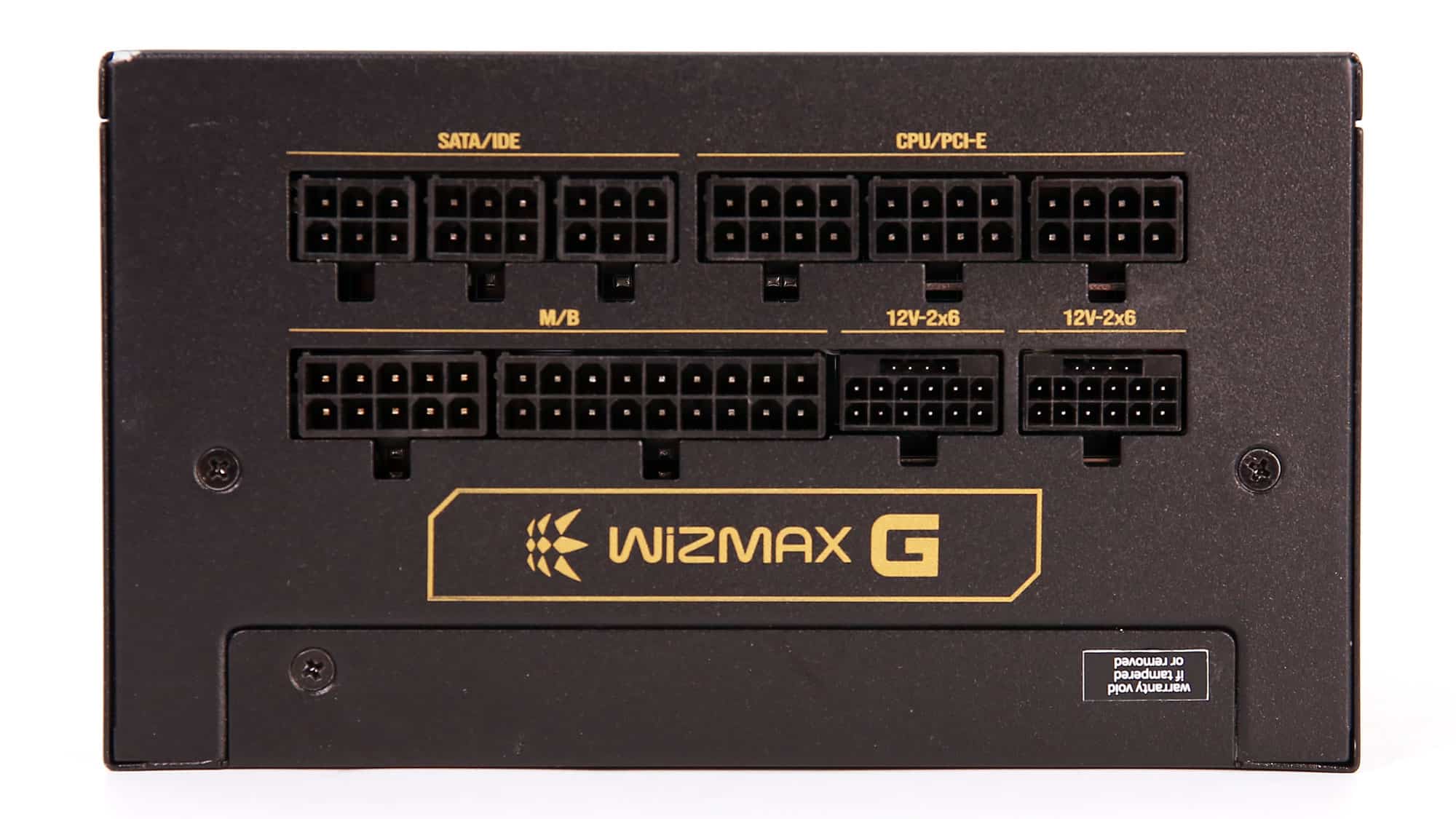

The modular panel has ten sockets, including a native 12V-2×6 header.
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|
| ATX connector 20+4 pin (610mm) | 1 | 1 | 16-18AWG | No |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 18AWG | No |
| 6+2 pin PCIe (675mm) | 2 | 2 | 18AWG | No |
| 2x 6+2 pin PCIe (675mm) | 1 | 2 | 18AWG | No |
| 12+4 pin PCIe (675mm) (600W) | 1 | 1 | 16-24AWG | No |
| SATA (400mm+120mm+120mm+120mm) | 2 | 8 | 18AWG | No |
| 4-pin Molex (400mm+120mm+120mm+120mm) | 1 | 4 | 18AWG | No |
The cables are long enough, but unfortunately, thicker than 18AWG gauges are not used on the EPS and 6+2 pin PCIe connectors; however, they are used in some gauges of the 24-pin connector. Thicker gauges help in lowering voltage drops at high loads. The number of peripheral connectors is sufficient, but I would like to see a longer distance between them, ideally 150mm.
