Micronics Wizmax G 1000W ATX v3.1 PSU Review

Transient Response

Transient response in power supplies refers to how quickly and effectively the PSU stabilizes its output voltage during sudden changes in load demand, such as when a CPU or GPU increases its power draw. It’s measured by the time and voltage deviation during these shifts. A faster, smaller transient response ensures stable power, preventing instability or damage to components.

20% Load – 20ms

Advanced Transient Response 20% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.106V 11.862V 2.02% Pass
5V 5.005V 4.909V 1.92% Pass
3.3V 3.300V 3.184V 3.53% Pass
5VSB 5.088V 5.045V 0.85% Pass

50% Load -20ms

Advanced Transient Response 50% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.076V 11.984V 0.76% Pass
5V 5.001V 4.901V 2.00% Pass
3.3V 3.298V 3.177V 3.67% Pass
5VSB 5.046V 5.000V 0.92% Pass

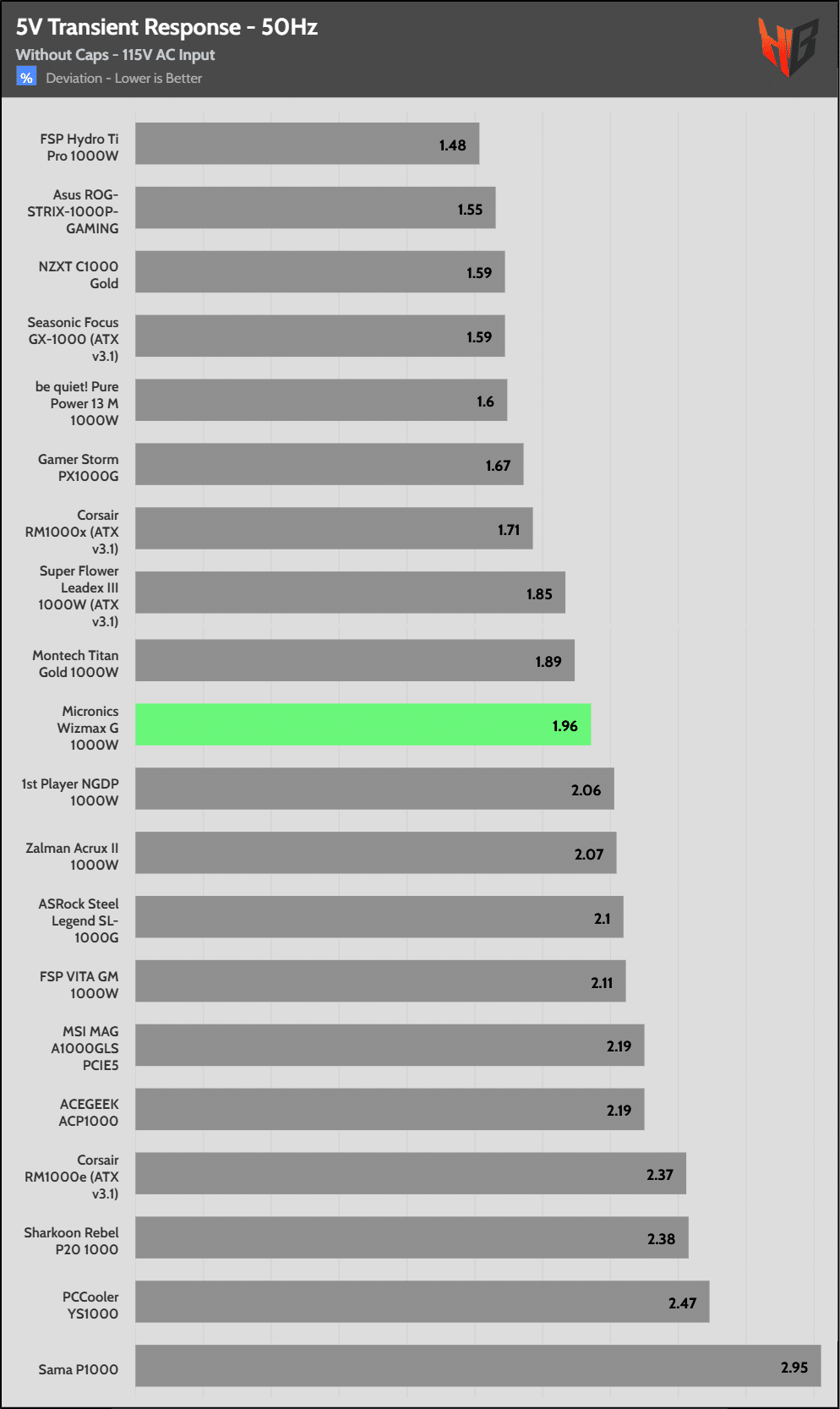

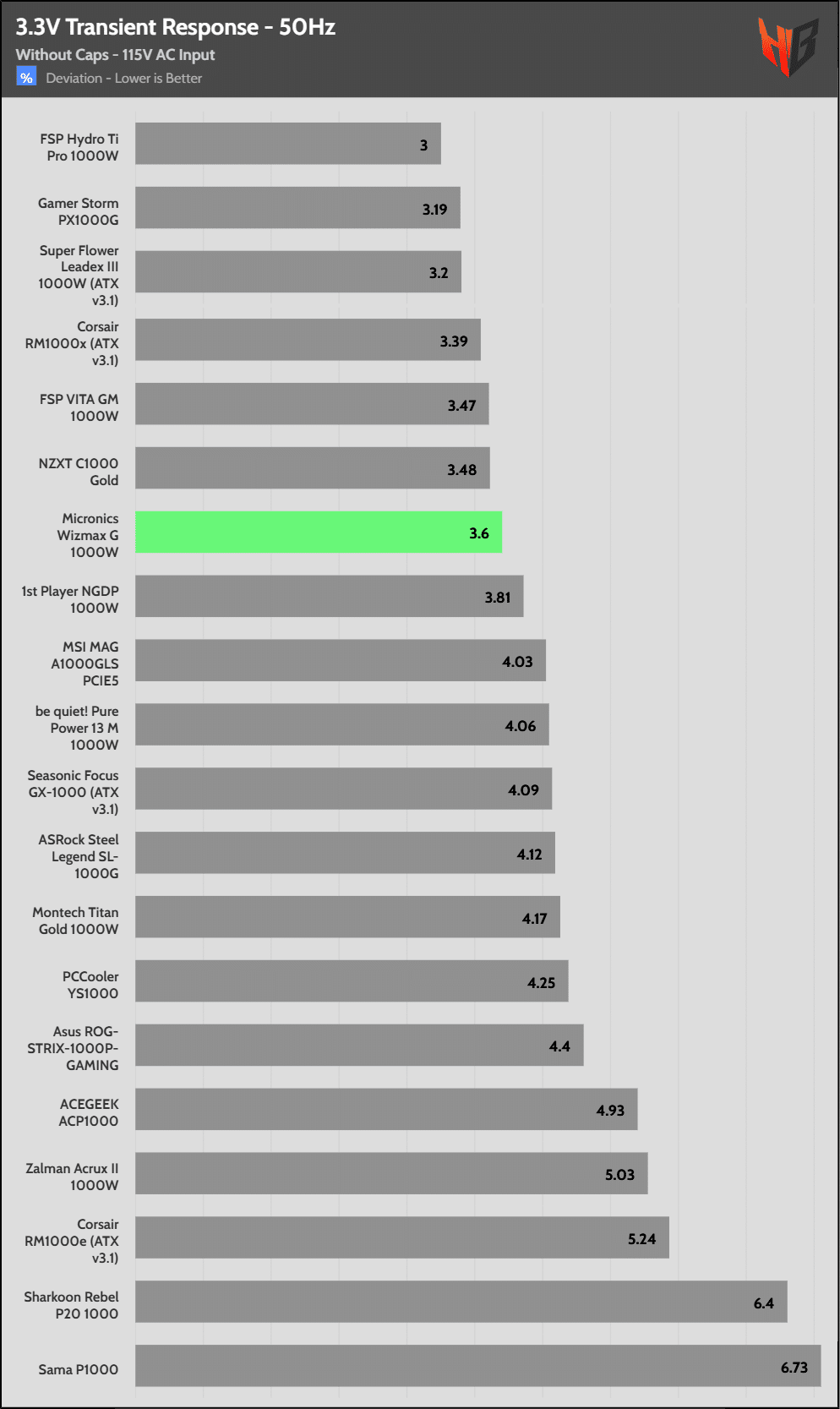

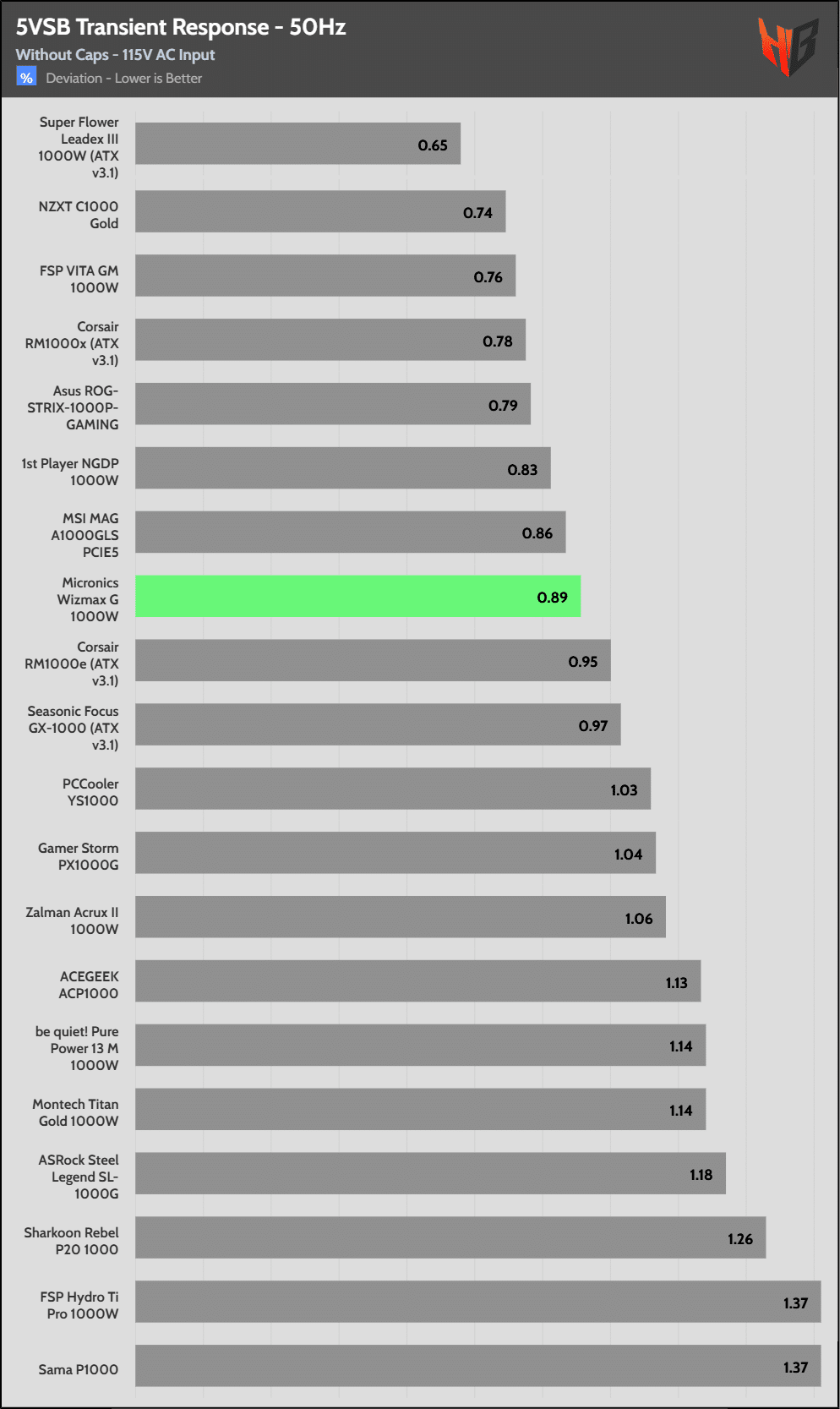

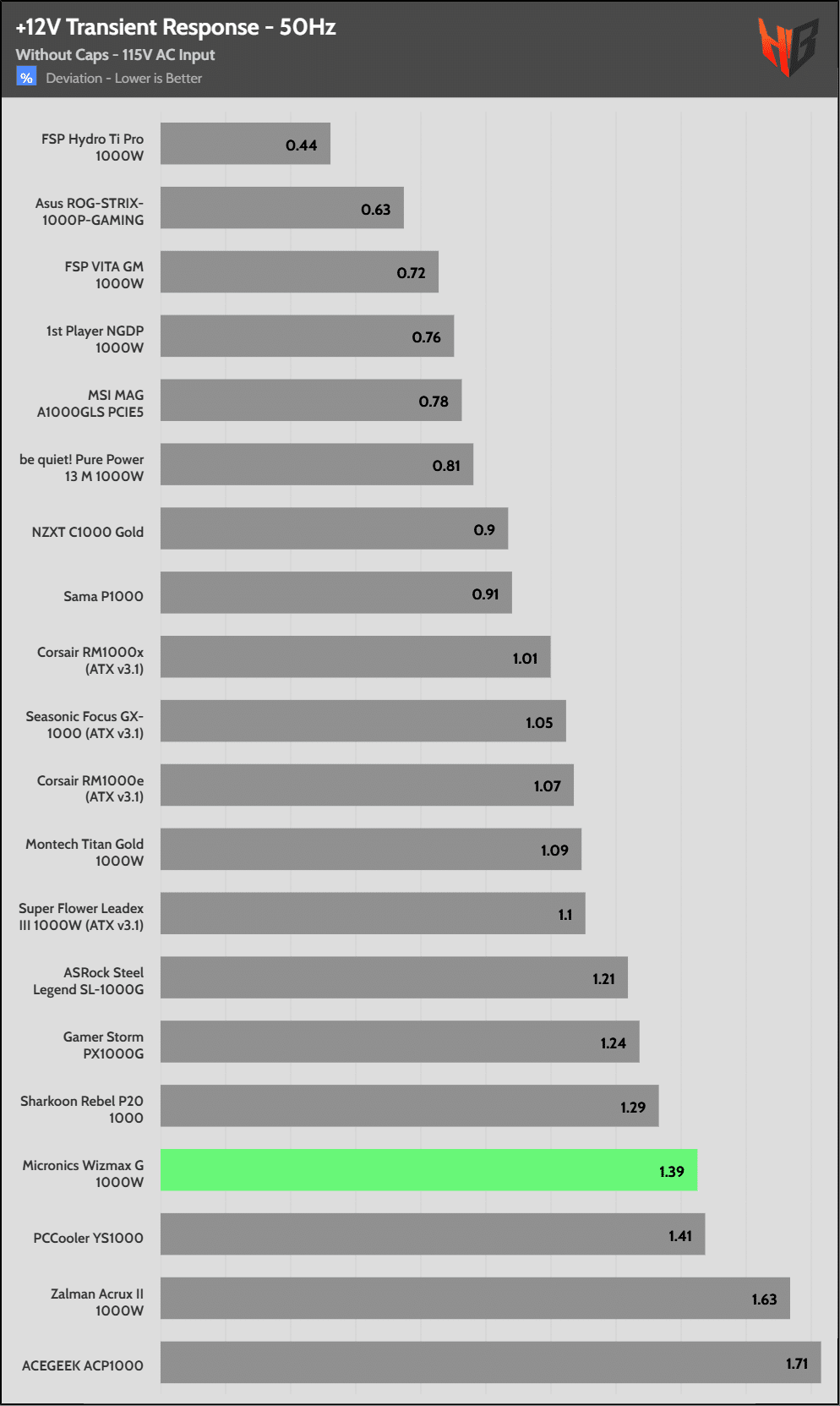

The transient response is average at 12V, primarily because of the significant deviation during the first test, where the PSU’s resonant controller focuses on efficiency and not on transient response. The 5V and 3.3V rails have low deviations, but the second rail’s low nominal voltage doesn’t allow above 3.2V voltage levels when the transient loads are applied.

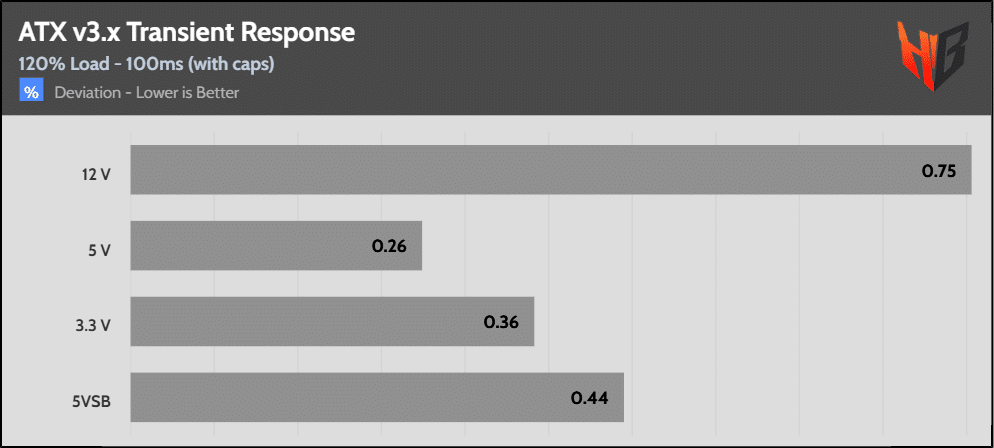

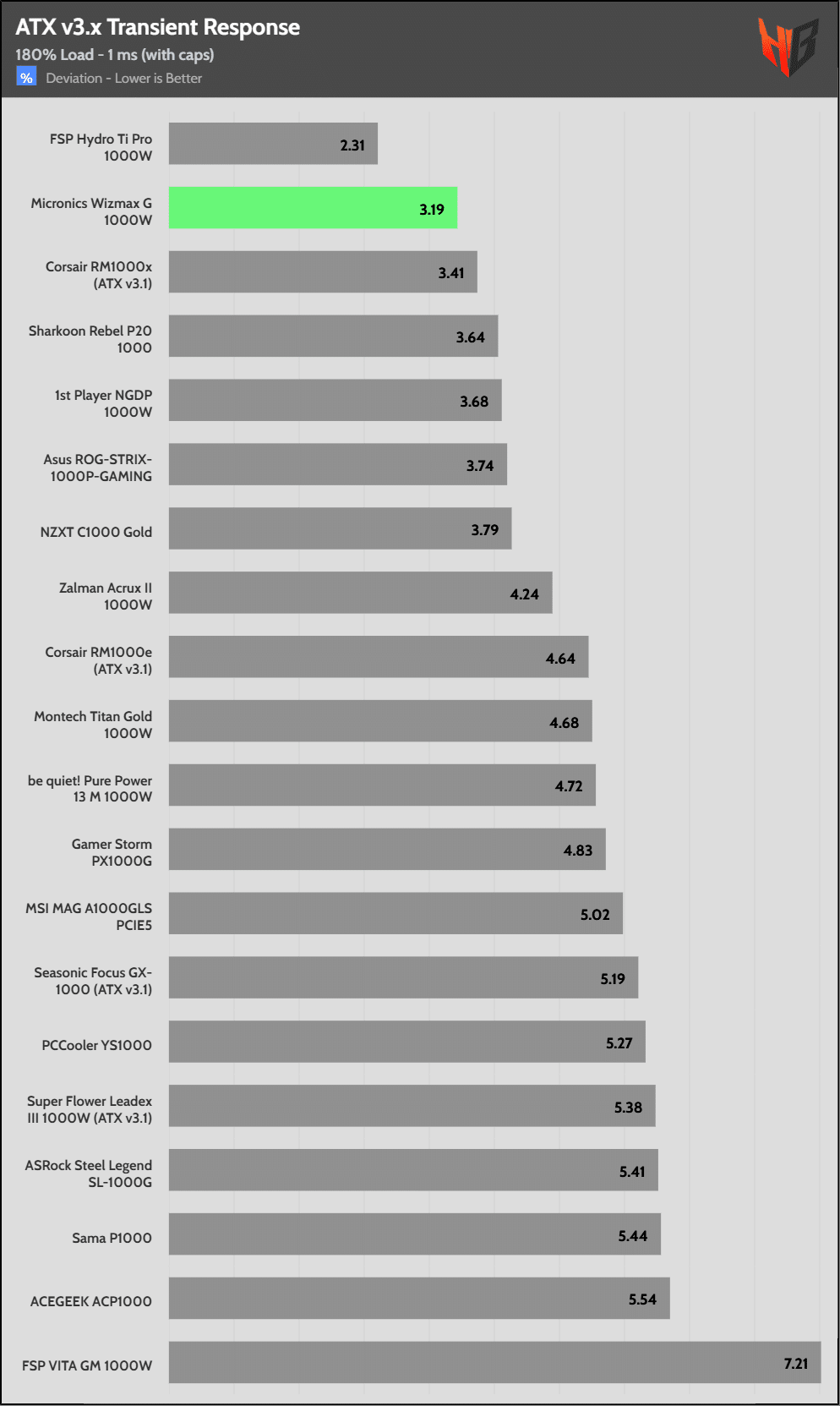

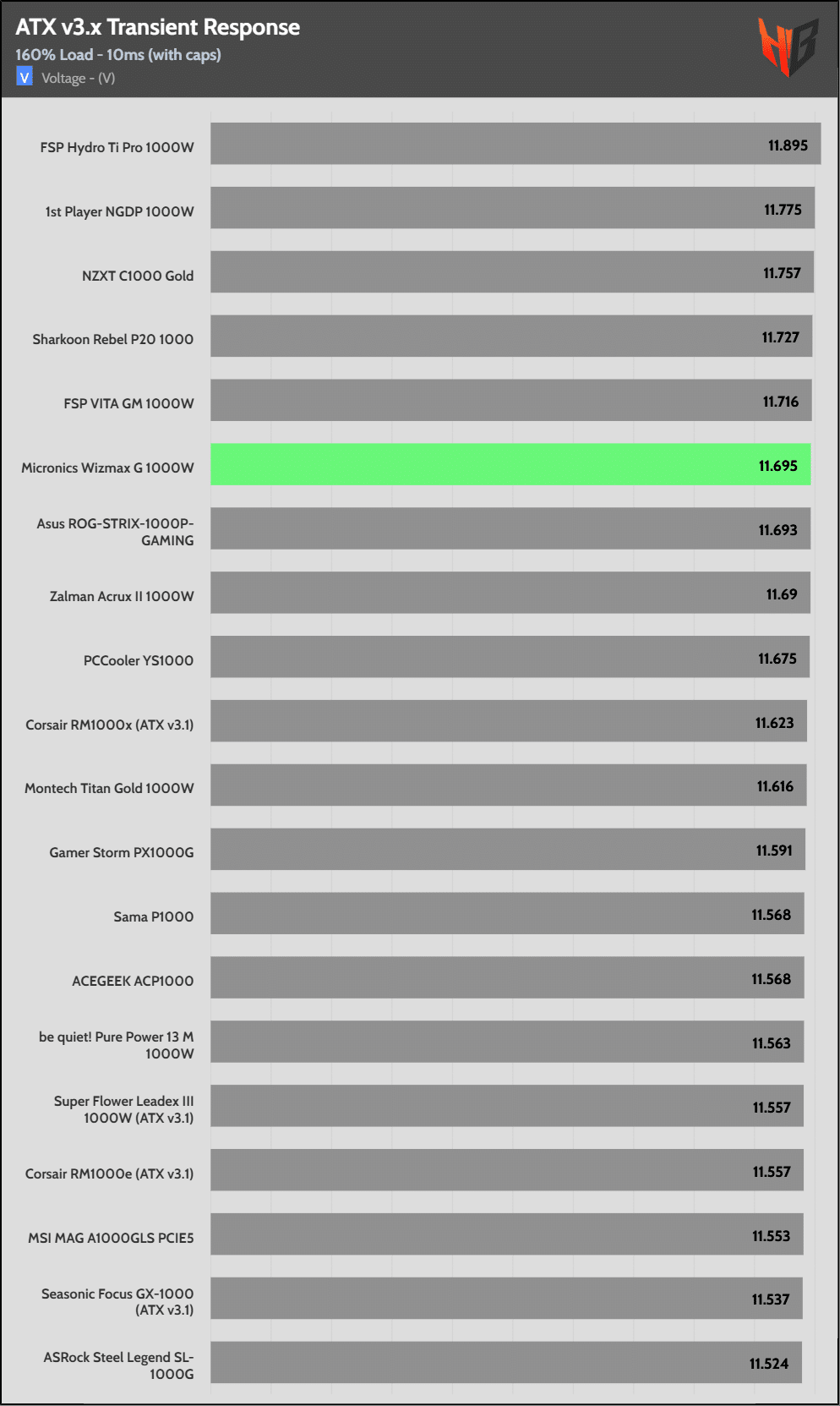

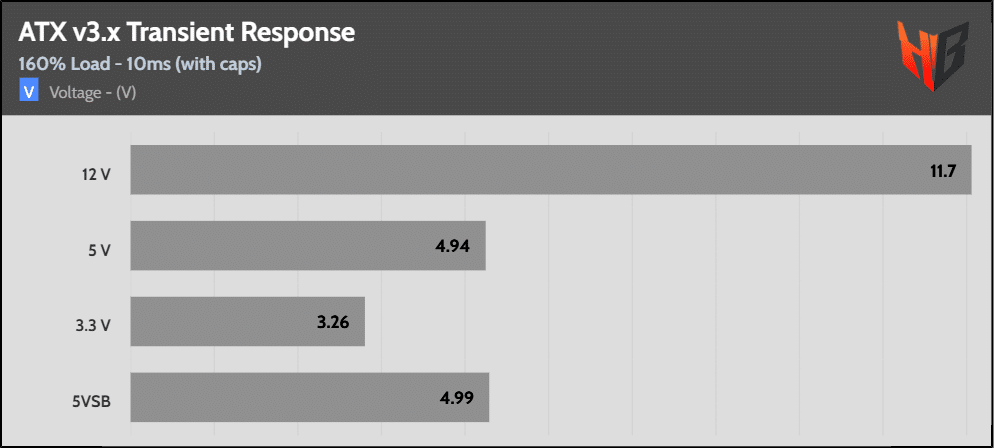

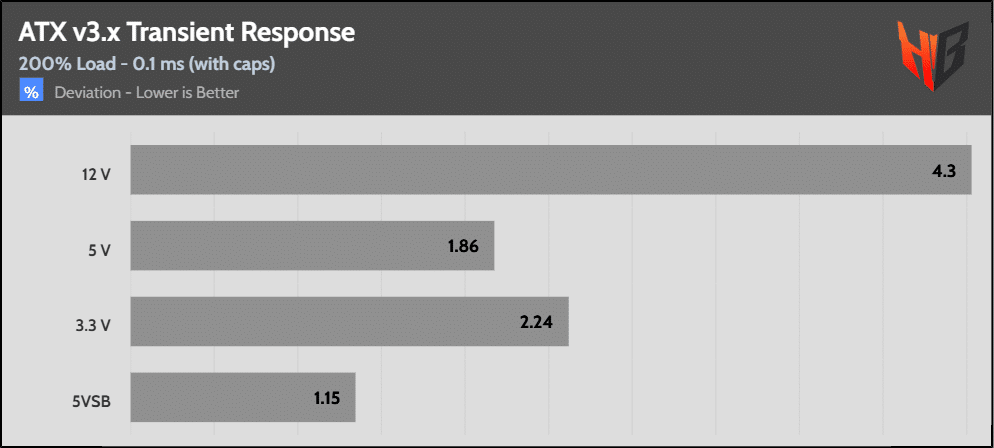

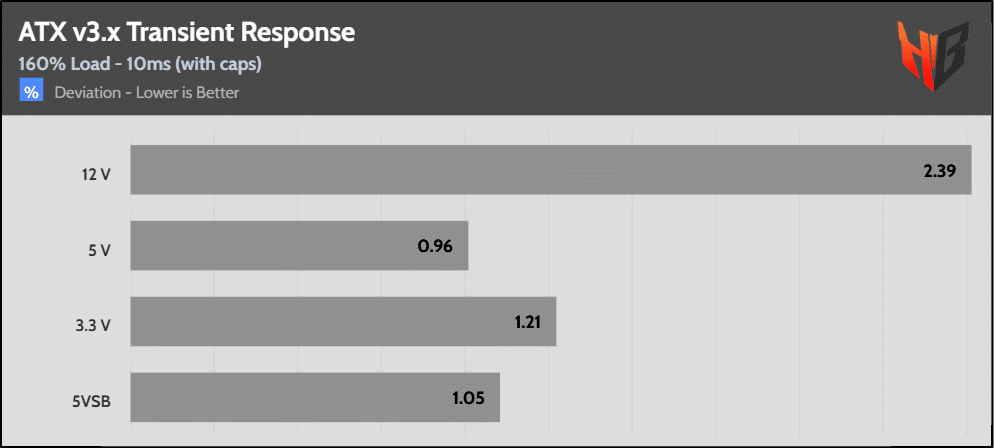

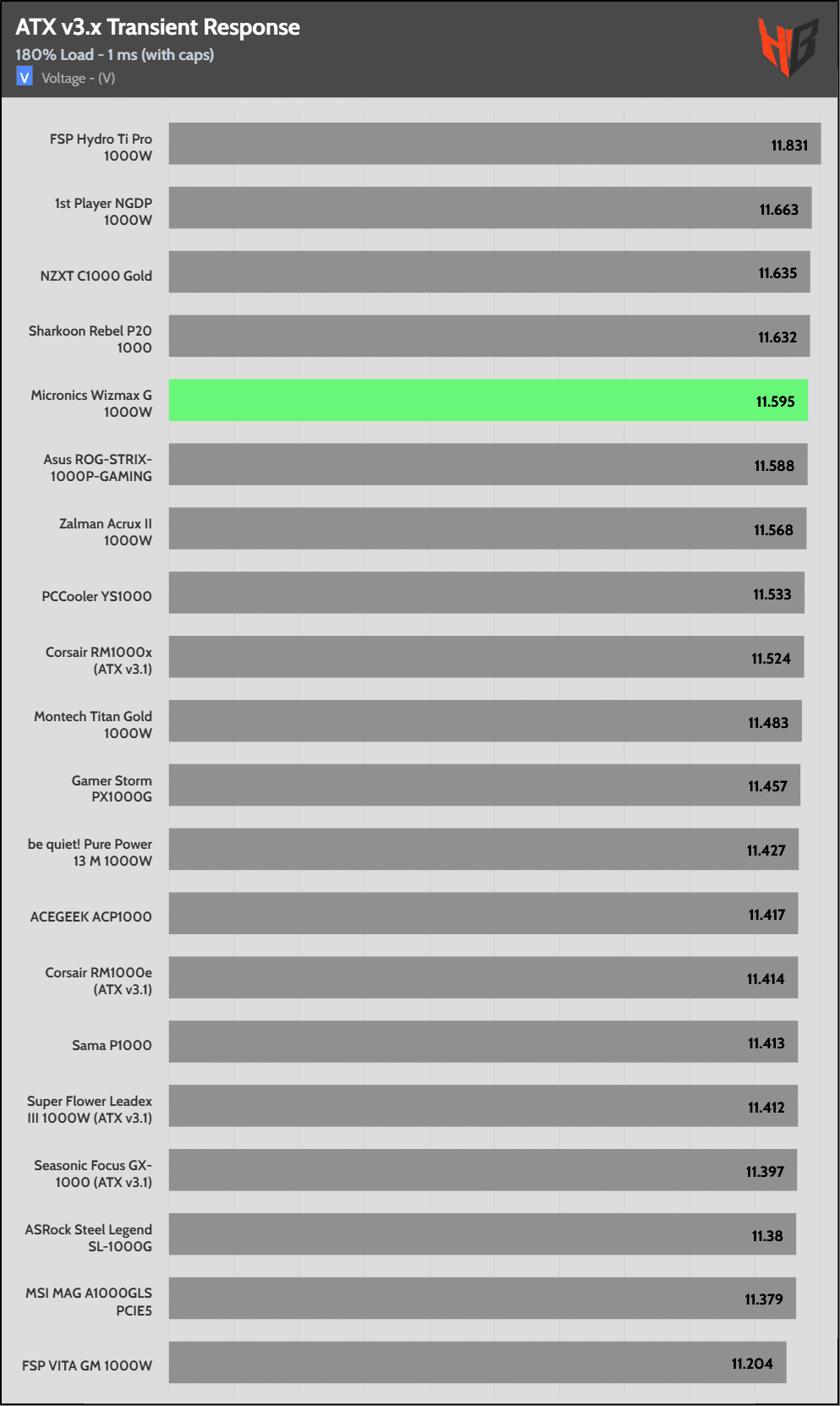

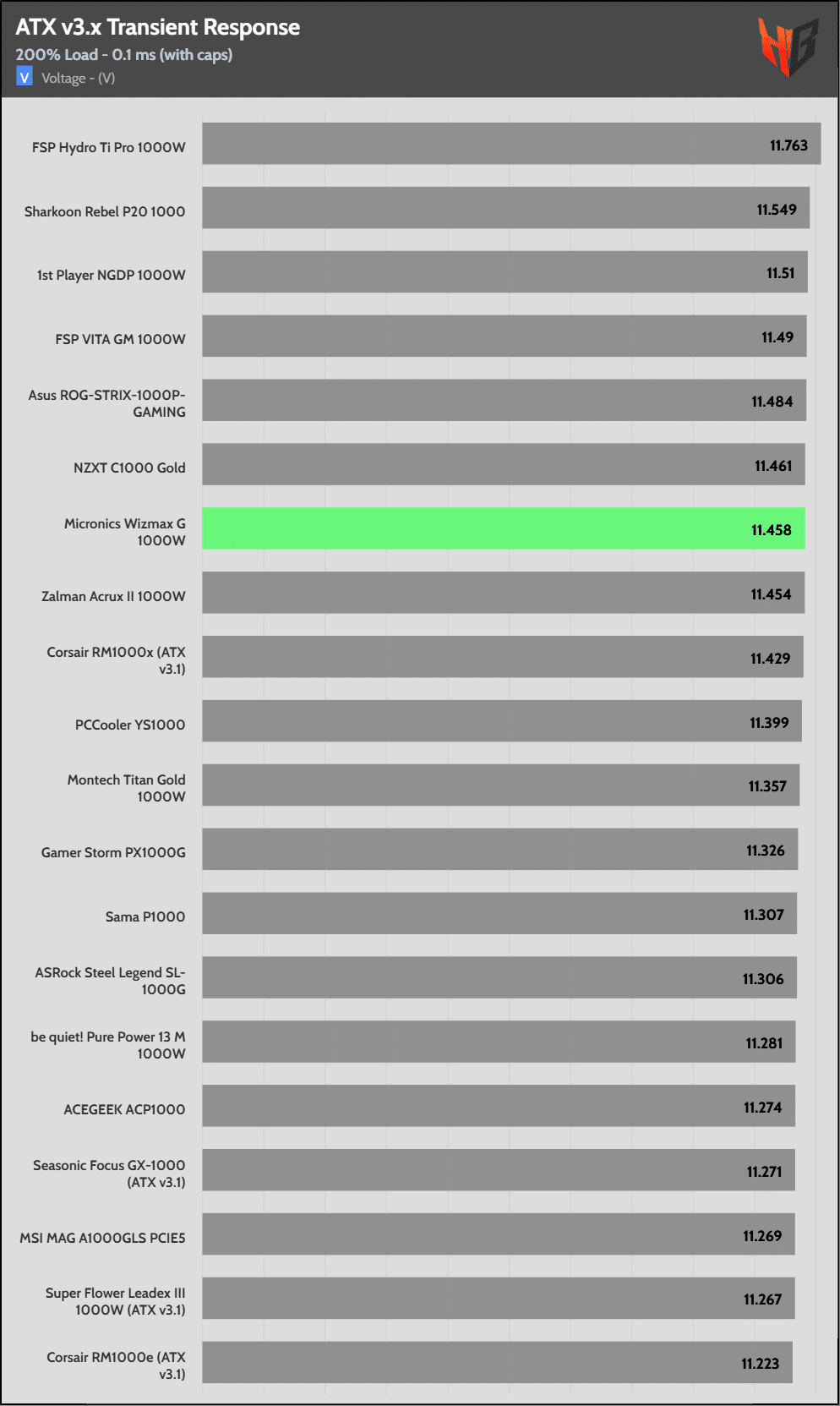

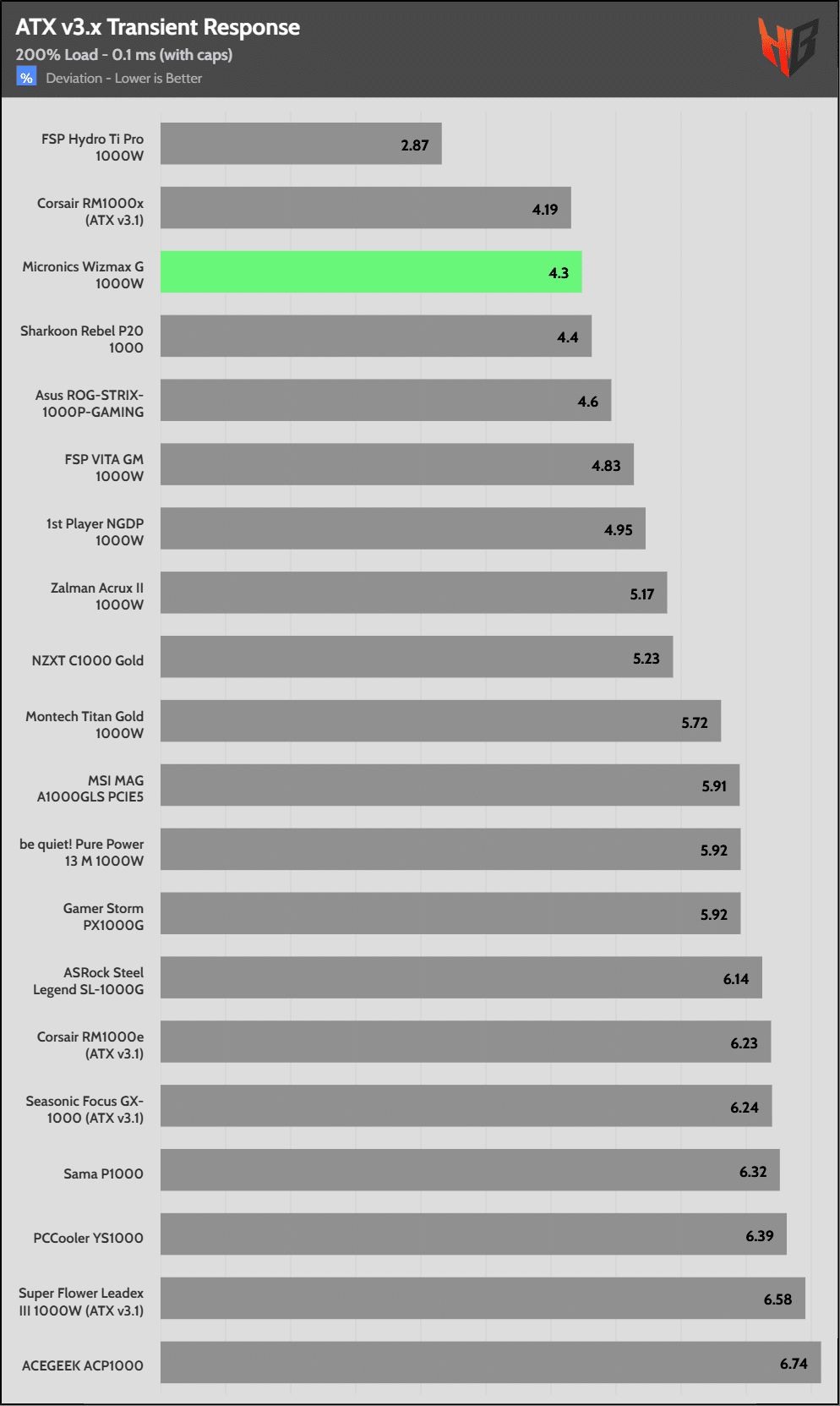

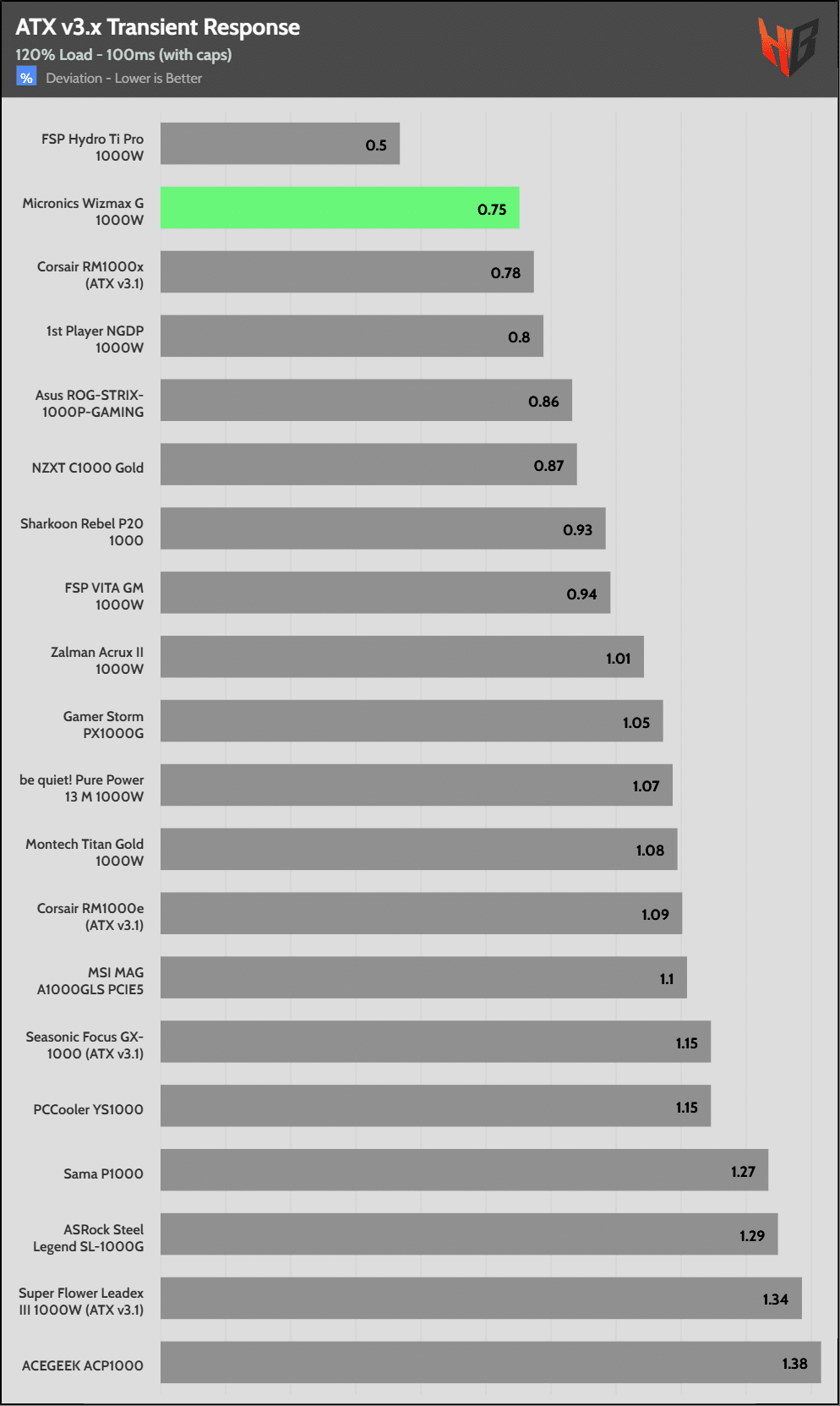

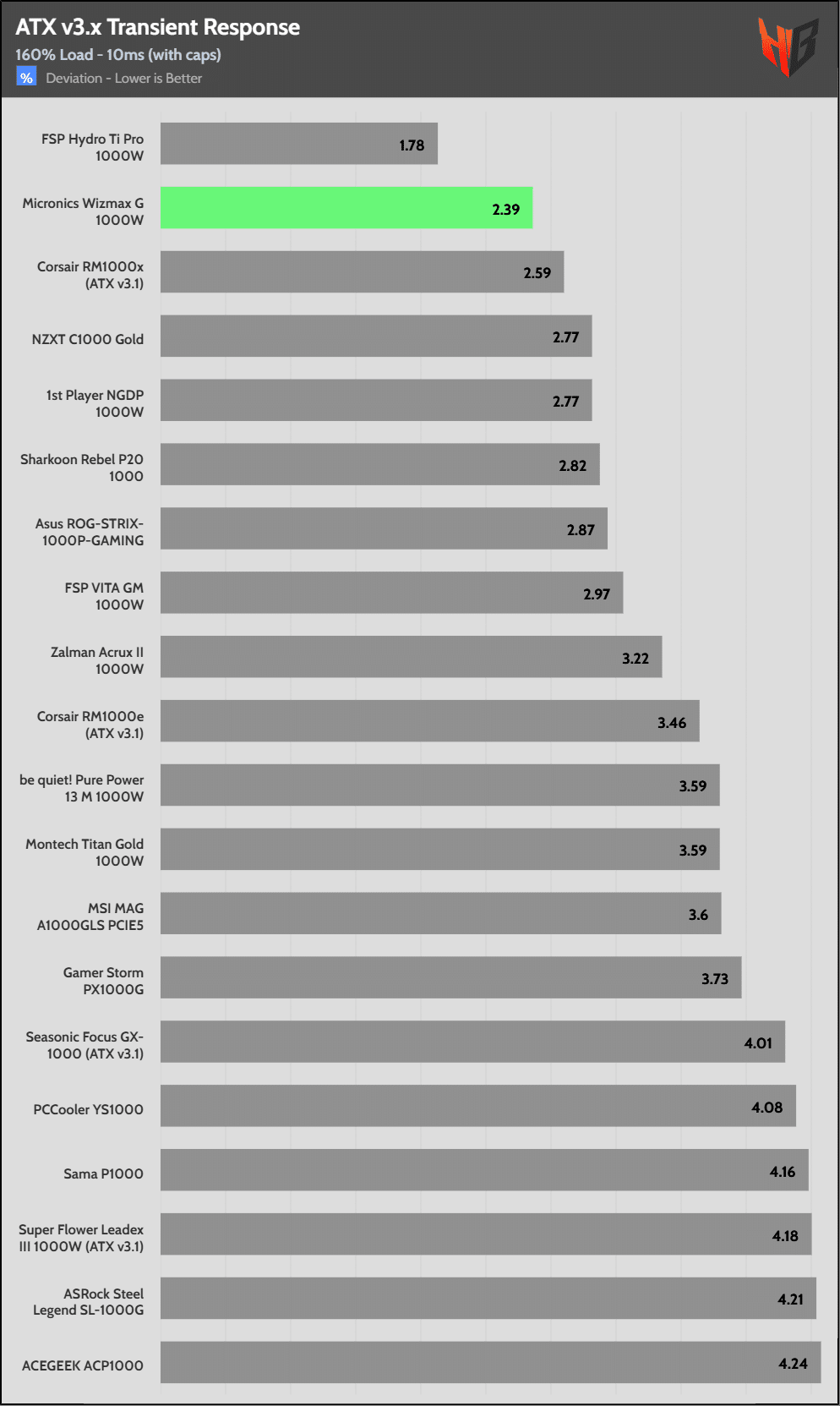

Transient Response ATX v3.1 Tests

For PSUs without a 12+4 pin connector, the maximum applied load for the transient response tests is 150%, rather than 200%.

The PSU passes all ATX v3.1 transient response tests.

The 12V rail’s performance is satisfactory in these tests.
