Micronics Wizmax G 1000W ATX v3.1 PSU Review

Box & Bundle

I received some early samples, so photos of the box are not available at this time. So it is high time to use any image I like above! This is Riris sleeping behind a statue.

Product Photos

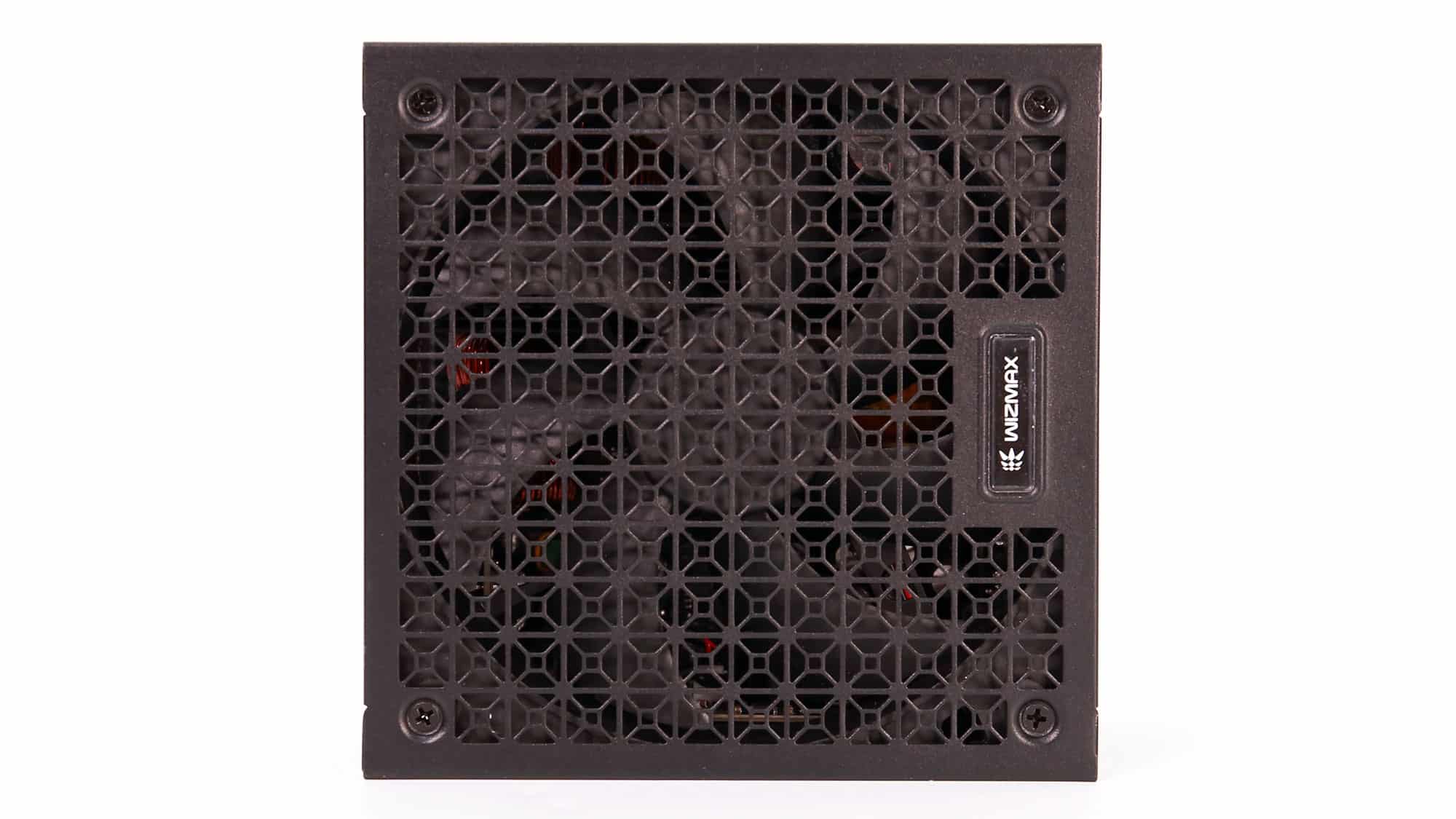

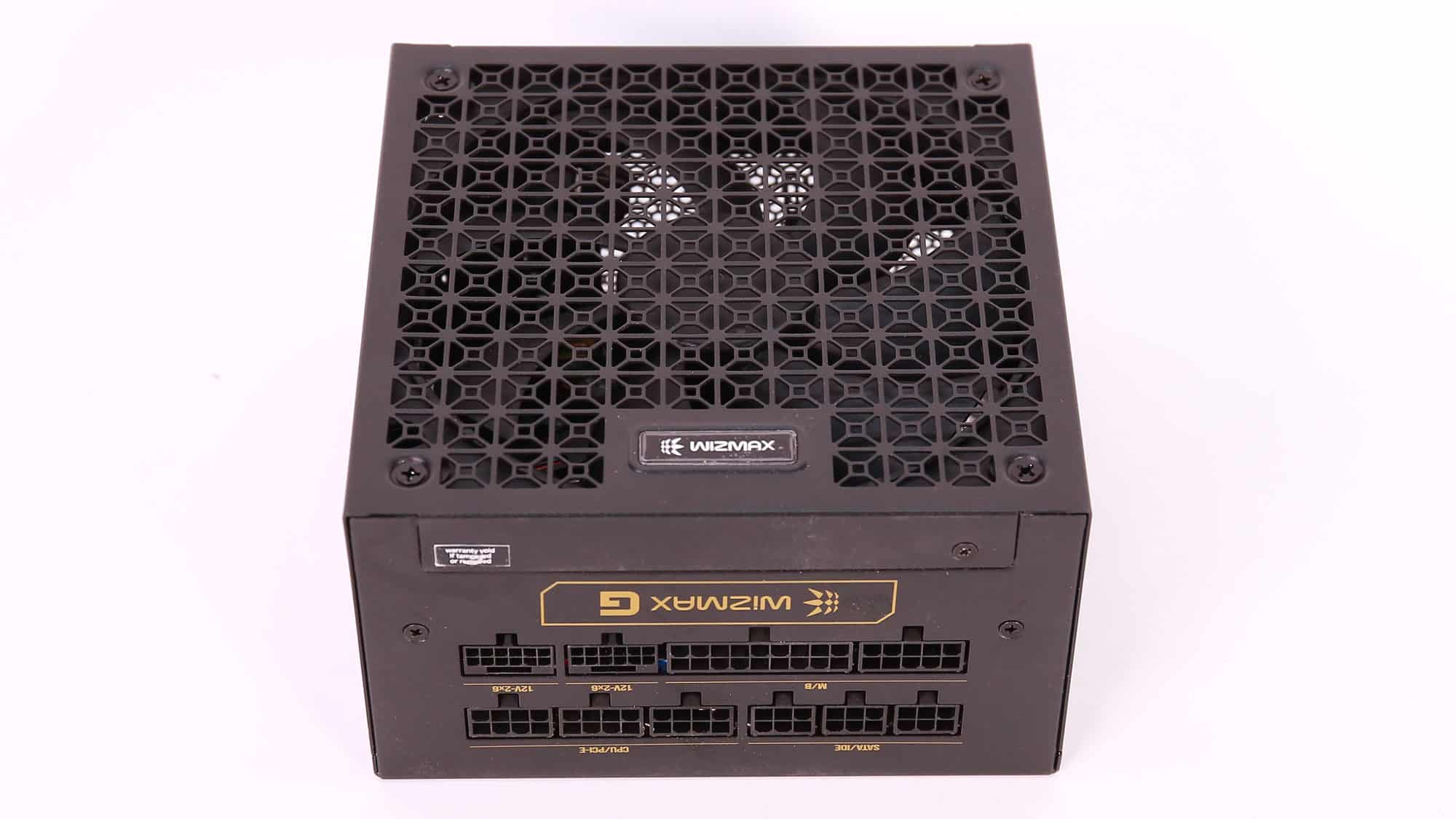

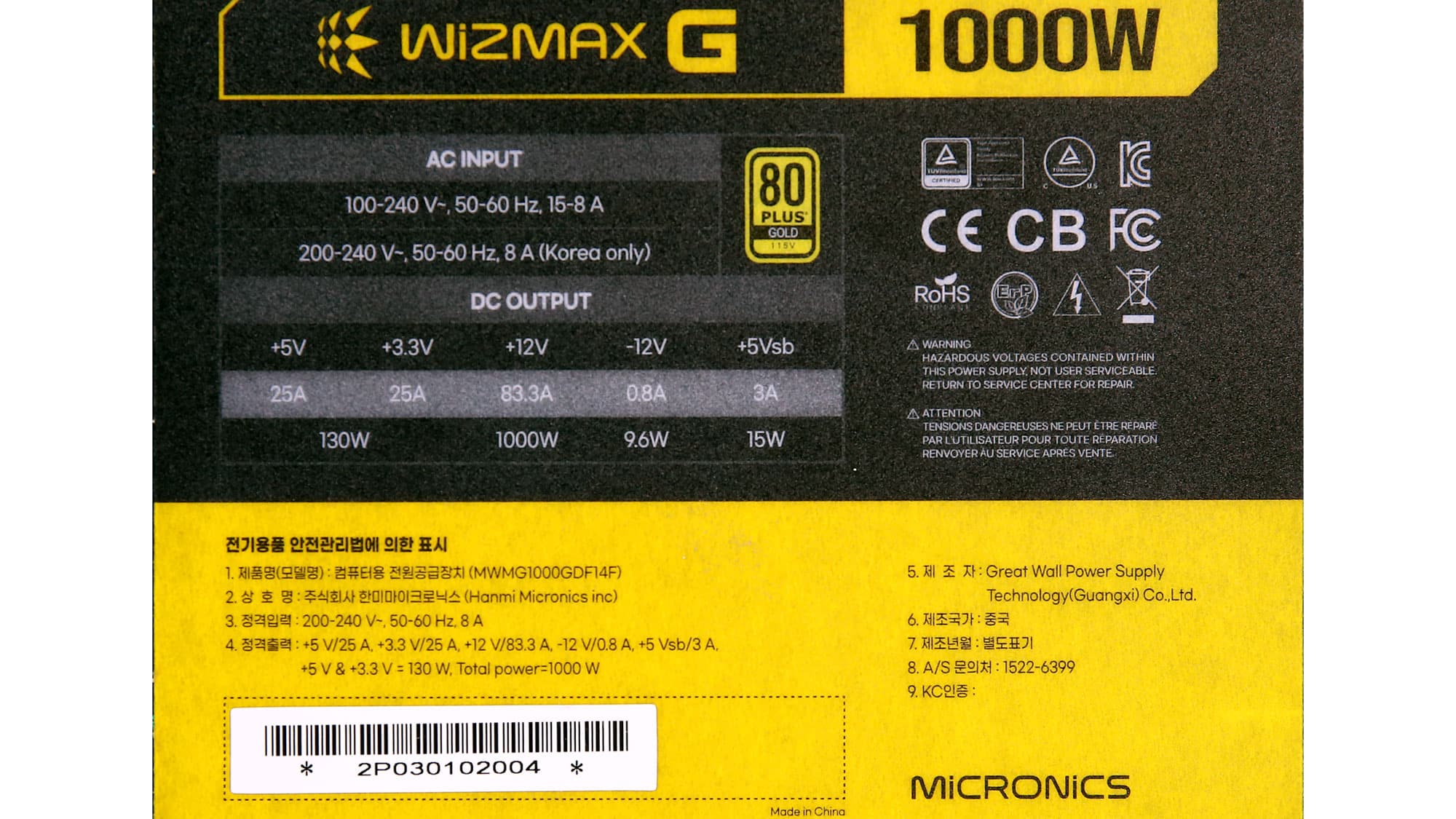

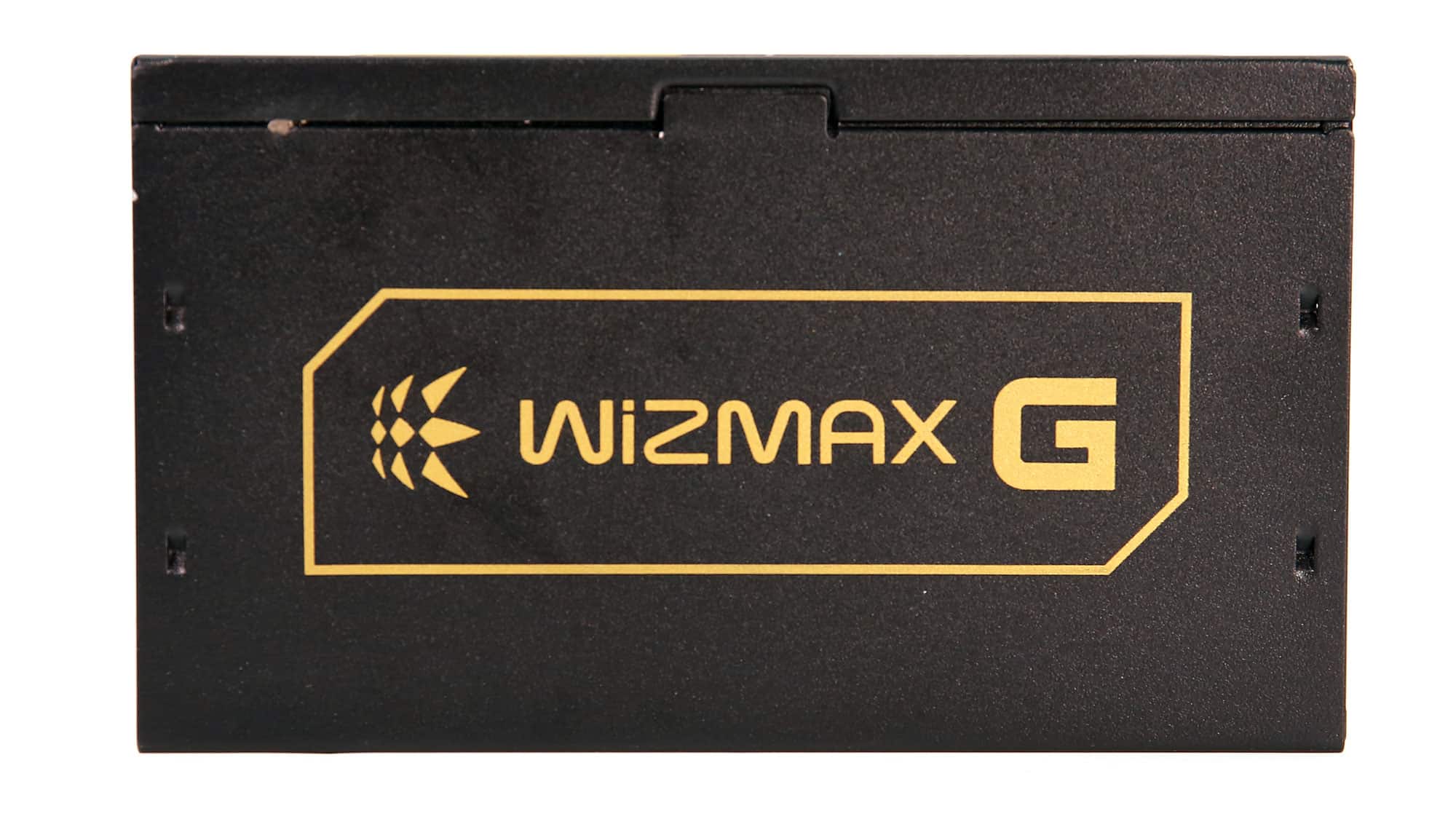

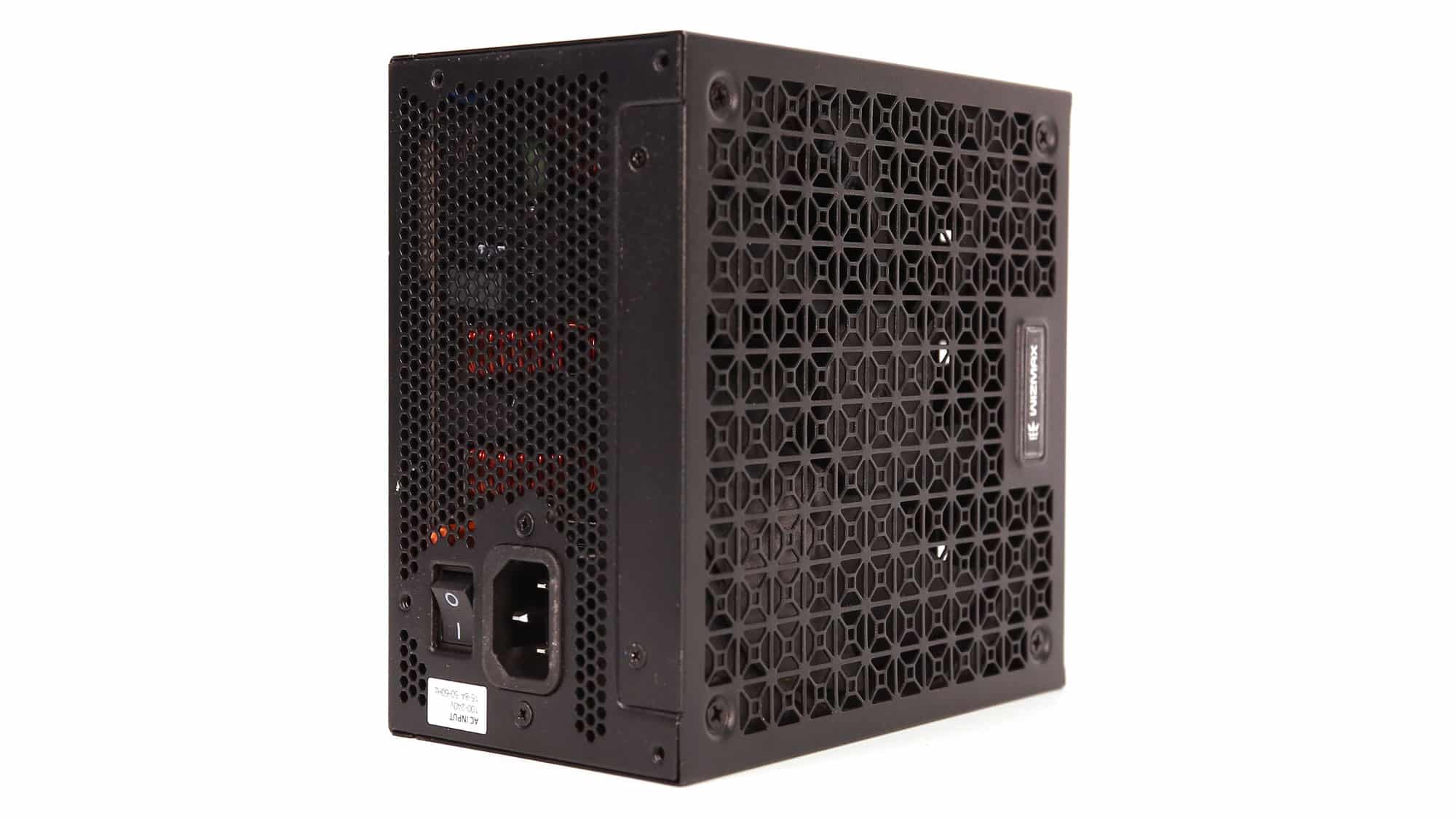

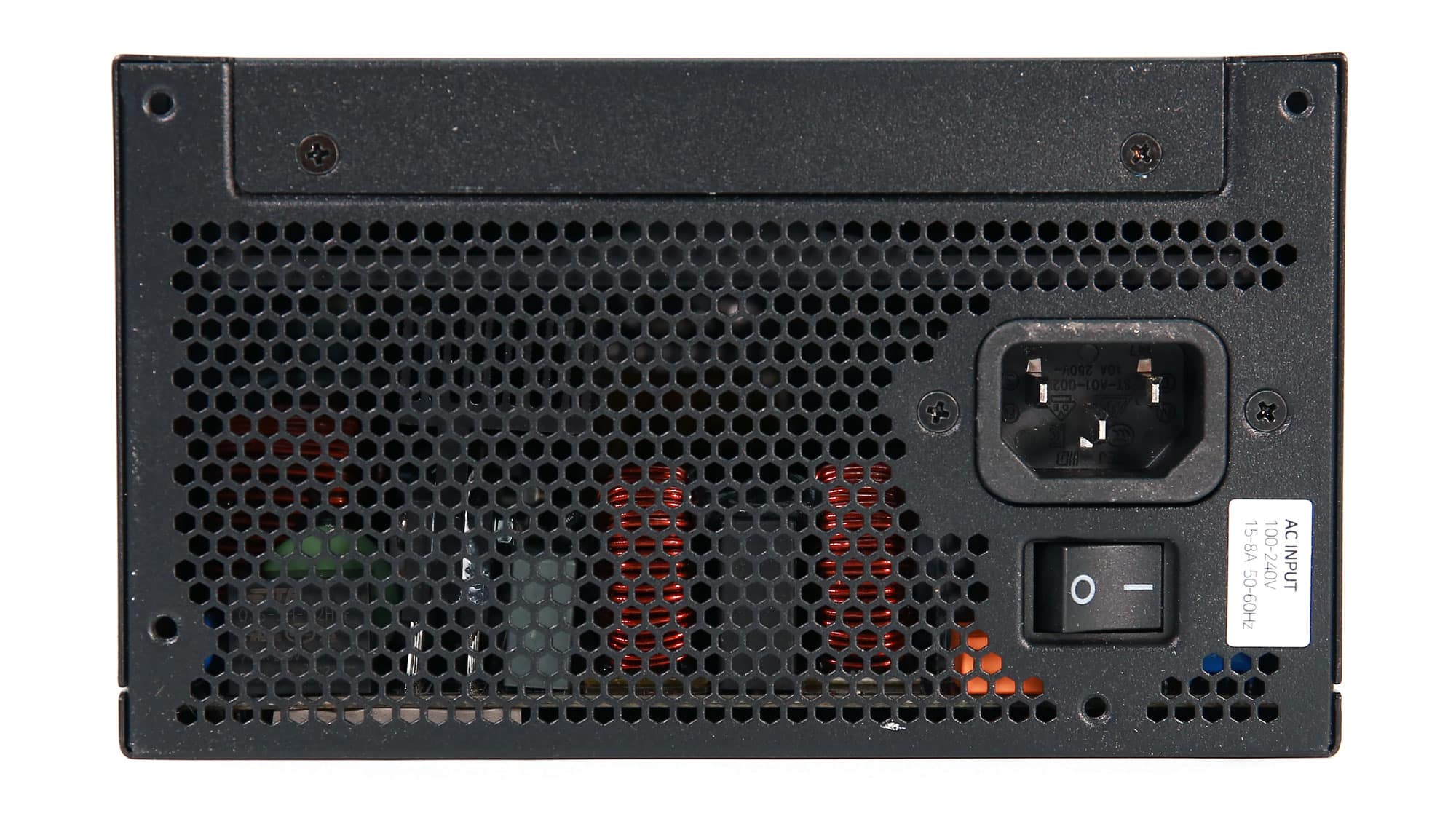

The exterior design stands out from the crowd because of the weird-looking perforations of the fan’s grille. At the front side, for the PSU’s exhaust, the standard honeycomb-style perforations are used. The huge power specifications label is on the unit’s bottom side, covering most of it.

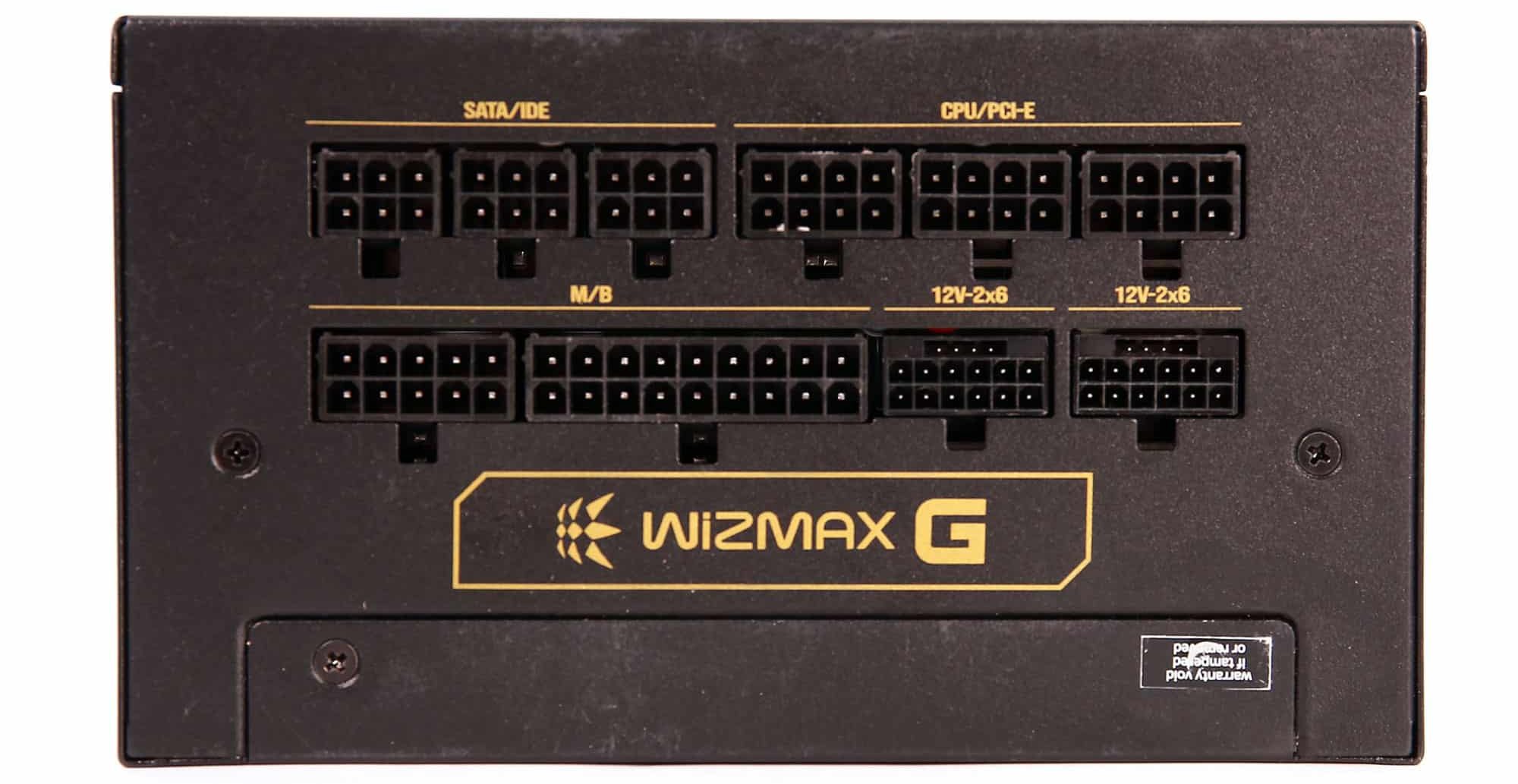

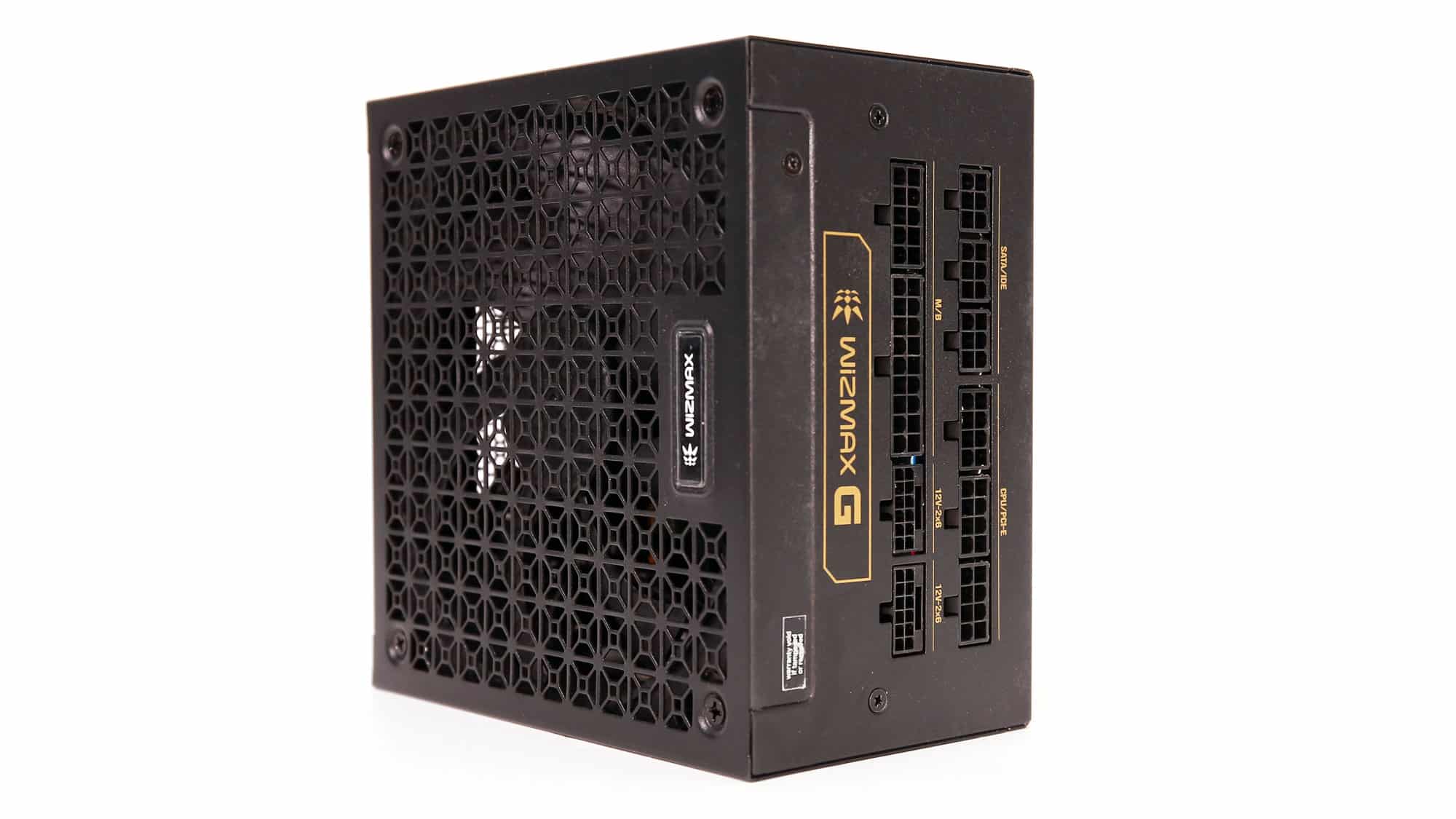

The modular panel has ten sockets, including a native 12V-2×6 header.

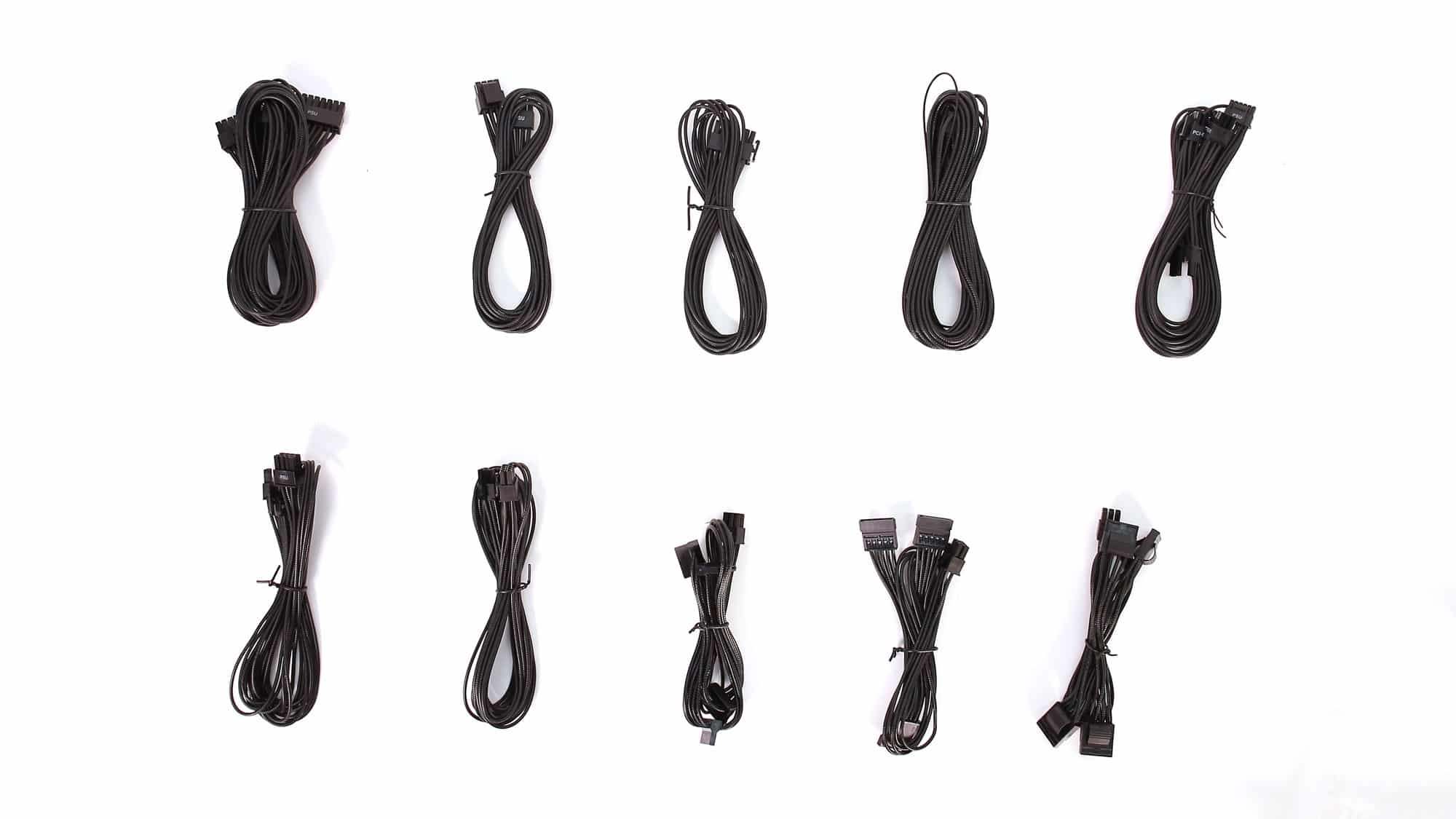

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors

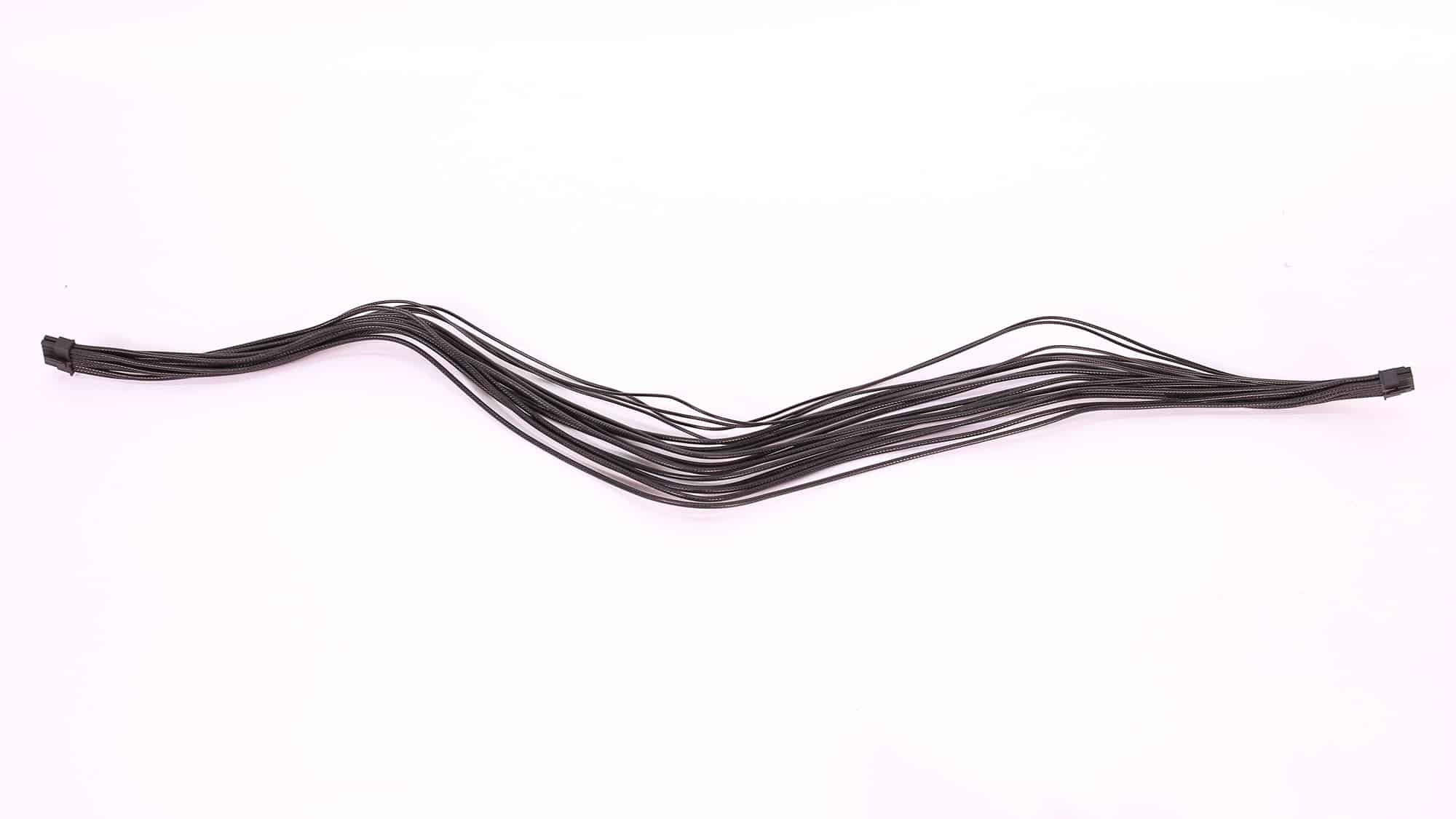

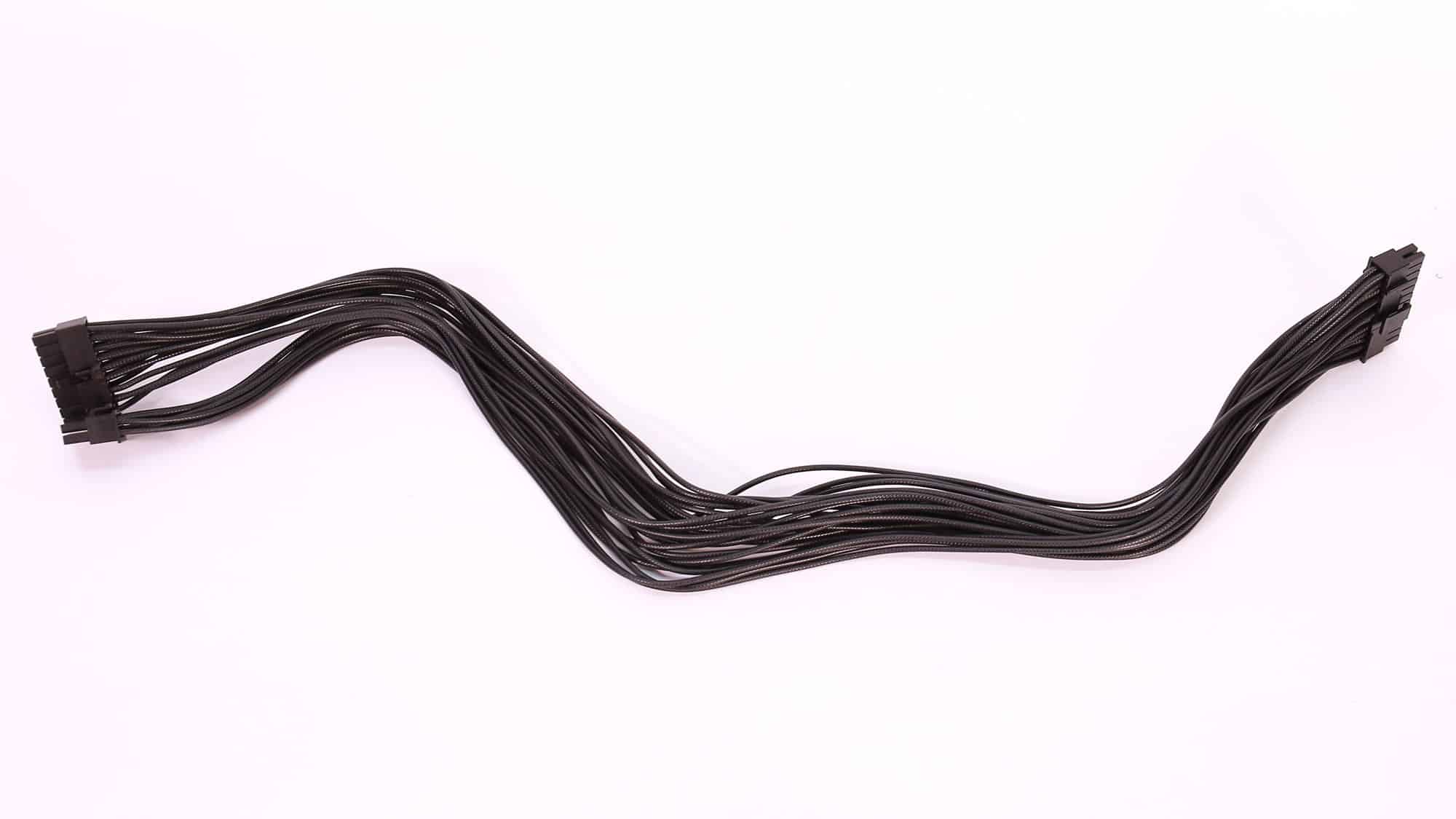

ATX connector 20+4 pin (610mm) 1 1 16-18AWG No

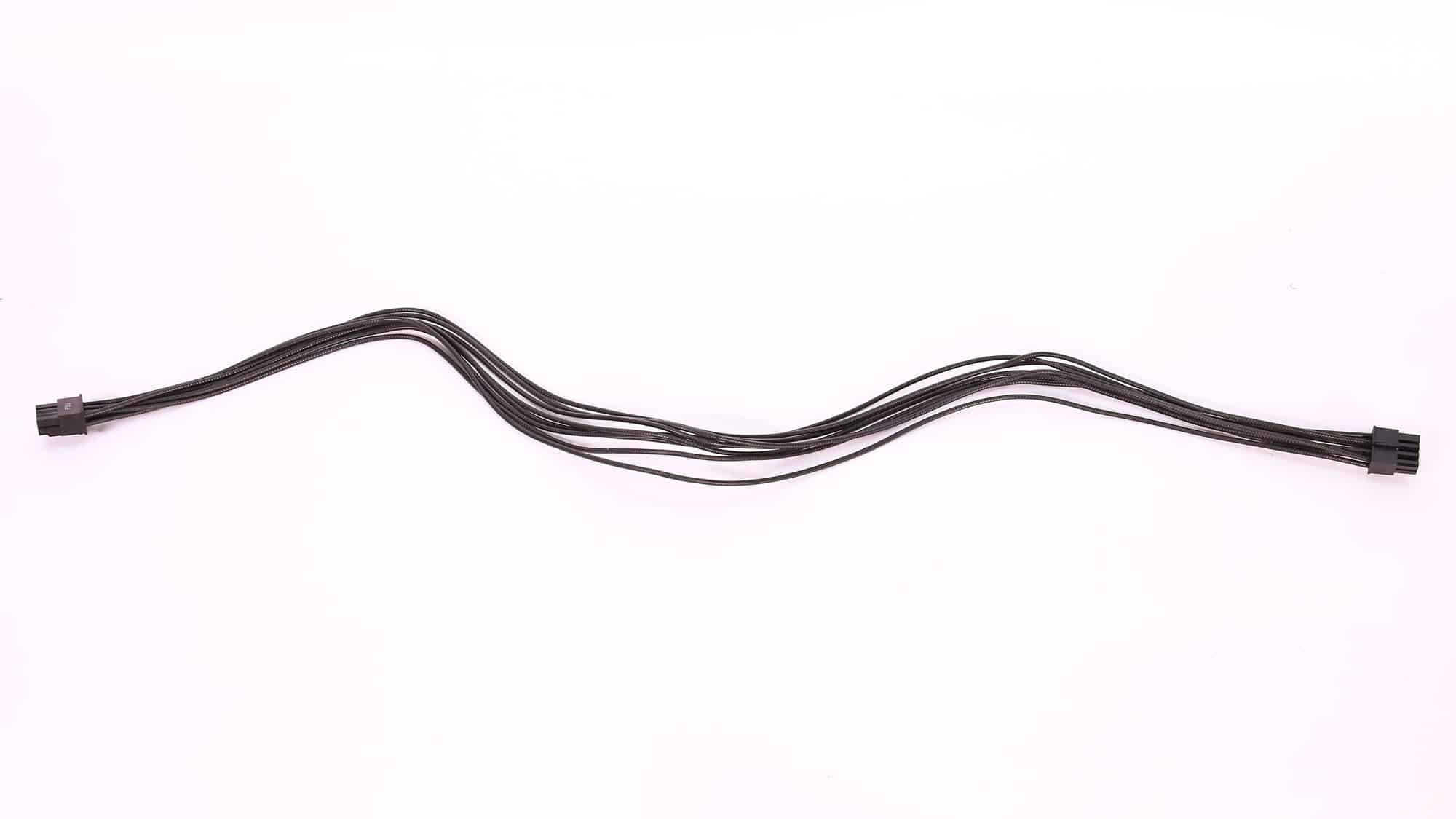

4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (675mm) 2 2 18AWG No
2x 6+2 pin PCIe (675mm) 1 2 18AWG No

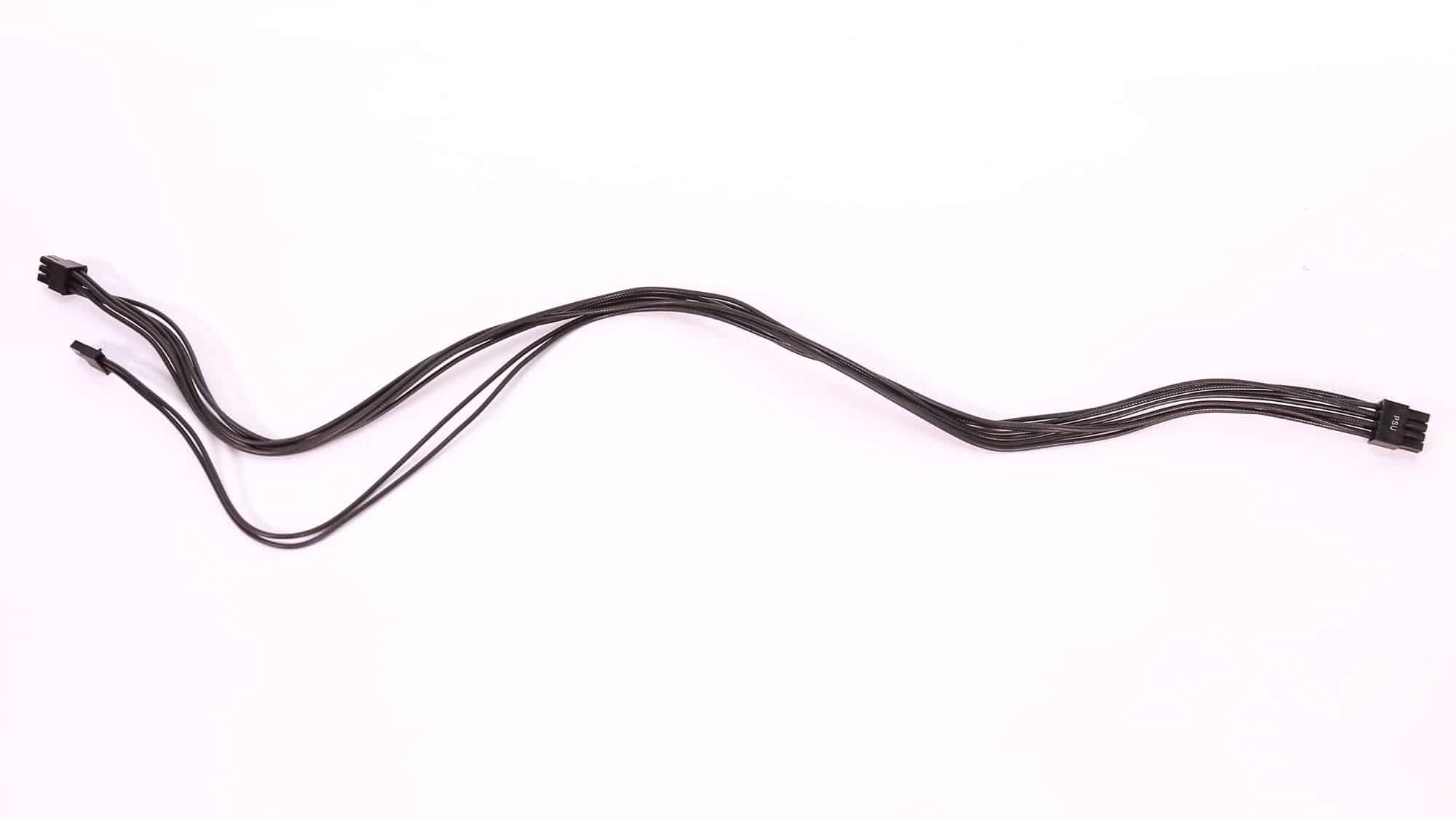

12+4 pin PCIe (675mm) (600W) 1 1 16-24AWG No
SATA (400mm+120mm+120mm+120mm) 2 8 18AWG No

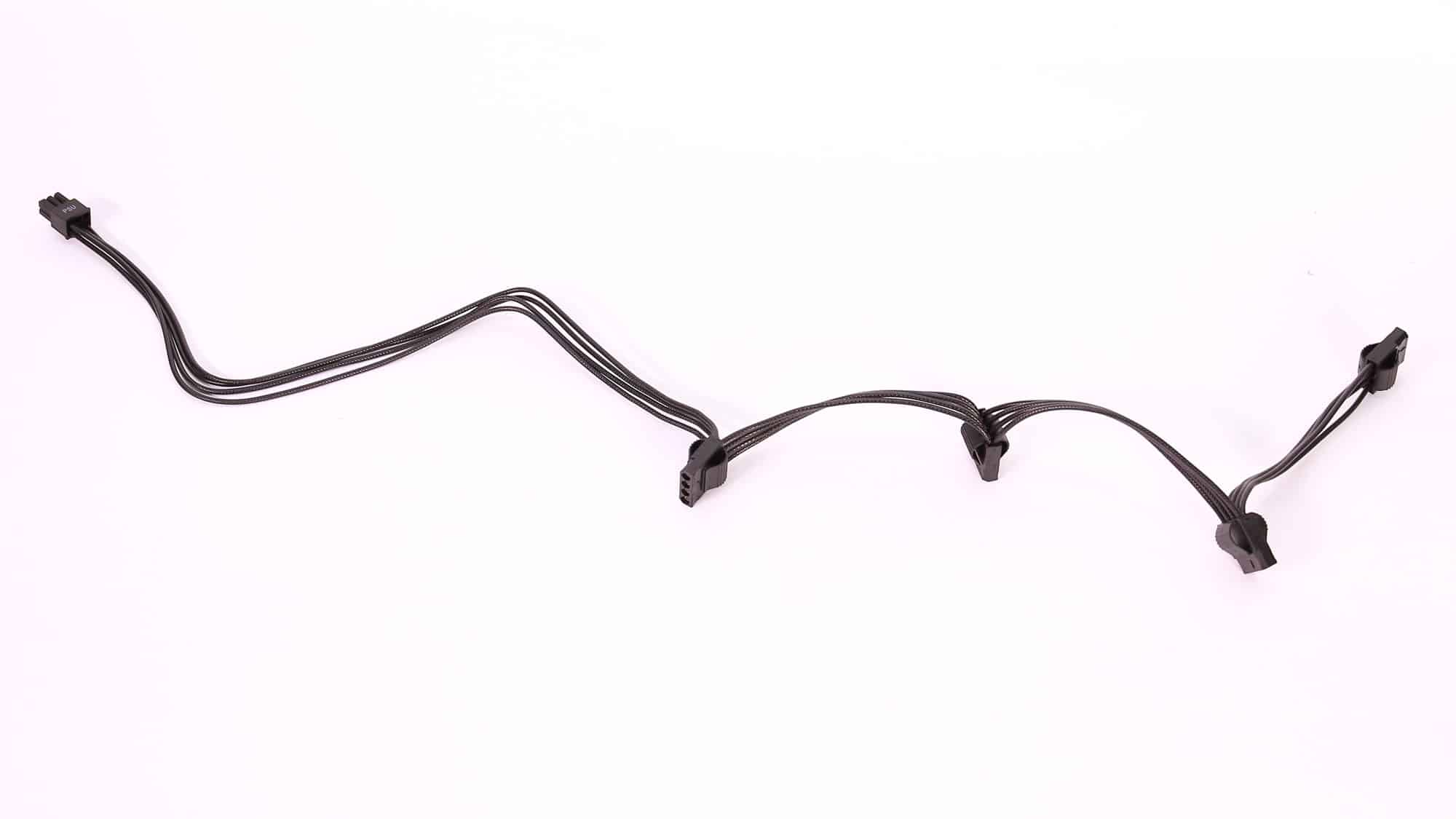

4-pin Molex (400mm+120mm+120mm+120mm) 1 4 18AWG No

The cables are long enough, but unfortunately, thicker than 18AWG gauges are not used on the EPS and 6+2 pin PCIe connectors; however, they are used in some gauges of the 24-pin connector. Thicker gauges help in lowering voltage drops at high loads. The number of peripheral connectors is sufficient, but I would like to see a longer distance between them, ideally 150mm.

Pages ( 2 of 11 ): « Previous1 2 34567891011Next »
