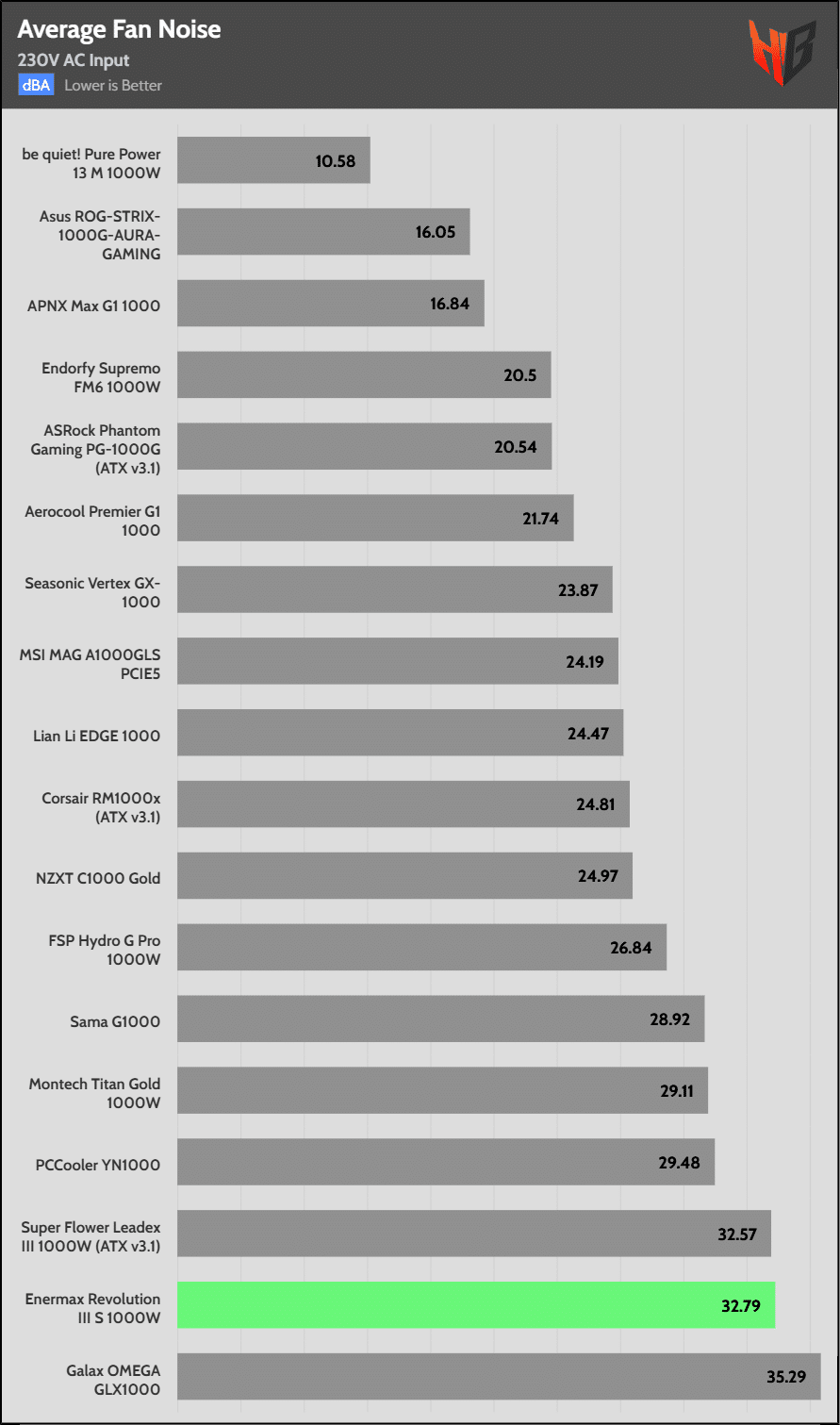

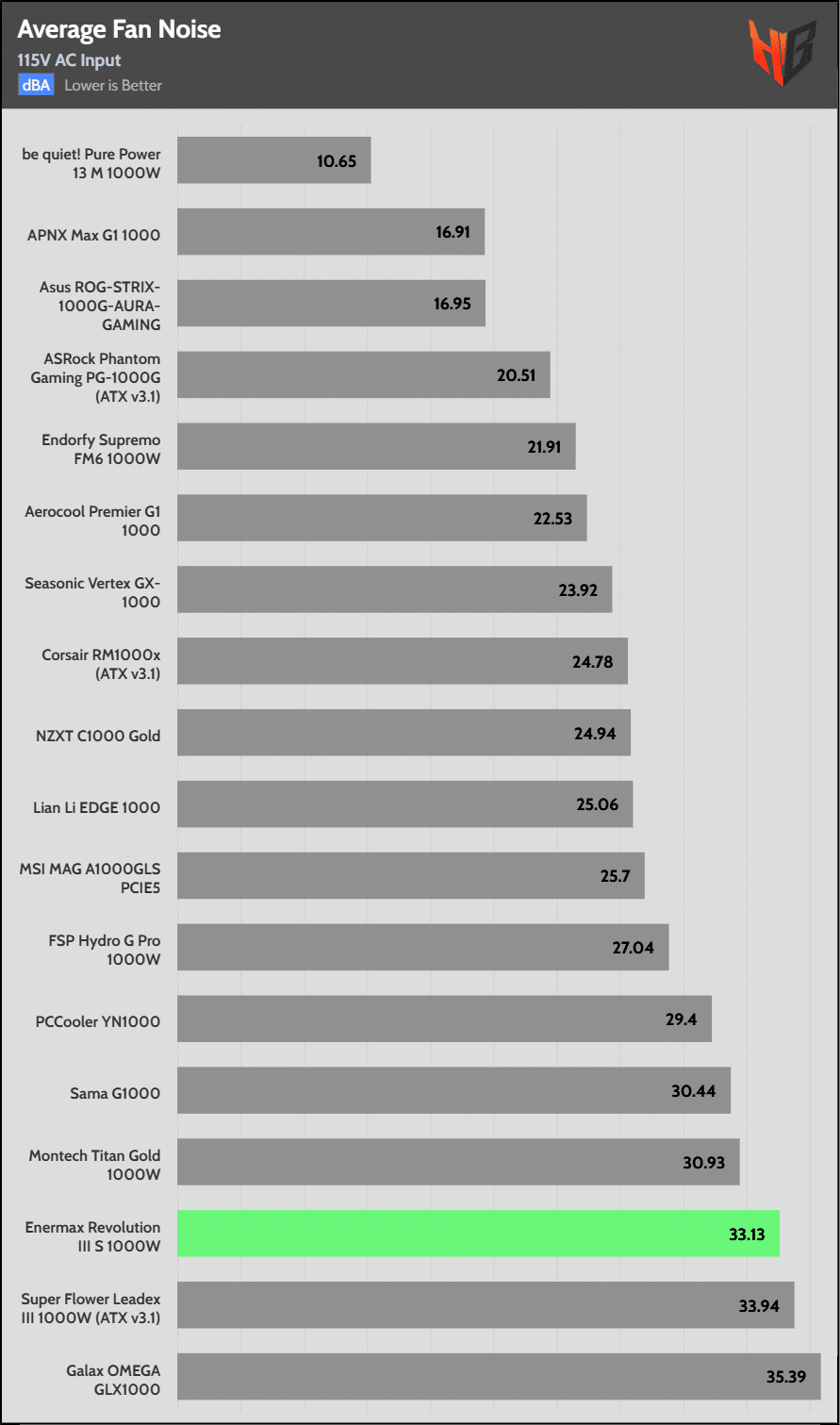

Average Noise
The PSU’s average noise output is high, given its efficiency levels. A less restrictive fan grille could help in this section.

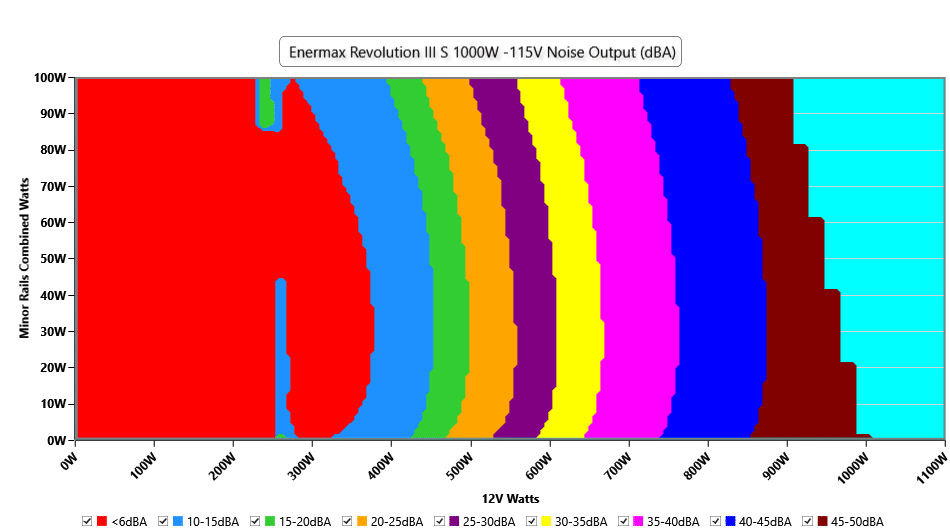

Fan Noise & Speed Maps @ 28-32 °C – 115V
The fan’s passive operation lasts long enough, and in some regions, it starts removing heat, thankfully at low enough speeds not to make its presence felt. The 30 dBA mark is reached around 580W at 12V, and soon after, the fan’s noise exceeds 45 dBA, with more than 860W at 12V. The compact PCB with relatively small heatsinks on the secondary side and the compact 120mm fan do not help keep the PSU’s noise low, especially under higher loads.

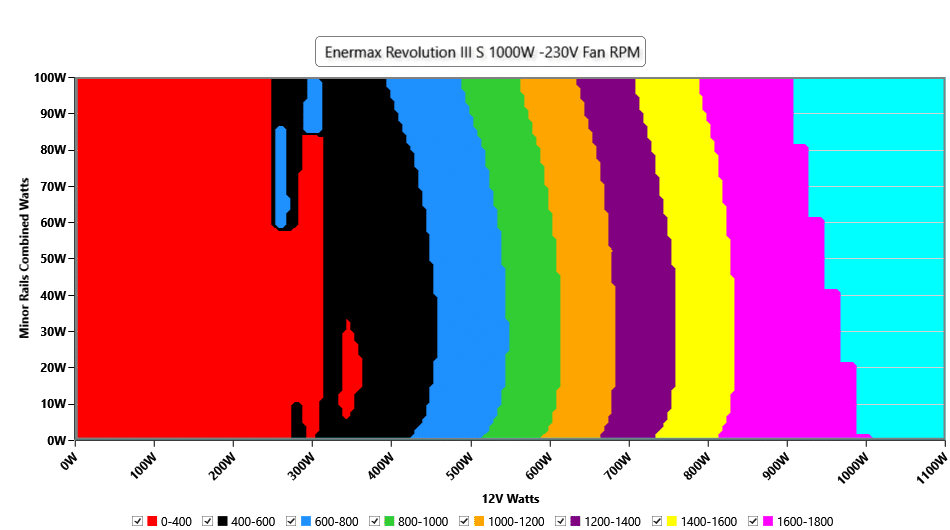

Fan Noise & Speed Maps @ 28-32 °C – 230V
At 230V, the fan speed profile is mostly the same, except for small differences at moderate loads (300-350W).
