Corsair RM650e ATX v3.1 PSU Review

Transient Response

20% Load – 20ms

Advanced Transient Response 20% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.098V 11.967V 1.08% Pass
5V 4.991V 4.873V 2.36% Pass
3.3V 3.283V 3.067V 6.57% Fail
5VSB 4.959V 4.908V 1.02% Pass

50% Load -20ms

Advanced Transient Response 50% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.072V 11.941V 1.08% Pass
5V 4.983V 4.870V 2.28% Pass
3.3V 3.275V 3.054V 6.75% Fail
5VSB 4.933V 4.880V 1.08% Pass

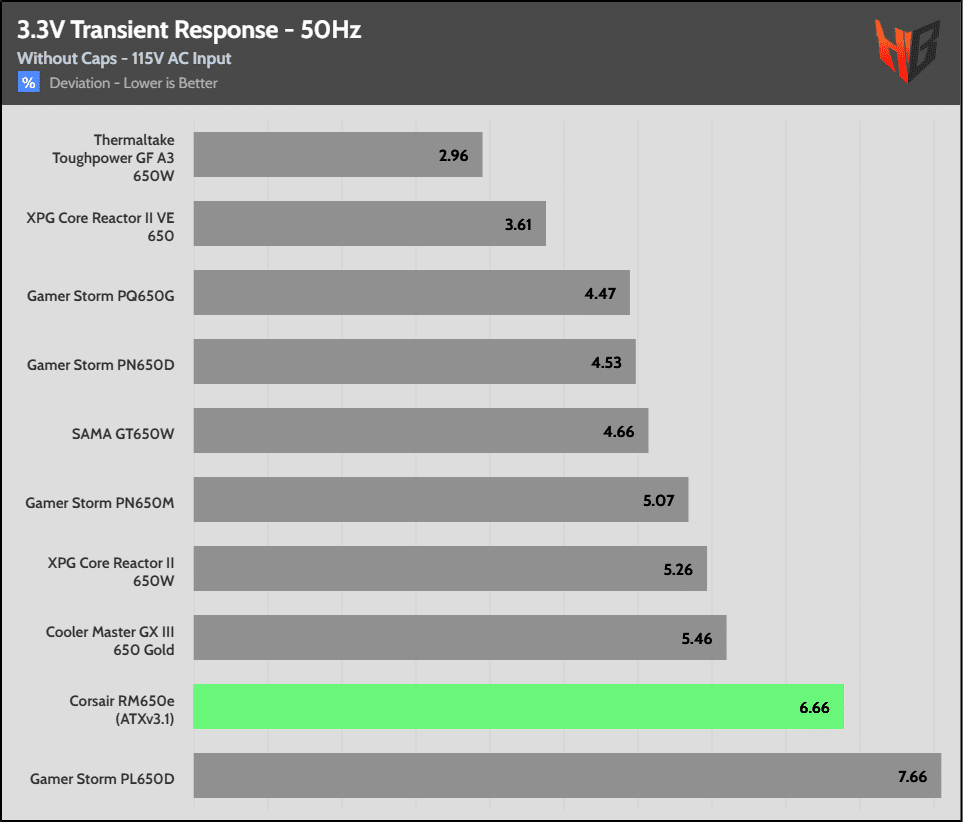

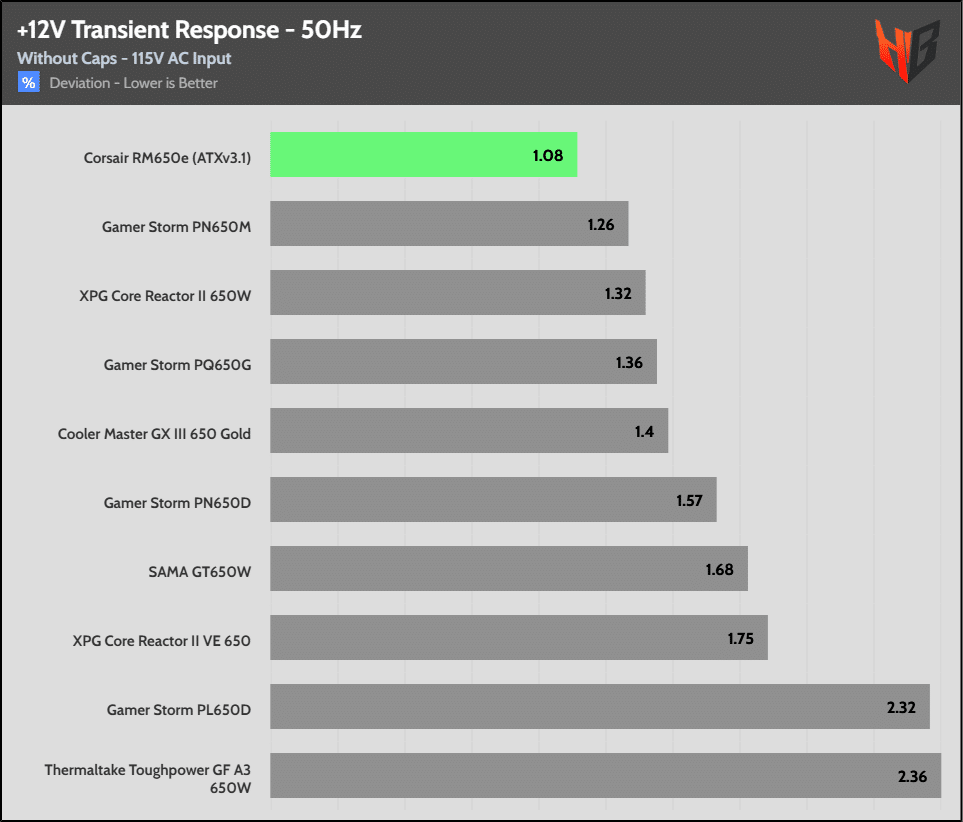

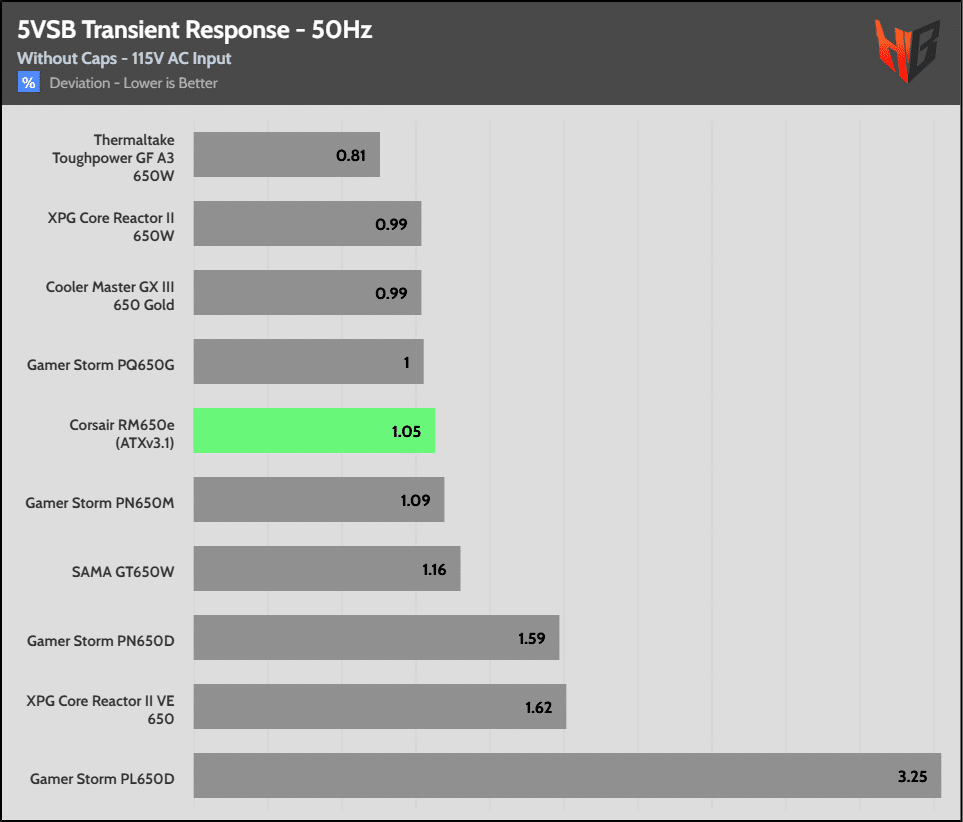

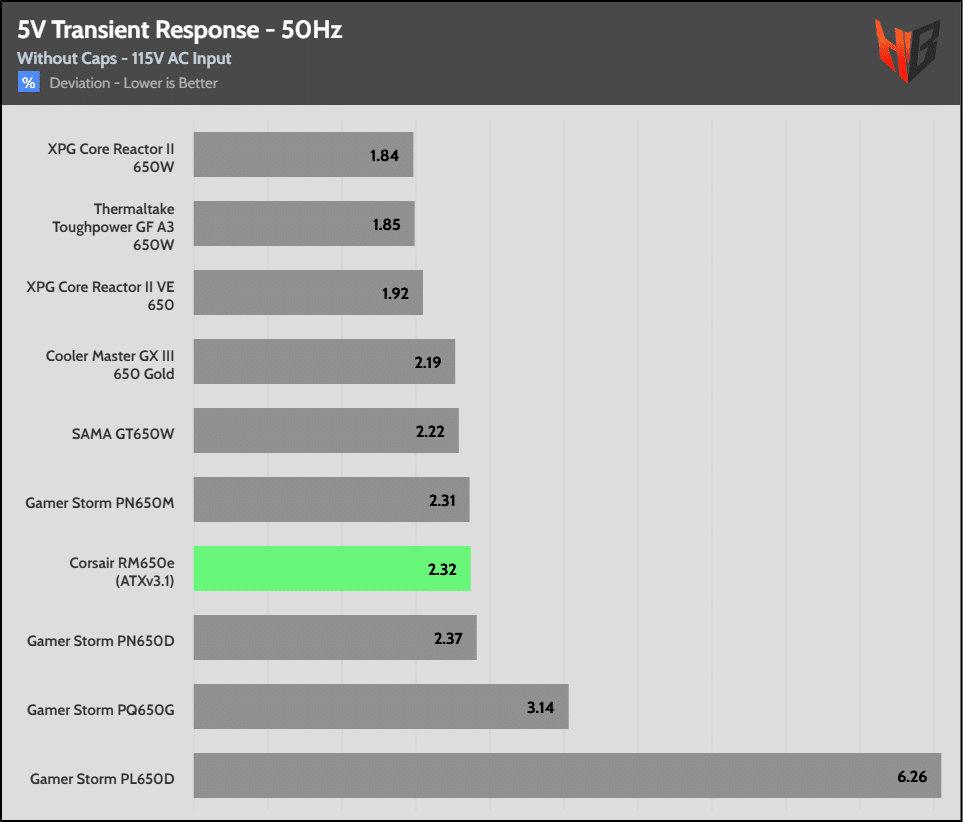

The transient response is good at 12V, decent at 5V and 5VSB and mediocre at 3.3V, where the rail’s voltage drops way below the limit on all tests.

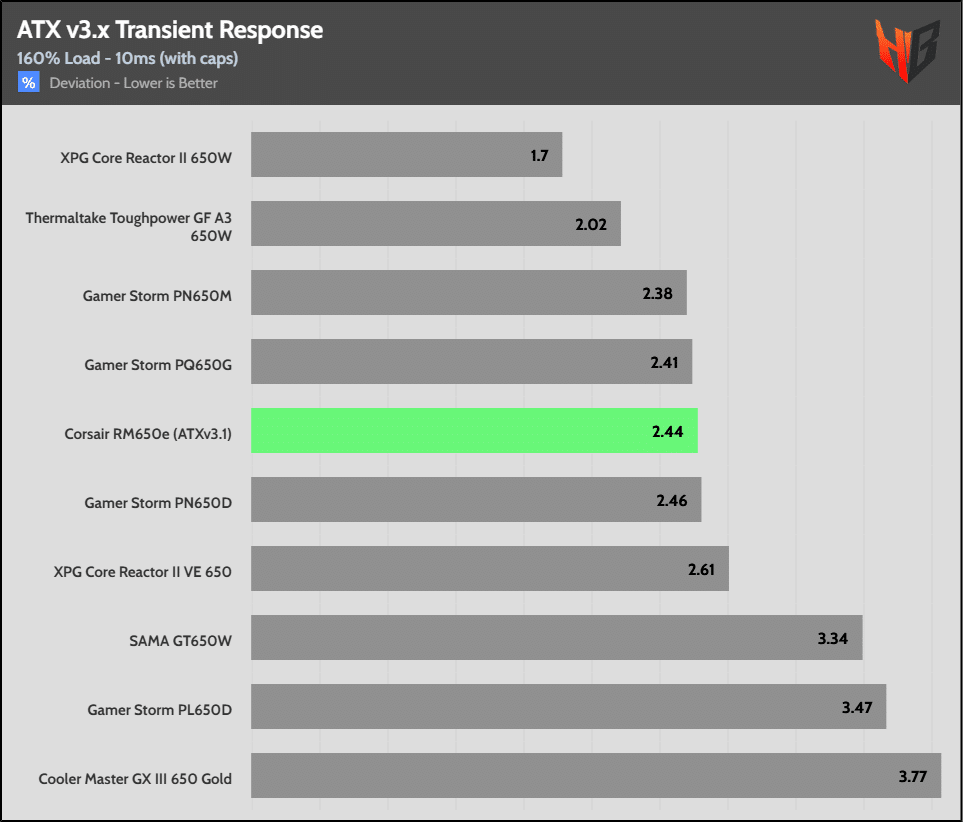

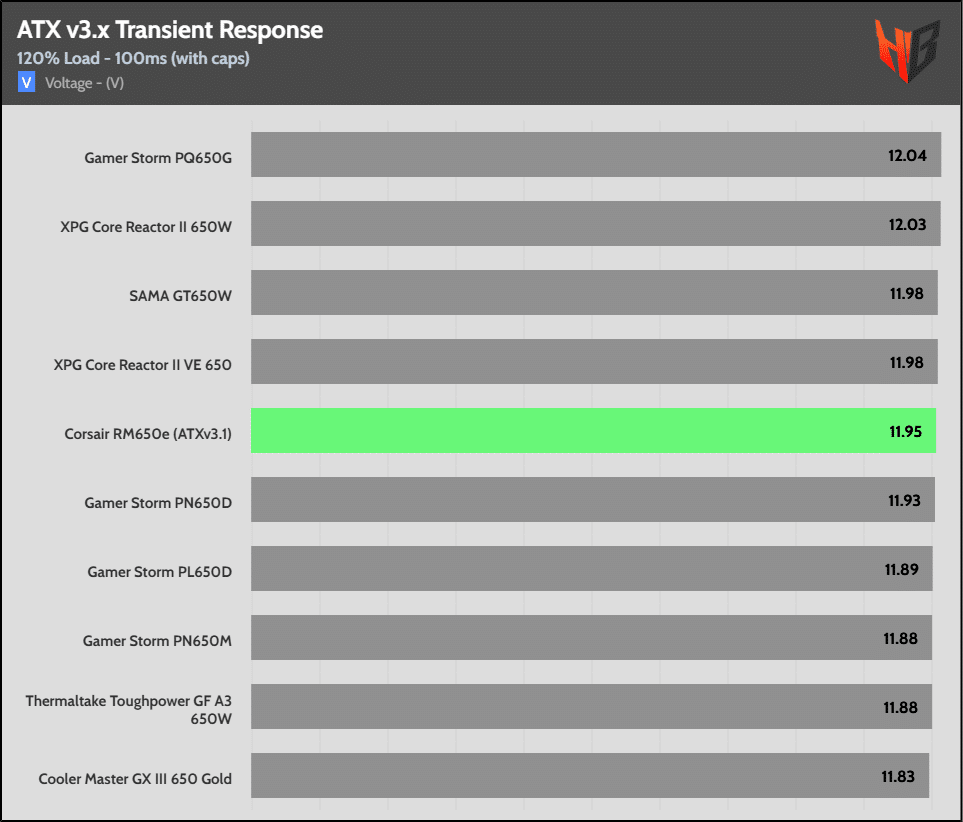

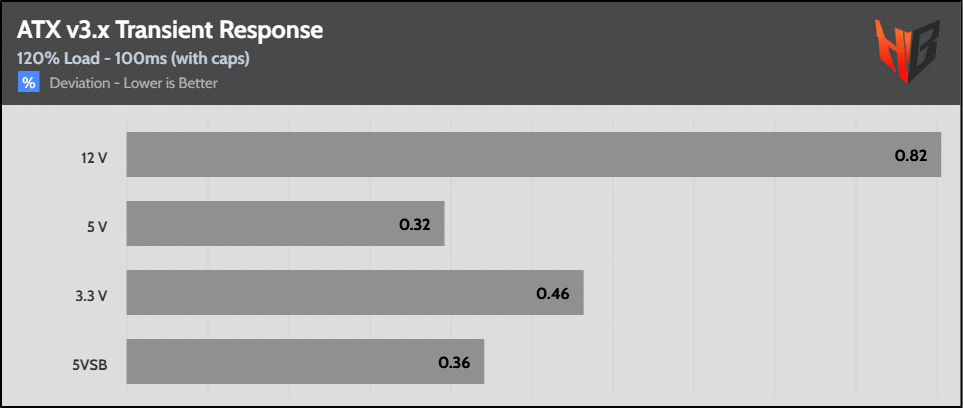

Transient Response ATX v3.1 Tests

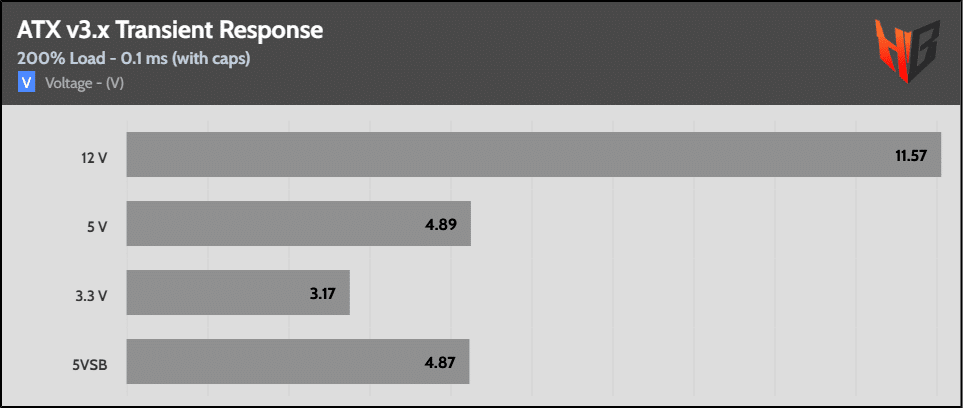

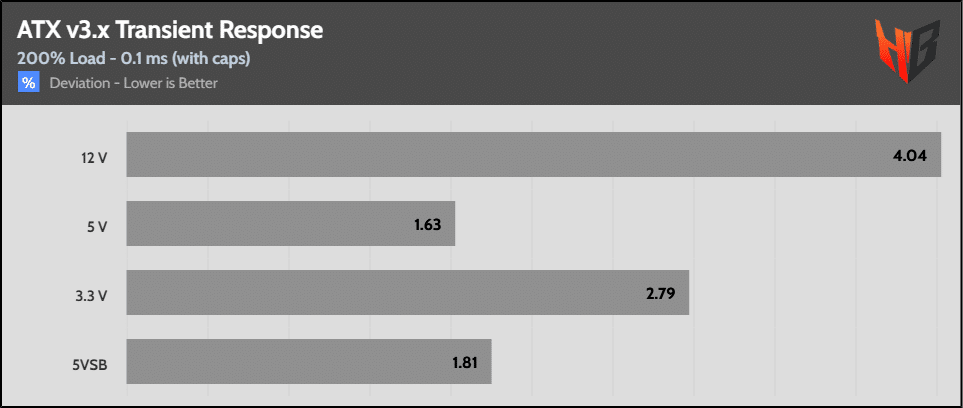

The PSU passes all ATX v3.1 transient response tests, but the 3.3V rail drops below 3.2V  in the 180% and 200% load tests.

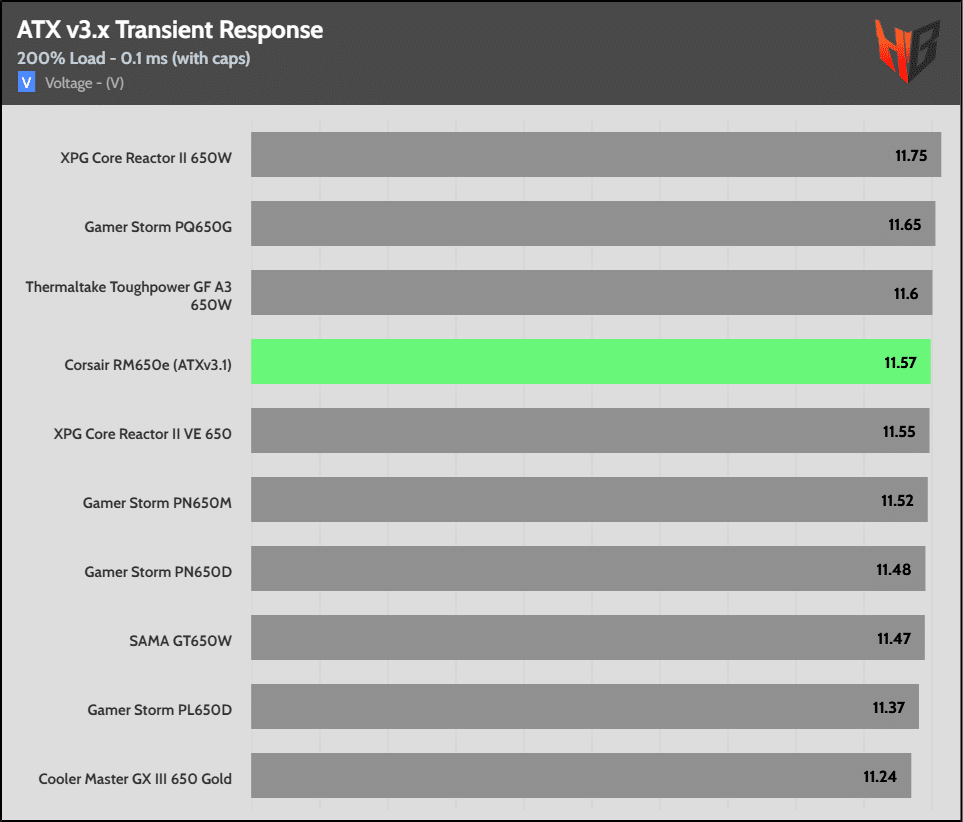

The 12V rail’s transient performance is good enough compared to similar spec PSUs.

Pages ( 5 of 11 ): « Previous1234 5 67891011Next »

Related Posts

10 thoughts on “Corsair RM650e ATX v3.1 PSU Review

  1. Hi! Just came over this excellent review when picking a PSU for my new eGPU setup.
    The enclosure is Razer Core X V2 (TB5) that requires a ATX PSU. The graphics card is a 5080FE. While 5080FE’s TGP is 360W, and the recommended PSU for system is 850W+, for an eGPU it should be significantly lighter so a 650W output is likely to be sufficient.
    However, RM650e has a 300W rated 12V-2×6 cable, which is lower than the 360W TGP. Corsair’s website did not reveal anything related to the 300W bottleneck for RM650e, and this is only mentioned by Cybenetics’ rating and your review. Do you think that this would constitute a bottleneck and safety concern? I know that due to the Thunderbolt bandwidth, I may never really hit a max load (let alone I’m running TB3/USB4 in the short term), but it may still be a concern if TB5 can later reach it. Furthermore, do you think the bottleneck would be on the cable rating or the PSU? If former, then maybe replacing with a 600W rated 12V-2×6 cable can resolve the potential issue…

    1. yes that can be a problem, better get a PSU that is set at 600W, on its 12V-2×6 header. Remember the cable is the same, it is the setting of the PSU’s 12V-2×6 port that does the trick.

  2. Hello Aris, such great work your providing the community! Now that my eyes are open I feel like they should have never hit the market from the beggining, an example is the FSP Vitas, I was about to buy one but was hesitant because you made very explicit about the Yang Loo fan being very weak, so I did some research and Voilá there seems to be an increasing number of people who bought a Vita some months ago now posting videos about fan noise and asking for advice. I mean the Vitas are amazing as far as voltage regulations goes and whatnot, but should a product that is bound to fail shortly after being sold really be put out to the market? It’s not so easy finding a Psu we can trust

    So about this Rme650, the Inrush Currents are really high, will that be an issue or is it good? I’m thinking it might be good due to the new gpus needing very short power spikes but then again I’m not totally familiar with the concept and also your graph states that Lower is Better, pls if you can take the time to briefly elaborate I’d be very welcome! Seems like Corsair adopted Cybenetics approved test so cheers on that

    1. Hi! High inrush currents are not good, but it is not easy, at all, to completely drain the bulk cap(s) as we do. High inrush current means that with a completely drained bulk cap, the PSU asks for way to much power, which can even trip the electrical relay connected to the AC socket. As for YL fans, they are hit and miss unfortunately. Really bad idea from FSP to use them and I told them to switch ASAP to something better.

      1. I get it now! So my lack of in depth electrical knowledge assumes it shouldn’t be a problem unless the bulk caps go bad or the psu is disconnected from the ac plug for a very long time? For high inrysh currents psu would it be better prior to the 1st ever use to plug her to ac power and turn the On switch for the bulk capacitors to fill up??

        Also, I’m thinking of getting this Rme650 to go with a 330 TDP gpu (7800 xt overclocked) and 65W ryzen 7600, for a total of 450W, just 2 quick questions please:
        -Do you think if in the future If I go for something like a 9800x3d while keeping a ~300W TDP gpu it would be problematic?
        -Also, this psu only comes with 1x “12v-6×2 to 2x8pin” cable, but it’s only rated for 300W, isn’t this a problem for a 330W gpu? I think it’s my only way of connecting the gpu with this cable… because the psu only has 2x8pin Cpu/Pcie connections so I need 1 for Cpu and I don’t know if I should connect the gpu (which has 2x8pin) to only 1x8pin on the psu.

        1. 1) 9800X3D has low power consumption so even with a 300W GPU this PSU will be ok
          2) If the GPU needs 330W then it will probably won’t work with the 300W set 12V-2×6

          1. Thank you Aris! I actually ended up going with your suggestion “you can get one of the best mid-capacity PSUs available in today’s market, the RM750x (ATX v3.1), so consider this, too” and I already have a Ryzen 7700 with me and waiting on a Palit 5070 Ti. So my plans sidetracked completely and ended up getting a different Psu, Cpu, Gpu. Ahahahah
            Is there a Paypal where I could buy you a beer?
            Much *more* success to you and your team Aris, thanks for the help!

  3. Speaking about Corsair …
    I own rm 1000x 2024
    Rtx 4090 super (right now)
    Ryzen 9800x3d
    For future Rtx 5090 is good way to go ? This psu will handle it ? I searched whole psu’s models on your side and I’m looking for sleeved cabled / individually so u pick this one.
