Corsair RM650e ATX v3.1 PSU Review

Load Regulation

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 2.001A 2.006A 1.006A 65.009 84.609% 0 <6.0 46.83°C 0.971
12.121V 4.998V 3.29V 4.969V 76.833 40.05°C 114.84V
20% 8.177A 3.003A 3.012A 1.21A 129.949 89.409% 0 <6.0 49.39°C 0.989
12.113V 4.995V 3.287V 4.961V 145.341 40.71°C 114.81V
30% 13.125A 3.505A 3.516A 1.413A 194.954 90.72% 0 <6.0 51.15°C 0.986
12.106V 4.993V 3.285V 4.954V 214.893 41.36°C 114.78V
40% 18.086A 4.007A 4.021A 1.618A 260.043 91.064% 0 <6.0 53.65°C 0.987
12.099V 4.992V 3.283V 4.945V 285.558 41.77°C 114.76V
50% 22.709A 5.013A 5.031A 1.823A 325.042 90.904% 406 <6.0 42.28°C 0.99
12.089V 4.988V 3.28V 4.937V 357.567 57.13°C 114.74V
60% 27.290A 6.019A 6.043A 2A 389.285 90.531% 501 <6.0 42.78°C 0.991
12.078V 4.985V 3.277V 4.929V 430.002 58.74°C 114.71V
70% 31.951A 7.027A 7.058A 2.236A 454.73 90.027% 612 8.5 43.41°C 0.992
12.068V 4.982V 3.274V 4.92V 505.104 60.09°C 114.69V
80% 36.622A 8.035A 8.072A 2.341A 519.53 89.389% 734 13.4 43.78°C 0.993
12.059V 4.978V 3.27V 4.914V 581.206 61.91°C 114.67V
90% 41.699A 8.542A 8.569A 2.446A 584.979 88.668% 905 20.6 44.52°C 0.994
12.050V 4.975V 3.268V 4.906V 659.739 63.51°C 114.64V
100% 46.517A 9.049A 9.096A 3.071A 649.794 87.893% 1187 30.1 45.51°C 0.994
12.041V 4.973V 3.265V 4.886V 739.309 64.69°C 114.62V
110% 51.216A 10.061A 10.209A 3.073A 714.413 87.039% 1503 36.9 46.83°C 0.994
12.030V 4.969V 3.261V 4.882V 820.801 64.67°C 114.59V
CL1 0.116A 13.292A 13.353A 0A 111.3 83.886% 1112 27.5 43.32°C 0.988
12.107V 4.981V 3.272V 4.993V 132.679 55.75°C 114.81V
CL2 0.115A 20.06A 0A 0A 101.337 82.783% 1110 27.4 41.45°C 0.987
12.109V 4.982V 3.284V 4.996V 122.411 50.09°C 114.81V
CL3 0.114A 0A 20.161A 0A 67.387 76.525% 847 18.5 41.02°C 0.975
12.106V 4.991V 3.273V 4.996V 88.06 49.02°C 114.83V
CL4 53.929A 0A 0A 0A 649.618 88.979% 1247 31.7 44.21°C 0.994
12.046V 4.987V 3.28V 4.97V 730.082 56.35°C 114.63V

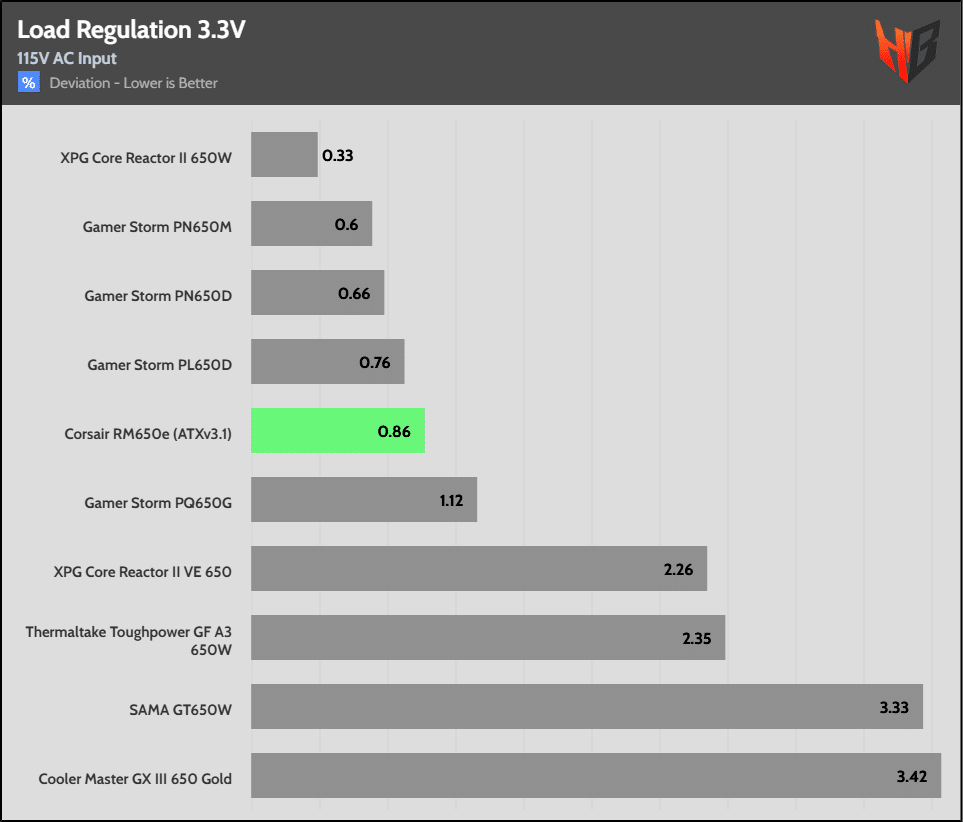

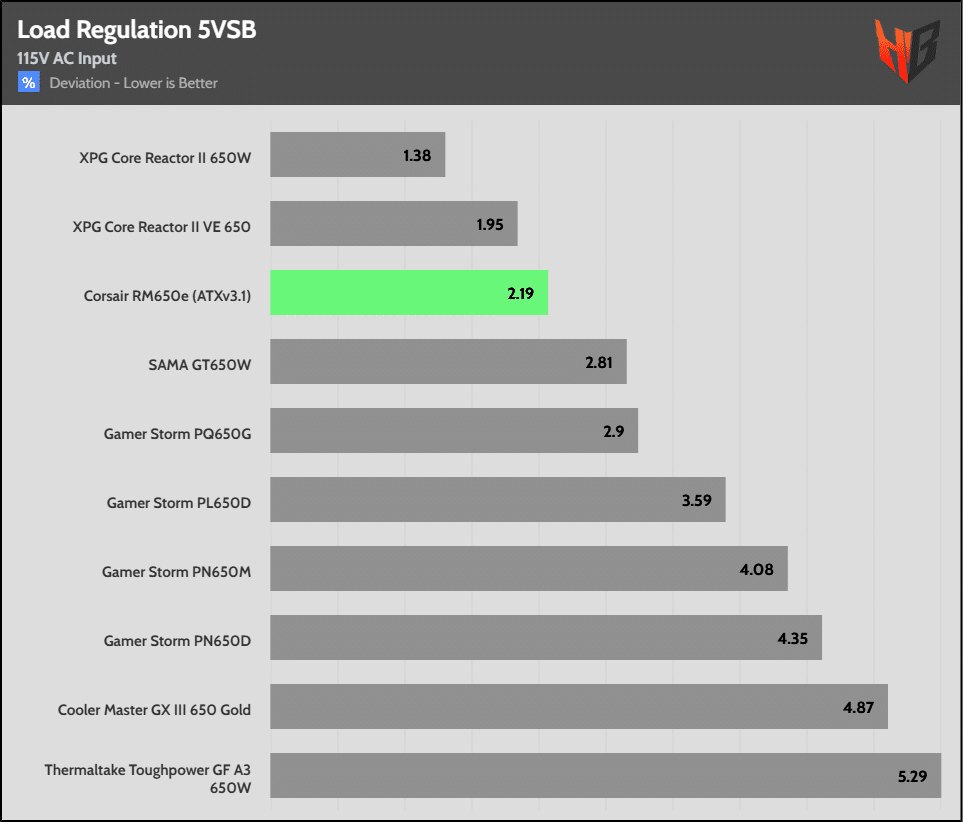

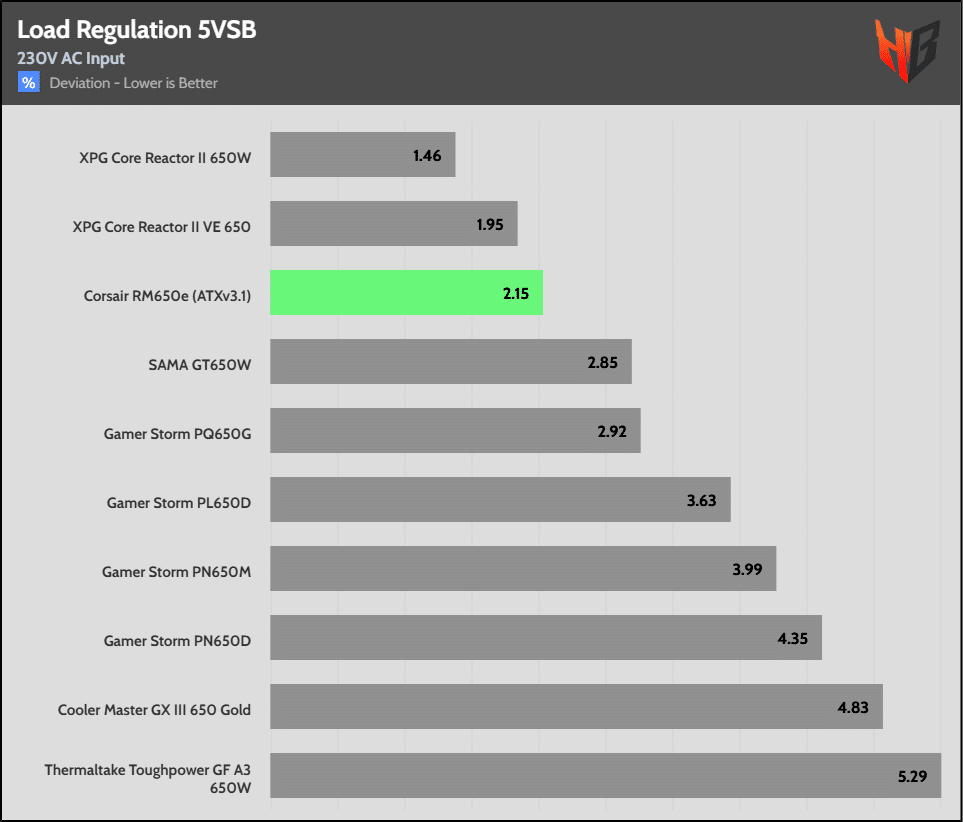

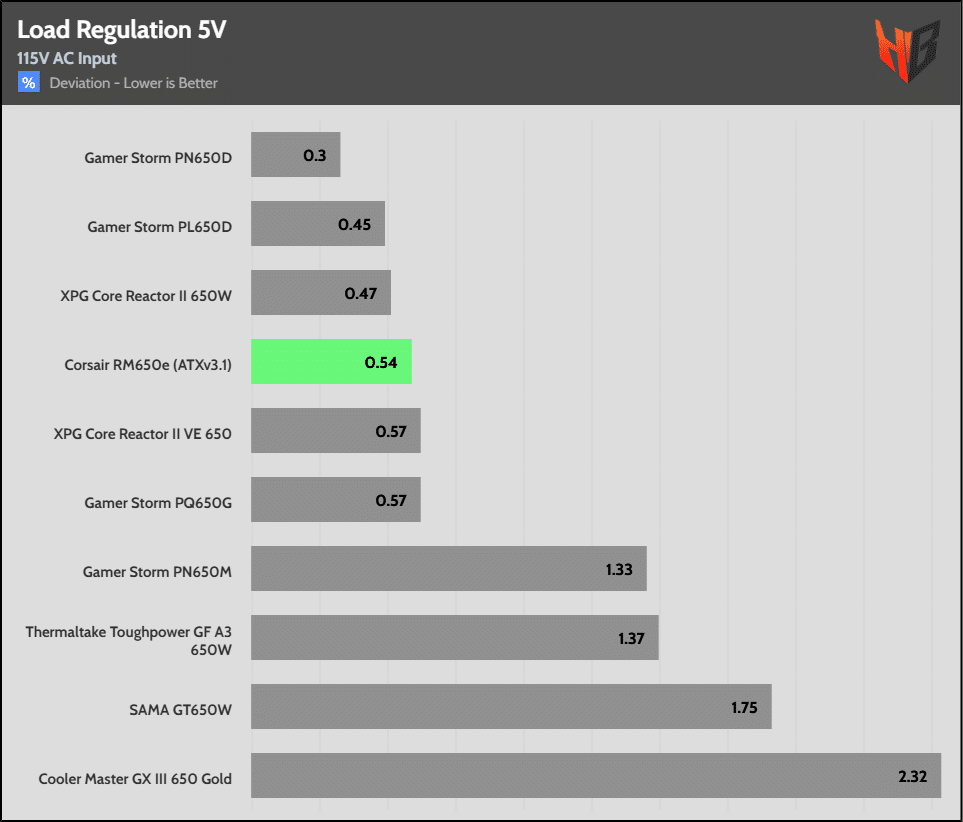

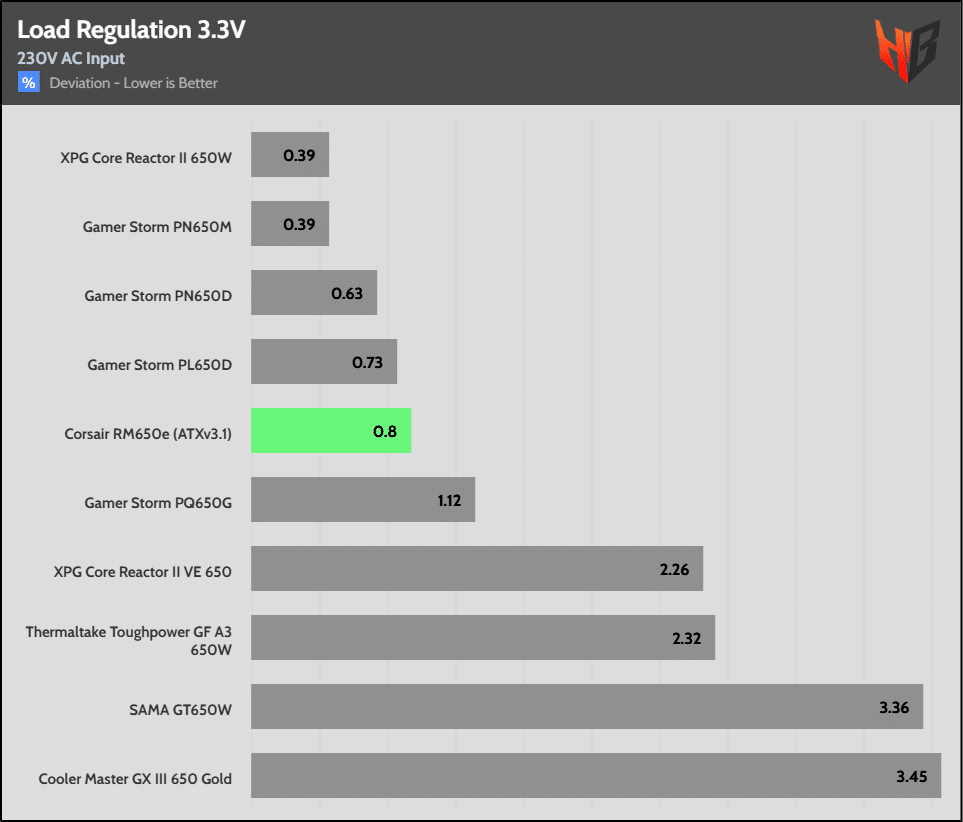

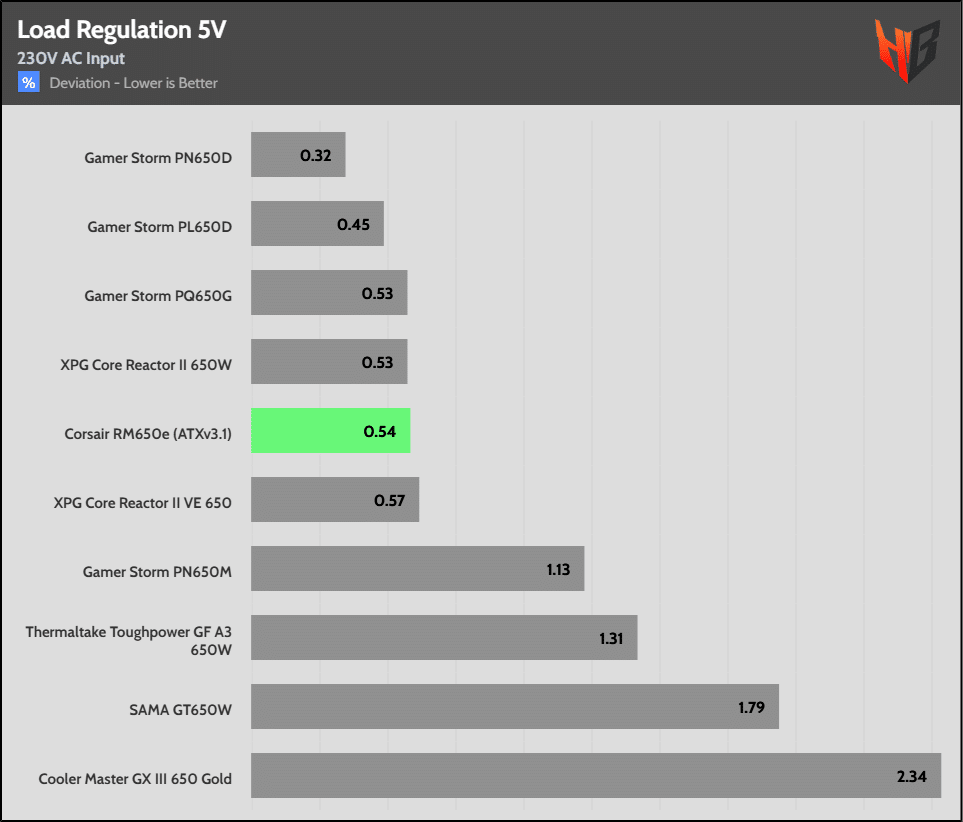

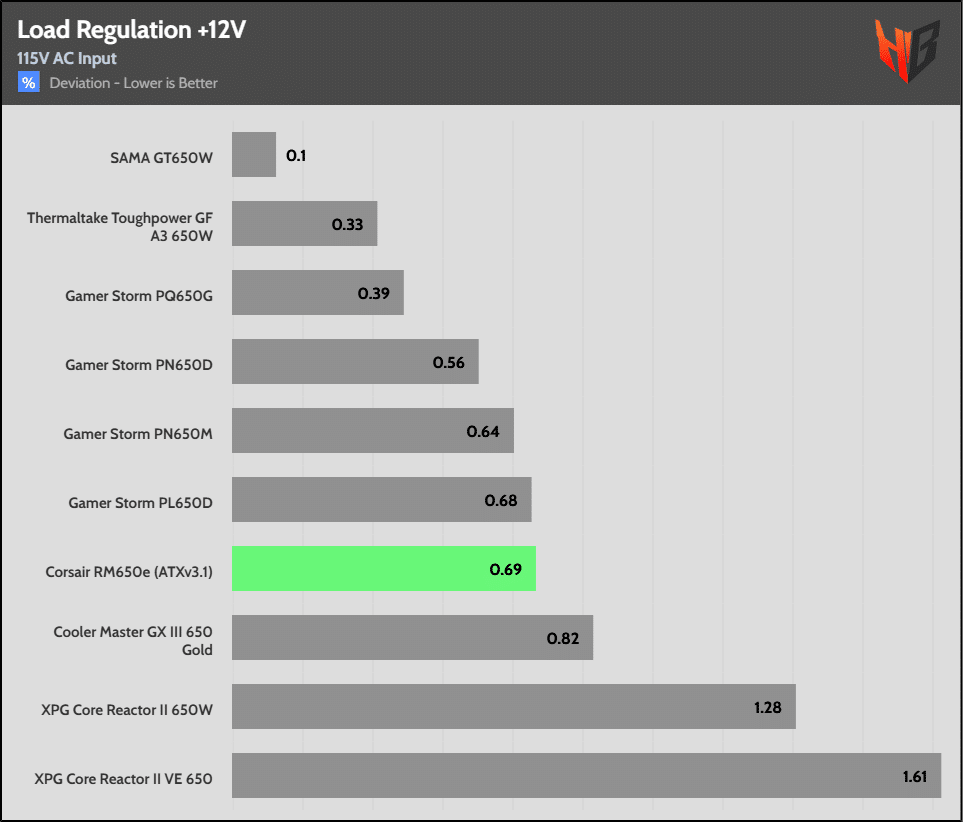

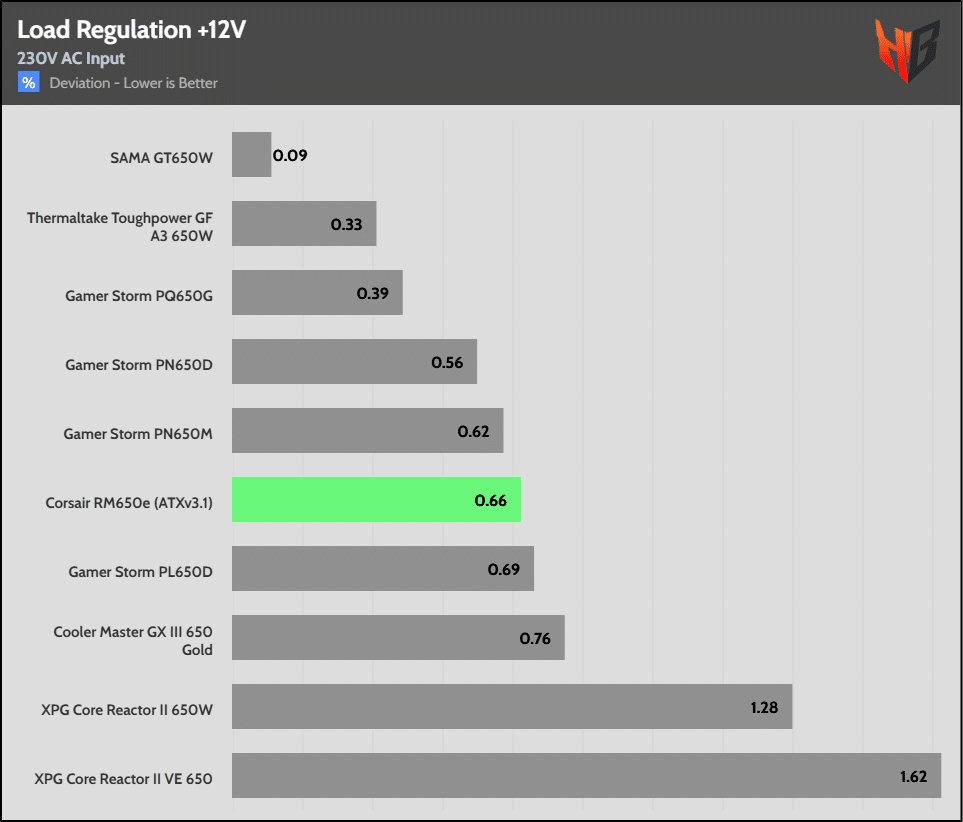

Load regulation is within 1% on all major rails.

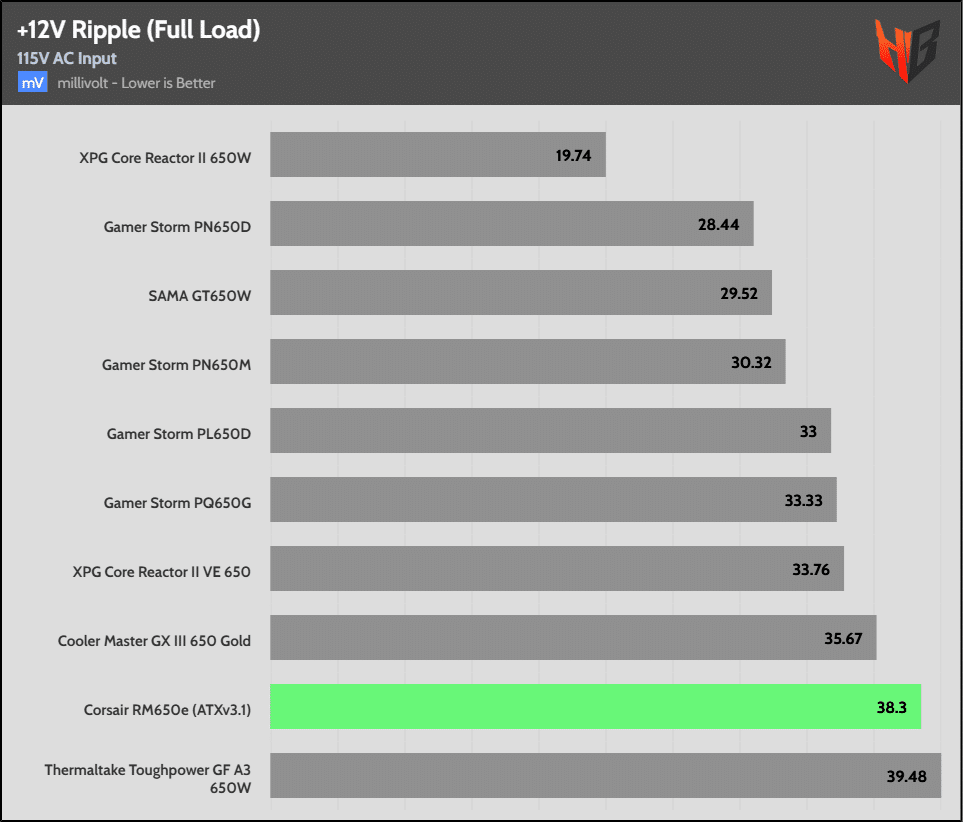

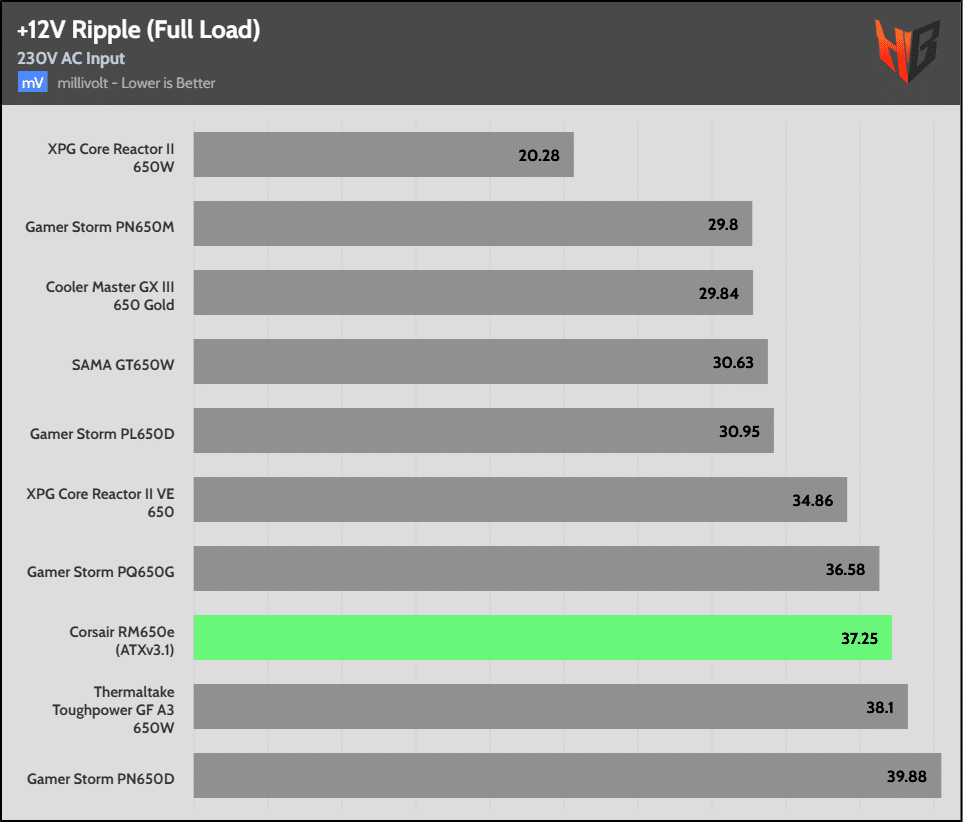

Ripple Suppression

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.0 mV 12.4 mV 13.0 mV 12.8 mV Pass
20% Load 17.5 mV 12.6 mV 14.0 mV 13.2 mV Pass
30% Load 19.8 mV 14.0 mV 15.3 mV 13.6 mV Pass
40% Load 21.6 mV 14.7 mV 16.3 mV 15.0 mV Pass
50% Load 21.9 mV 13.5 mV 15.0 mV 15.0 mV Pass
60% Load 21.9 mV 14.6 mV 16.7 mV 15.1 mV Pass
70% Load 21.6 mV 14.8 mV 15.7 mV 15.6 mV Pass
80% Load 23.1 mV 14.5 mV 17.8 mV 15.8 mV Pass
90% Load 29.9 mV 21.0 mV 21.2 mV 20.4 mV Pass
100% Load 38.3 mV 15.3 mV 17.5 mV 19.6 mV Pass
110% Load 40.6 mV 20.6 mV 23.7 mV 21.8 mV Pass
Crossload 1 26.6 mV 14.0 mV 17.7 mV 11.8 mV Pass
Crossload 2 18.7 mV 16.0 mV 14.4 mV 10.5 mV Pass
Crossload 3 16.1 mV 12.7 mV 17.8 mV 10.8 mV Pass
Crossload 4 37.9 mV 14.3 mV 15.0 mV 13.7 mV Pass

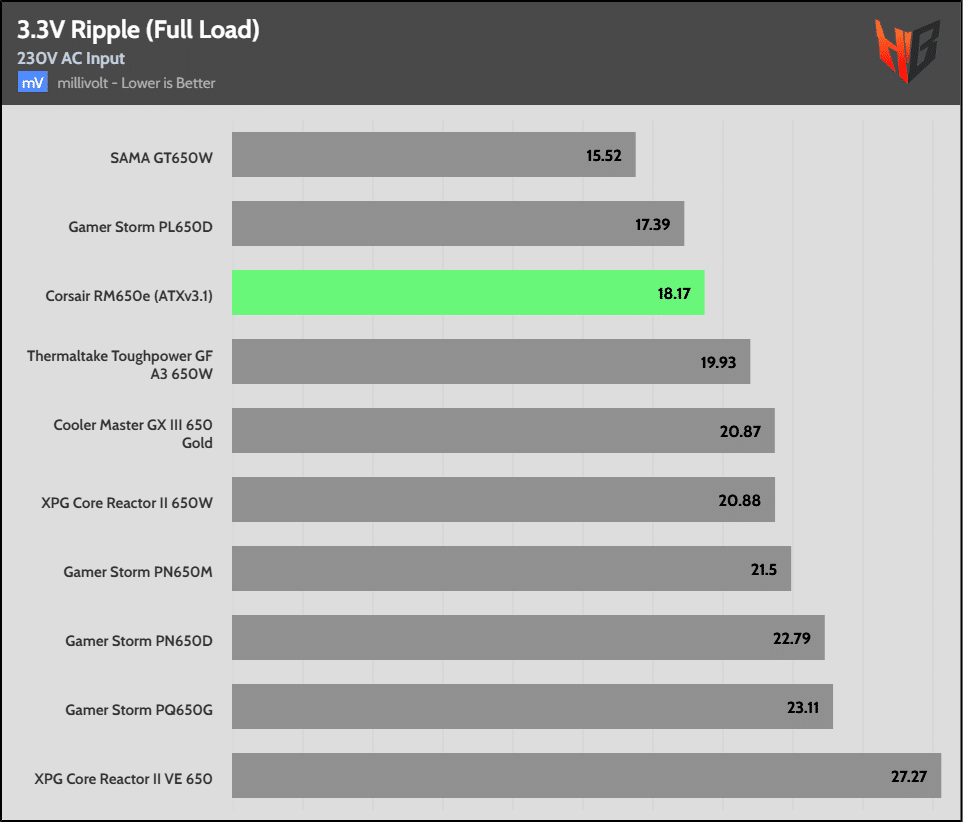

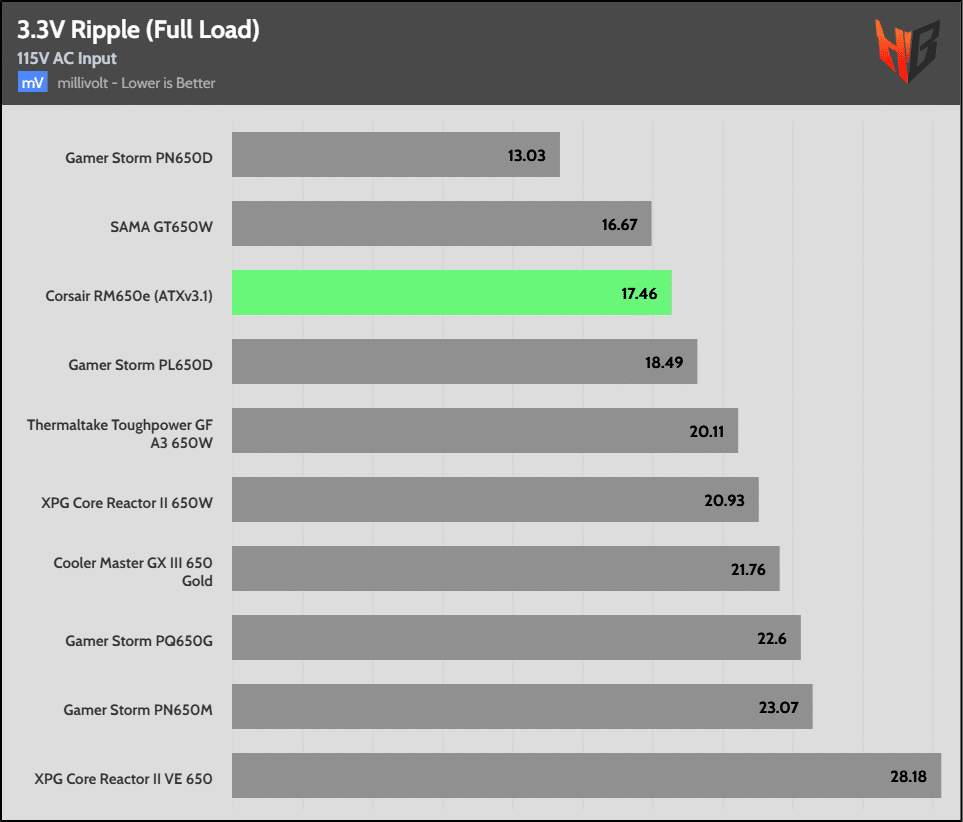

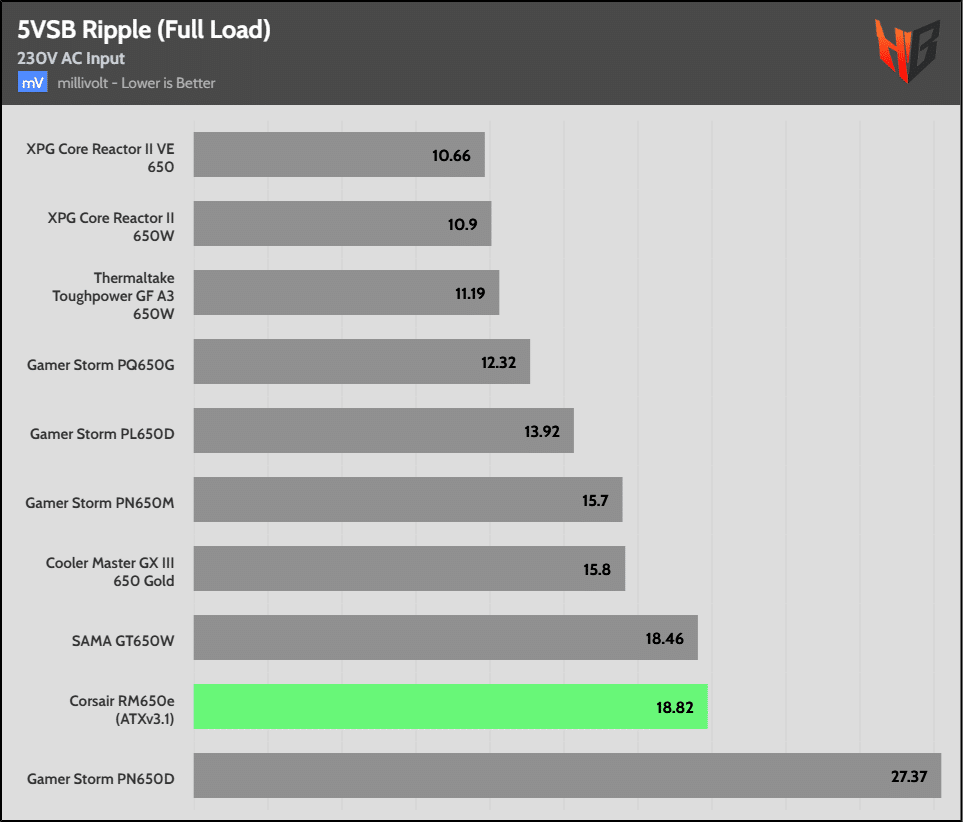

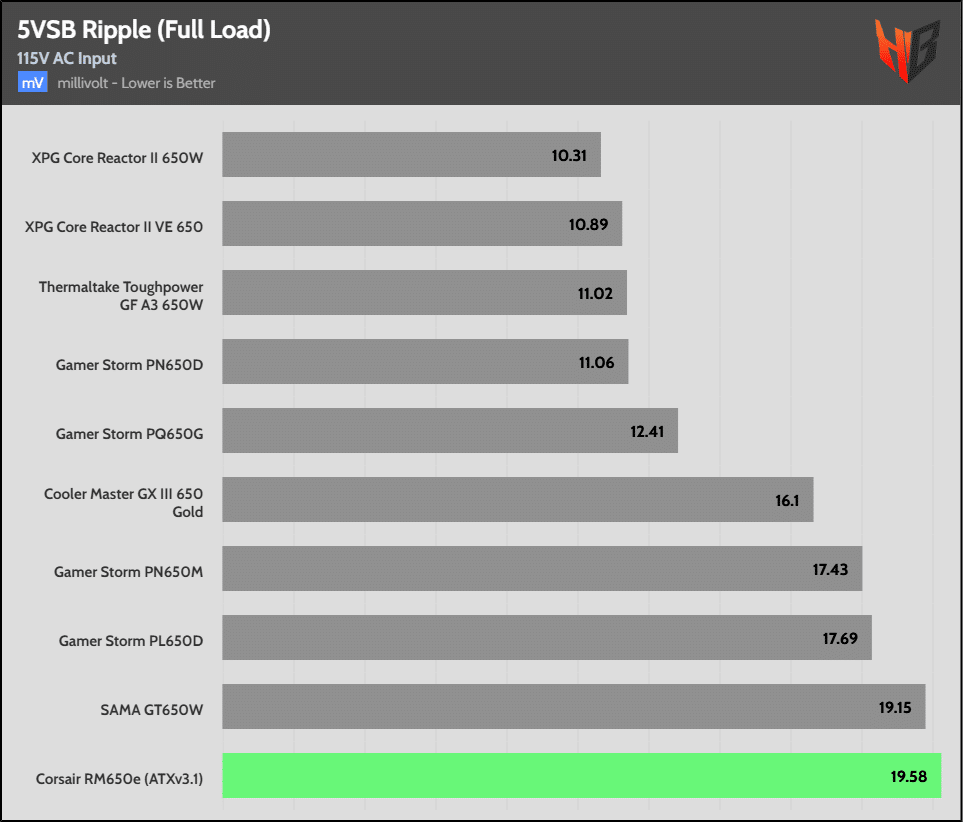

Ripple suppression is decent at 12V and pretty good on the rest of the rails.
