Cooler Master V1600 Platinum V2 ATX v3.1 PSU Review

Efficiency Normal, Light & Super-Light Loads

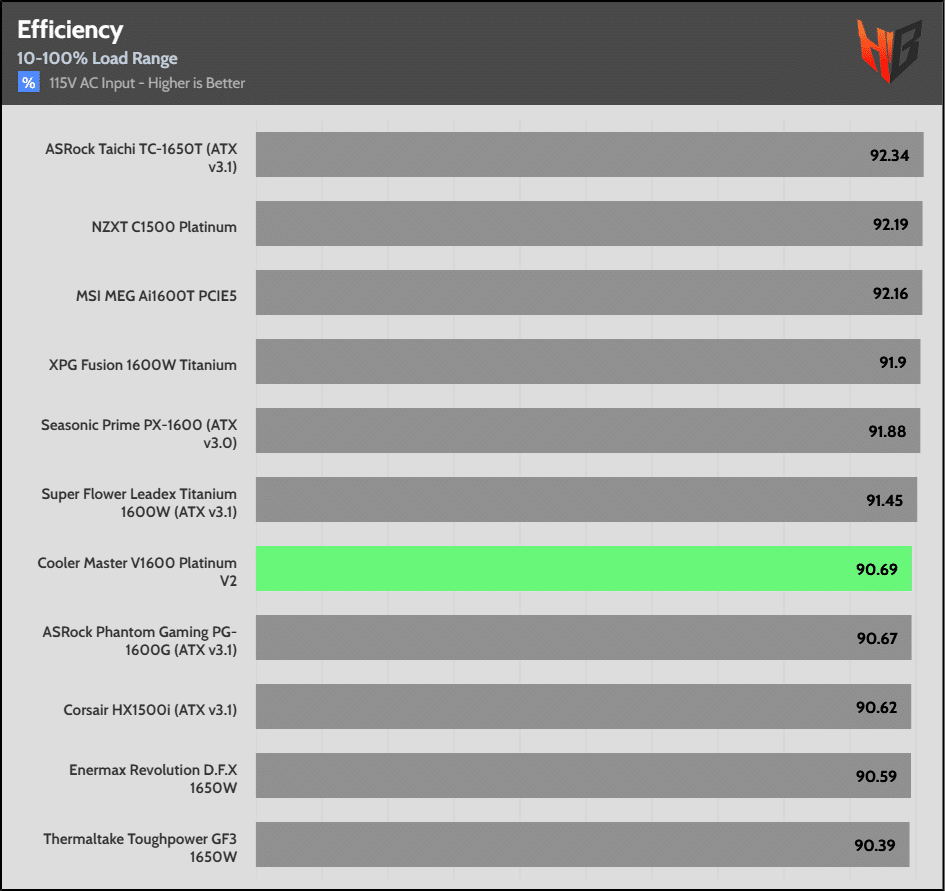

avg_efficiency_normal_loads1_115V

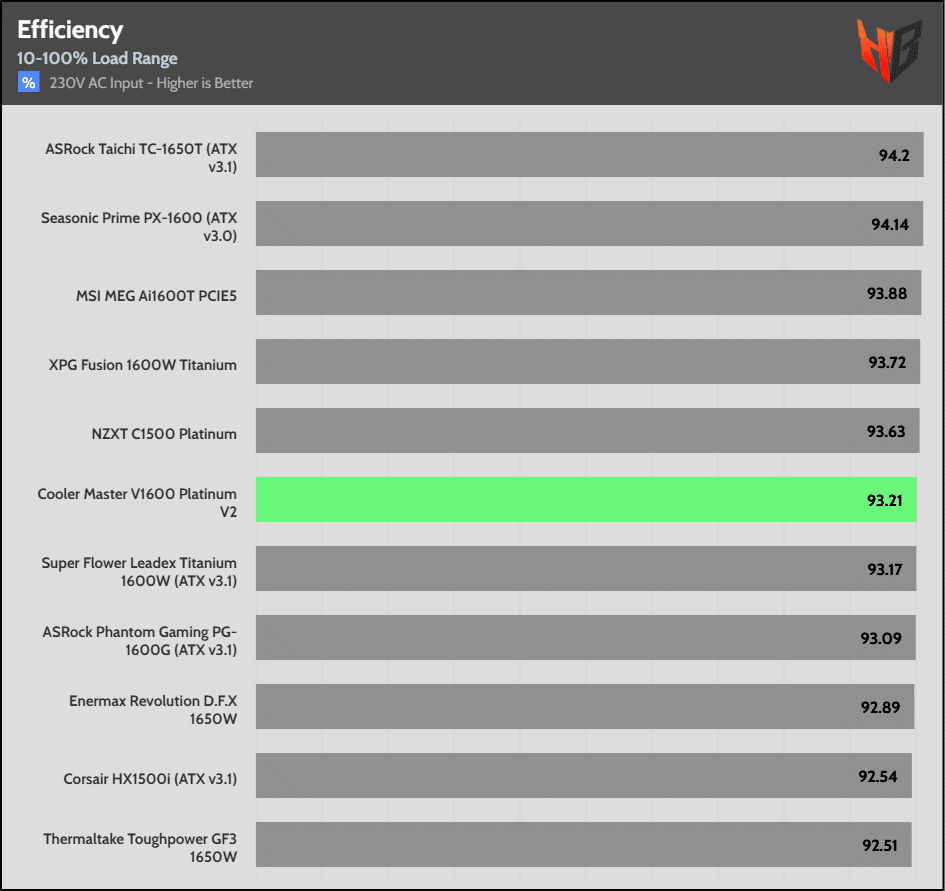

avg_efficiency_normal_loads1_230V

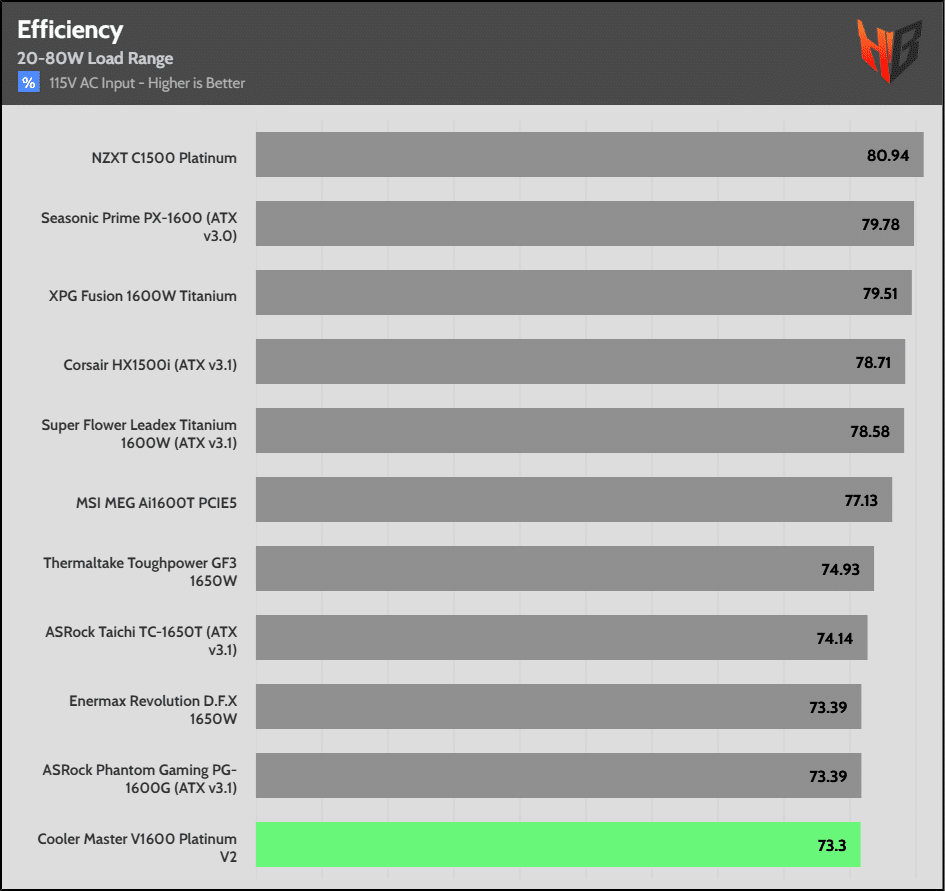

avg_efficiency_low_loads1_115V

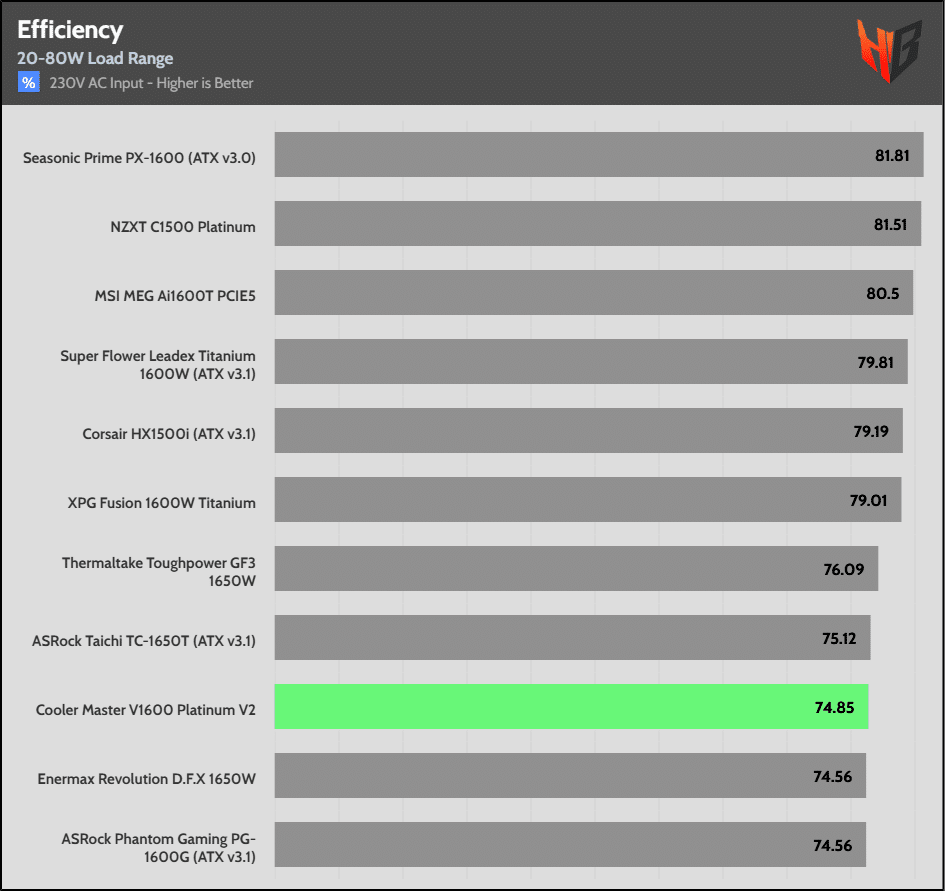

avg_efficiency_low_loads1_230V

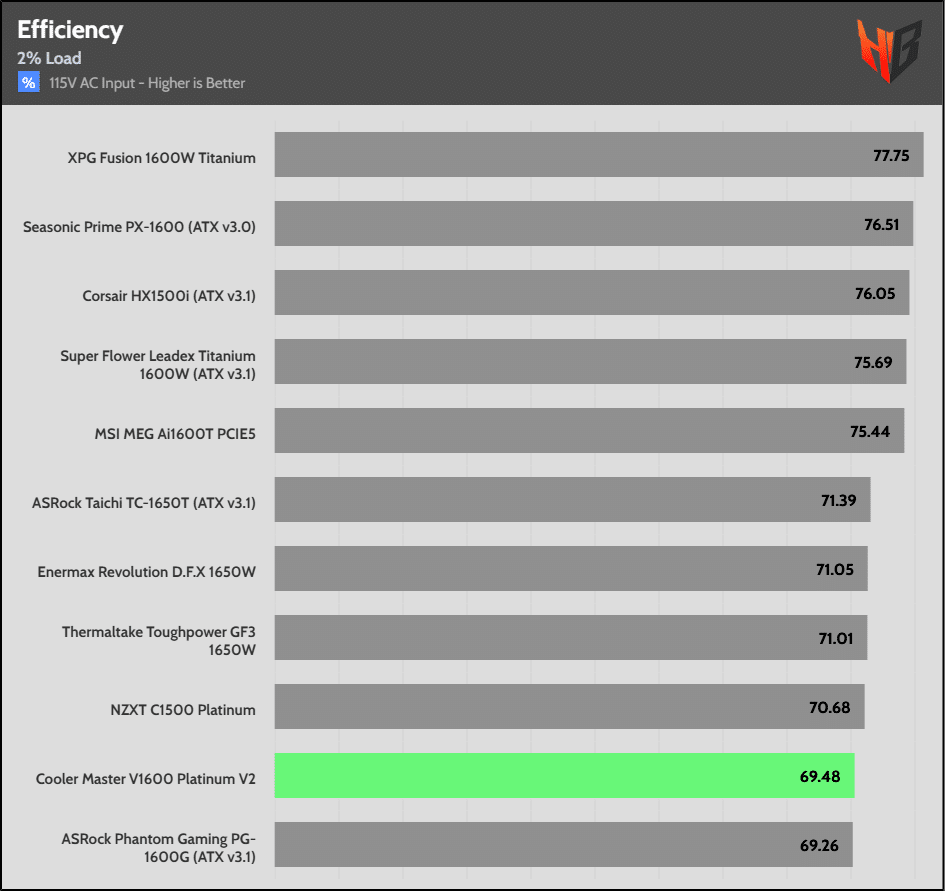

efficiency_ultra_low_load1_115

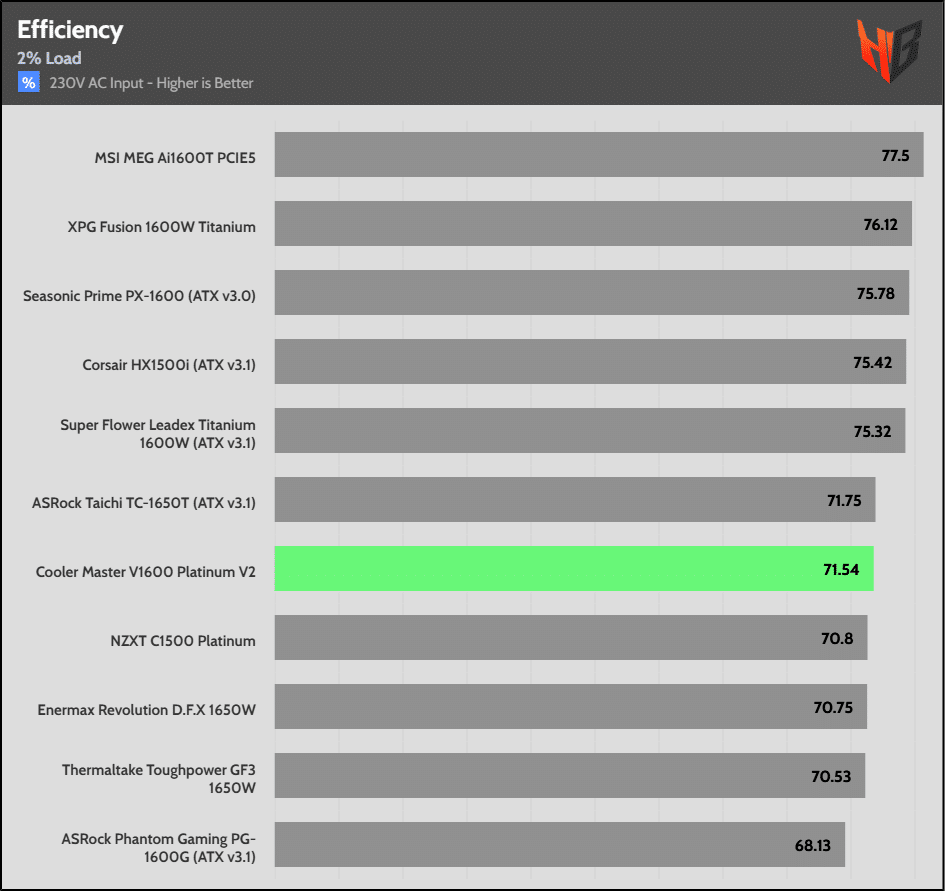

efficiency_ultra_low_load1_230

Efficiency is high enough at normal loads, primarily at 230V. This is not the case, though, at light and super-light loads. Only at 230V does the PSU achieve over 70% with a 2% load, as the ATX spec recommends.

Average Efficiency

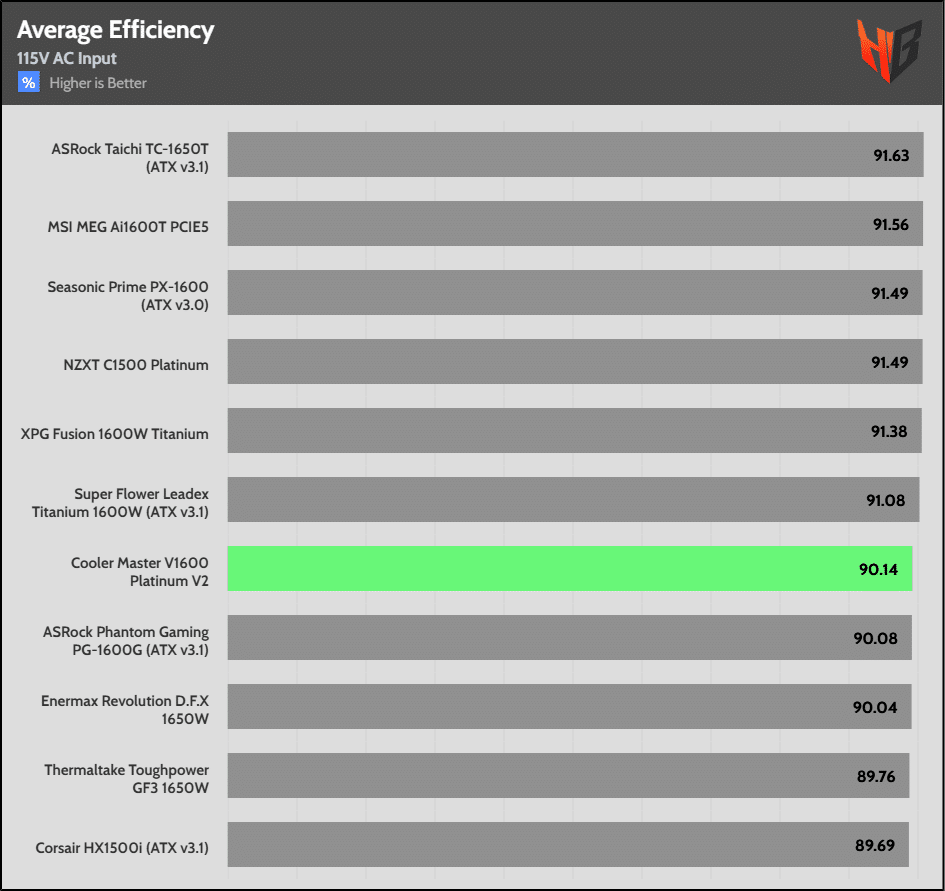

avg_eff_115V

avg_eff_230V

The average efficiency meets the Cybenetics Platinum criteria. Moreover, the difference between 115V and 230V input is substantial.

Average PF

avg_pf_115V

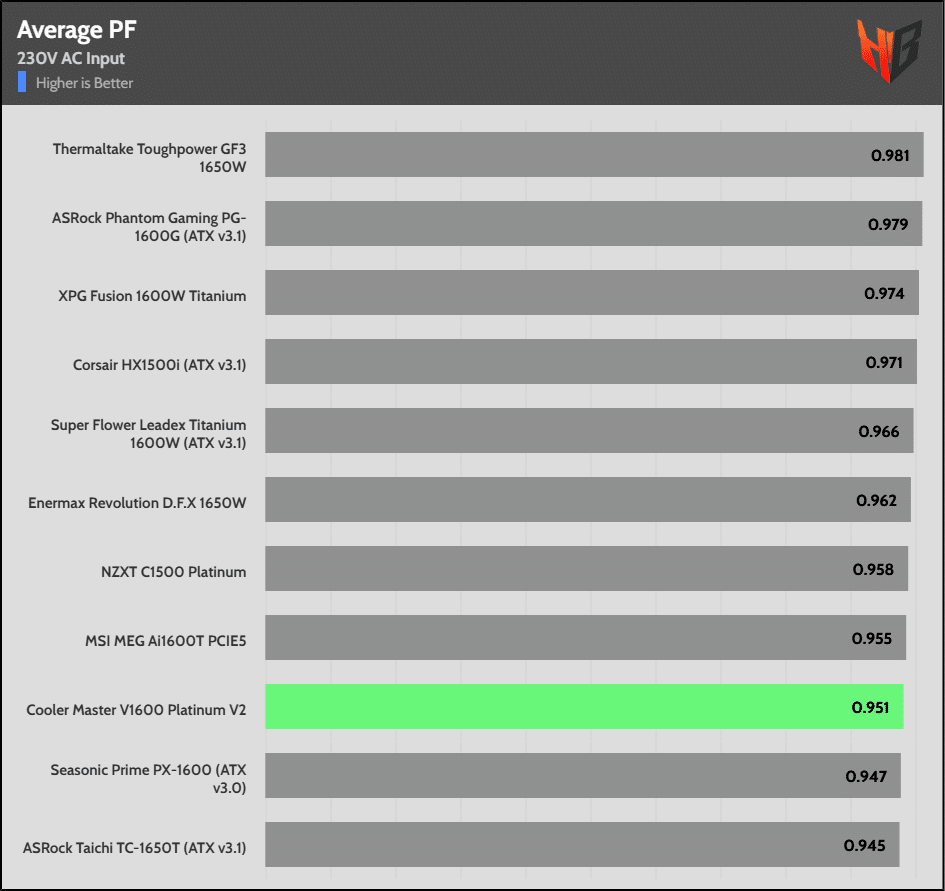

avg_pf_230V

Given the good results in the normal load tests, I expected higher PF readings. However, these only consist of a handful of measurements, while the results of the charts above derive from over 1450 different load combinations.

Average Efficiency 5VSB

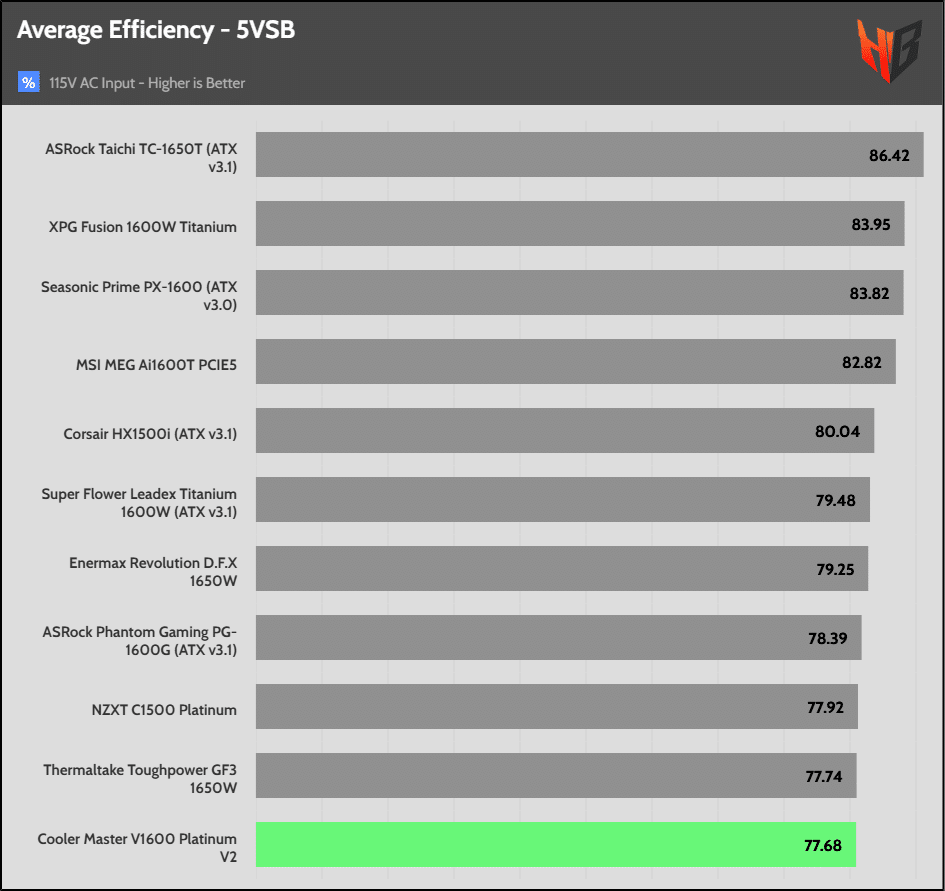

5VSB_efficiency_115V

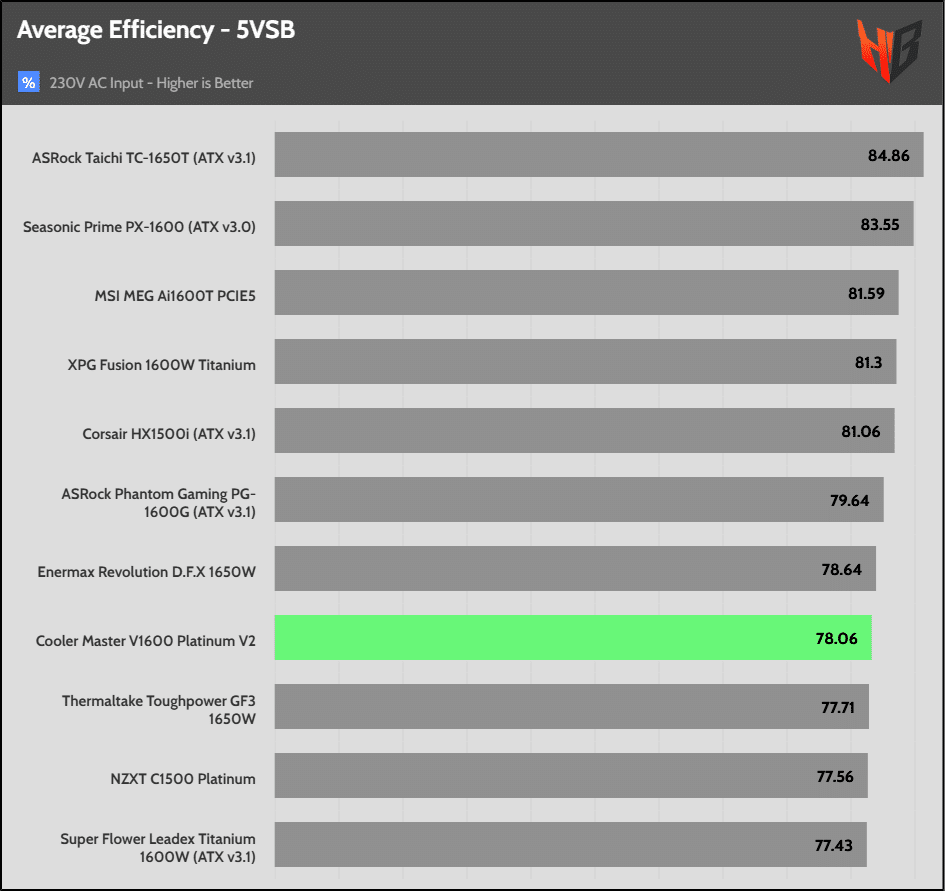

5VSB_efficiency_230V

The 5VSB rail’s efficiency is not high enough.

Vampire Power

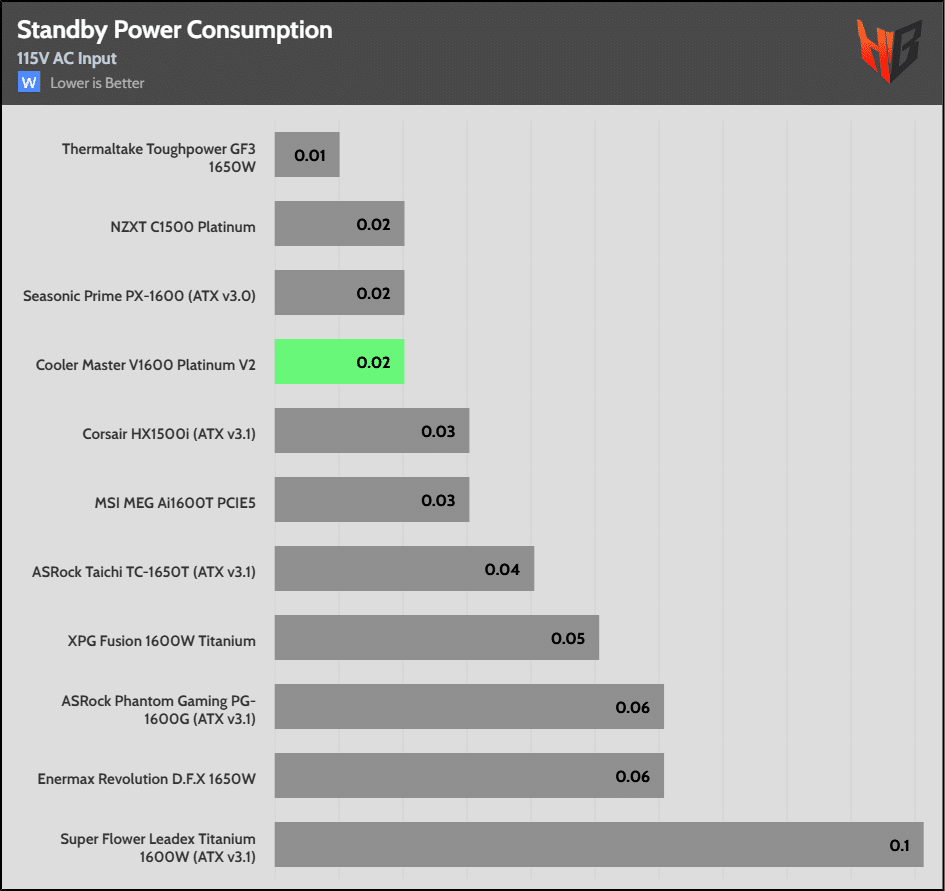

Stand_By_115V

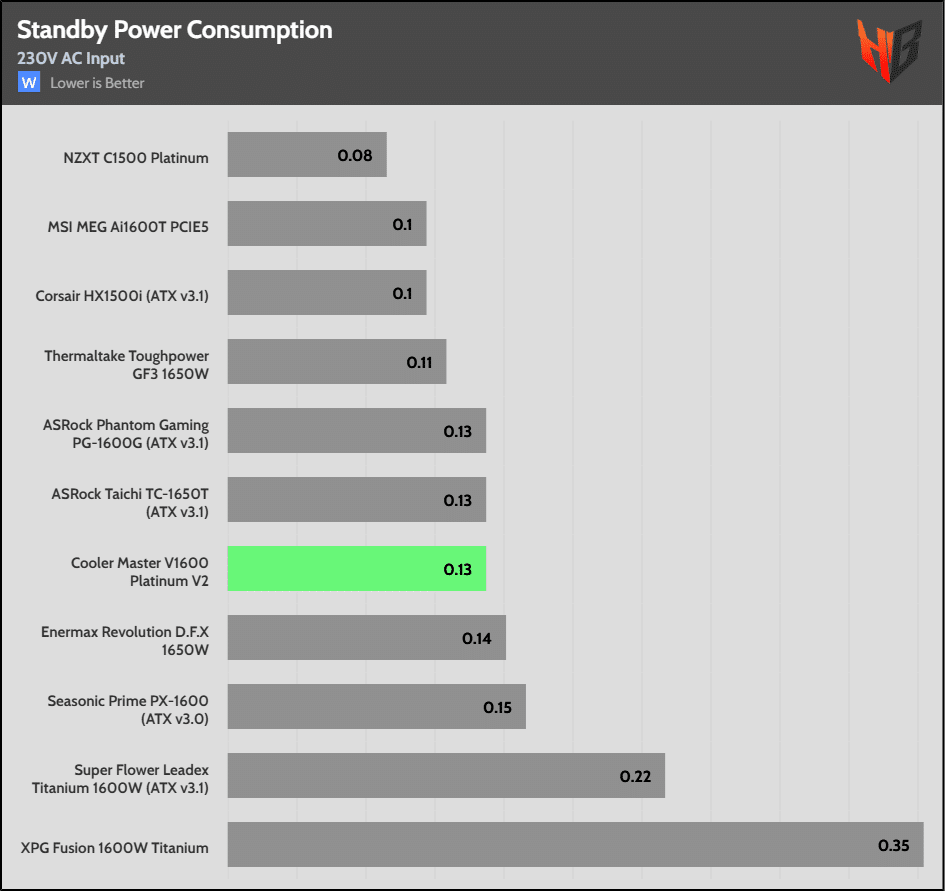

Stand_By_230V

Vampire power is low at 115V, but it increases at 230V.
