Box & Bundle

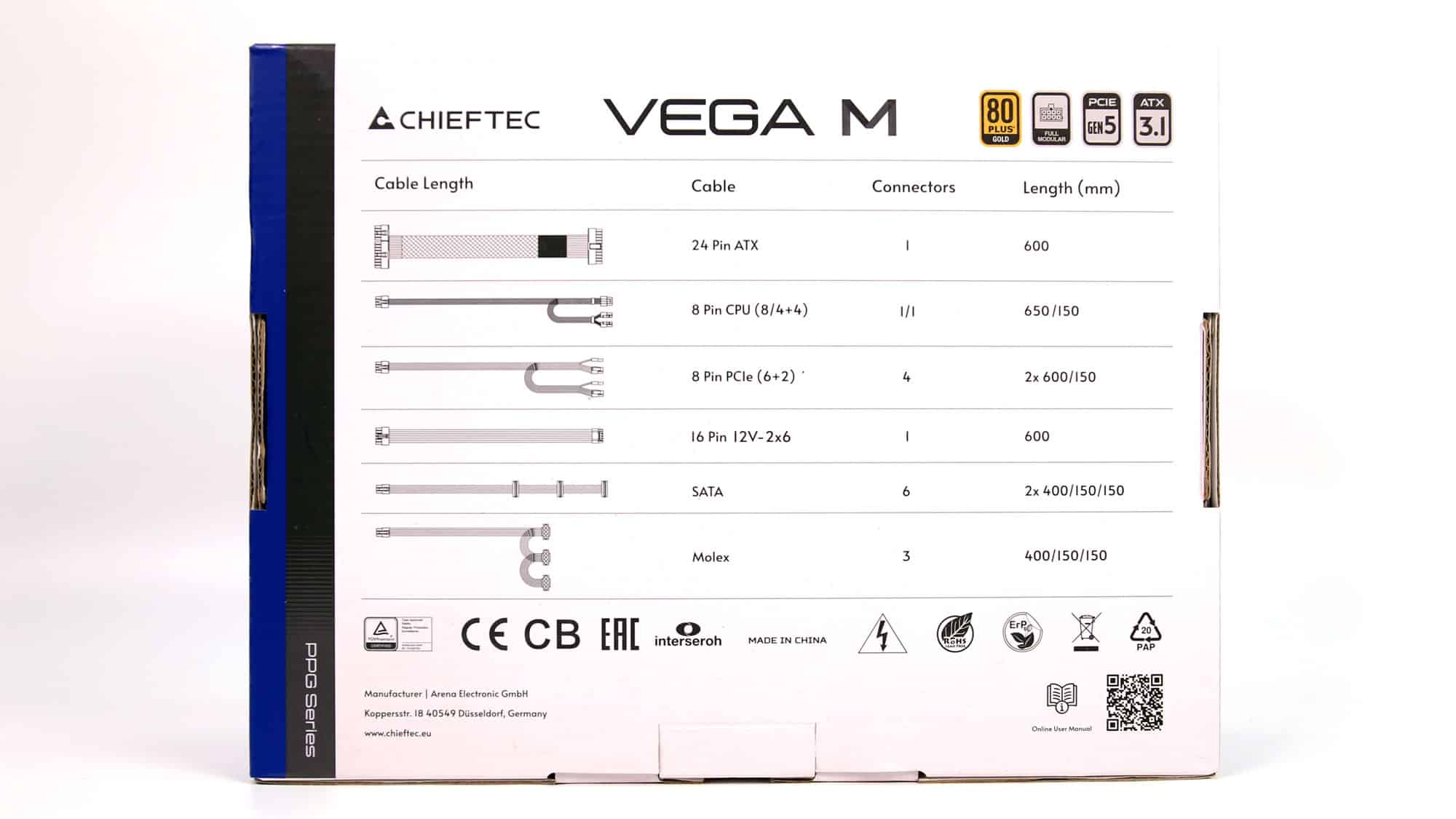

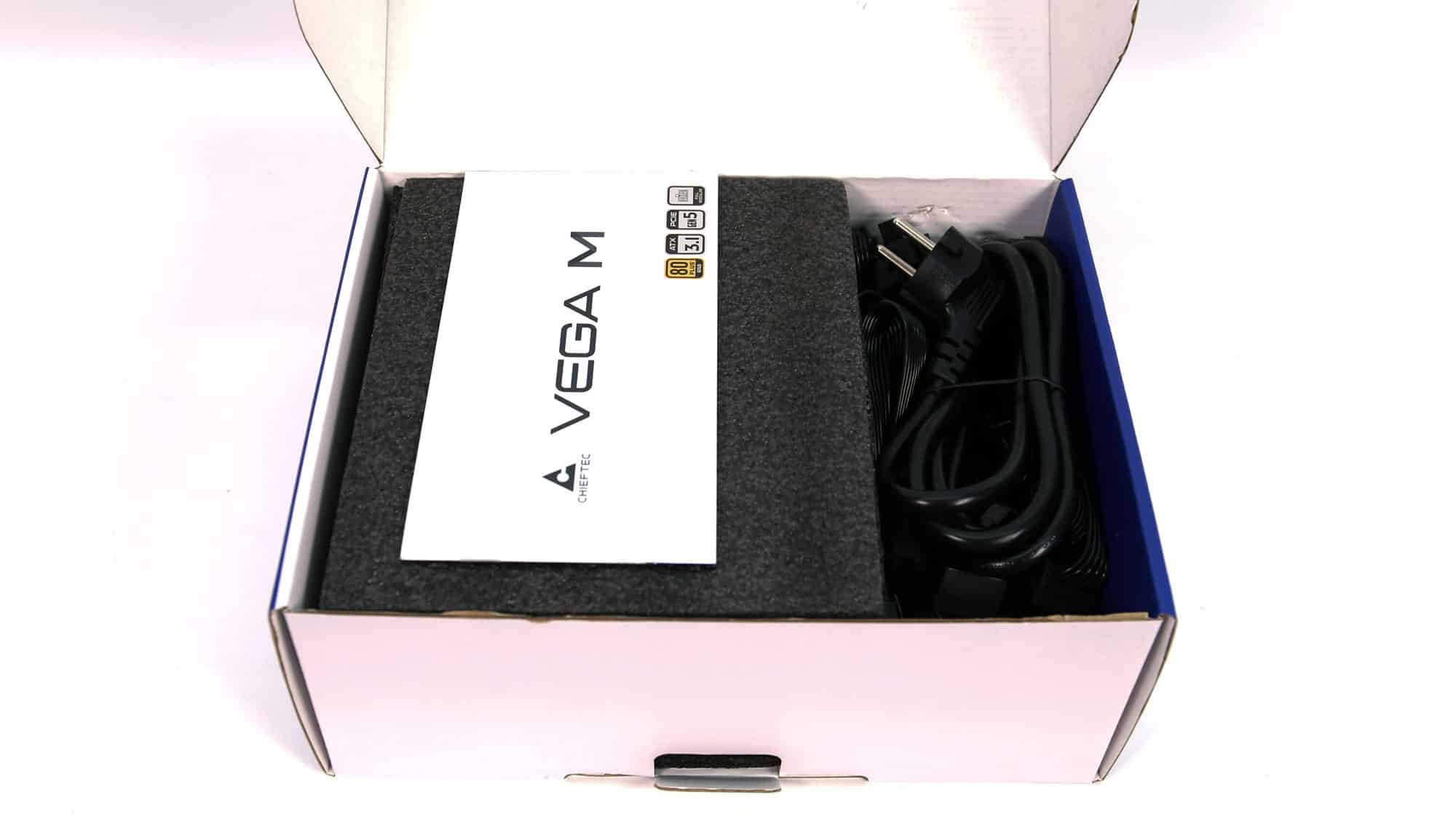

The box features a photo of the product on its front, accompanied by several small badges that depict various features. Internally, the protection is good, with packing foam surrounding the PSU.
Product Photos

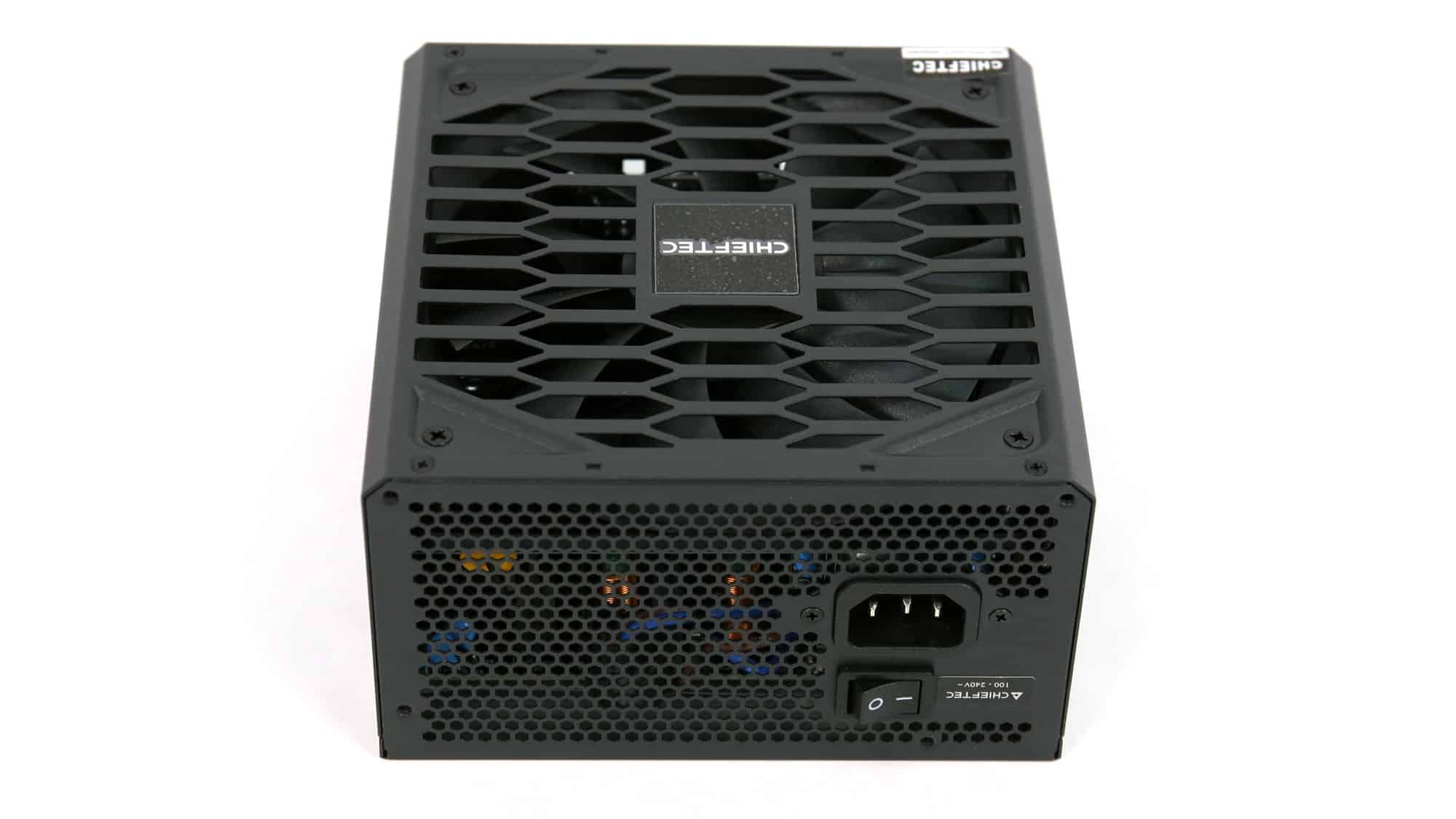

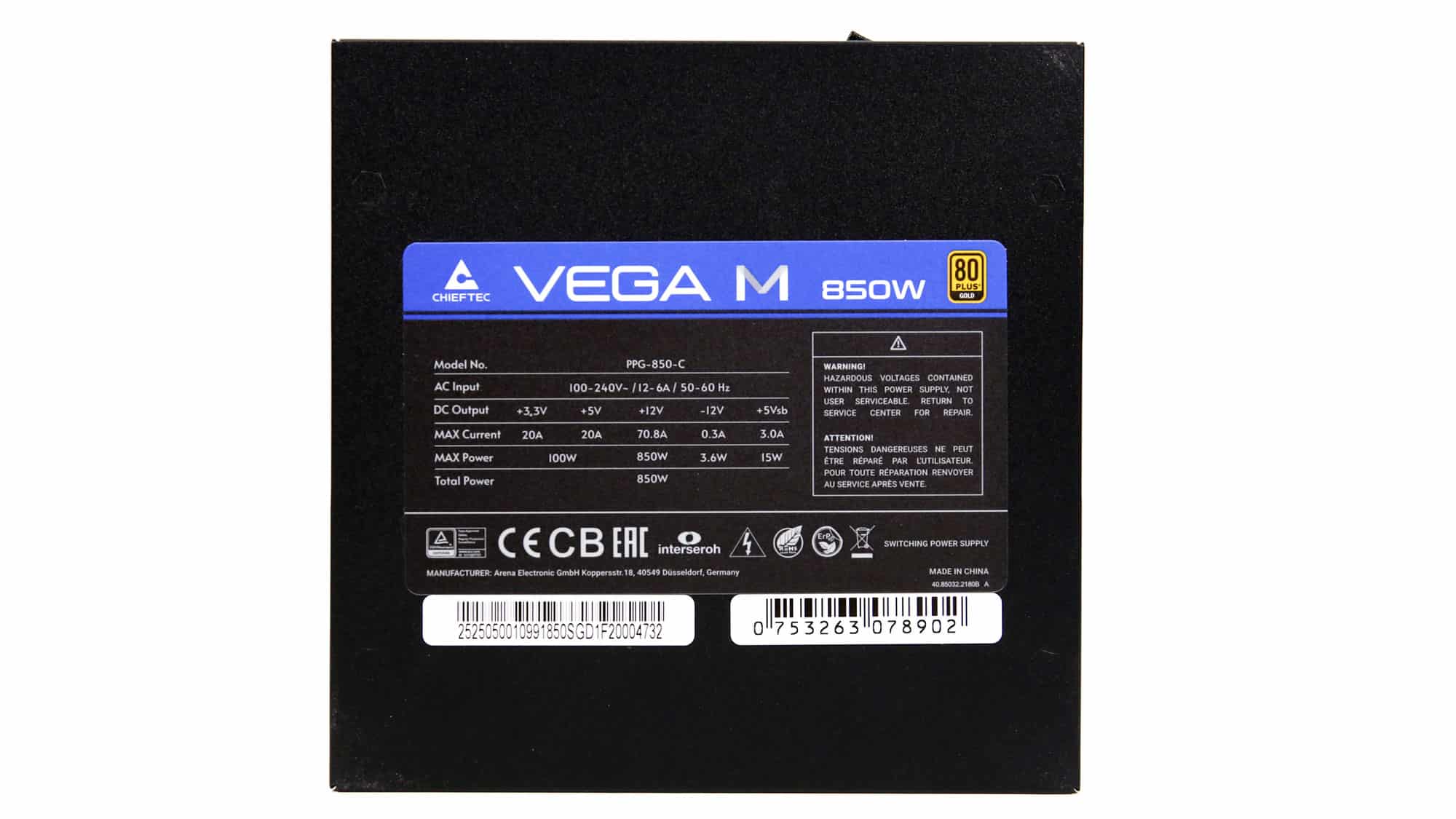

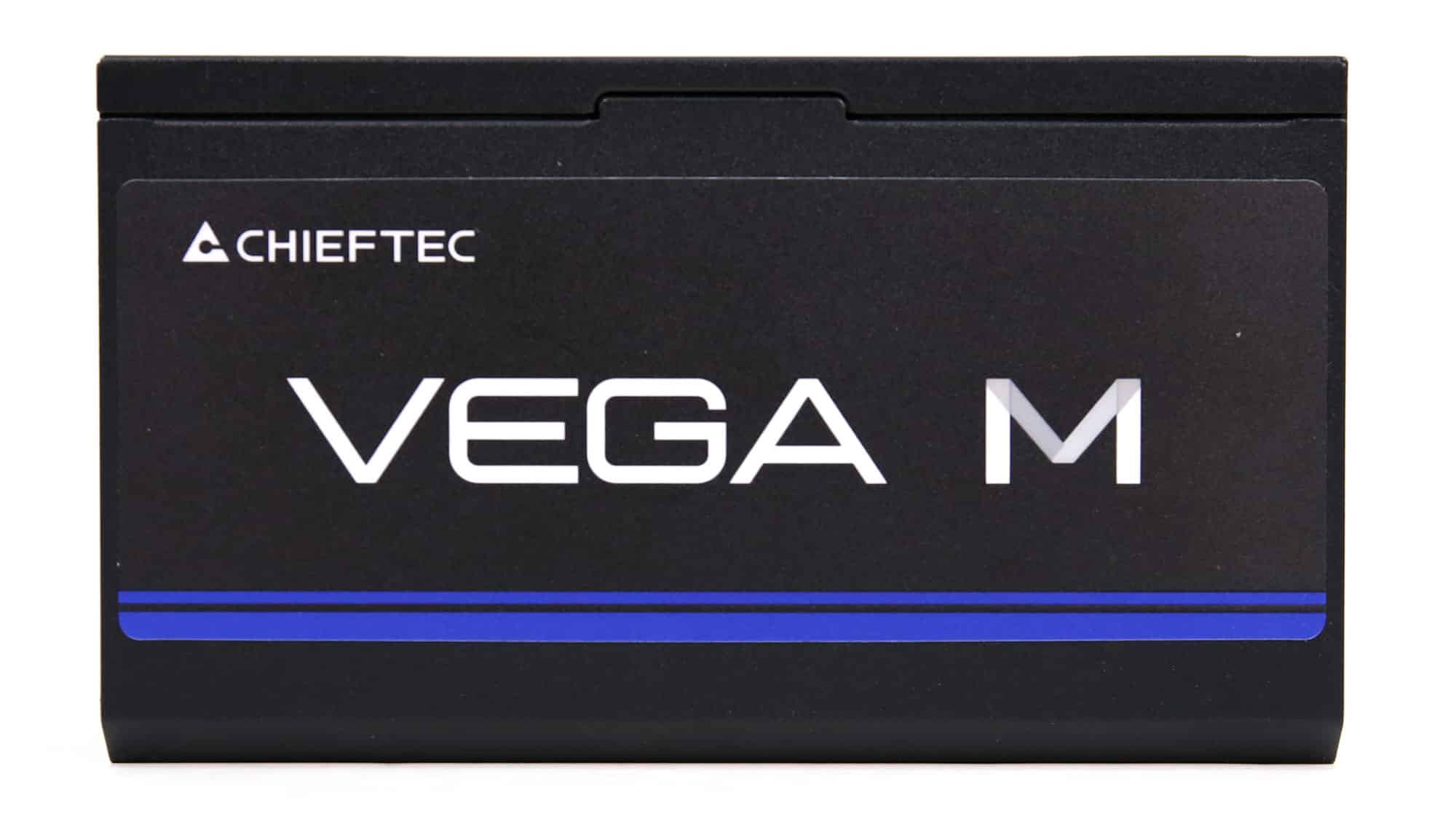

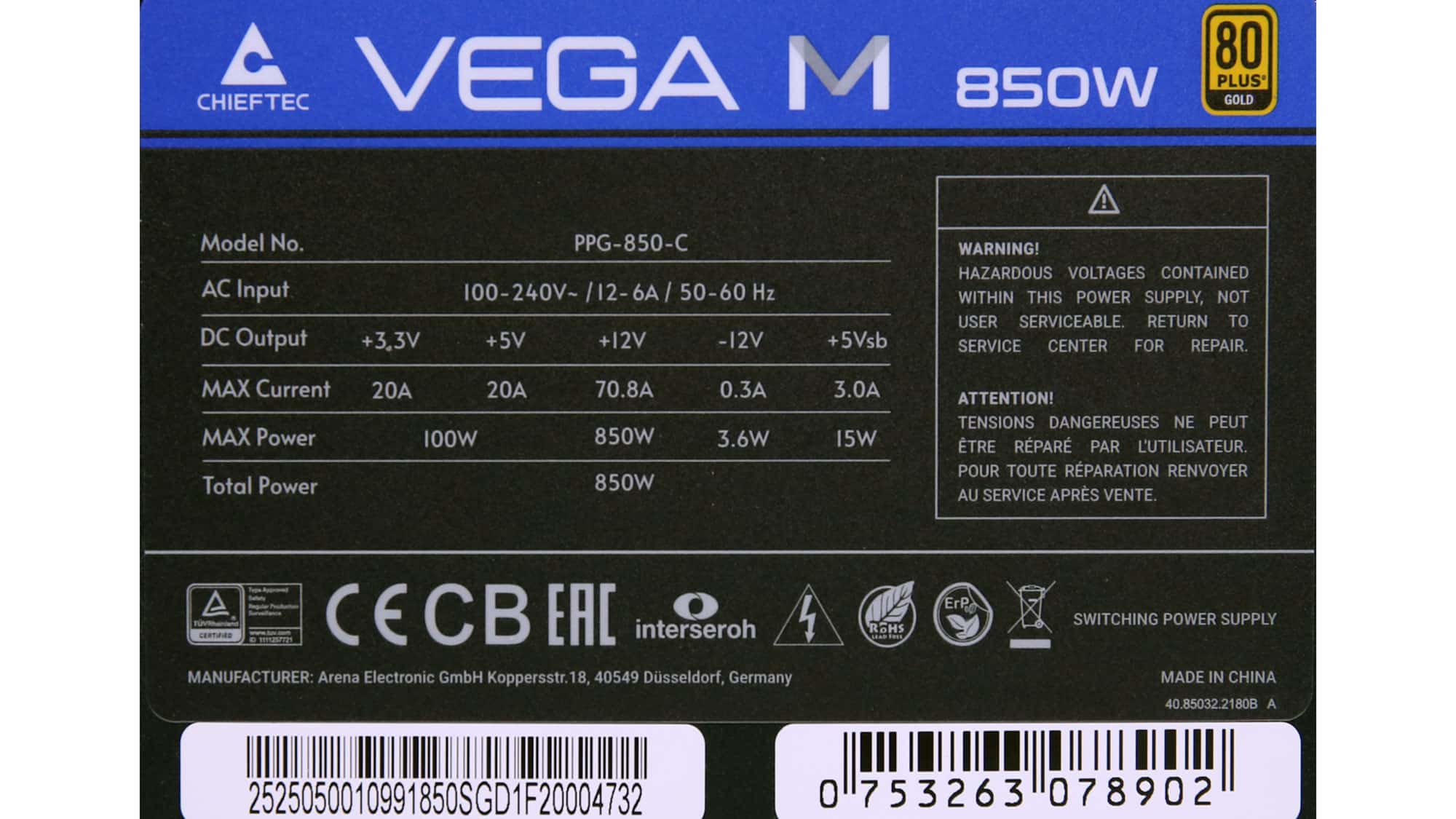

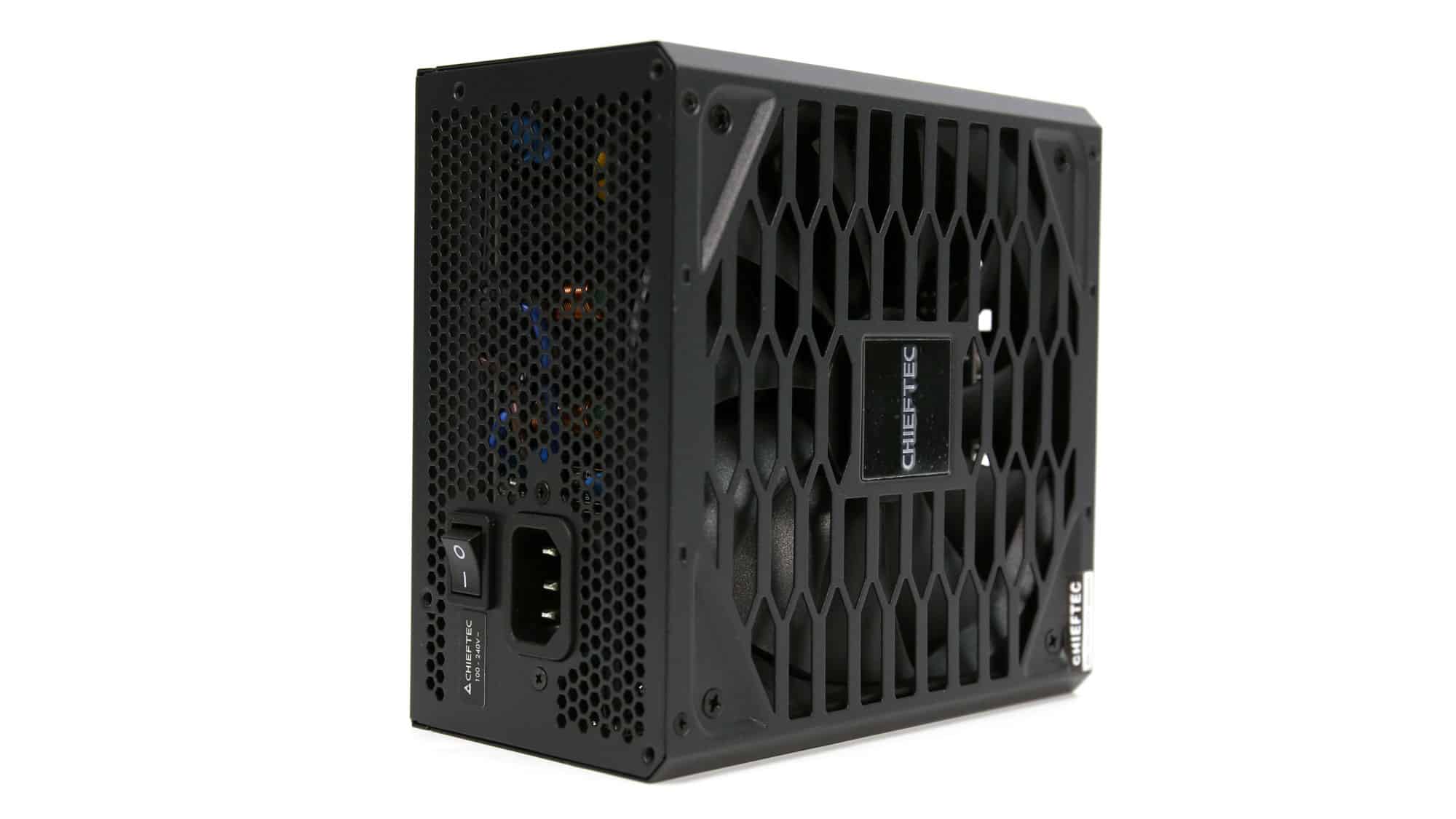

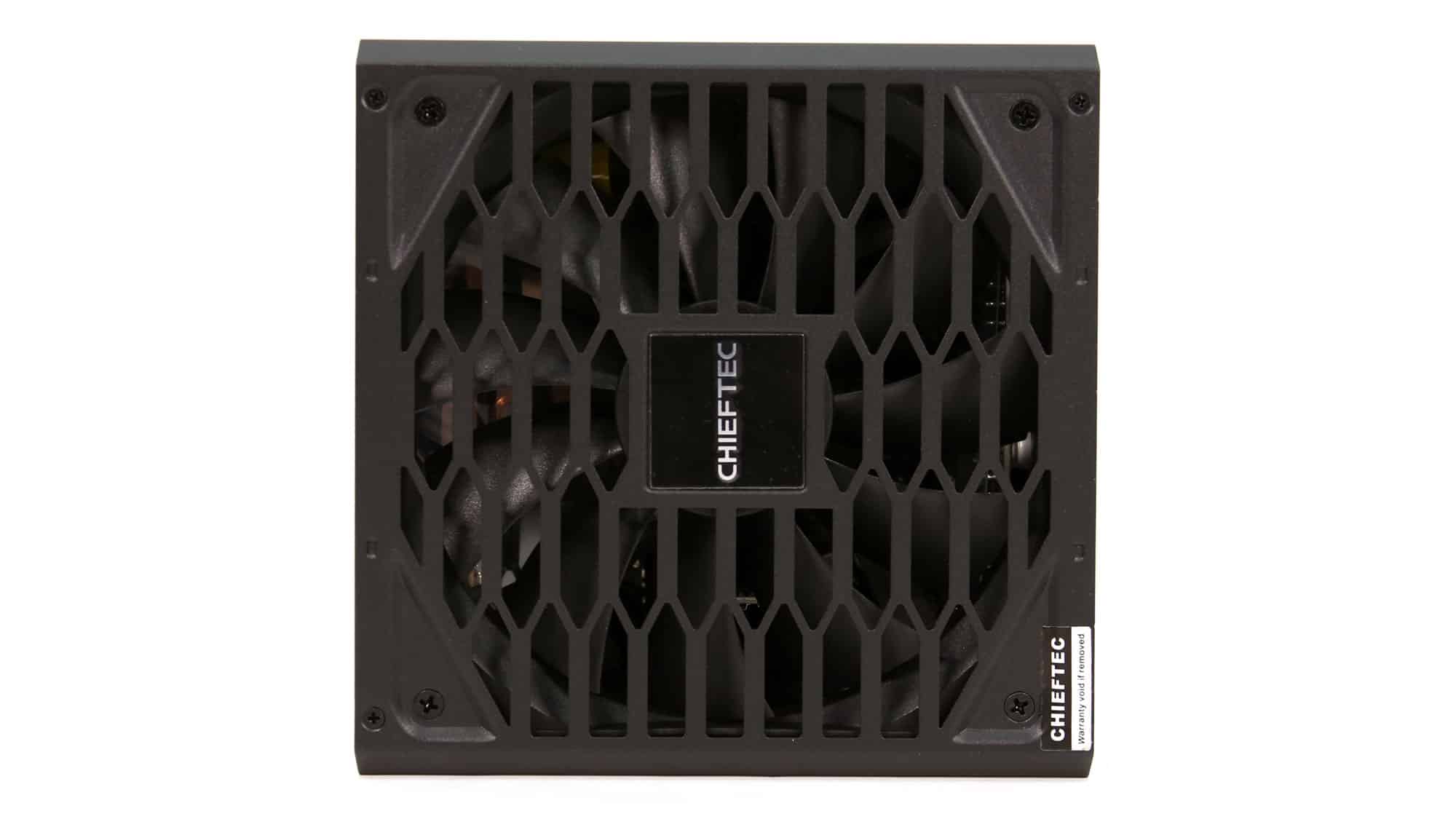

The exterior design is interesting, thanks to the punched fan grill, which allows for good airflow due to its large perforations. The power specifications label is on the bottom side, covering most of the space there.

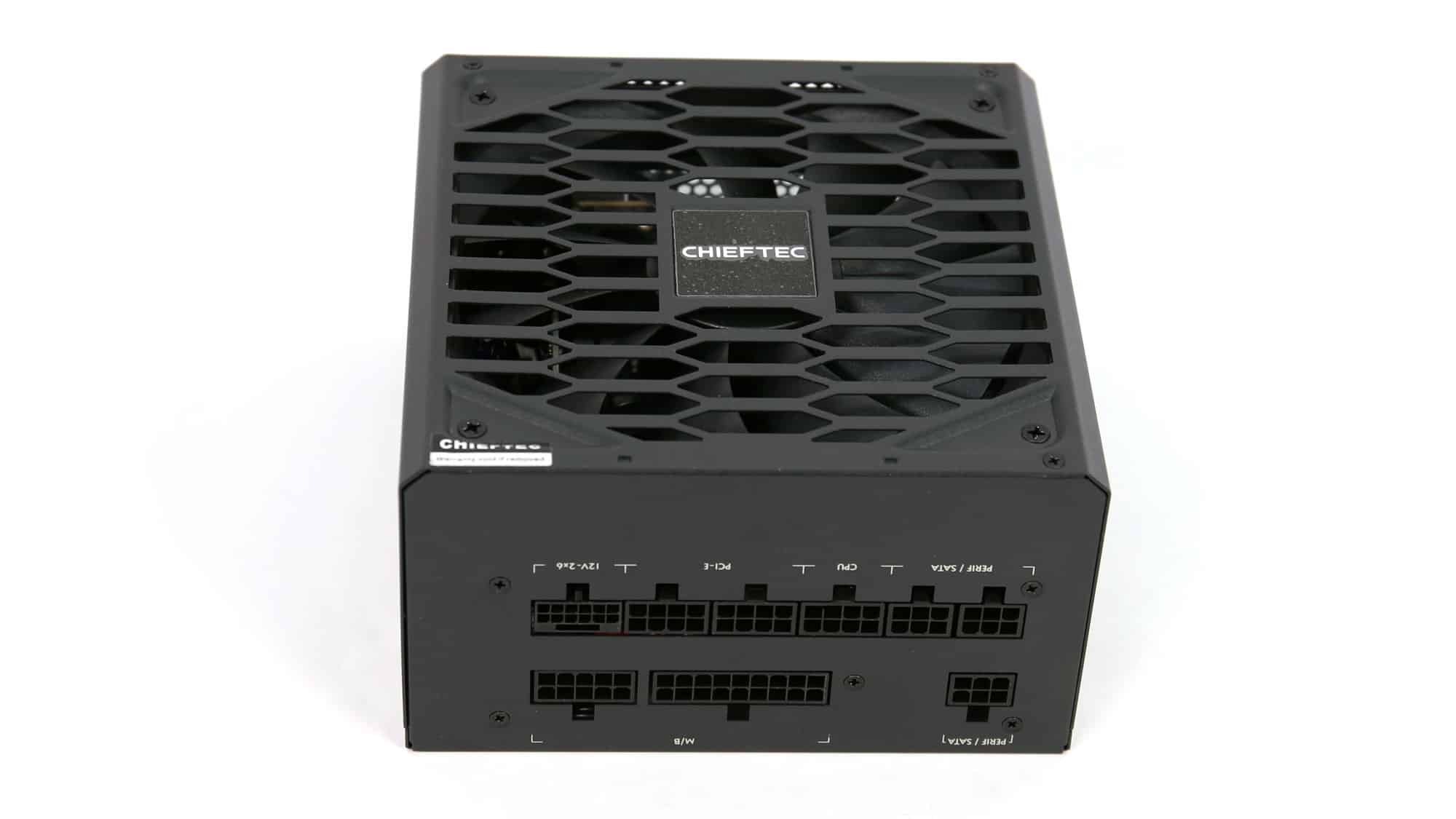

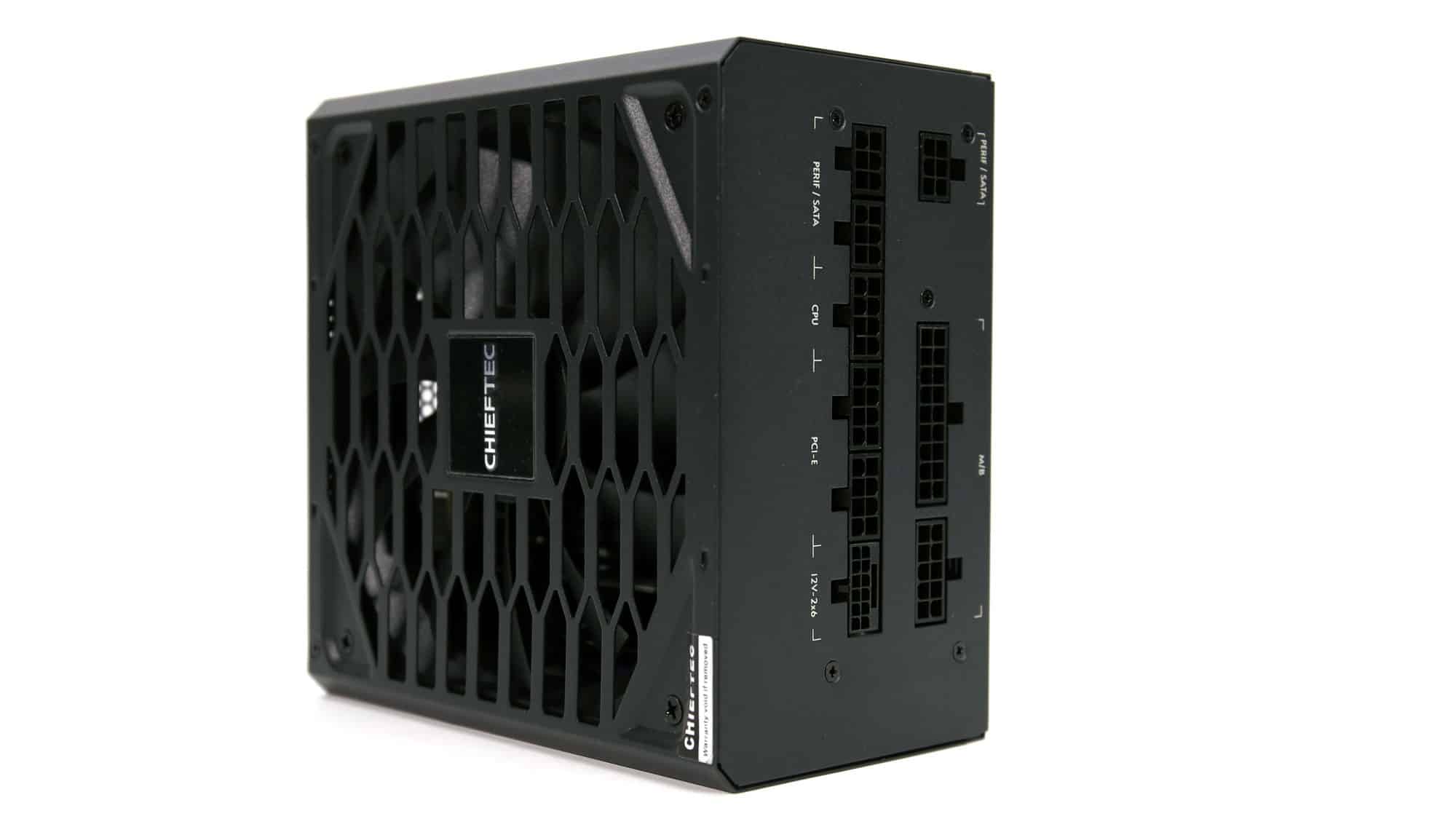

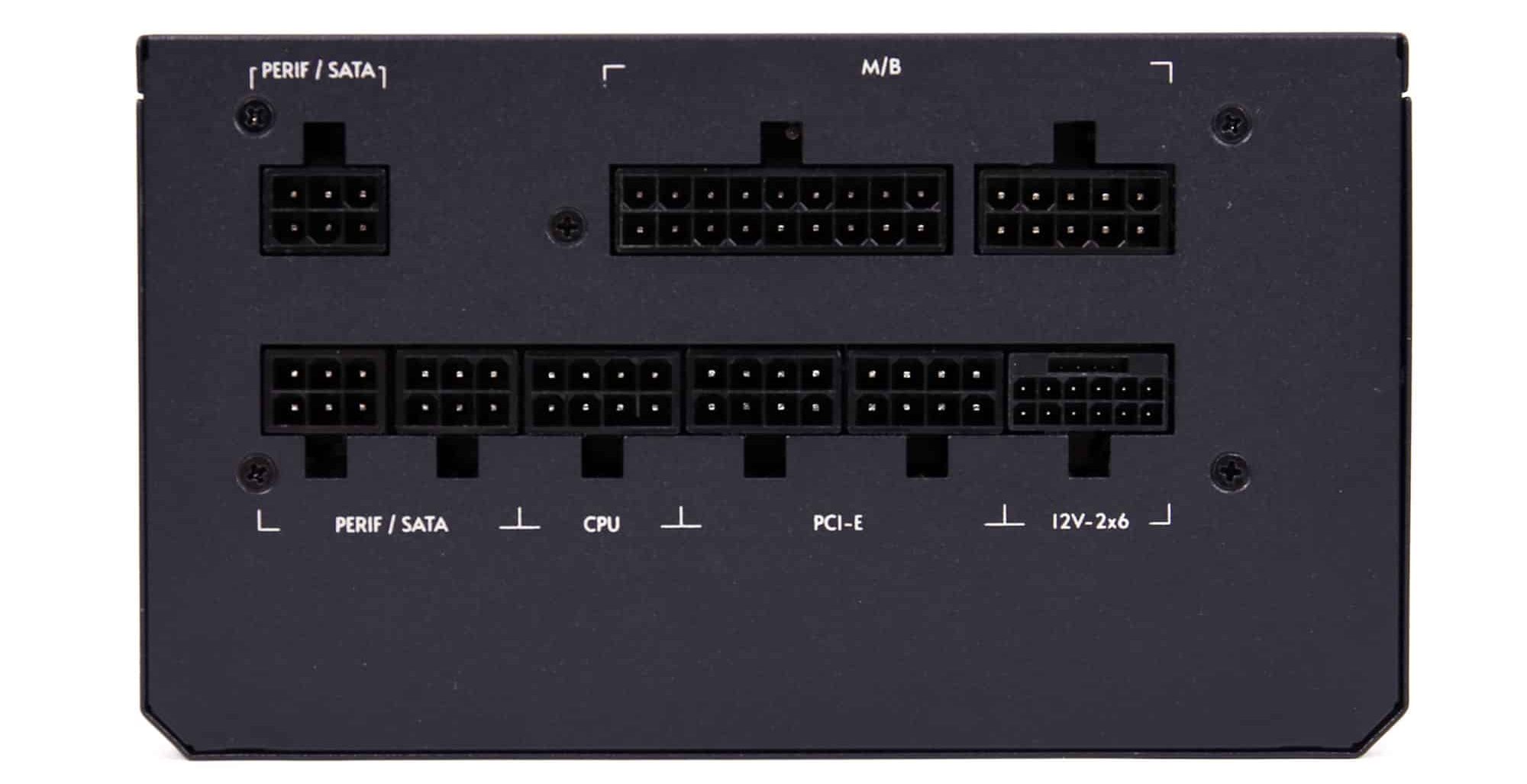

The modular panel has nine sockets, including a native 12V-2×6 header.
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
|---|---|---|---|---|

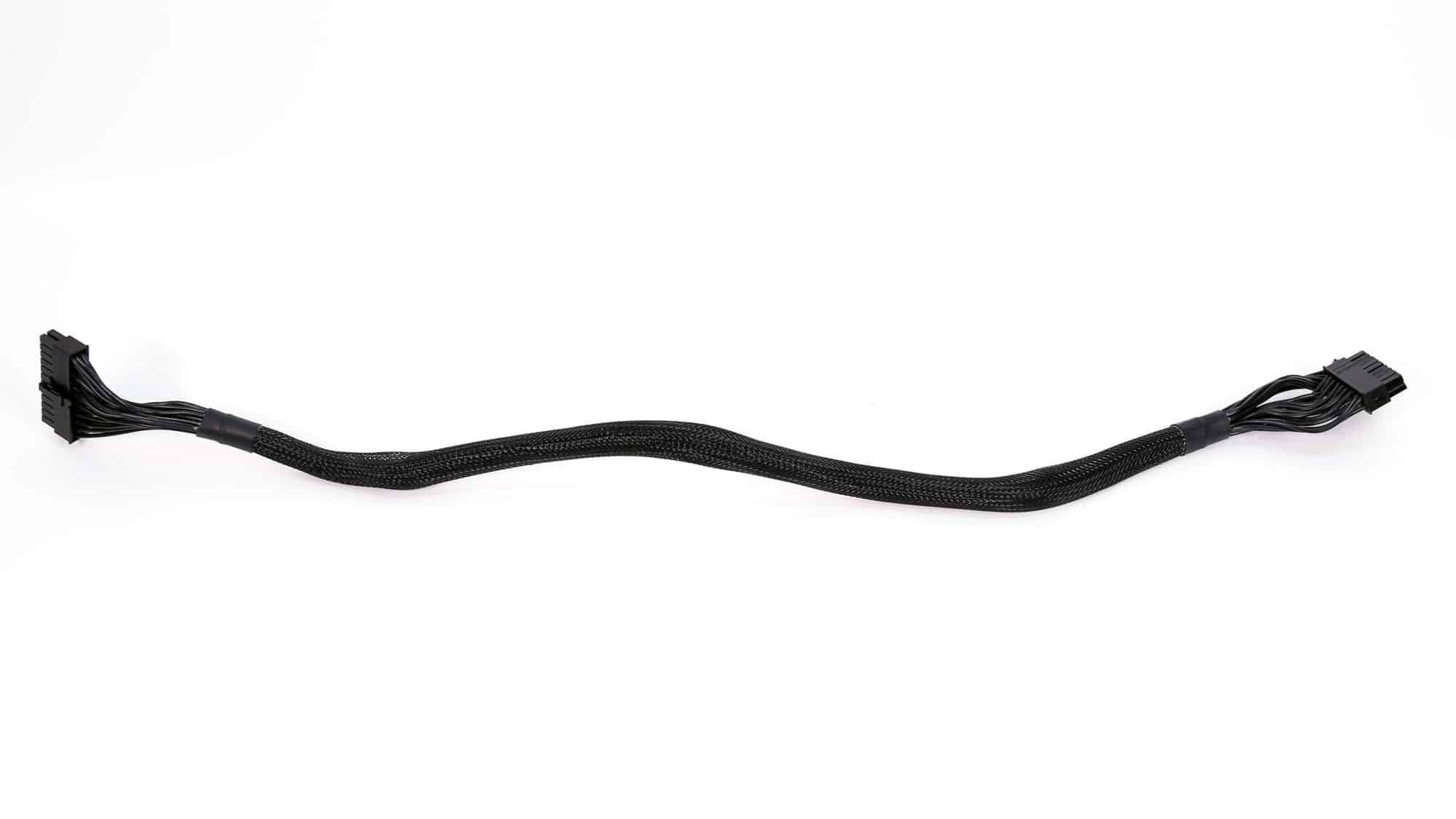

| ATX connector 24 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |

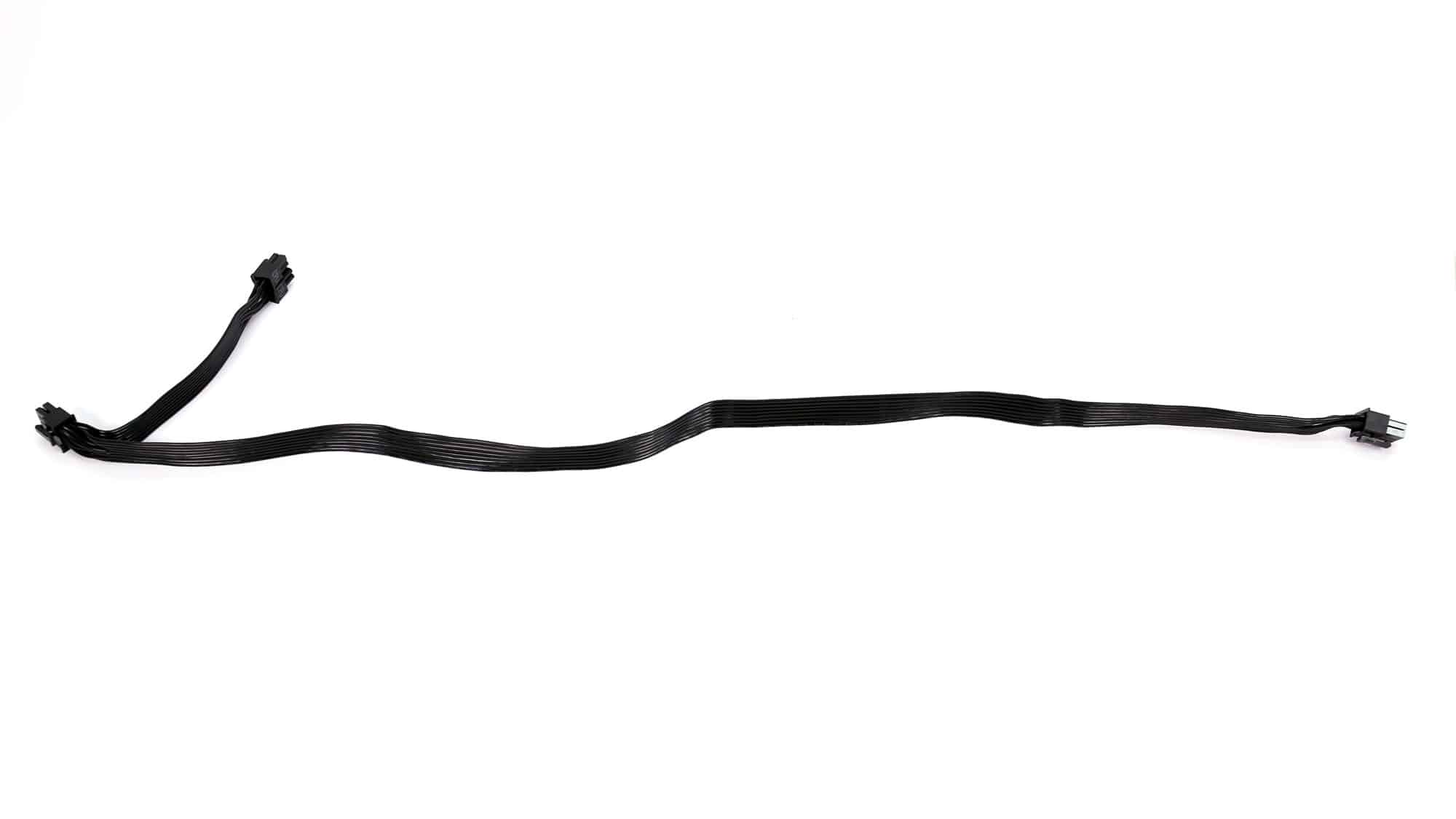

| 8 pin EPS12V (650mm) / 4+4 pin EPS12V (+150mm) | 1 | 1 / 1 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (650mm+150mm) | 2 | 4 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (610mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |

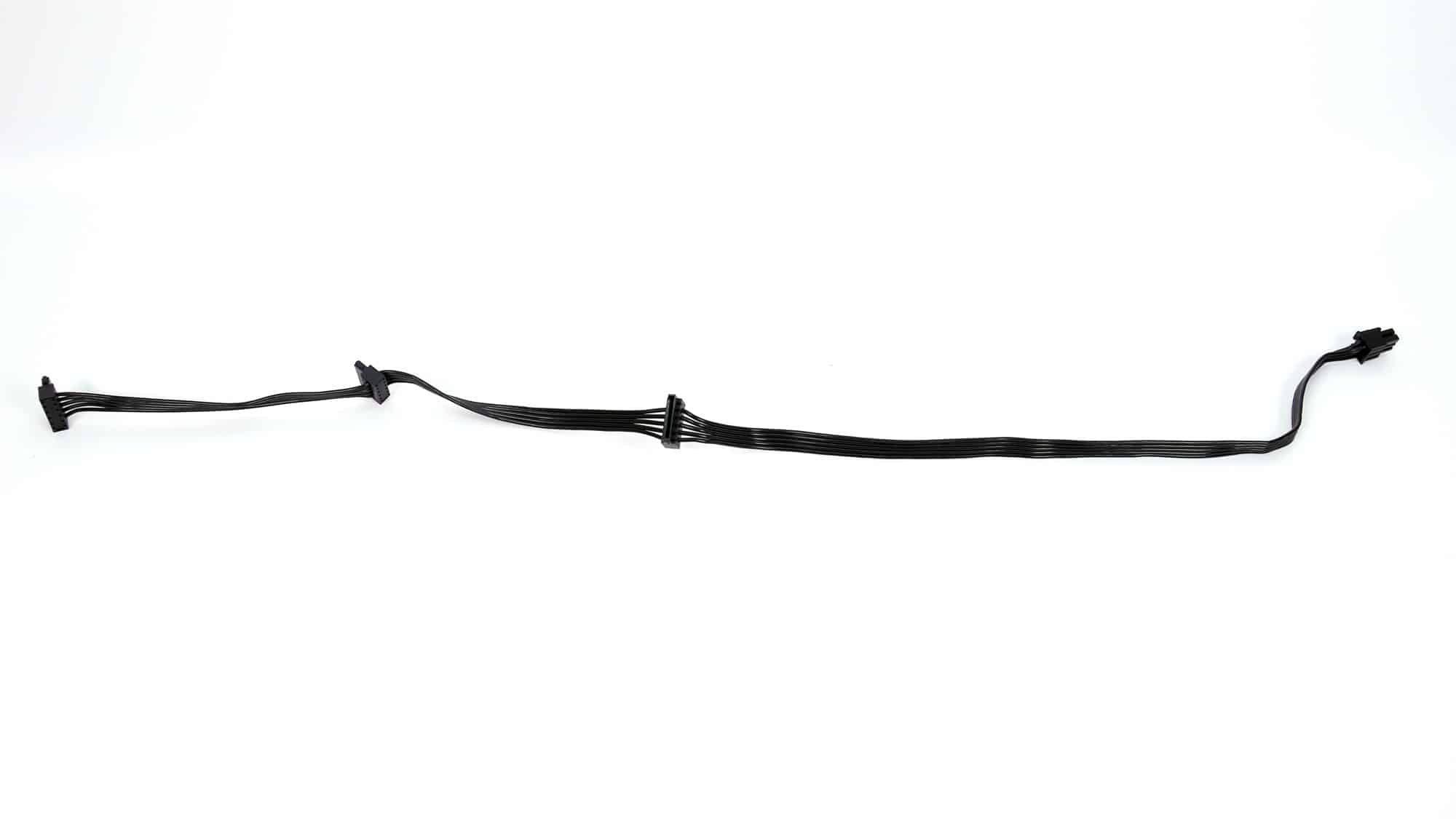

| SATA (400mm+155mm+155mm) | 2 | 6 | 18AWG | Tinned Copper |
| 4-pin Molex (400mm+155mm+155mm) | 1 | 3 | 18AWG | Tinned Copper |

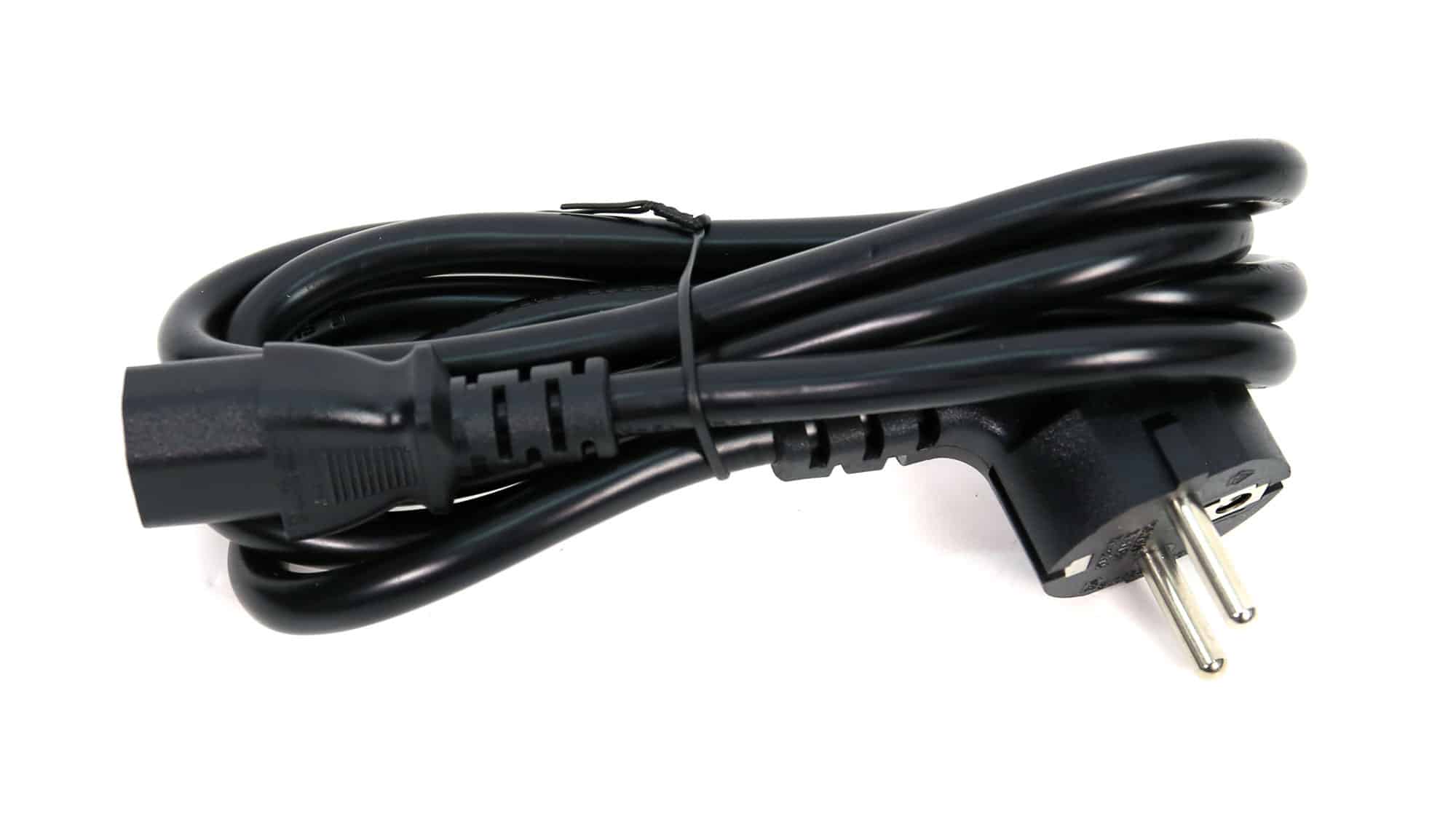

| AC Power Cord (1370mm) – C13 coupler | 1 | 1 | 16AWG | – |

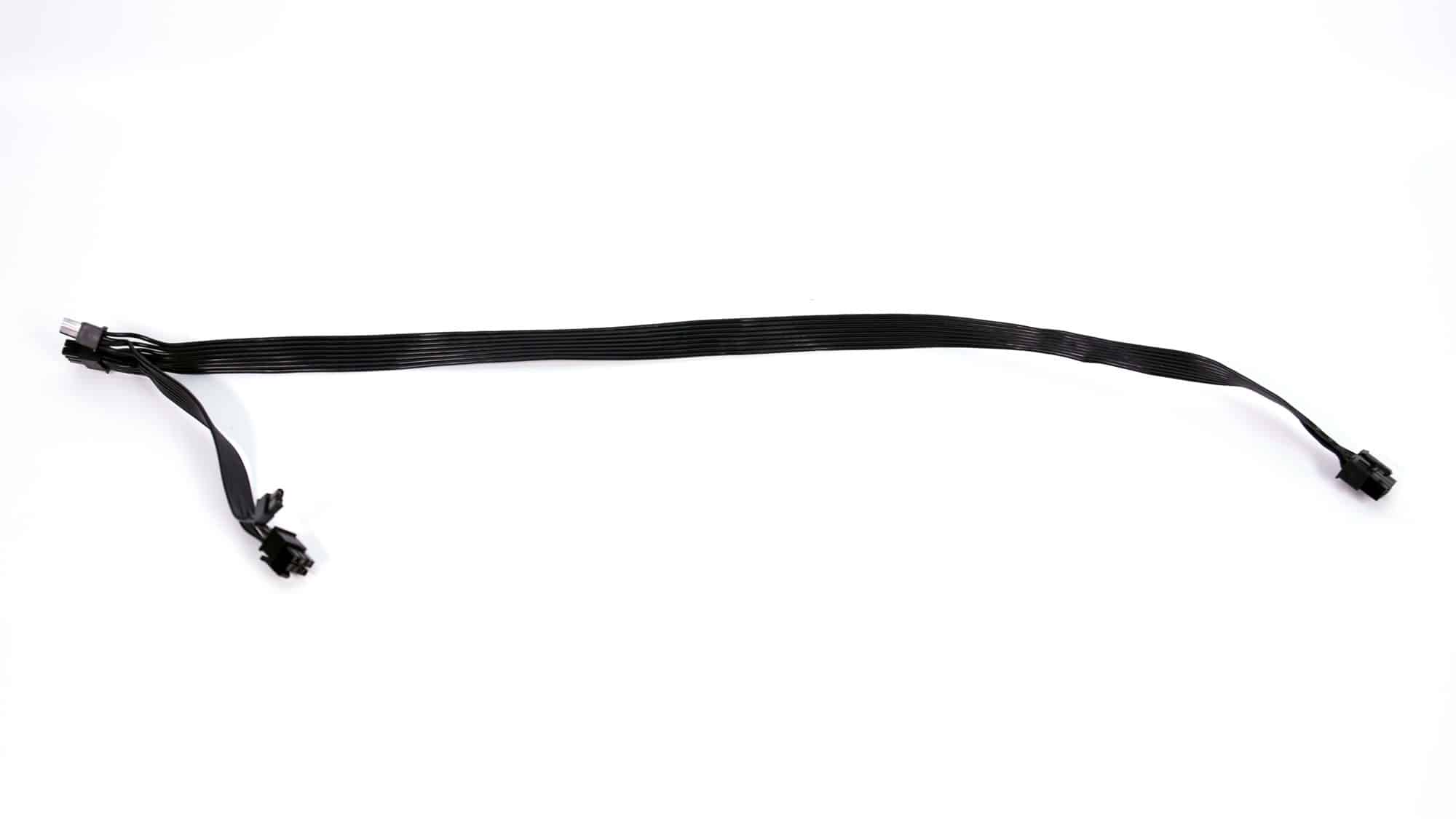

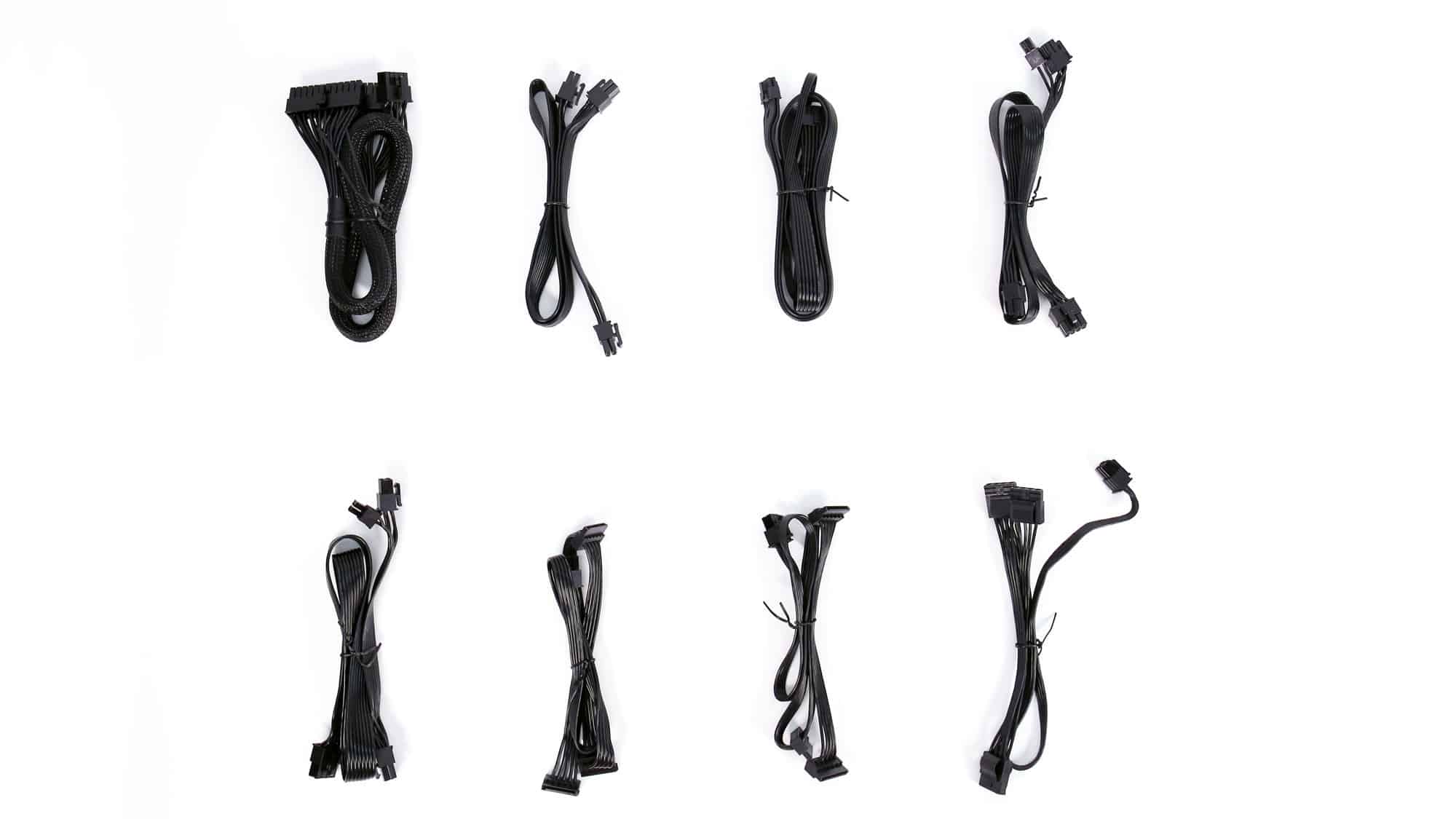

The cables are long enough, but unfortunately, it is not good to see dual EPS connectors on a single cable, especially with 16AWG gauges up to the first connector. These connectors can draw a lot of power, so having a pair of them on the same cable is a hazardous idea.
The number of peripheral connectors is sufficient, and the distance between them is sufficiently high.
It is great to see all cables using the proper conductor (tinned copper) and not the cheap Copper-Clad Aluminum (CCA) solution.
