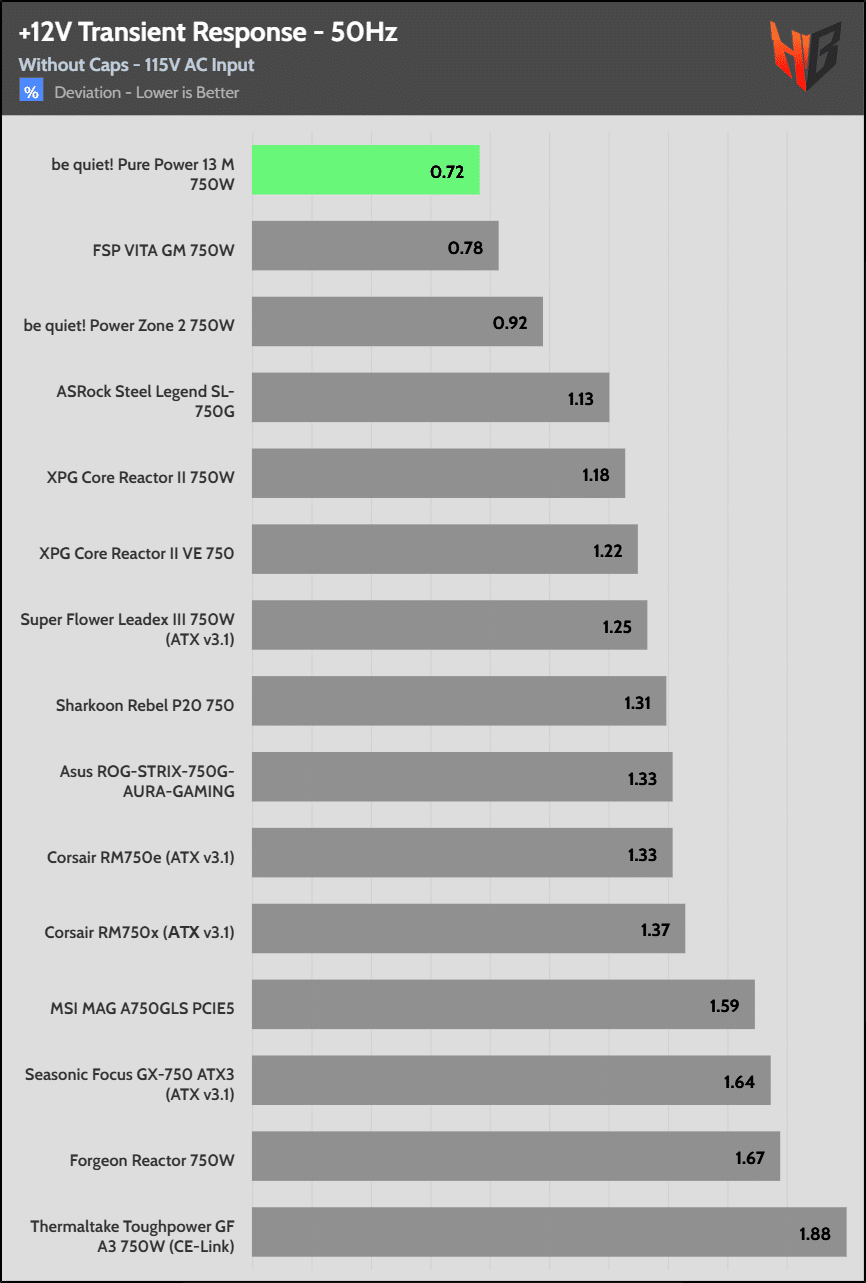

Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.184V | 12.089V | 0.77% | Pass |
| 5V | 5.004V | 4.935V | 1.37% | Pass |
| 3.3V | 3.297V | 3.176V | 3.68% | Pass |
| 5VSB | 5.076V | 5.036V | 0.78% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.168V | 12.087V | 0.66% | Pass |
| 5V | 4.991V | 4.914V | 1.55% | Pass |
| 3.3V | 3.284V | 3.157V | 3.87% | Pass |
| 5VSB | 5.050V | 5.002V | 0.95% | Pass |

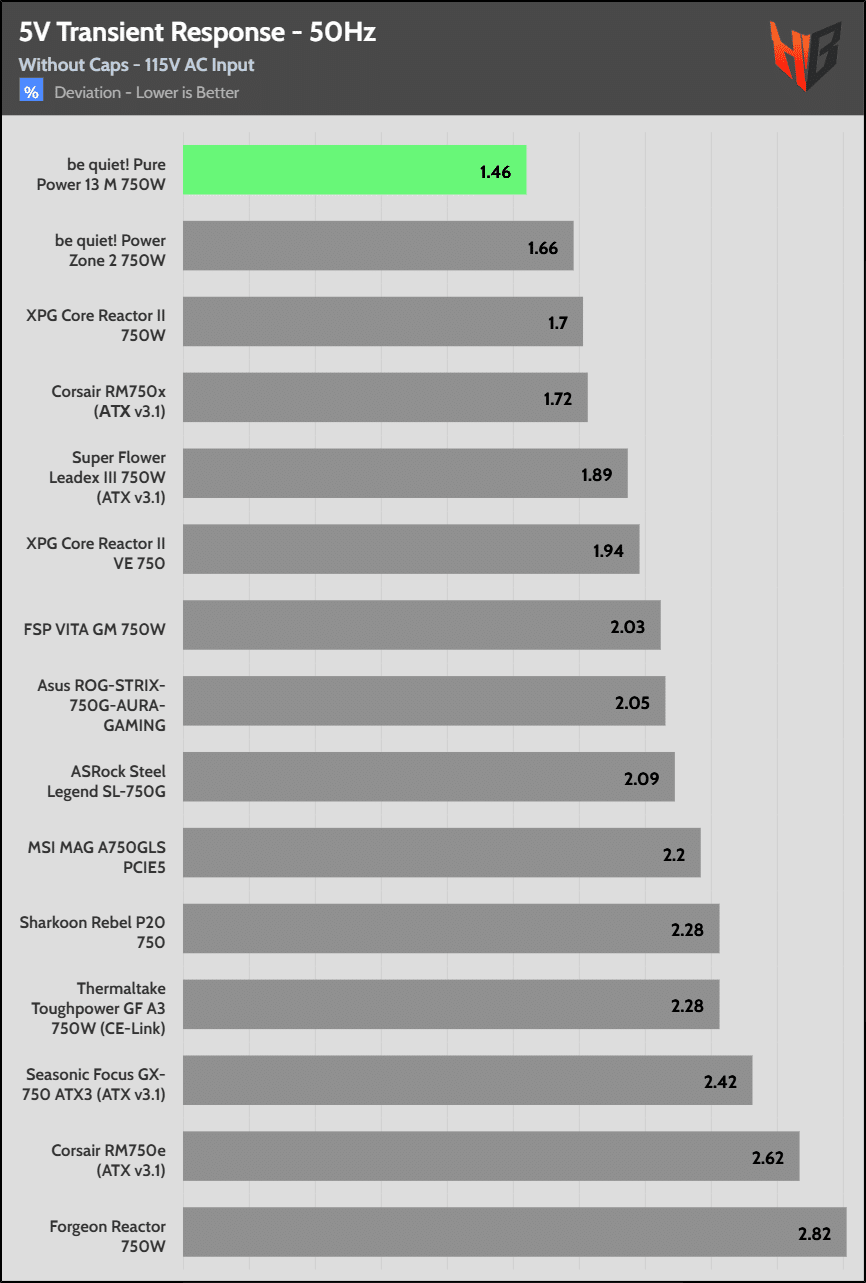

The transient response is good on all rails except 3.3V, where although the deviation is not high, the relatively low nominal voltage doesn’t allow for a level above 3.2V once the transient load is applied on this rail.

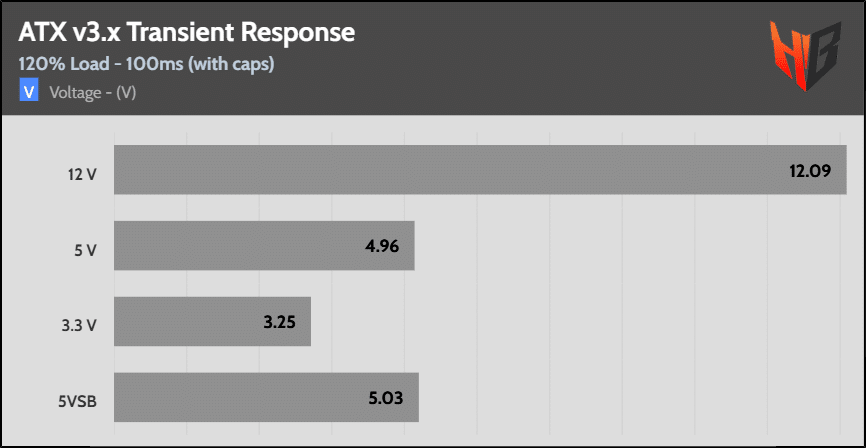

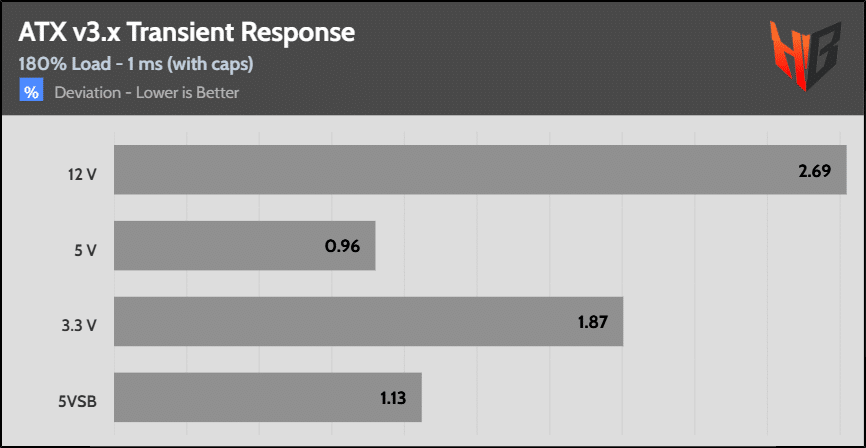

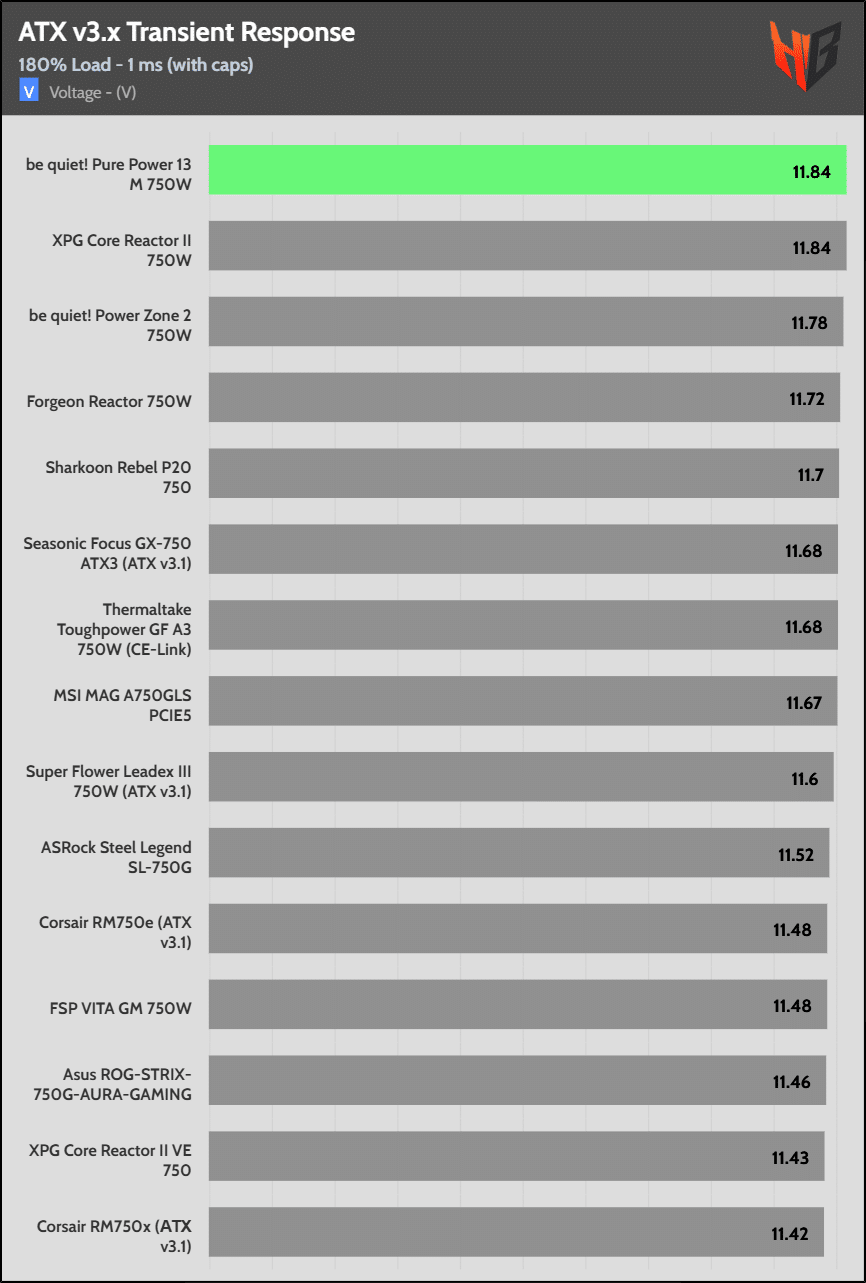

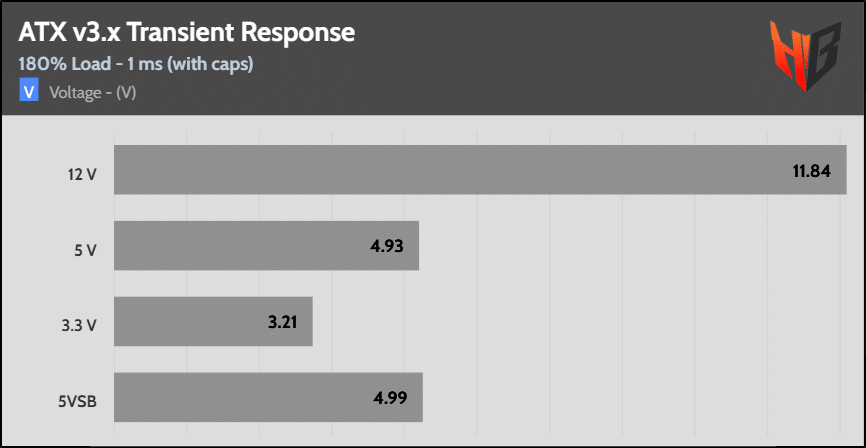

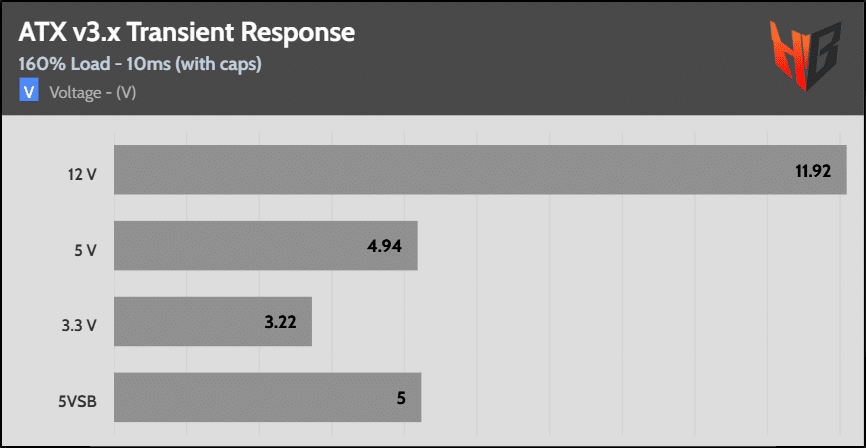

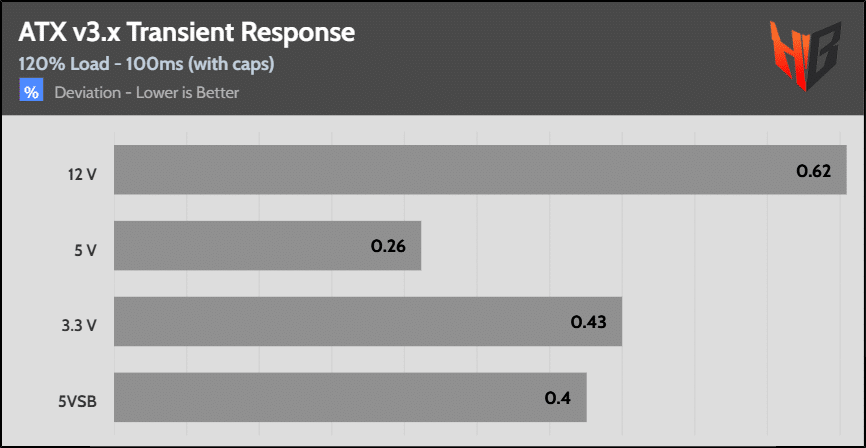

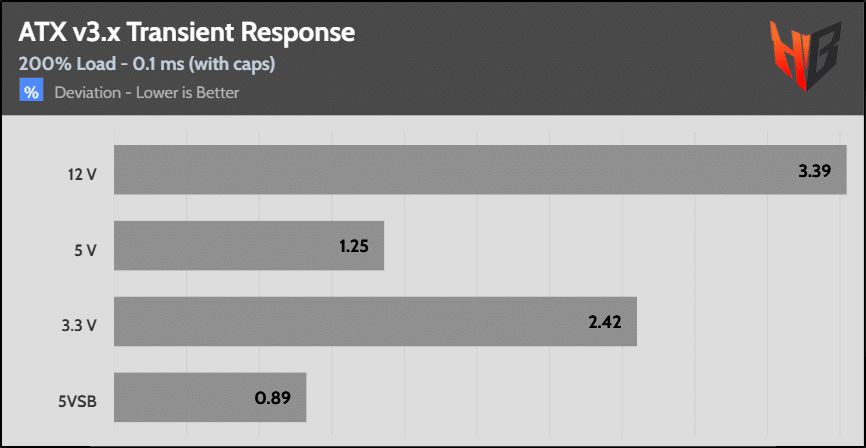

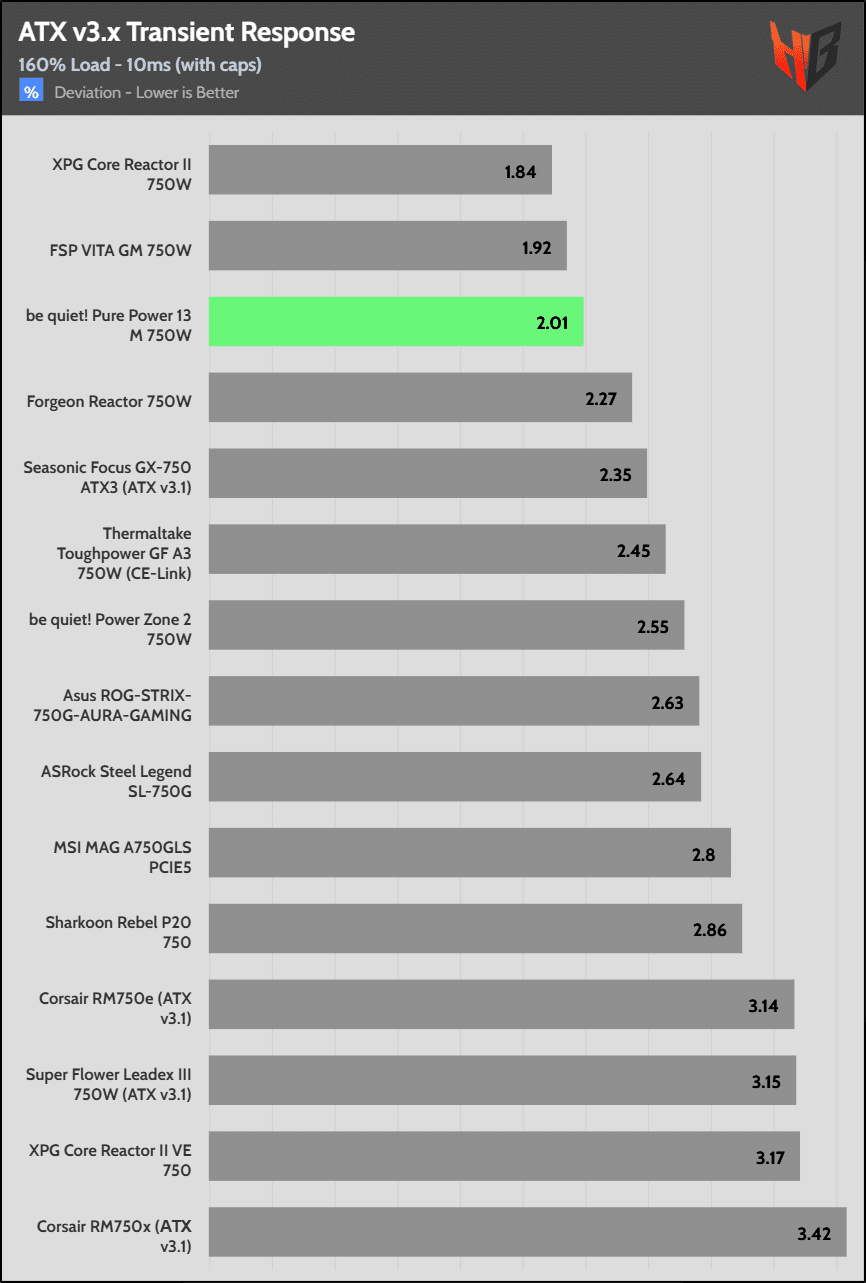

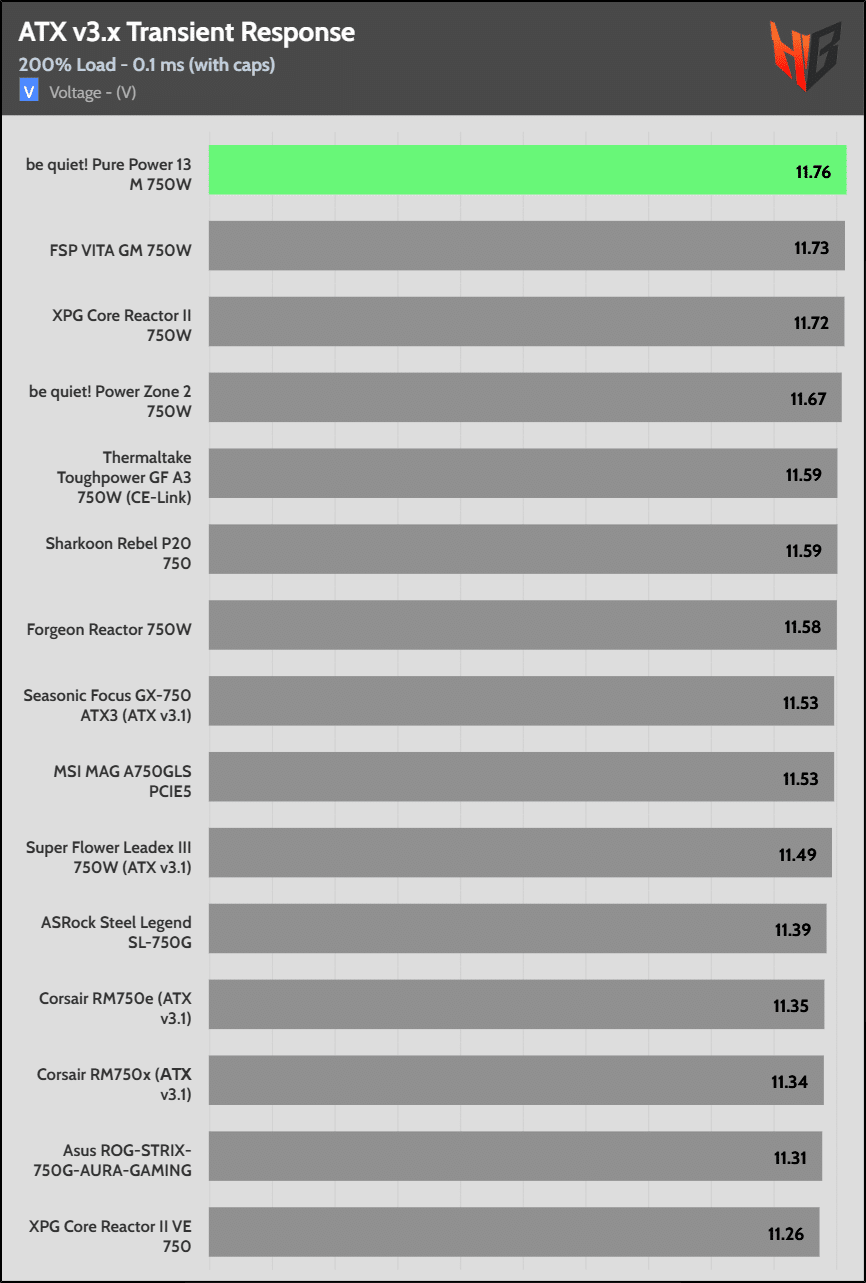

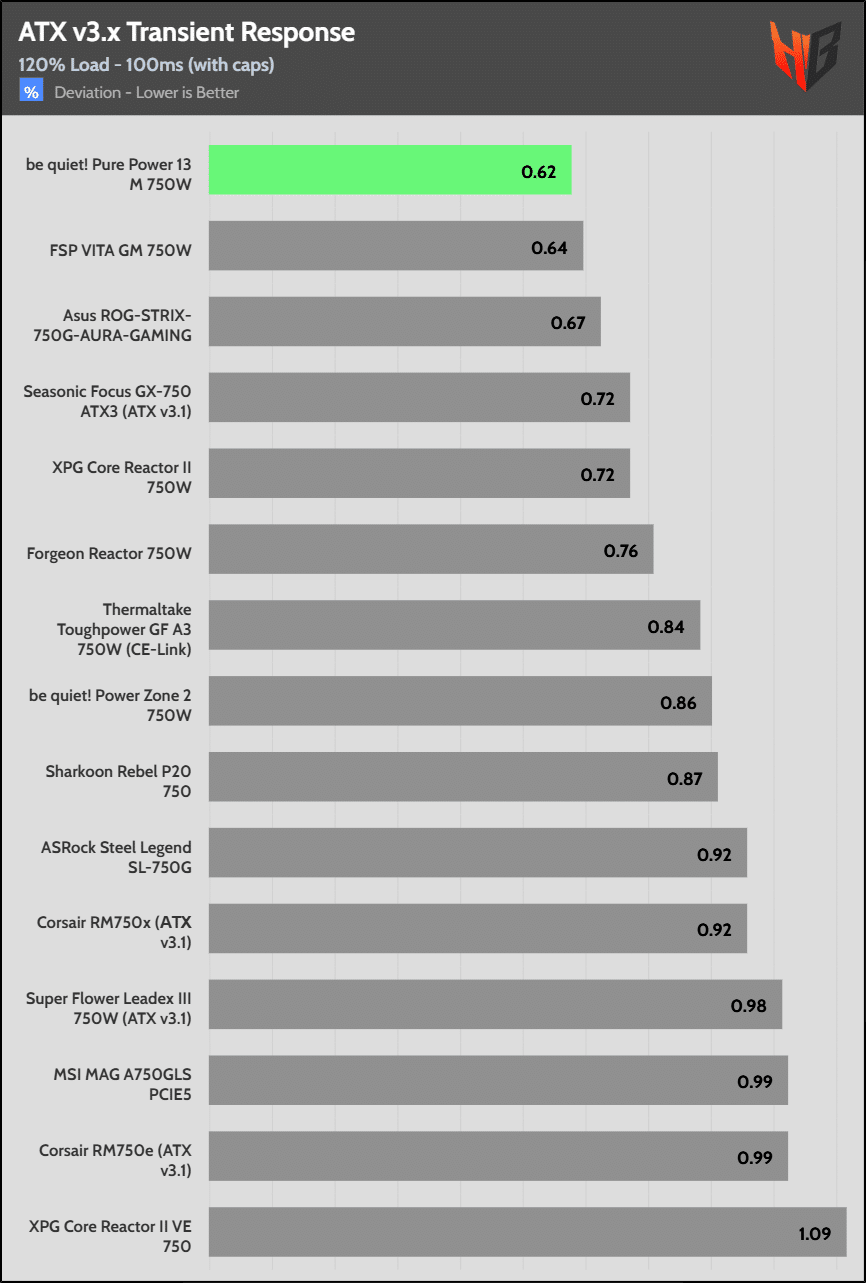

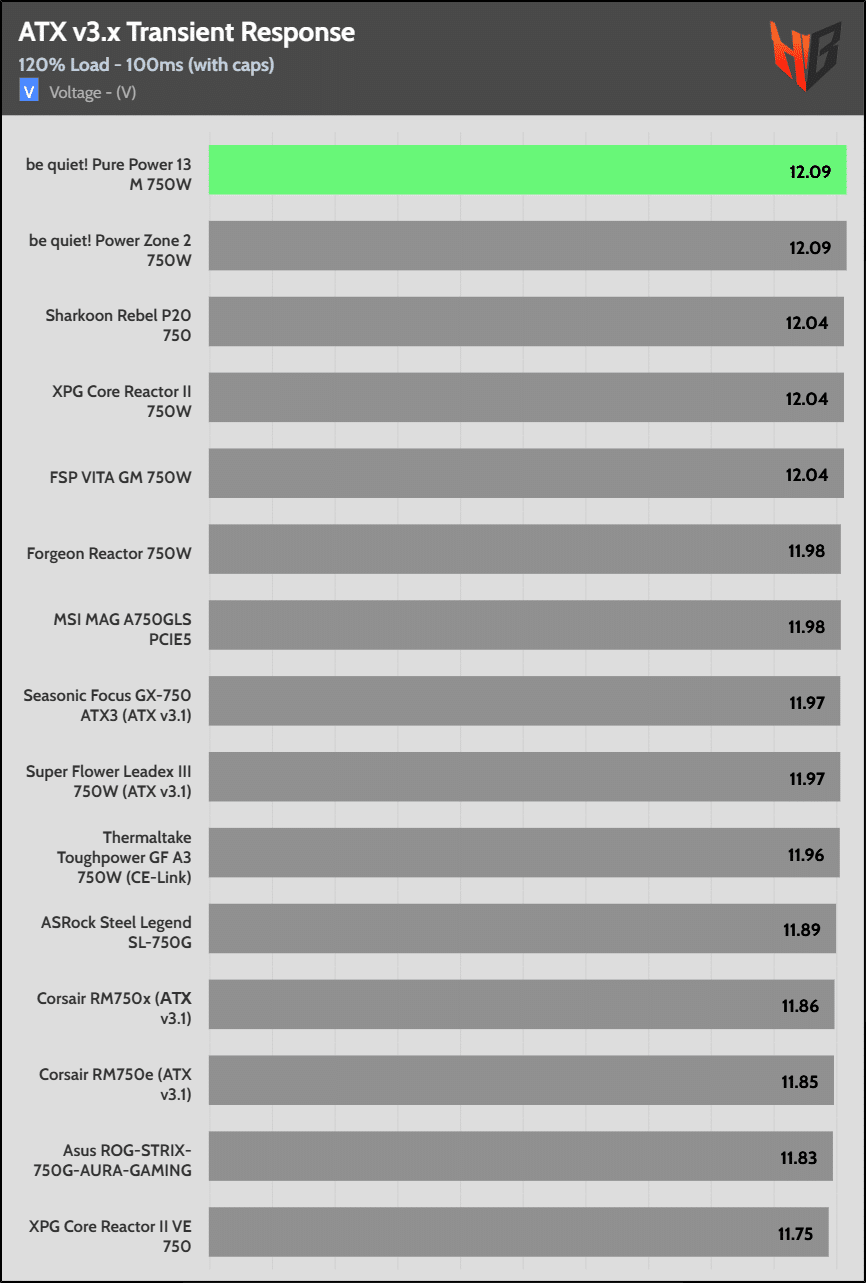

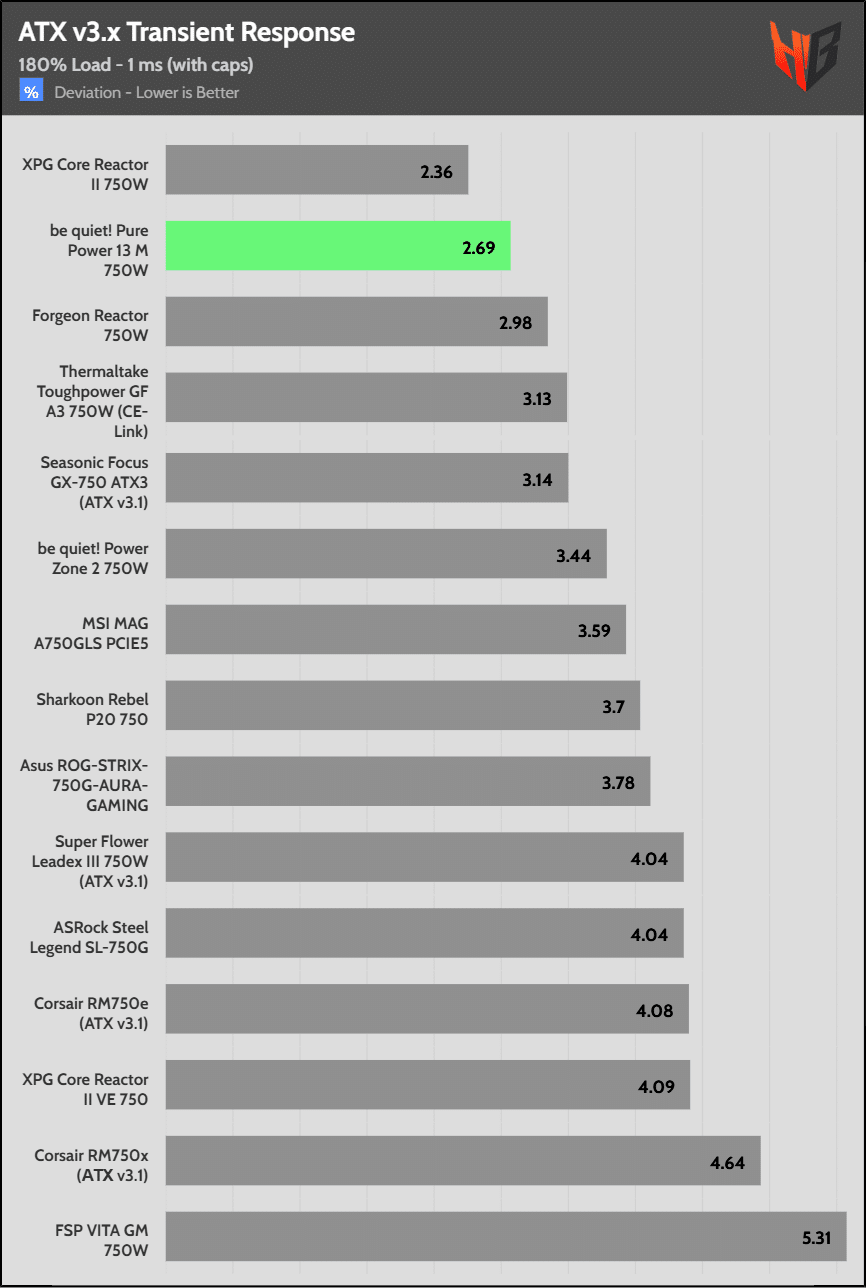

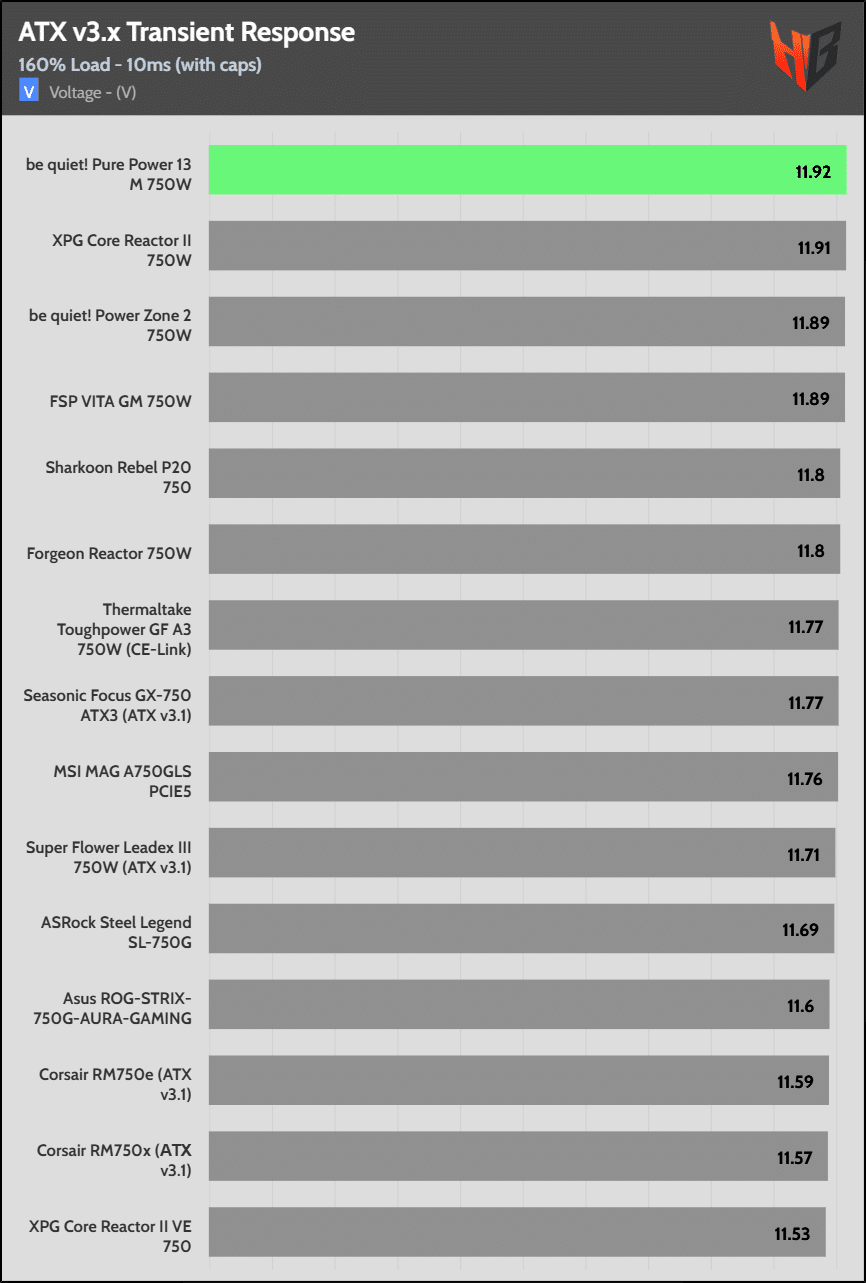

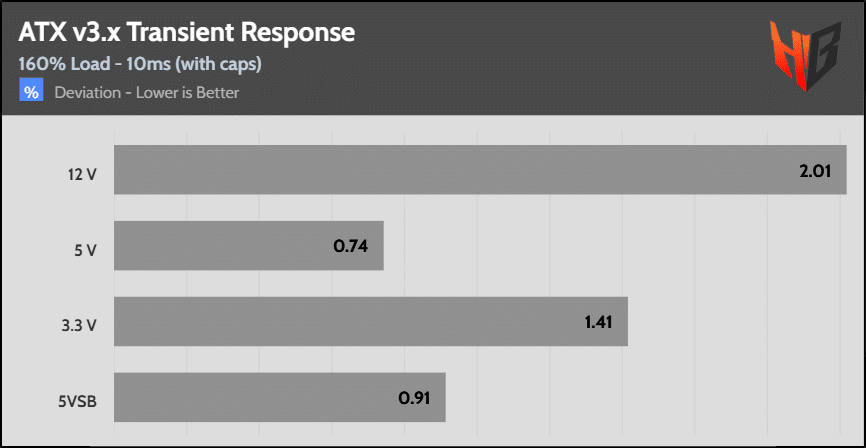

Transient Response ATX v3.1 Tests

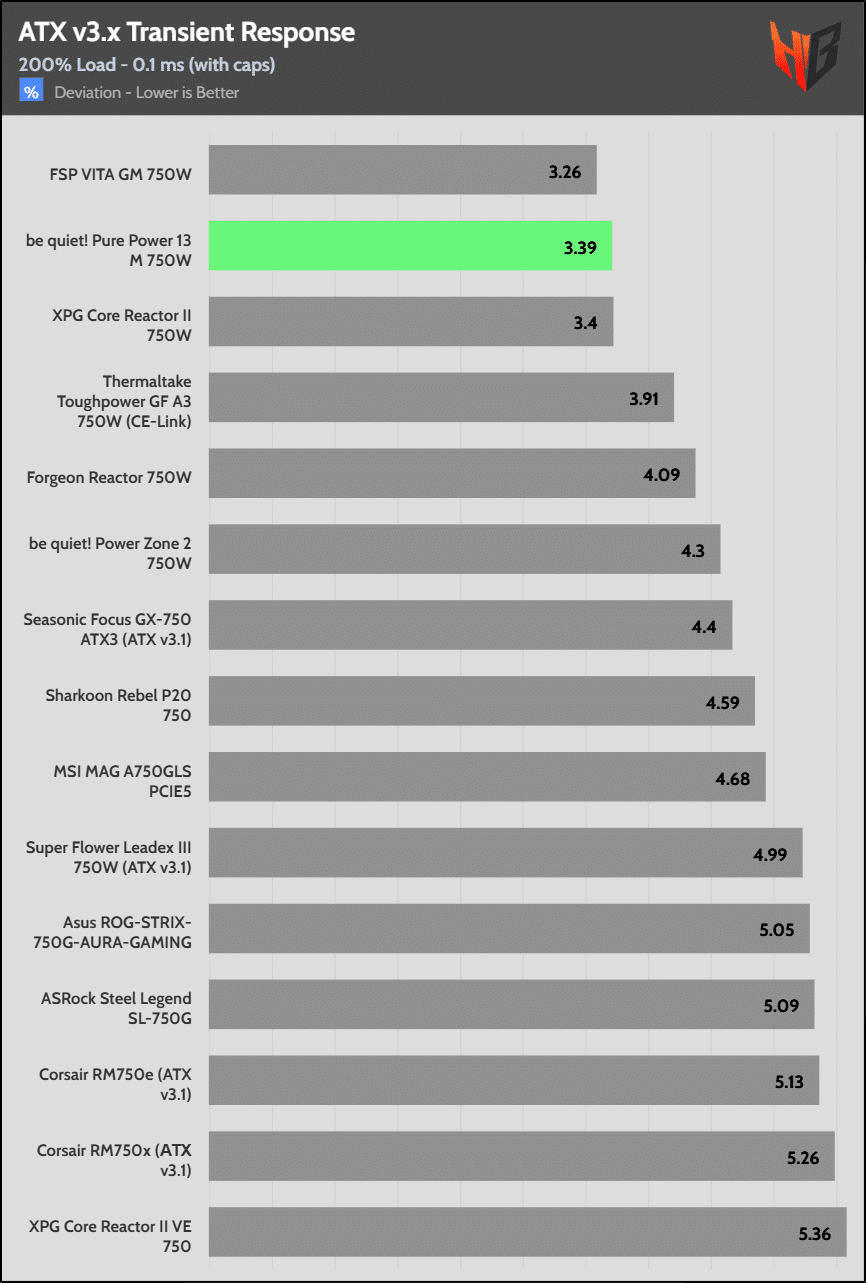

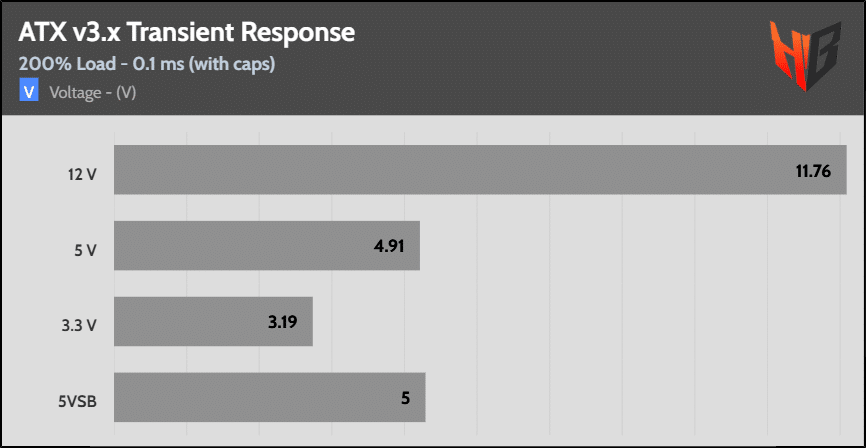

The PSU passes all ATX v3.1 transient response tests. The 3.3V rail drops below 3.2V in the 200% transient load test, showing weakness signs.
Top performance here for the 12V rail.
