Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.121V | 11.921V | 1.65% | Pass |
| 5V | 5.048V | 4.966V | 1.63% | Pass |
| 3.3V | 3.331V | 3.201V | 3.90% | Pass |
| 5VSB | 5.079V | 5.029V | 0.97% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.102V | 12.009V | 0.76% | Pass |
| 5V | 5.035V | 4.960V | 1.49% | Pass |
| 3.3V | 3.318V | 3.193V | 3.78% | Pass |
| 5VSB | 5.054V | 5.016V | 0.74% | Pass |

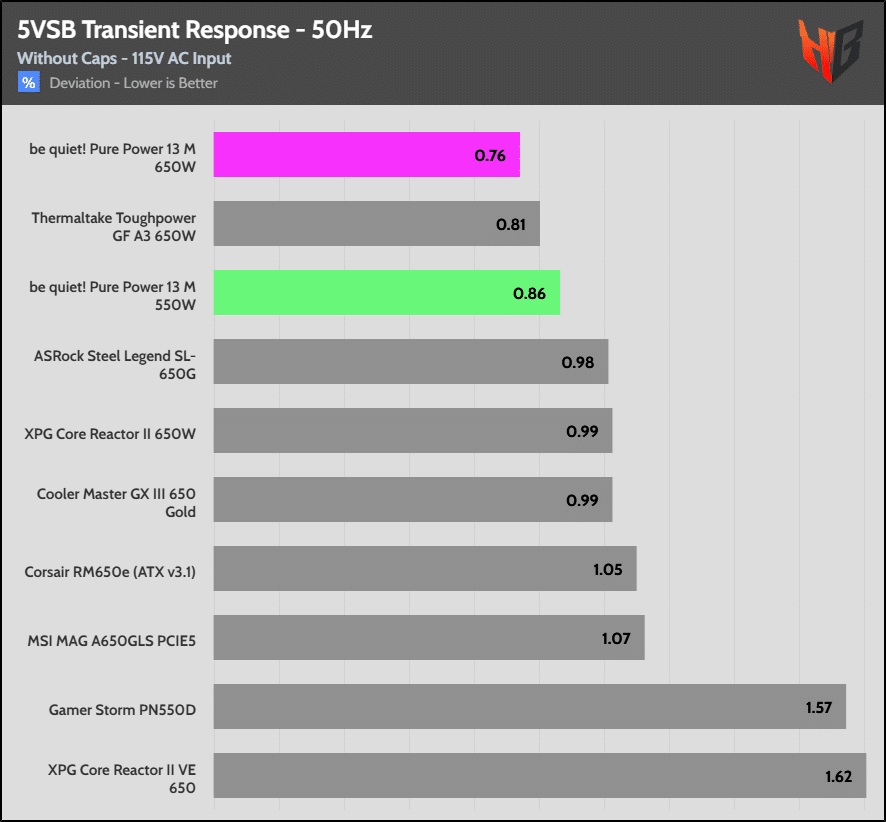

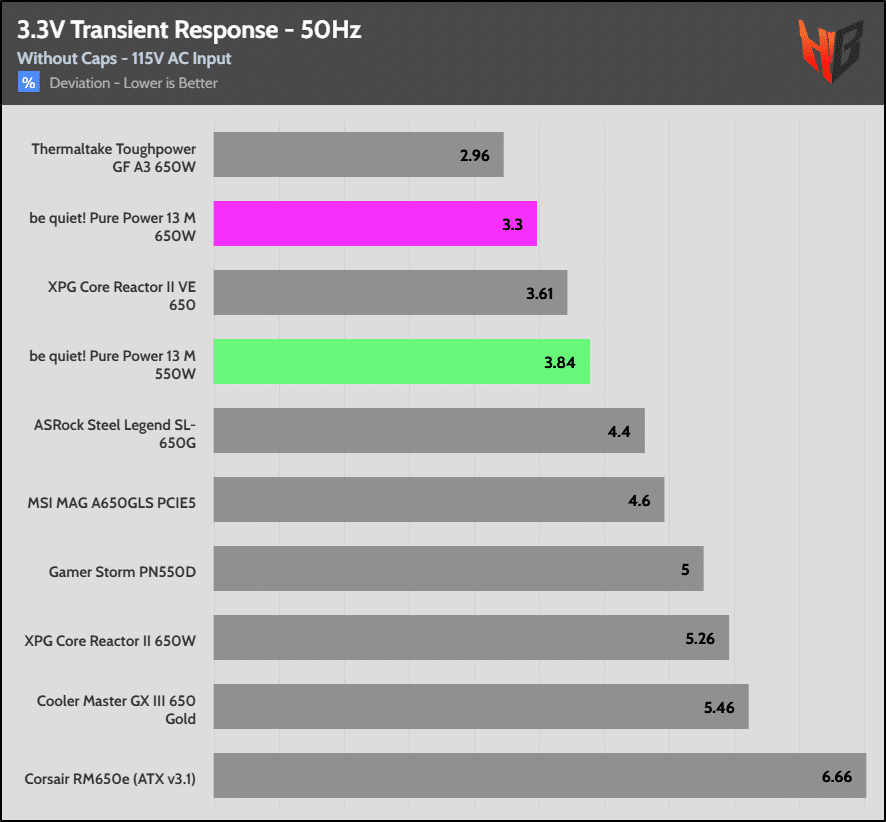

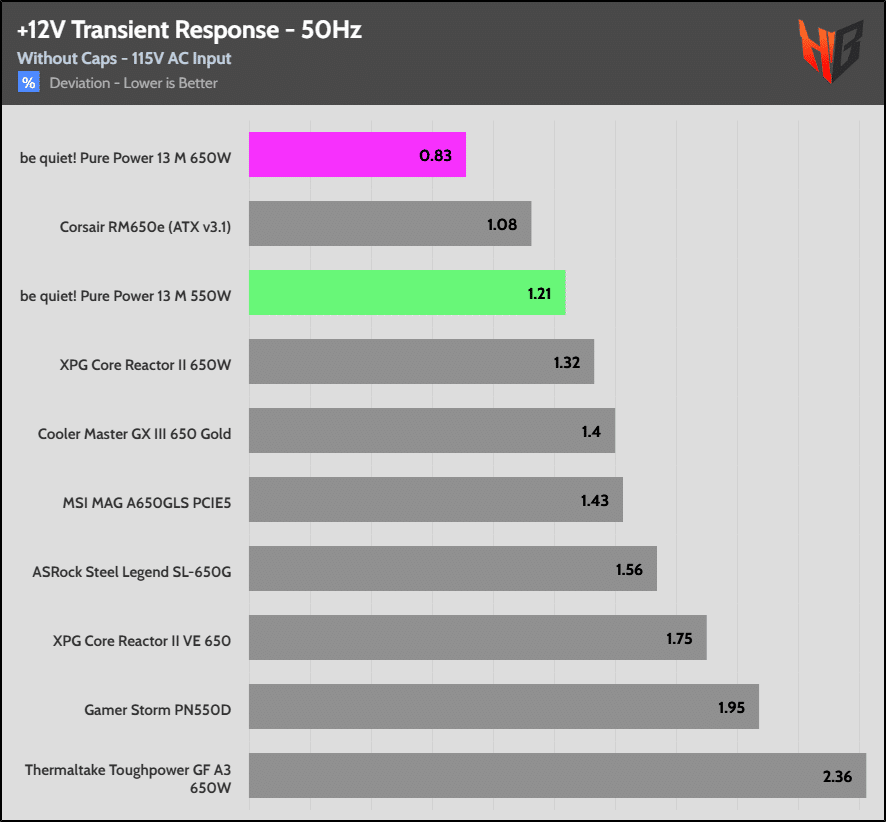

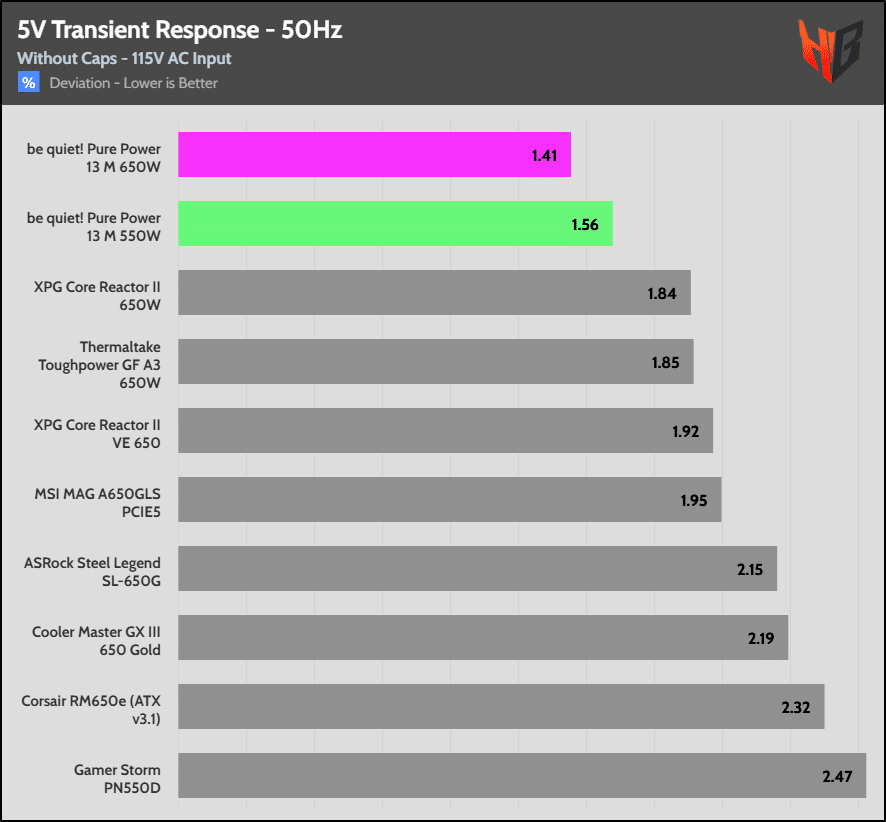

The transient response is good at 12V and 5V, given the unit’s maximum power. Although the deviation at 3.3V is not high, the voltage at this rail dropped below 3.2V in the second test (without extra capacitance utilized).

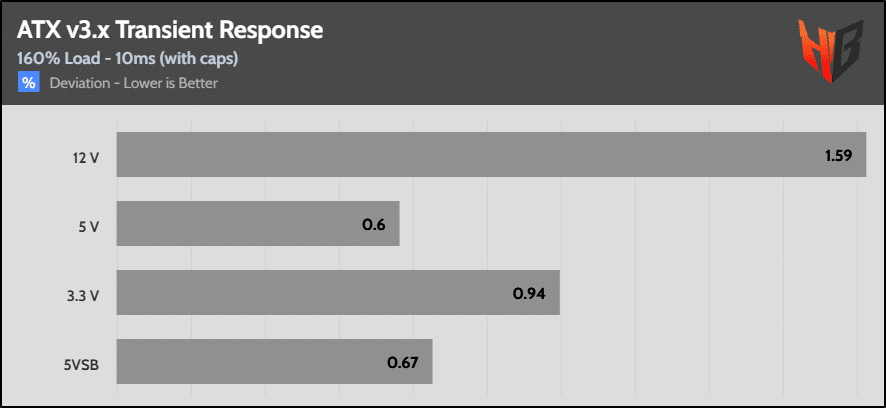

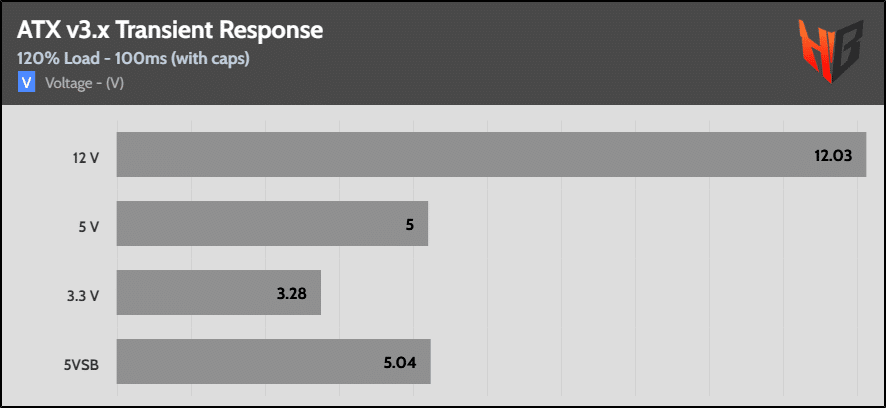

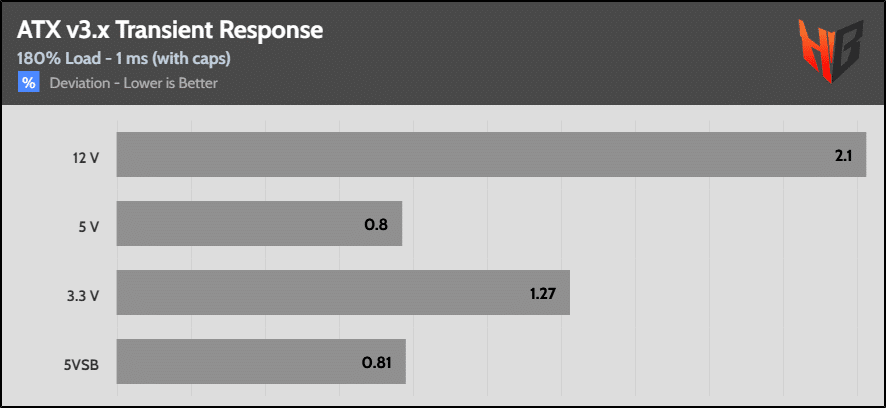

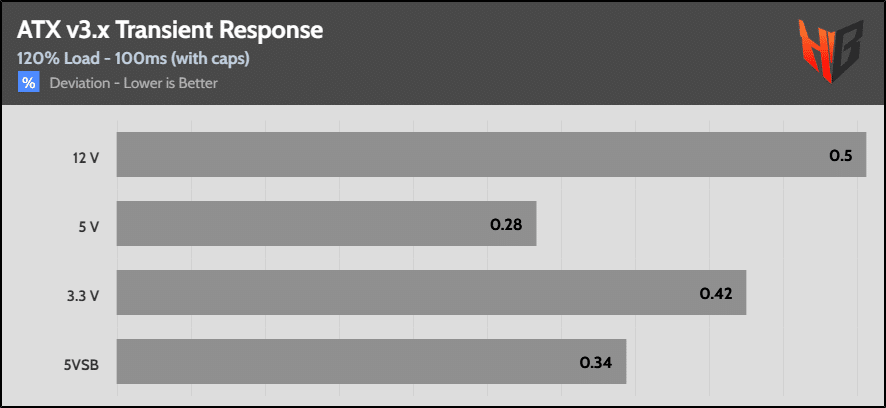

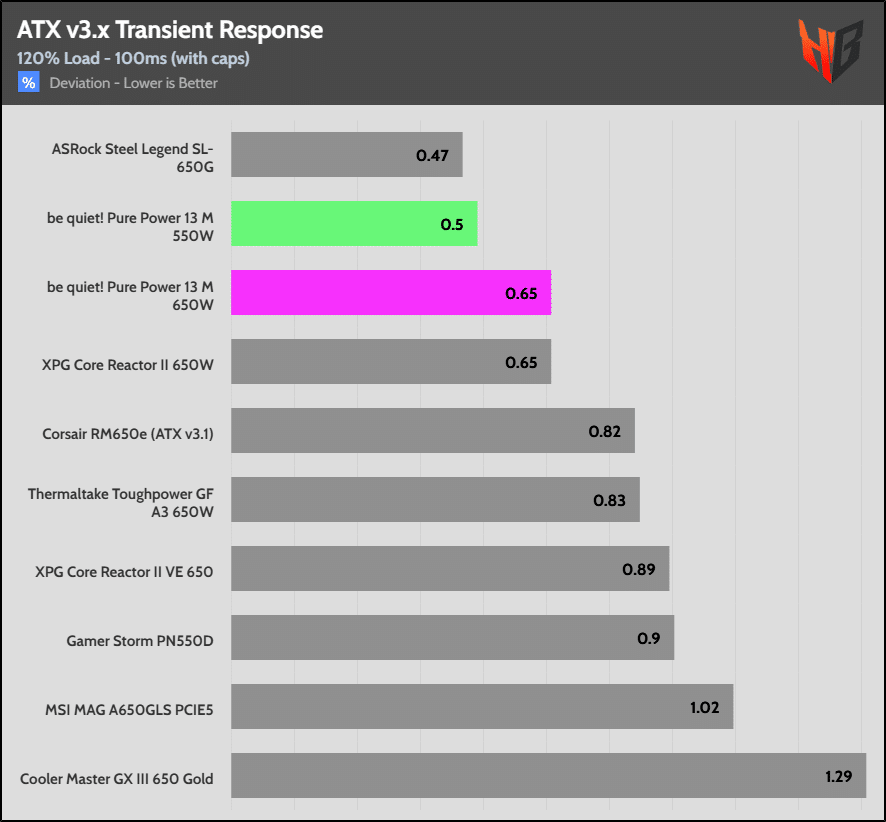

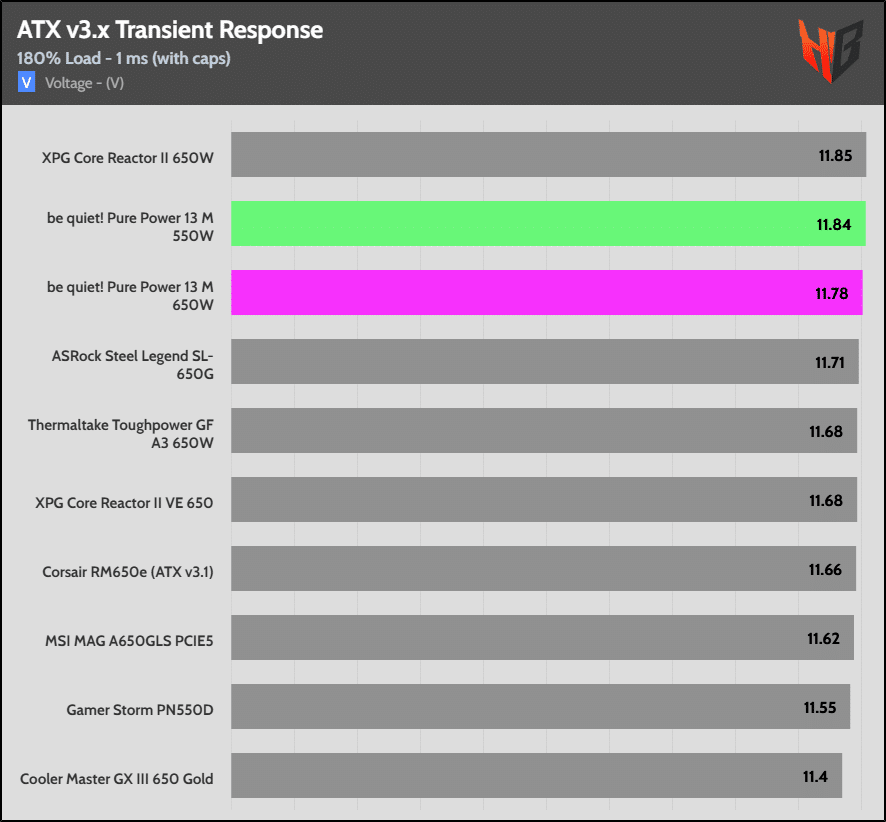

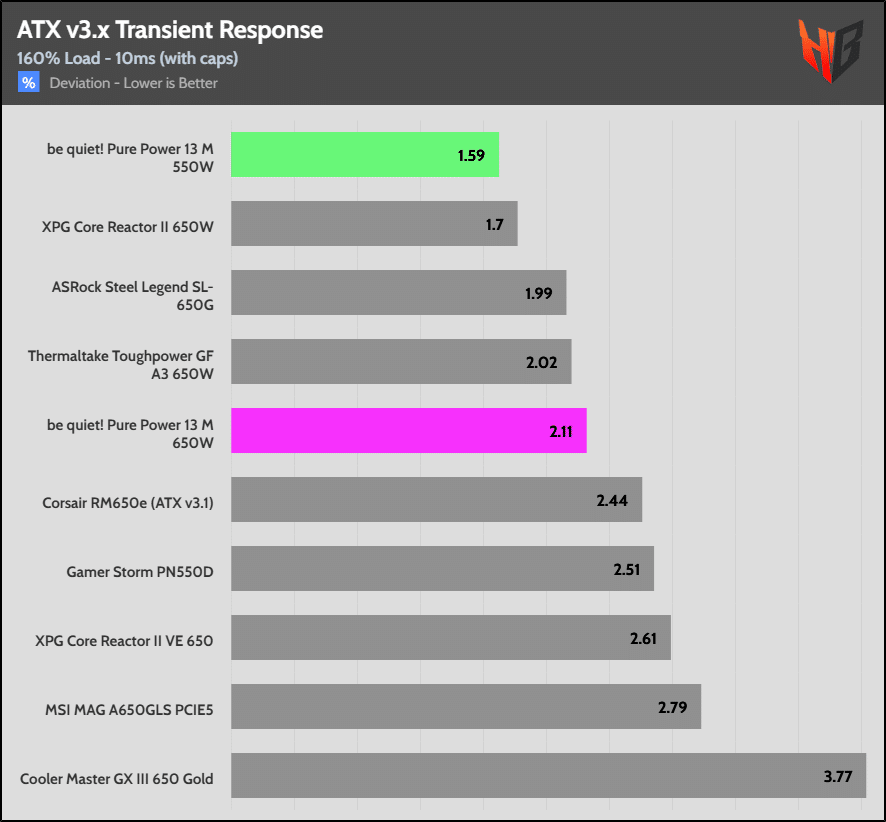

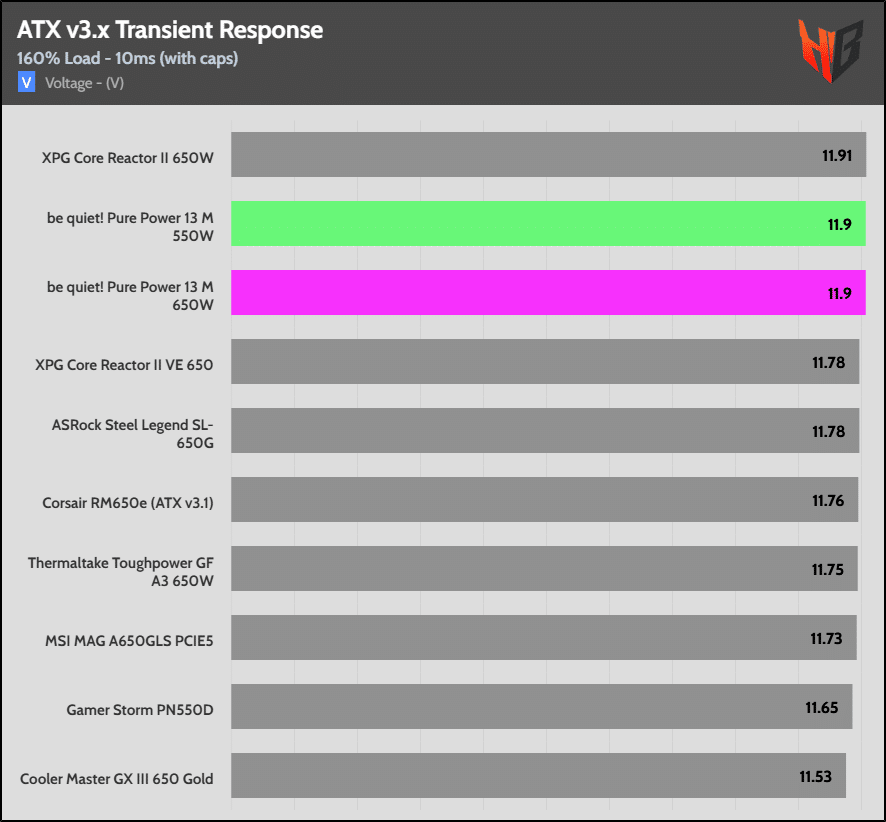

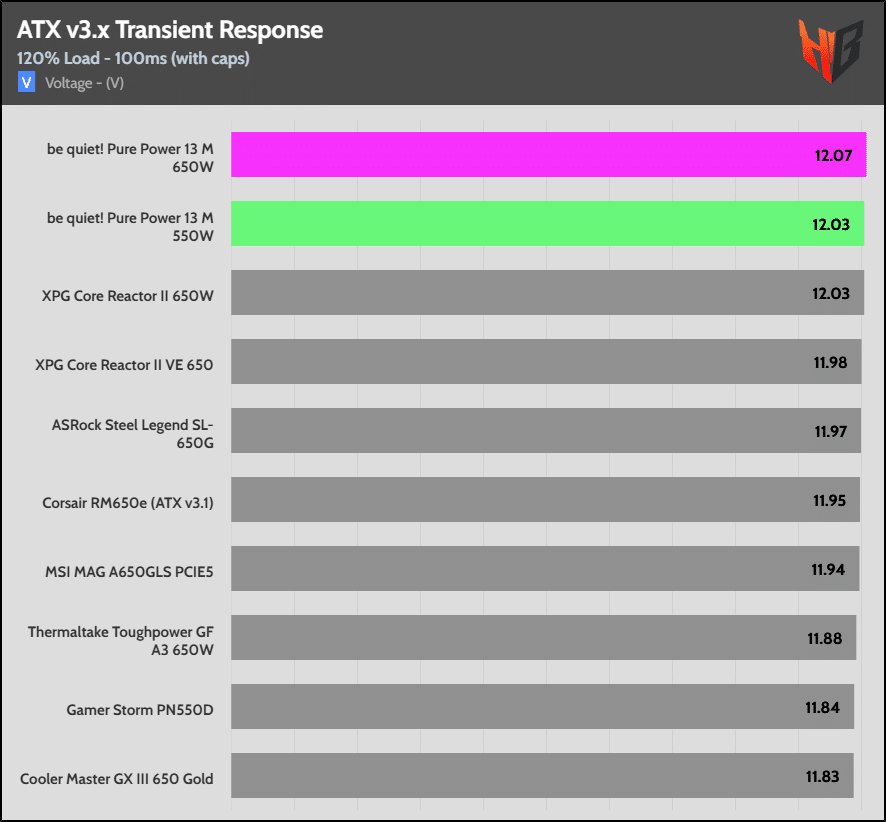

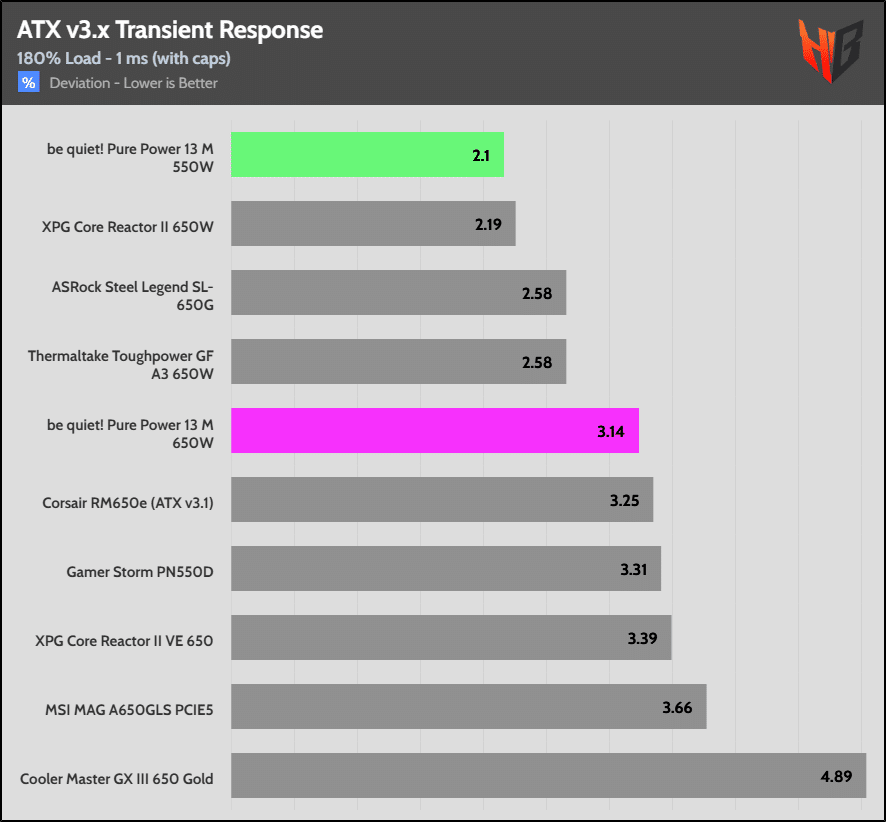

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests, keeping its rails at high voltages.

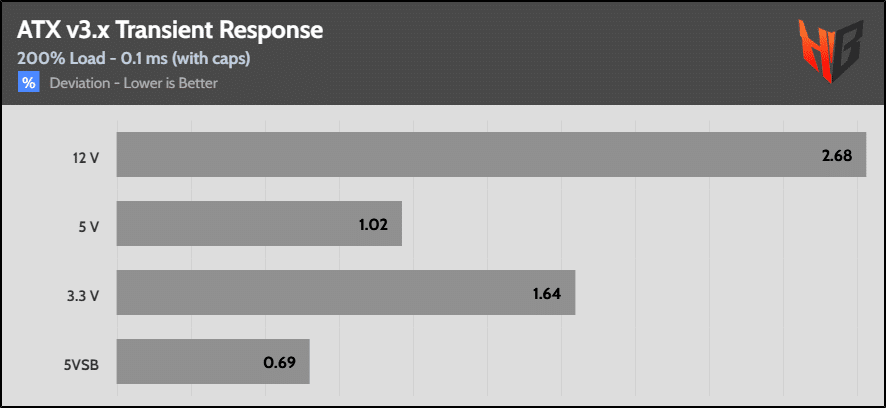

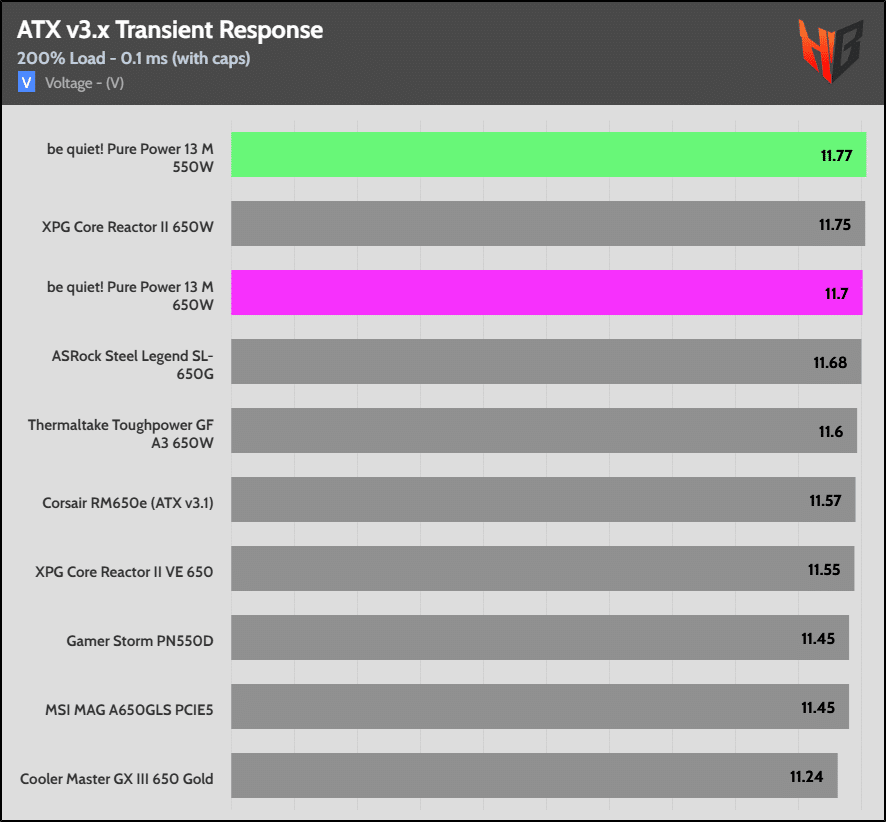

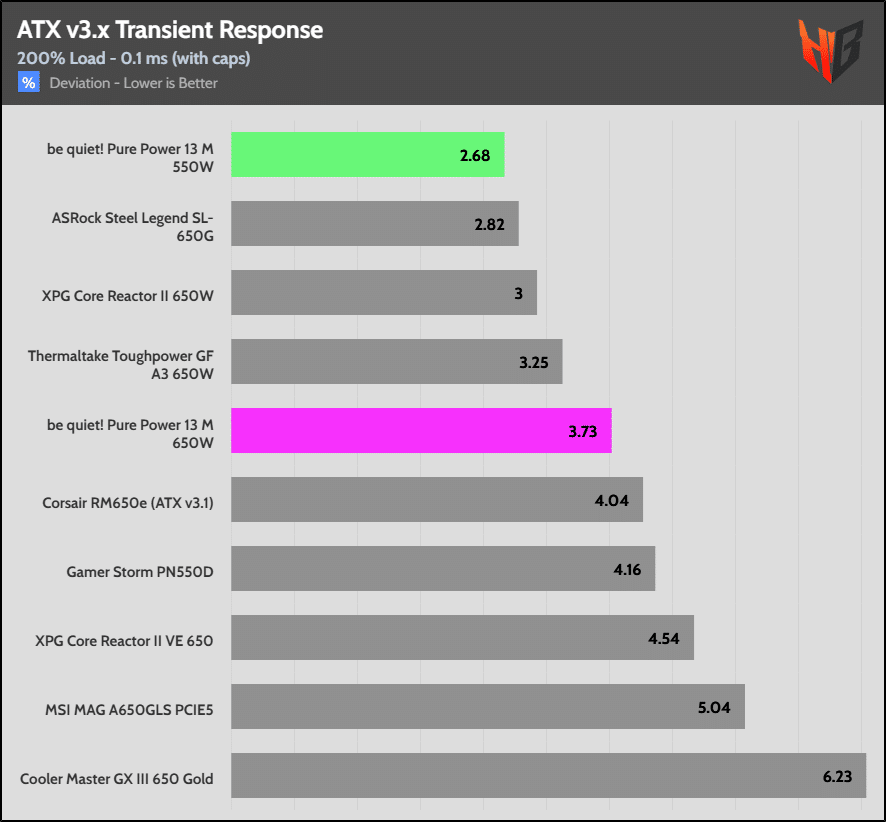

Very good performance here for the 12V rail. Keep in mind that for a 550W unit, the 200% transient load is 1100W, while for a 650W unit, it is 1300W.
