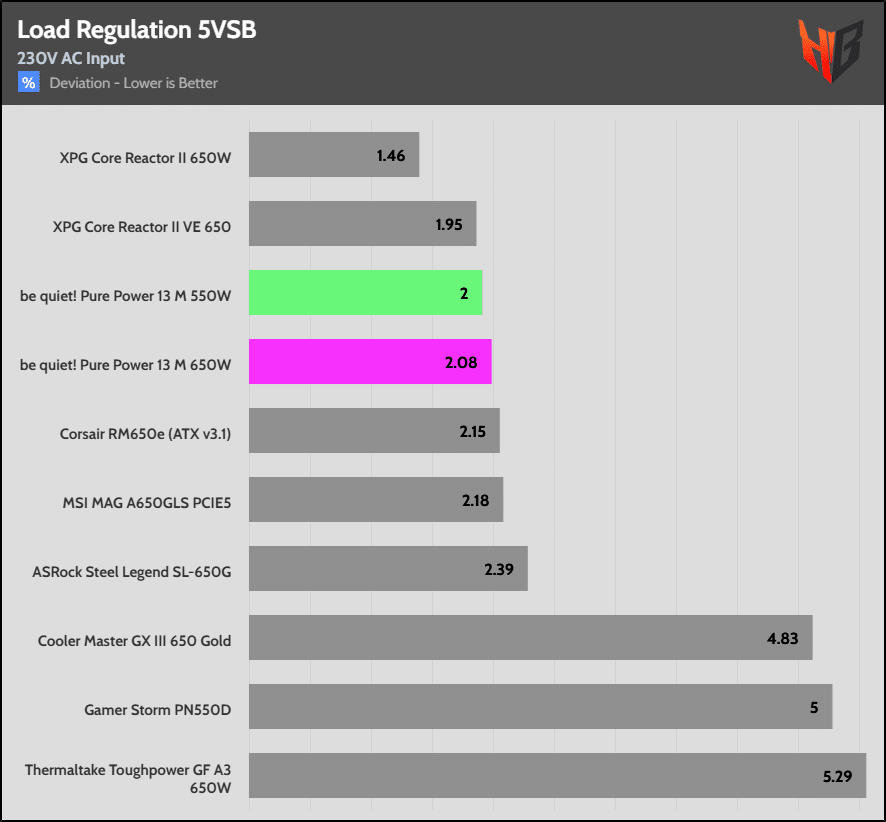

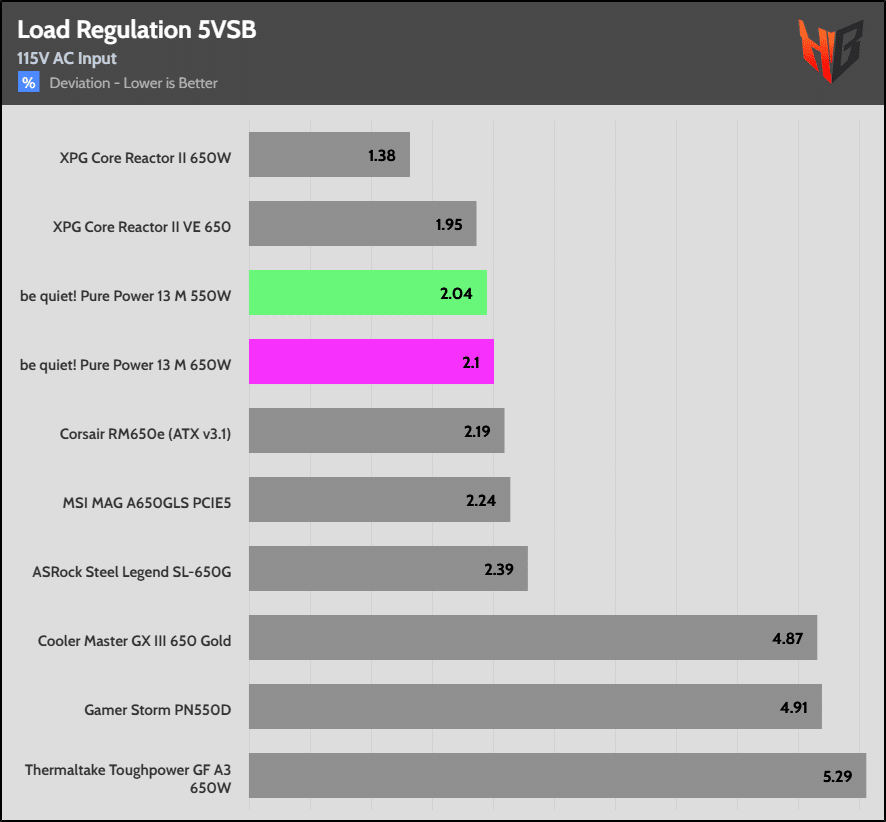

Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 2.753A | 1.977A | 1.977A | 0.983A | 55.009 | 88.069% | 0 | <6.0 | 44.31°C | 0.956 |
| 12.135V | 5.058V | 3.339V | 5.087V | 62.463 | 40.13°C | 114.89V | ||||
| 20% | 6.518A | 2.969A | 2.97A | 1.182A | 109.959 | 91.399% | 0 | <6.0 | 46.33°C | 0.976 |
| 12.129V | 5.053V | 3.334V | 5.078V | 120.306 | 40.51°C | 114.88V | ||||
| 30% | 10.632A | 3.466A | 3.469A | 1.381A | 164.96 | 92.331% | 0 | <6.0 | 47.18°C | 0.98 |
| 12.124V | 5.05V | 3.33V | 5.07V | 178.661 | 41.12°C | 114.86V | ||||
| 40% | 14.758A | 3.964A | 3.969A | 1.581A | 220.05 | 92.521% | 0 | <6.0 | 50.83°C | 0.986 |
| 12.119V | 5.046V | 3.326V | 5.062V | 237.84 | 41.96°C | 114.84V | ||||
| 50% | 18.540A | 4.961A | 4.971A | 1.782A | 275.051 | 92.156% | 609 | <6.0 | 42.42°C | 0.989 |
| 12.112V | 5.04V | 3.32V | 5.052V | 298.463 | 50.37°C | 114.82V | ||||
| 60% | 22.328A | 5.961A | 5.975A | 1.983A | 330.053 | 91.839% | 612 | <6.0 | 42.73°C | 0.992 |
| 12.103V | 5.034V | 3.314V | 5.044V | 359.378 | 51.13°C | 114.8V | ||||
| 70% | 26.117A | 6.962A | 6.983A | 2.185A | 385.061 | 91.394% | 614 | <6.0 | 43.01°C | 0.993 |
| 12.097V | 5.029V | 3.309V | 5.035V | 421.319 | 54.12°C | 114.78V | ||||
| 80% | 29.913A | 7.961A | 7.992A | 2.288A | 439.625 | 90.756% | 618 | <6.0 | 43.68°C | 0.995 |
| 12.092V | 5.024V | 3.304V | 5.027V | 484.403 | 56.85°C | 114.76V | ||||
| 90% | 34.098A | 8.464A | 8.487A | 2.391A | 494.652 | 90.168% | 621 | 6.3 | 44.44°C | 0.995 |
| 12.087V | 5.021V | 3.3V | 5.02V | 548.593 | 59.62°C | 114.74V | ||||
| 100% | 38.089A | 8.969A | 9.014A | 2.998A | 549.854 | 89.446% | 687 | 8.7 | 45.48°C | 0.996 |
| 12.081V | 5.017V | 3.295V | 5.004V | 614.733 | 61.94°C | 114.72V | ||||
| 110% | 41.950A | 9.976A | 10.123A | 3.002A | 604.852 | 88.603% | 907 | 18.5 | 48.09°C | 0.997 |
| 12.075V | 5.011V | 3.29V | 4.998V | 682.653 | 63.65°C | 114.7V | ||||
| CL1 | 0.114A | 14.363A | 14.44A | 0A | 121.285 | 86.362% | 625 | 7.3 | 41.62°C | 0.977 |
| 12.127V | 5.026V | 3.304V | 5.088V | 140.44 | 51.06°C | 114.86V | ||||
| CL2 | 0.114A | 19.84A | 0A | 0A | 101.349 | 85.036% | 622 | 6.5 | 41.67°C | 0.976 |
| 12.134V | 5.038V | 3.326V | 5.094V | 119.185 | 49.74°C | 114.87V | ||||
| CL3 | 0.114A | 0A | 19.929A | 0A | 67.396 | 80.6% | 619 | <6.0 | 41.78°C | 0.971 |
| 12.134V | 5.046V | 3.312V | 5.095V | 83.619 | 47.59°C | 114.88V | ||||
| CL4 | 45.468A | 0A | 0A | 0A | 549.567 | 90.497% | 623 | 6.7 | 45.78°C | 0.996 |
| 12.087V | 5.043V | 3.323V | 5.066V | 607.276 | 58.73°C | 114.71V |

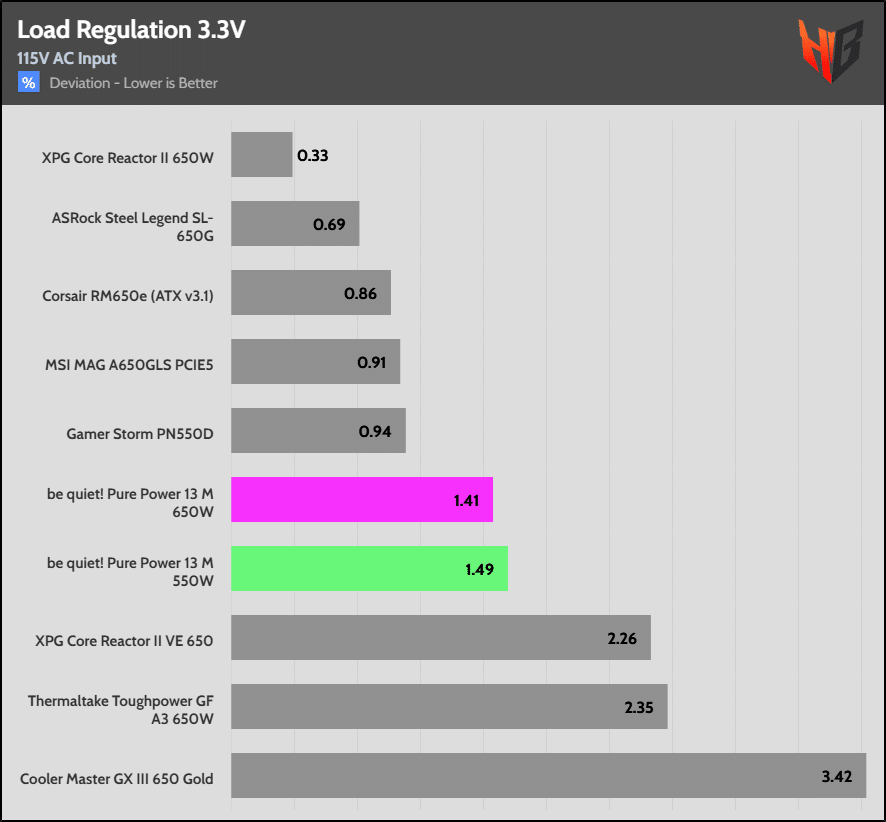

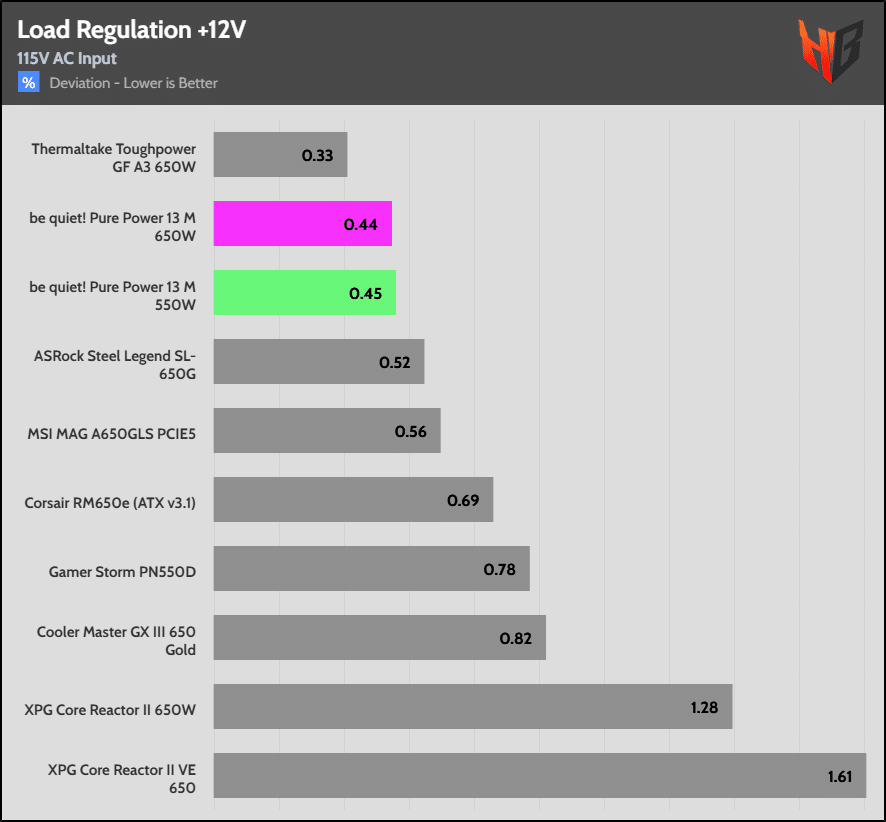

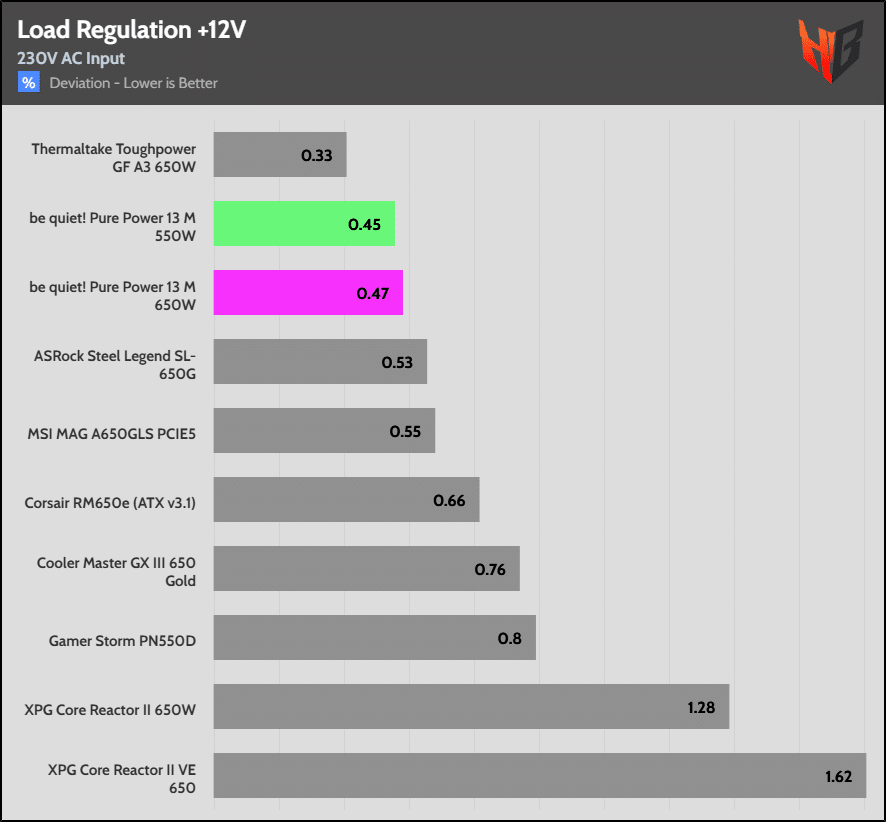

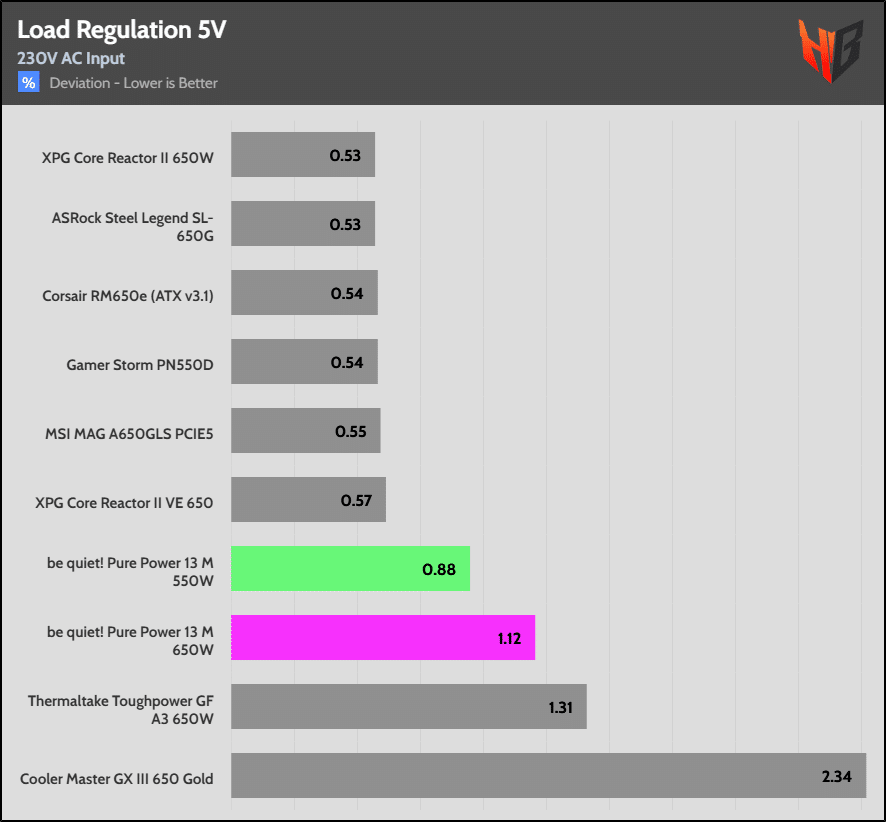

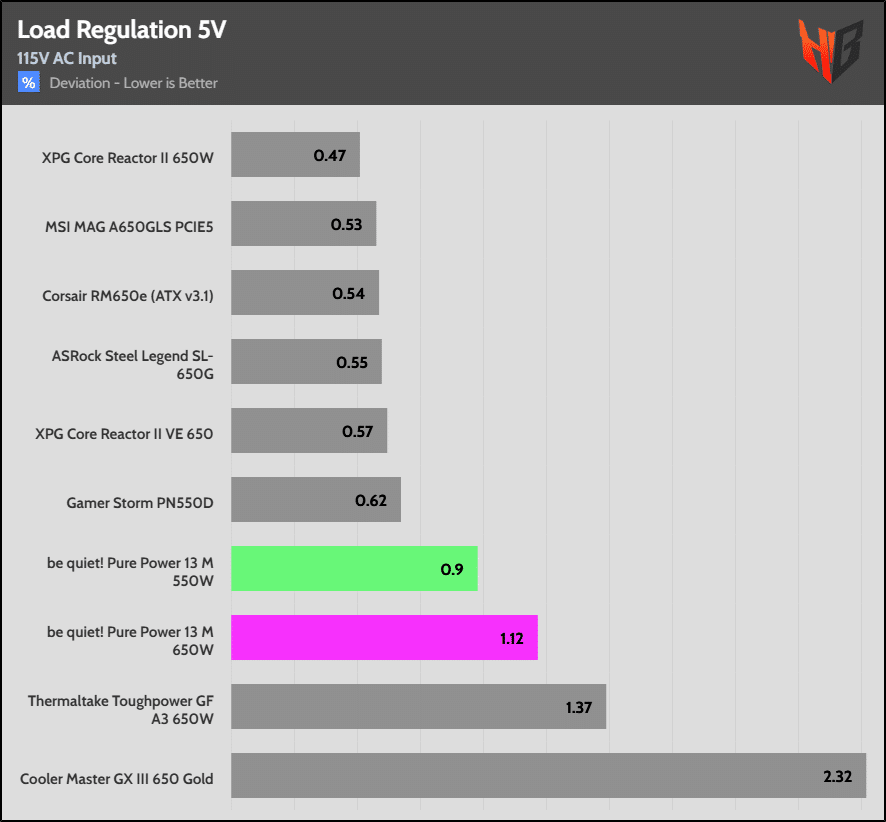

Load regulation is tight at 12V and within 1% at 5V. It is loose at 3.3V.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.224A | 0.494A | 0.493A | 0.196A | 20.002 | 78.967% | 0 | <6.0 | 41.6°C | 0.883 |
| 12.135V | 5.062V | 3.344V | 5.106V | 25.329 | 36.21°C | 114.92V | ||||
| 40W | 2.694A | 0.692A | 0.691A | 0.294A | 40.003 | 86.438% | 0 | <6.0 | 40.62°C | 0.942 |
| 12.134V | 5.061V | 3.343V | 5.102V | 46.281 | 37.39°C | 114.91V | ||||
| 60W | 4.165A | 0.889A | 0.889A | 0.392A | 60.003 | 89.334% | 0 | <6.0 | 41.73°C | 0.957 |
| 12.133V | 5.06V | 3.342V | 5.099V | 67.167 | 38.98°C | 114.9V | ||||
| 80W | 5.632A | 1.087A | 1.087A | 0.491A | 79.959 | 90.612% | 0 | <6.0 | 44.81°C | 0.973 |
| 12.132V | 5.059V | 3.34V | 5.095V | 88.243 | 39.06°C | 114.9V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.

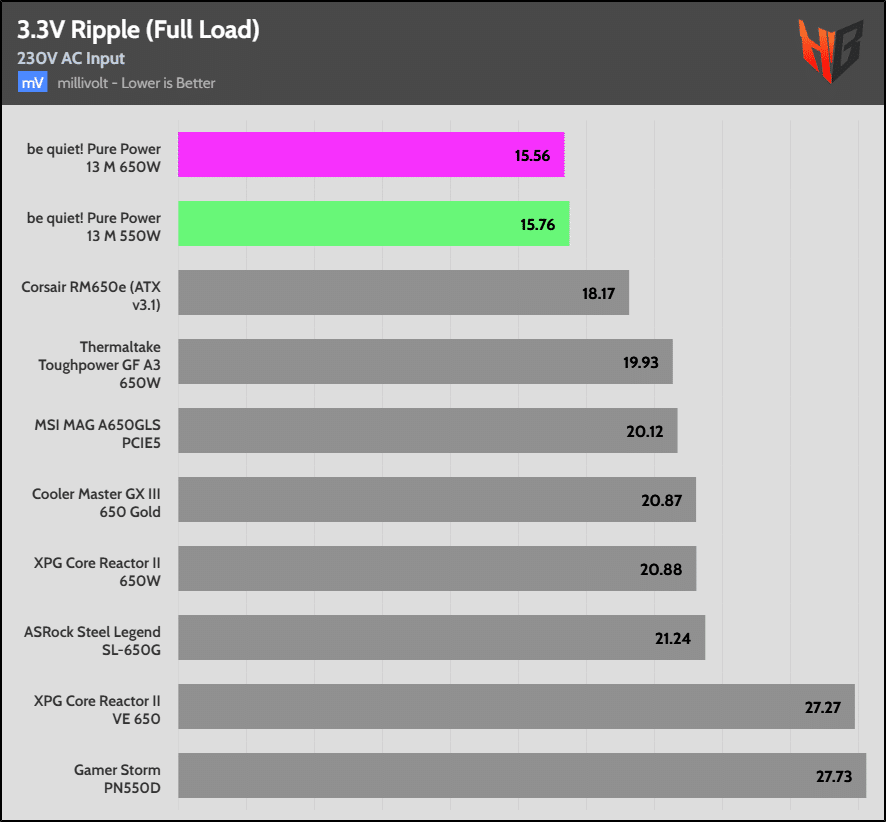

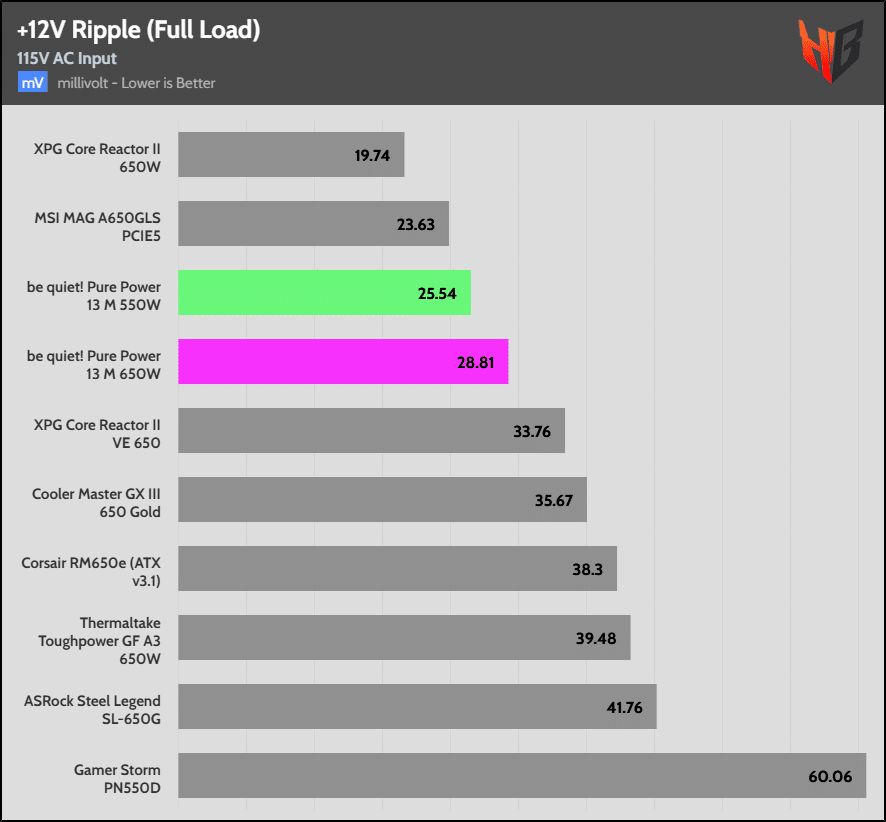

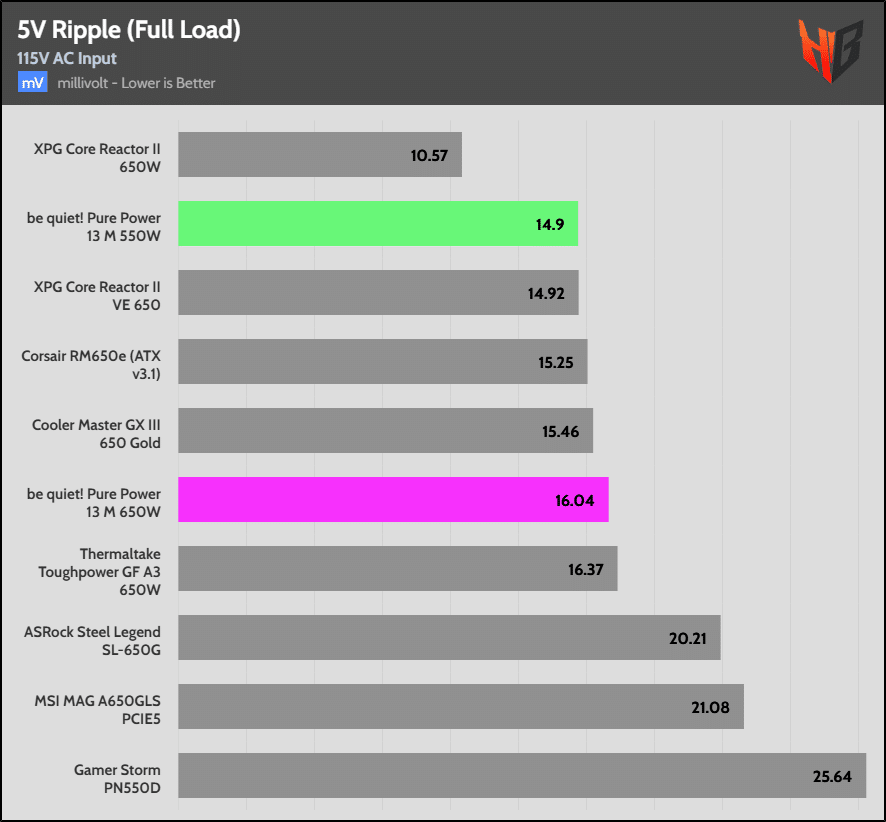

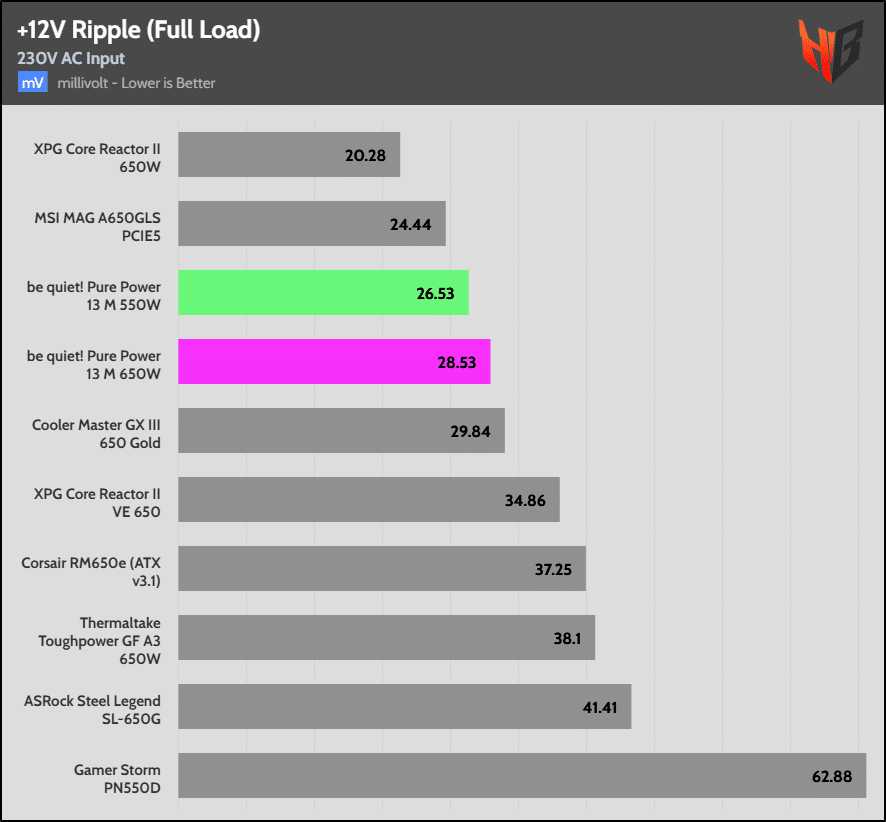

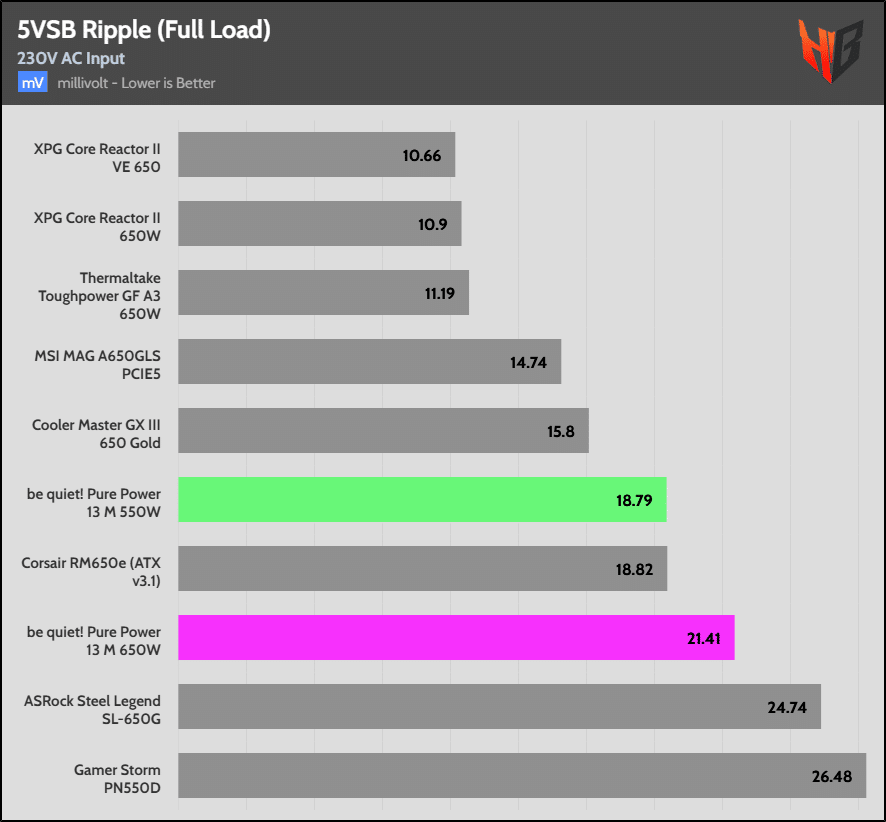

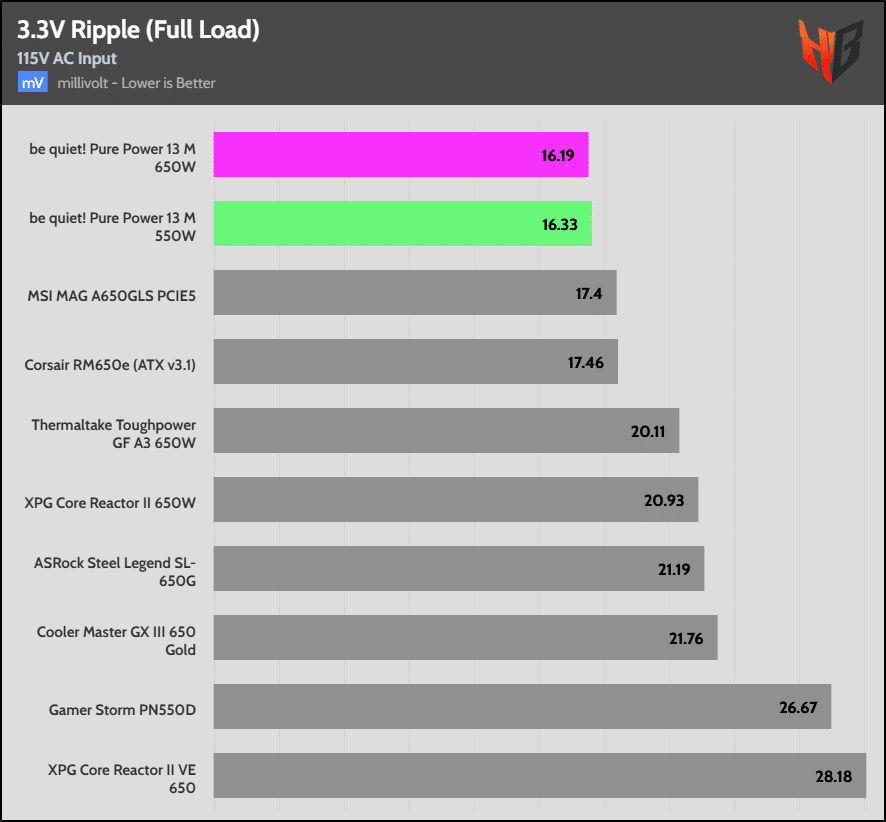

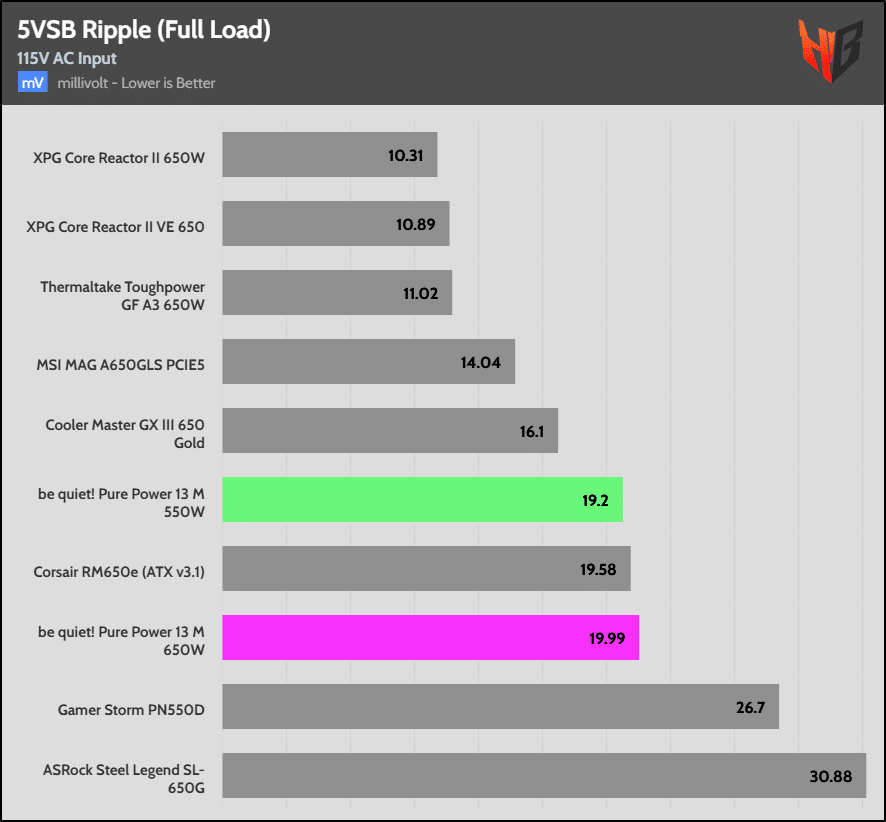

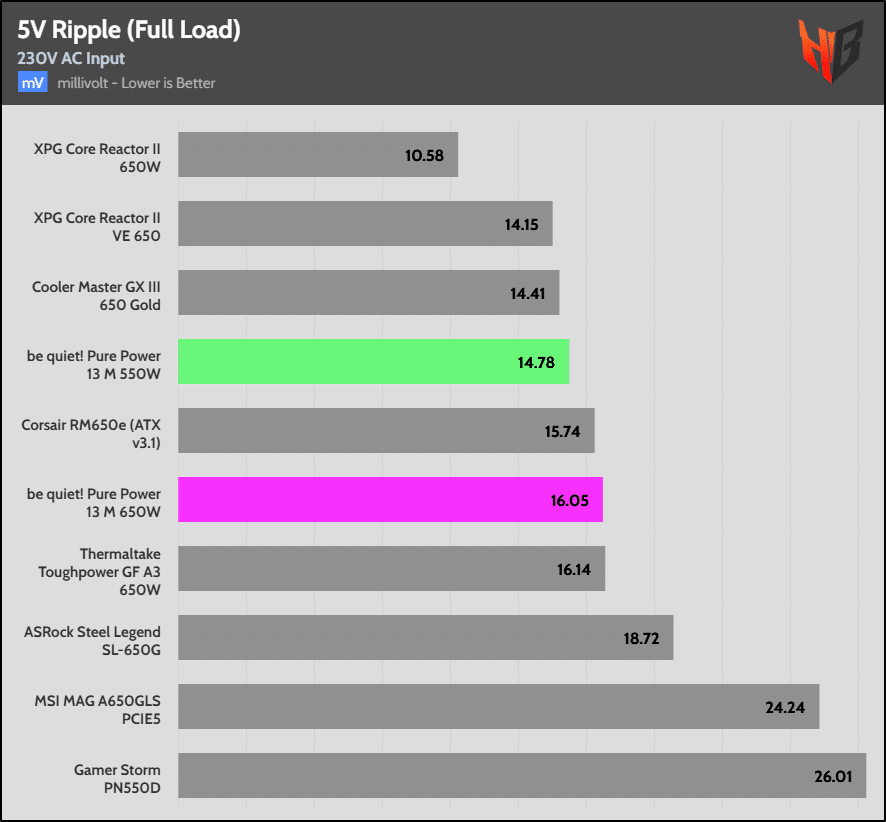

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 28.3 mV | 16.0 mV | 17.7 mV | 16.4 mV | Pass |
| 20% Load | 27.1 mV | 17.1 mV | 17.0 mV | 17.0 mV | Pass |
| 30% Load | 24.0 mV | 16.1 mV | 17.7 mV | 17.6 mV | Pass |
| 40% Load | 24.1 mV | 15.8 mV | 17.0 mV | 16.5 mV | Pass |
| 50% Load | 25.3 mV | 15.8 mV | 17.2 mV | 16.5 mV | Pass |
| 60% Load | 25.3 mV | 15.9 mV | 16.7 mV | 17.0 mV | Pass |
| 70% Load | 25.7 mV | 15.9 mV | 17.1 mV | 18.4 mV | Pass |
| 80% Load | 27.1 mV | 15.9 mV | 18.0 mV | 18.5 mV | Pass |
| 90% Load | 27.4 mV | 16.1 mV | 17.9 mV | 19.7 mV | Pass |
| 100% Load | 25.5 mV | 14.9 mV | 16.3 mV | 19.2 mV | Pass |
| 110% Load | 27.9 mV | 15.1 mV | 16.4 mV | 19.3 mV | Pass |
| Crossload 1 | 26.2 mV | 17.4 mV | 16.6 mV | 17.0 mV | Pass |
| Crossload 2 | 27.2 mV | 17.7 mV | 16.8 mV | 18.6 mV | Pass |
| Crossload 3 | 27.8 mV | 15.8 mV | 18.3 mV | 18.7 mV | Pass |
| Crossload 4 | 25.7 mV | 16.2 mV | 17.1 mV | 18.1 mV | Pass |
Ripple suppression is good overall.
