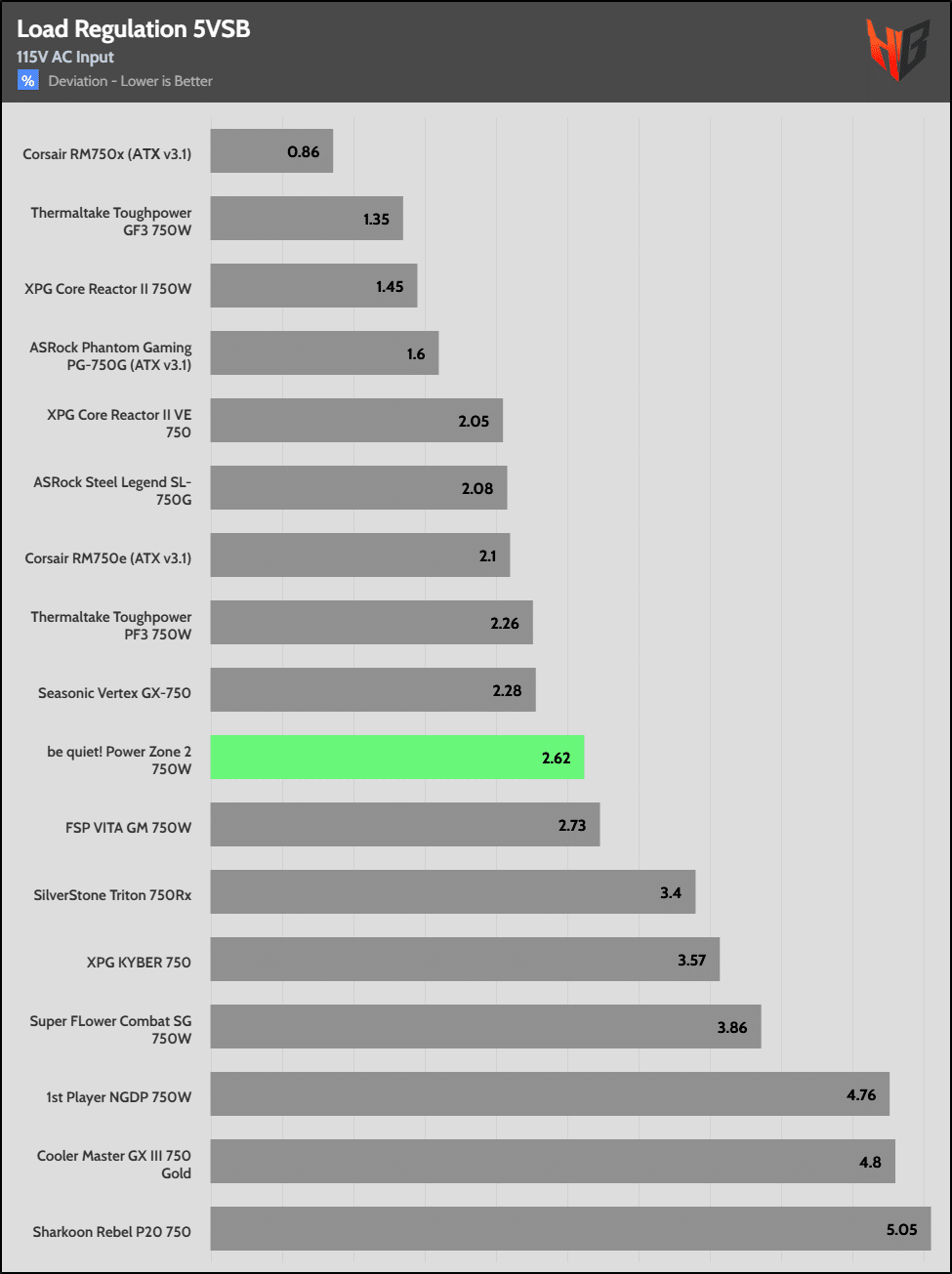

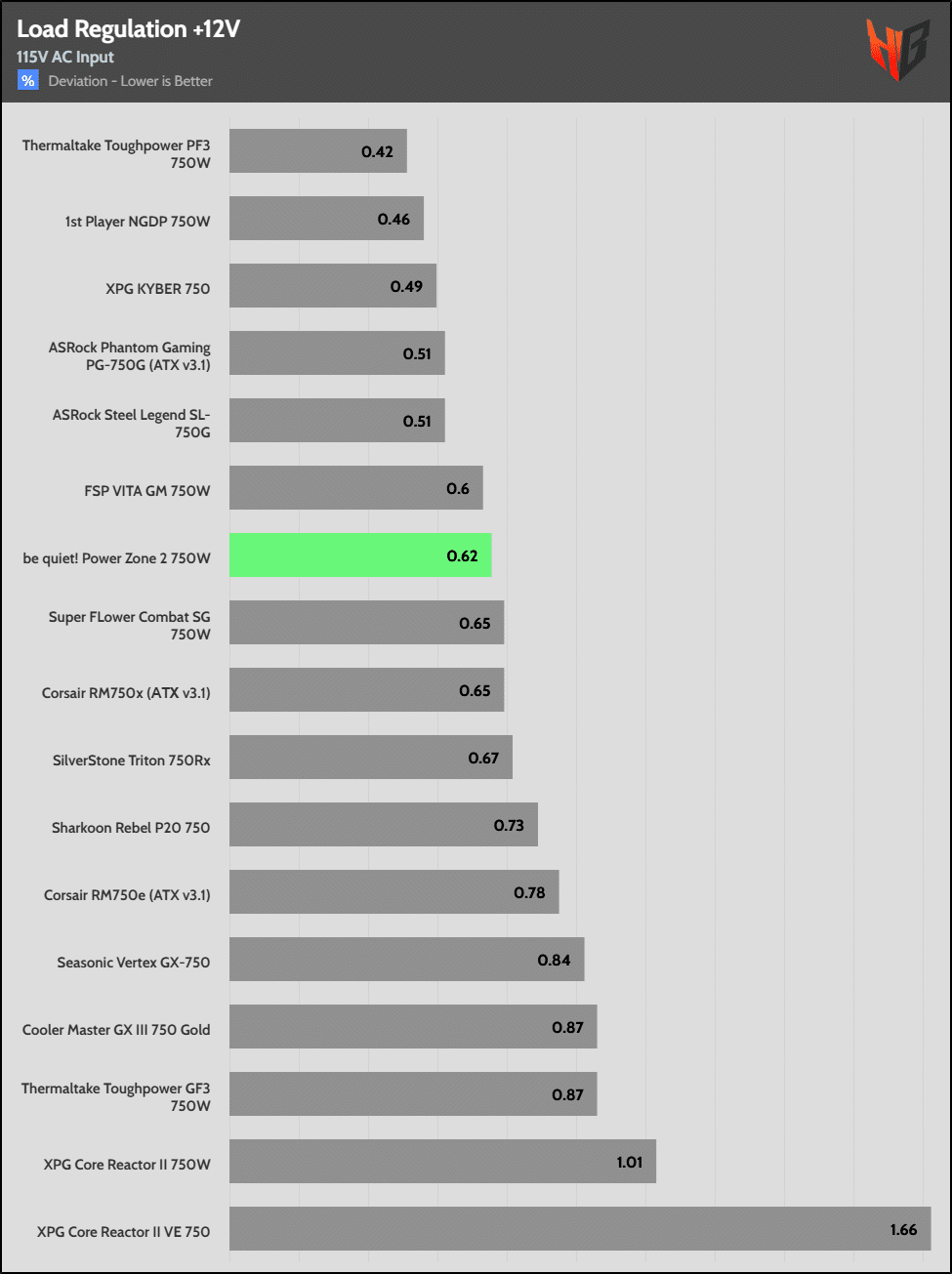

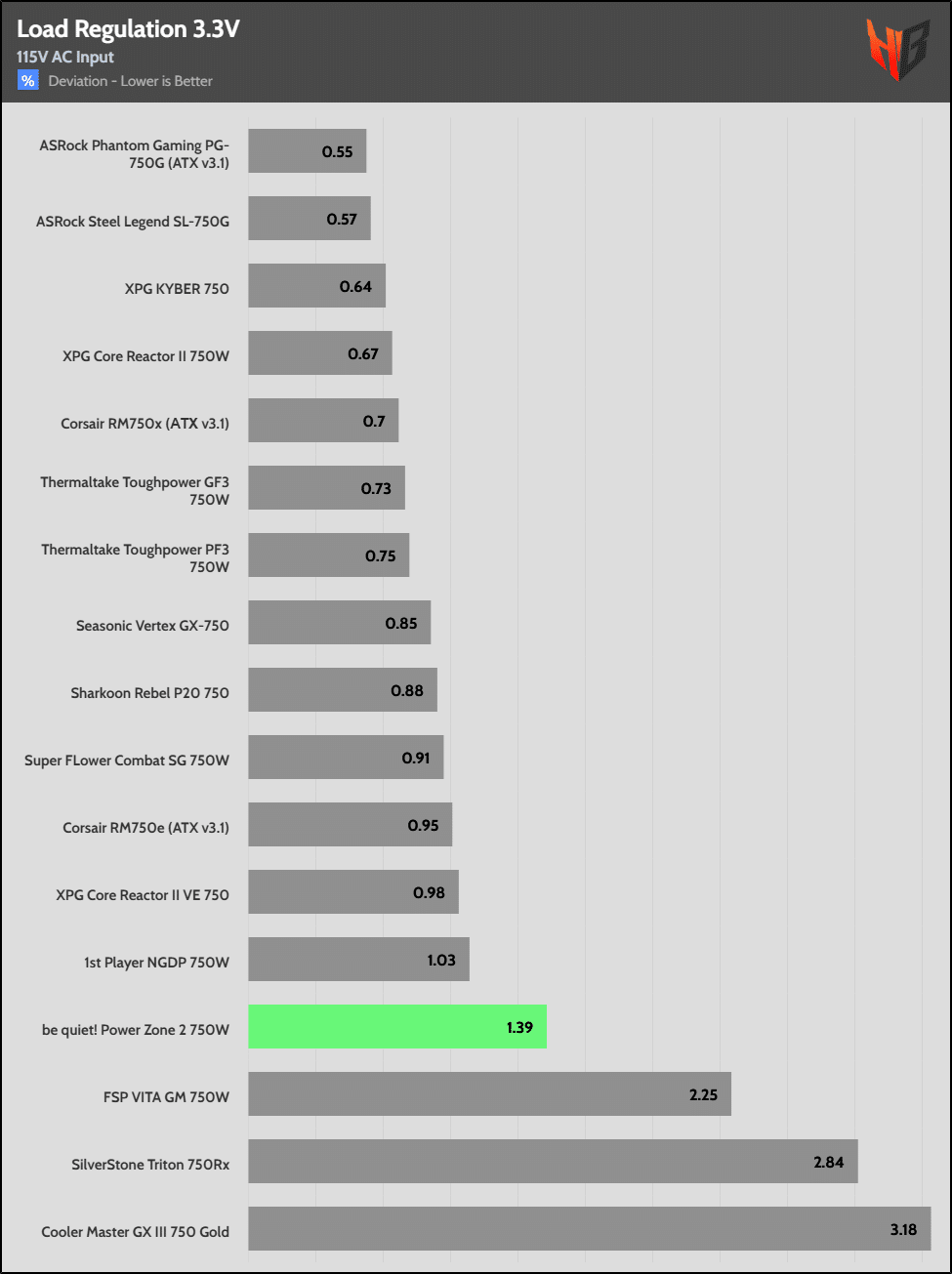

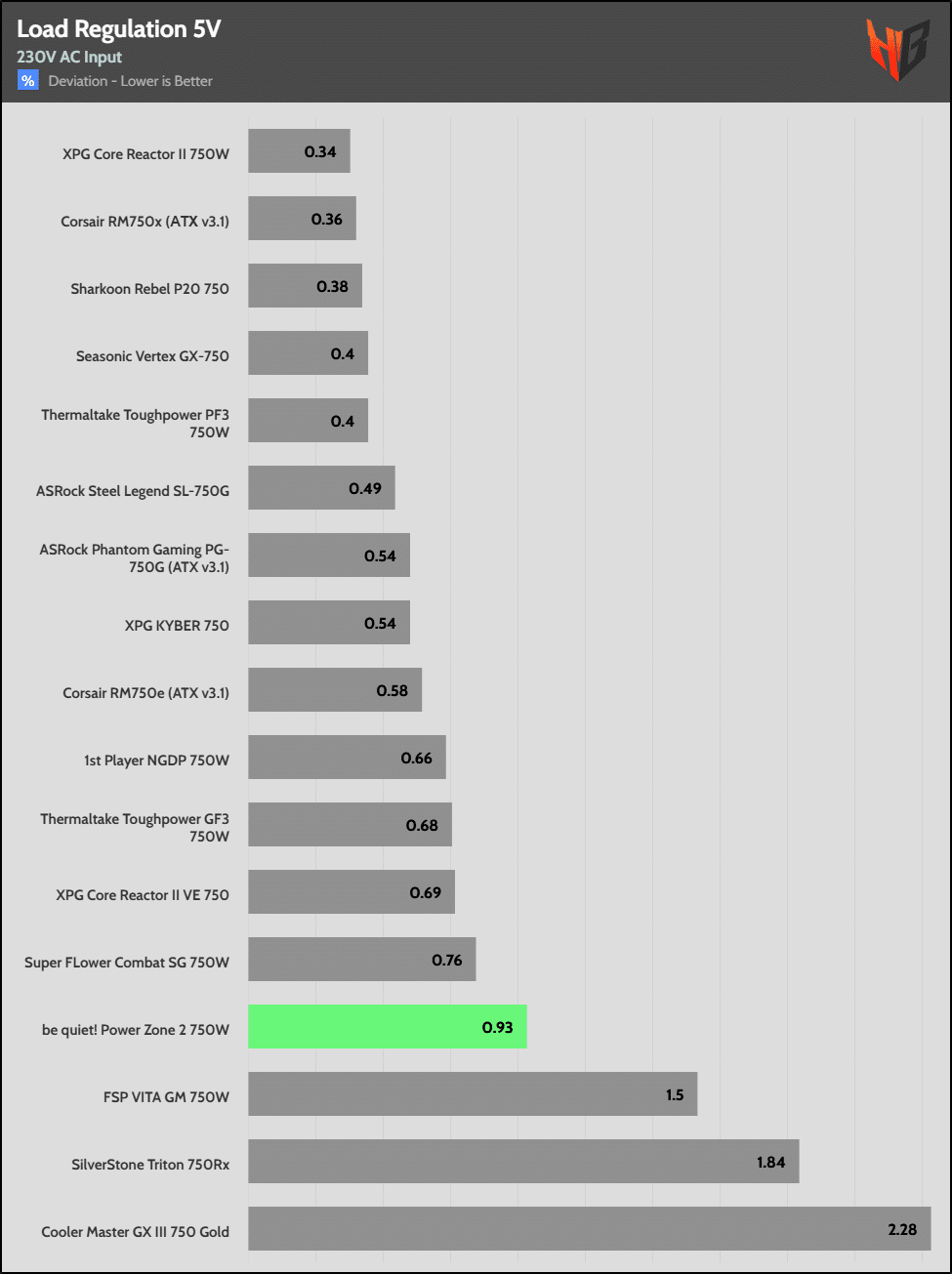

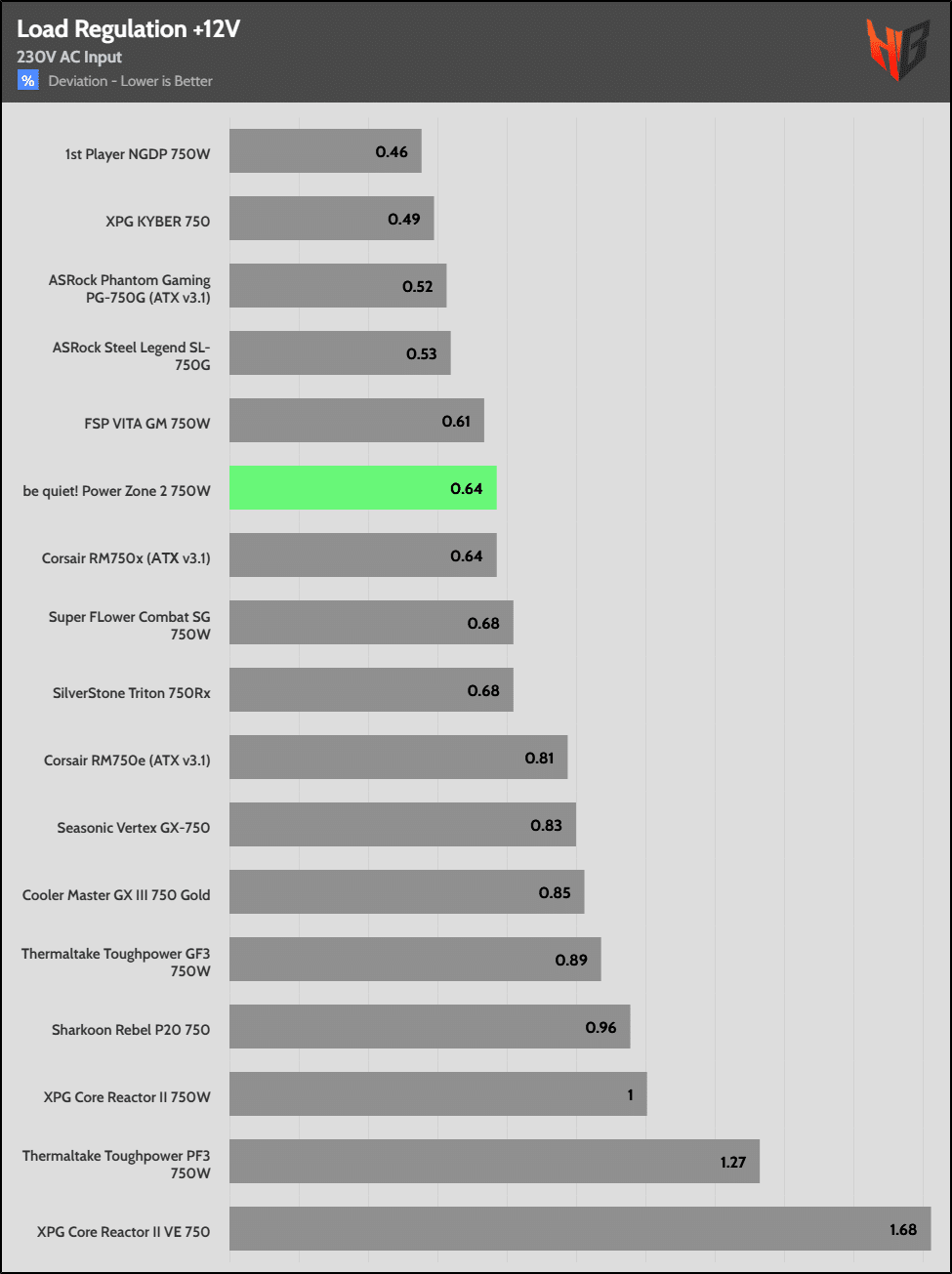

Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 4.368A | 1.963A | 1.969A | 0.993A | 74.996 | 87.536% | 0 | <6.0 | 49.95°C | 0.948 |
| 12.227V | 5.094V | 3.352V | 5.035V | 85.675 | 40.01°C | 114.89V | ||||
| 20% | 9.742A | 2.948A | 2.958A | 1.194A | 149.925 | 91.372% | 0 | <6.0 | 52.27°C | 0.968 |
| 12.219V | 5.089V | 3.347V | 5.024V | 164.082 | 40.57°C | 114.86V | ||||
| 30% | 15.468A | 3.442A | 3.455A | 1.396A | 224.922 | 92.184% | 0 | <6.0 | 53.69°C | 0.975 |
| 12.211V | 5.085V | 3.343V | 5.014V | 243.991 | 41.34°C | 114.84V | ||||
| 40% | 21.208A | 3.937A | 3.953A | 1.599A | 300.006 | 92.282% | 0 | <6.0 | 55.36°C | 0.981 |
| 12.203V | 5.08V | 3.339V | 5.004V | 325.099 | 41.81°C | 114.81V | ||||
| 50% | 26.561A | 4.926A | 4.95A | 1.803A | 374.408 | 91.995% | 0 | <6.0 | 56.61°C | 0.985 |
| 12.194V | 5.075V | 3.334V | 4.992V | 406.982 | 42.12°C | 114.78V | ||||
| 60% | 31.965A | 5.918A | 5.95A | 2A | 449.291 | 91.441% | 0 | <6.0 | 58.77°C | 0.988 |
| 12.186V | 5.07V | 3.328V | 4.983V | 491.345 | 42.85°C | 114.76V | ||||
| 70% | 37.371A | 6.91A | 6.951A | 2.213A | 524.251 | 90.885% | 738 | 14.9 | 43.32°C | 0.99 |
| 12.179V | 5.066V | 3.324V | 4.971V | 576.83 | 47.34°C | 114.73V | ||||
| 80% | 42.849A | 7.902A | 7.955A | 2.317A | 599.44 | 90.342% | 903 | 21.8 | 43.92°C | 0.992 |
| 12.172V | 5.061V | 3.318V | 4.962V | 663.525 | 47.35°C | 114.7V | ||||
| 90% | 48.663A | 8.402A | 8.447A | 2.422A | 674.453 | 89.796% | 1068 | 27.4 | 44.47°C | 0.992 |
| 12.164V | 5.057V | 3.314V | 4.953V | 751.094 | 47.31°C | 114.67V | ||||
| 100% | 54.289A | 8.904A | 8.973A | 3.042A | 749.654 | 89.172% | 1223 | 31.4 | 45°C | 0.993 |
| 12.157V | 5.053V | 3.31V | 4.931V | 840.692 | 47.5°C | 114.64V | ||||
| 110% | 59.792A | 9.904A | 10.077A | 3.045A | 824.675 | 88.455% | 1405 | 35.2 | 46.1°C | 0.994 |
| 12.149V | 5.048V | 3.304V | 4.925V | 932.312 | 49.08°C | 114.61V | ||||
| CL1 | 0.113A | 14.252A | 14.365A | 0A | 121.282 | 85.504% | 0 | <6.0 | 46.66°C | 0.966 |
| 12.214V | 5.065V | 3.321V | 5.048V | 141.844 | 40°C | 114.86V | ||||
| CL2 | 0.113A | 19.728A | 0A | 0A | 101.342 | 84.028% | 0 | <6.0 | 49.11°C | 0.962 |
| 12.220V | 5.067V | 3.334V | 5.055V | 120.604 | 40.37°C | 114.87V | ||||
| CL3 | 0.113A | 0A | 19.874A | 0A | 67.391 | 78.723% | 0 | <6.0 | 50.95°C | 0.948 |
| 12.218V | 5.072V | 3.321V | 5.055V | 85.606 | 40.69°C | 114.88V | ||||
| CL4 | 61.623A | 0A | 0A | 0A | 749.496 | 89.763% | 1237 | 31.7 | 45°C | 0.993 |
| 12.163V | 5.069V | 3.328V | 5.019V | 834.975 | 48.22°C | 114.66V |

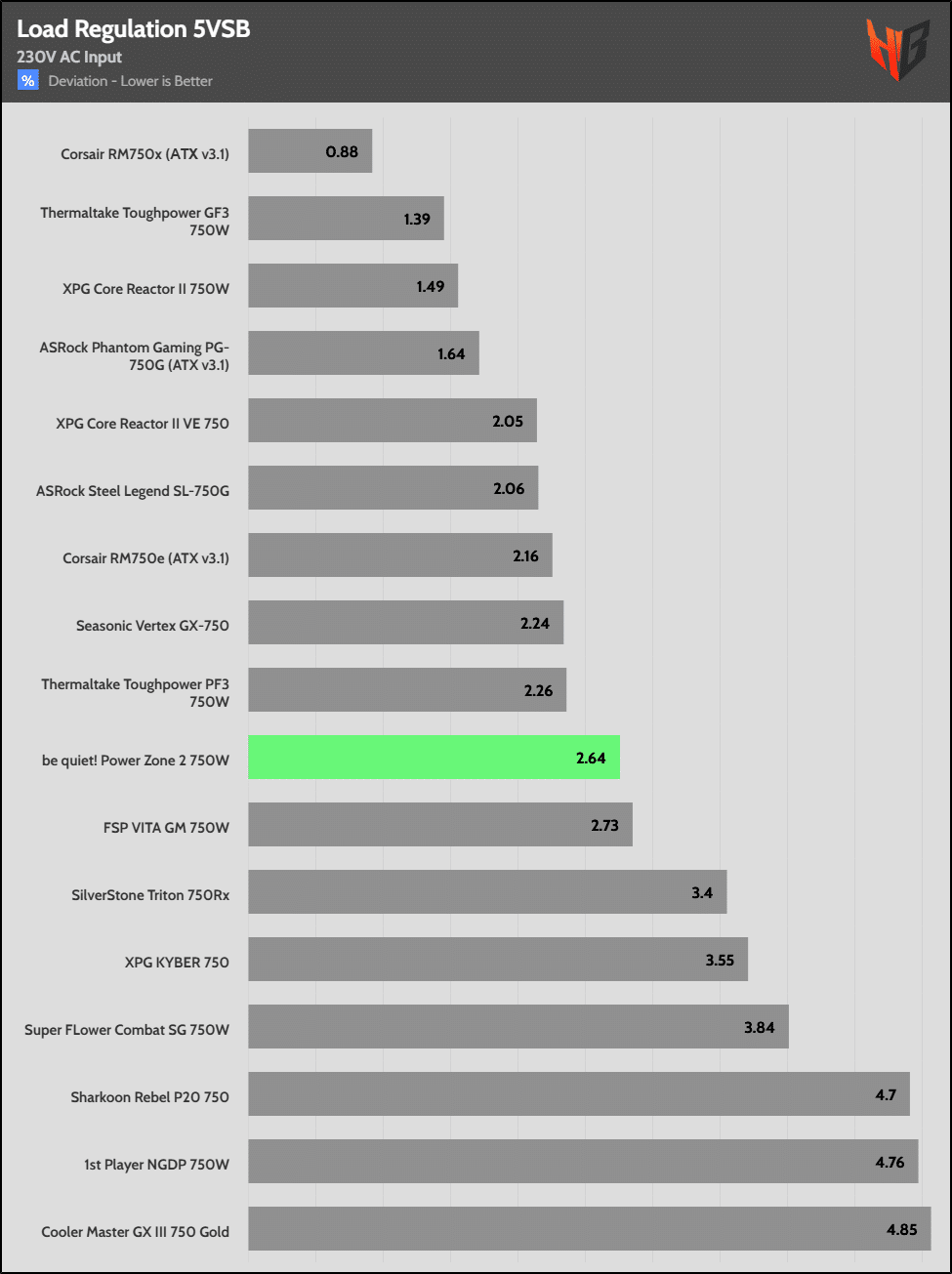

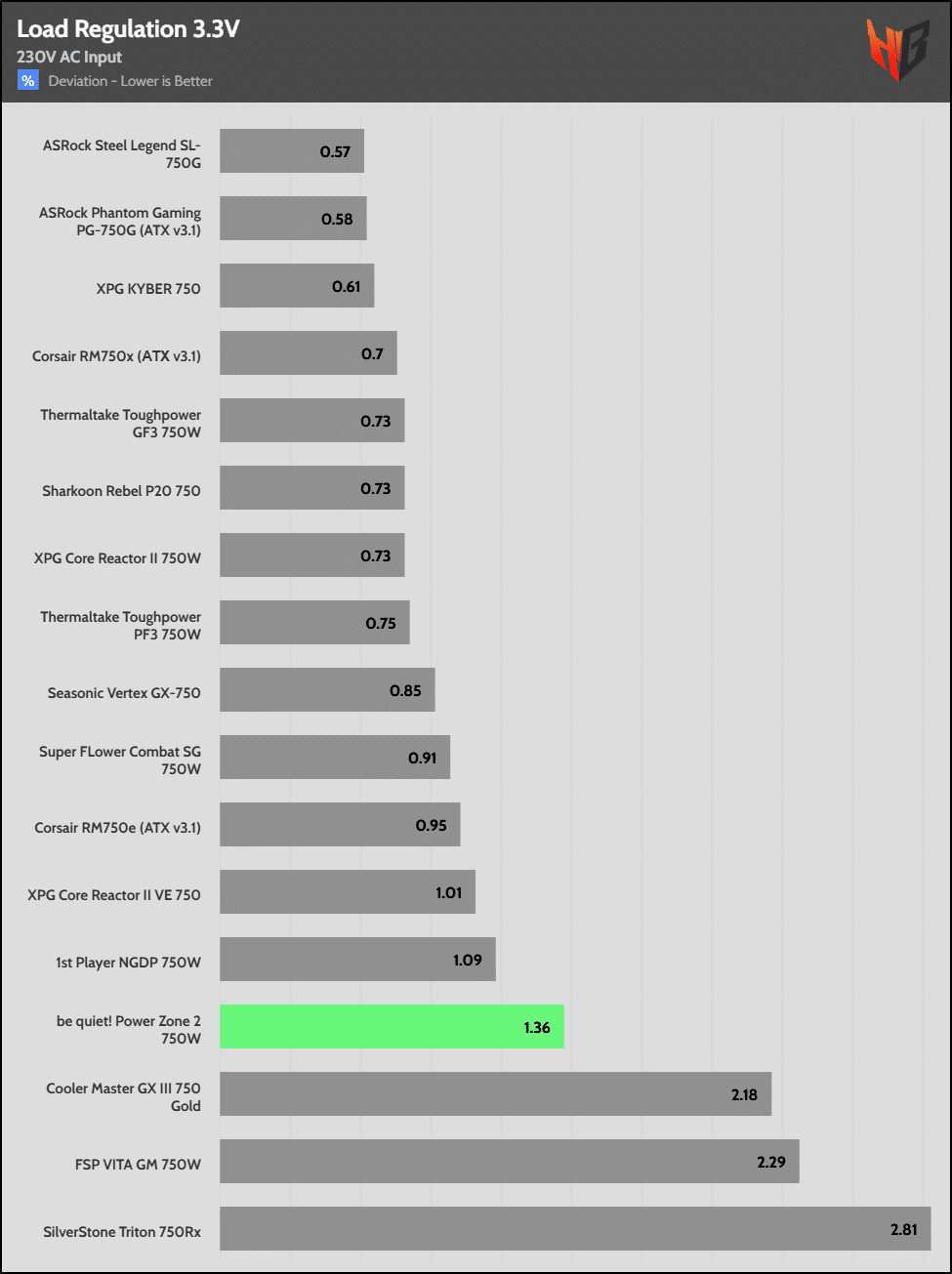

Load regulation is within 1% at 12V and 5V, but loose at 3.3V.

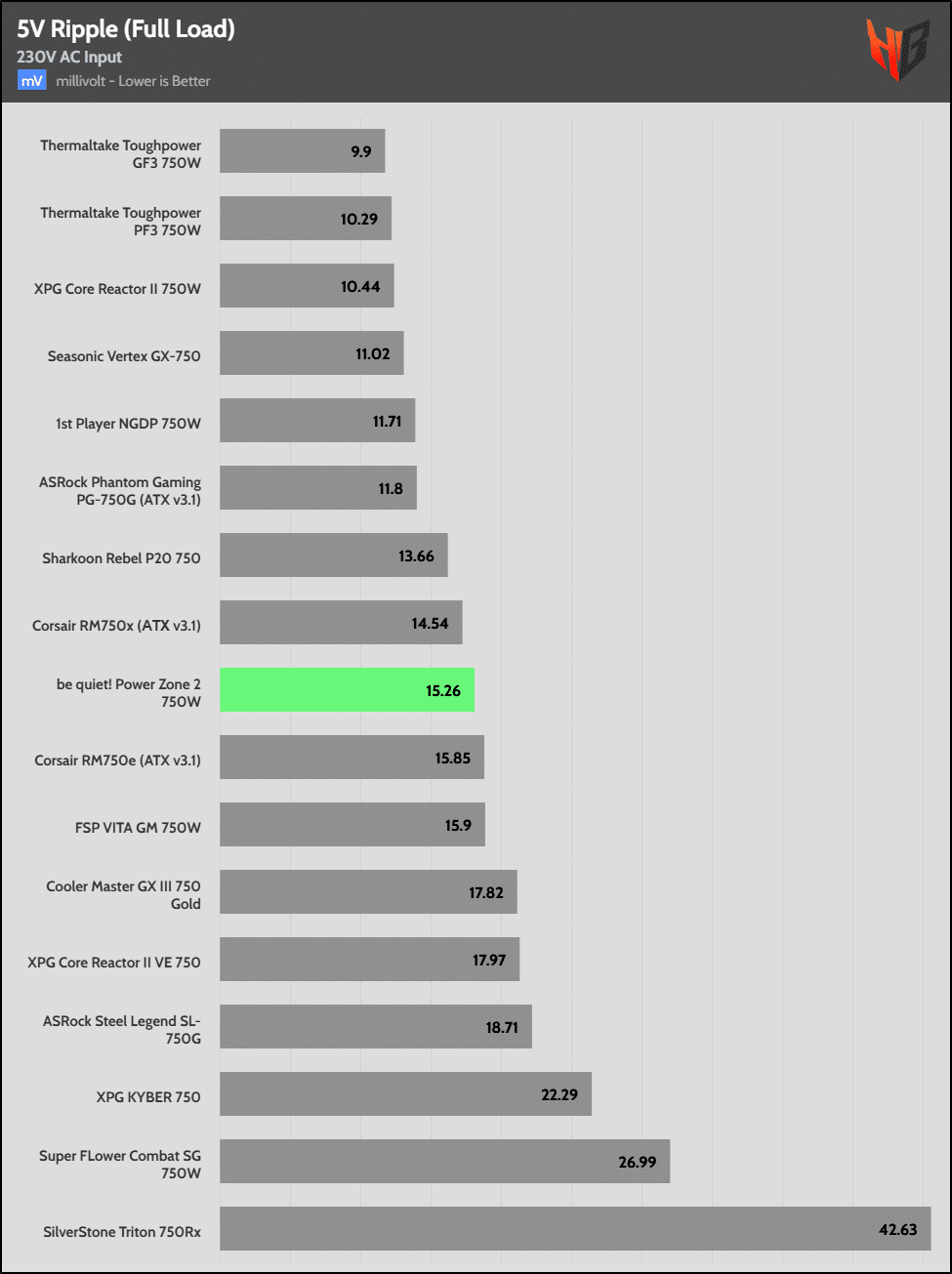

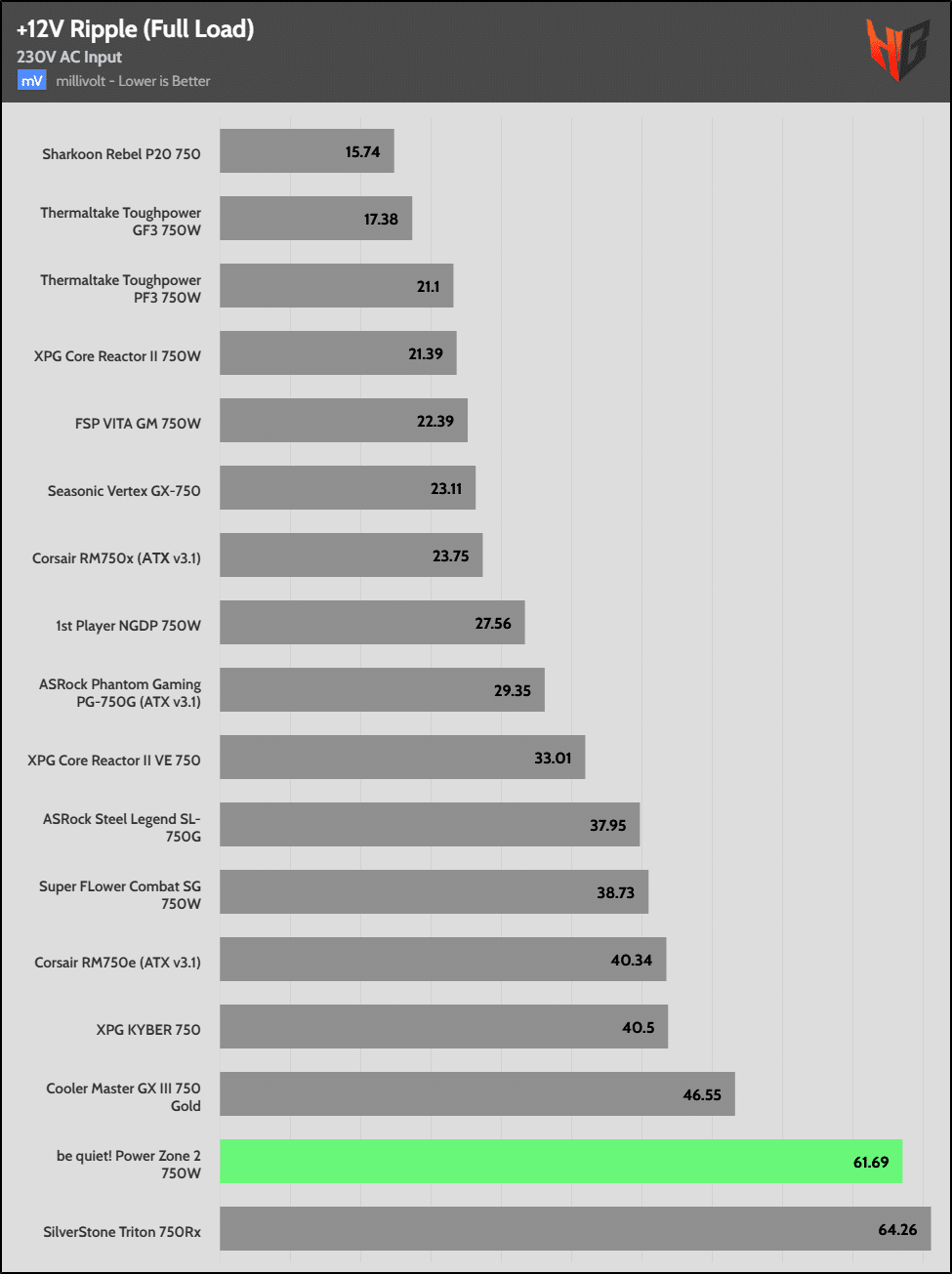

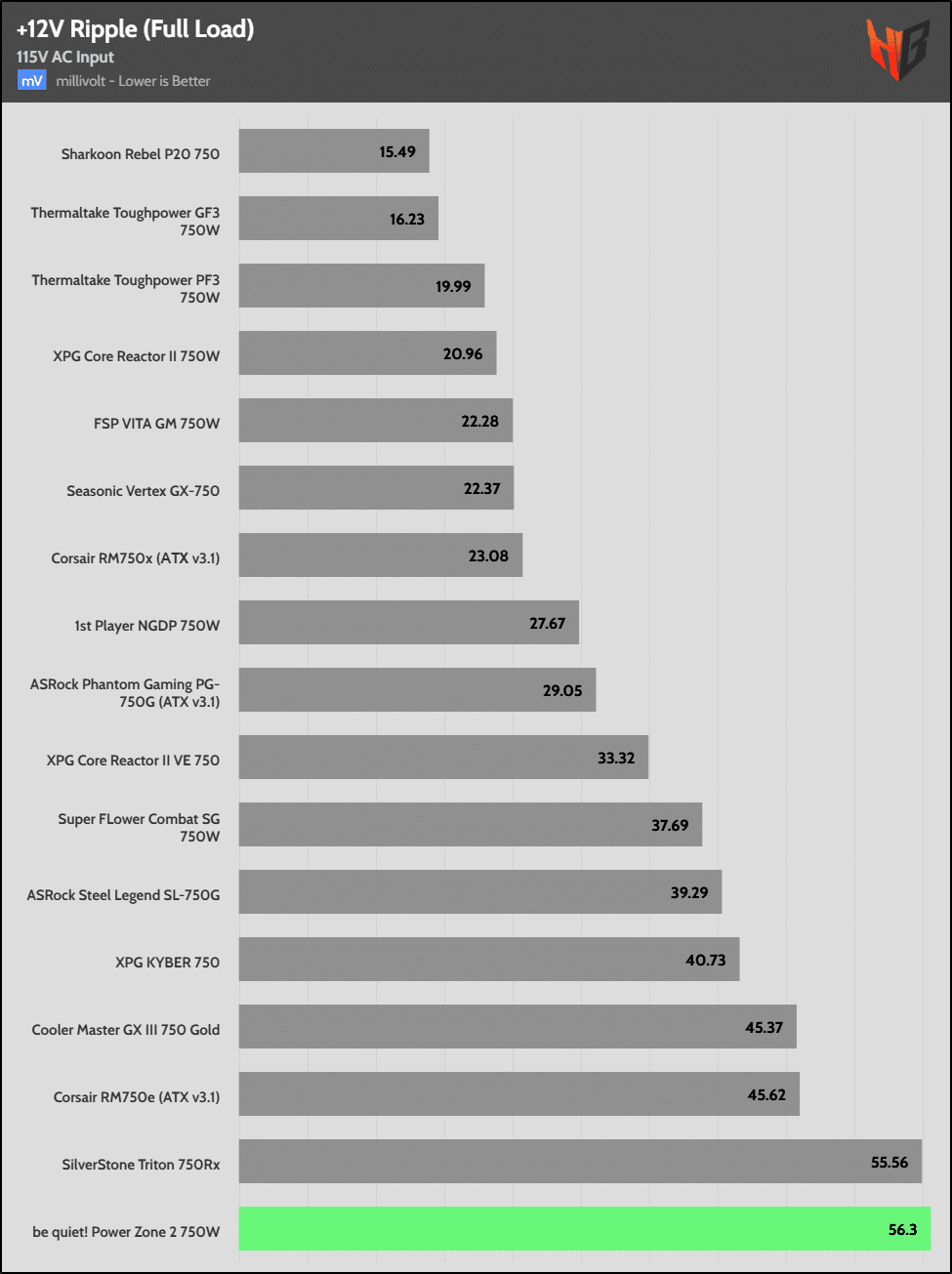

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 21.4 mV | 13.9 mV | 13.0 mV | 12.1 mV | Pass |
| 20% Load | 28.7 mV | 13.4 mV | 13.1 mV | 12.2 mV | Pass |
| 30% Load | 27.5 mV | 13.2 mV | 13.9 mV | 11.8 mV | Pass |
| 40% Load | 27.8 mV | 13.5 mV | 13.2 mV | 12.2 mV | Pass |
| 50% Load | 30.8 mV | 13.7 mV | 13.6 mV | 12.4 mV | Pass |
| 60% Load | 31.9 mV | 14.2 mV | 14.0 mV | 13.3 mV | Pass |
| 70% Load | 33.9 mV | 14.8 mV | 14.3 mV | 13.5 mV | Pass |
| 80% Load | 35.8 mV | 14.1 mV | 14.3 mV | 13.4 mV | Pass |
| 90% Load | 37.6 mV | 14.6 mV | 14.7 mV | 13.4 mV | Pass |
| 100% Load | 56.3 mV | 16.0 mV | 16.6 mV | 14.8 mV | Pass |
| 110% Load | 65.7 mV | 17.0 mV | 17.6 mV | 15.6 mV | Pass |
| Crossload 1 | 40.4 mV | 15.7 mV | 18.5 mV | 14.0 mV | Pass |
| Crossload 2 | 26.6 mV | 17.9 mV | 15.7 mV | 13.2 mV | Pass |
| Crossload 3 | 23.5 mV | 14.4 mV | 20.5 mV | 13.3 mV | Pass |
| Crossload 4 | 57.9 mV | 14.5 mV | 14.6 mV | 13.1 mV | Pass |

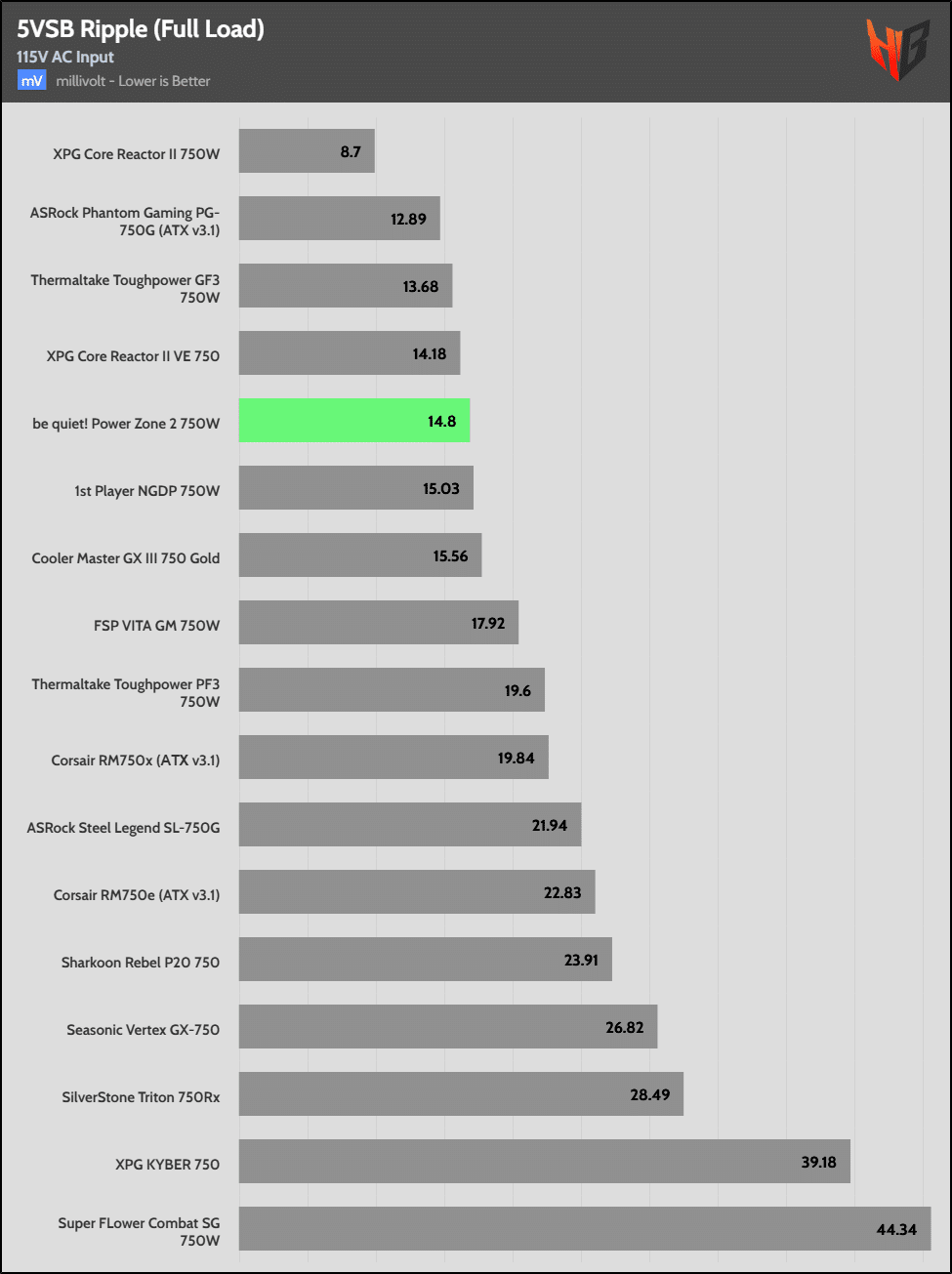

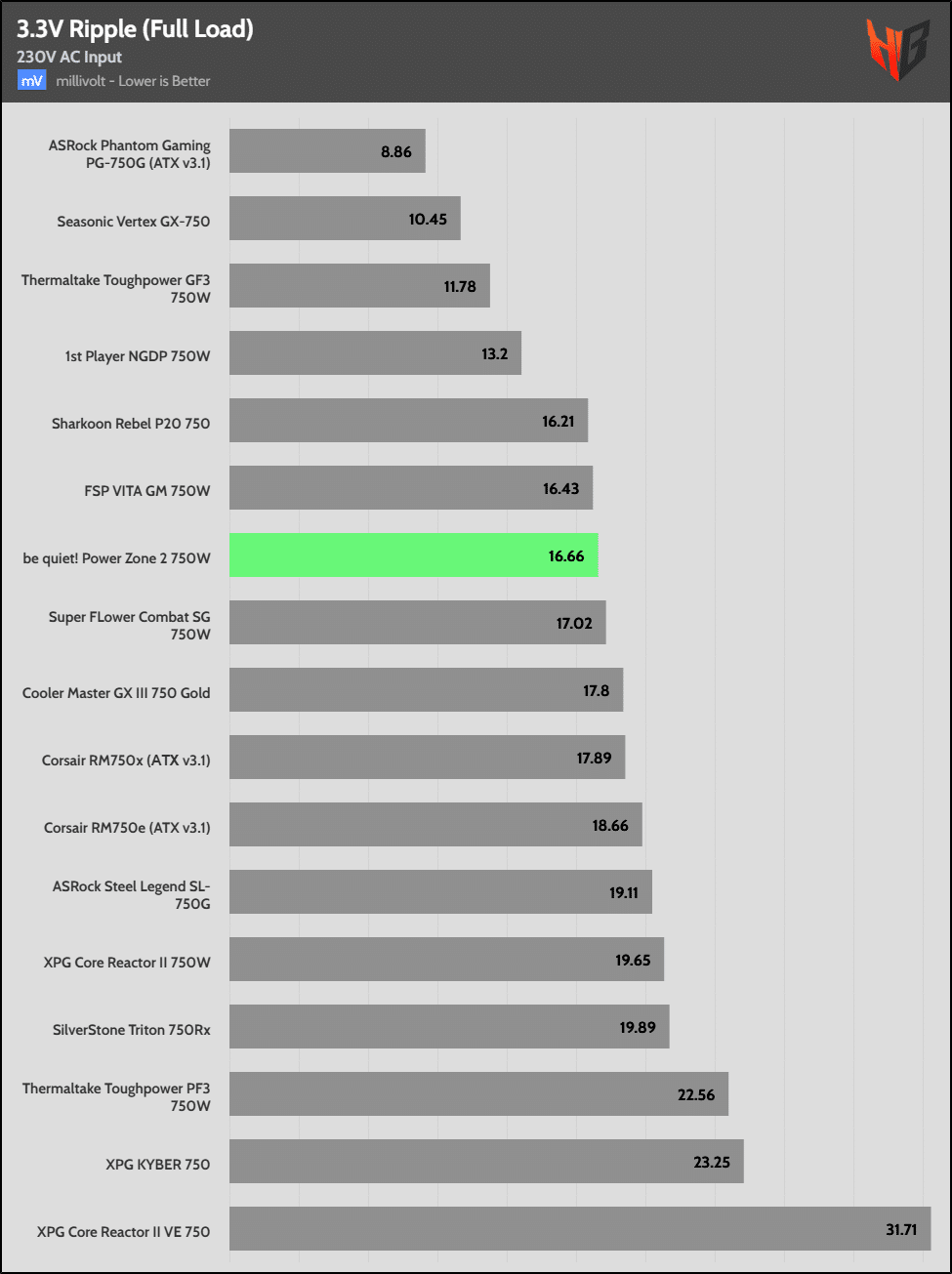

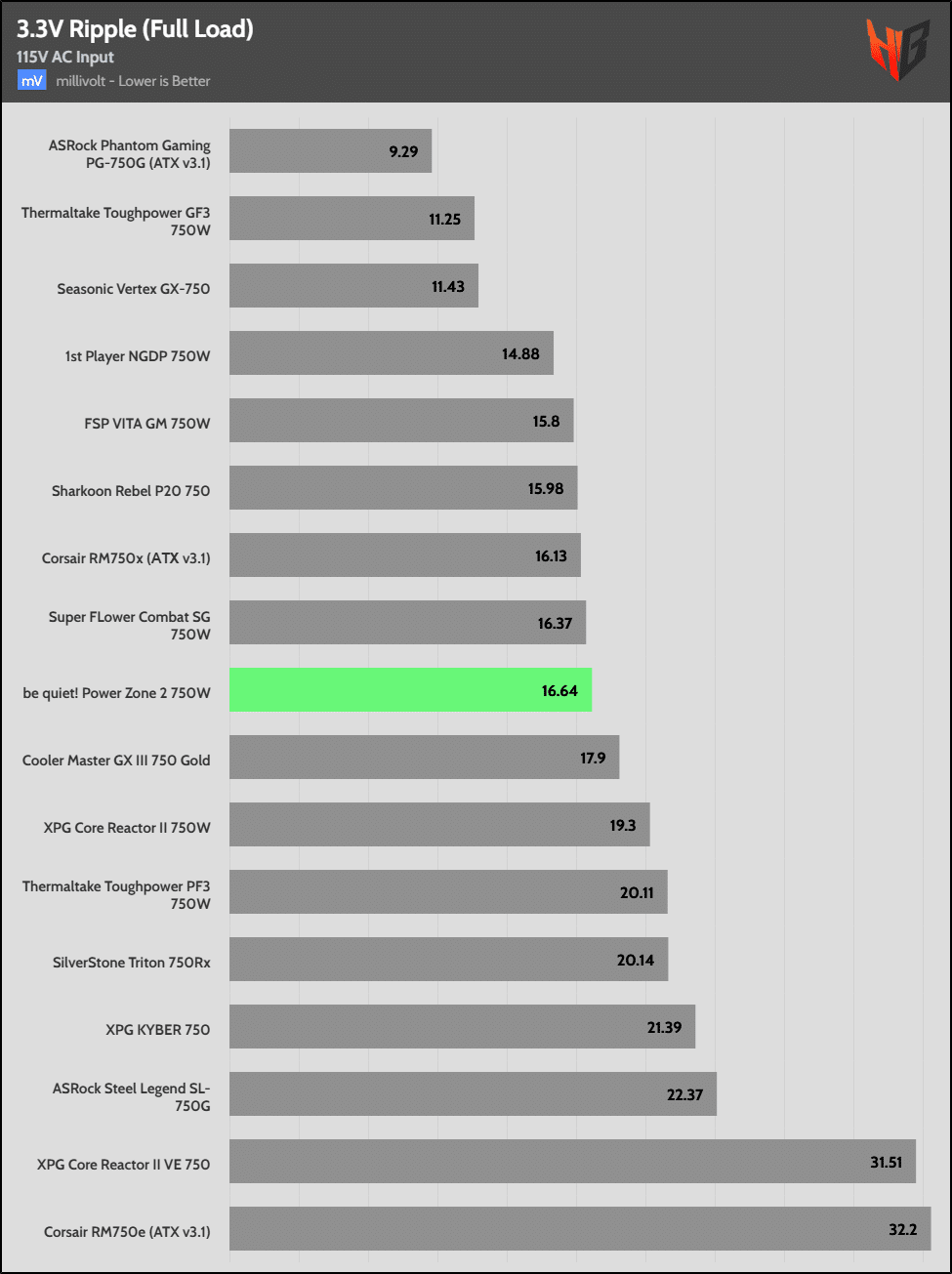

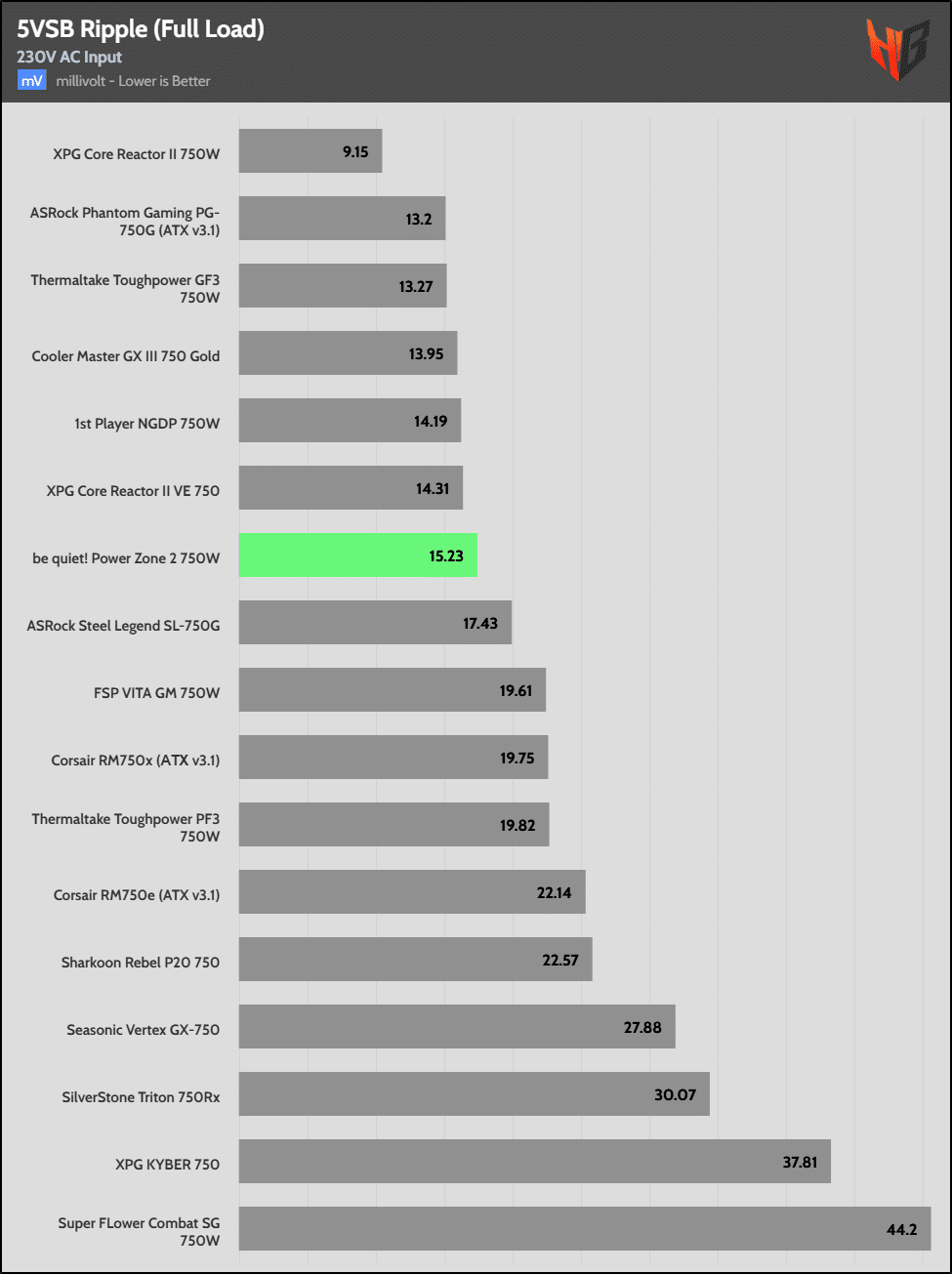

Ripple suppression is increased at 100% and 110% load levels at 12V. This was the case in the 850W and 1000W units, too. On the other hand, ripple suppression is good on the minor rails.
