Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 8.170A | 1.947A | 1.995A | 0.974A | 119.981 | 86.552% | 0 | <6.0 | 47.92°C | 0.966 |
| 12.041V | 5.136V | 3.309V | 5.135V | 138.624 | 40.19°C | 114.81V | ||||
| 20% | 17.368A | 2.921A | 2.993A | 1.17A | 239.933 | 91.871% | 0 | <6.0 | 48.78°C | 0.973 |
| 12.036V | 5.135V | 3.307V | 5.127V | 261.163 | 40.89°C | 114.77V | ||||
| 30% | 26.853A | 3.408A | 3.493A | 1.368A | 359.092 | 92.52% | 0 | <6.0 | 49.25°C | 0.982 |
| 12.030V | 5.135V | 3.307V | 5.119V | 388.126 | 41.33°C | 114.73V | ||||
| 40% | 36.450A | 3.896A | 3.994A | 1.566A | 479.465 | 92.42% | 514 | <6.0 | 41.75°C | 0.988 |
| 12.023V | 5.133V | 3.305V | 5.111V | 518.791 | 49.05°C | 114.68V | ||||
| 50% | 45.661A | 4.871A | 4.995A | 1.764A | 599.25 | 92.036% | 710 | 12.9 | 24.29°C | 0.991 |
| 12.018V | 5.132V | 3.303V | 5.102V | 651.104 | 50.71°C | 114.65V | ||||
| 60% | 54.940A | 5.847A | 5.997A | 1.964A | 719.804 | 91.404% | 959 | 23.3 | 42.51°C | 0.993 |
| 12.013V | 5.131V | 3.302V | 5.093V | 787.498 | 49.55°C | 114.59V | ||||
| 70% | 64.161A | 6.823A | 7.001A | 2.163A | 839.556 | 90.722% | 1130 | 28.5 | 43.05°C | 0.994 |
| 12.008V | 5.13V | 3.3V | 5.085V | 925.41 | 51.07°C | 114.56V | ||||
| 80% | 73.453A | 7.798A | 8.003A | 2.265A | 959.55 | 89.931% | 1249 | 31.8 | 43.86°C | 0.995 |
| 12.003V | 5.13V | 3.299V | 5.078V | 1066.986 | 52.88°C | 114.51V | ||||
| 90% | 83.089A | 8.289A | 8.493A | 2.367A | 1079.425 | 89.044% | 1609 | 39 | 44.82°C | 0.996 |
| 11.998V | 5.128V | 3.297V | 5.072V | 1212.238 | 55.44°C | 114.46V | ||||
| 100% | 92.520A | 8.777A | 9.011A | 2.967A | 1199.454 | 88.095% | 1885 | 44.2 | 45.73°C | 0.996 |
| 11.995V | 5.127V | 3.296V | 5.057V | 1361.547 | 56.03°C | 114.41V | ||||
| 110% | 101.907A | 9.754A | 10.108A | 2.97A | 1320.047 | 87.128% | 2278 | 48.6 | 46.58°C | 0.996 |
| 11.989V | 5.127V | 3.294V | 5.052V | 1515.06 | 55.83°C | 114.36V | ||||
| CL1 | 0.117A | 17.578A | 18.085A | 0A | 151.315 | 83.669% | 1035 | 25.9 | 42.75°C | 0.969 |
| 12.030V | 5.138V | 3.295V | 5.145V | 180.851 | 52.88°C | 114.79V | ||||
| CL2 | 0.117A | 19.402A | 0A | 0A | 101.385 | 81.329% | 713 | 13 | 42.58°C | 0.963 |
| 12.036V | 5.153V | 3.3V | 5.151V | 124.66 | 50.9°C | 114.82V | ||||
| CL3 | 0.116A | 0A | 19.957A | 0A | 67.391 | 73.268% | 688 | 11.7 | 41.29°C | 0.95 |
| 12.035V | 5.124V | 3.307V | 5.15V | 91.979 | 49.01°C | 114.82V | ||||
| CL4 | 99.985A | 0A | 0A | 0A | 1199.993 | 88.743% | 1704 | 40.8 | 46.09°C | 0.996 |
| 12.001V | 5.129V | 3.305V | 5.107V | 1352.228 | 54.59°C | 114.43V |

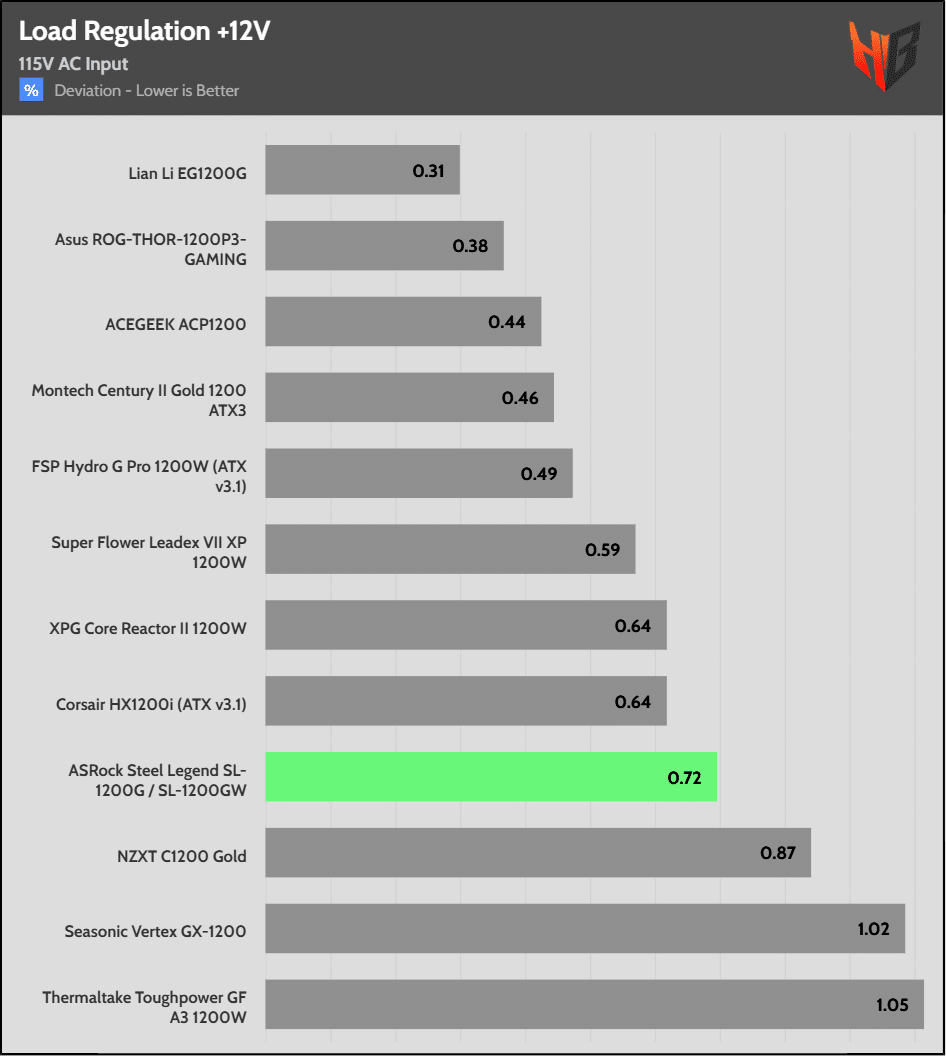

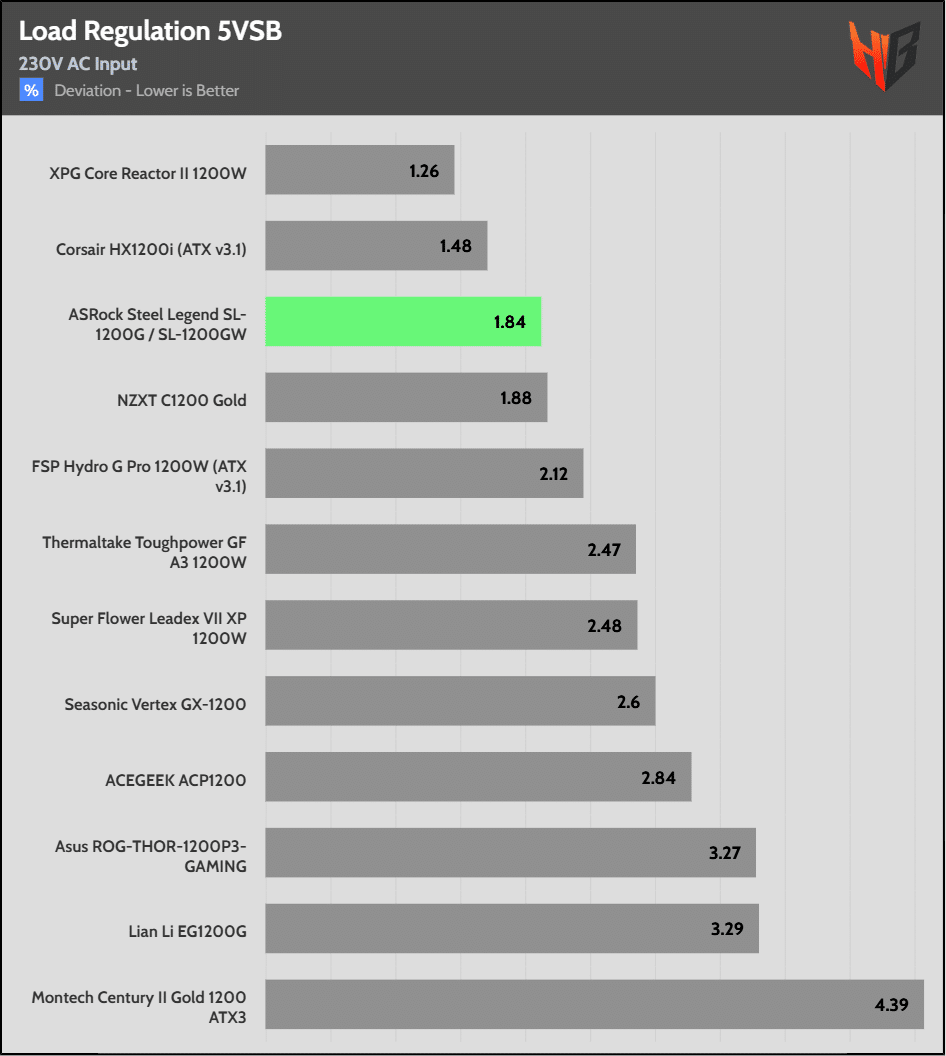

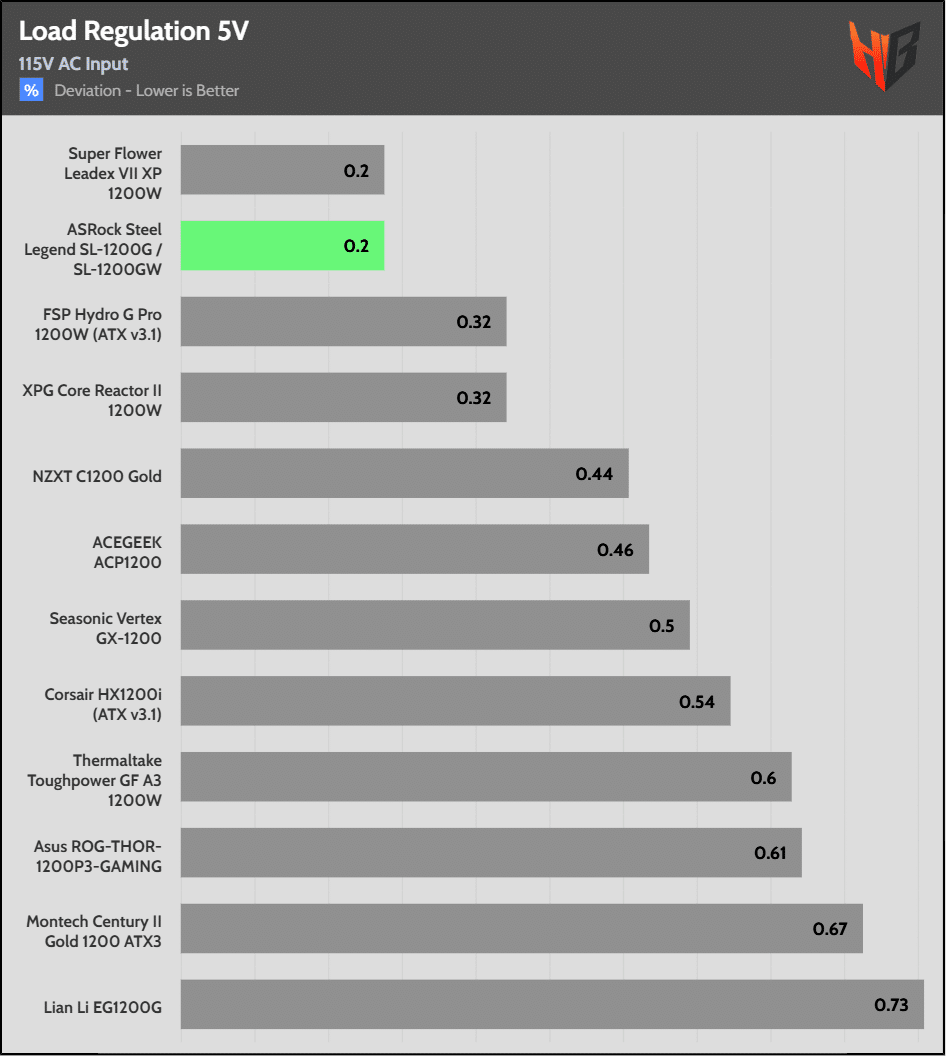

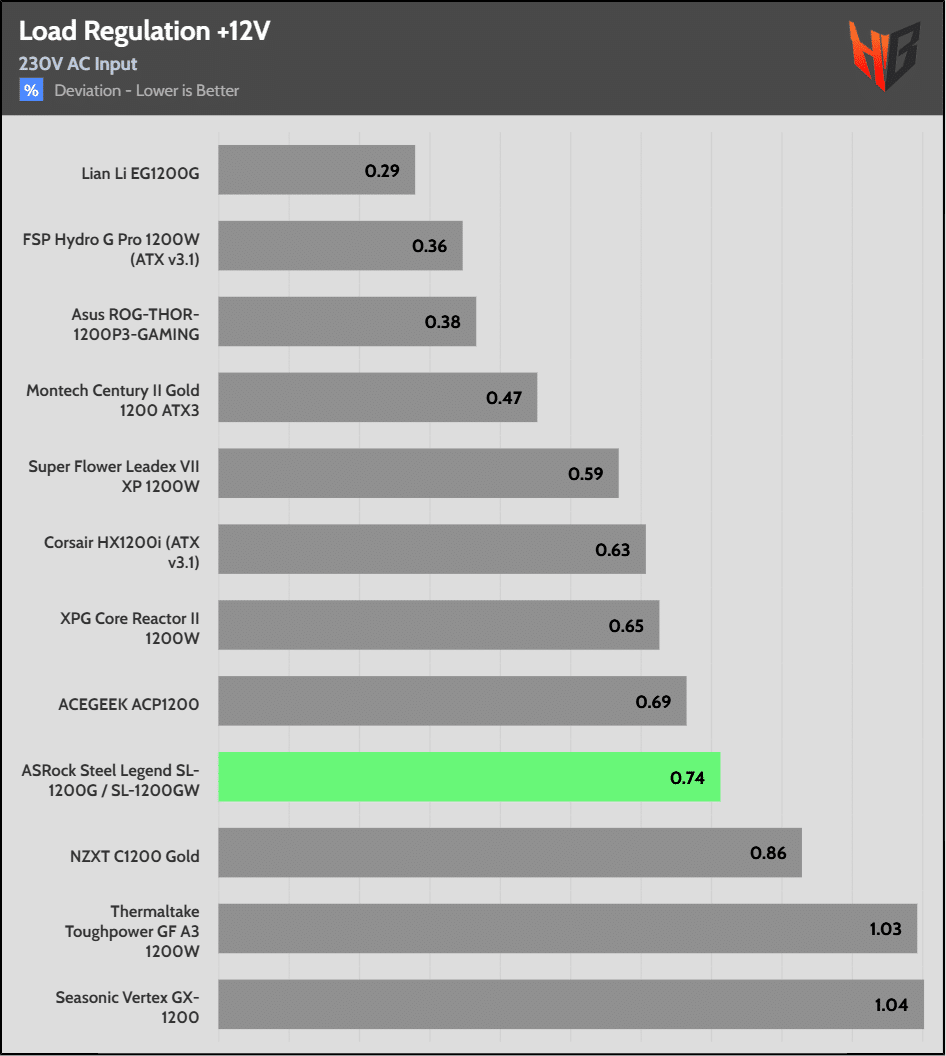

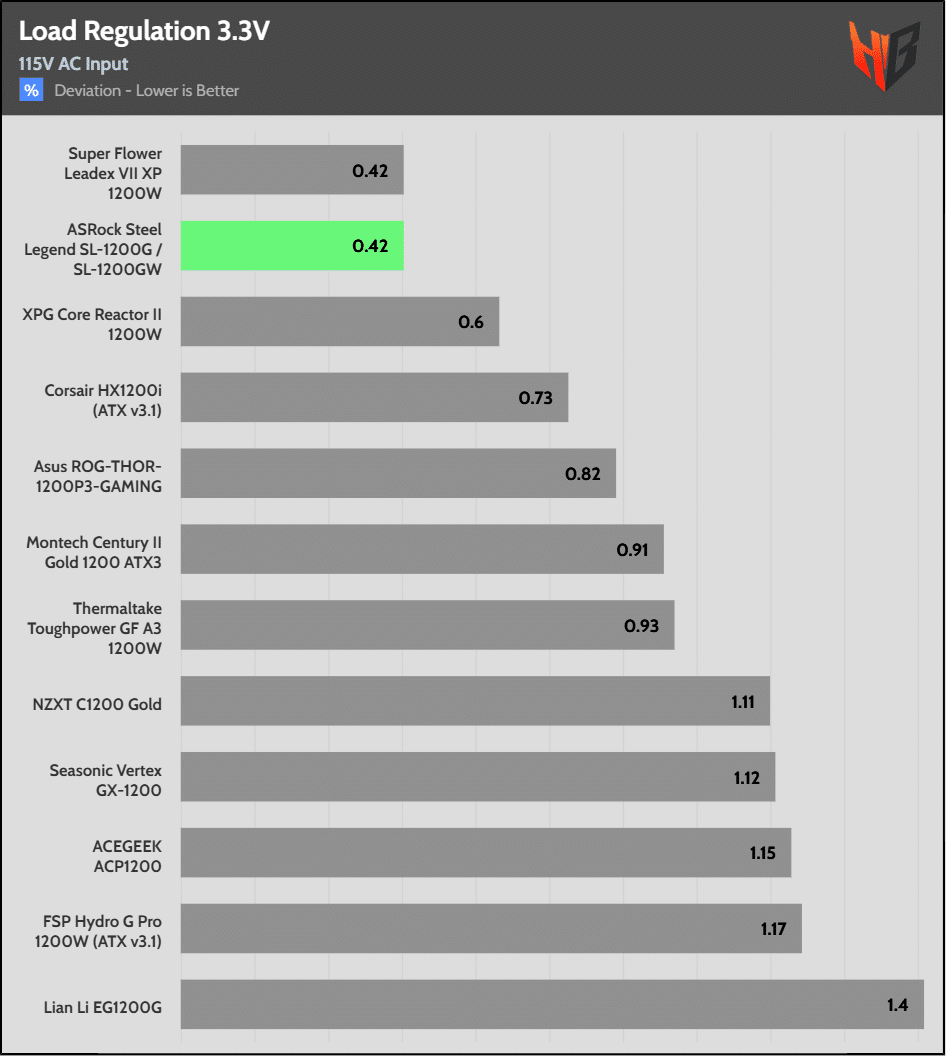

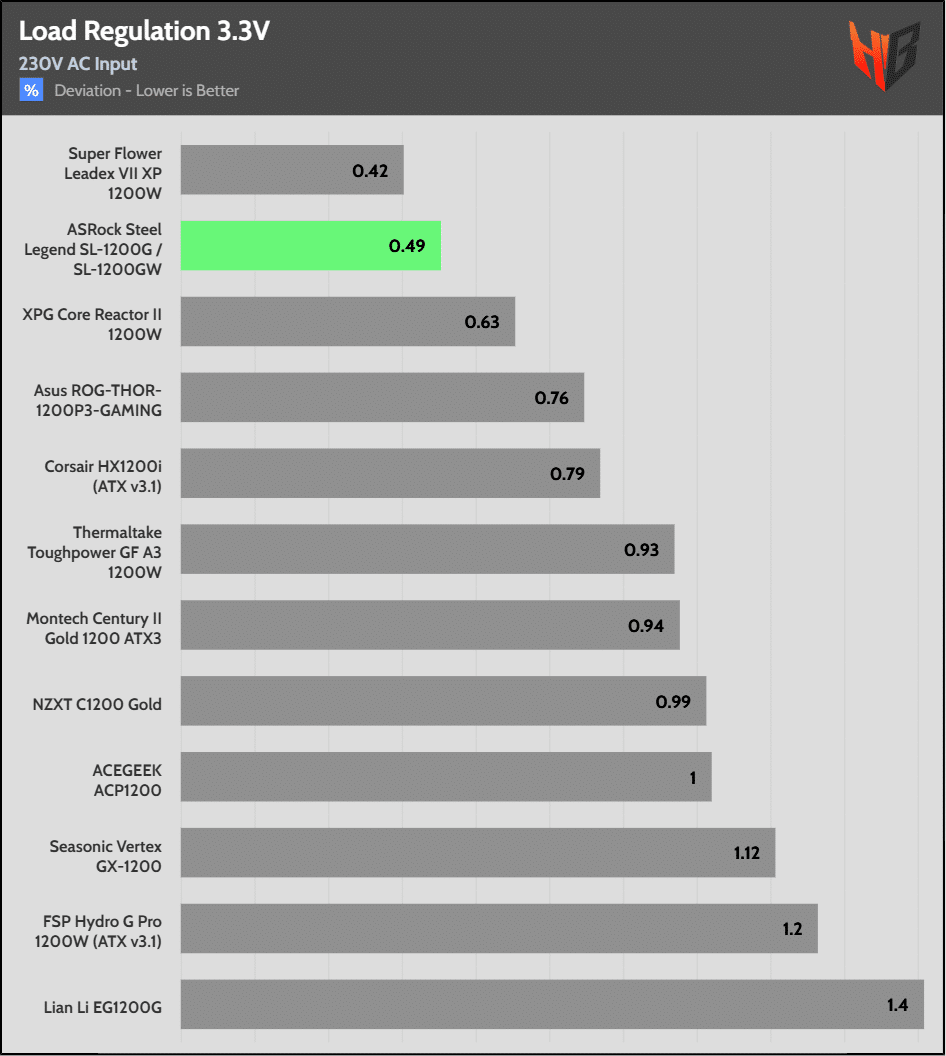

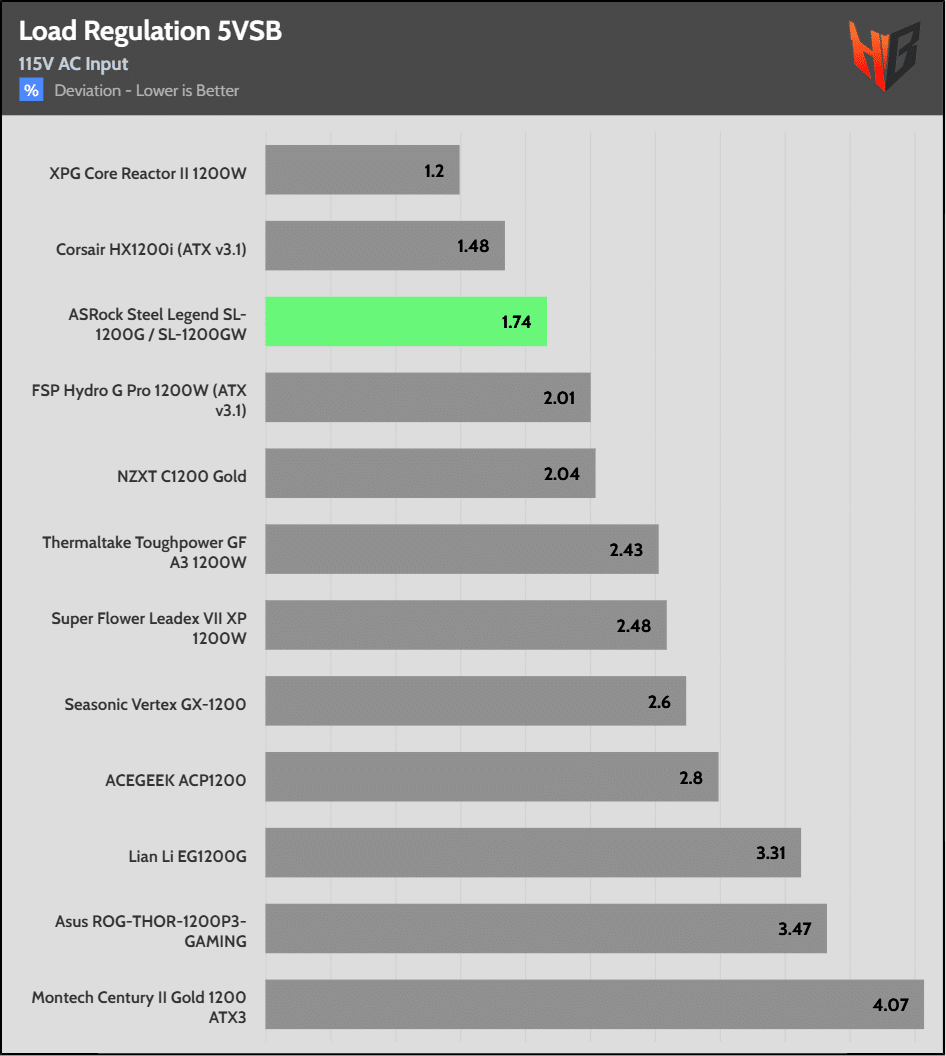

Load regulation is tight enough at 12V and extra-tight on the minor rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.242A | 0.487A | 0.498A | 0.194A | 19.995 | 76.62% | 0 | <6.0 | 41.59°C | 0.794 |
| 11.955V | 5.137V | 3.31V | 5.145V | 26.09 | 36.09°C | 114.86V | ||||
| 40W | 2.730A | 0.681A | 0.698A | 0.292A | 39.996 | 82.144% | 0 | <6.0 | 44.2°C | 0.896 |
| 11.972V | 5.137V | 3.31V | 5.144V | 48.693 | 37.59°C | 114.84V | ||||
| 60W | 4.214A | 0.876A | 0.897A | 0.389A | 59.996 | 85.112% | 0 | <6.0 | 42.37°C | 0.929 |
| 11.990V | 5.137V | 3.31V | 5.143V | 70.492 | 38.1°C | 114.84V | ||||
| 80W | 5.672A | 1.07A | 1.096A | 0.486A | 79.933 | 80.713% | 0 | <6.0 | 46.03°C | 0.951 |
| 12.041V | 5.137V | 3.31V | 5.144V | 99.035 | 39.46°C | 114.83V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads. As you can see, the fan doesn’t operate in the loads I applied, despite the high operating temperatures.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 26.7 mV | 18.7 mV | 19.1 mV | 10.6 mV | Pass |
| 20% Load | 32.1 mV | 18.1 mV | 18.6 mV | 10.6 mV | Pass |
| 30% Load | 29.2 mV | 20.4 mV | 21.3 mV | 11.7 mV | Pass |
| 40% Load | 27.4 mV | 19.1 mV | 19.3 mV | 10.8 mV | Pass |
| 50% Load | 38.2 mV | 25.5 mV | 39.5 mV | 15.5 mV | Pass |
| 60% Load | 29.1 mV | 22.4 mV | 34.1 mV | 11.1 mV | Pass |
| 70% Load | 29.4 mV | 17.8 mV | 20.6 mV | 11.9 mV | Pass |
| 80% Load | 30.9 mV | 19.7 mV | 21.7 mV | 12.2 mV | Pass |
| 90% Load | 30.8 mV | 18.6 mV | 23.4 mV | 12.1 mV | Pass |
| 100% Load | 32.7 mV | 23.1 mV | 26.4 mV | 12.2 mV | Pass |
| 110% Load | 34.1 mV | 23.6 mV | 28.0 mV | 13.1 mV | Pass |
| Crossload 1 | 24.1 mV | 17.3 mV | 18.9 mV | 9.9 mV | Pass |
| Crossload 2 | 25.8 mV | 19.2 mV | 25.7 mV | 10.4 mV | Pass |
| Crossload 3 | 30.3 mV | 17.5 mV | 19.9 mV | 10.5 mV | Pass |
| Crossload 4 | 32.1 mV | 18.3 mV | 20.8 mV | 11.8 mV | Pass |

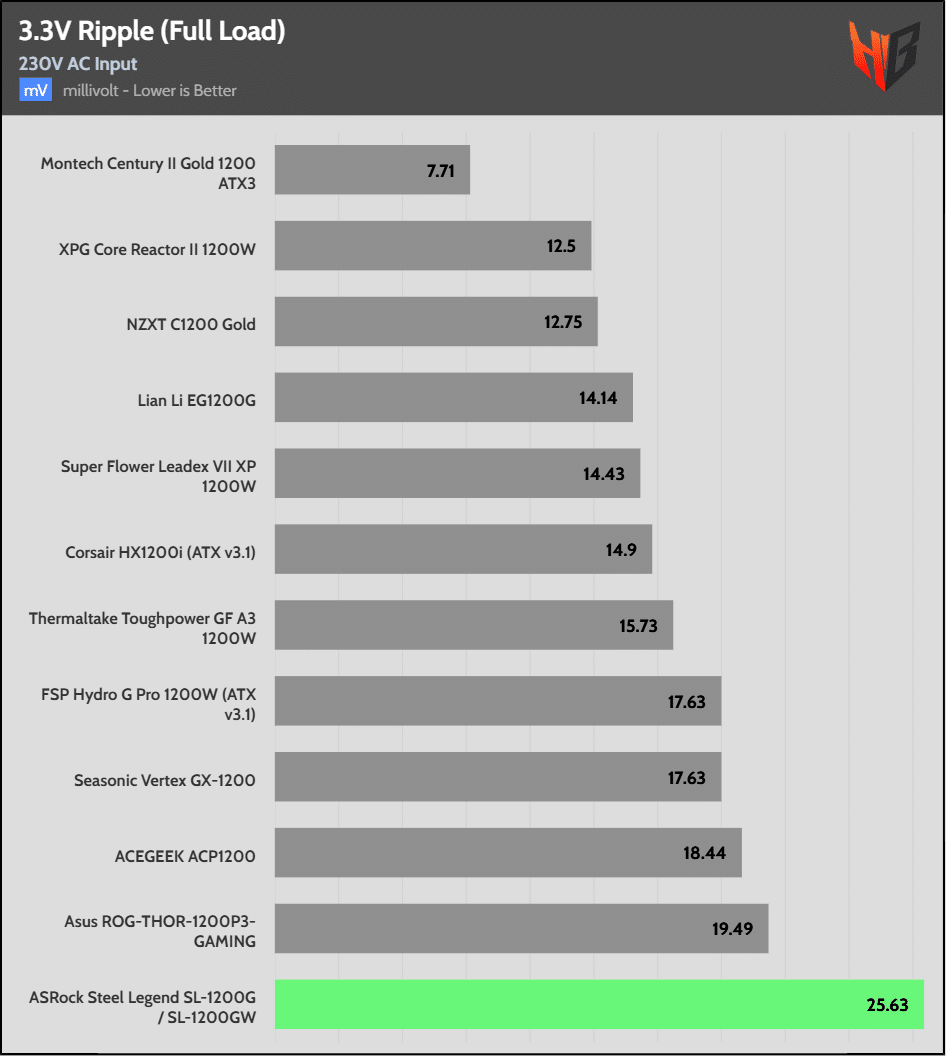

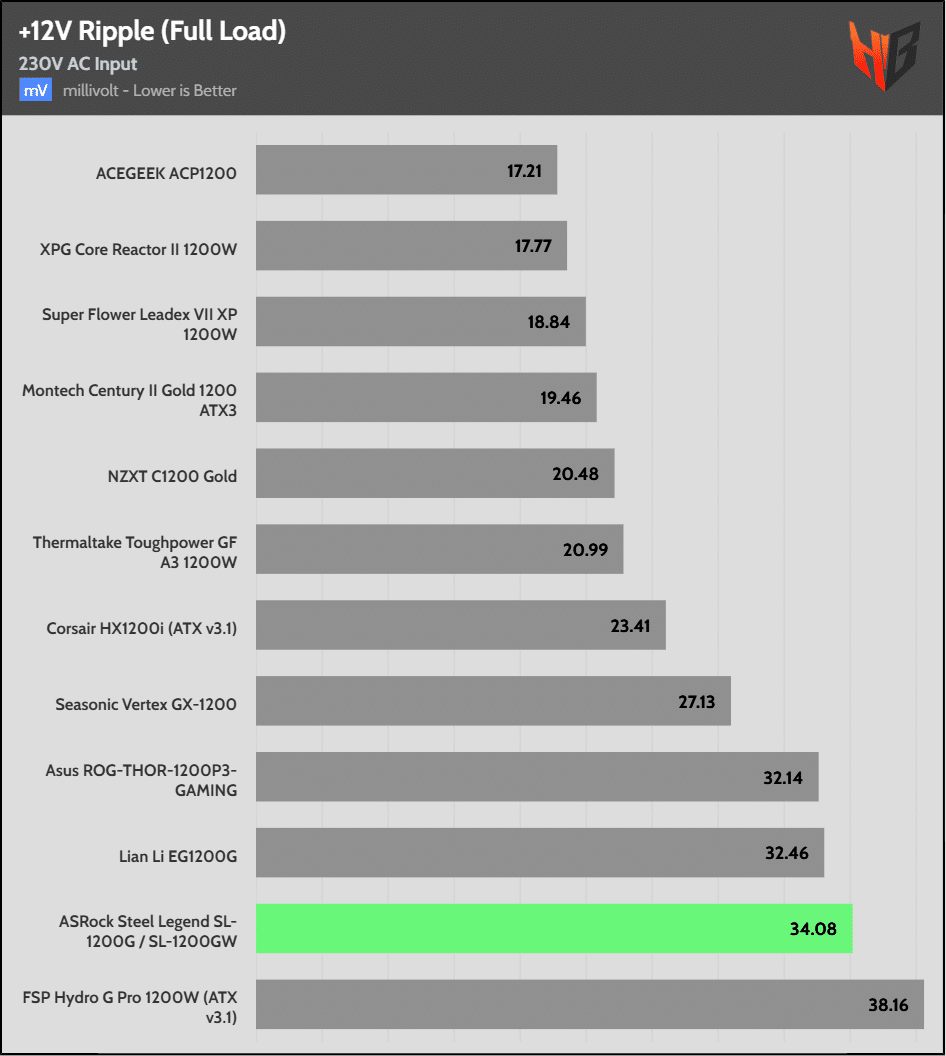

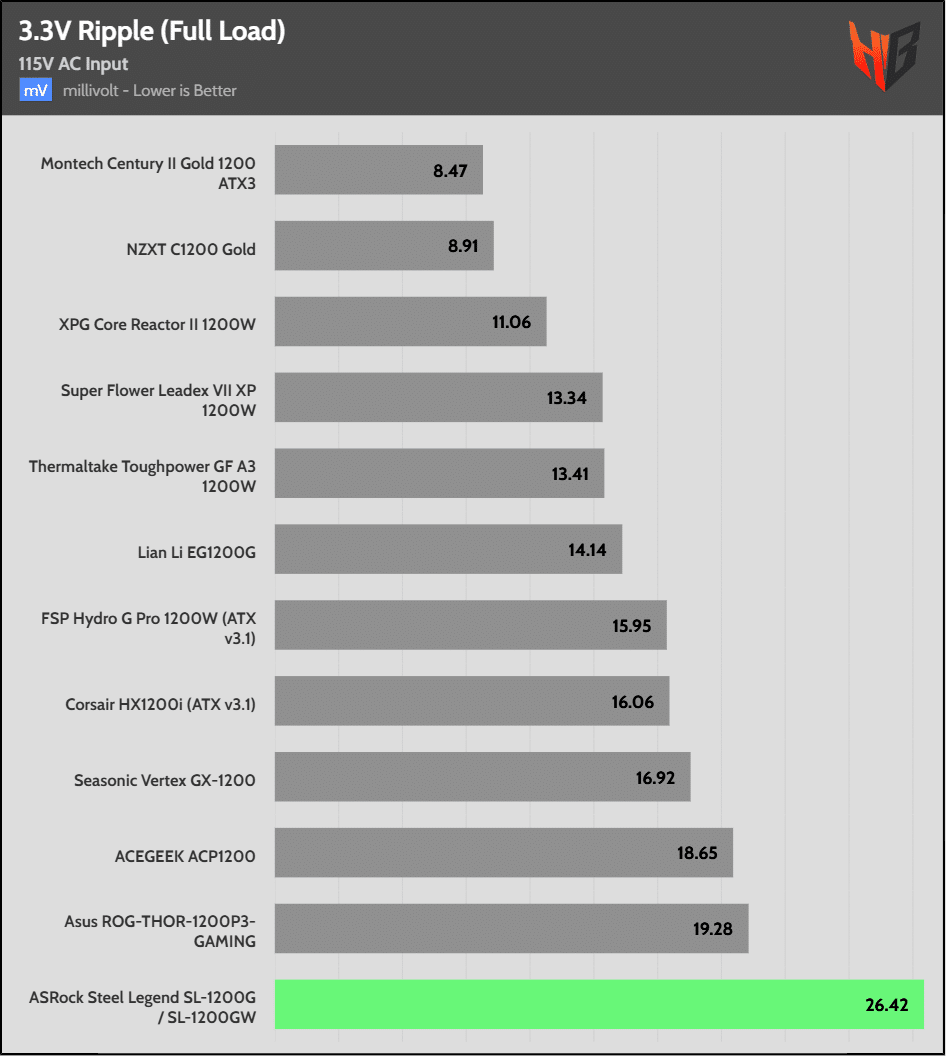

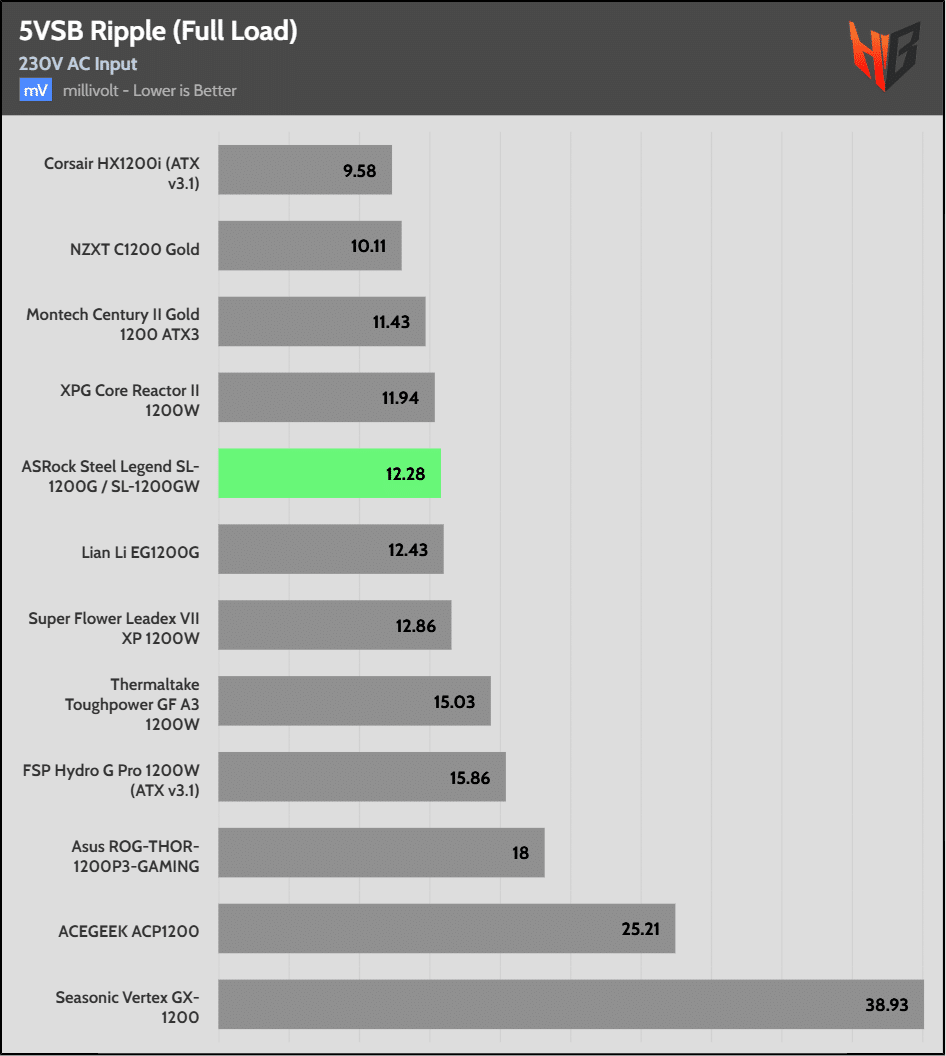

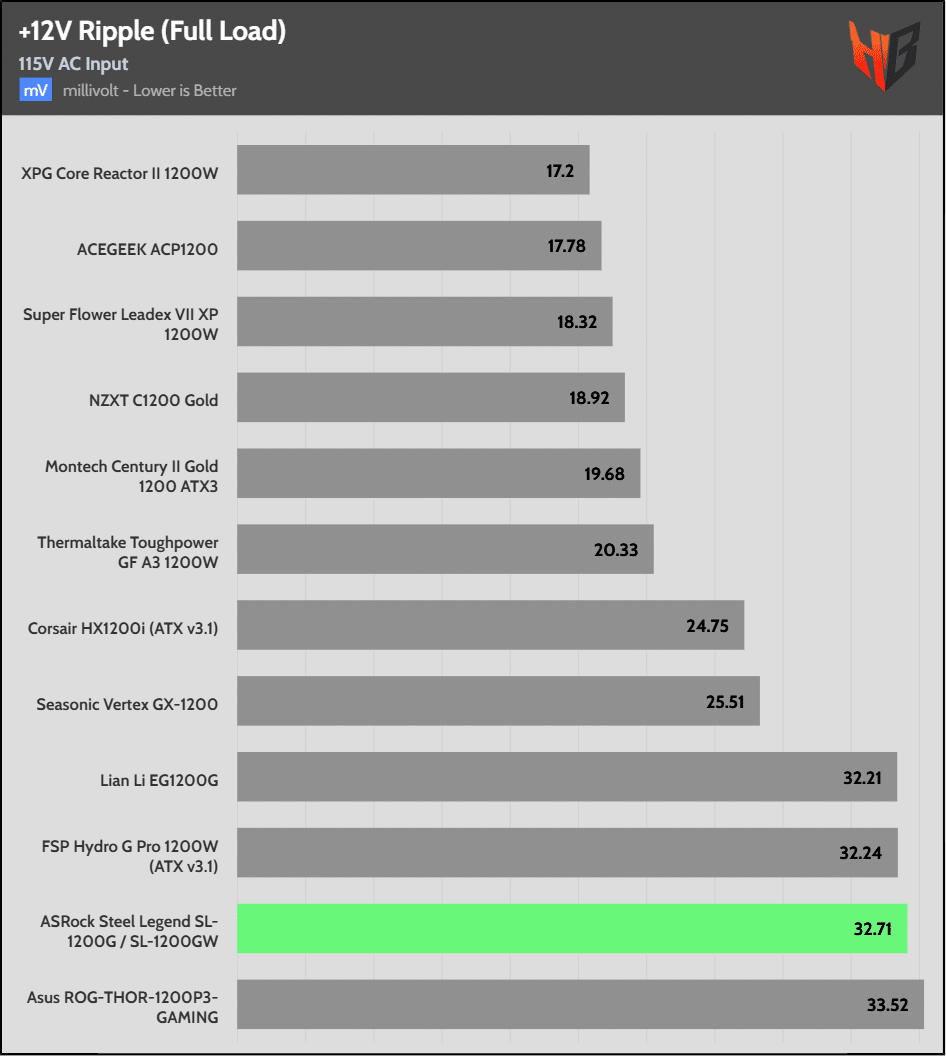

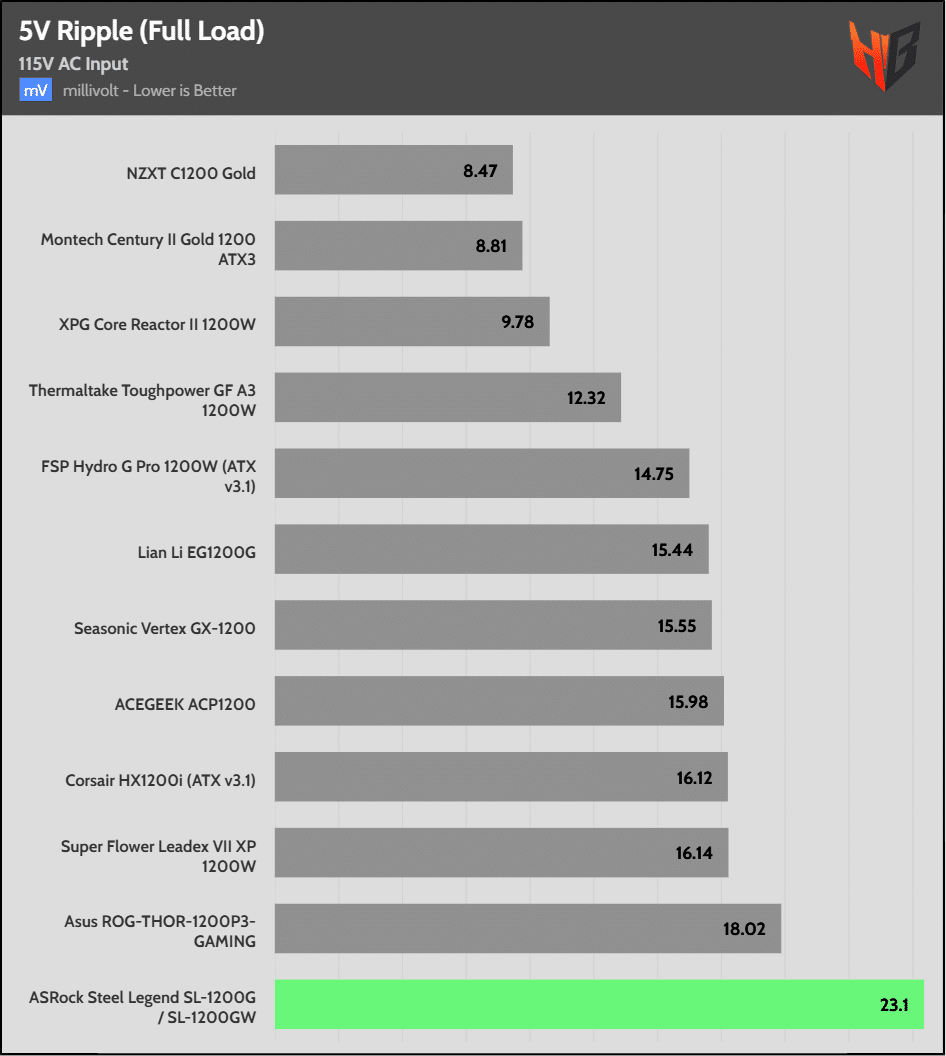

Ripple suppression is good enough at 12V but not that good on the minor rails.
