Box & Bundle

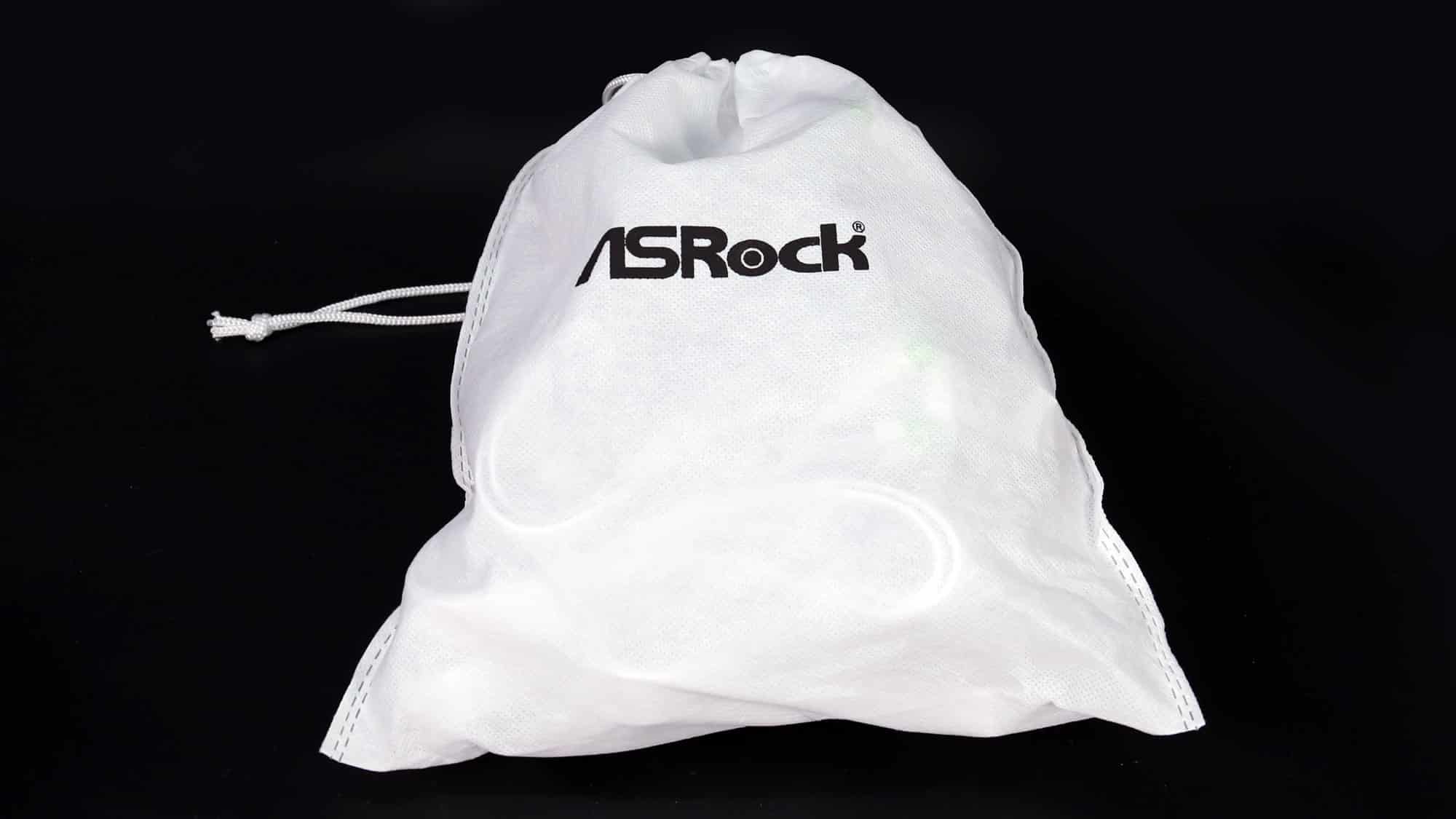

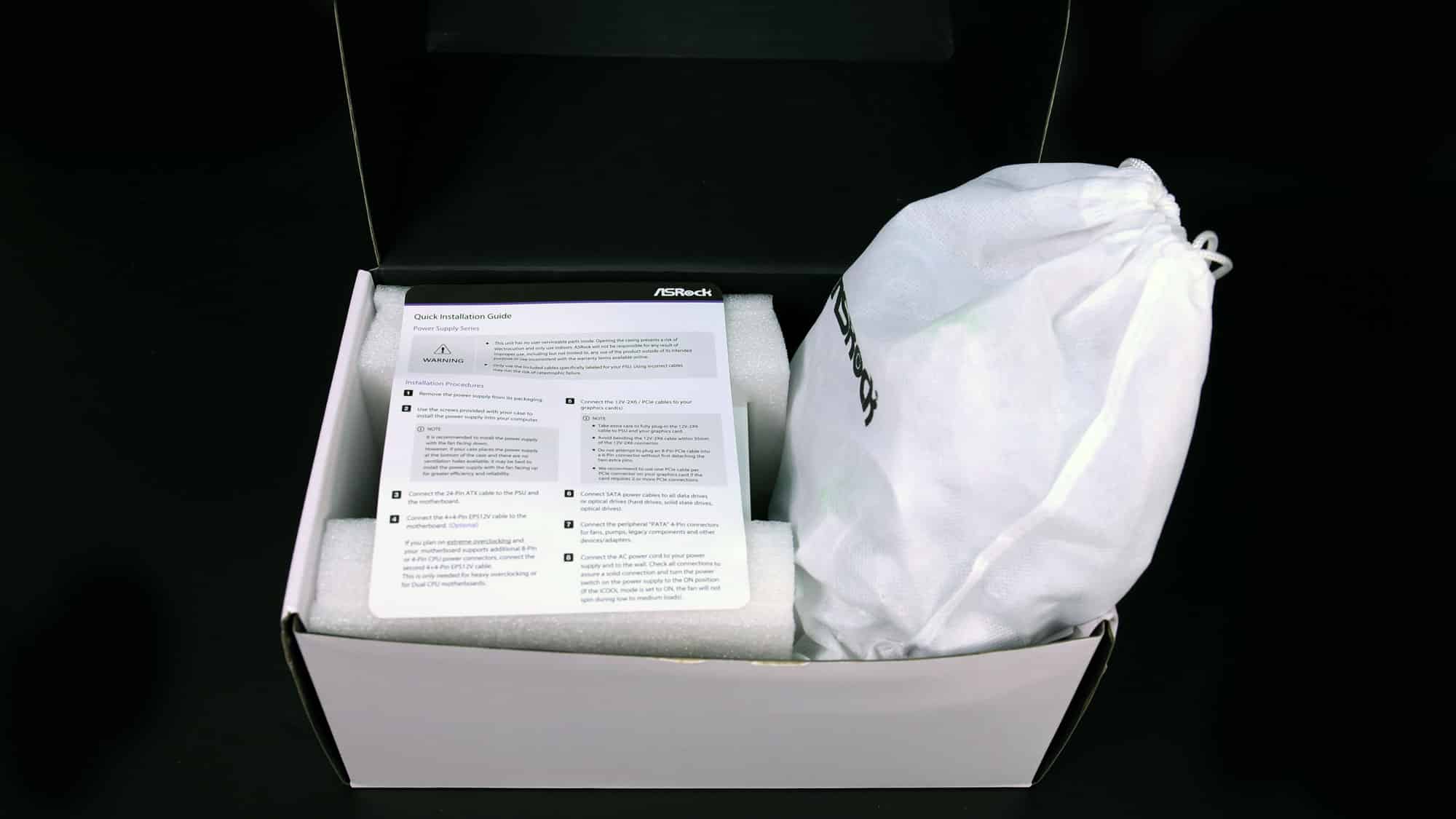

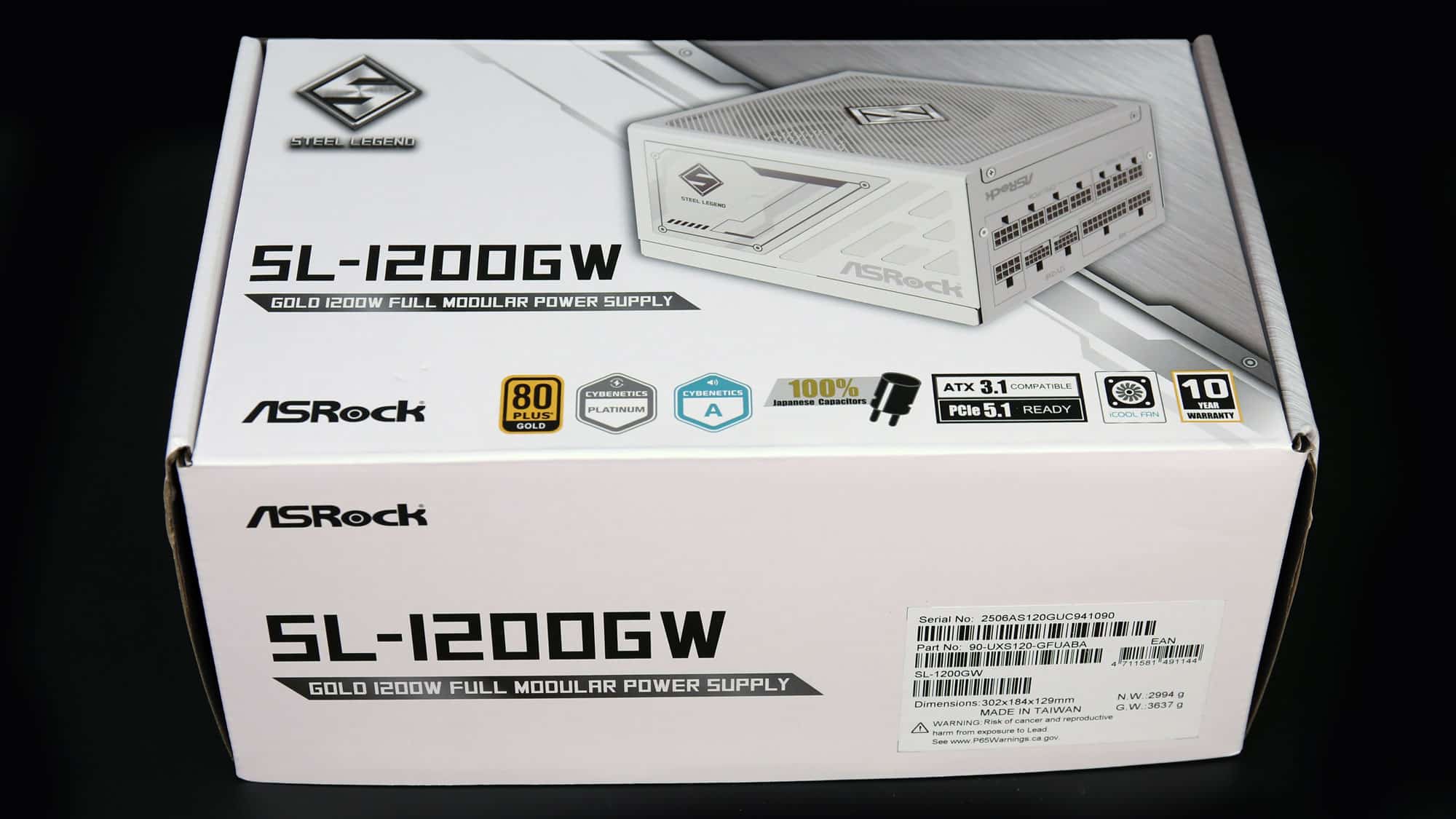

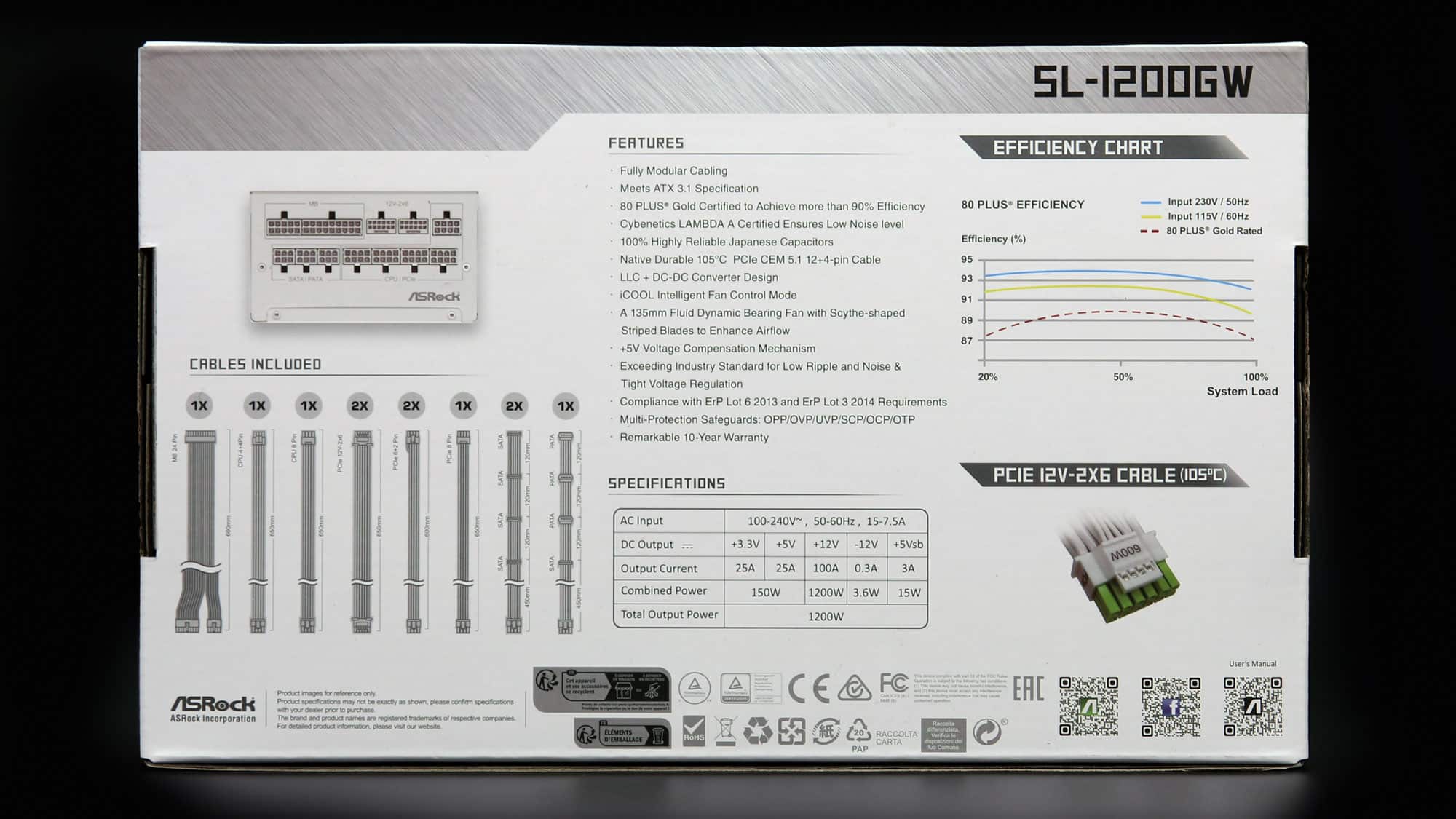

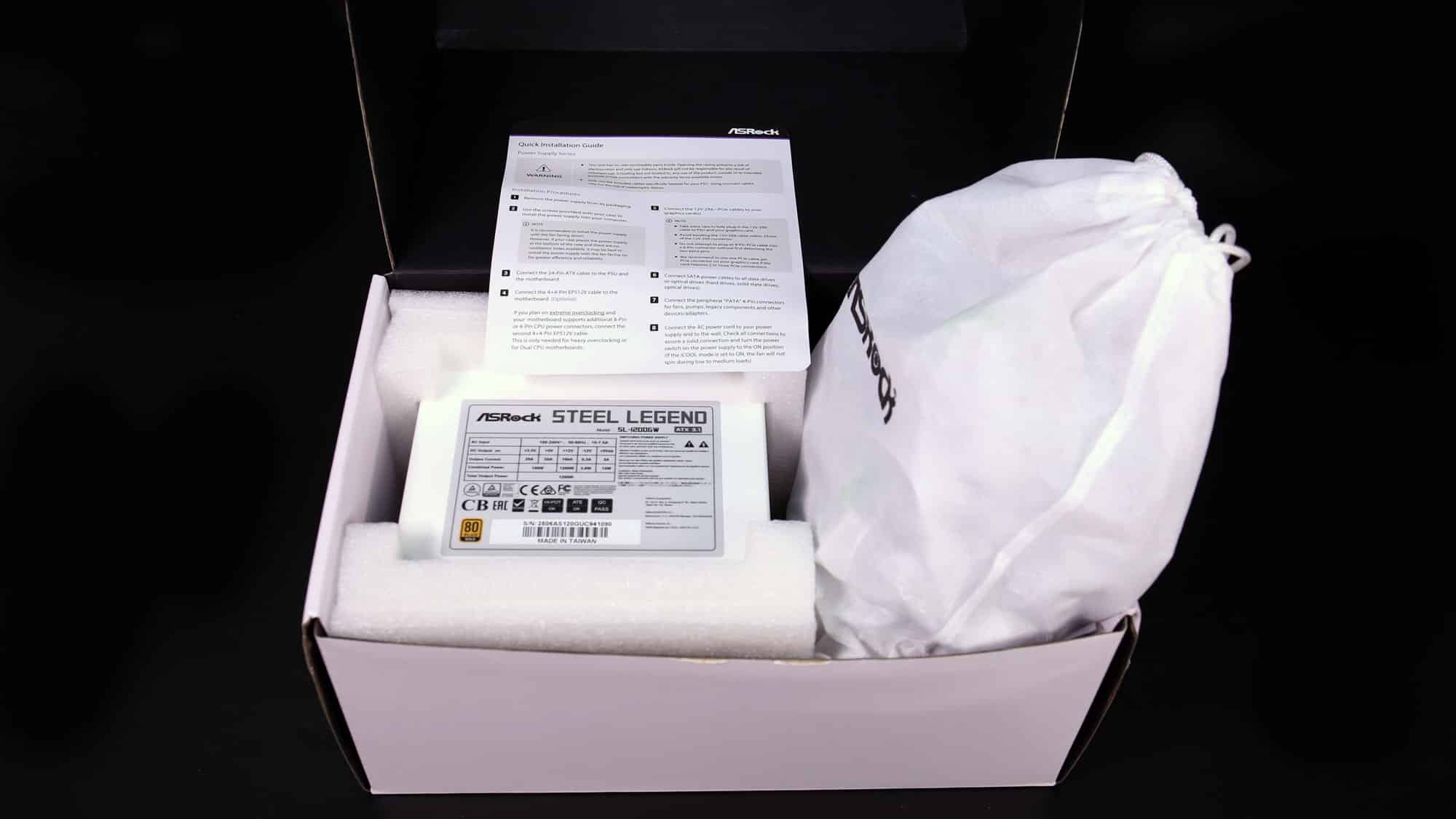

The box features a photo of the product on its front, accompanied by the warranty and efficiency certification badges. For the technical specs, look at the back side. Inside, the PSU is covered by packing foam for optimal protection. There is also a white bag provided to store all cables.
Product Photos

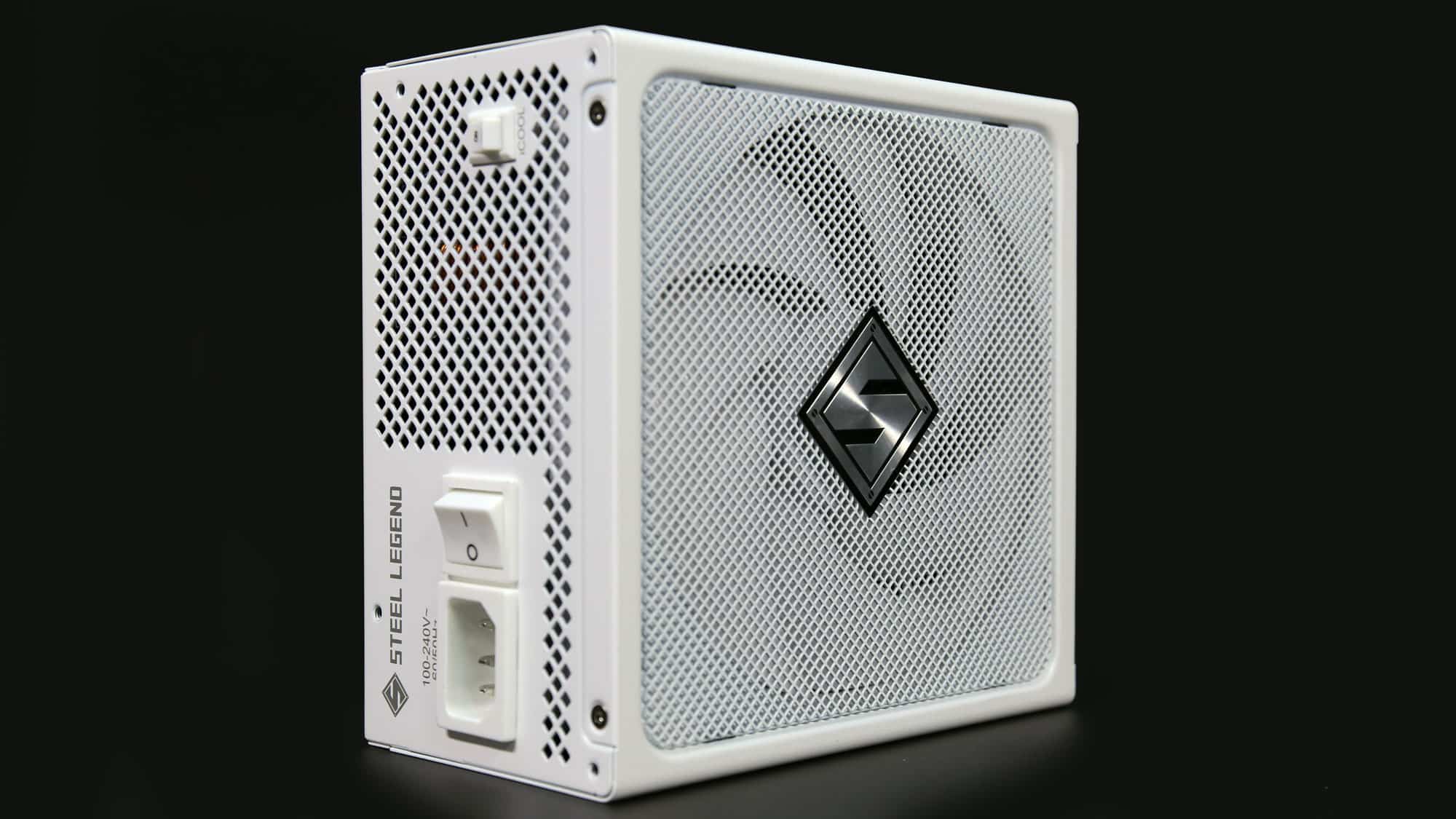

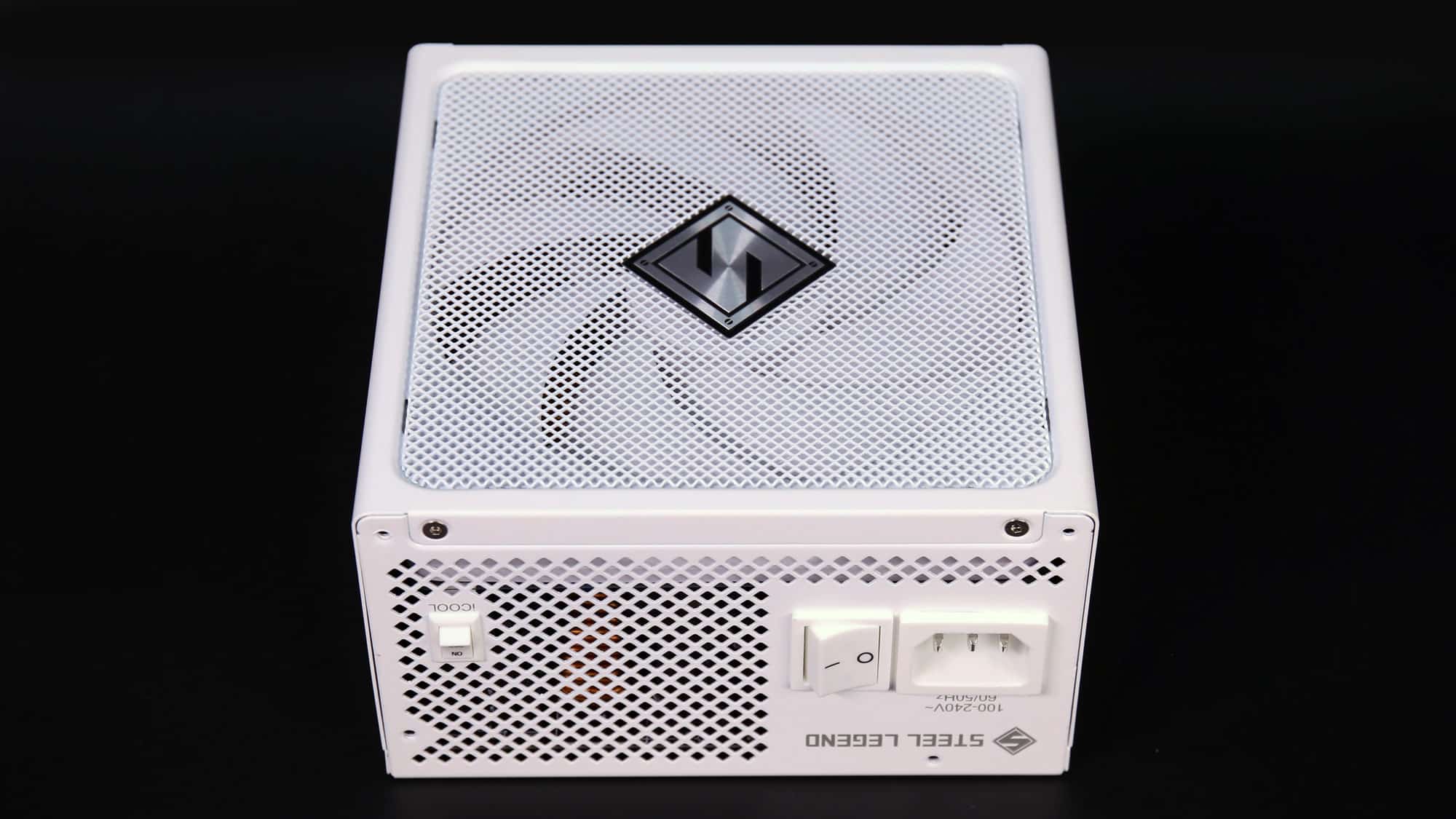

The white paint job looks nice, making the exterior design appealing. The only issue is the restrictive fan grille due to its small perforations. A less restrictive grille could help lower the fan’s speed and have a positive effect on noise output. On the front side, besides the typical stuff, we also find a small switch for toggling on/off the fan stop feature. On the sides, there are high-voltage alert stickers to prevent you from opening the PSU, which is stupid if you are not trained in this stuff. Around the back is the modular panel, which we will check below.

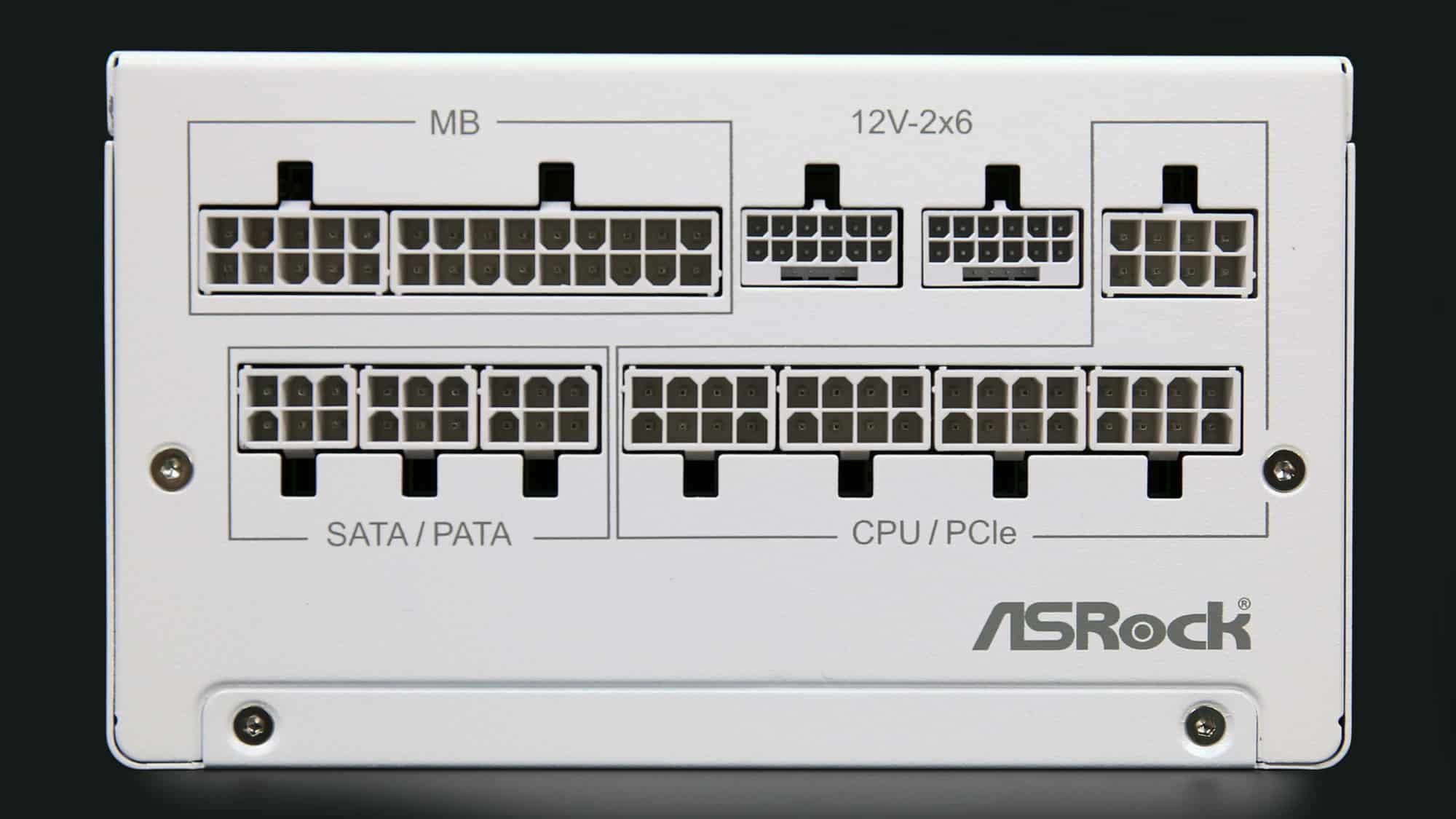

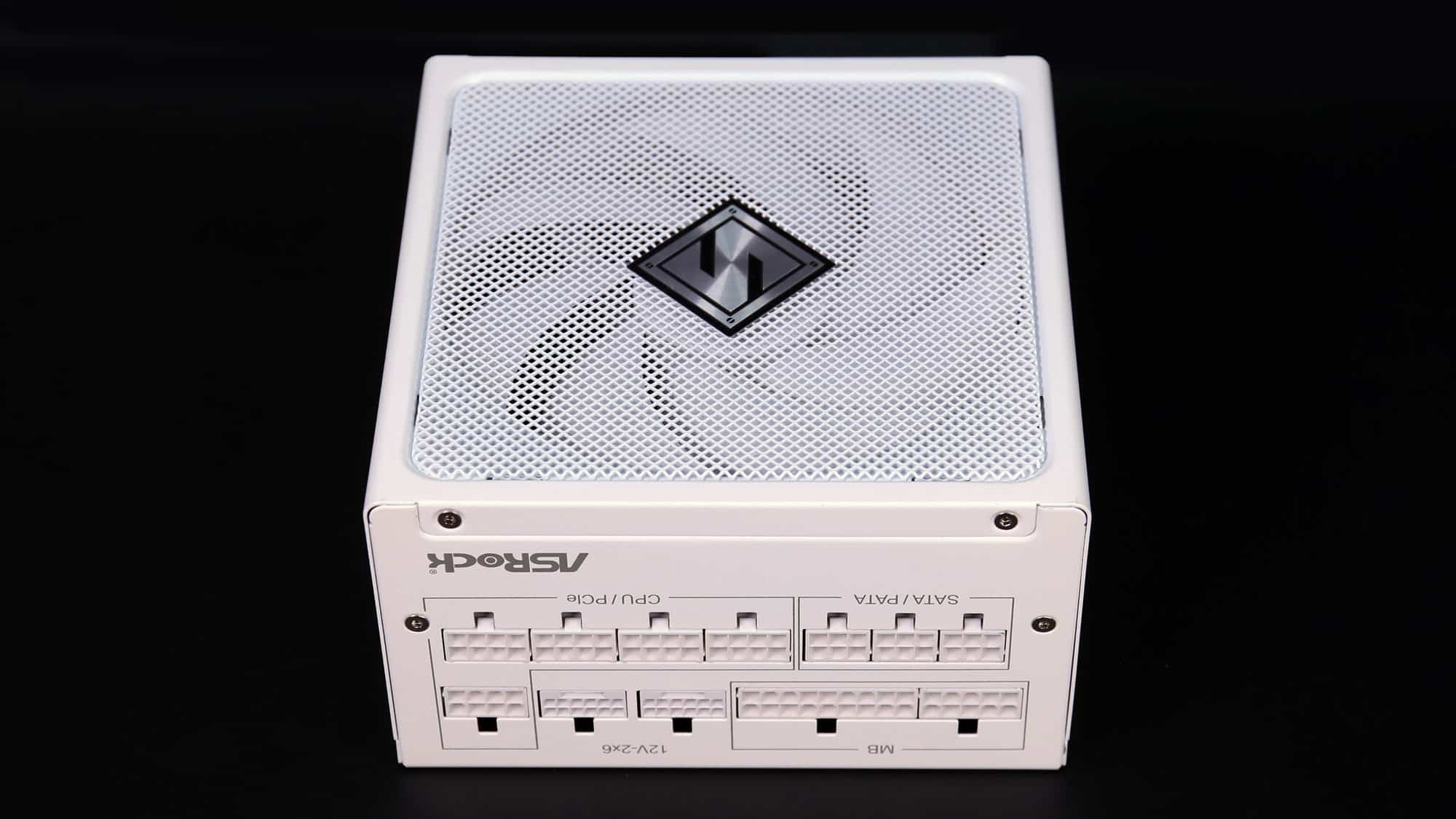

The modular panel has twelve sockets, including two native 12V-2×6 headers.
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|
| ATX connector 24 pin (590mm) | 1 | 1 | 16-18AWG | No |
| 4+4 pin EPS12V (640mm) | 1 | 1 | 18AWG | No |
| 8-pin EPS12V (640mm) | 1 | 1 | 18AWG | No |
| 6+2 pin PCIe (650mm) | 3 | 3 | 16AWG | No |
| 12+4 pin PCIe (645mm) (600W) | 2 | 2 | 16-24AWG | No |
| SATA (450mm+120mm+120mm+120mm) | 2 | 8 | 18AWG | No |
| SATA (445mm) / 4-pin Molex (120mm+110mm+110mm) | 1 | 1 / 3 | 18AWG | No |

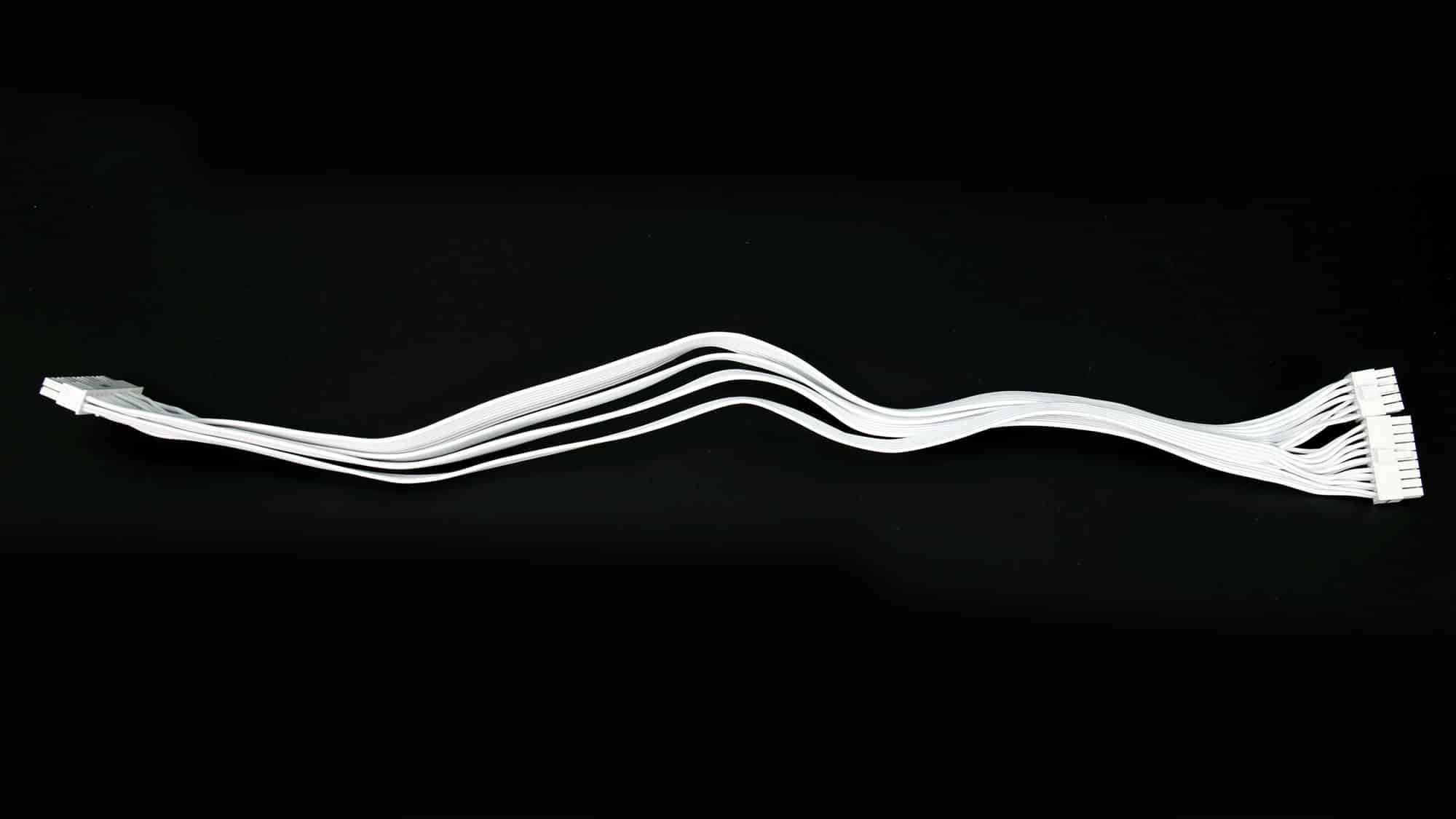

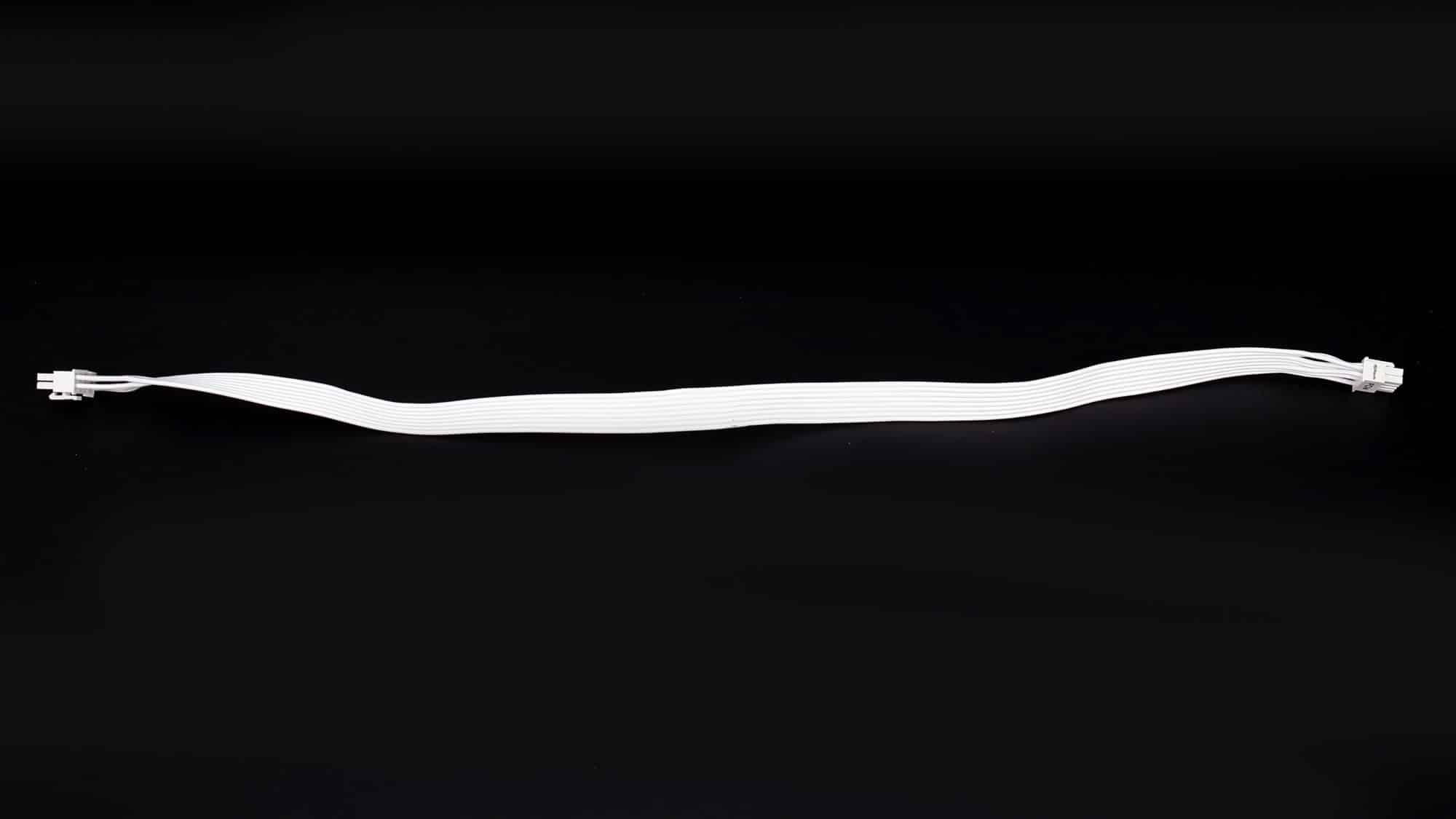

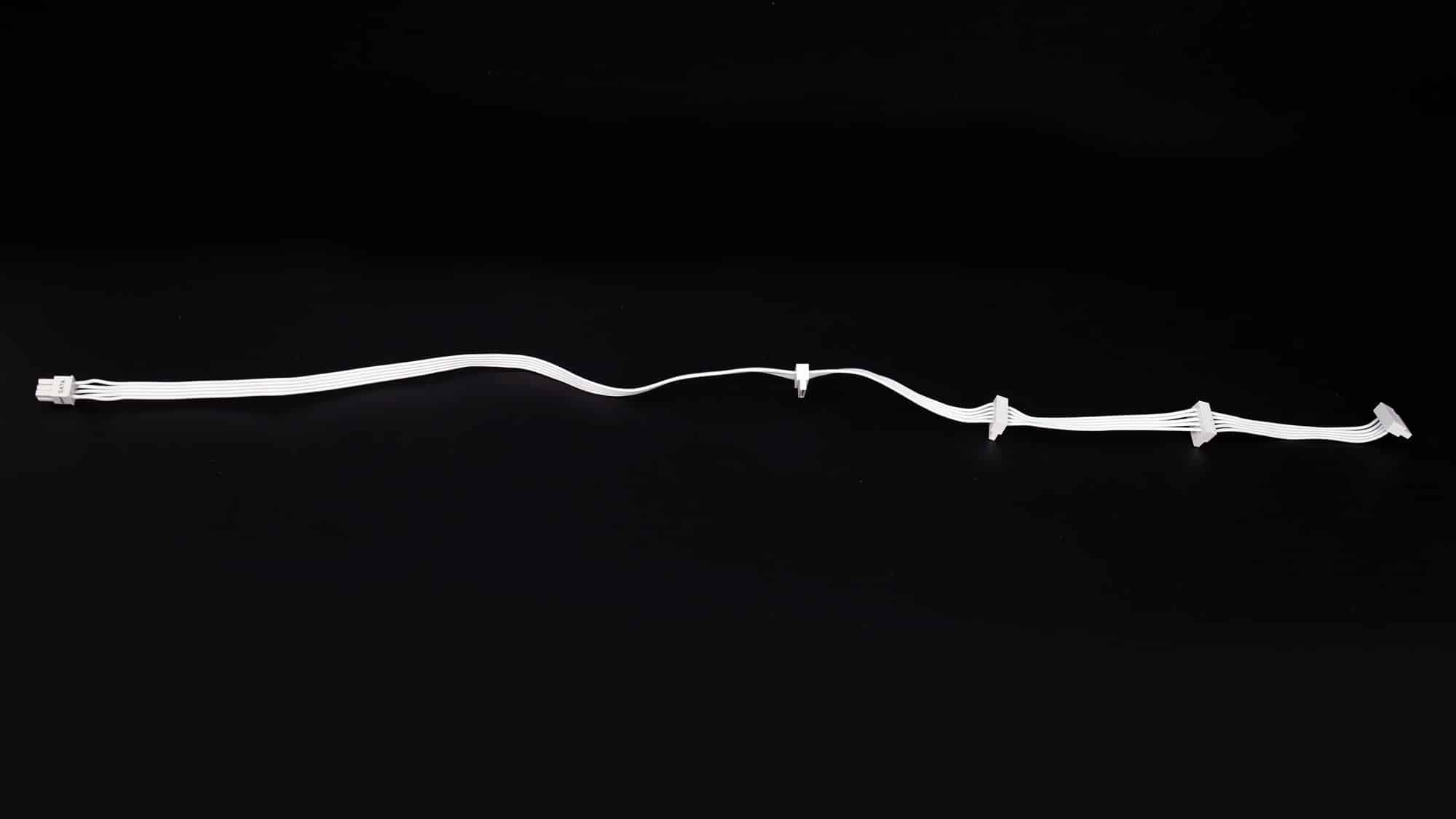

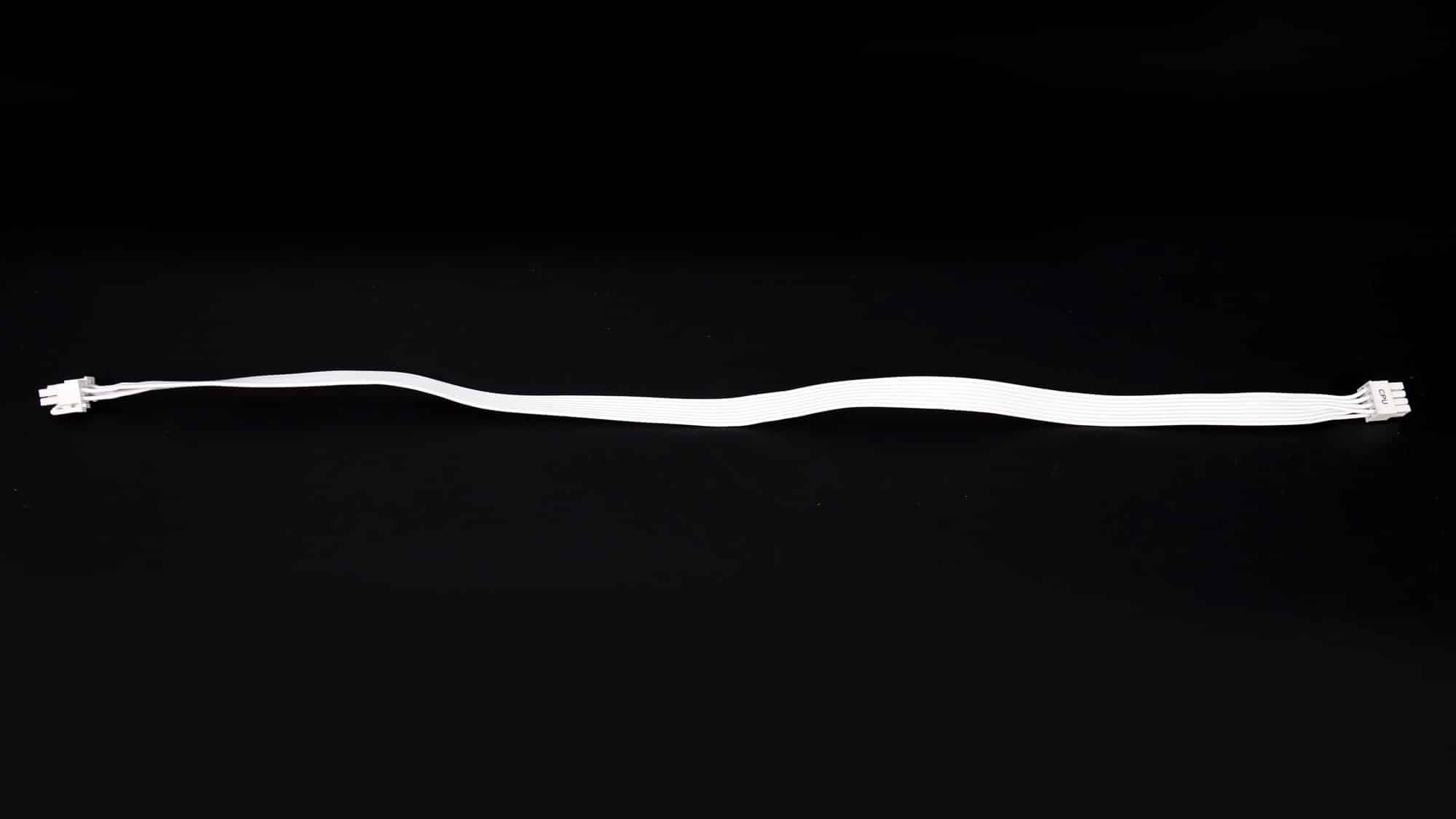

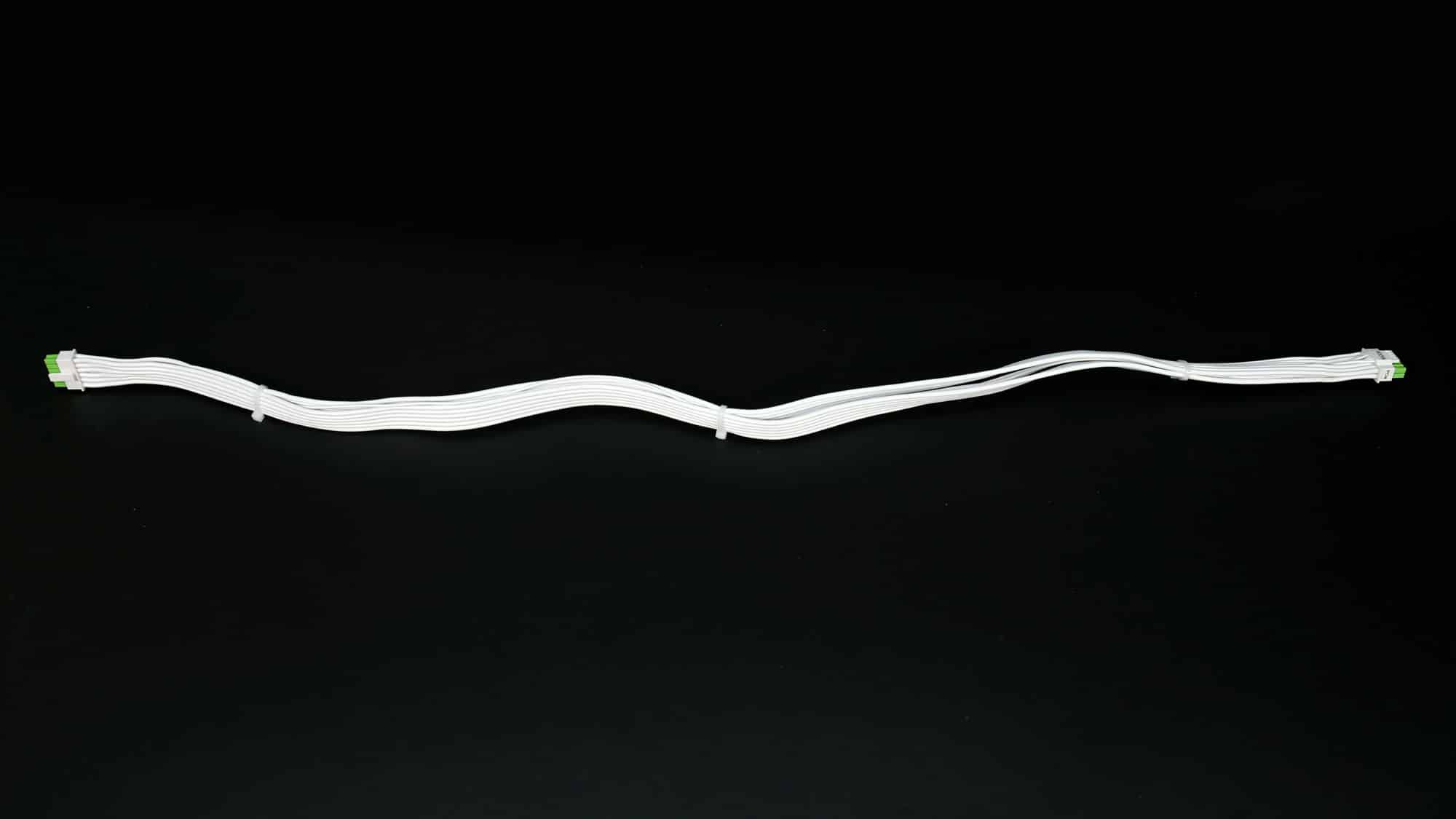

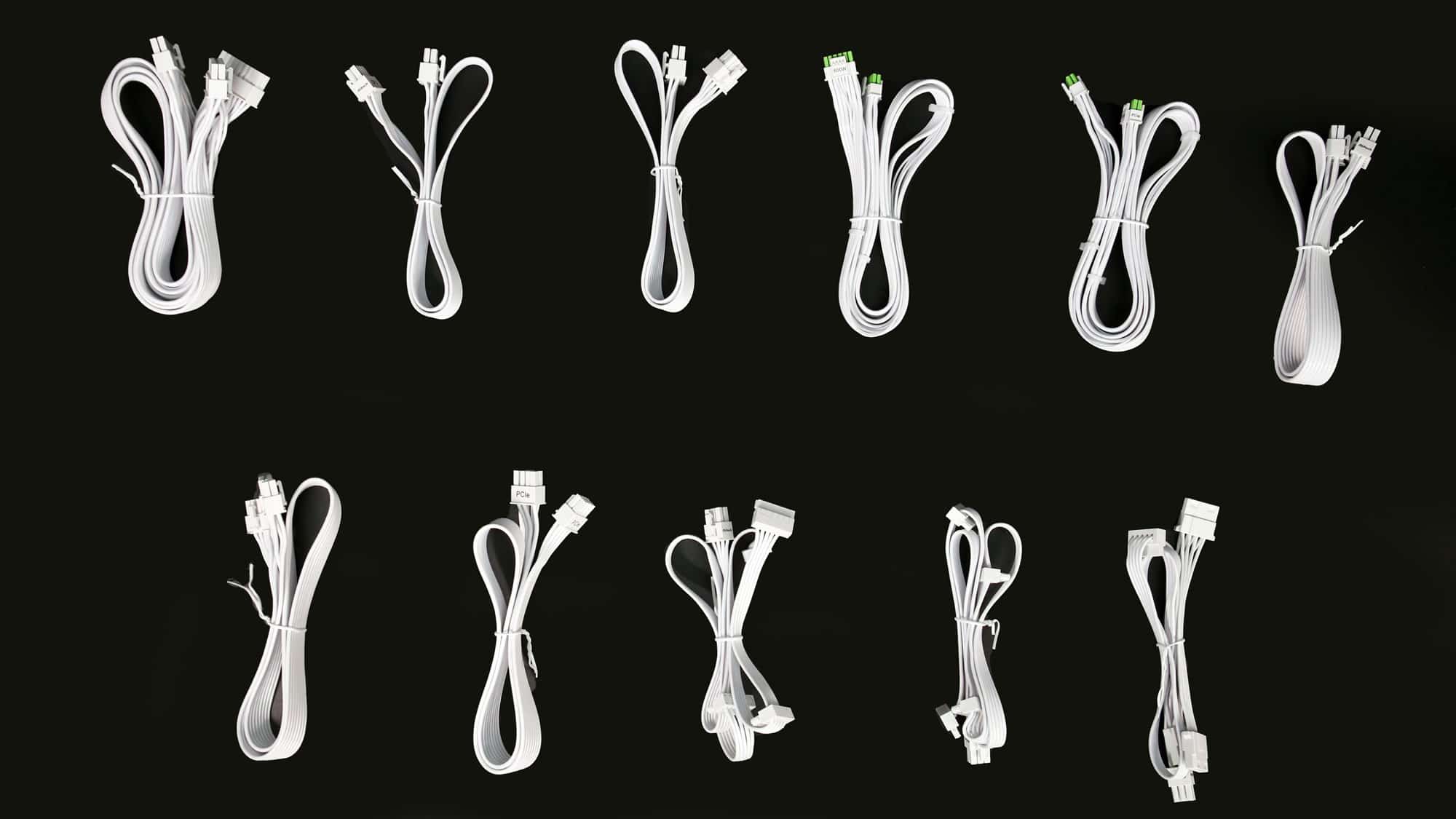

All cables are flat and consist of white, stealthy (within the same color chassis) gauges. Cable length is sufficient for the majority of big chassis. It would be better, though, if the 24-pin connector were installed onto a 650mm long cable and the EPS cables reached 700mm. I would also like to see 16AWG gauges in the ATX and EPS connectors, but ASRock opted for the standard 18AWG. Thicker gauges have lower resistance, which makes a difference at high loads, such as those a 1200W PSU can deliver.
