Clock Speeds

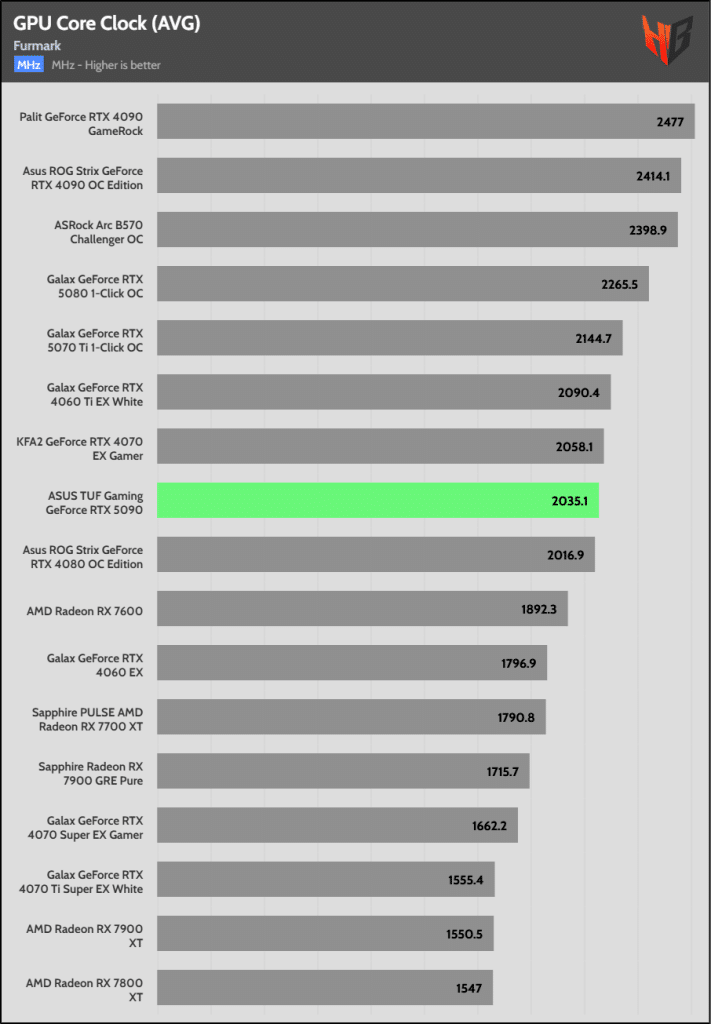

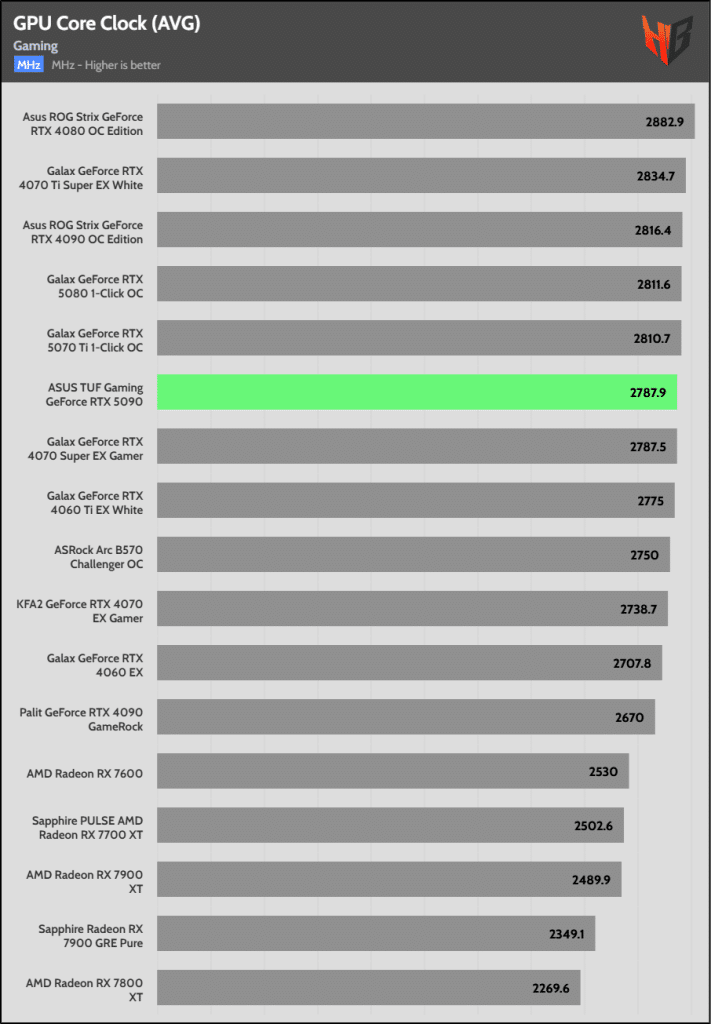

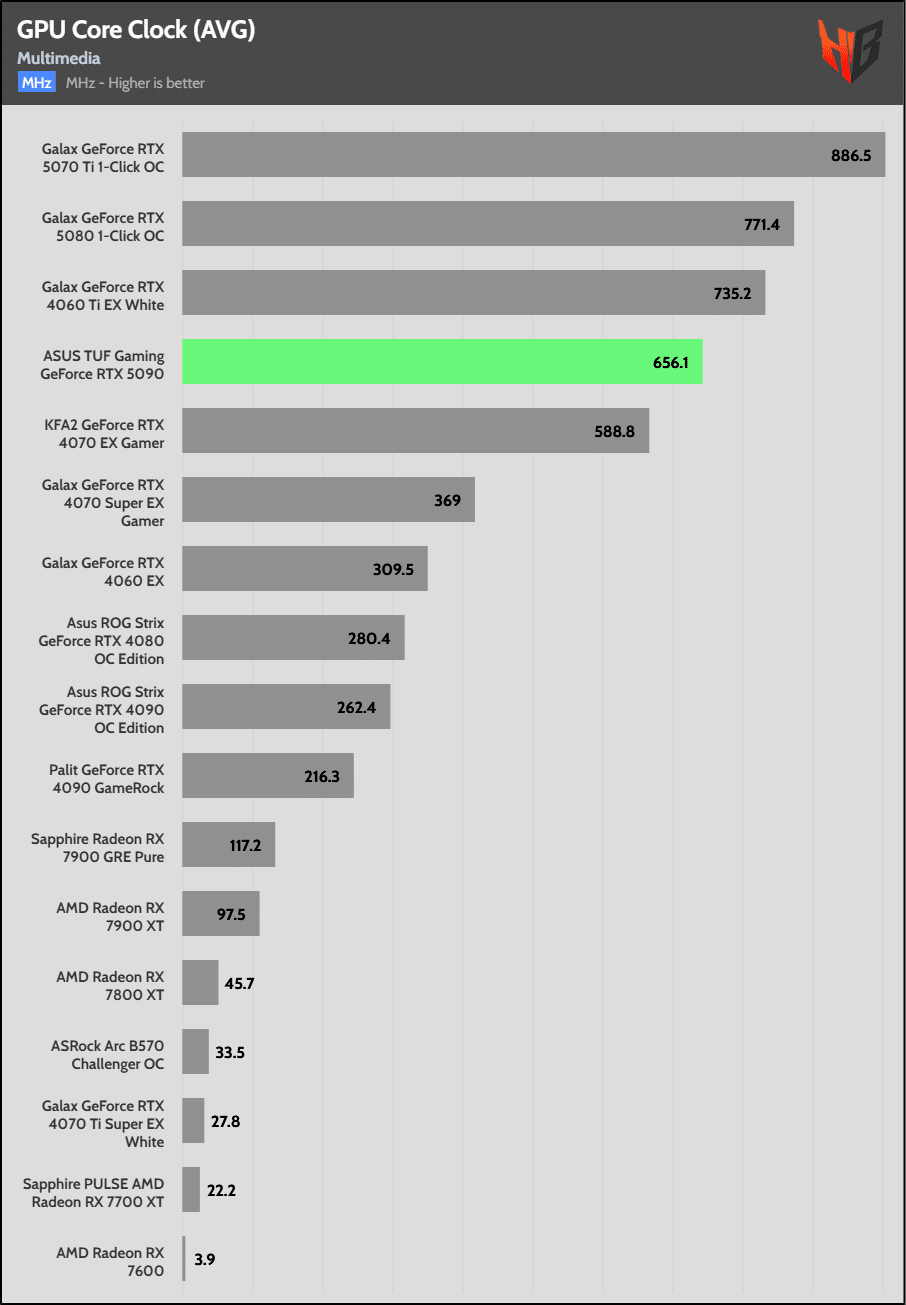

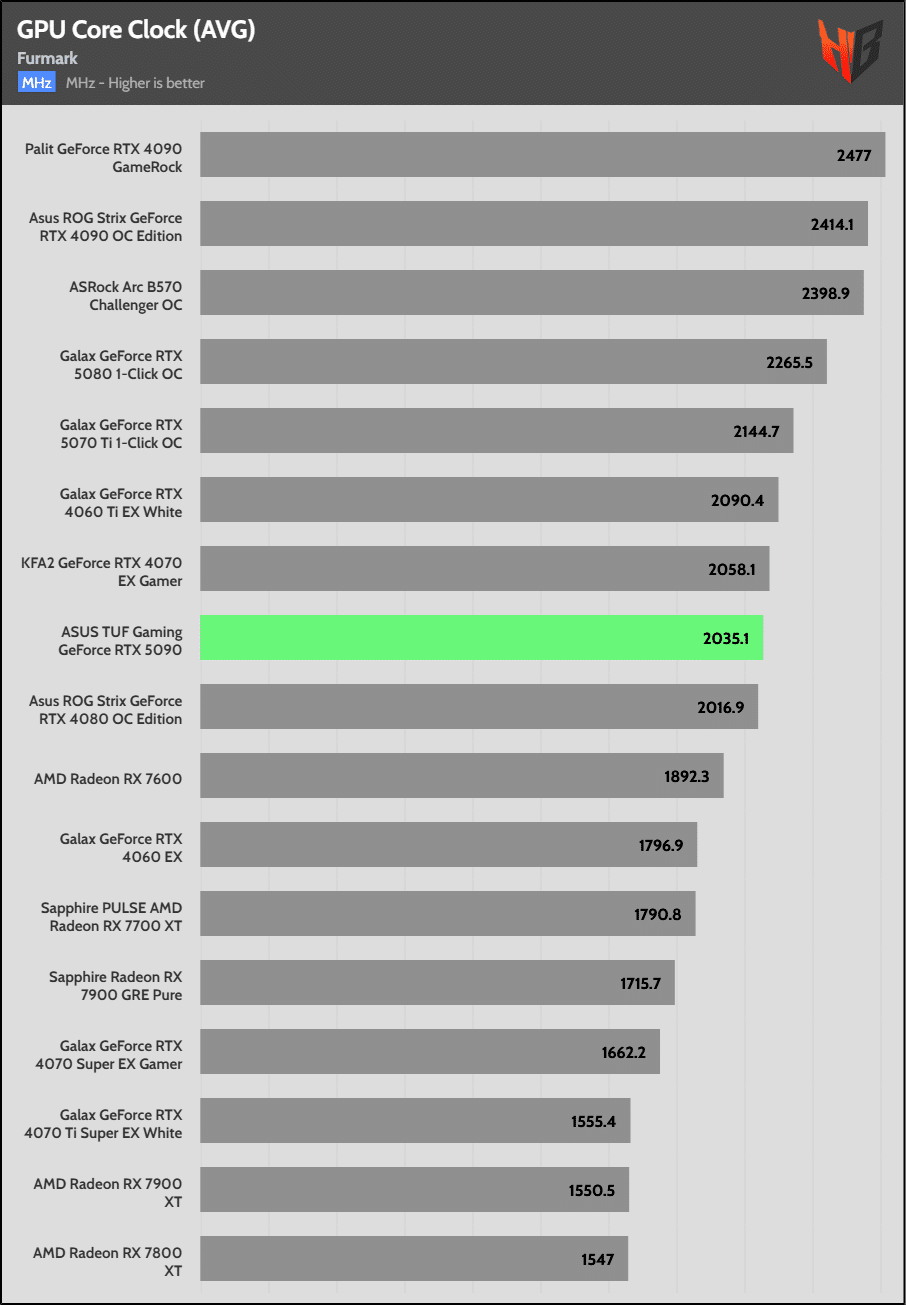

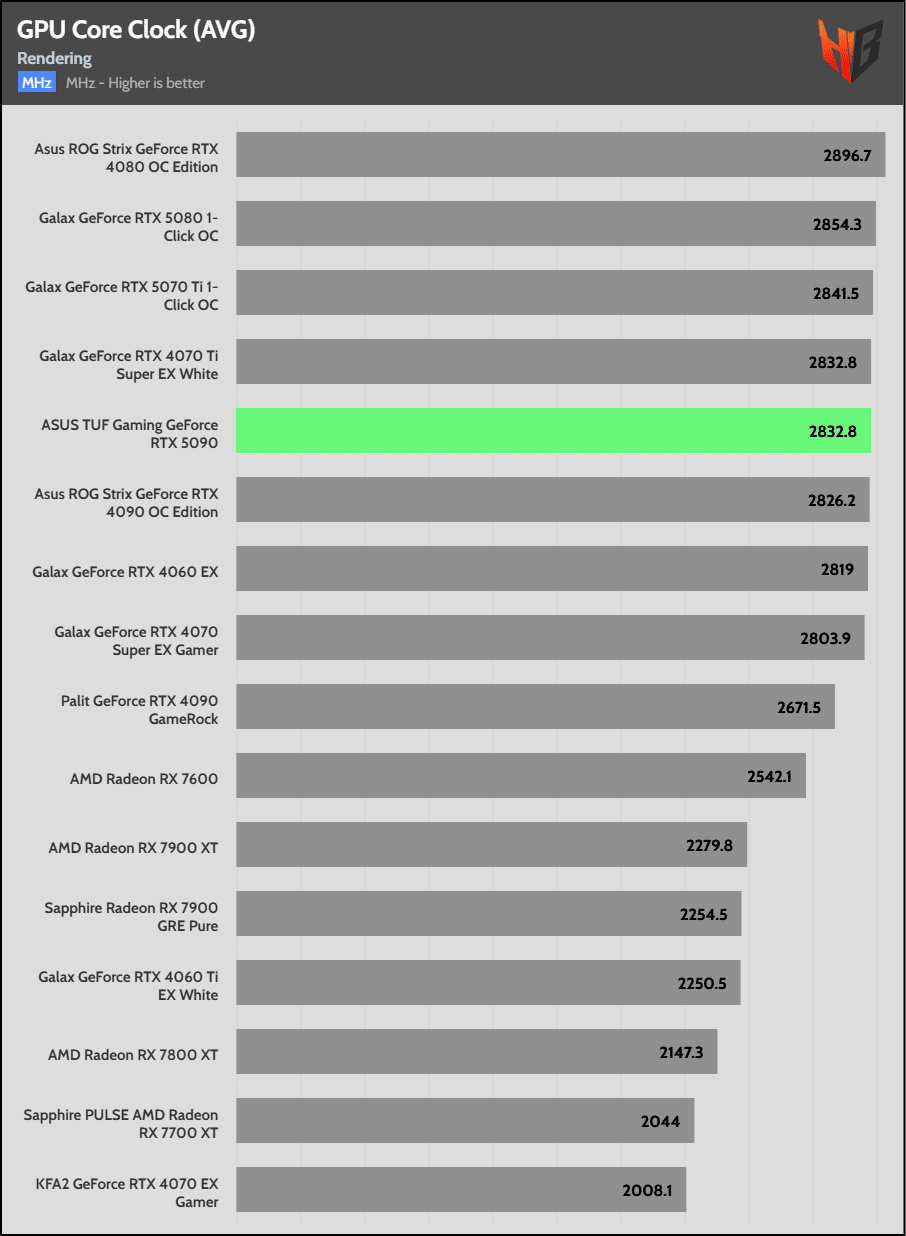

The charts below show the average GPU clock speeds in various usage scenarios.
 |
 |
 |
 |
Overclocking
 |
 |

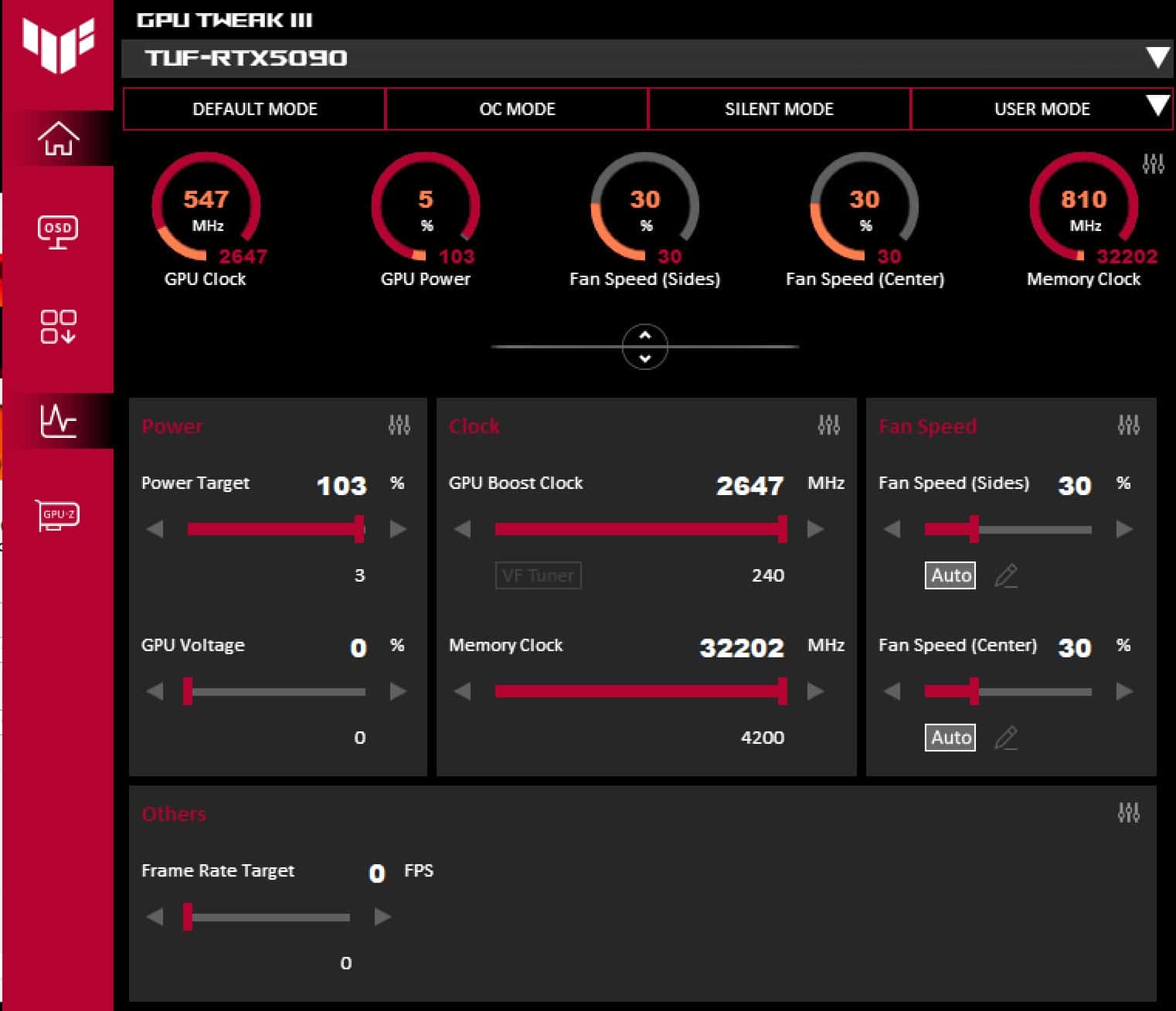

I dialed up to the maximum possible for the GPU’s boost clock and 32202 MHz (+2104 MT/s) for the VRAM, the top allowed by GPU Tweak and the maximum permitted boost clock. I also allowed for a 3% increase in the power target. I didn’t mess with GPU voltage because I noticed some issues when I did.

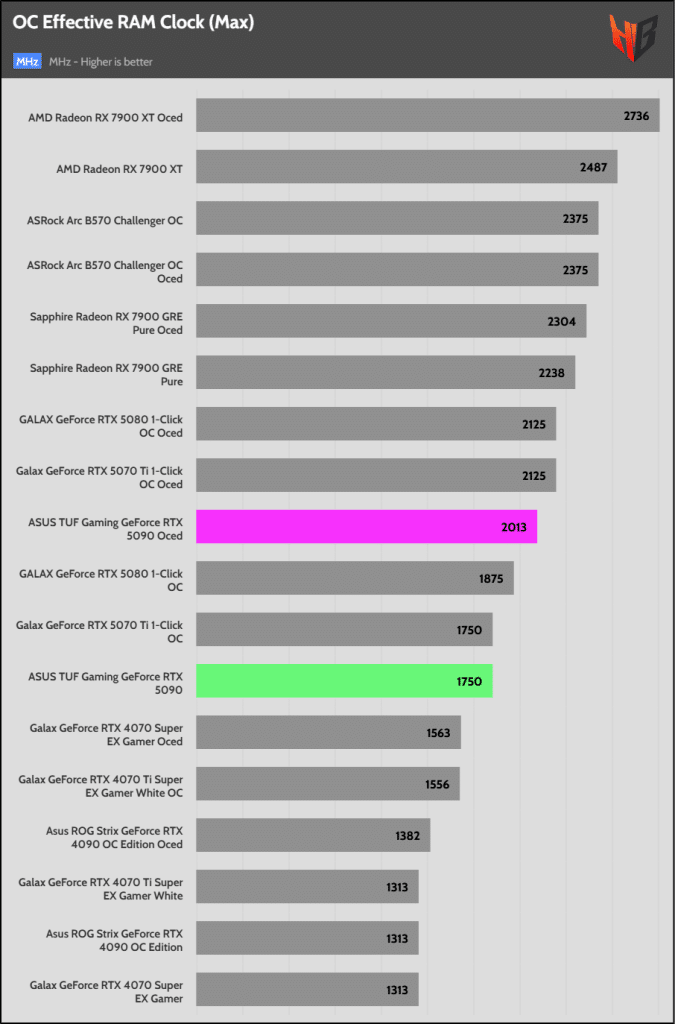

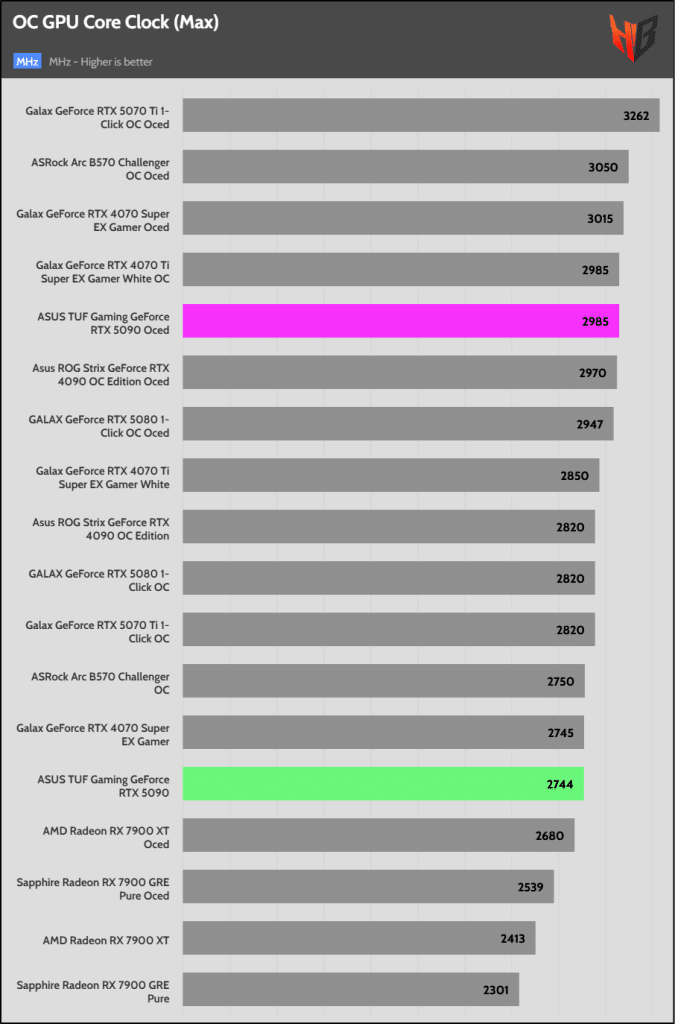

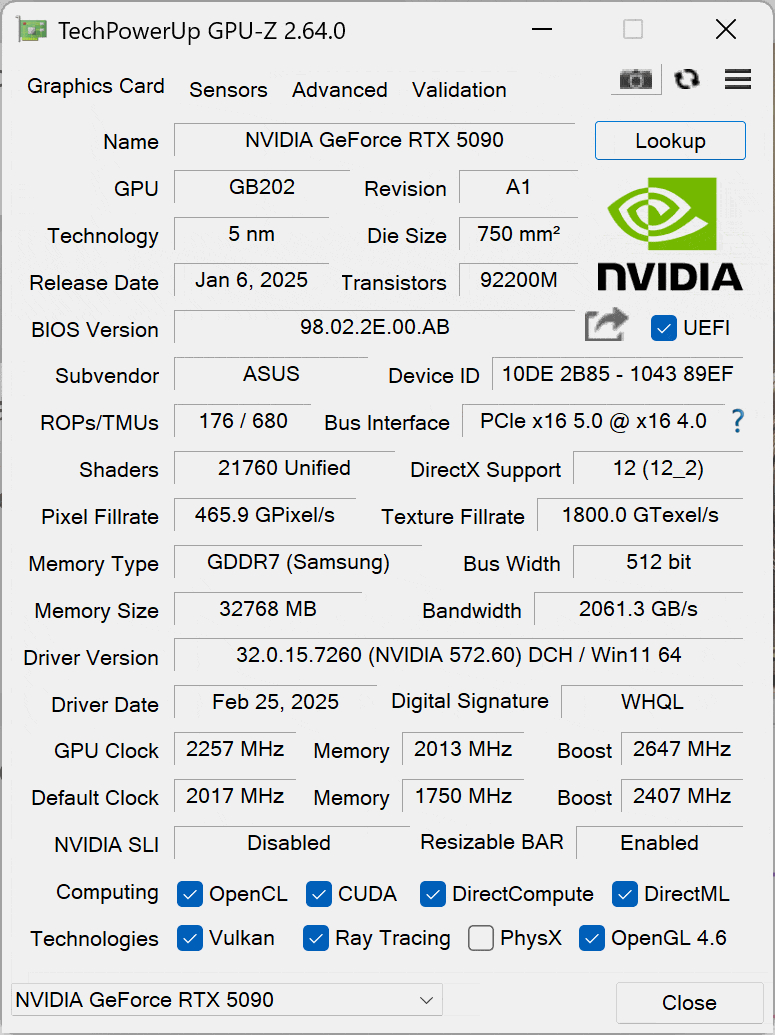

GPU & RAM Clocks
 |
 |

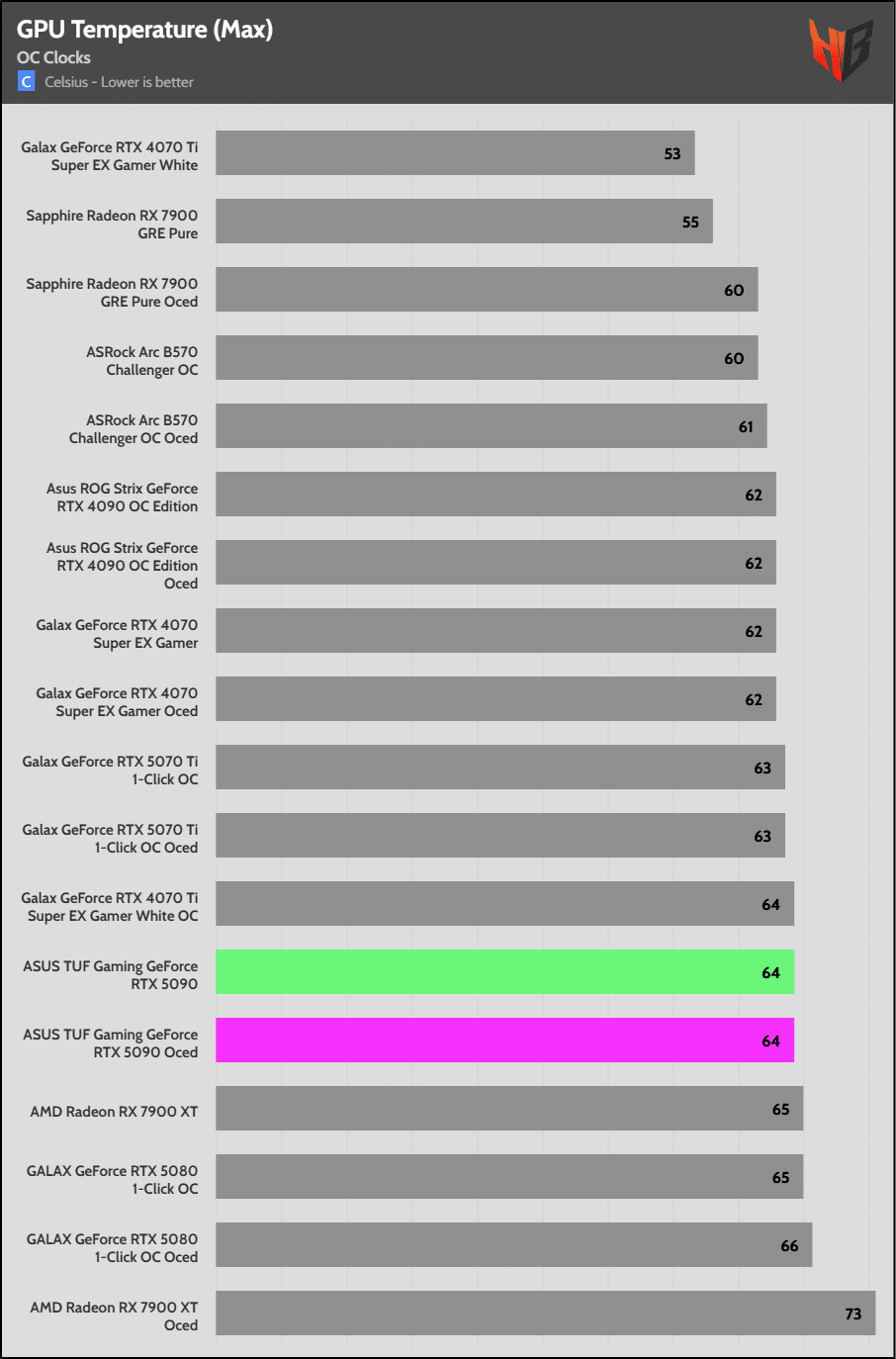

Operating Temperatures
There is no temperature difference between stock and OC speeds because the power consumption difference is low, and the cooling system is competent managing effectively the GPU’s thermal load.

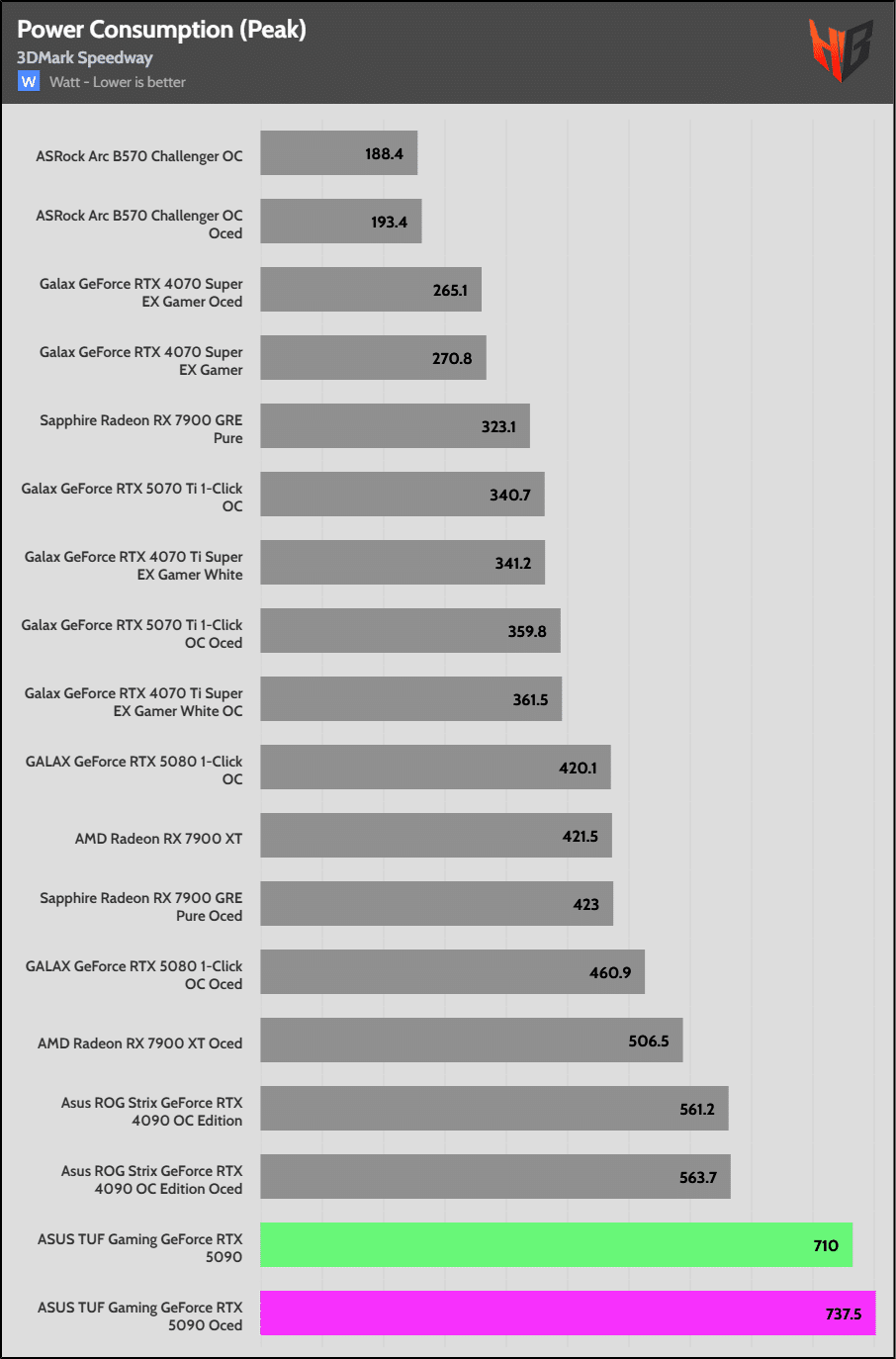

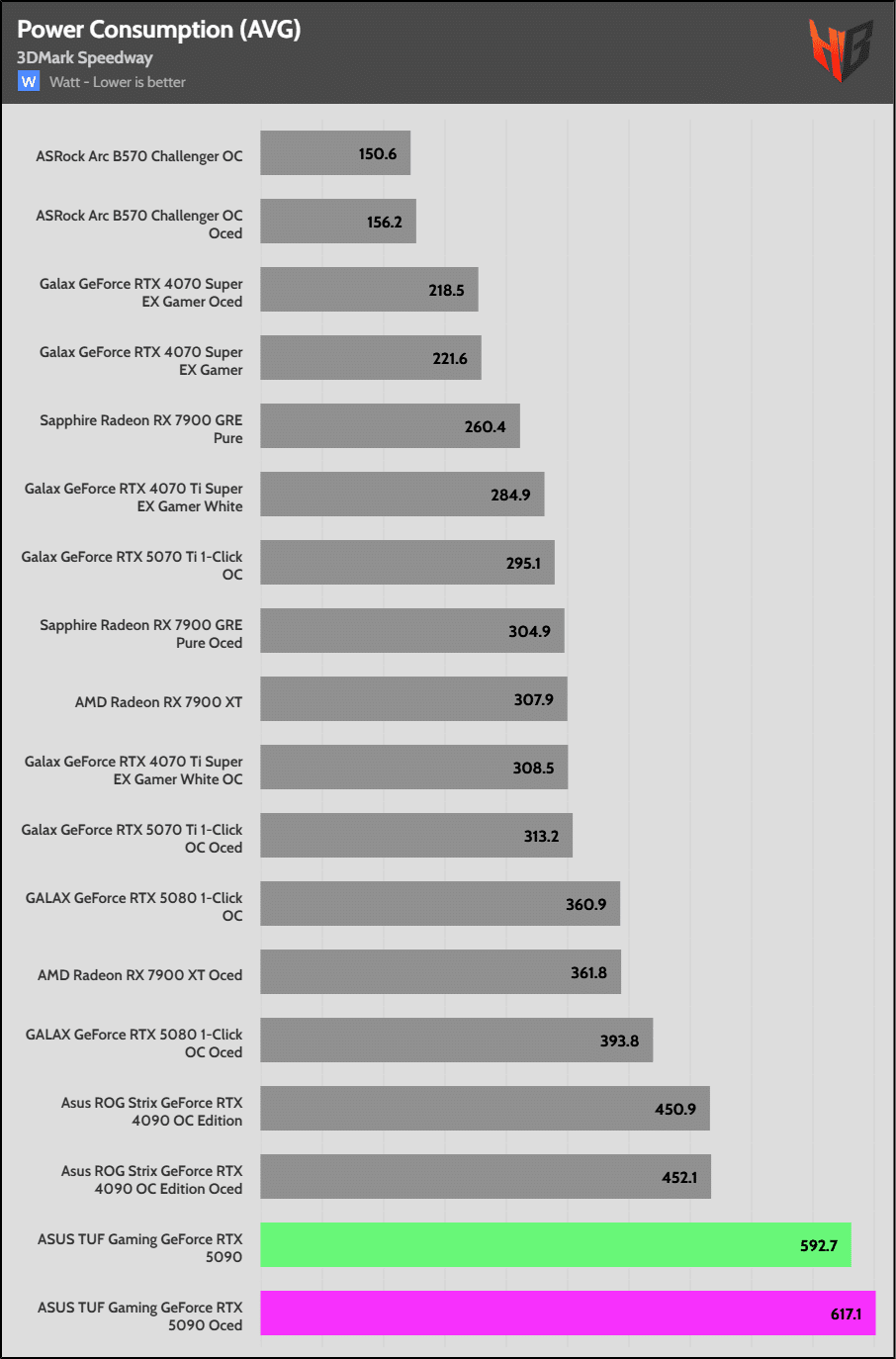

Power Consumption
 |
 |
The power consumption difference between standard and overclocked modes is low since the card already operates at the limit of 12V-2×6, but the total power consumption reading is high.

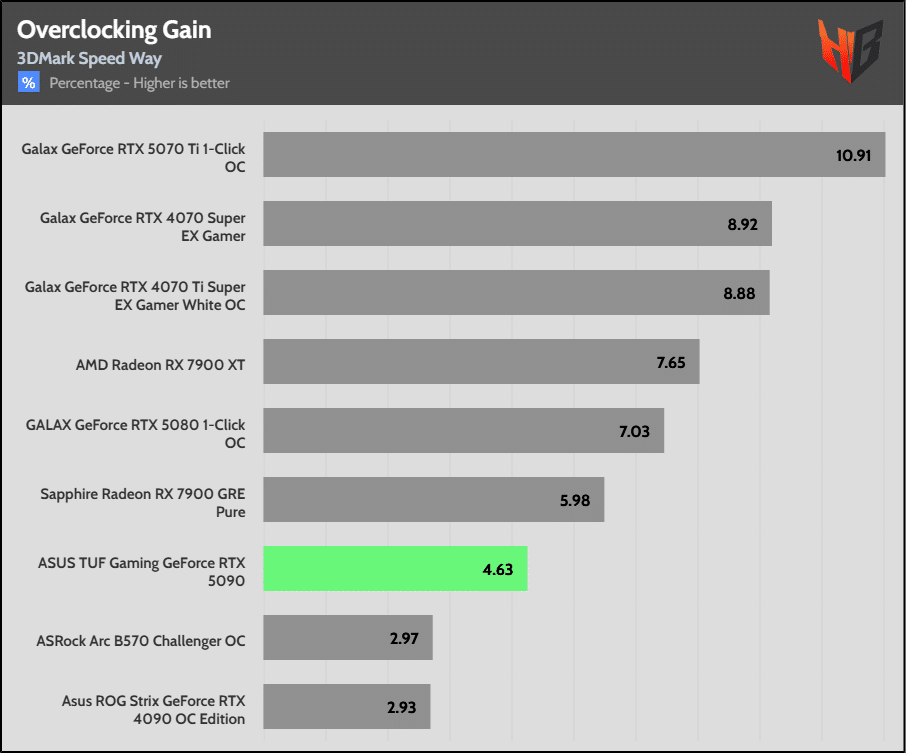

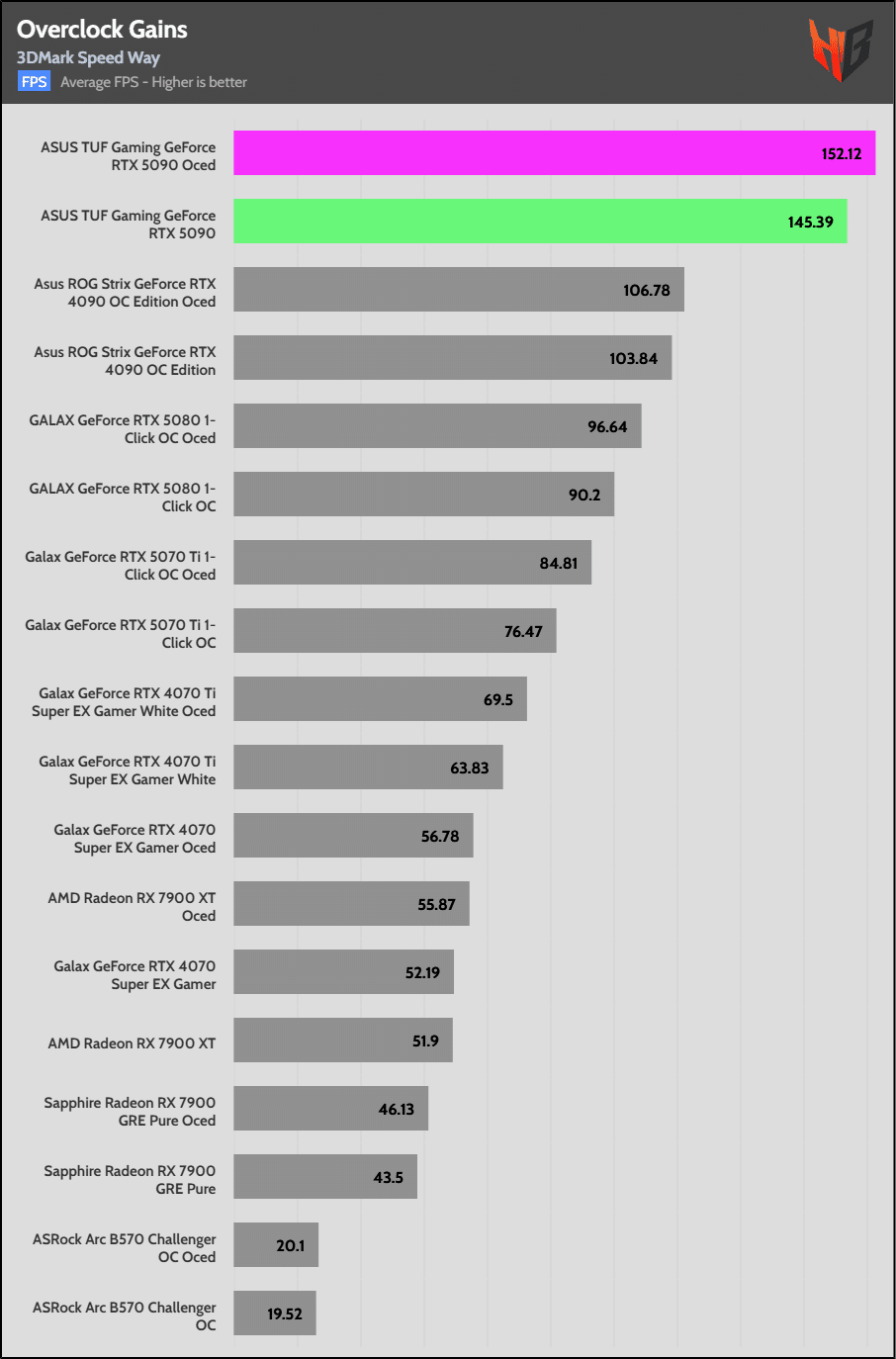

Overclock Gain
 |
 |
The performance gain is low, since the RTX 5090 is already maxed out, almost at the official limit that the 12V-2×6 permits in power consumption.
