Frequency Plots – Reverse Operation
| Fan Speed (PWM) | Peak Frequency |
|---|---|
| 20% | 200 Hz |
| 25% | 200 Hz |
| 30% | 250 Hz |
| 50% | 400 Hz |
| 75% | 630 Hz |
| 80% | 630 Hz |
| 100% | 630 Hz |

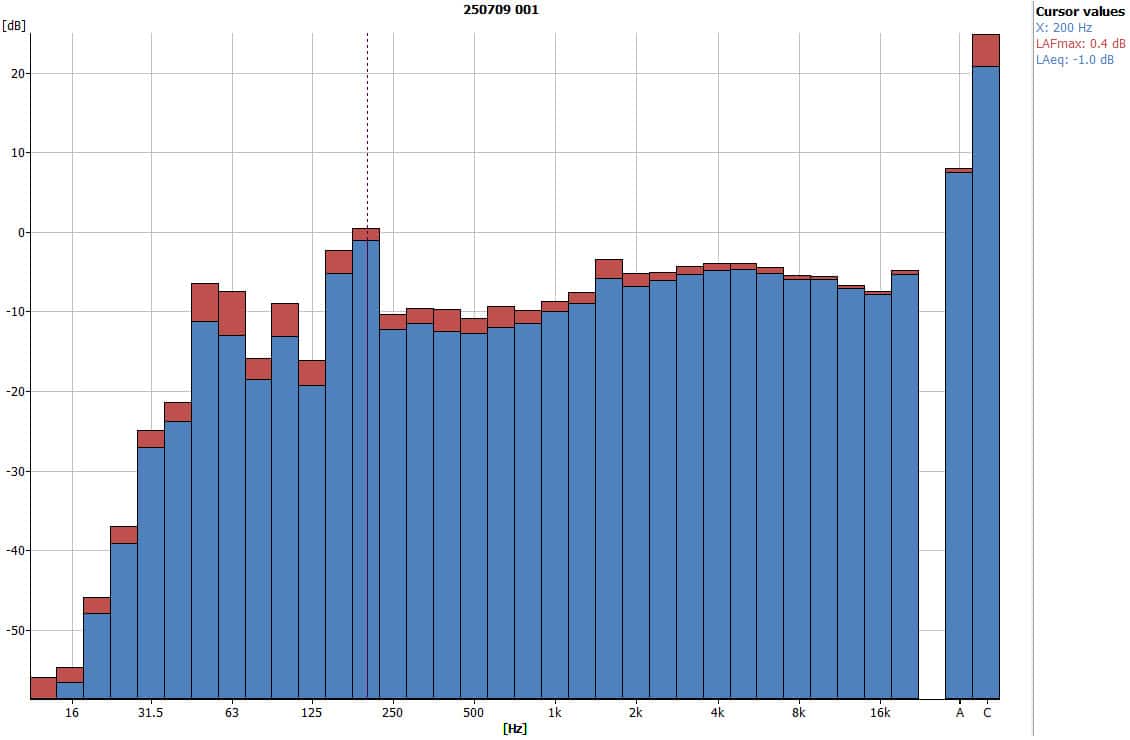

20% Fan Speed
- Peak frequency: 200 Hz

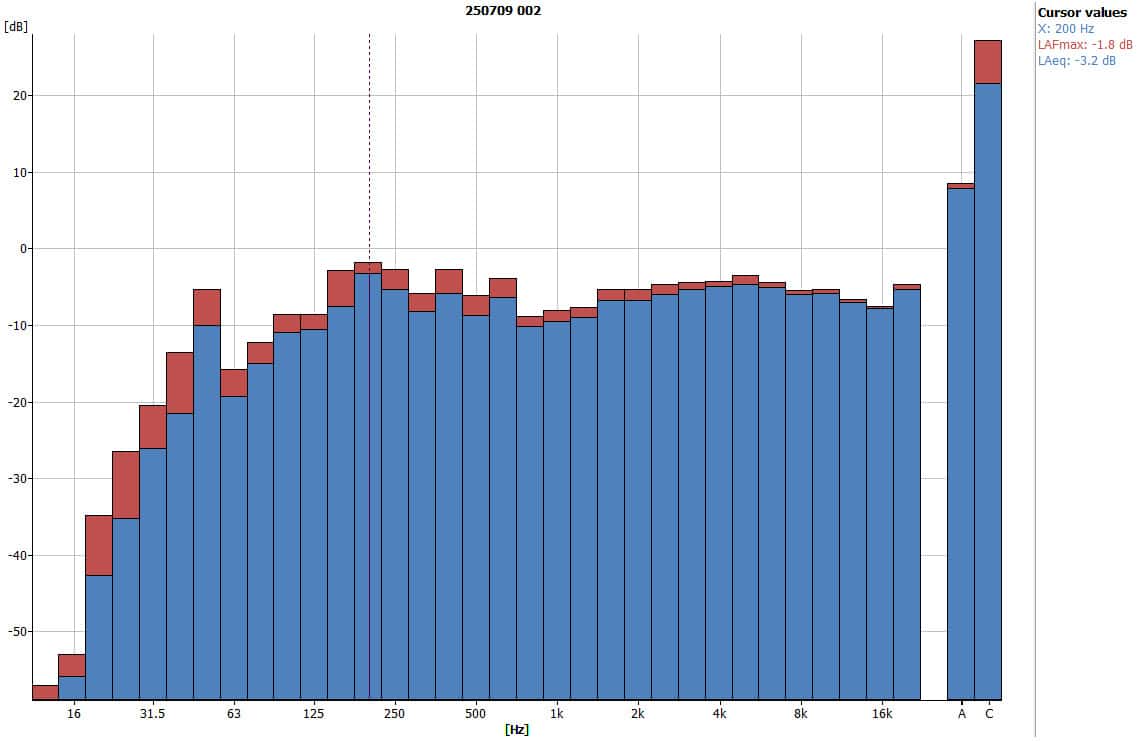

25% Fan Speed
- Peak frequency: 200 Hz

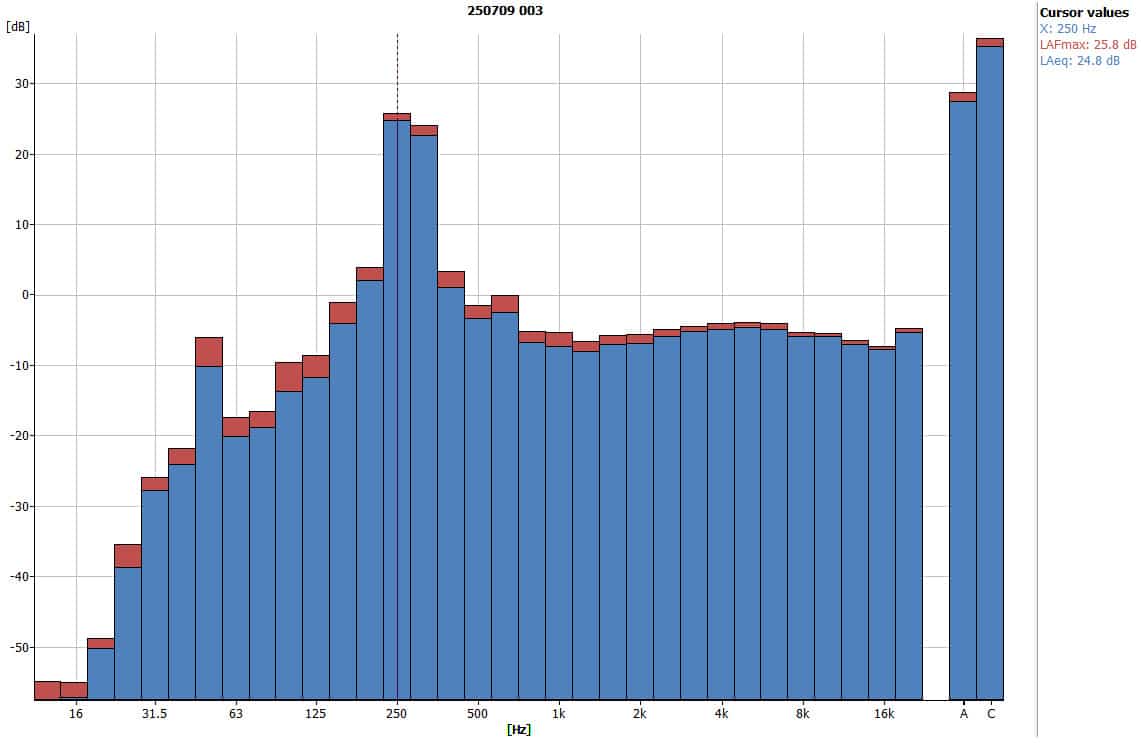

30% Fan Speed
- Peak frequency: 250 Hz

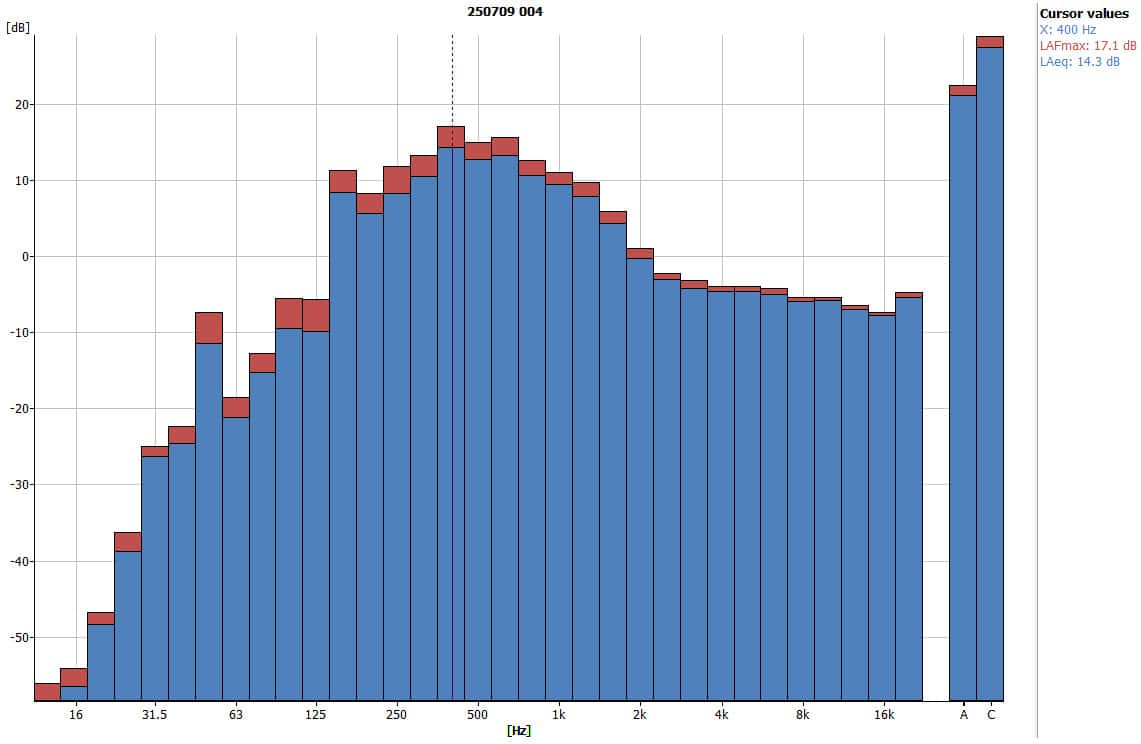

50% Fan Speed
- Peak frequency: 400 Hz

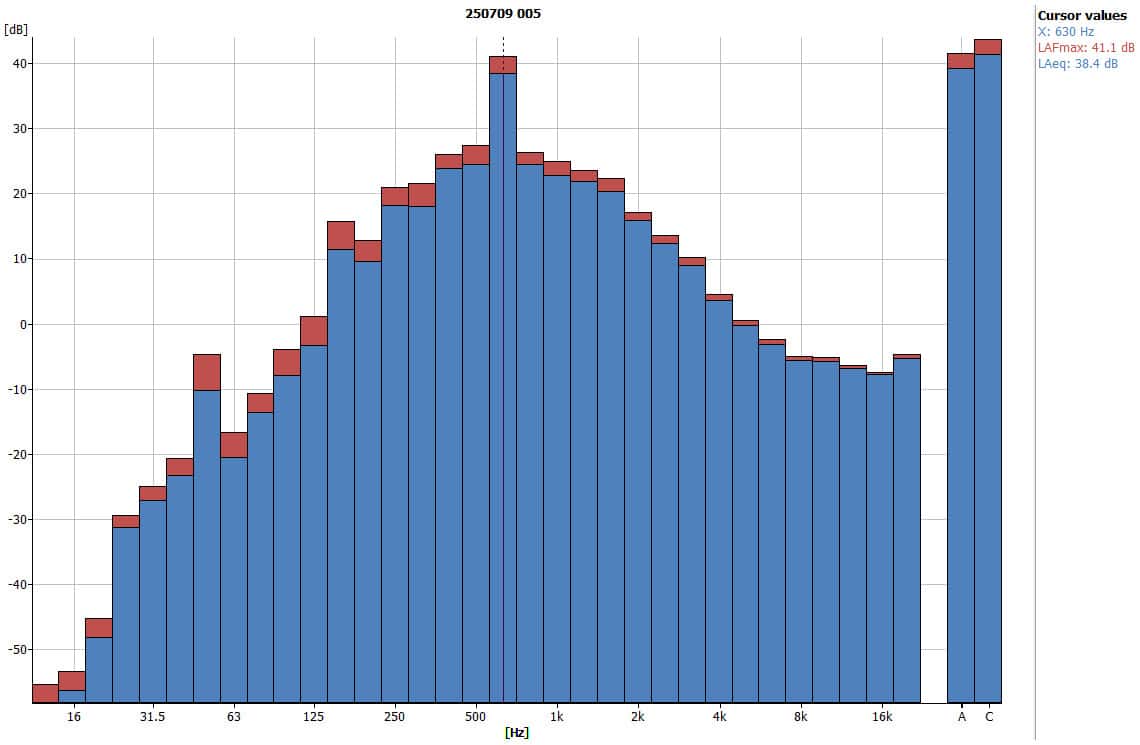

75% Fan Speed
- Peak frequency: 630 Hz

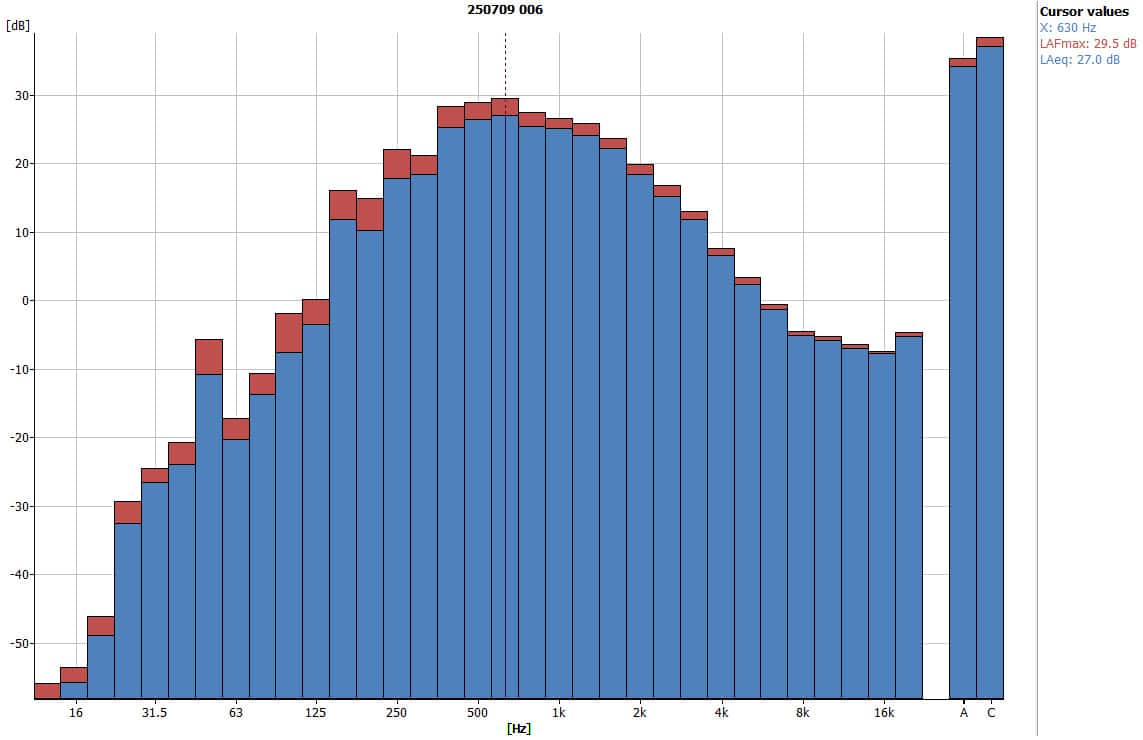

80% Fan Speed
- Peak frequency: 630 Hz

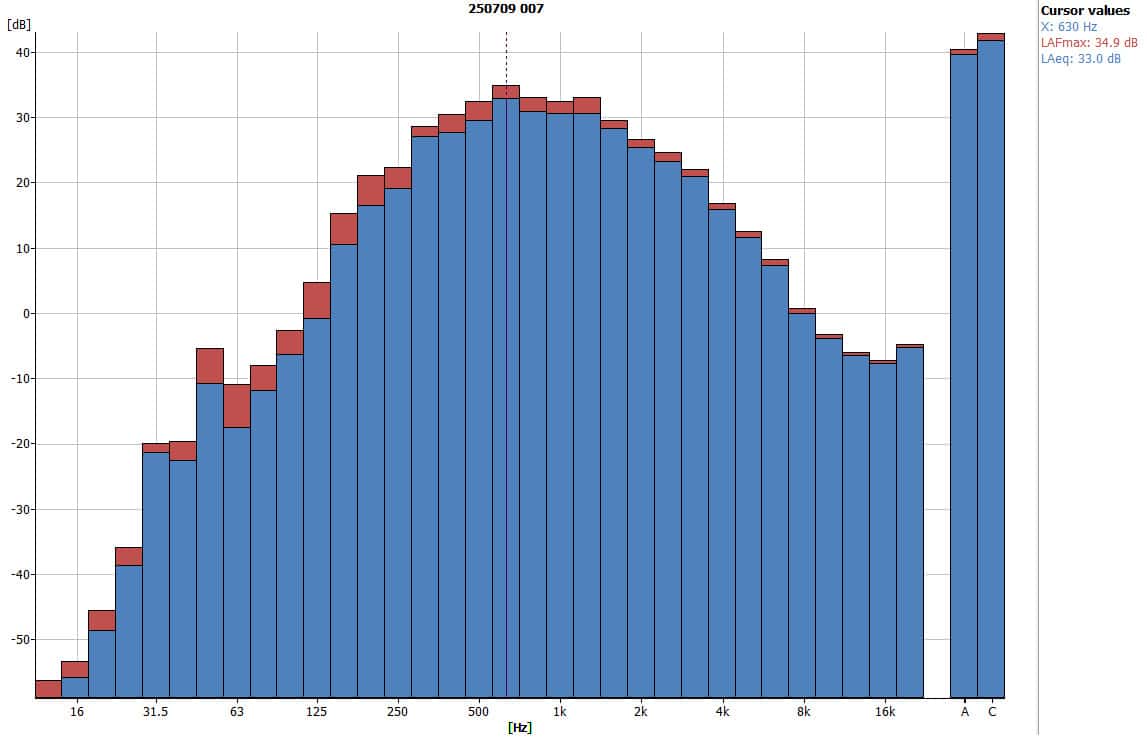

100% Fan Speed
- Peak frequency: 630 Hz
