Frequency Plots
| Fan Speed (PWM) | Peak Frequency |
|---|---|
| Fan 10% | 4 kHz |
| Fan 25% | 500 Hz |
| Fan 50% | 400 Hz |
| Fan 75% | 500 Hz |
| Fan 100% | 630 Hz |

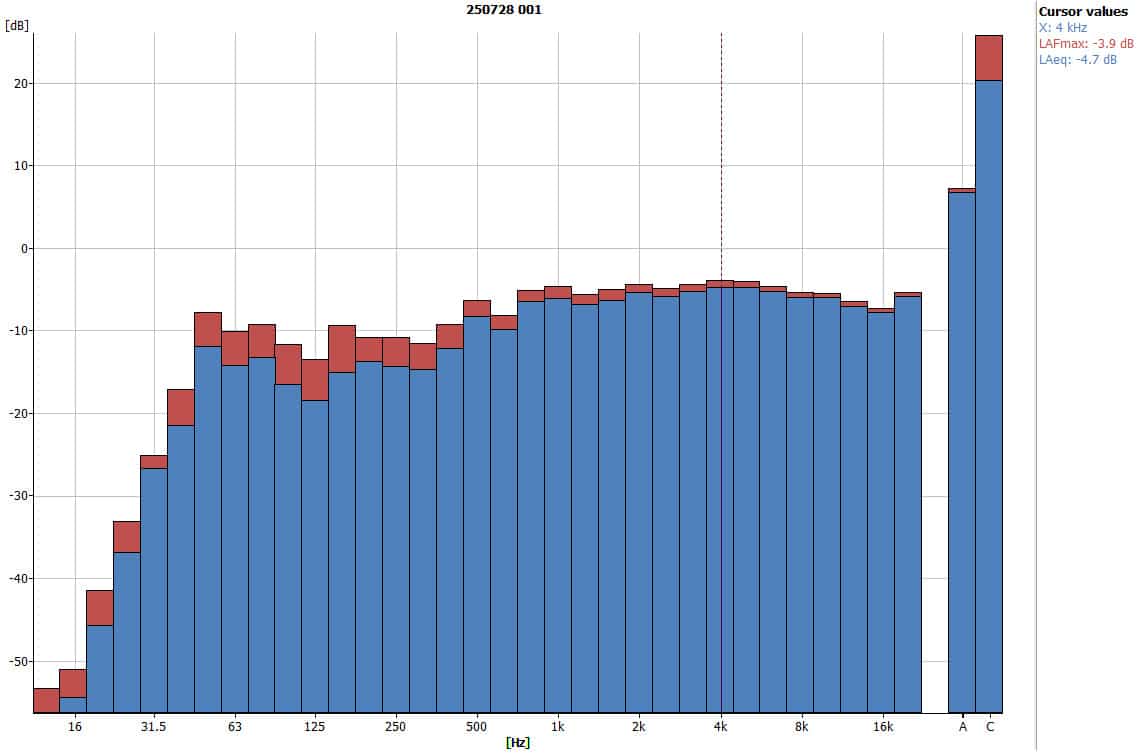

10% Fan Speed
- Peak frequency: 4 kHz

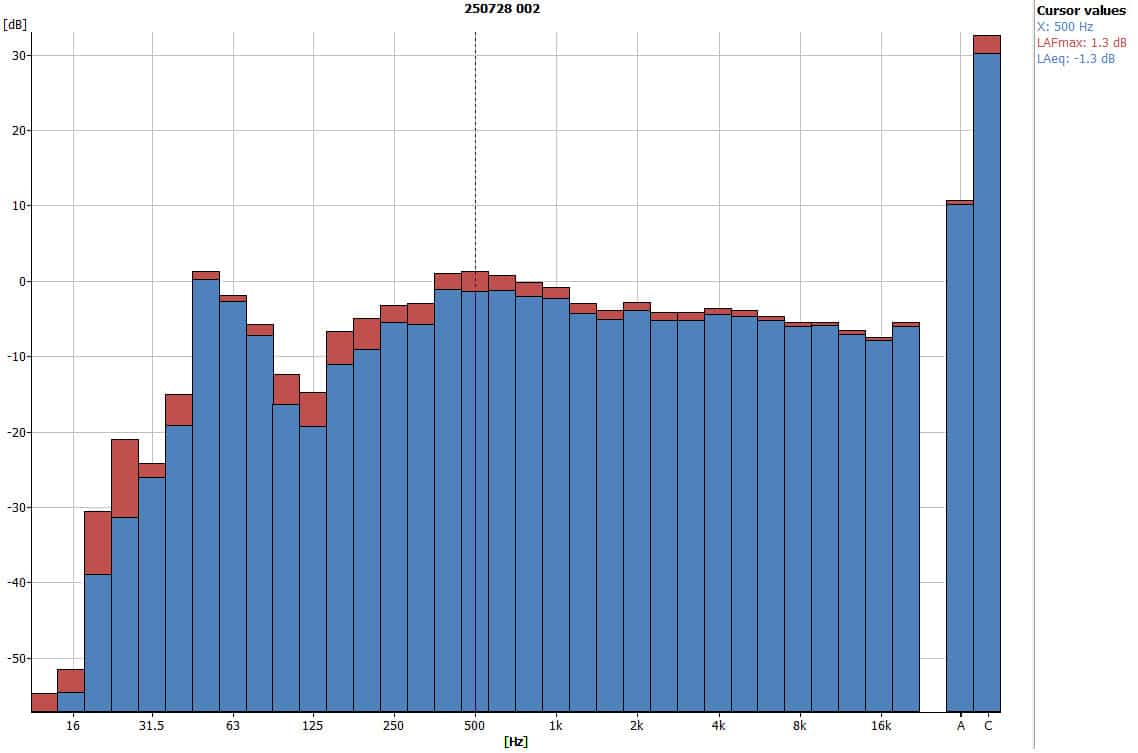

25% Fan Speed
- Peak frequency: 500 Hz
I ignore here the 50 Hz noise coming from the mains grid.

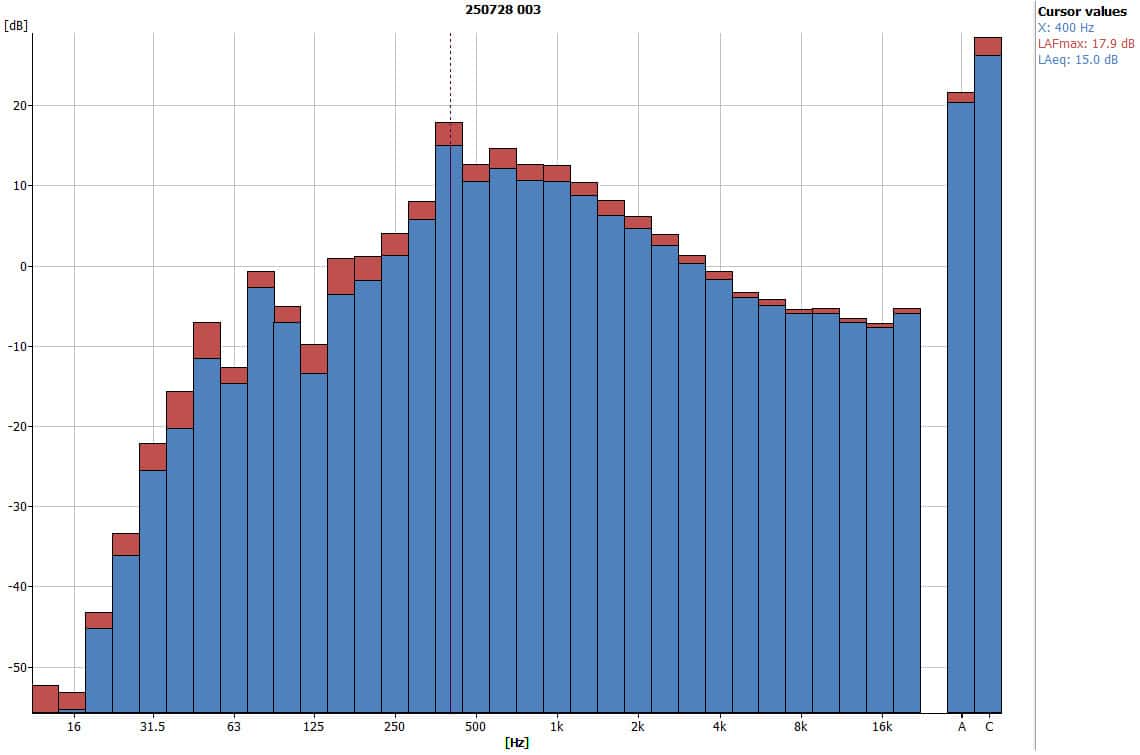

50% Fan Speed
- Peak frequency: 400 Hz

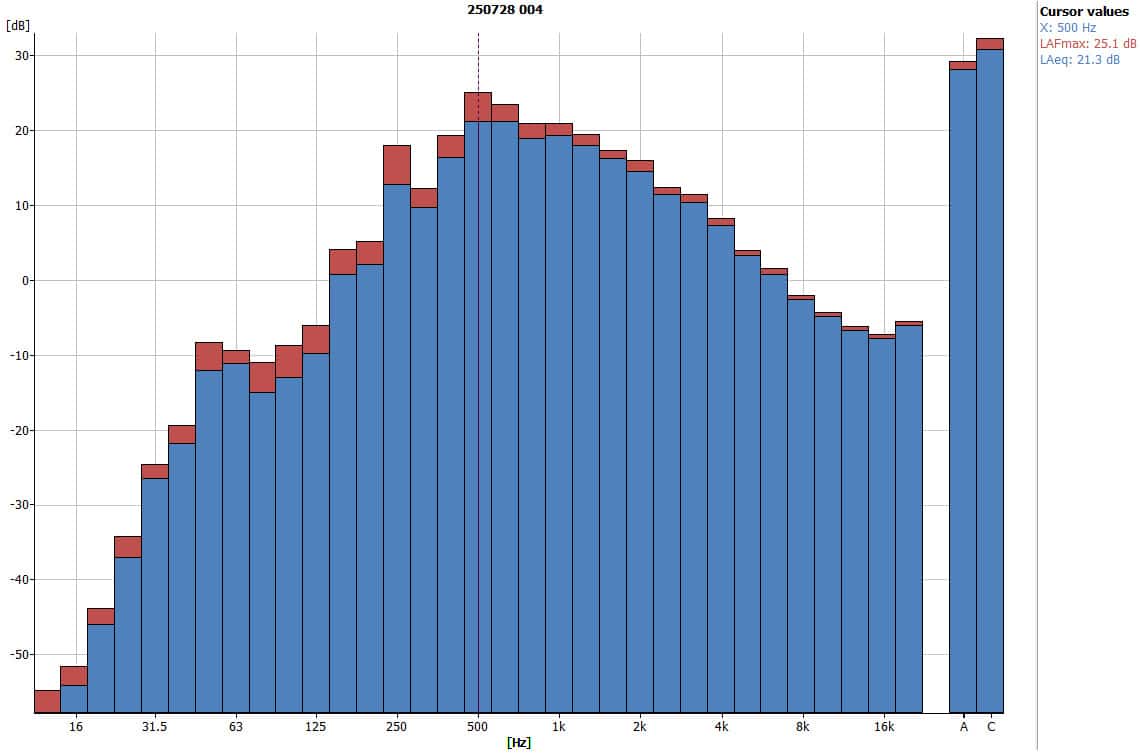

75% Fan Speed
- Peak frequency: 500 Hz

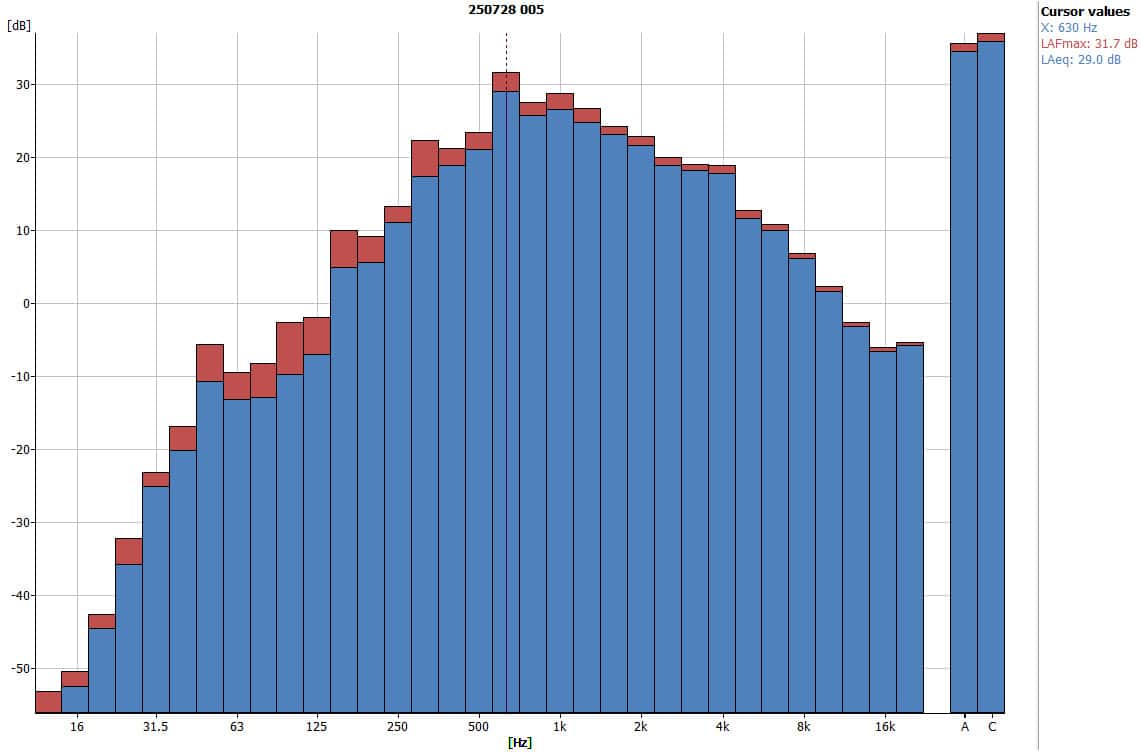

100% Fan Speed
- Peak frequency: 630 Hz
Signal Recordings
I’ve recorded the signals shown above, but please note that I’ve enabled Automatic Gain Control (AGC) to facilitate their reproduction. The provided recordings are intended for aural identification purposes only.
10% Fan Speed
25% Fan Speed
50% Fan Speed
75% Fan Speed
100% Fan Speed
