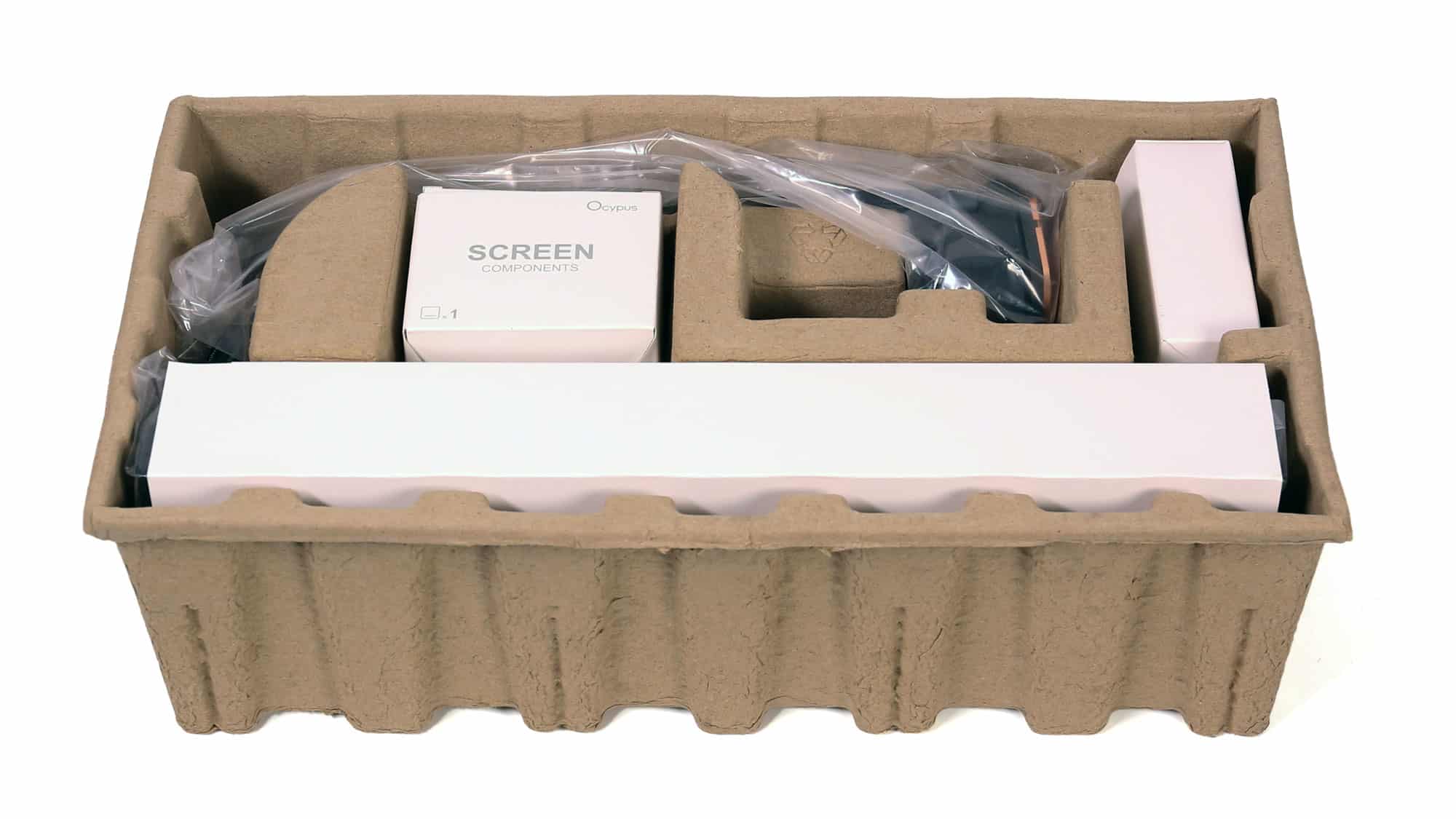

Box, Contents & Bundle
The box features a photo of the AIO on its face. Around the back, you will find the product’s technical specifications.
Bundle Analysis | |
---|---|
Part | Quantity |
120mm fans (DF1202512CM) | 3 |
Intel backplate | 1 |
Intel bracket | 1 |
AMD bracket | 1 |
Radiator screws | 12 |
Mount screws | 8 |
Thumb screws | 4 |
AMD standoffs | 4 |
Thermal paste tube | 1 |
3-way fan cable splitter | 1 |
Low noise fan cable | 1 |
Velcro Straps | 2 |
LCD Screen | 1 |

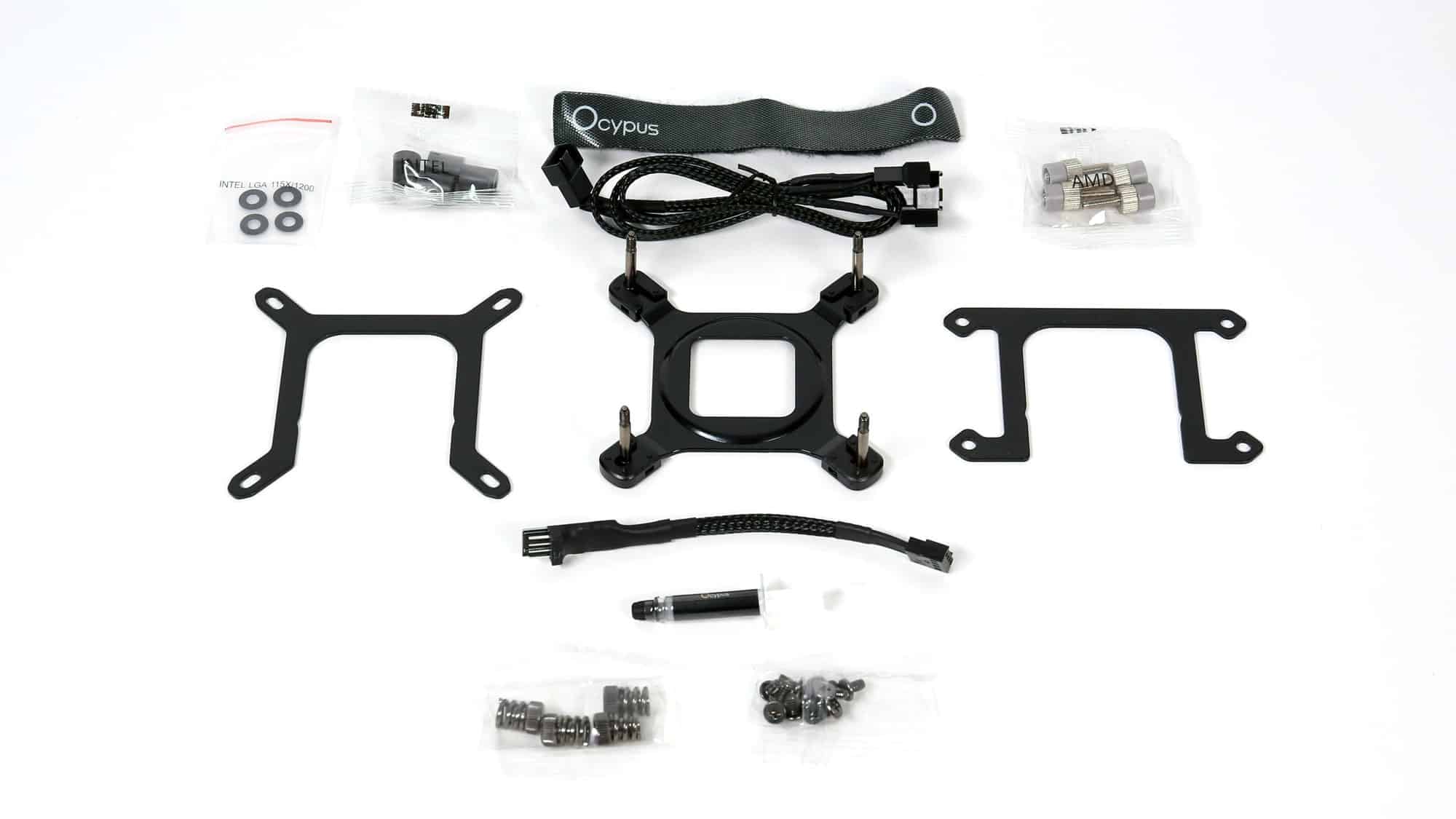

The bundle includes all shown above.

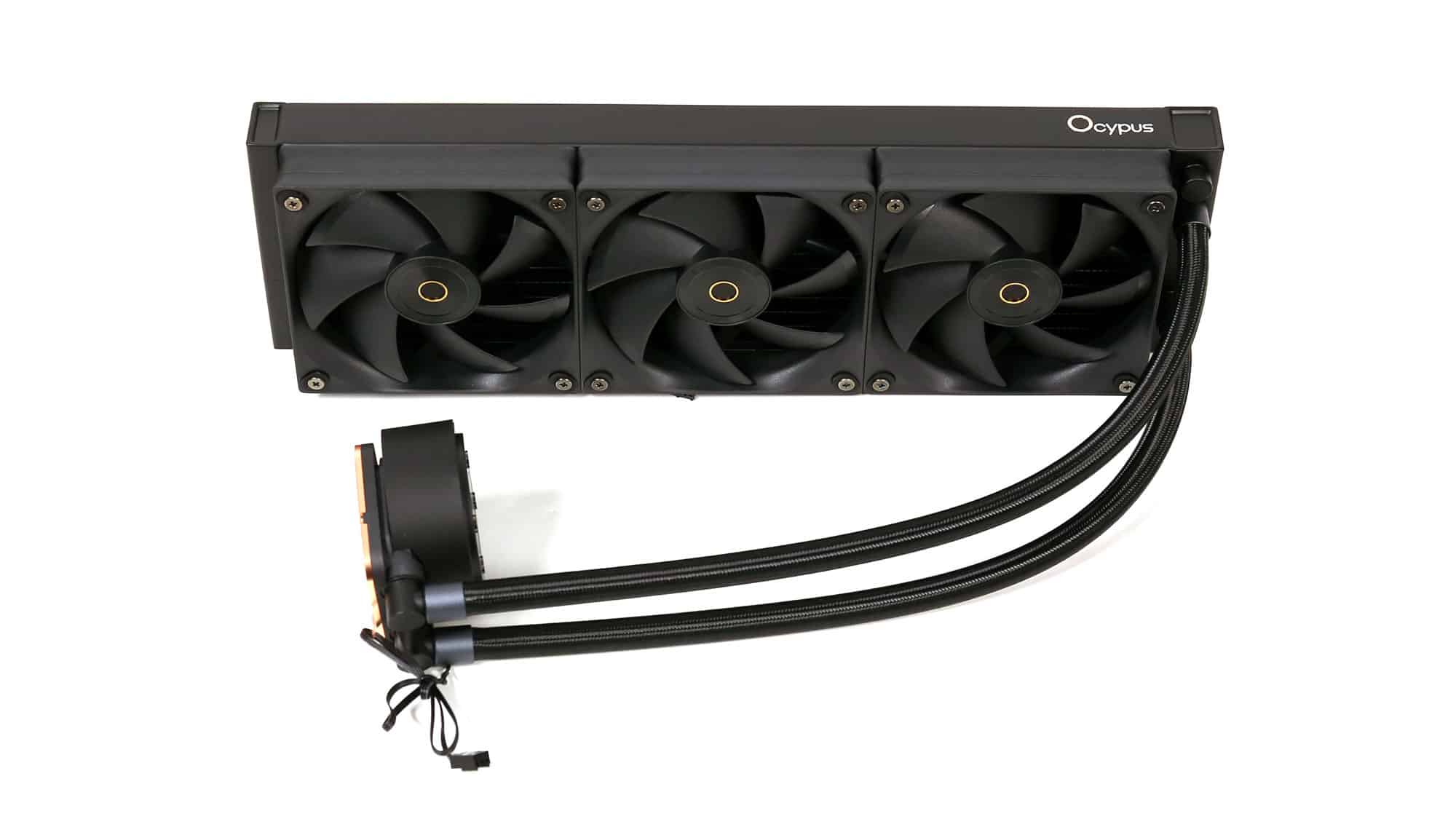

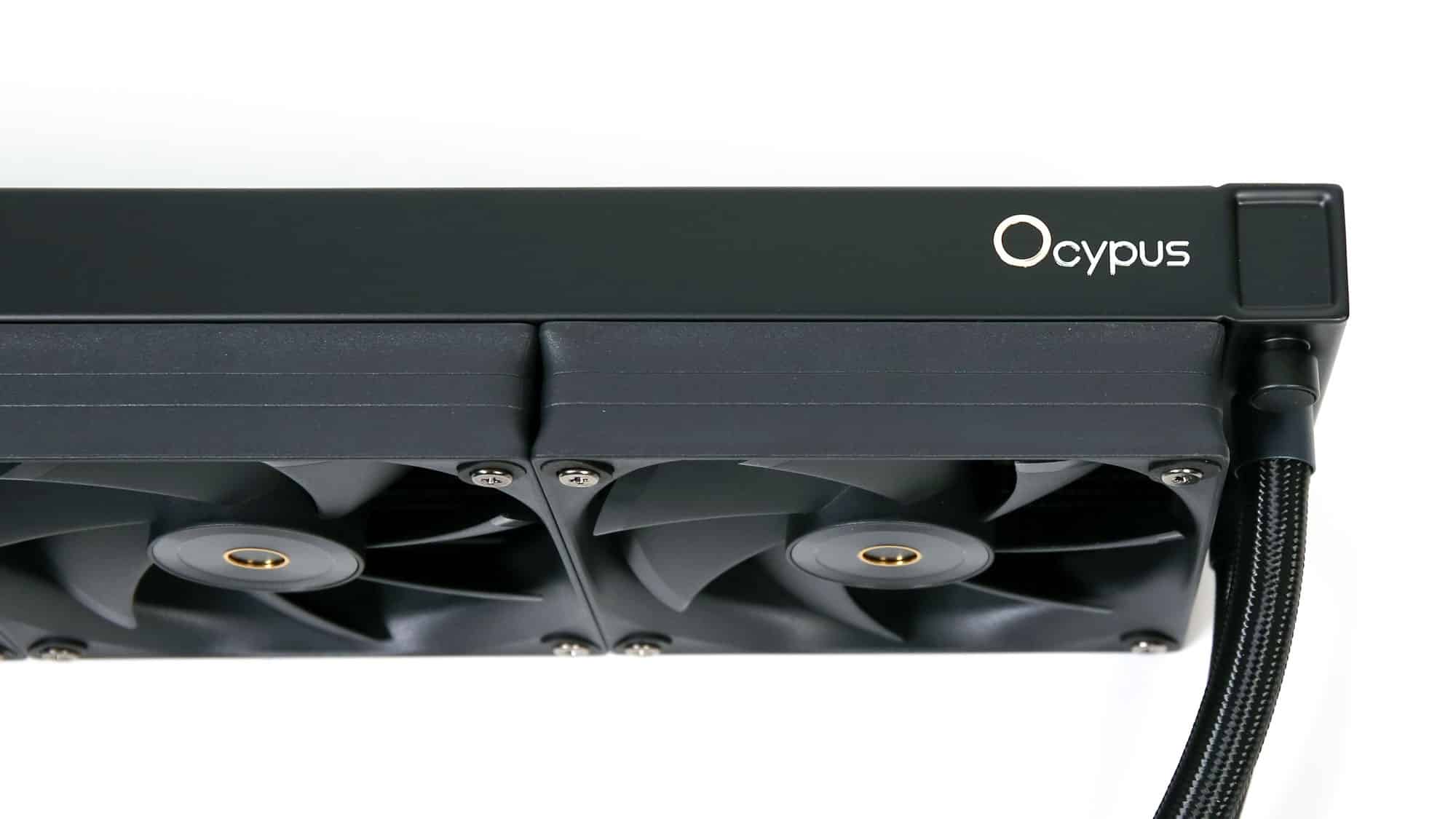

The AIO comes with the fans pre-installed, which is a significant asset.

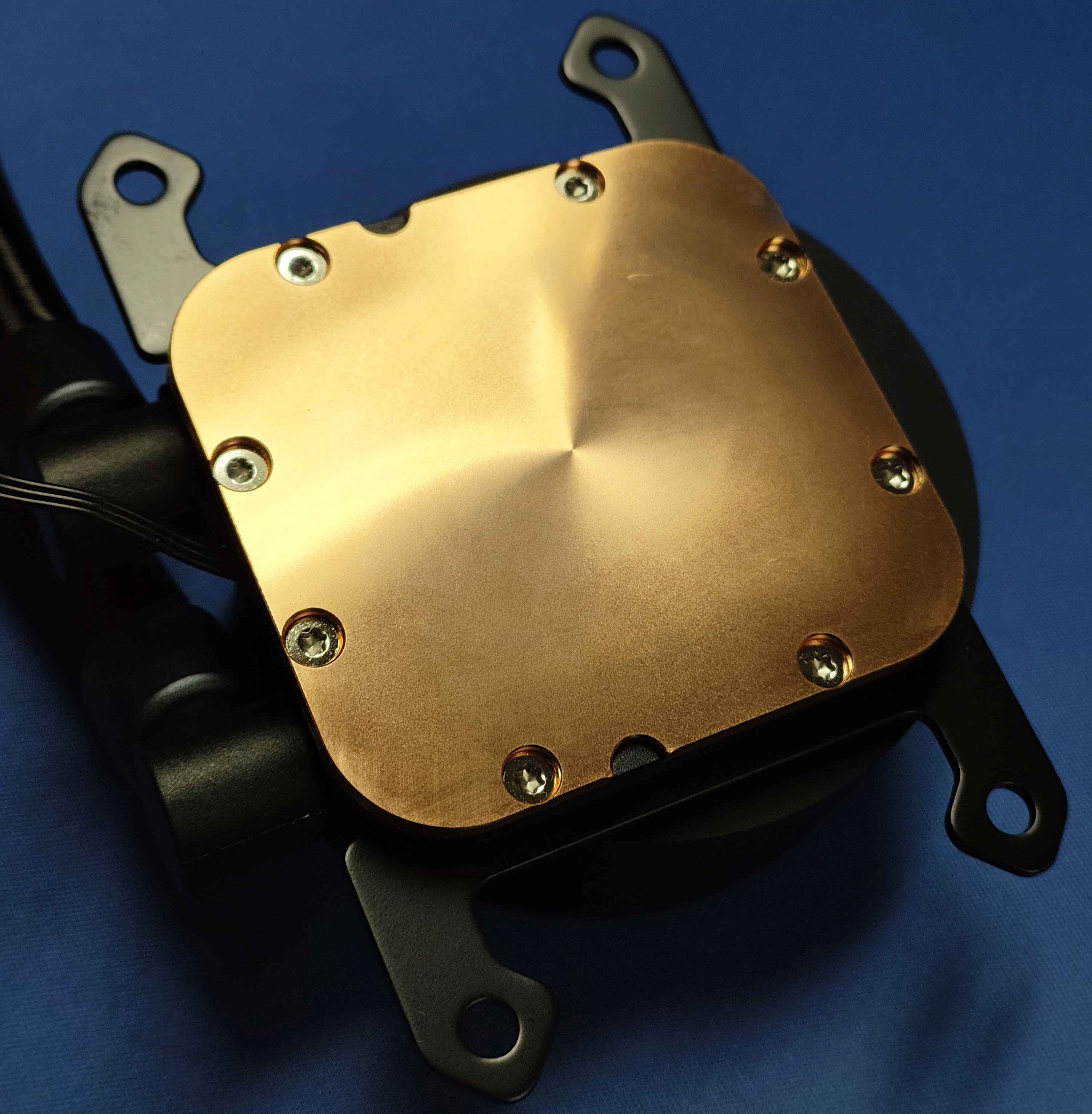

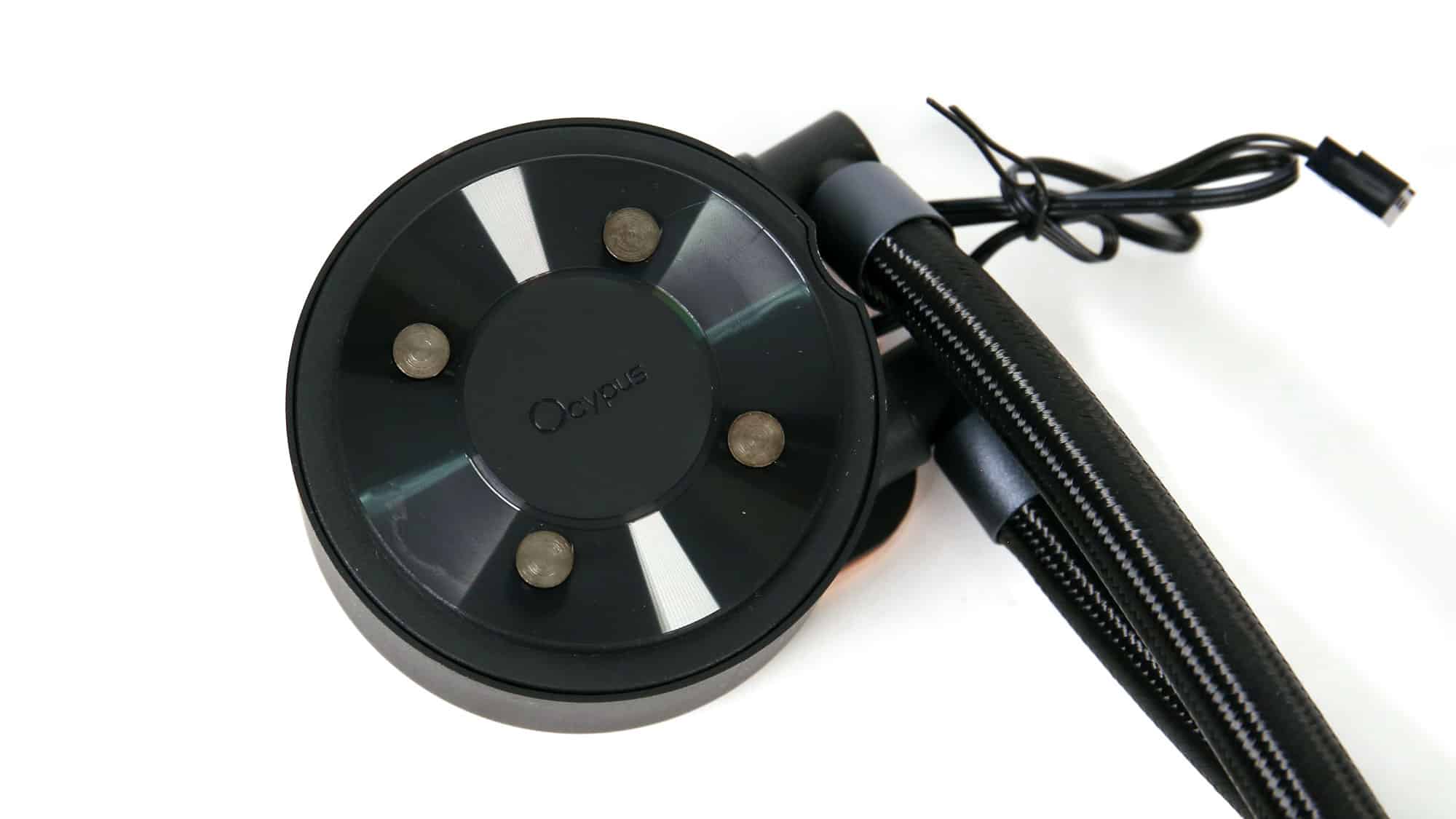

The AIO’s block has a convex base.

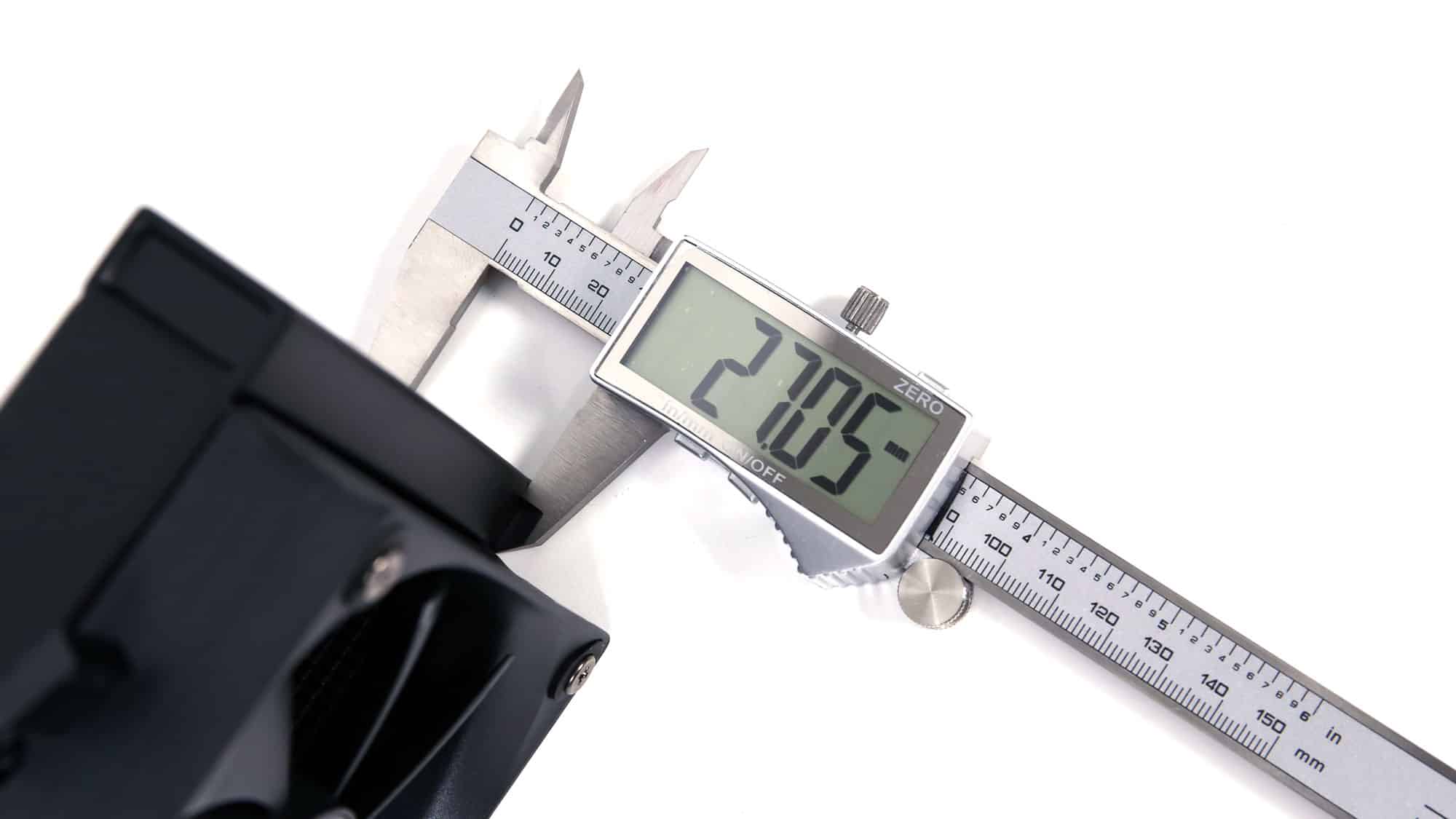

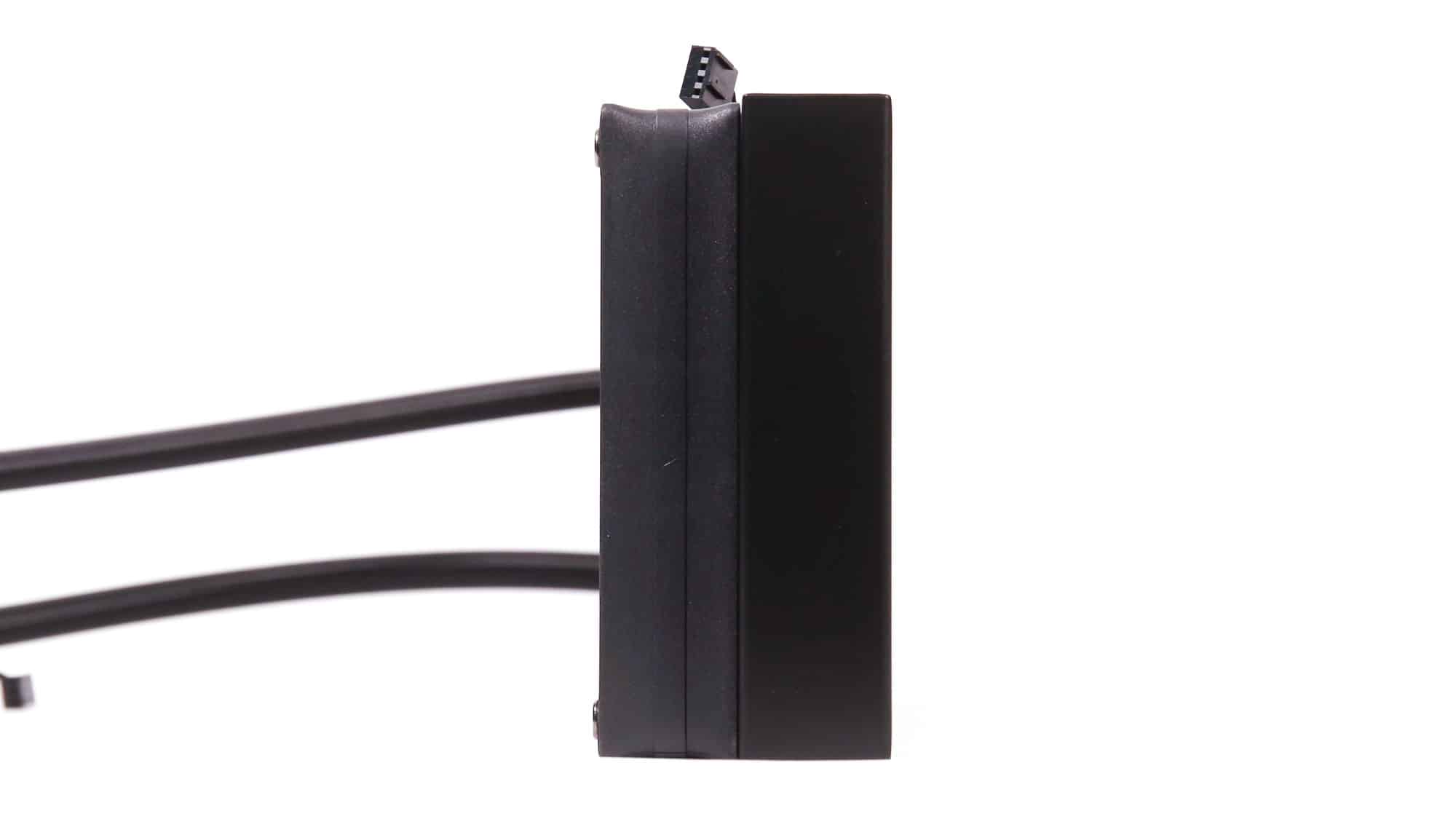

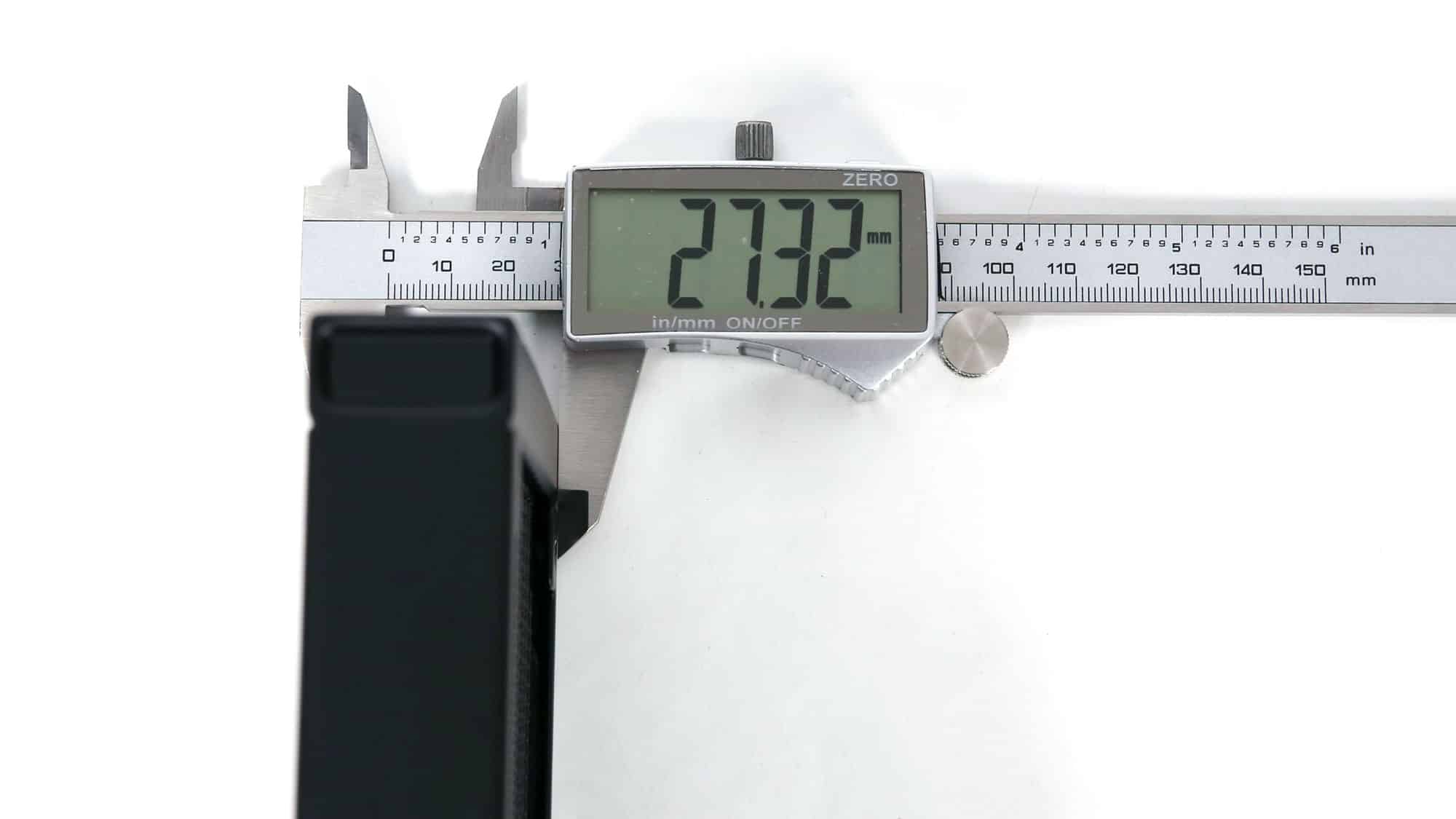

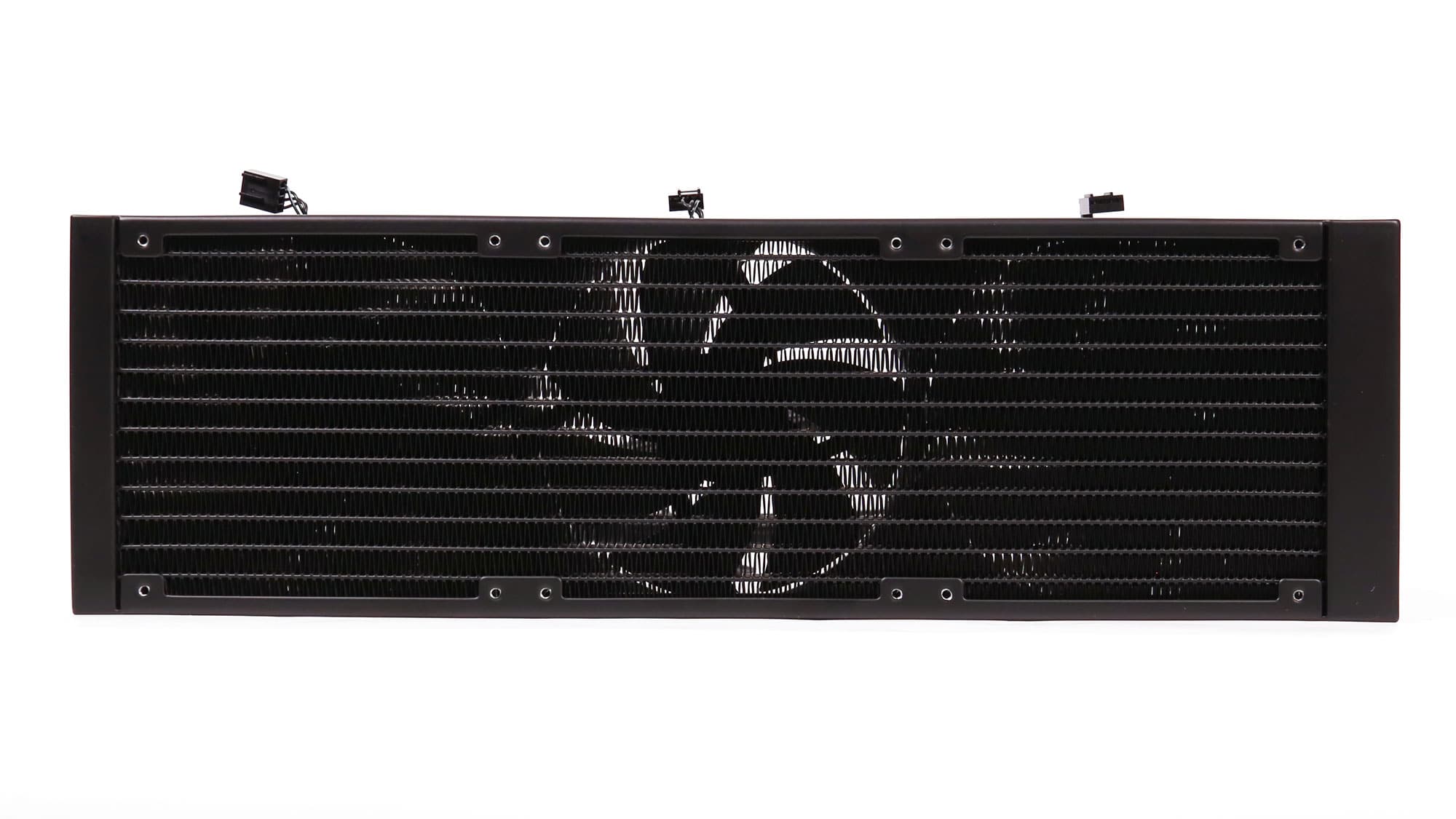

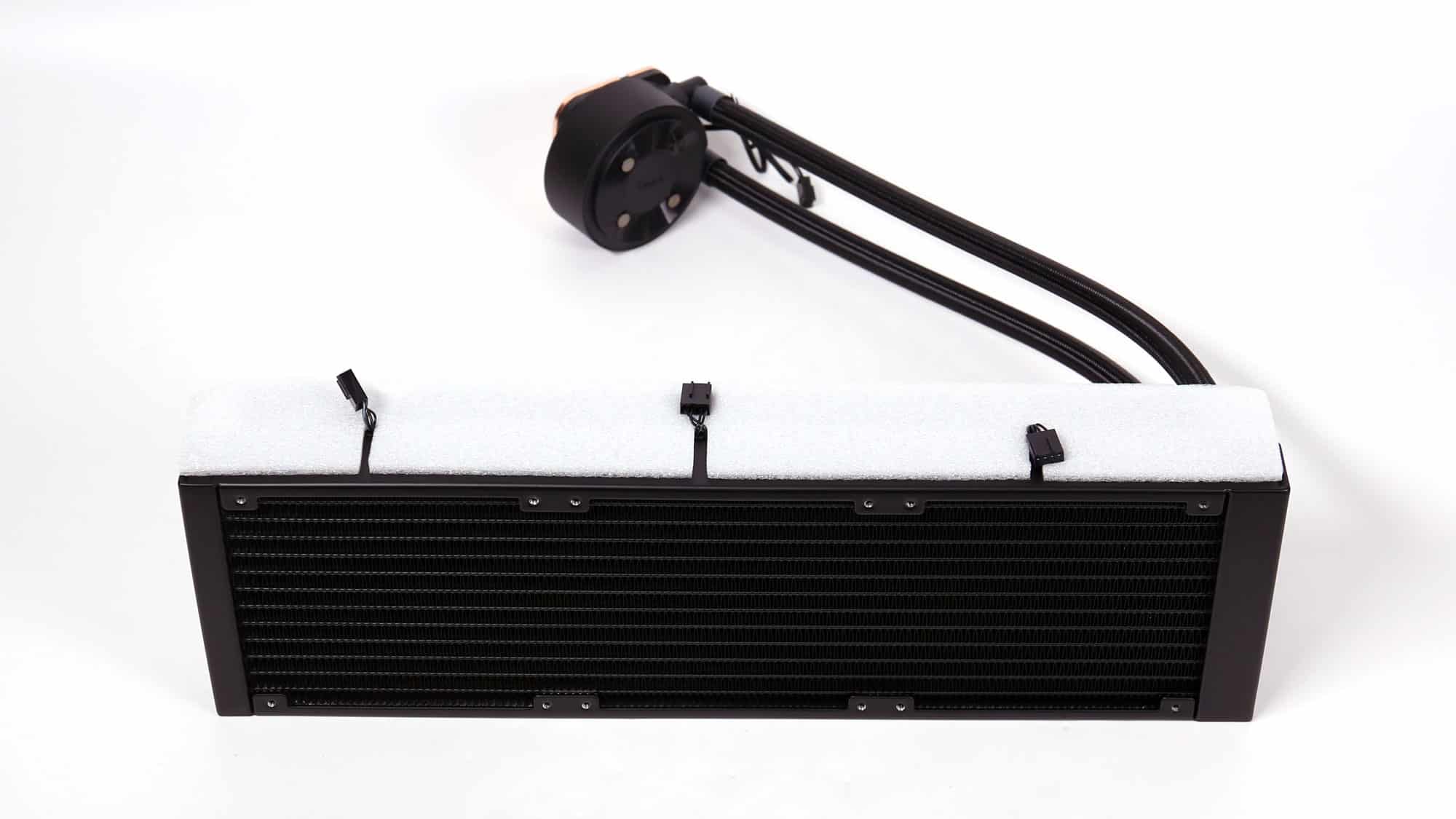

The radiator has a refill port, which extends the AIO’s lifespan. The tubes connecting it to the block are flexible, but at 400mm, they aren’t so long. I would like to see them extending up to 450mm. Lastly, the radiator with its 27mm depth won’t have compatibility issues with most chassis.

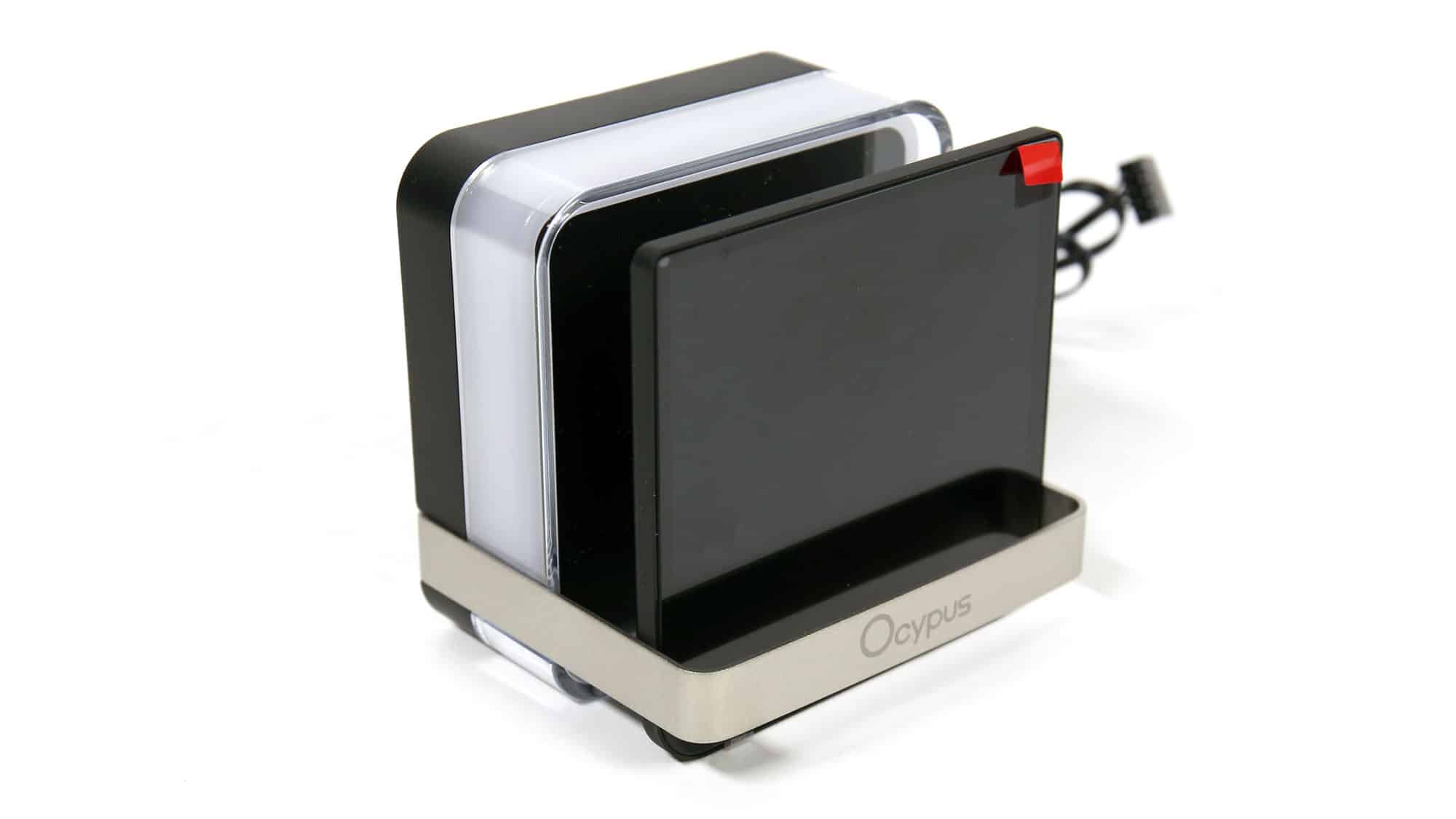

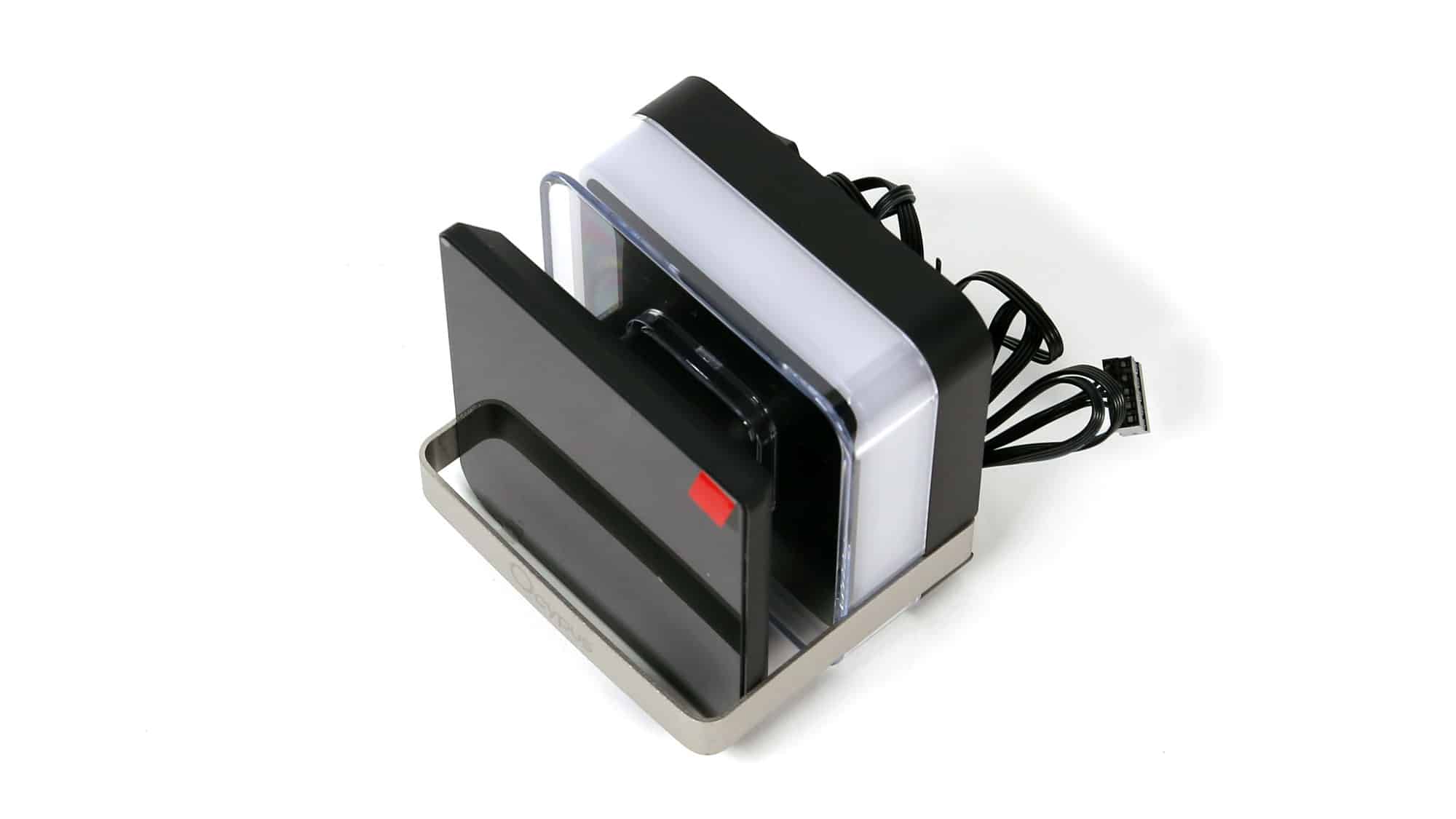

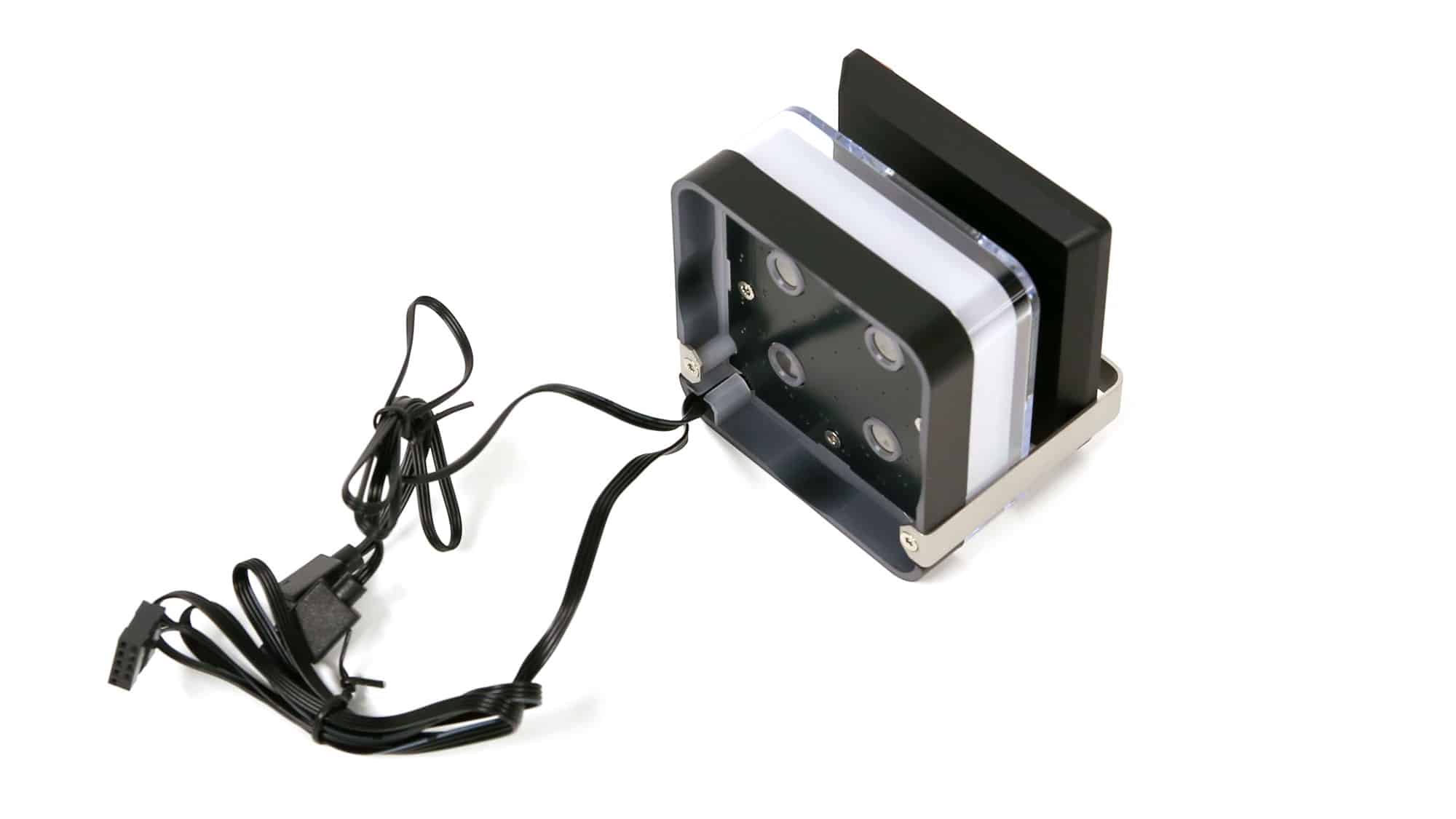

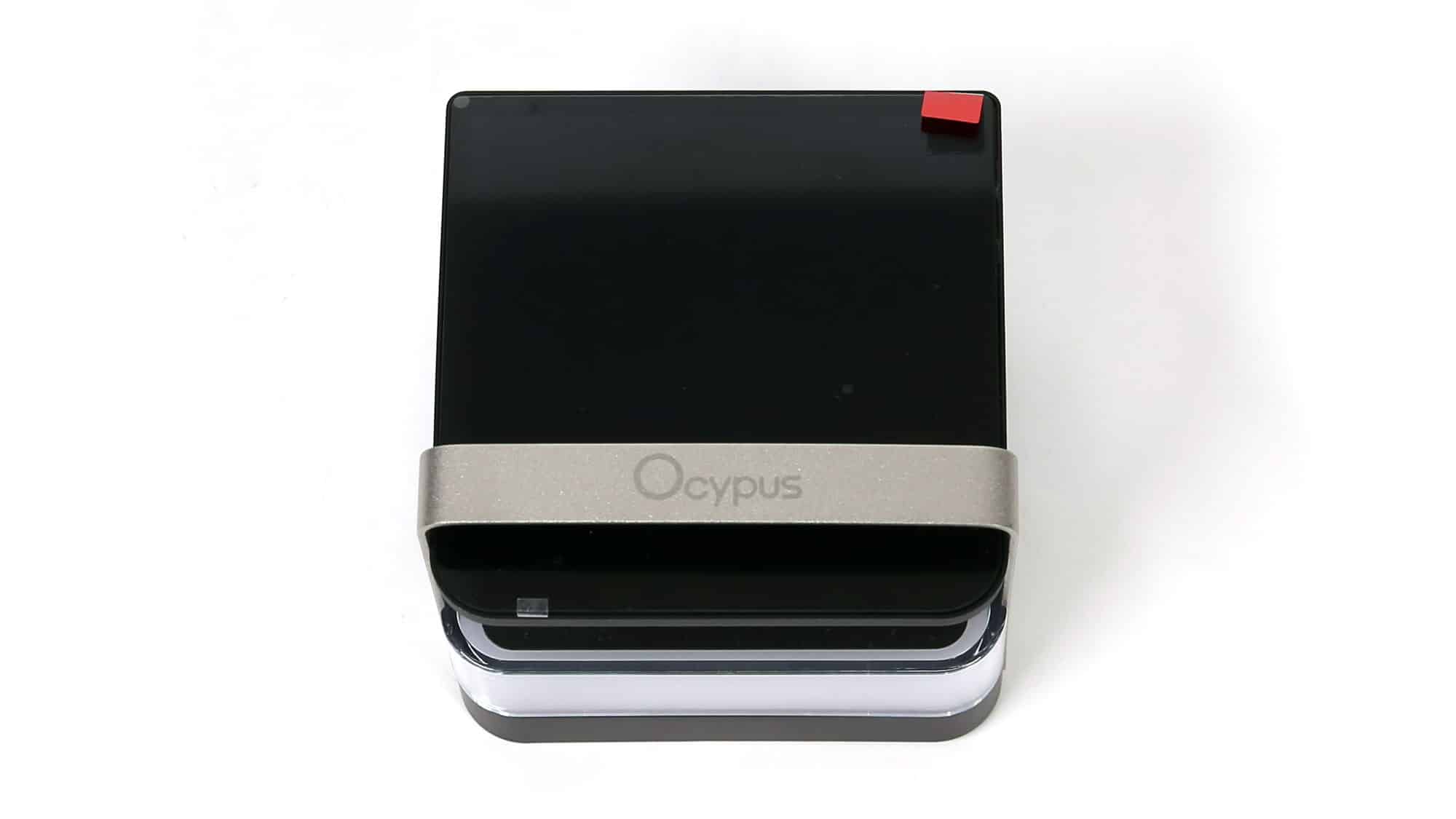

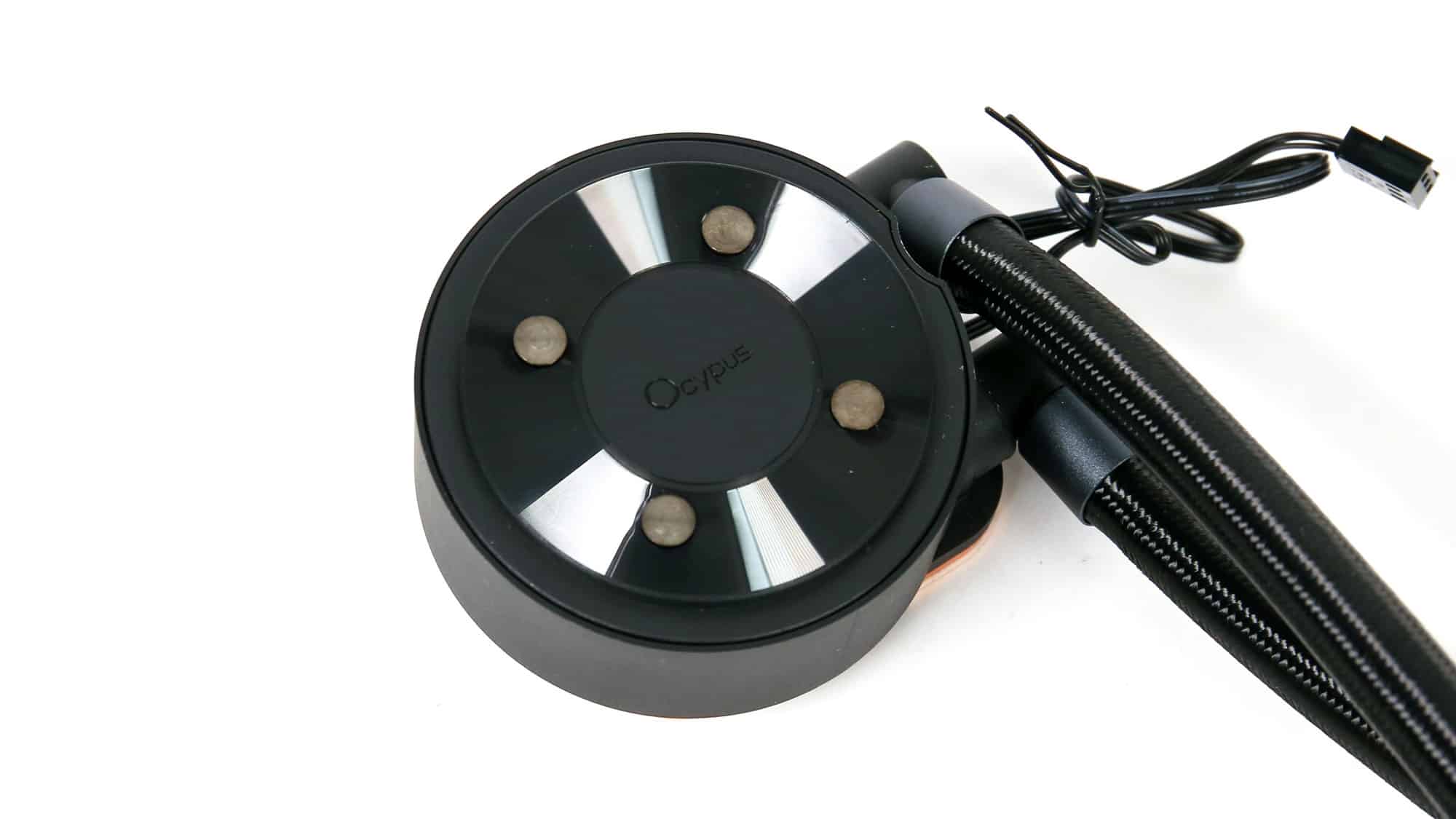

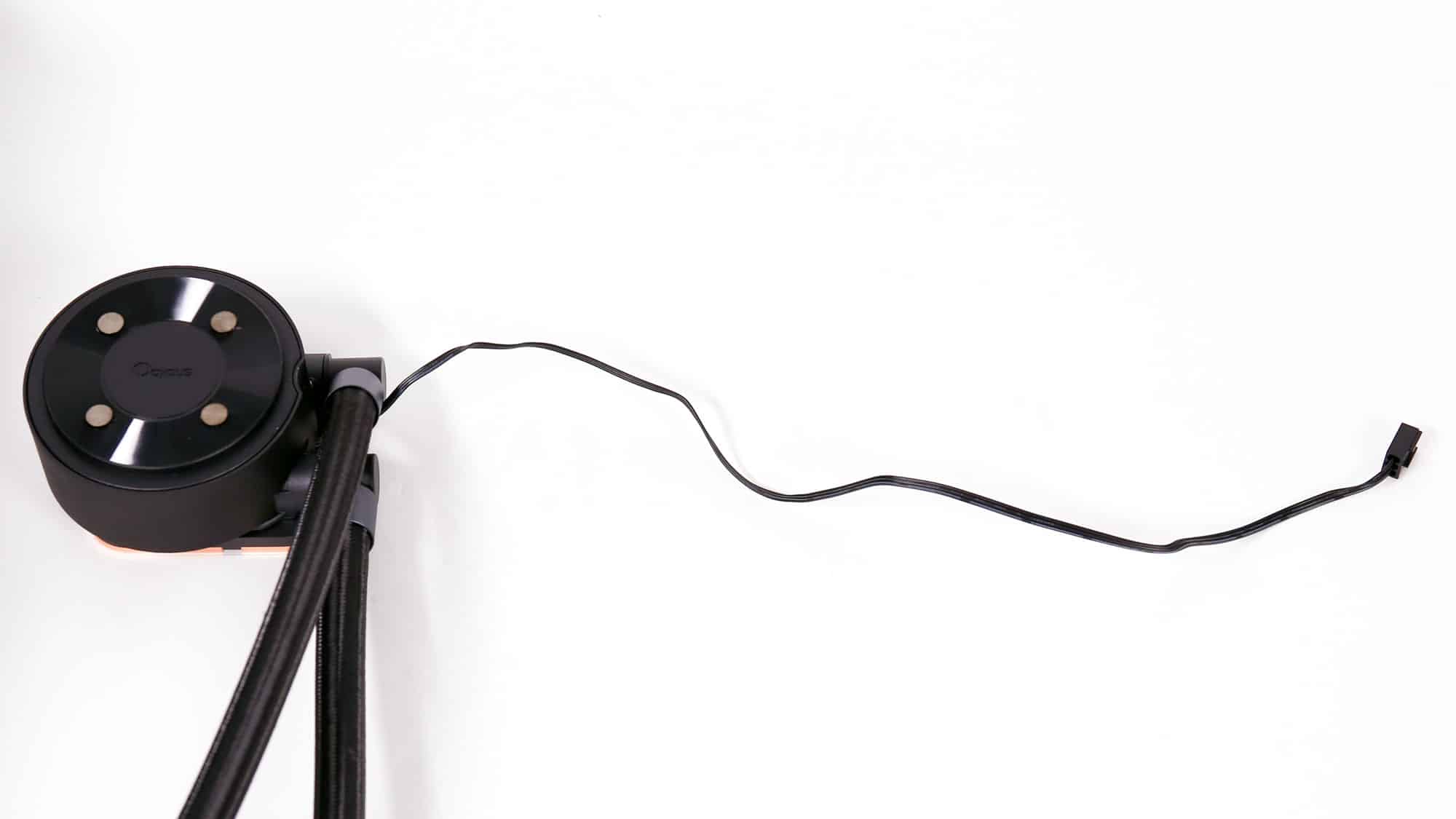

Photos of the block, which also includes the pump and the IPS display. The display doesn’t come pre-installed, but it is in a separate box, and Ocypus provides the necessary instructions on how to mount it on the block. Some reviewers state that the magnetic connection of the display to the block is weak, but personally, I found it to be ok. After all, you will mount it and you won’t struggle with it once this is done!

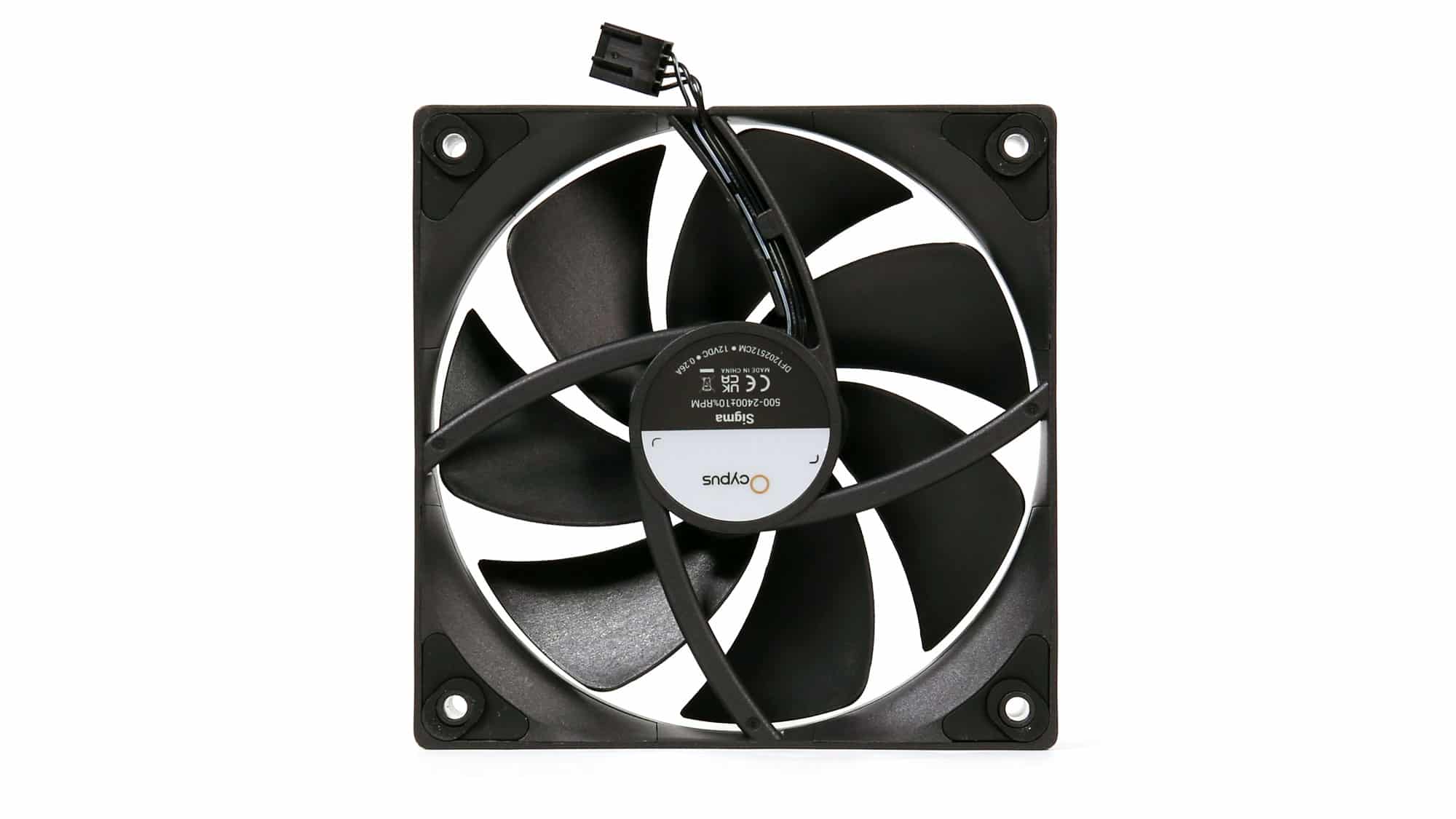

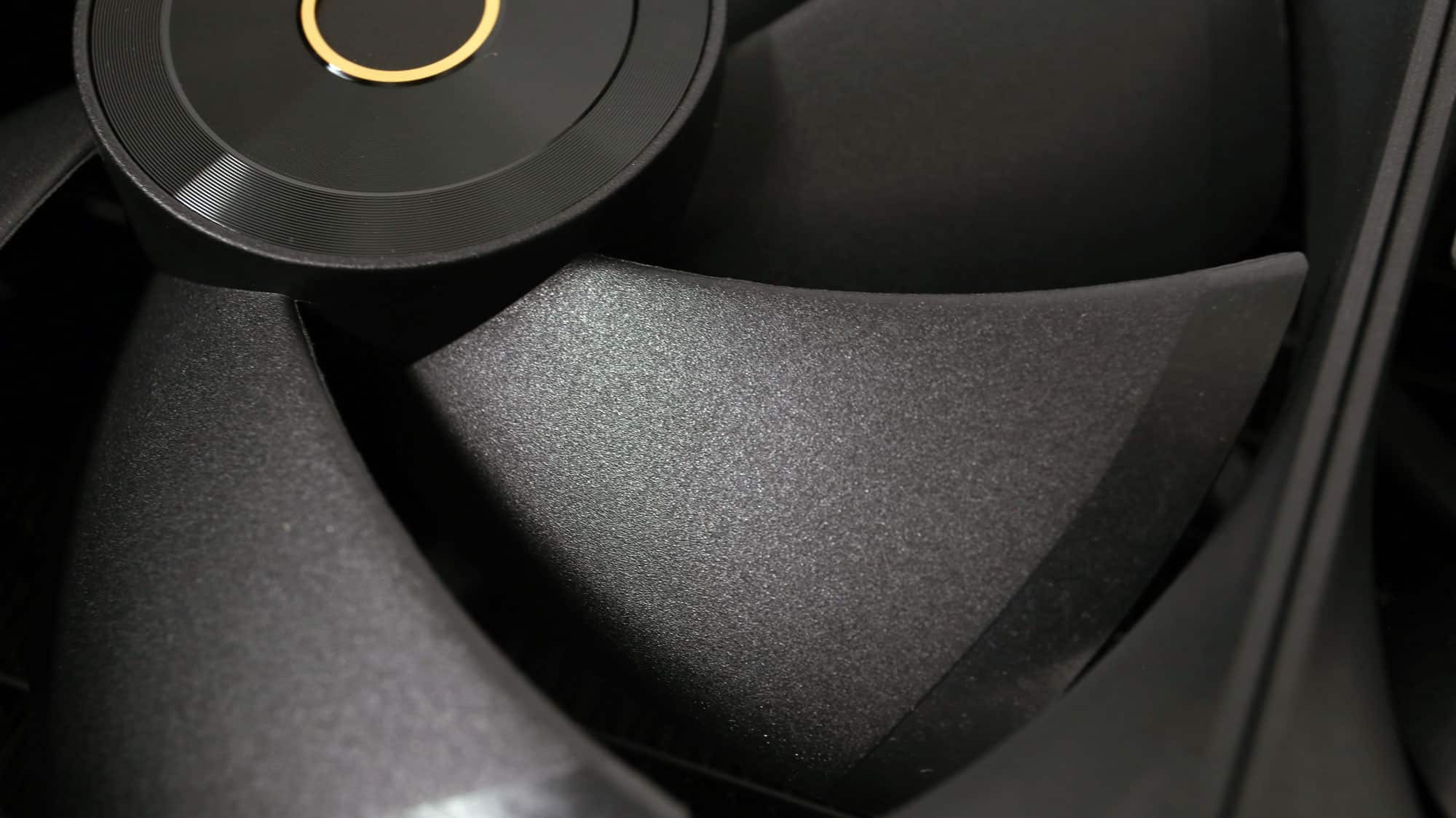

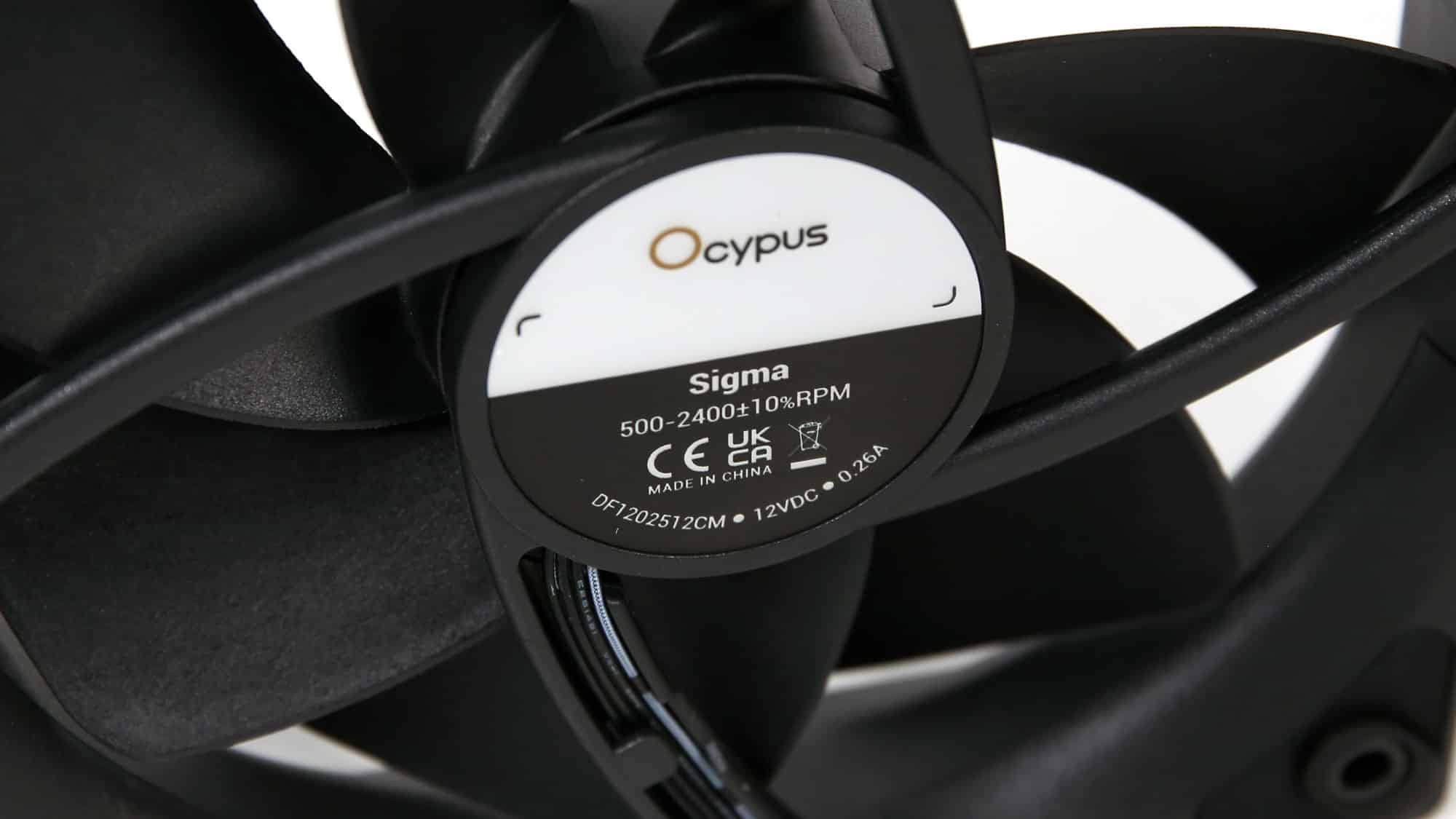

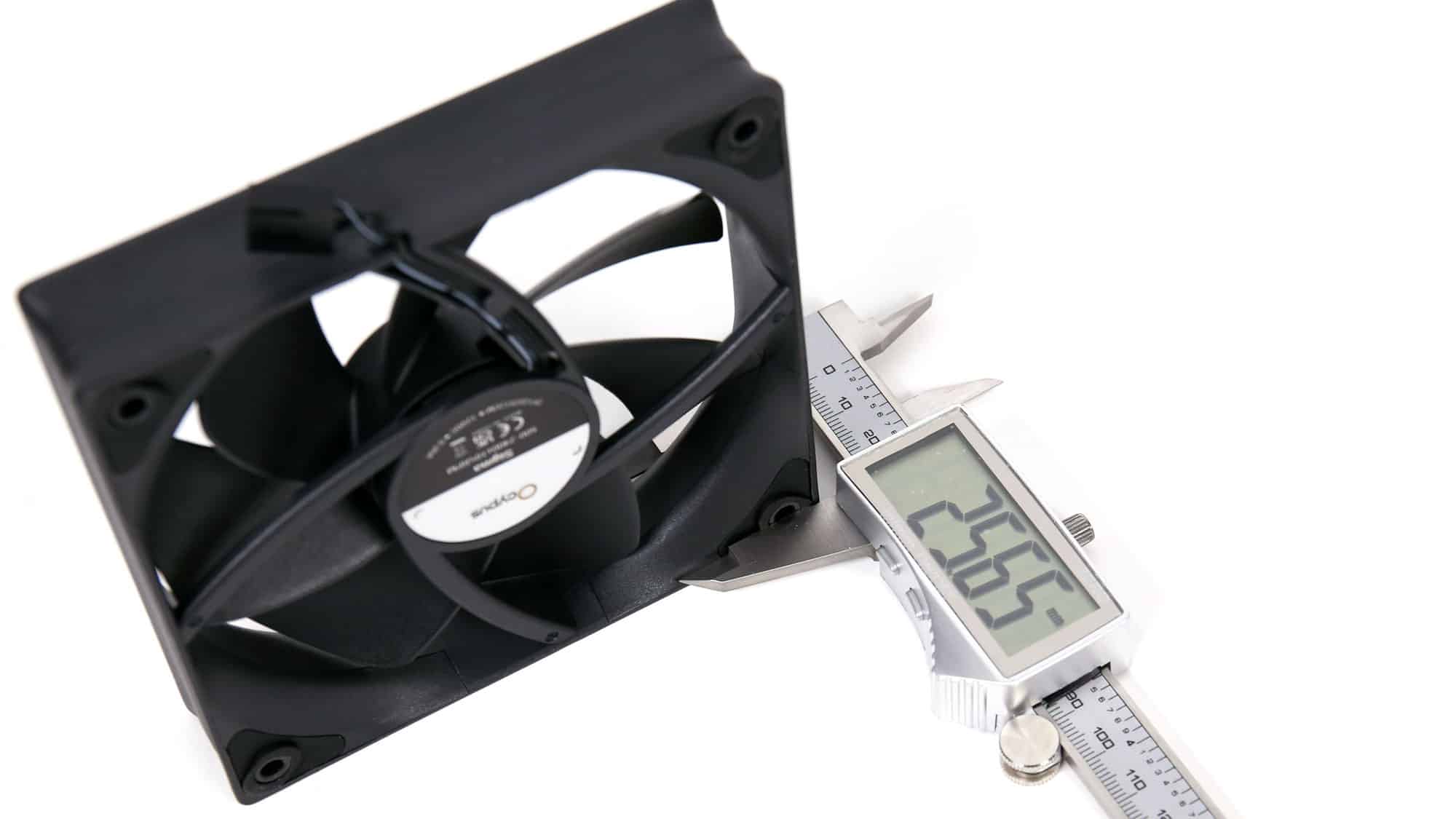

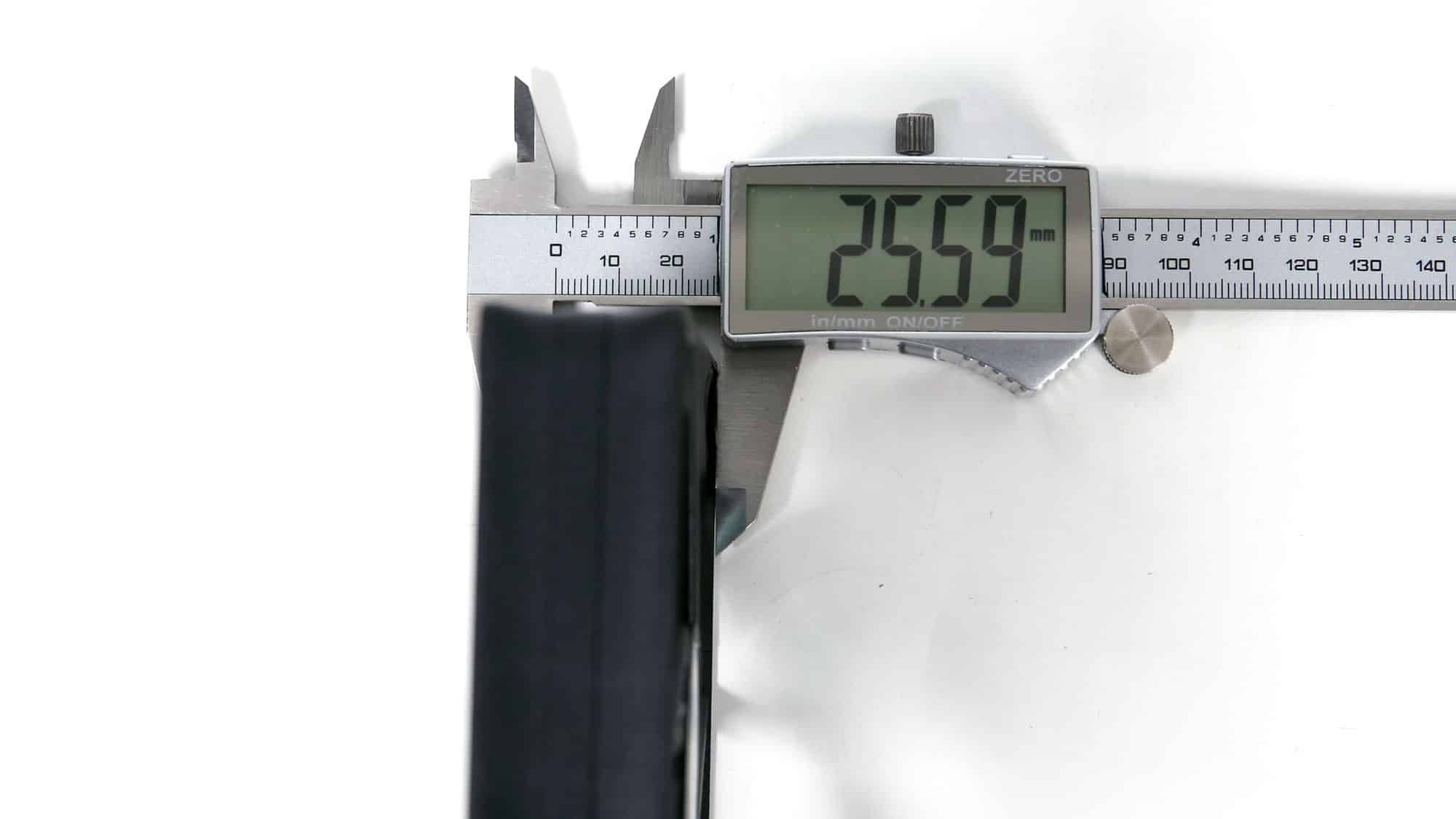

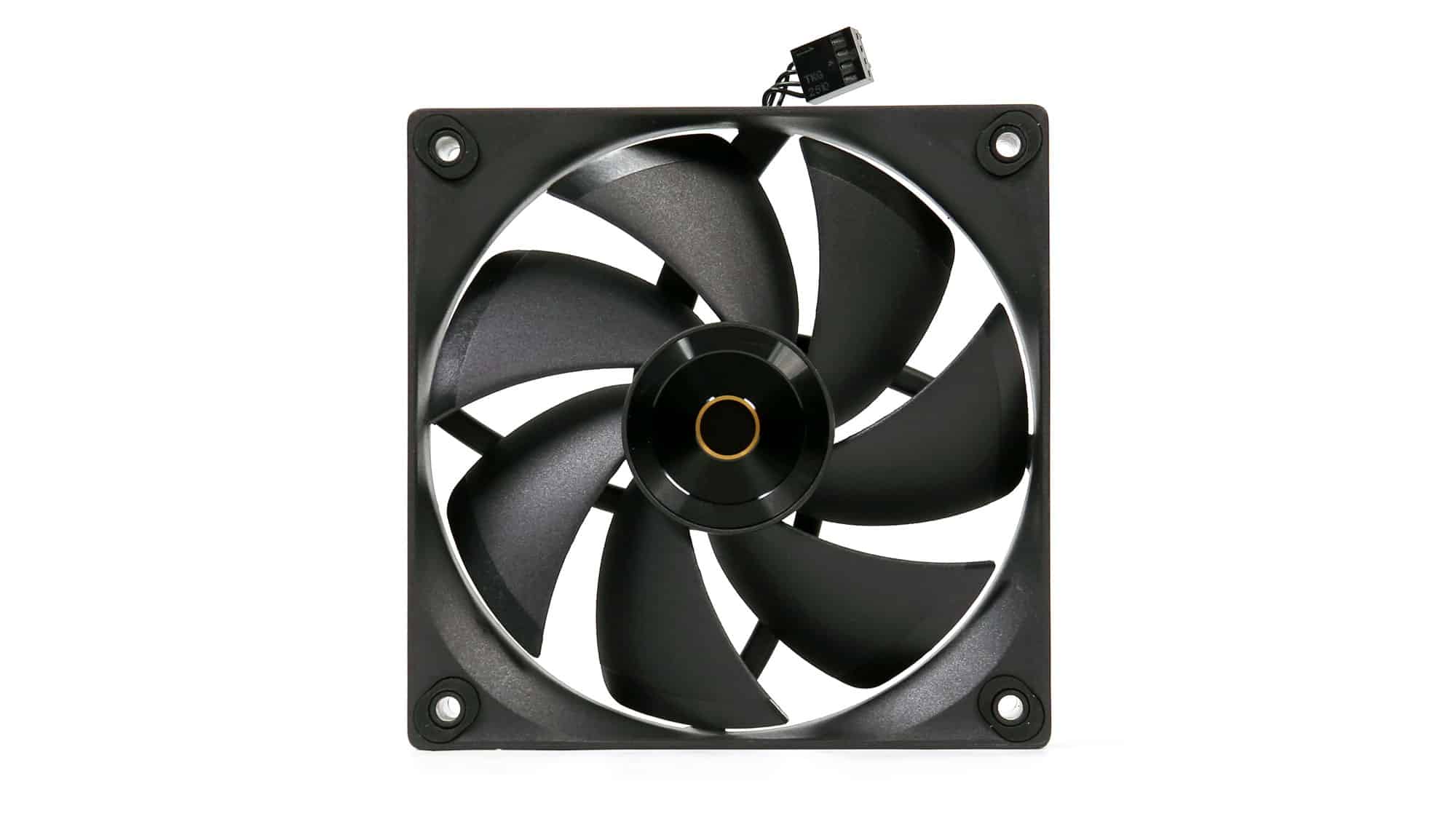

The fans use fluid dynamic bearings.
