Box, Contents & Bundle
The box is large, providing ample protection for the expensive fan. Noctua also provides a rich bundle, which you can check below.
| Bundle Analysis | |
| Part | Quantity |
| NA-RC7 Low-Noise Adaptor (L.N.A.) | 1 |
| NA-YC1 4-pin PWM splitter cable | 1 |
| NA-EC1 30cm extension cable | 1 |
| NA-AV2 anti-vibration mounts | 4 |
| NA-AVG1 anti-vibration gasket for water cooling radiators | 1 |
| Fan screws | 4 |

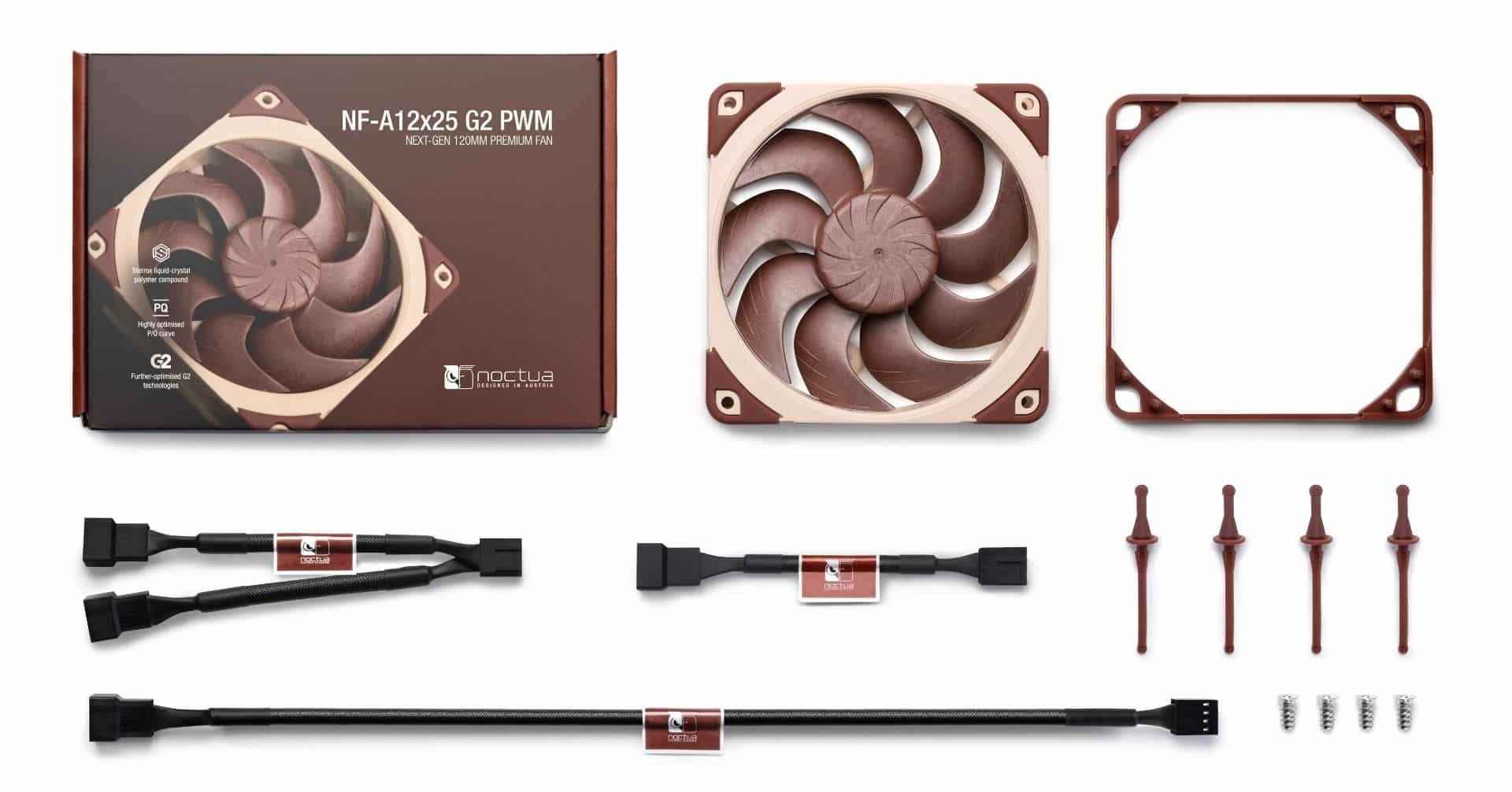

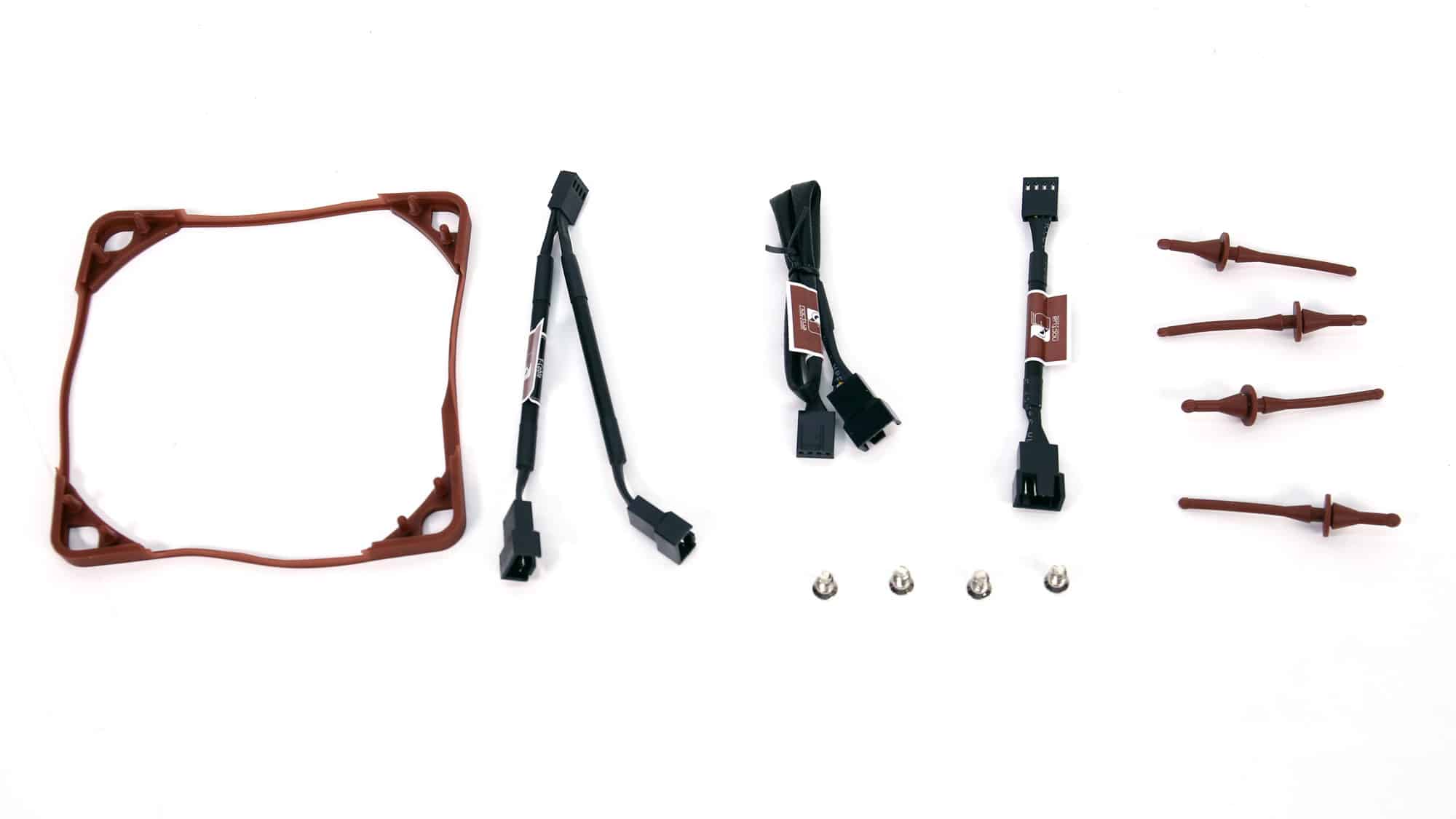

The bundle includes all shown above.
 |
 |

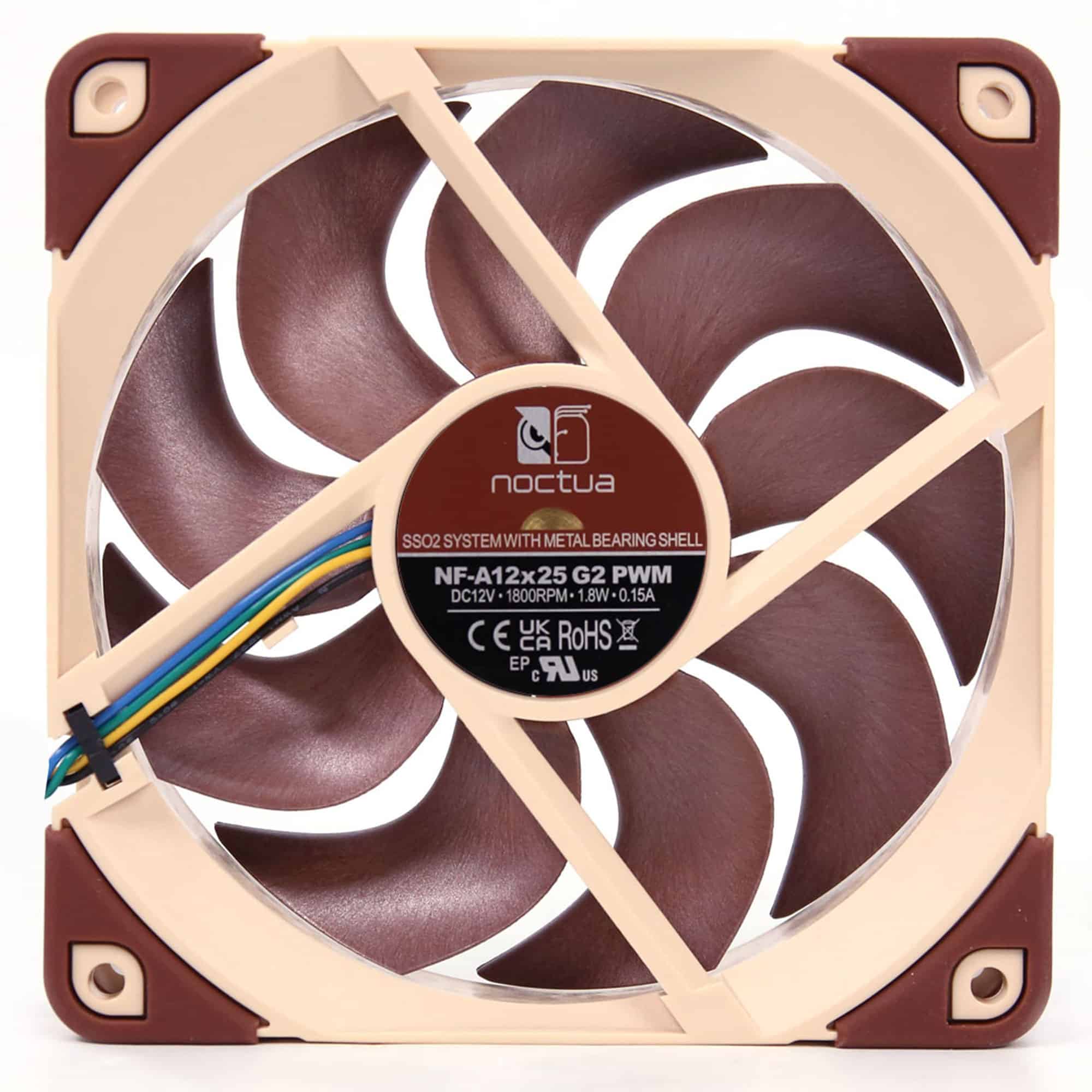

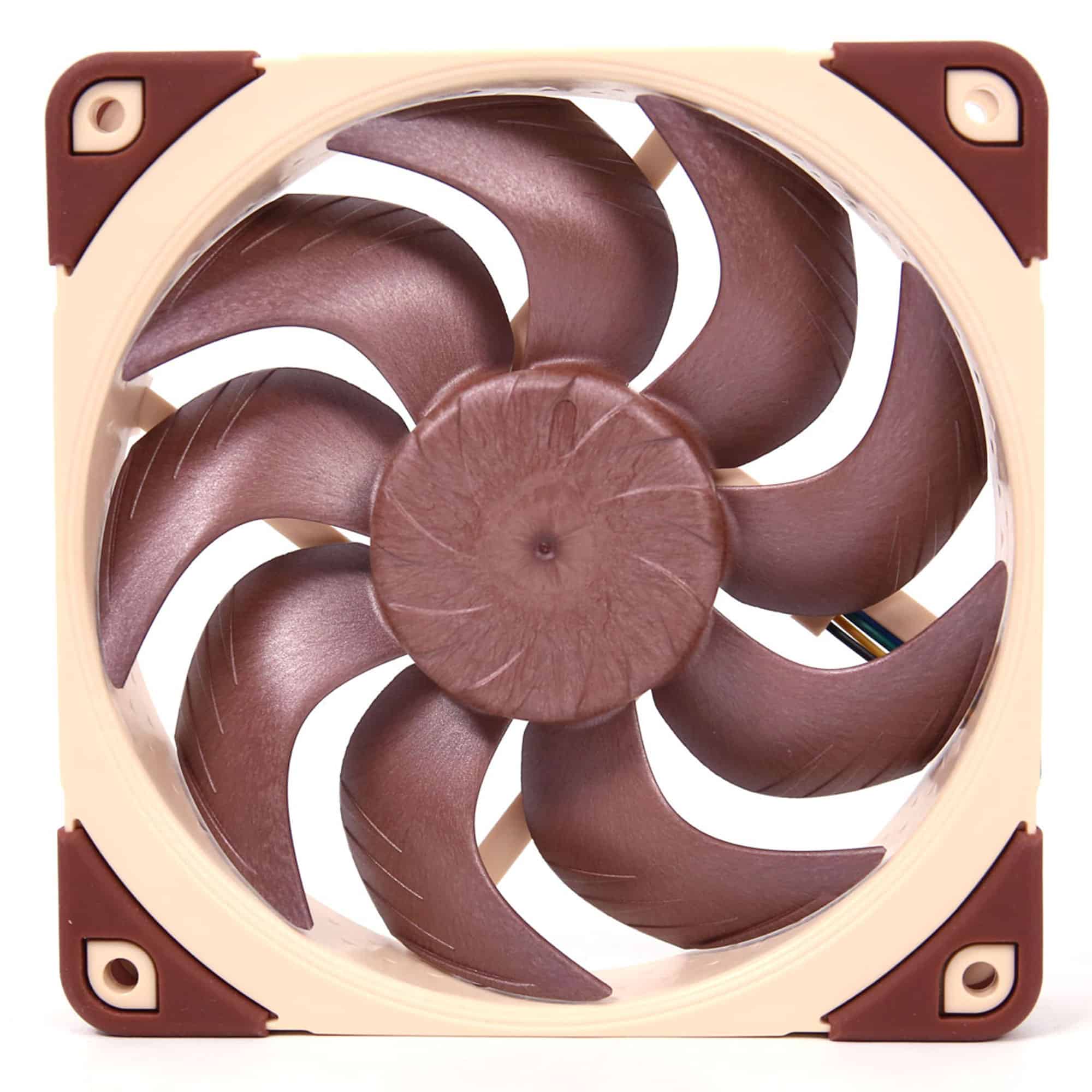

The fan features nice blades, and its build quality is top-notch. The anti-vibration pads in its corners are large to absorb vibrations. I know that many of you hate the original Noctua colors, but I don’t have a problem with them. They kind of look old-school, though. Moreover, from the photos above, you can see the very narrow gap between the tip of the fan blades and the fan’s frame. The smaller this gap is, the more reduced is leakage flow, leading to higher pressure, increased efficiency, and a wider stable operating range. Furthermore, low tip clearances help to minimize noise generated by the interaction of airflow with the casing.

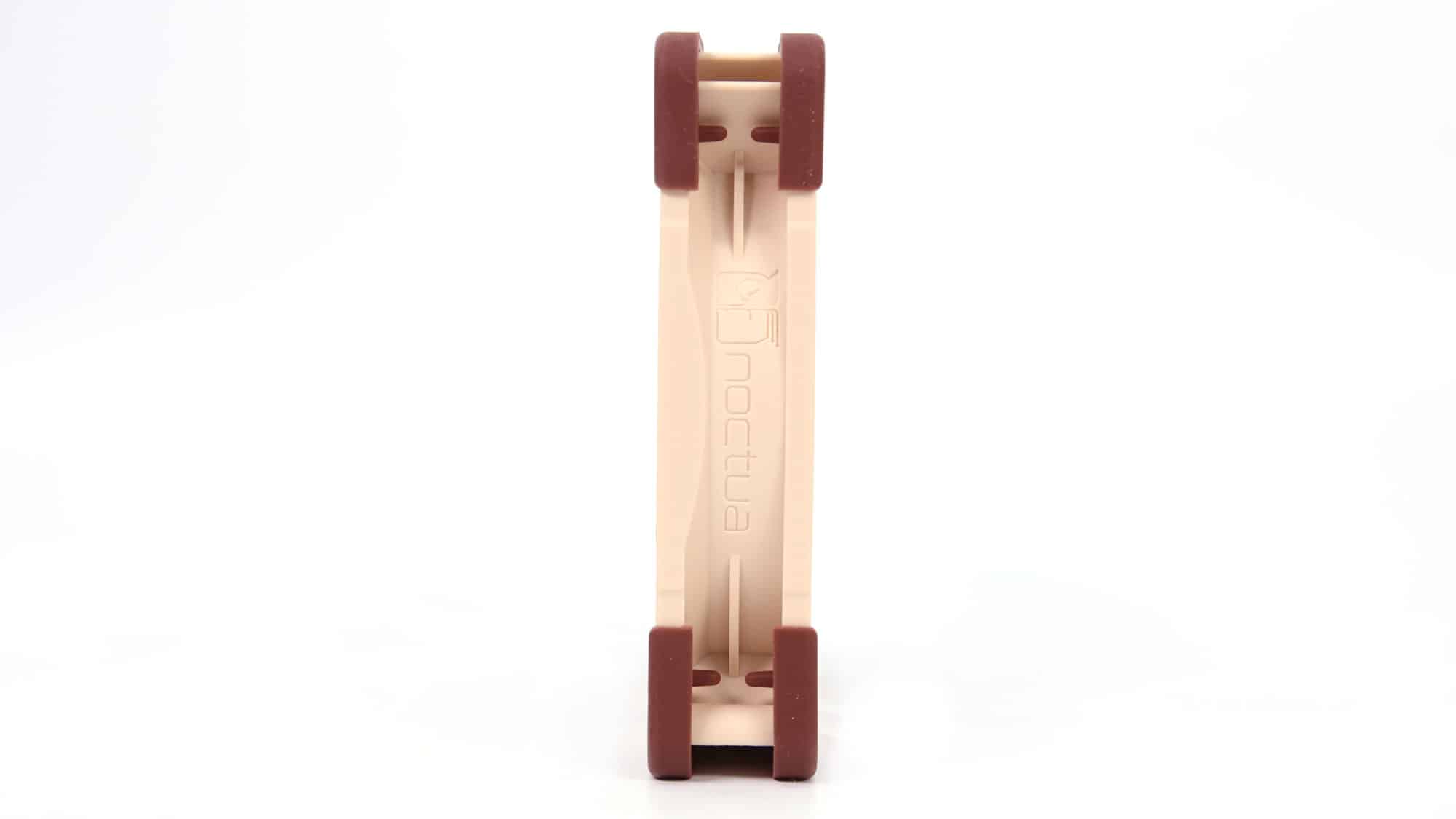

The fan has the standard depth of 25mm.

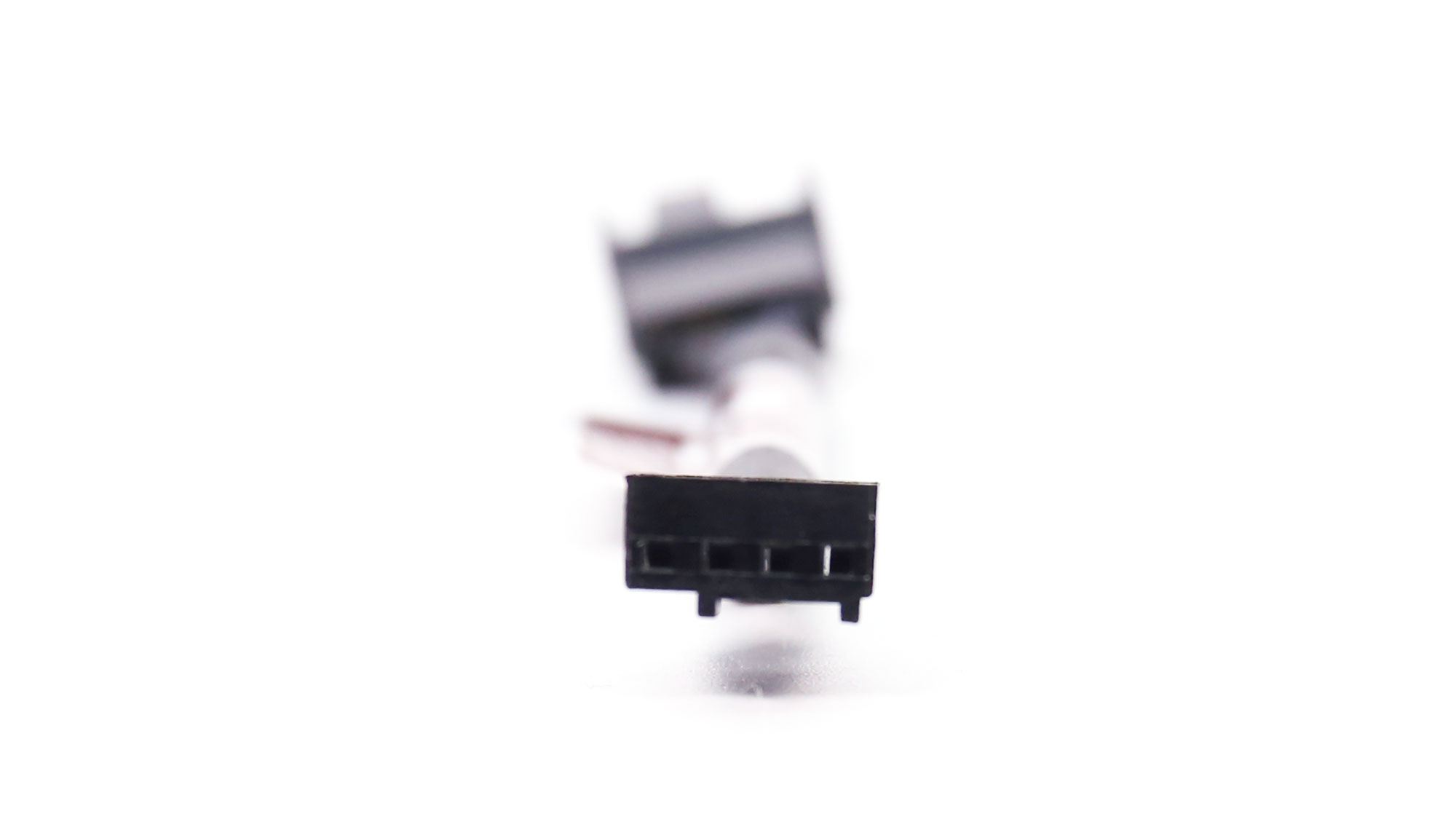

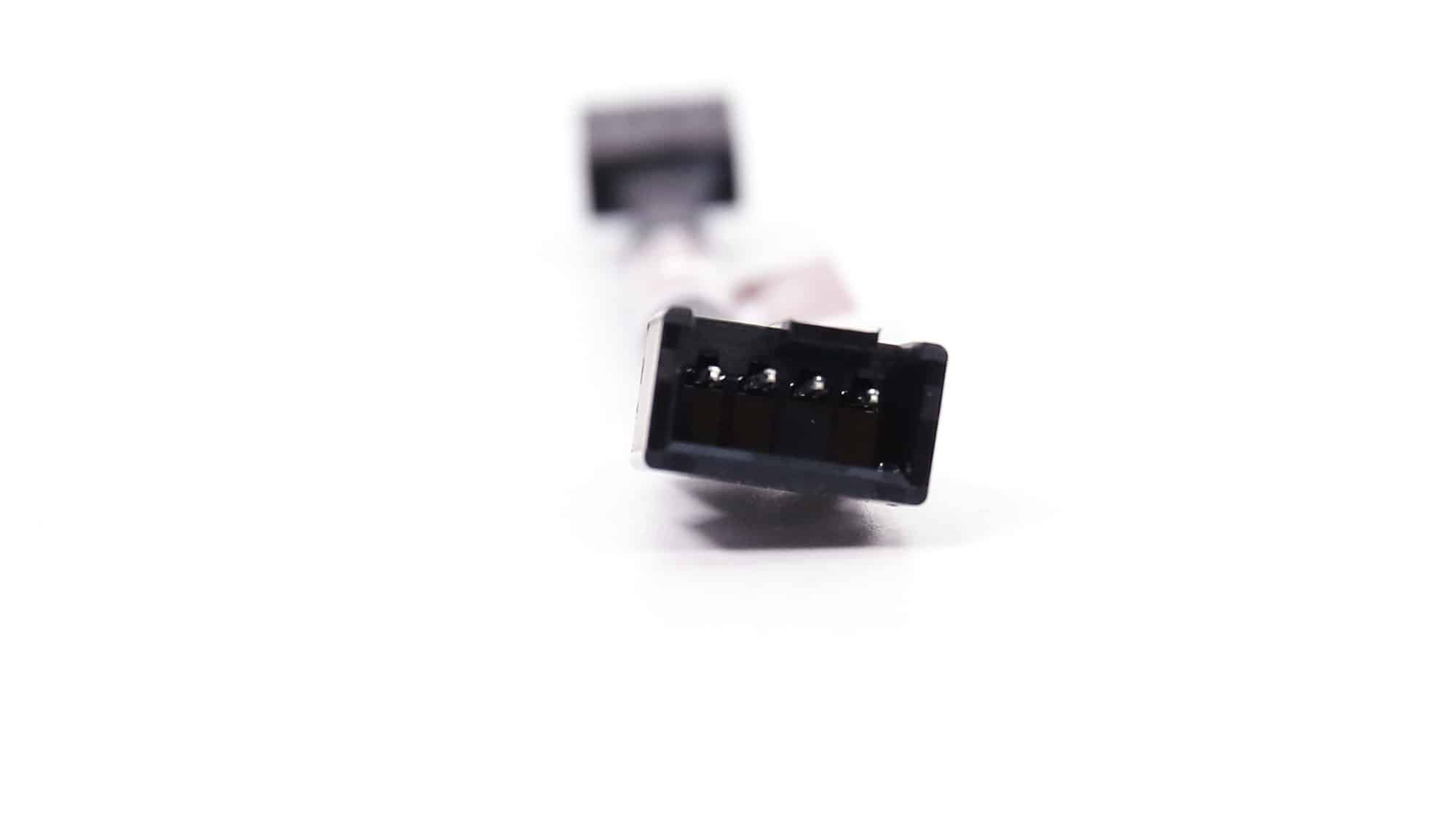

The connector is a standard 4-pin PWM. The daisy chain option is not available, but Noctua provides a PWM splitter in the bundle, which you can use to power two fans from the same header. It is not the same, though, as a daisy chain.
