Frequency Plots

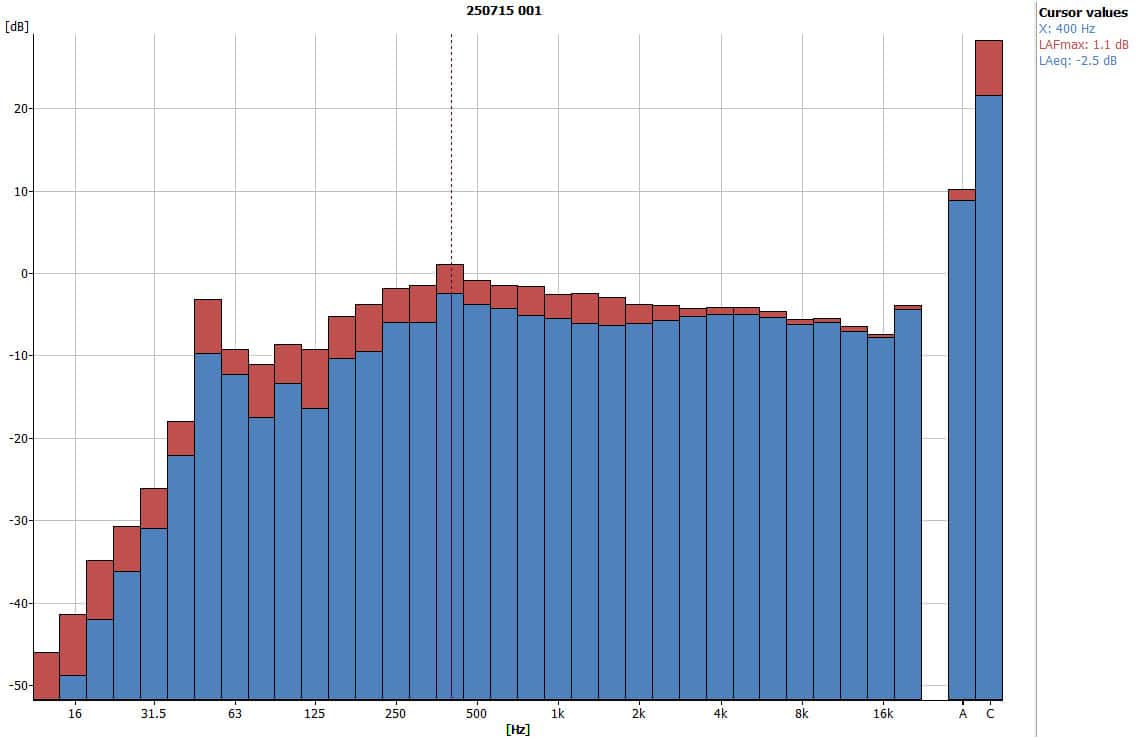

30% Fan Speed
- Peak frequency: 400 Hz

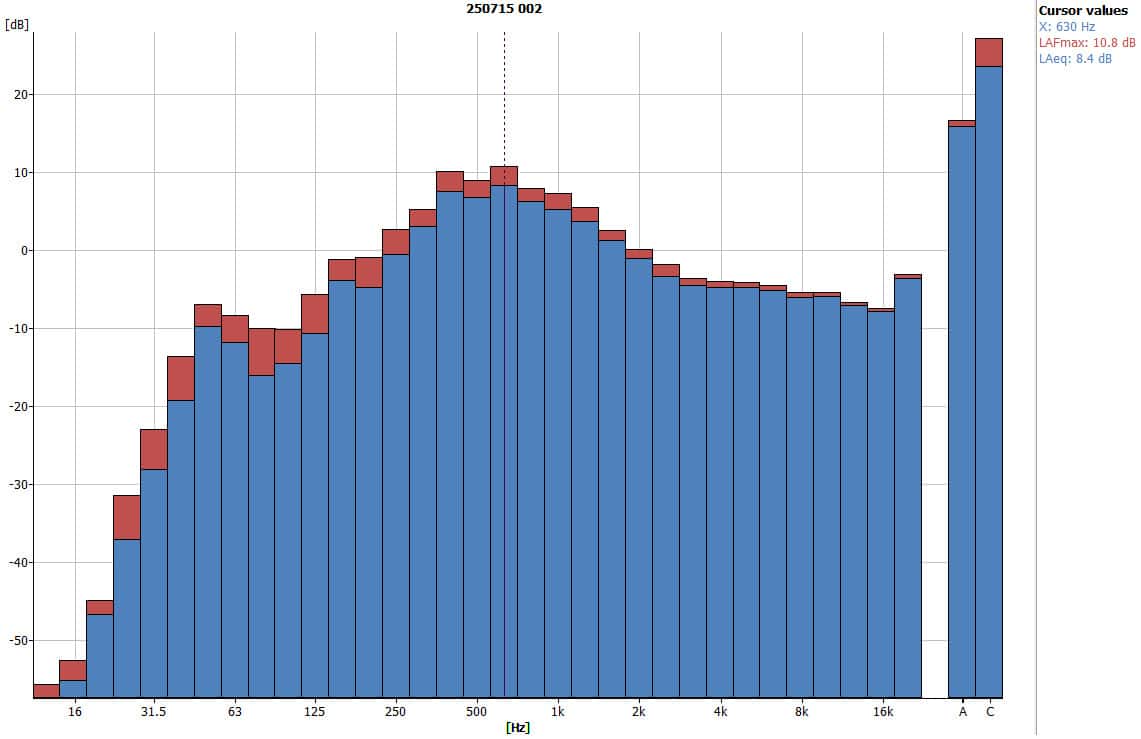

50% Fan Speed
- Peak frequency: 630 Hz

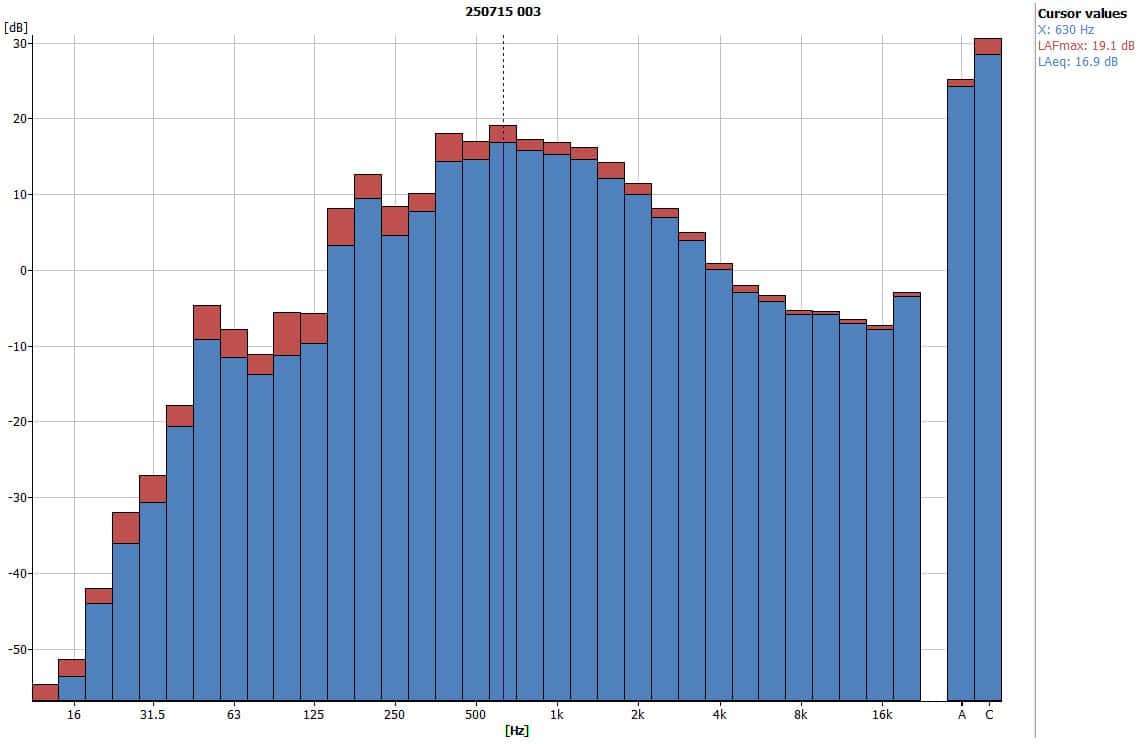

75% Fan Speed
- Peak frequency: 630 Hz

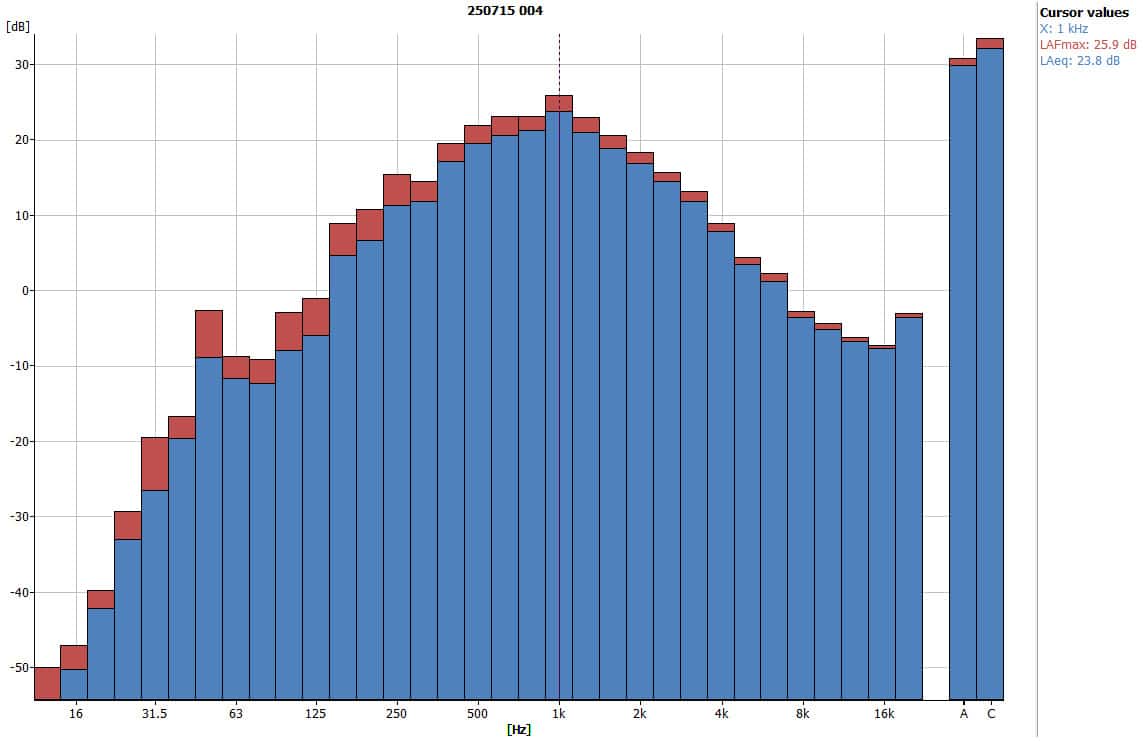

100% Fan Speed
- Peak frequency: 1 KHz
Signal Recordings
I’ve recorded the signals shown above, but please note that I’ve enabled Automatic Gain Control (AGC) to facilitate their reproduction. The provided recordings are intended for aural identification purposes only.
30% Fan Speed
50% Fan Speed
75% Fan Speed
100% Fan Speed
