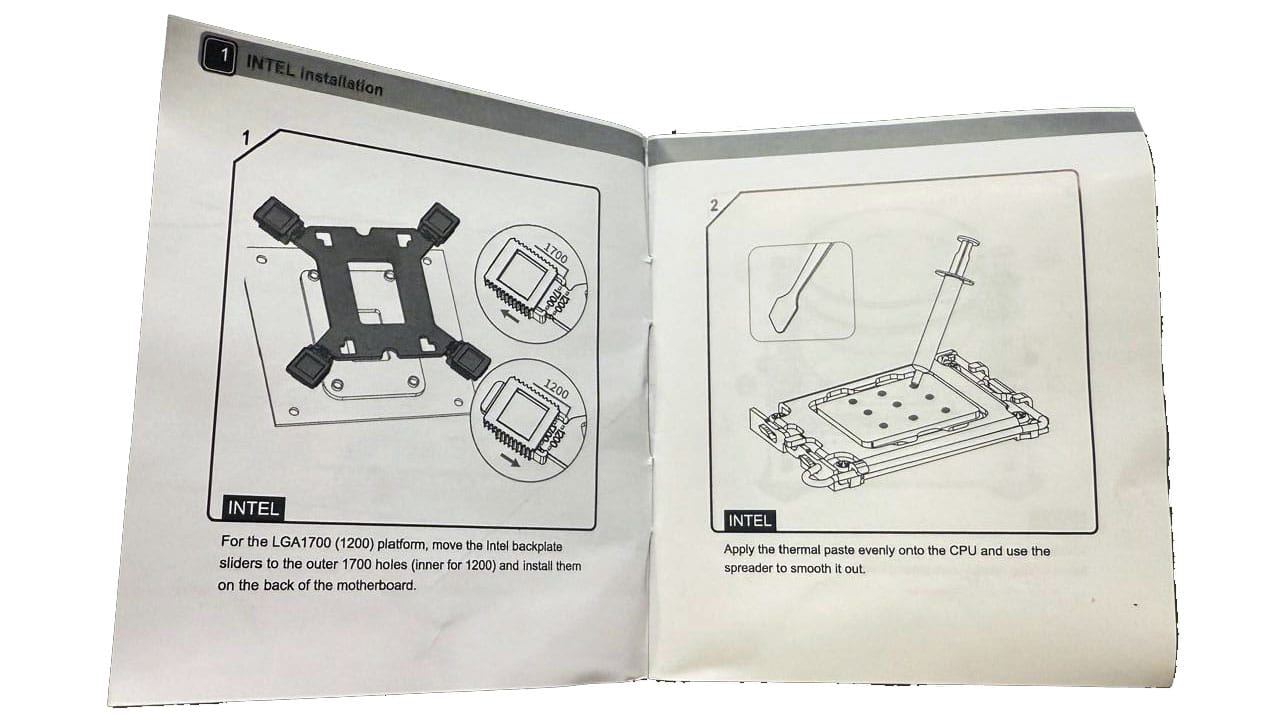

Installation (Intel)

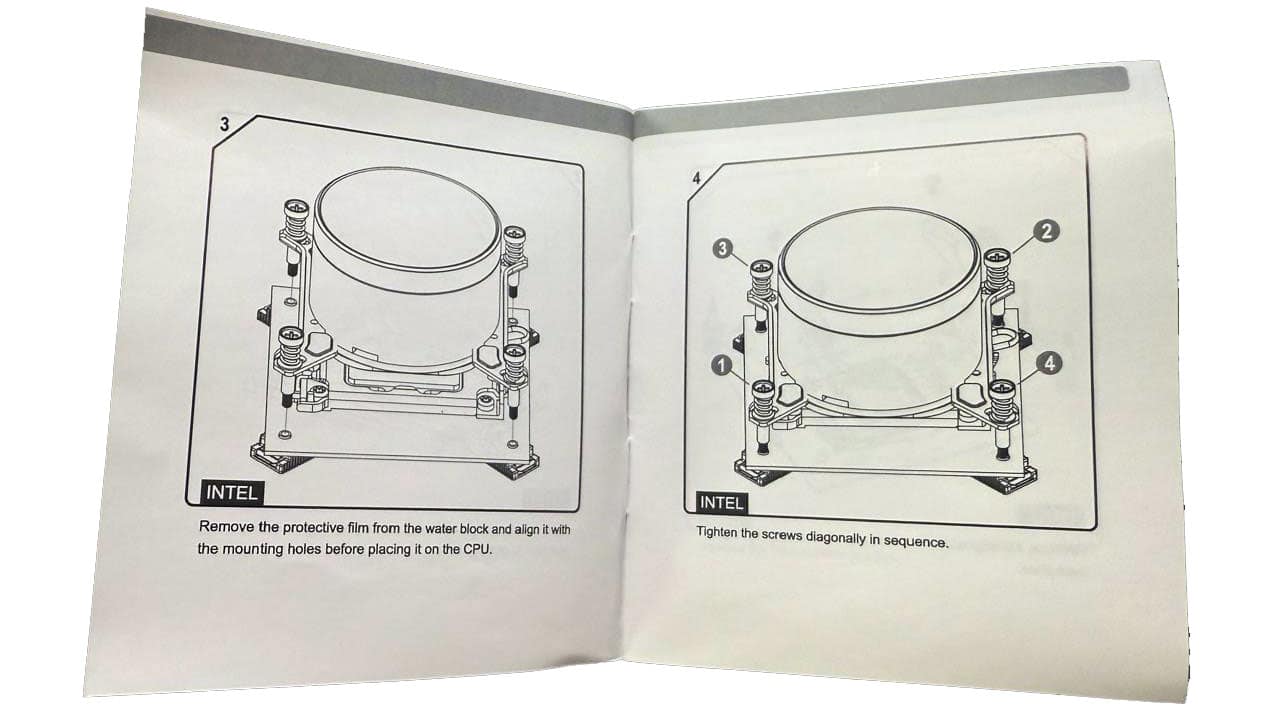

You must remove the stock brackets and install the bundled ones for the AMD sockets. The standoffs are next, followed by the mounting brackets, which you secure with the provided thumbscrews. The following steps are to apply thermal paste on the CPU’s Integrated Heat Spreader (IHS) and mount the block.

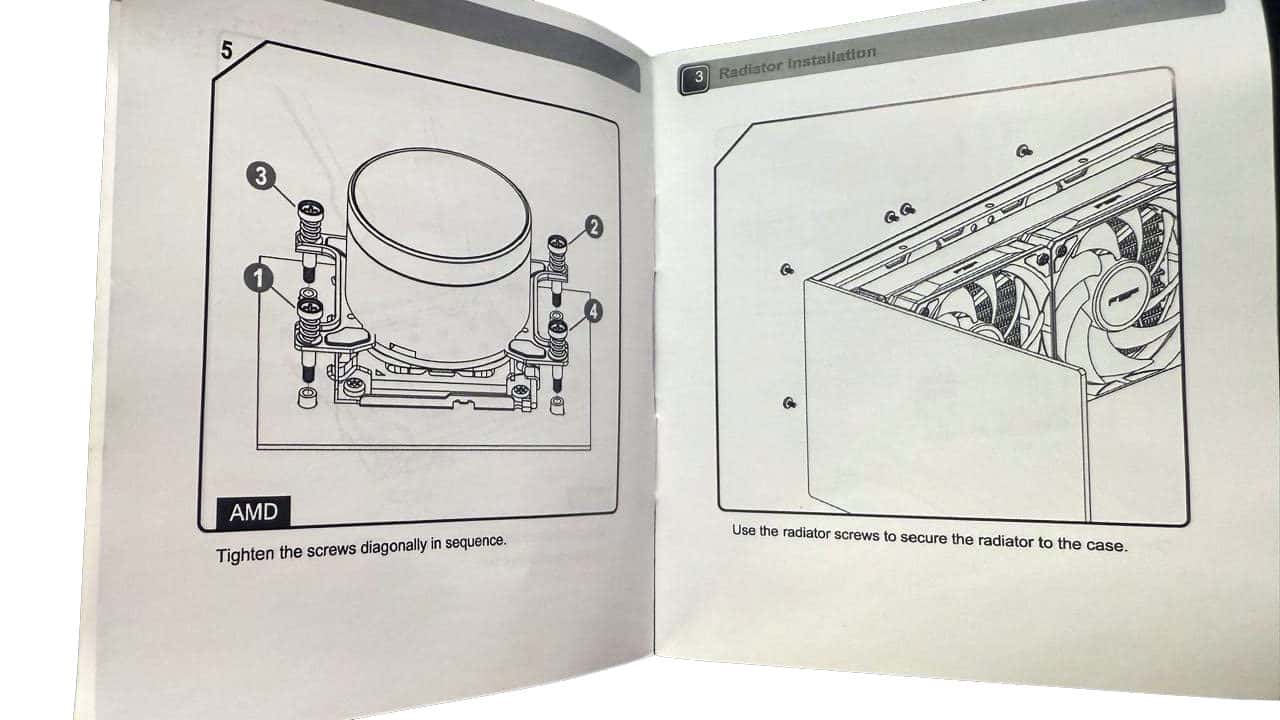

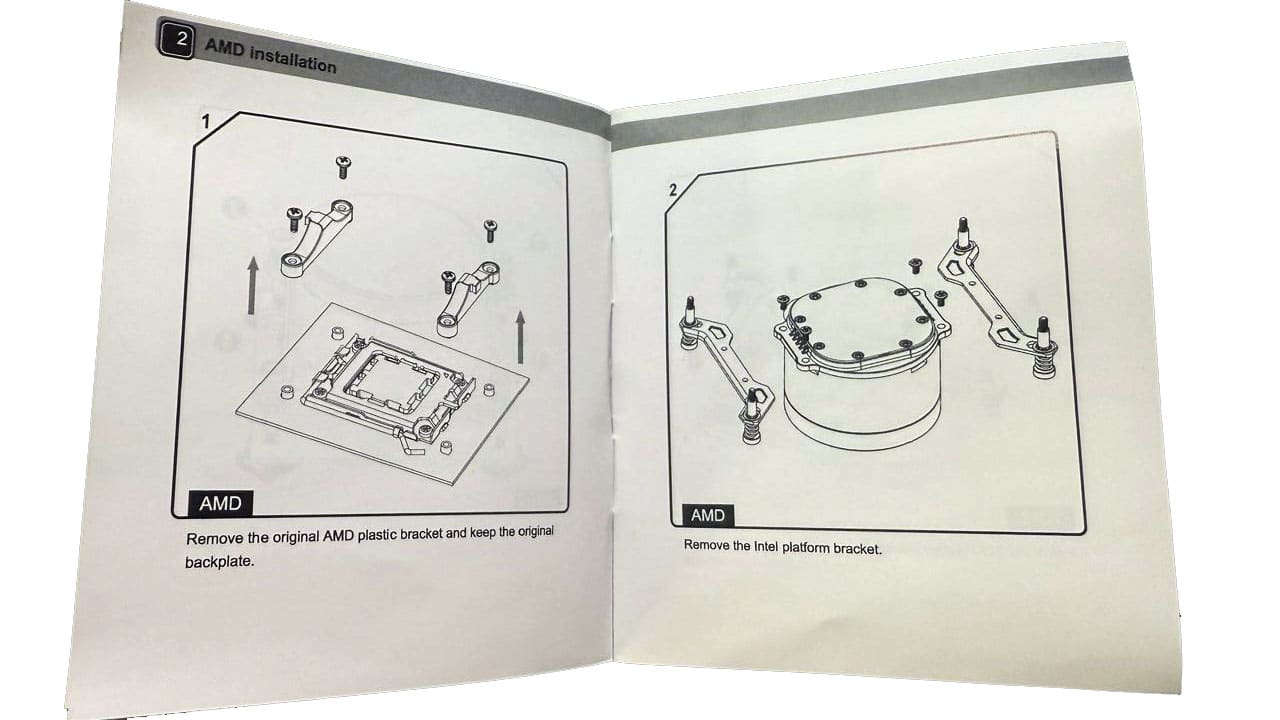

Installation (AMD)

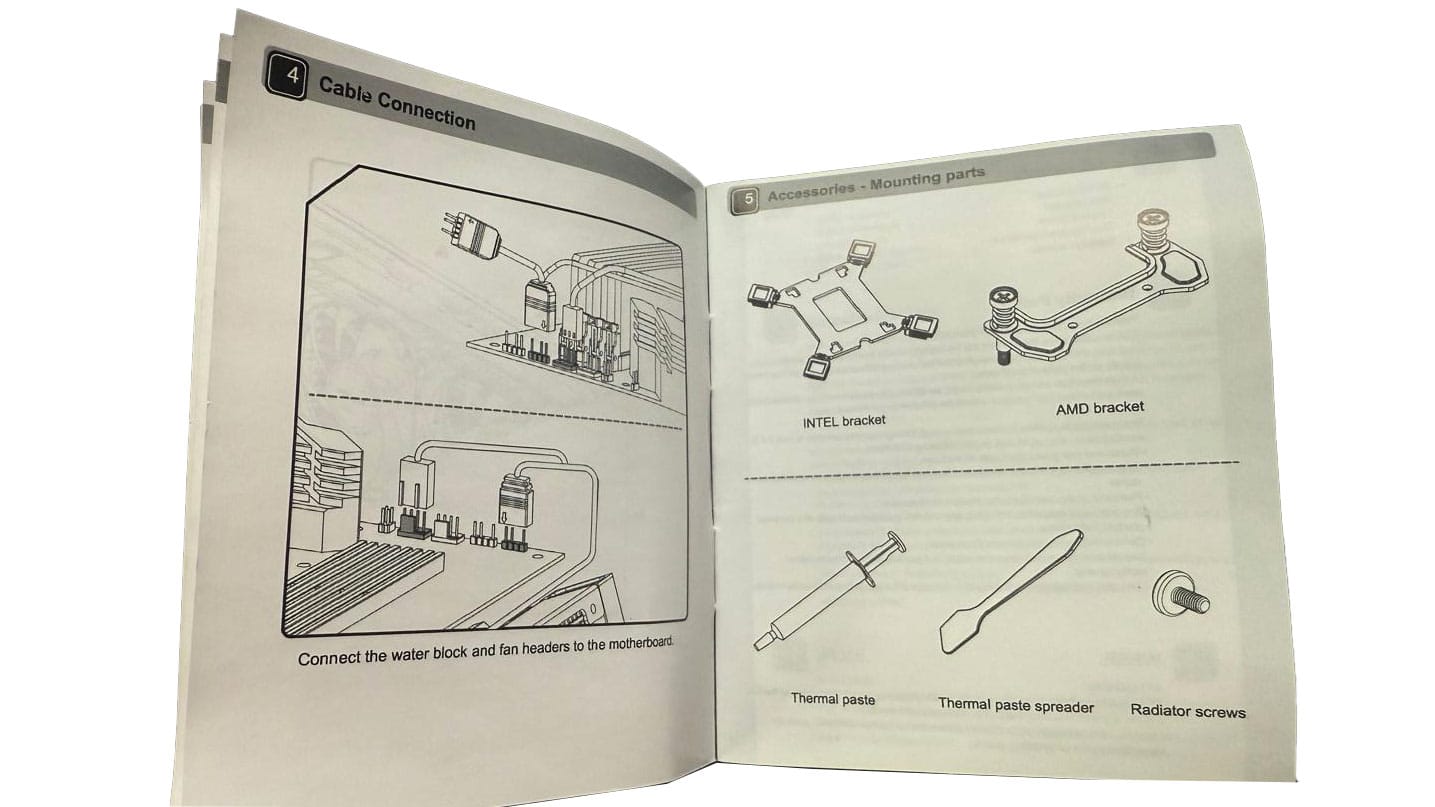

This scheme illustrates how to connect the fans and pump to their respective mainboard headers.
 |
 |

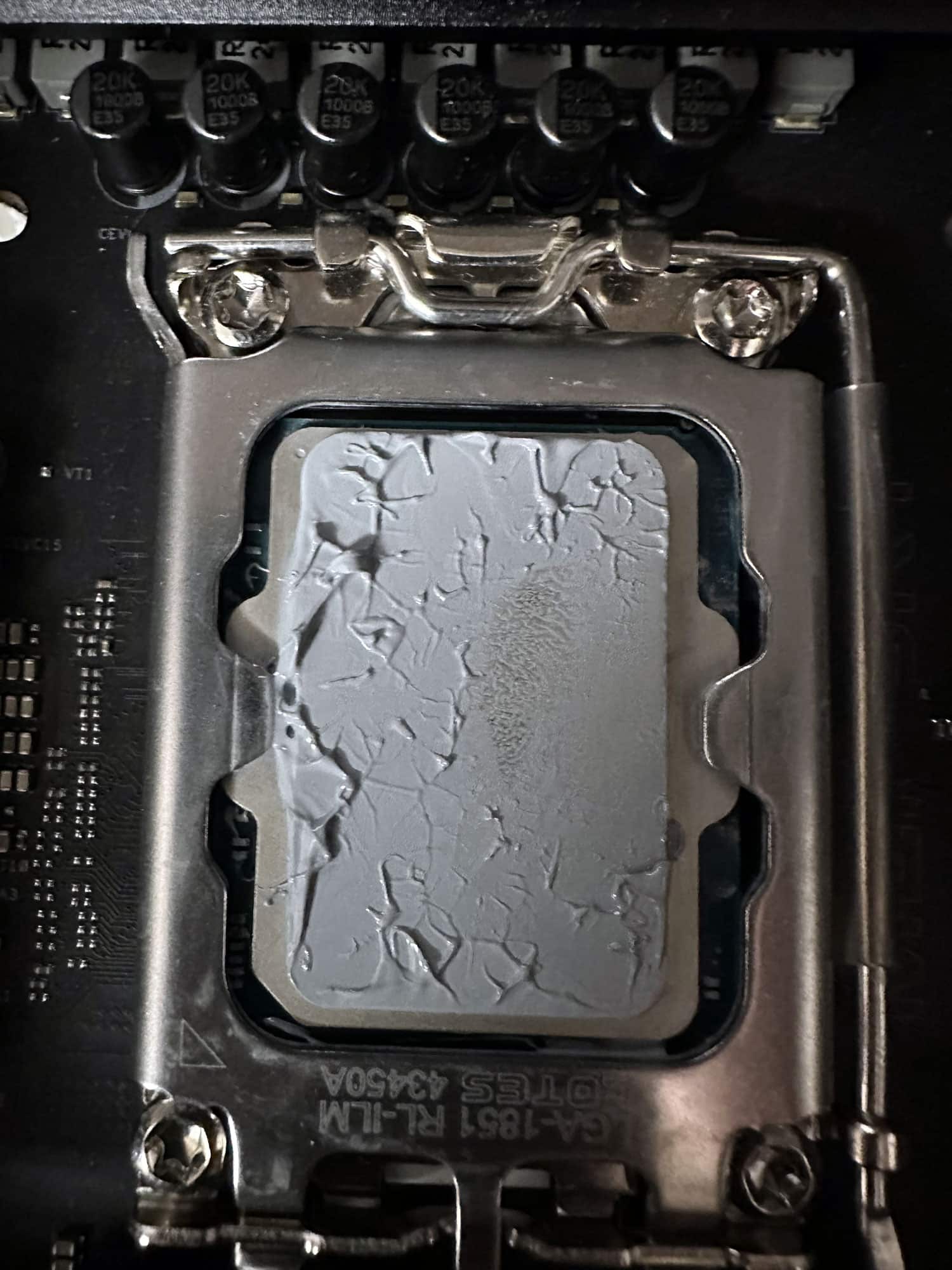

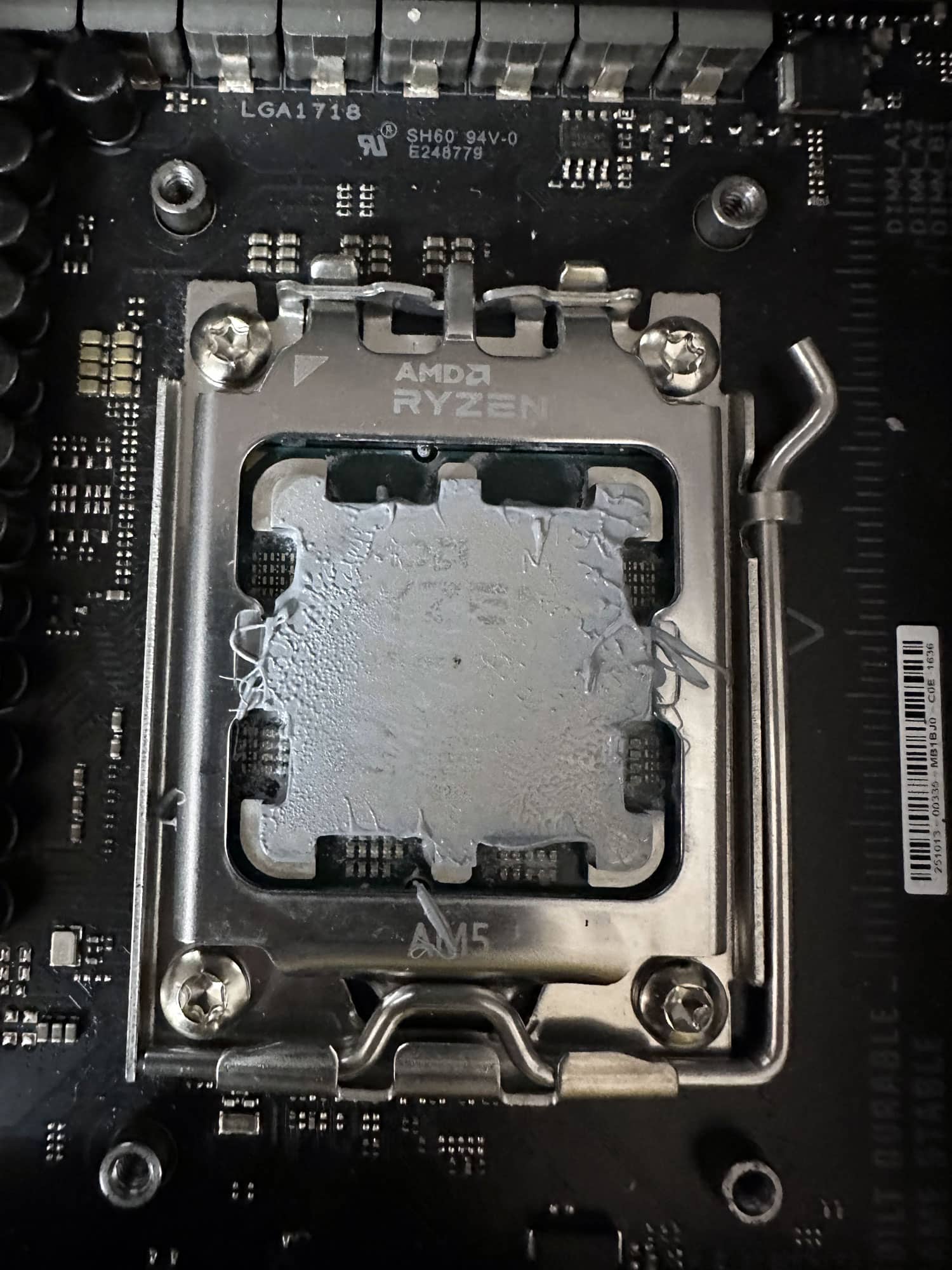

The cooler’s mounting mechanism on our AMD and Intel test systems.
