Frequency Plots
| Fan / Pump Speed (PWM) | Peak Frequency |
|---|---|
| Fan 20% | 1 kHz |
| Fan 30% | 400 Hz |
| Fan 40% | 400 Hz |
| Fan 50% | 500 Hz |
| Fan 60% | 400 Hz |
| Fan 70% | 400 Hz |
| Fan 80% | 500 Hz |
| Fan 90% | 500 Hz |
| Fan 100% | 1.6 kHz |

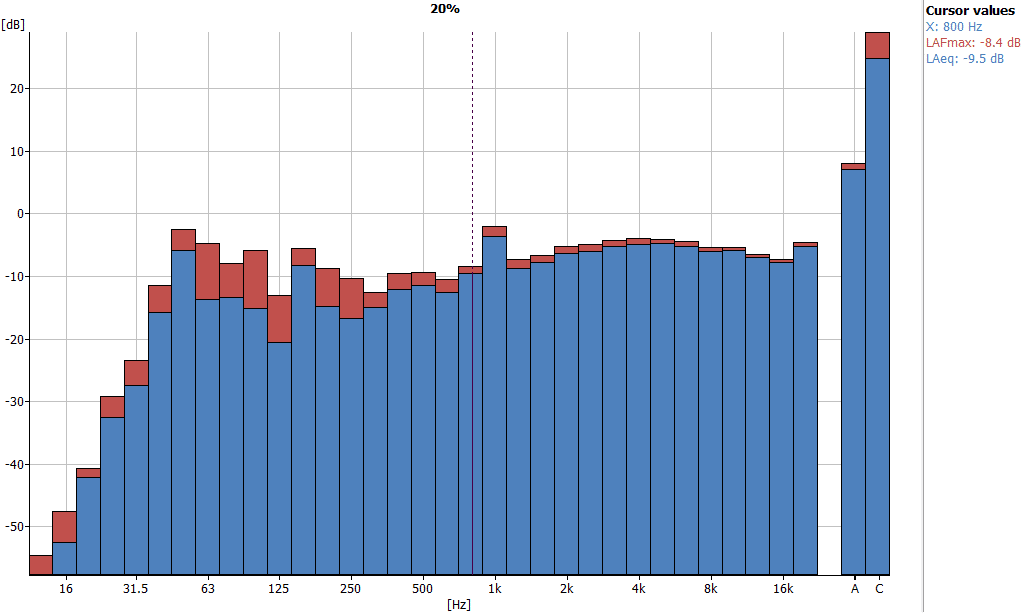

20% Fan Speed
- Peak frequency: 1 kHz

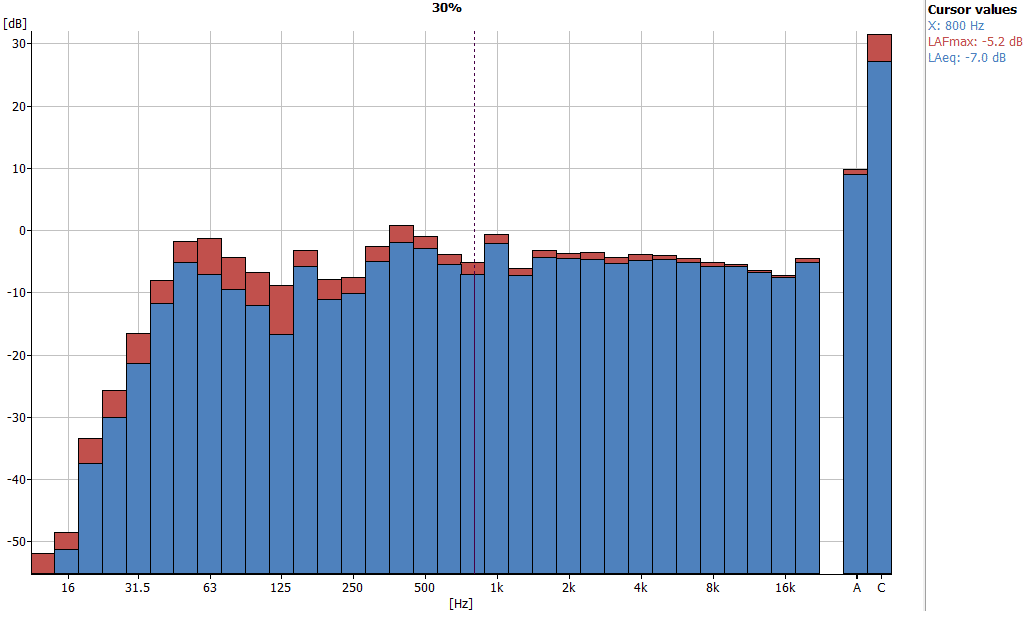

30% Fan Speed
- Peak frequency: 400 Hz

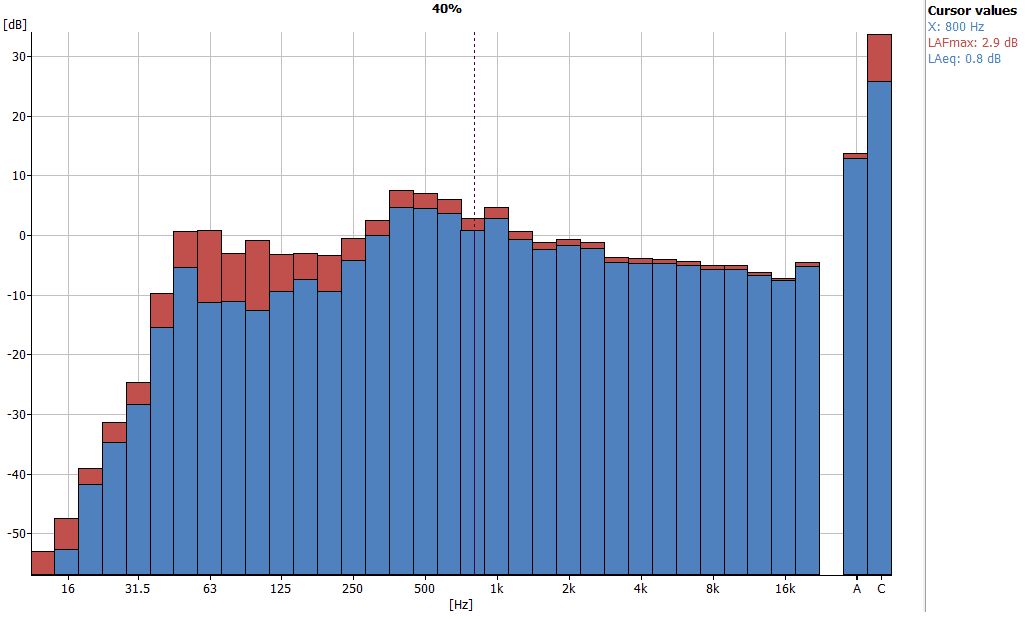

40% Fan Speed
- Peak frequency: 400 Hz

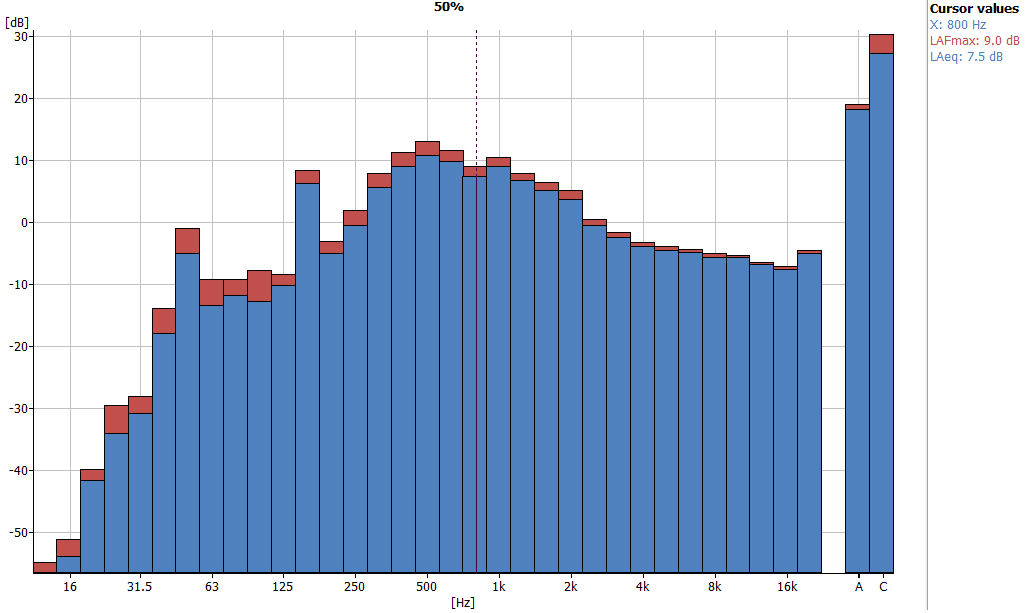

50% Fan Speed
- Peak frequency: 500 Hz

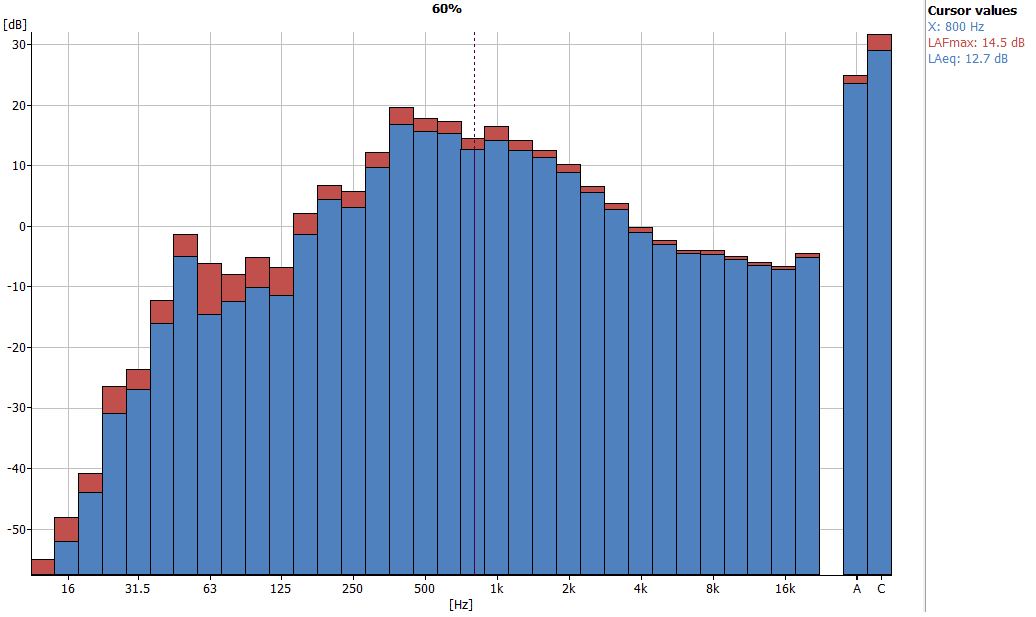

60% Fan Speed
- Peak frequency: 400 Hz

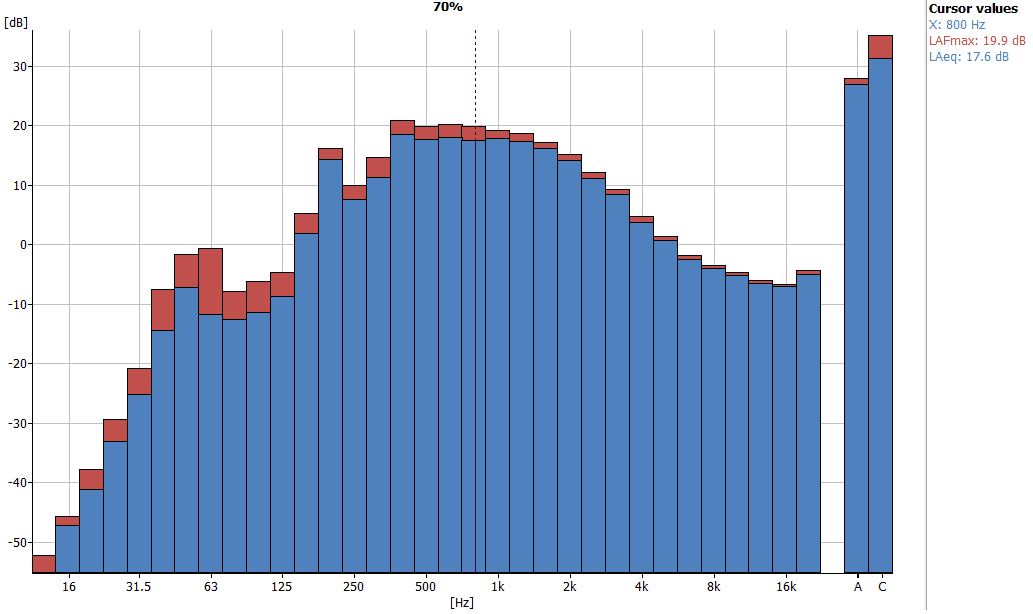

70% Fan Speed
- Peak frequency: 400 Hz

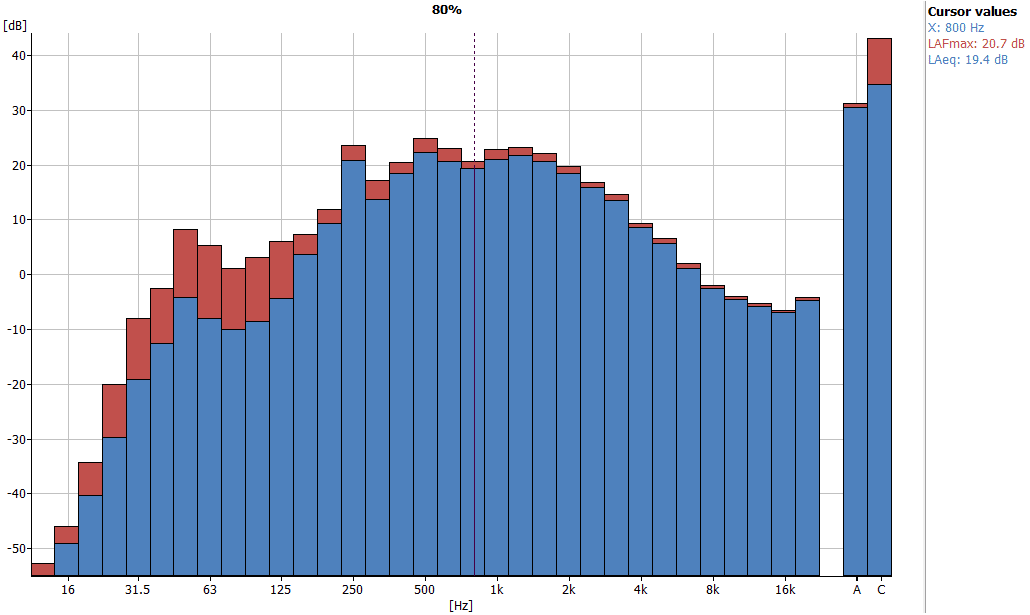

80% Fan Speed
- Peak frequency: 500 Hz

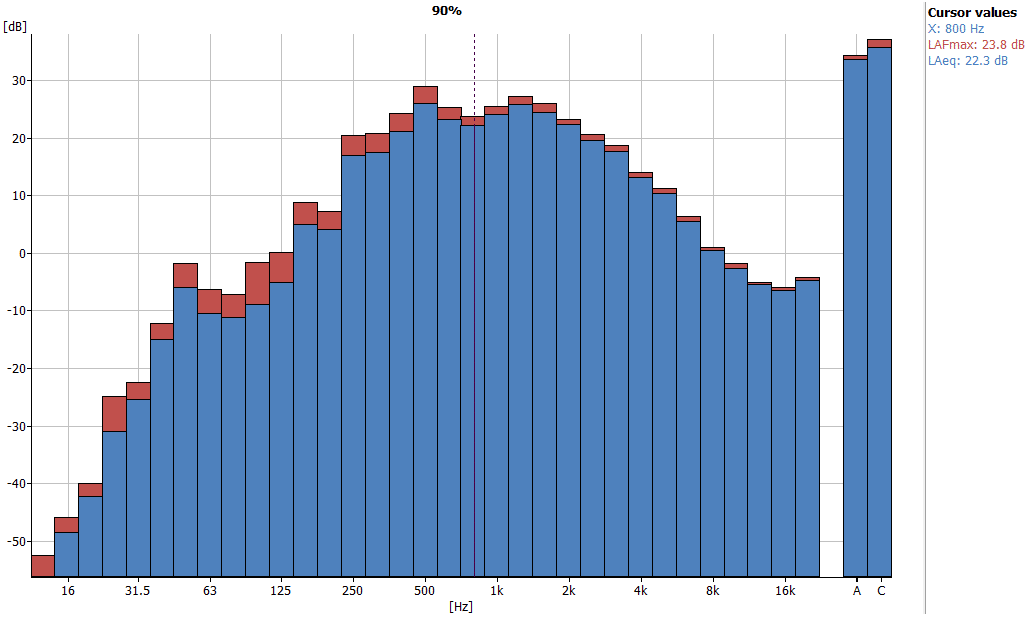

90% Fan Speed
- Peak frequency: 500 Hz

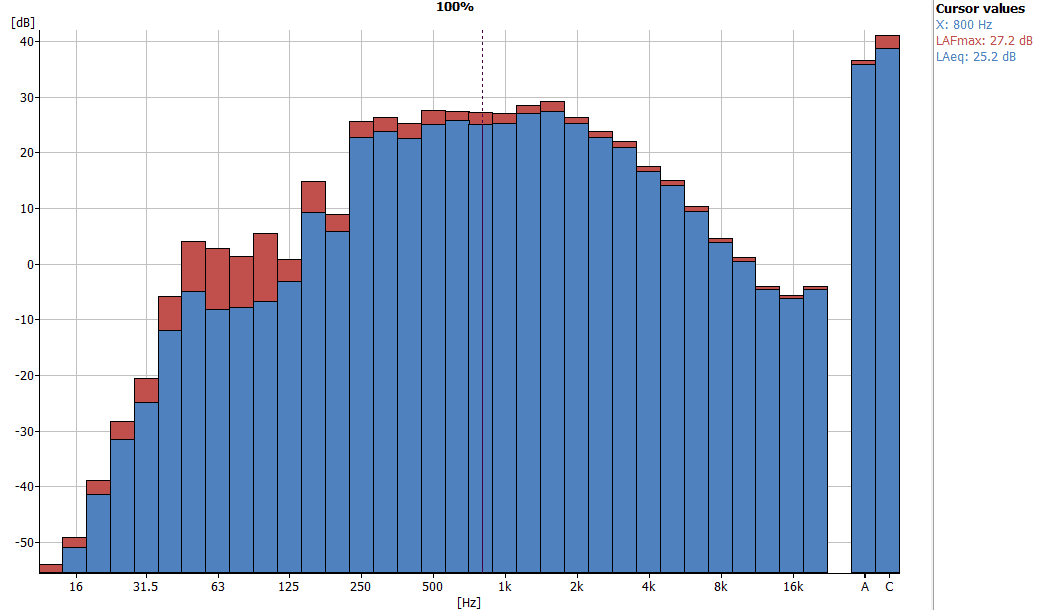

100% Fan Speed
- Peak frequency: 1.6 kHz
Signal Recordings
I’ve recorded the signals shown above, but please note that I’ve enabled Automatic Gain Control (AGC) to facilitate their reproduction. The provided recordings are intended for aural identification purposes only.
20% Fan Speed
30% Fan Speed
40% Fan Speed
50% Fan Speed
60% Fan Speed
70% Fan Speed
80% Fan Speed
90% Fan Speed
100% Fan Speed
