Normalized Noise Tests

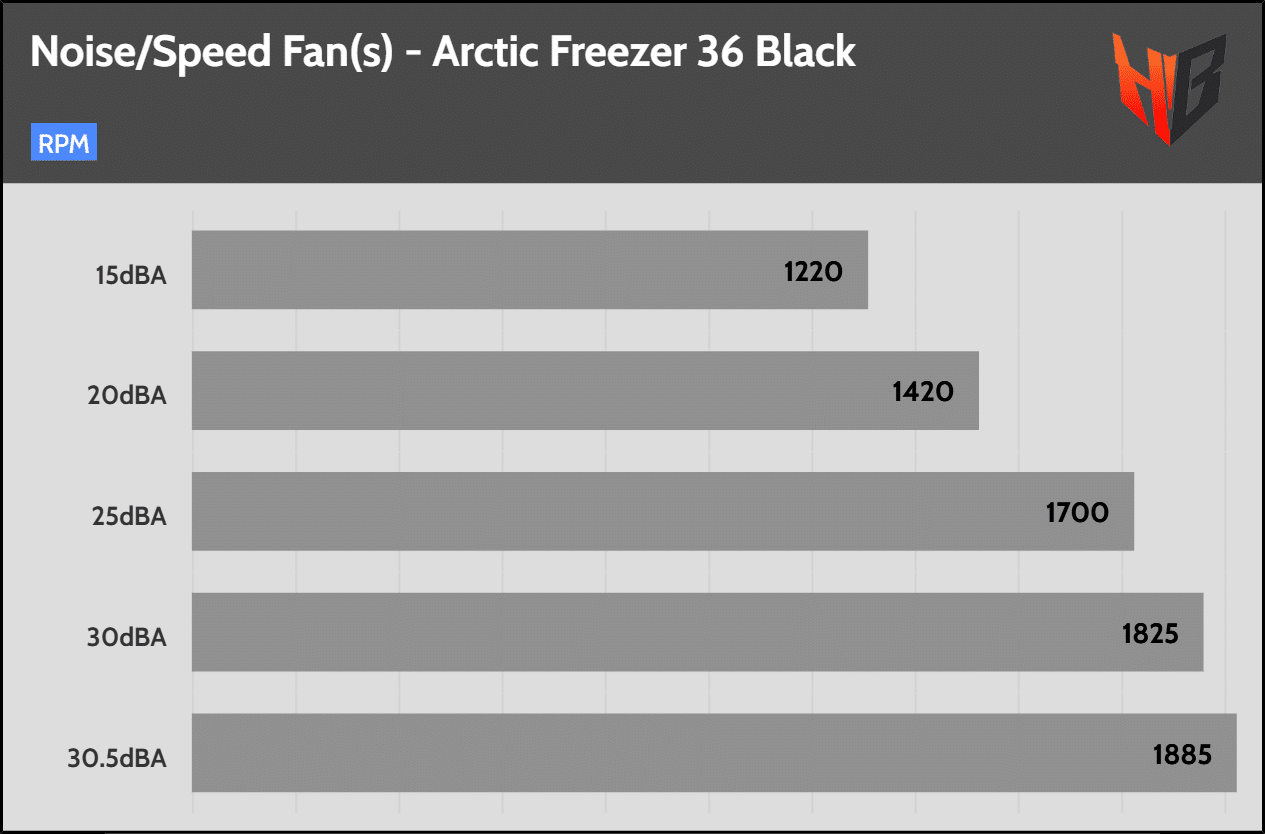

For these tests, I set the cooler’s fan(s) to speeds with noise output at the following predefined levels: 20/25/30/35/40 dBA. I skip the corresponding tests if the cooler’s fan(s) cannot reach some noise levels. Finally, I include a test where the cooler’s fan(s) spin at full speed.
AMD Results

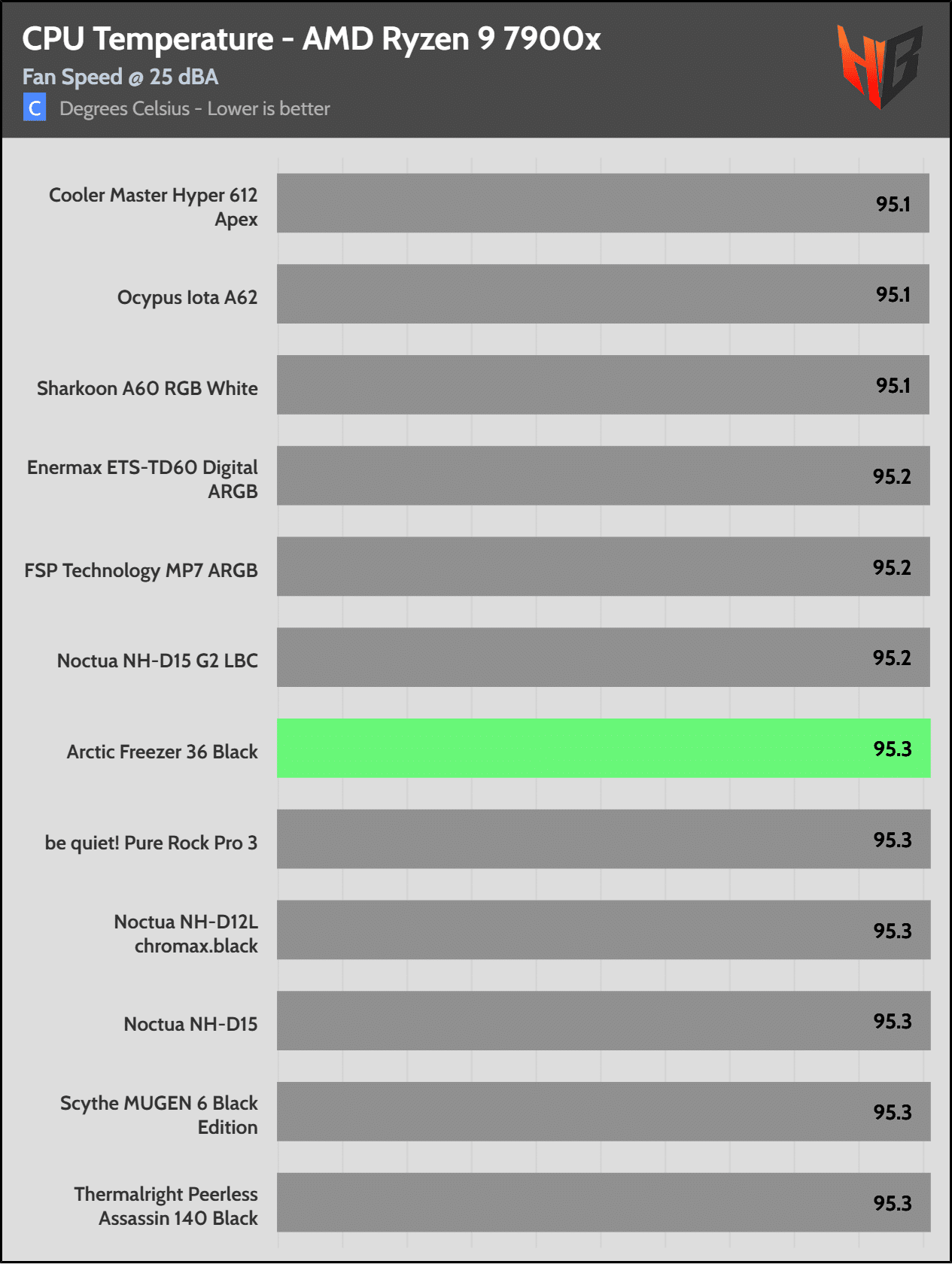

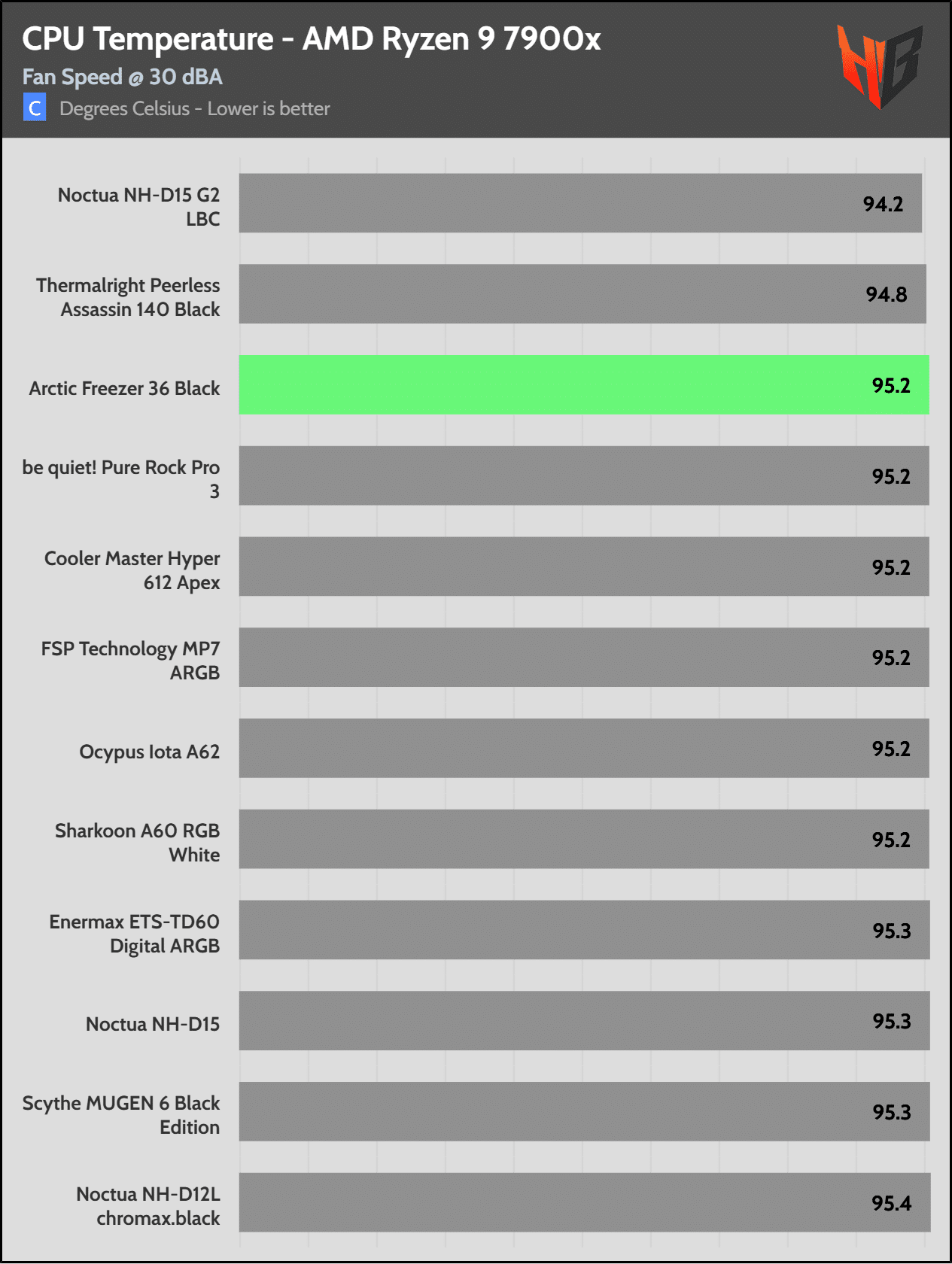

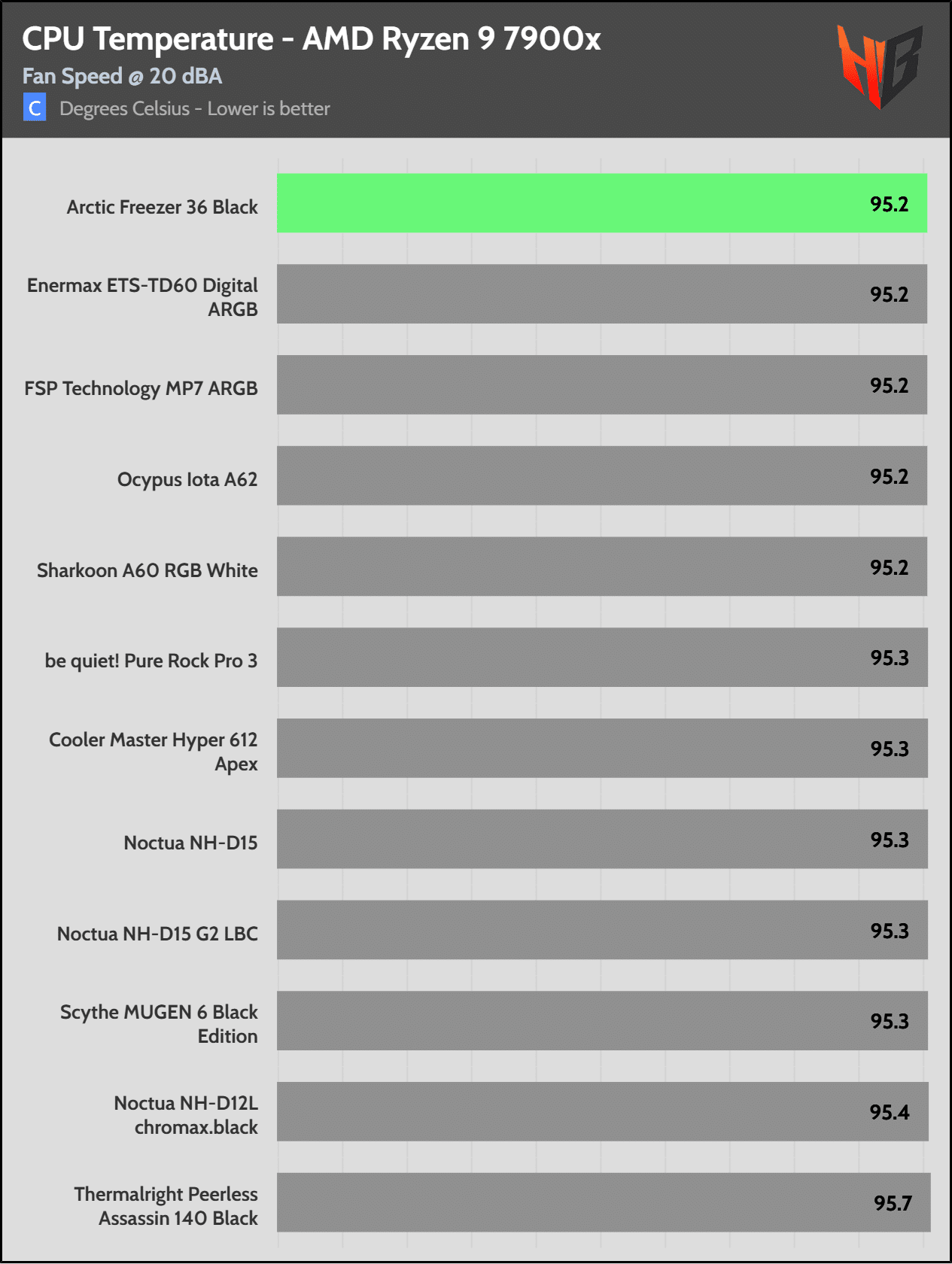

CPU Temperature
The AMD CPU temperatures are almost identical across all air coolers we have tested so far, as this is how this platform typically operates. It pushes the CPU to the max allowed temperature, adjusting the power consumption and frequency accordingly to keep under control the operating temperatures.

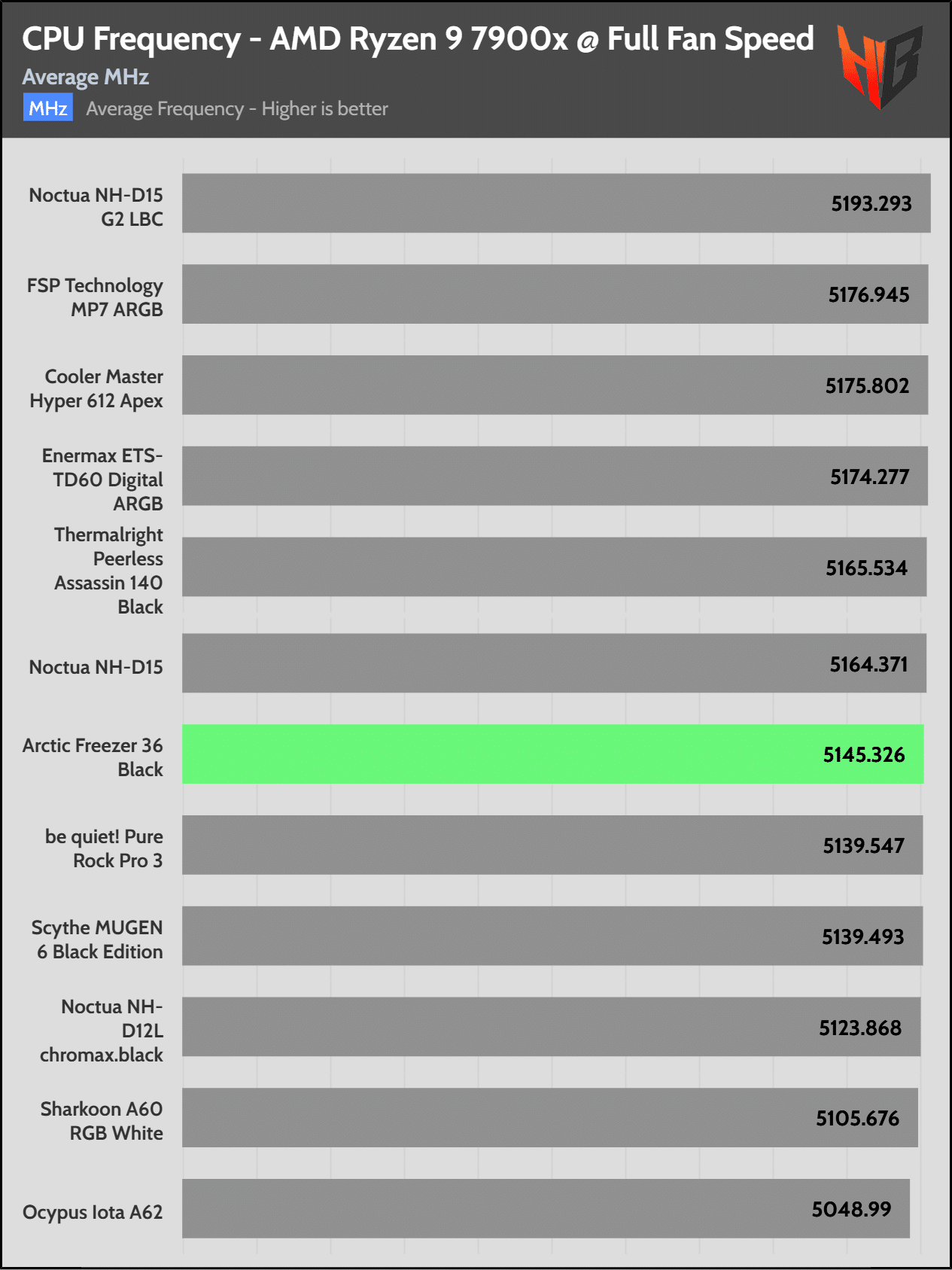

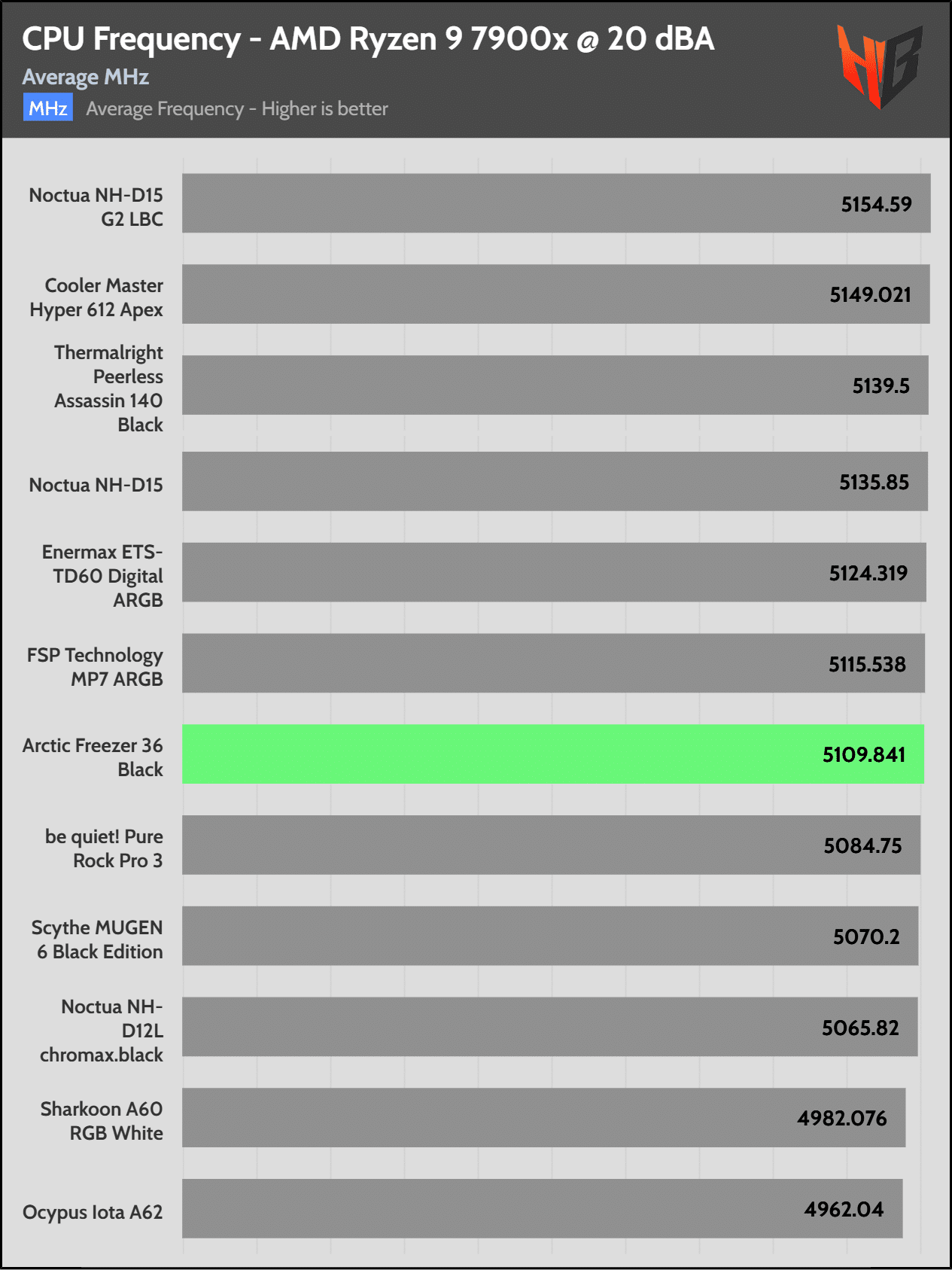

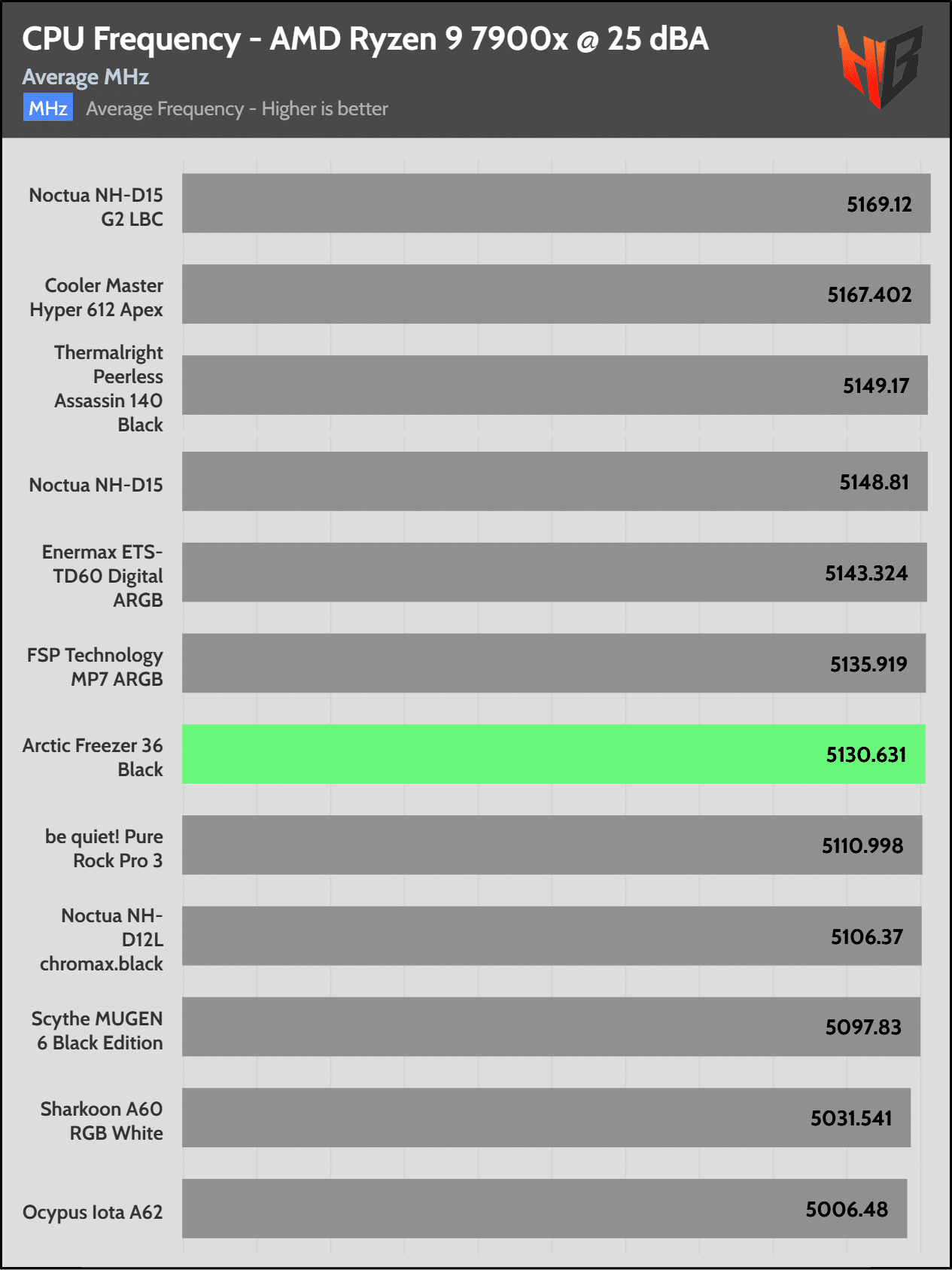

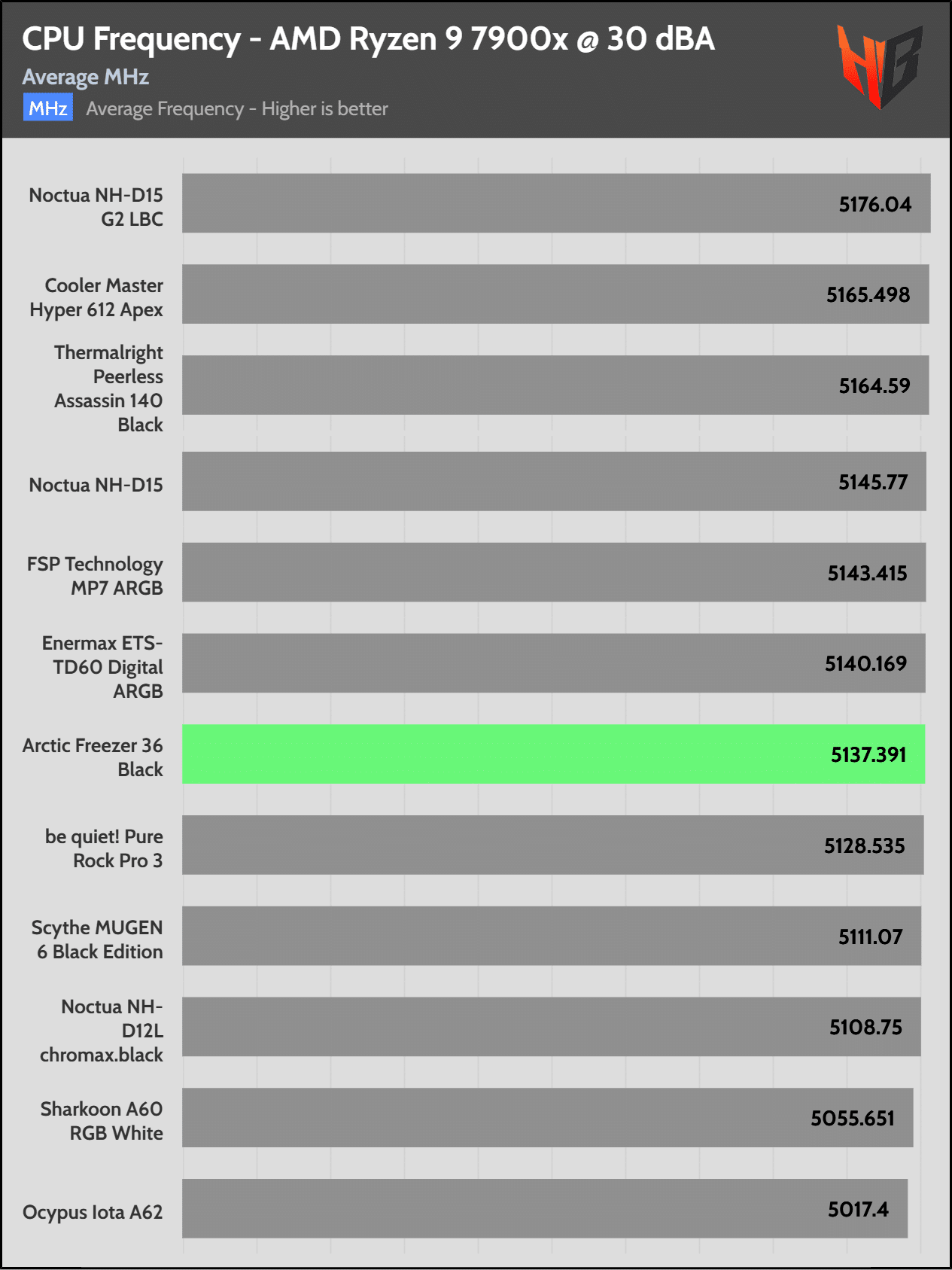

CPU Frequency
CPU frequencies are above the average in the air cooler category.

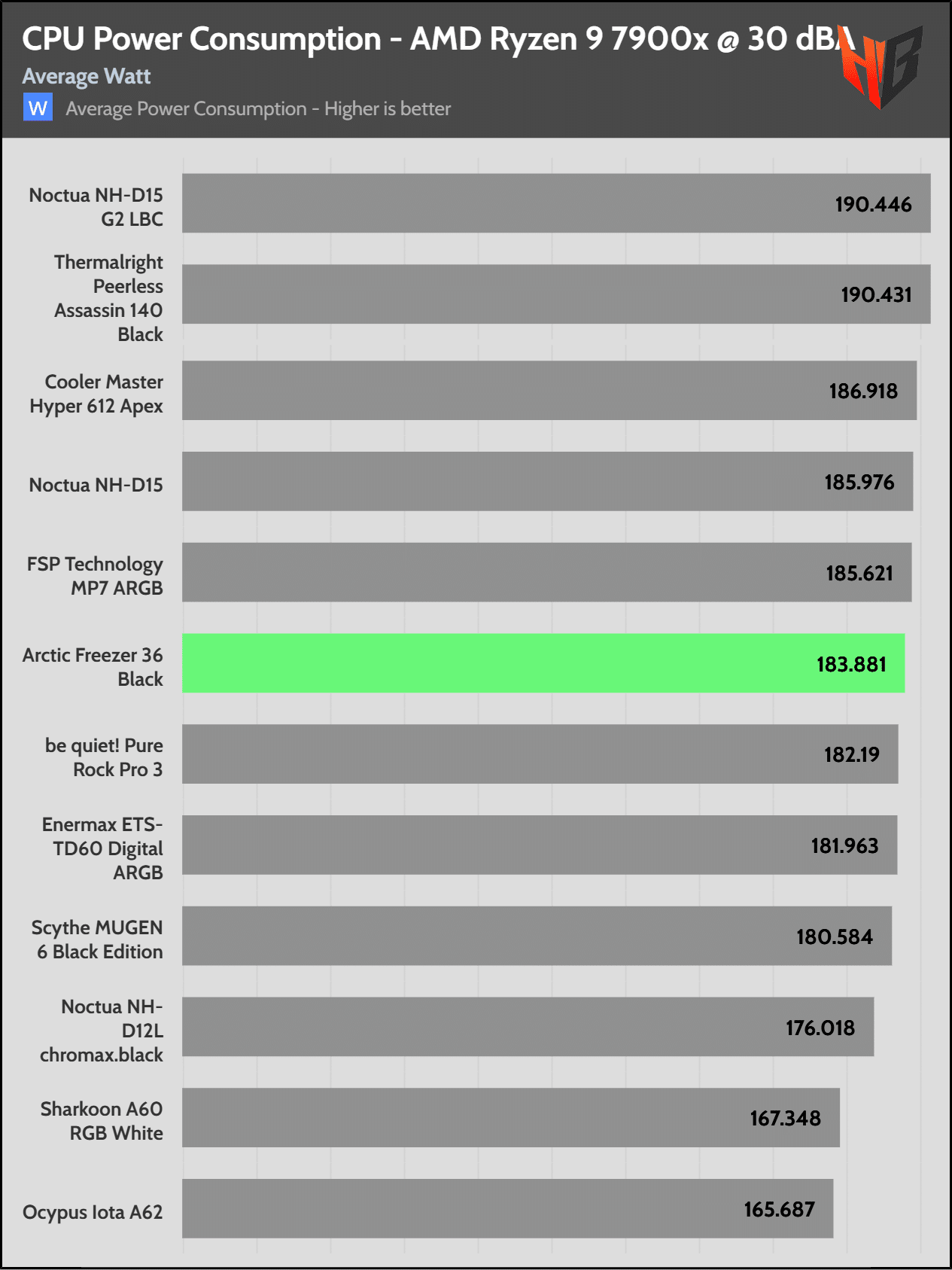

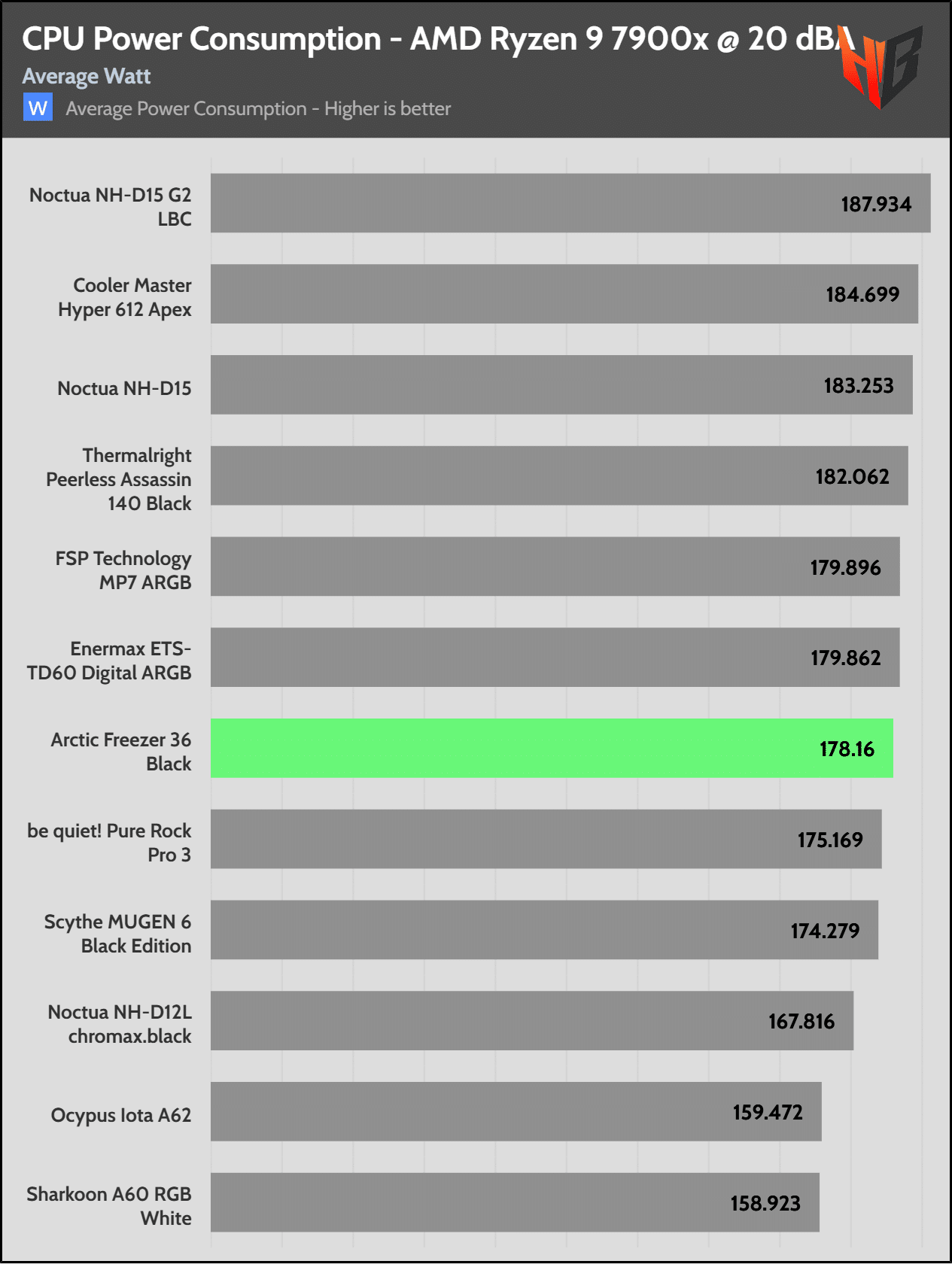

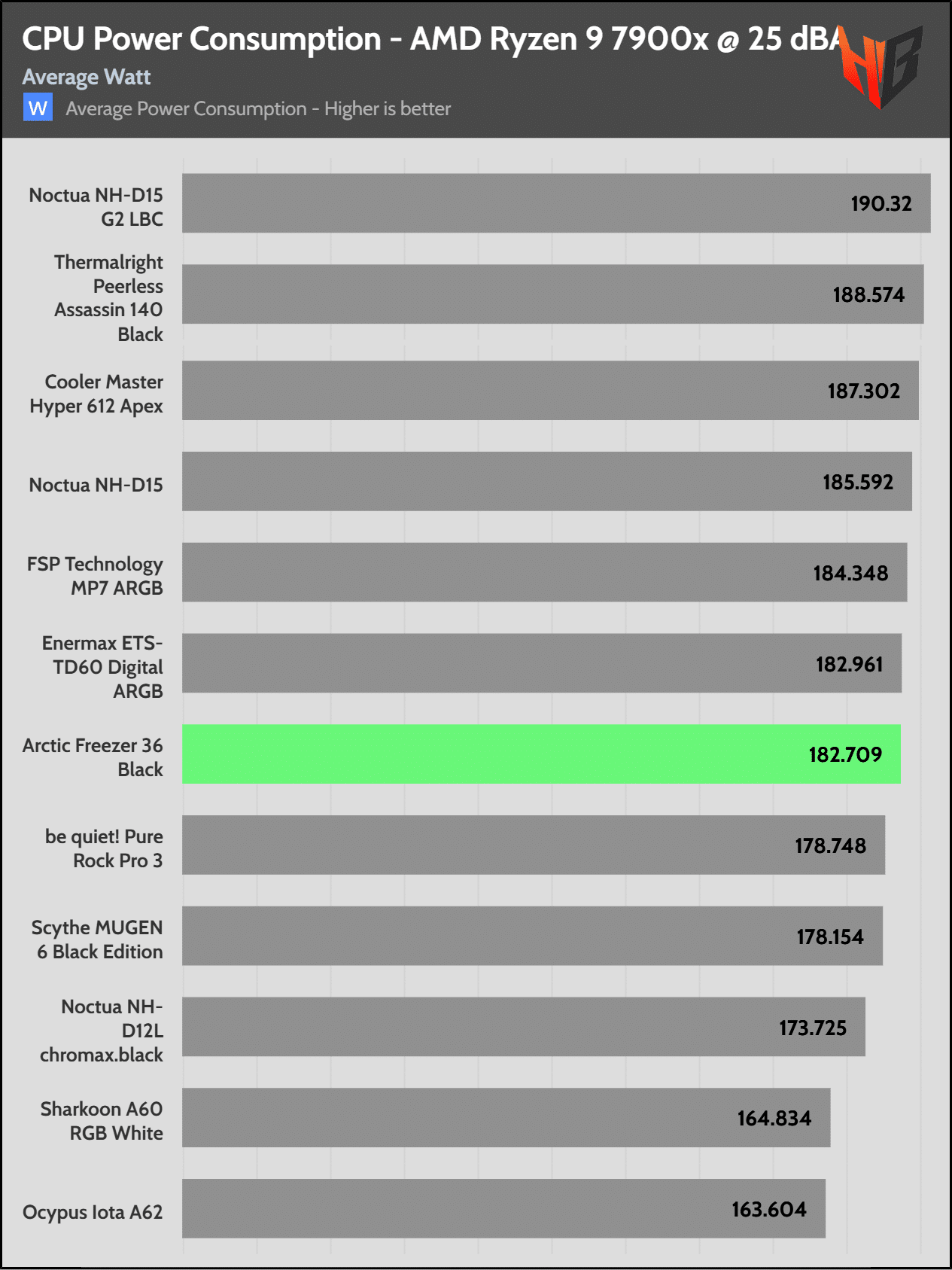

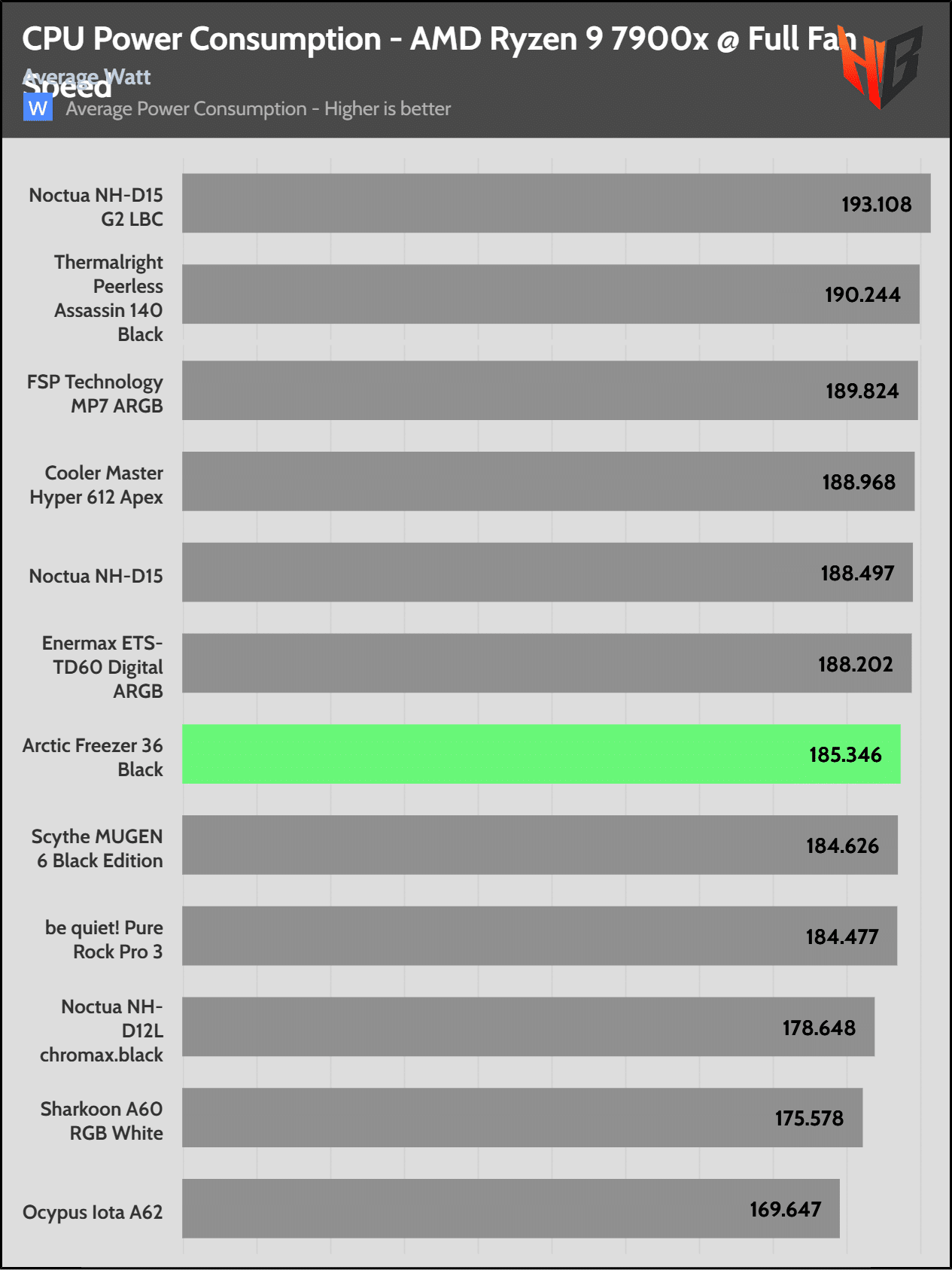

CPU Wattage
The CPU’s power consumption is relatively low.
High CPU power consumption indicates that the cooler is effective, allowing for a higher CPU thermal limit, which in turn results in a higher energy draw from the CPU.

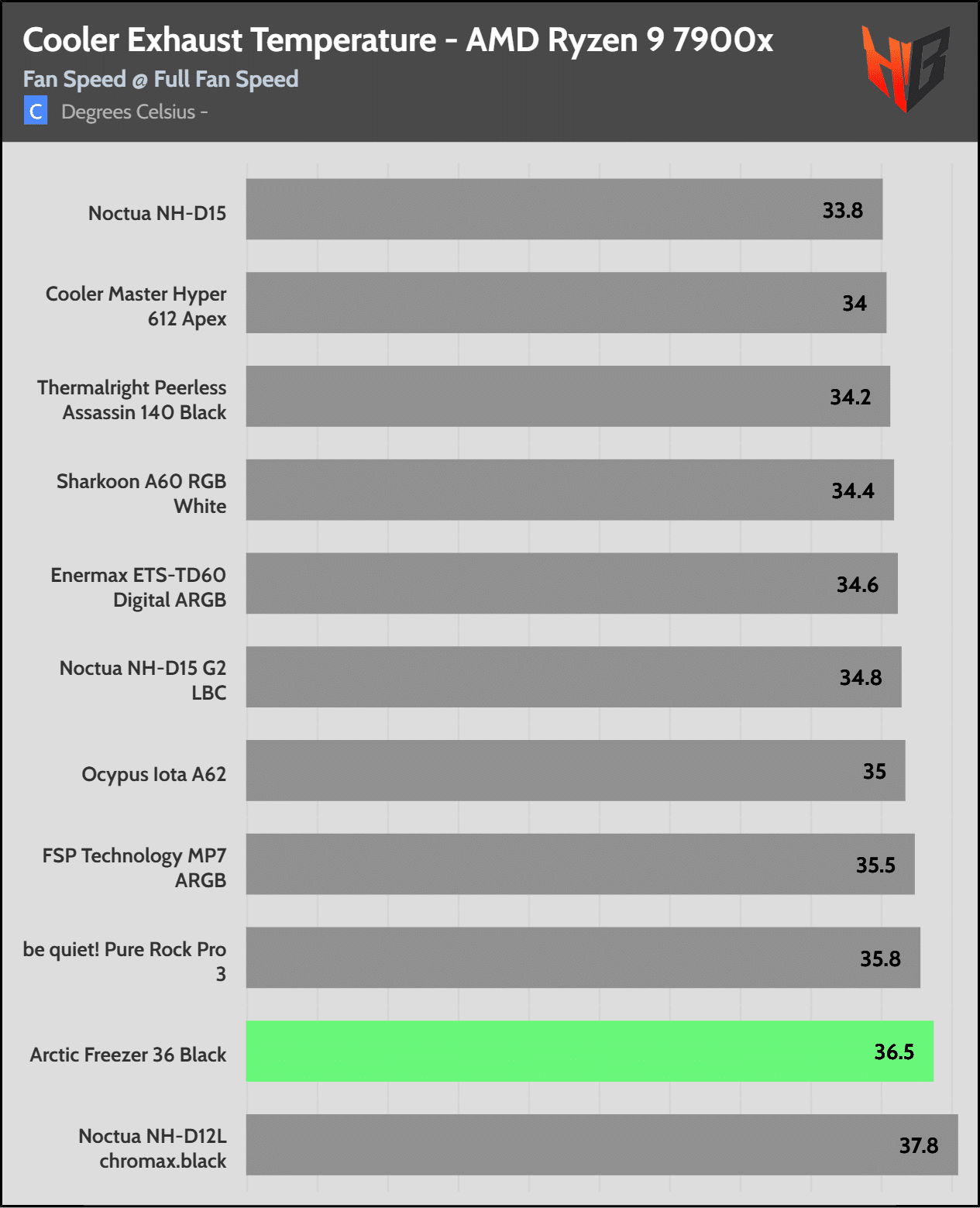

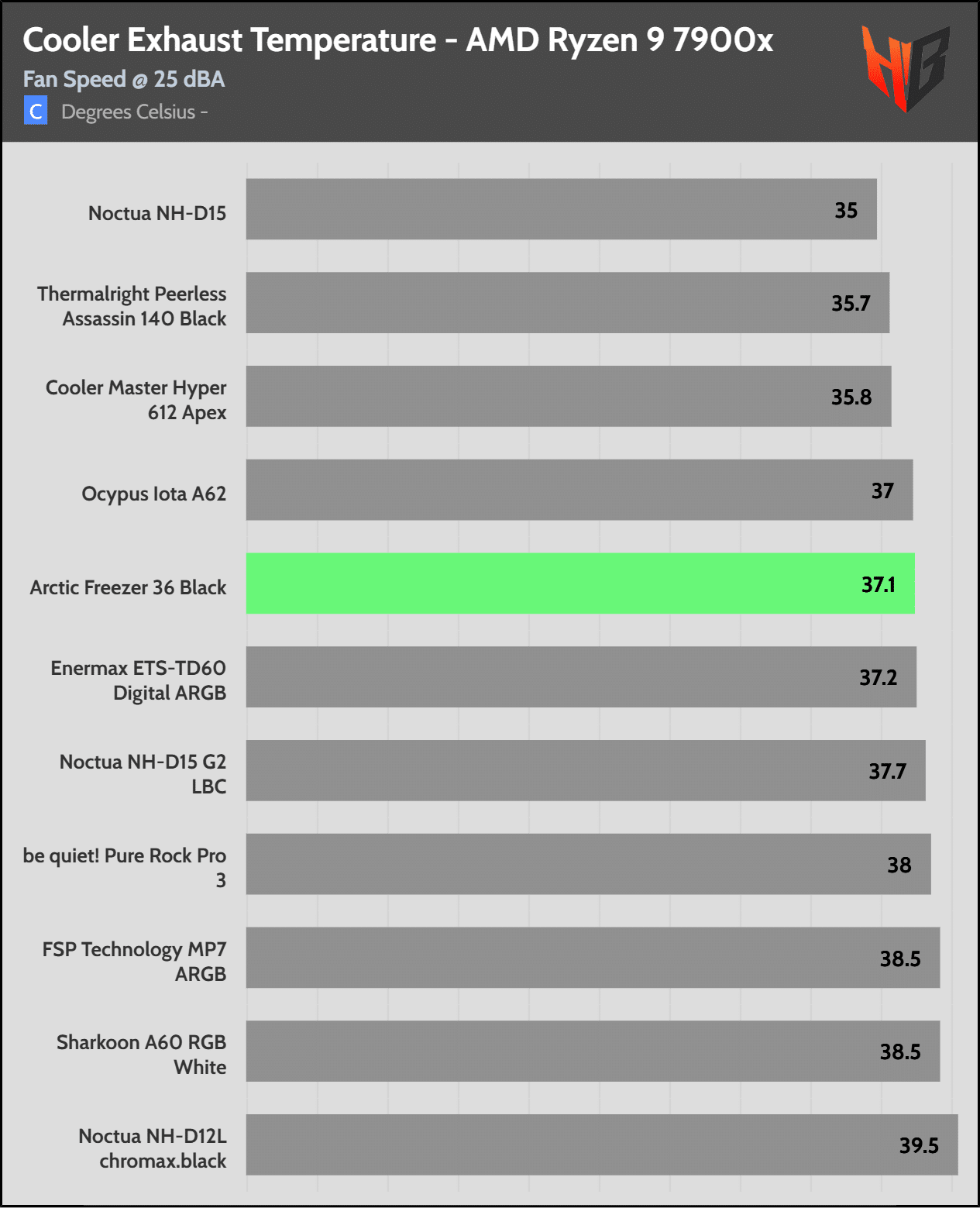

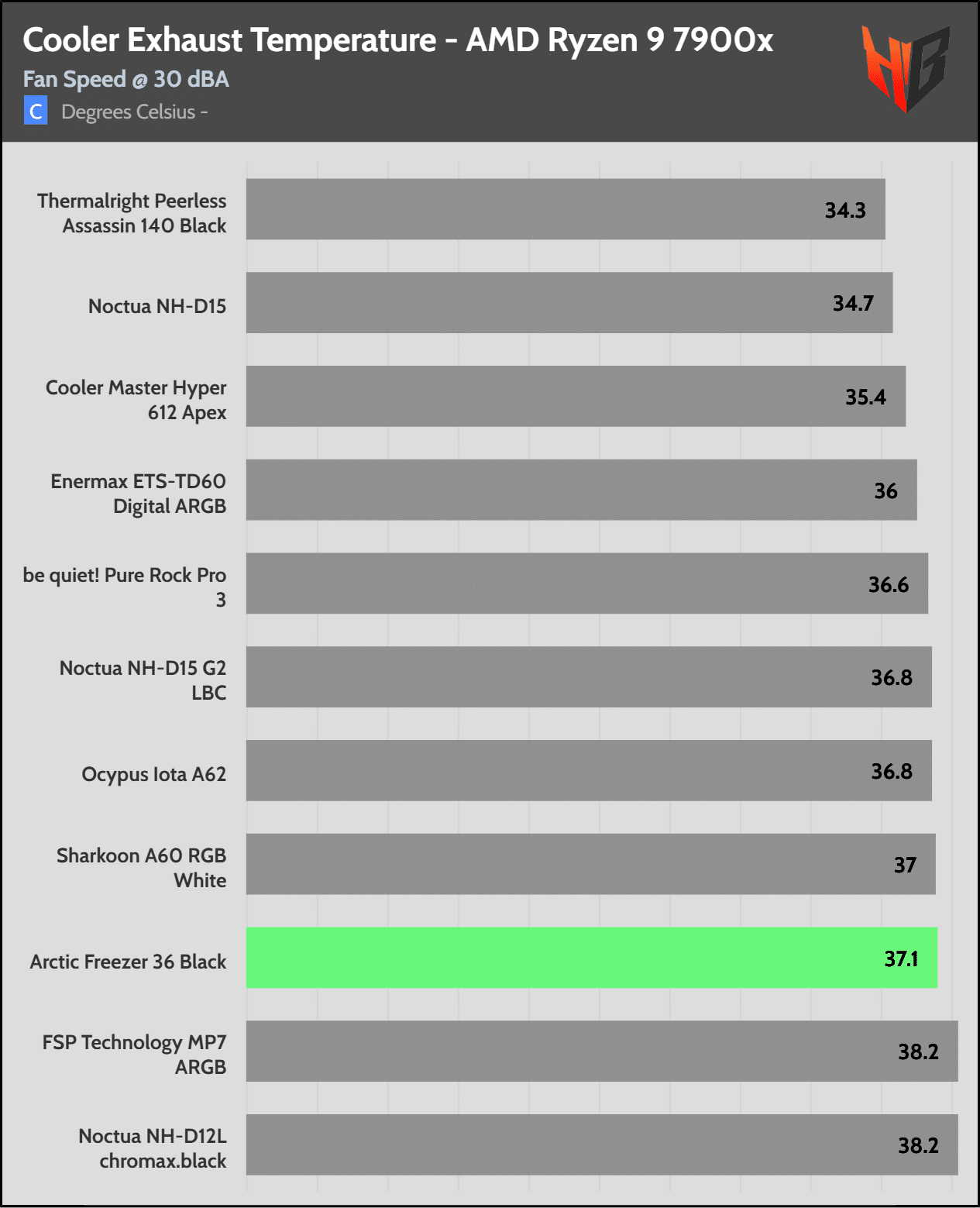

Cooler Exhaust Temperature
I measure the temperature at the exhaust side of the cooling solution.
