Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 4.421A | 1.967A | 1.94A | 0.983A | 75.007 | 83.966% | 735 | 20.2 | 40.46°C | 0.953 |
| 12.080V | 5.085V | 3.402V | 5.088V | 89.331 | 45.84°C | 114.95V | ||||
| 20% | 9.860A | 2.956A | 2.918A | 1.183A | 149.972 | 88.232% | 1186 | 35.4 | 40.53°C | 0.961 |
| 12.077V | 5.076V | 3.393V | 5.074V | 169.976 | 46.54°C | 114.93V | ||||
| 30% | 15.650A | 3.455A | 3.413A | 1.384A | 224.978 | 89.429% | 1496 | 42.3 | 41.27°C | 0.963 |
| 12.071V | 5.066V | 3.384V | 5.06V | 251.573 | 47.85°C | 114.9V | ||||
| 40% | 21.459A | 3.956A | 3.912A | 1.586A | 300.07 | 89.716% | 1714 | 44.5 | 41.87°C | 0.971 |
| 12.063V | 5.057V | 3.375V | 5.046V | 334.466 | 49.36°C | 114.87V | ||||
| 50% | 26.899A | 4.955A | 4.904A | 1.789A | 374.712 | 89.463% | 1881 | 49 | 42.07°C | 0.977 |
| 12.052V | 5.047V | 3.365V | 5.031V | 418.846 | 50.77°C | 114.86V | ||||
| 60% | 32.372A | 5.957A | 5.903A | 1.994A | 449.647 | 89.035% | 1888 | 49.1 | 42.73°C | 0.982 |
| 12.042V | 5.038V | 3.355V | 5.016V | 505.027 | 52.7°C | 114.84V | ||||
| 70% | 37.854A | 6.964A | 6.908A | 2.2A | 524.579 | 88.515% | 1892 | 49.2 | 43.22°C | 0.984 |
| 12.032V | 5.028V | 3.344V | 5.001V | 592.645 | 55.7°C | 114.82V | ||||
| 80% | 43.412A | 7.973A | 7.917A | 2.306A | 599.779 | 87.861% | 1894 | 49.2 | 43.71°C | 0.986 |
| 12.022V | 5.018V | 3.335V | 4.988V | 682.65 | 57.94°C | 114.79V | ||||
| 90% | 49.309A | 8.486A | 8.426A | 2.412A | 674.807 | 86.855% | 1896 | 49.2 | 44.02°C | 0.987 |
| 12.012V | 5.009V | 3.323V | 4.976V | 776.924 | 61.3°C | 114.77V | ||||
| 100% | 55.021A | 9.002A | 8.965A | 3.032A | 750.007 | 85.868% | 1898 | 49.3 | 45.43°C | 0.988 |
| 12.001V | 4.999V | 3.313V | 4.947V | 873.441 | 65.83°C | 114.76V | ||||
| 110% | 60.614A | 10.026A | 10.09A | 3.039A | 825.004 | 85.118% | 1895 | 49.2 | 44.09°C | 0.989 |
| 11.989V | 4.987V | 3.3V | 4.937V | 969.27 | 65.56°C | 114.74V | ||||
| CL1 | 0.116A | 11.887A | 11.7A | 0A | 101.305 | 81.225% | 1745 | 45 | 40.48°C | 0.978 |
| 12.064V | 5.065V | 3.393V | 5.1V | 124.721 | 47.32°C | 114.93V | ||||
| CL2 | 0.116A | 17.749A | 0A | 0A | 91.402 | 80.599% | 1651 | 43.8 | 40.81°C | 0.981 |
| 12.071V | 5.071V | 3.395V | 5.108V | 113.402 | 45.4°C | 114.93V | ||||
| CL3 | 0.116A | 0A | 17.479A | 0A | 60.795 | 74.096% | 1651 | 43.8 | 41.91°C | 0.951 |
| 12.066V | 5.074V | 3.398V | 5.104V | 82.049 | 46.54°C | 114.95V | ||||
| CL4 | 62.384A | 0A | 0A | 0.001A | 749.758 | 87.294% | 1651 | 43.8 | 44.44°C | 0.988 |
| 12.018V | 5.021V | 3.323V | 5.052V | 858.892 | 62.6°C | 114.76V |
Load regulation is within 1% at 12V, but loose on the rest of the rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.230A | 0.491A | 0.484A | 0.196A | 20.001 | 67.471% | 711 | 19.3 | 36.36°C | 0.882 |
| 12.080V | 5.089V | 3.407V | 5.115V | 29.645 | 37.18°C | 114.97V | ||||
| 40W | 2.706A | 0.687A | 0.678A | 0.294A | 40.003 | 78.287% | 721 | 19.7 | 37.02°C | 0.93 |
| 12.082V | 5.091V | 3.406V | 5.112V | 51.107 | 40.4°C | 114.96V | ||||
| 60W | 4.182A | 0.885A | 0.873A | 0.392A | 60.002 | 82.723% | 740 | 20.4 | 38.83°C | 0.946 |
| 12.082V | 5.089V | 3.404V | 5.108V | 72.535 | 43.25°C | 114.96V | ||||
| 80W | 5.656A | 1.082A | 1.067A | 0.49A | 79.965 | 85.353% | 743 | 20.5 | 39.48°C | 0.958 |
| 12.082V | 5.087V | 3.402V | 5.103V | 93.687 | 44.66°C | 114.95V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.

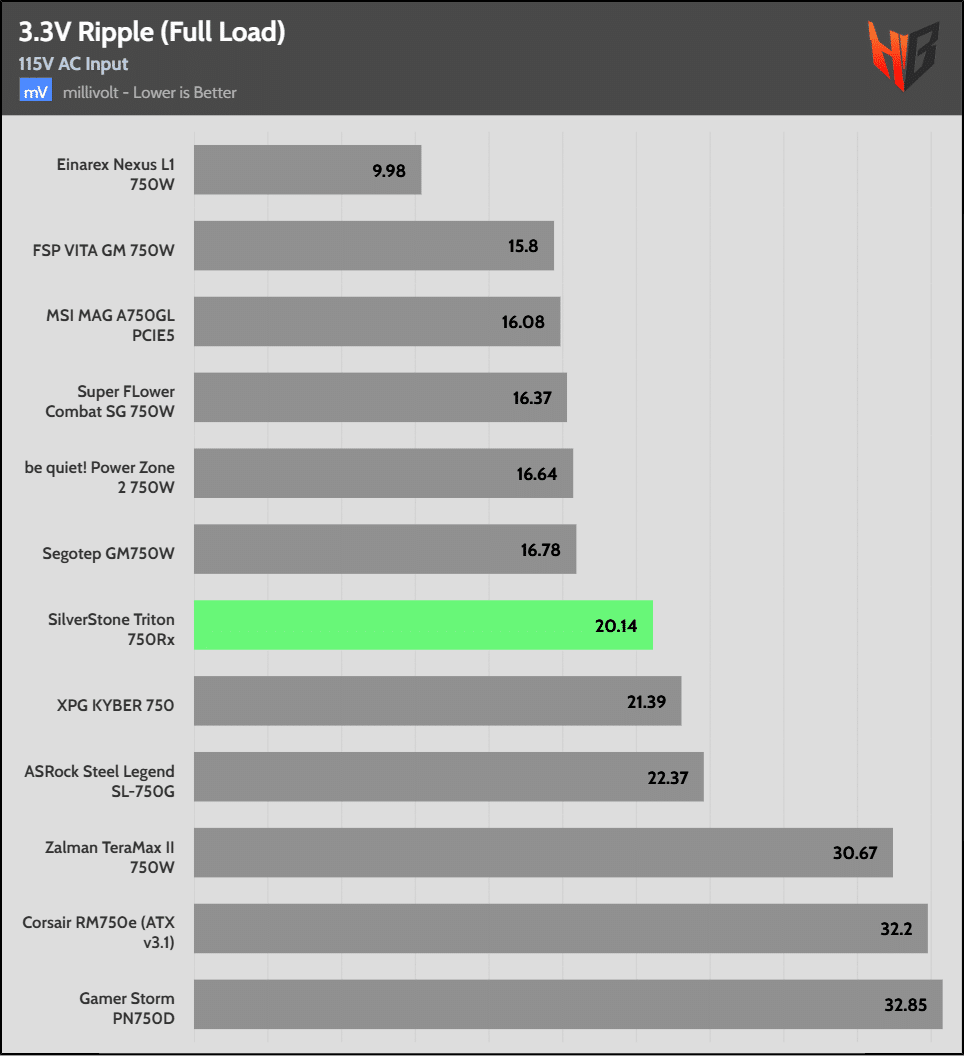

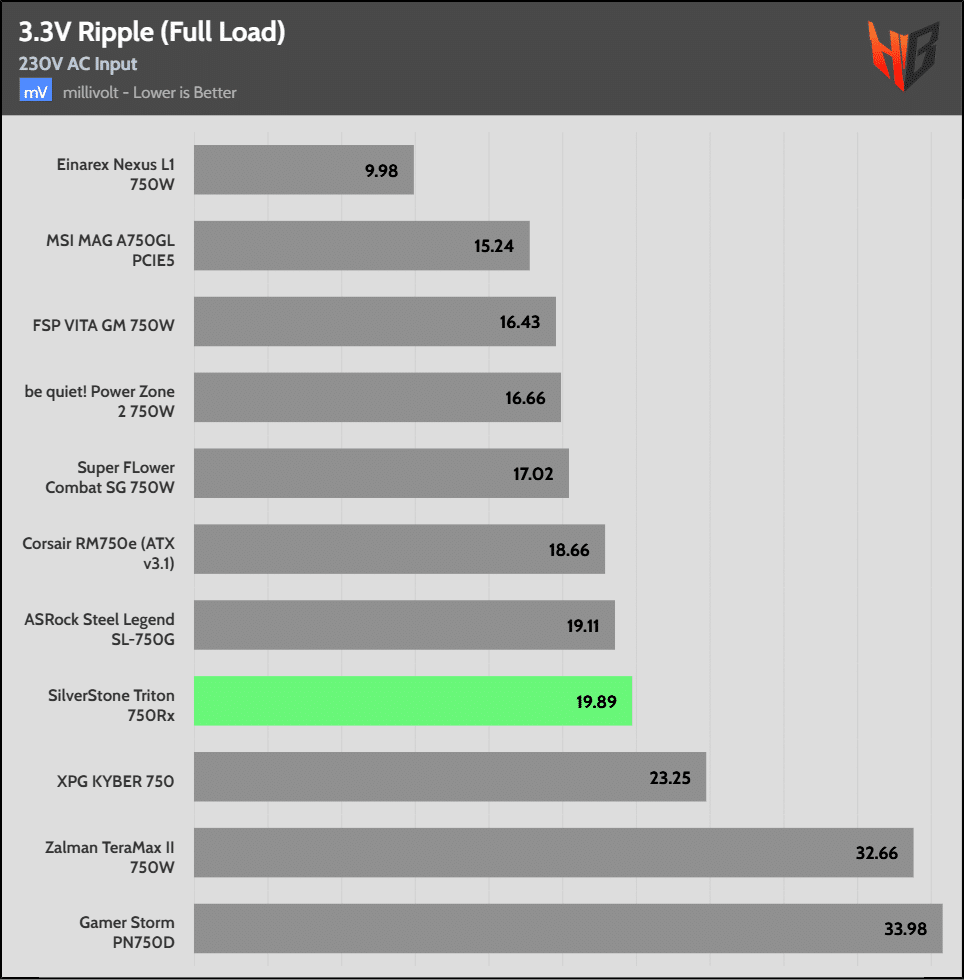

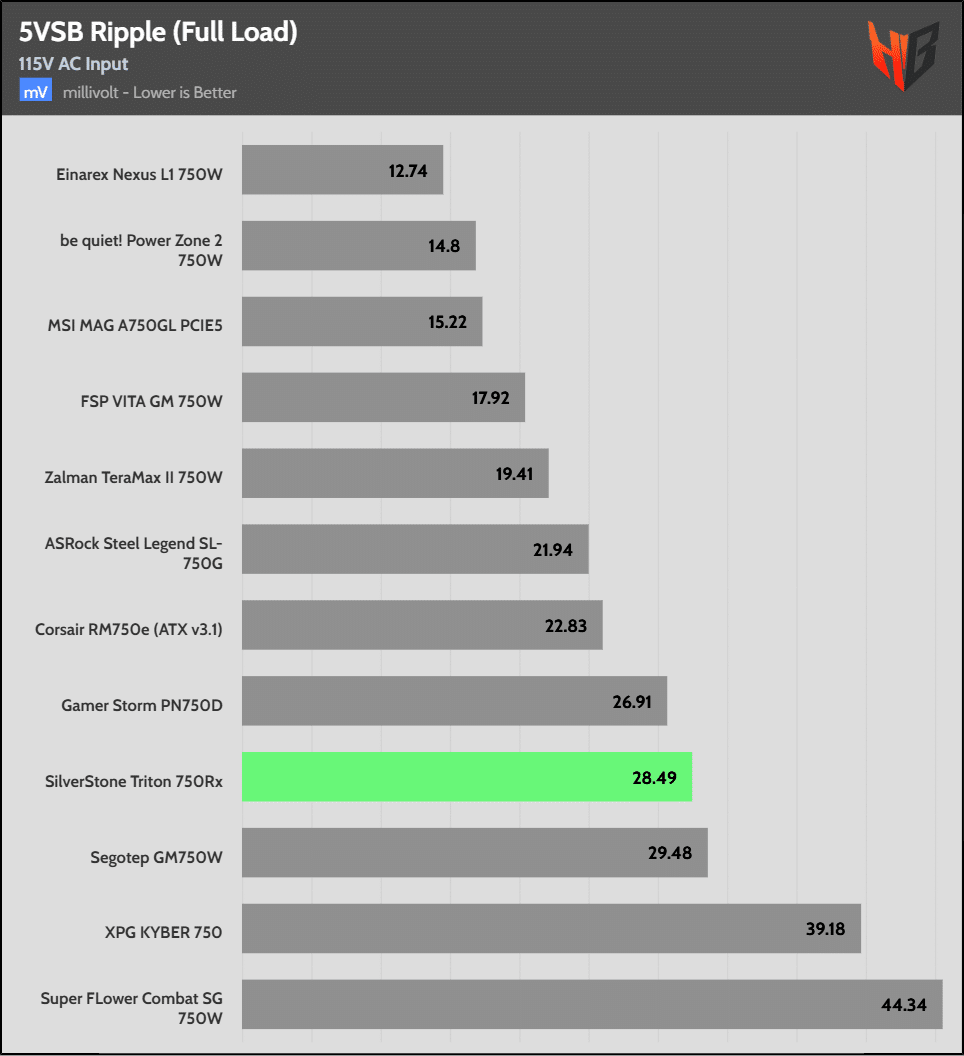

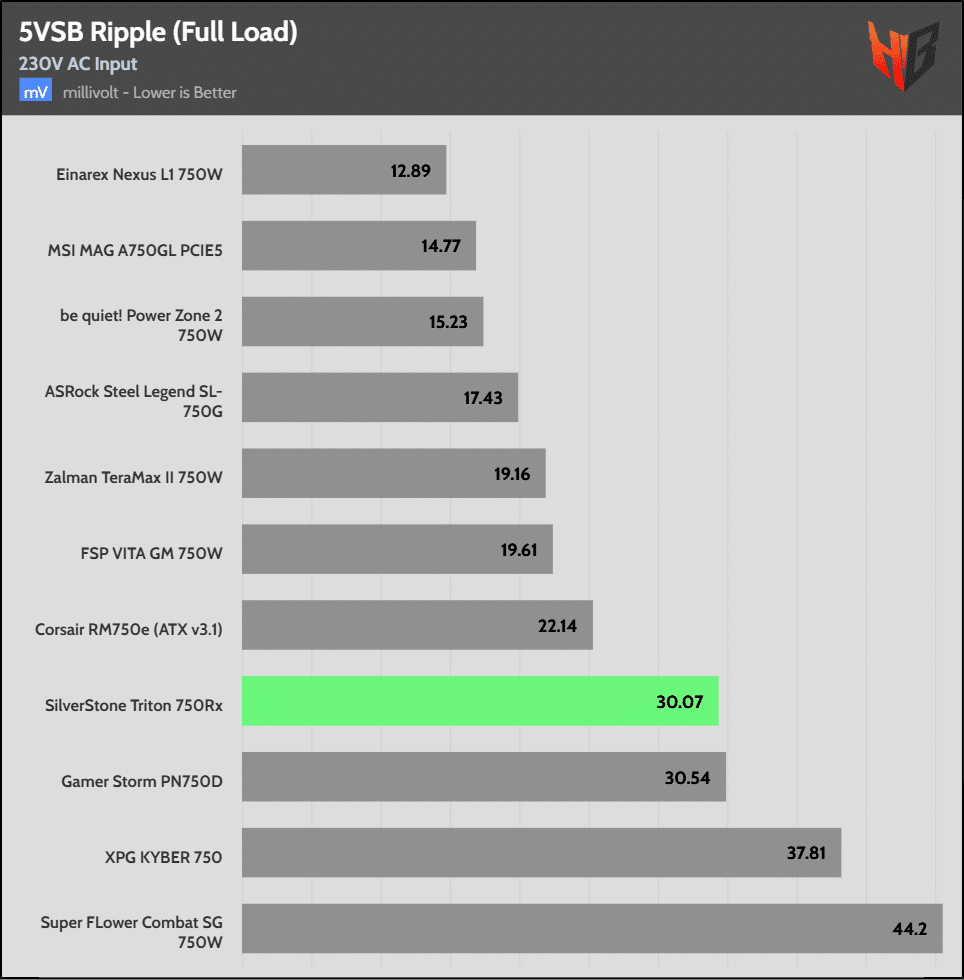

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 13.7 mV | 9.2 mV | 7.9 mV | 13.1 mV | Pass |
| 20% Load | 17.4 mV | 10.2 mV | 9.7 mV | 12.9 mV | Pass |
| 30% Load | 18.7 mV | 9.8 mV | 10.5 mV | 14.4 mV | Pass |
| 40% Load | 21.9 mV | 10.0 mV | 12.0 mV | 14.7 mV | Pass |
| 50% Load | 25.0 mV | 11.2 mV | 9.9 mV | 16.0 mV | Pass |
| 60% Load | 26.4 mV | 12.6 mV | 10.6 mV | 16.2 mV | Pass |
| 70% Load | 32.1 mV | 12.7 mV | 11.5 mV | 17.9 mV | Pass |
| 80% Load | 37.8 mV | 38.0 mV | 16.8 mV | 19.1 mV | Pass |
| 90% Load | 39.8 mV | 13.3 mV | 16.7 mV | 19.8 mV | Pass |
| 100% Load | 55.6 mV | 26.9 mV | 20.1 mV | 28.5 mV | Pass |
| 110% Load | 65.5 mV | 19.3 mV | 21.7 mV | 38.7 mV | Pass |
| Crossload 1 | 23.2 mV | 15.7 mV | 18.0 mV | 12.3 mV | Pass |
| Crossload 2 | 16.7 mV | 12.7 mV | 8.0 mV | 9.3 mV | Pass |
| Crossload 3 | 15.9 mV | 23.3 mV | 22.1 mV | 12.0 mV | Pass |
| Crossload 4 | 57.0 mV | 13.1 mV | 11.9 mV | 21.3 mV | Pass |

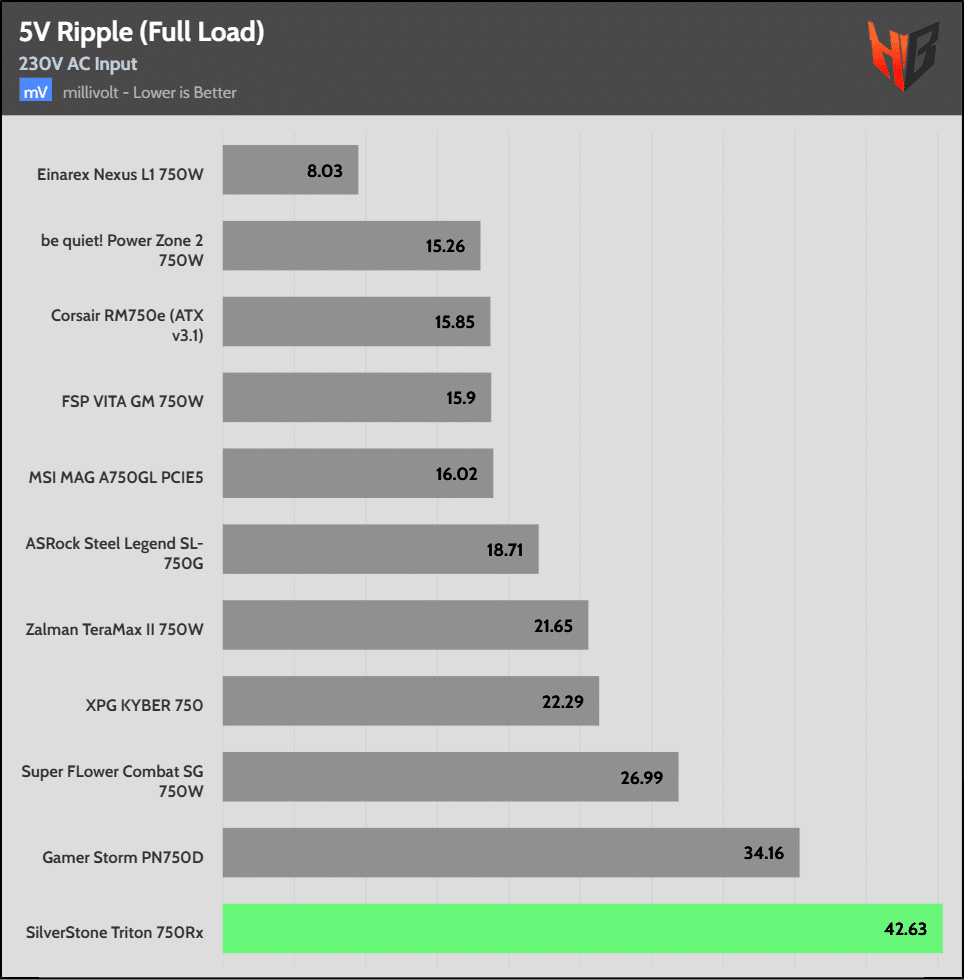

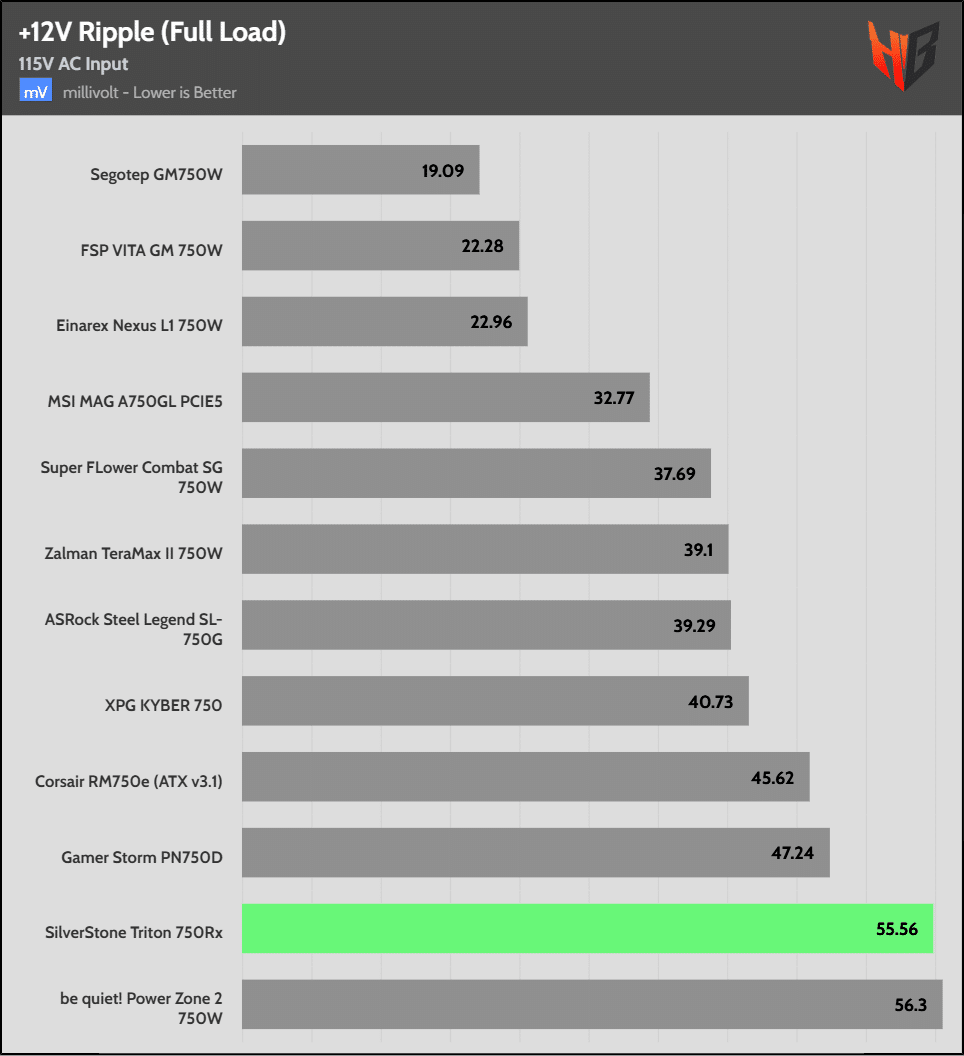

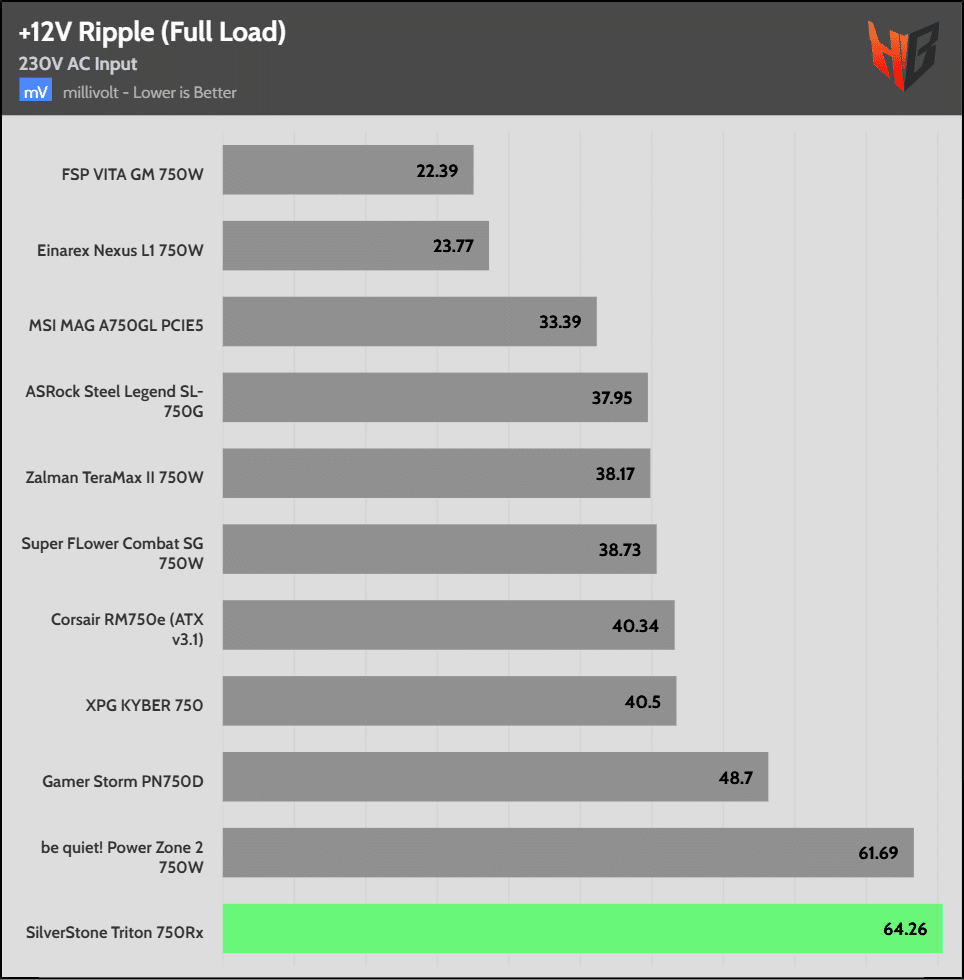

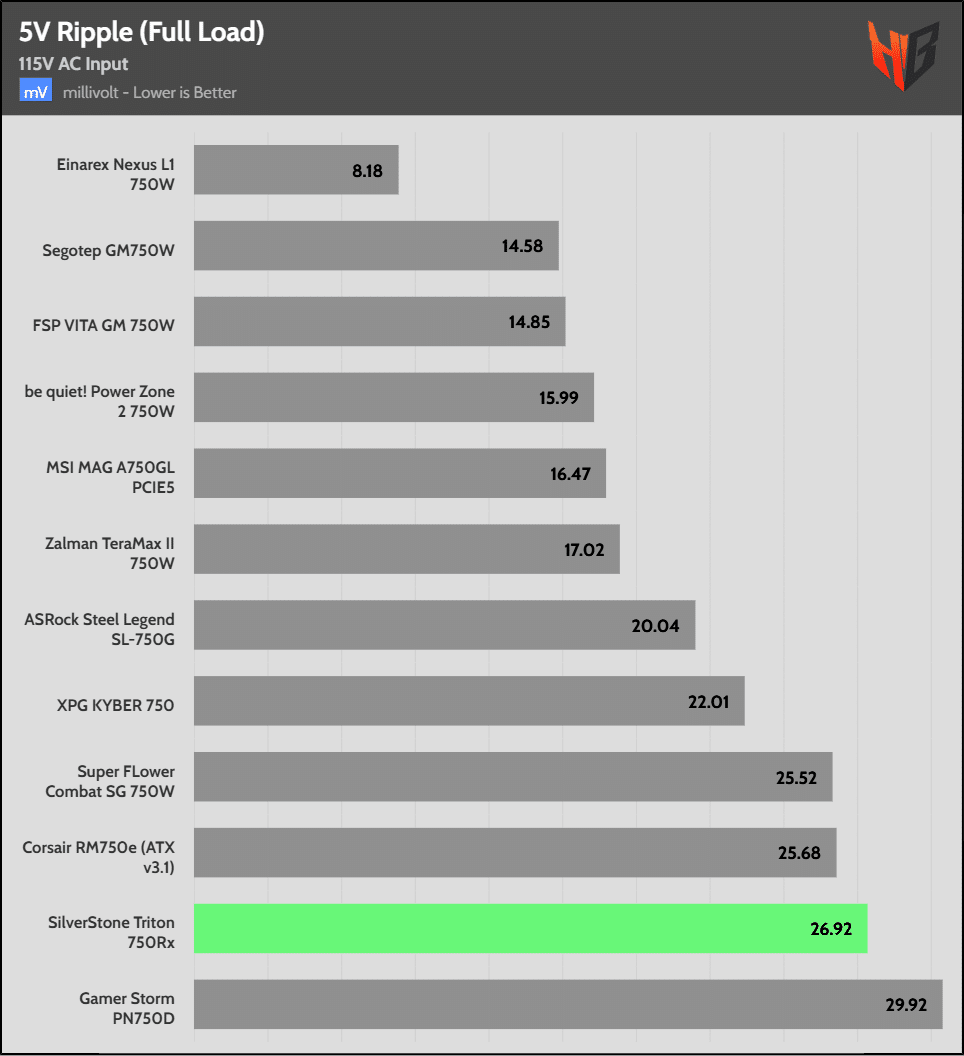

Ripple suppression should be better at 12V. It is not good at 5V either.
