Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.148V | 12.087V | 0.50% | Pass |
| 5V | 5.004V | 4.892V | 2.24% | Pass |
| 3.3V | 3.282V | 3.140V | 4.33% | Pass |
| 5VSB | 5.024V | 4.989V | 0.70% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.083V | 11.981V | 0.84% | Pass |
| 5V | 4.984V | 4.878V | 2.13% | Pass |
| 3.3V | 3.264V | 3.122V | 4.37% | Fail |
| 5VSB | 4.976V | 4.935V | 0.83% | Pass |

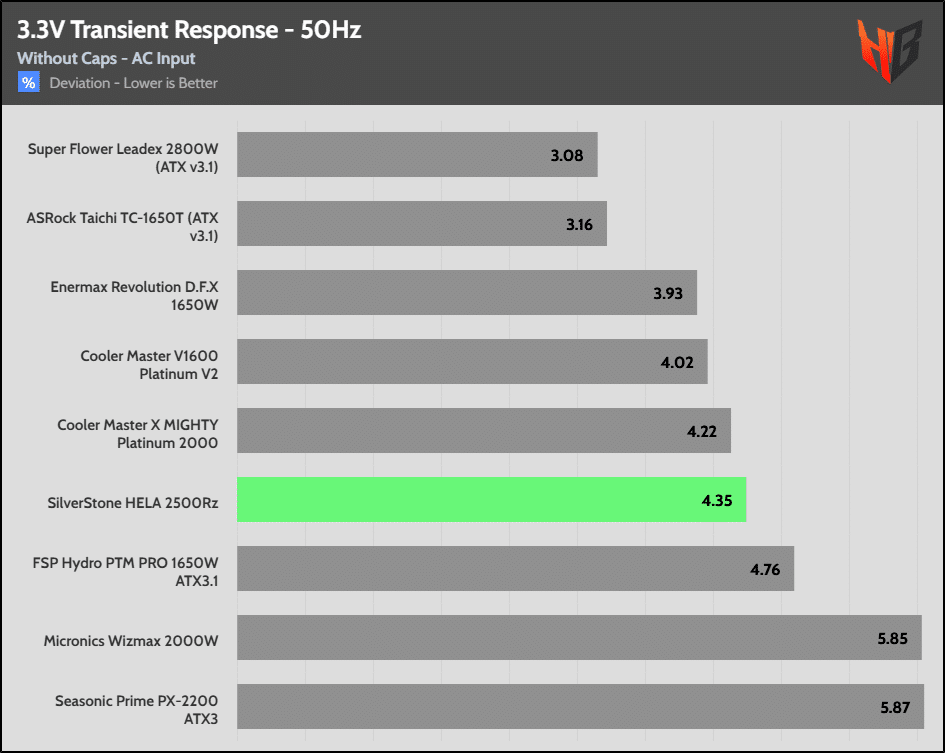

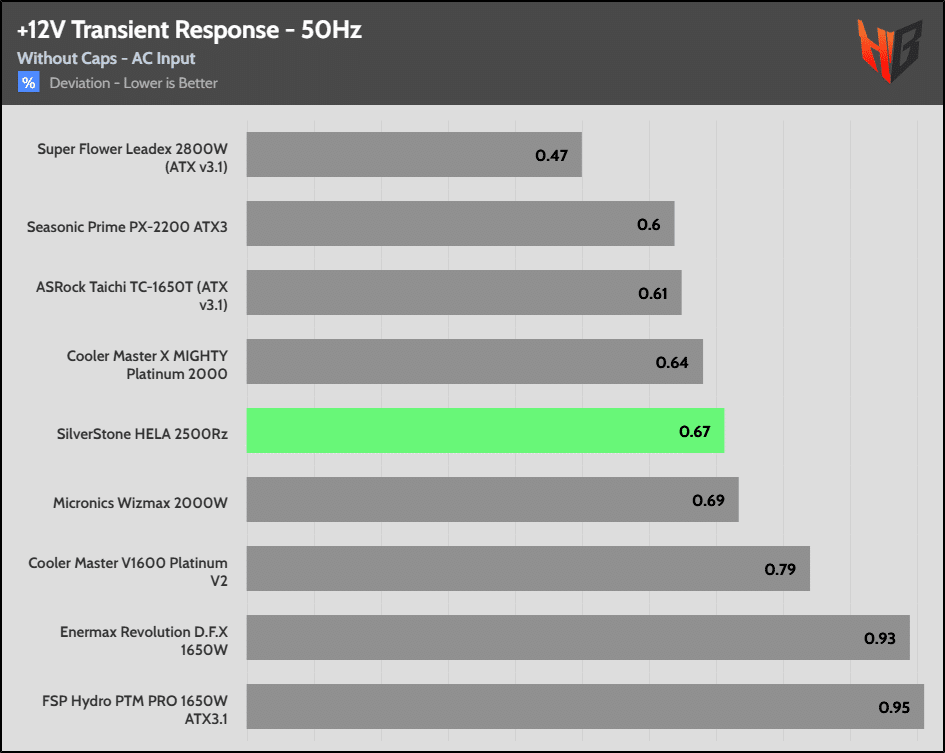

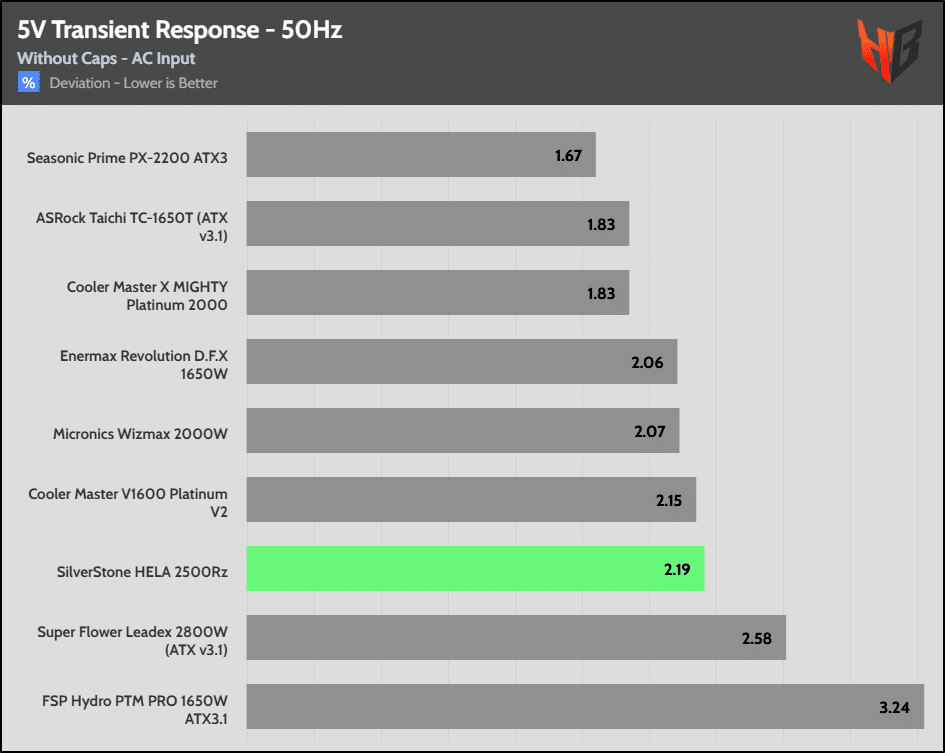

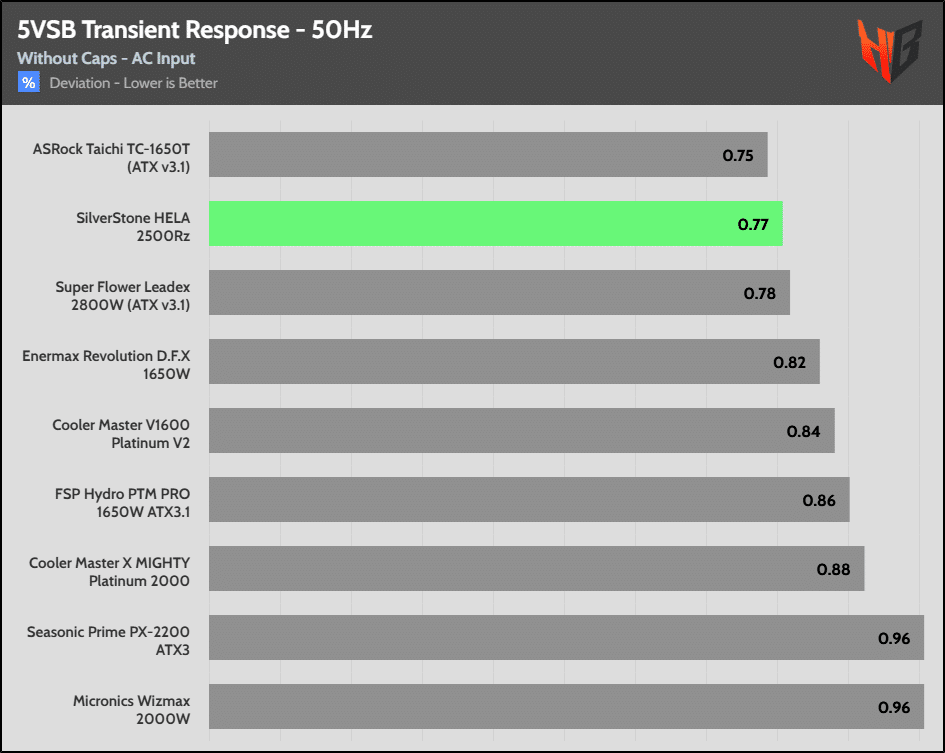

The transient response at 12V is good, but mediocre on the minor rails, especially at 3.3V, which fails in the second test, and it is at the borderline in the first test.

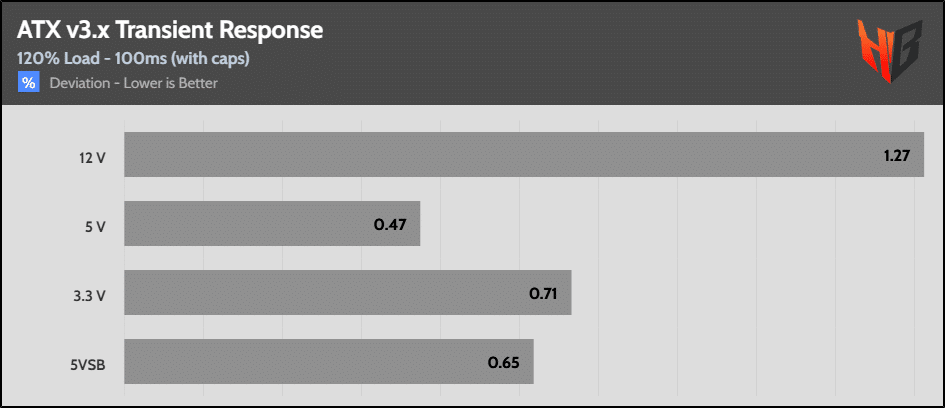

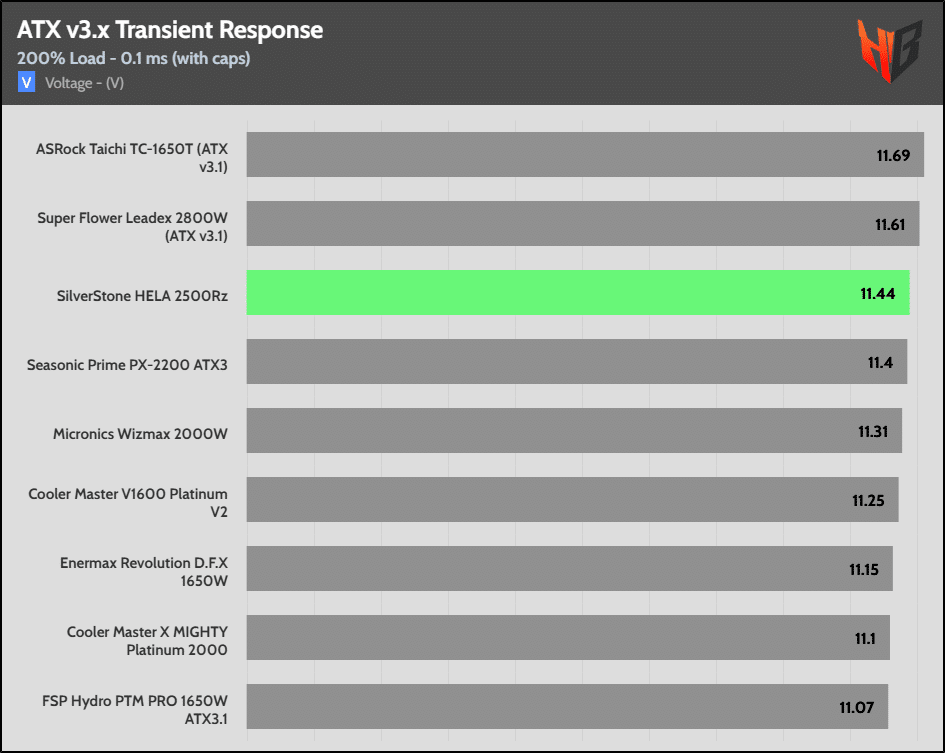

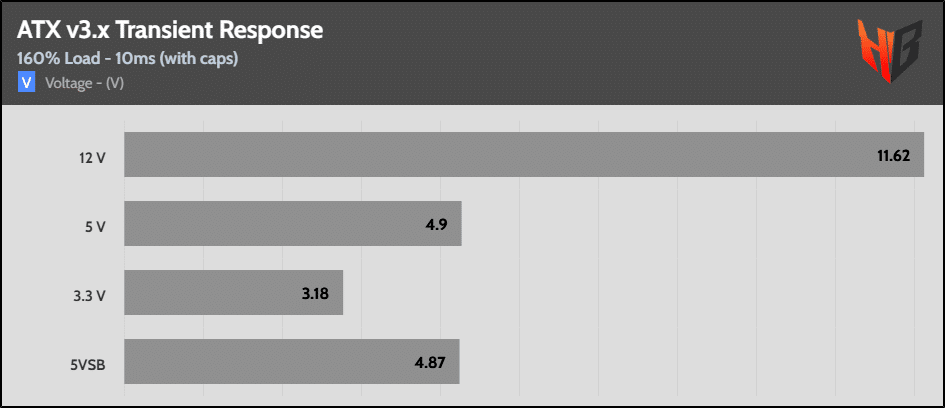

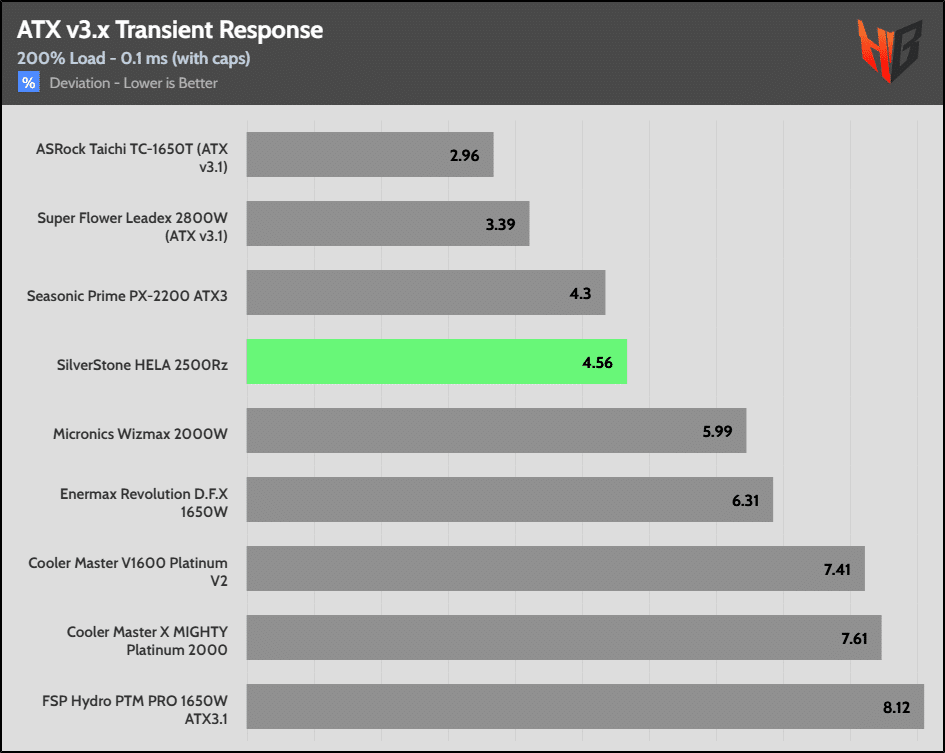

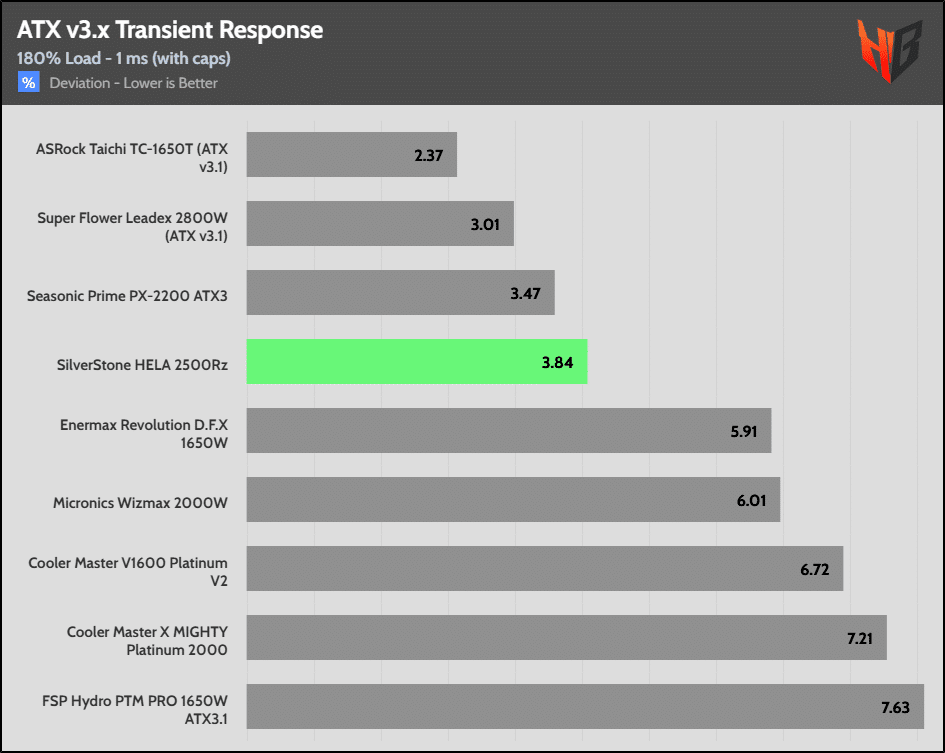

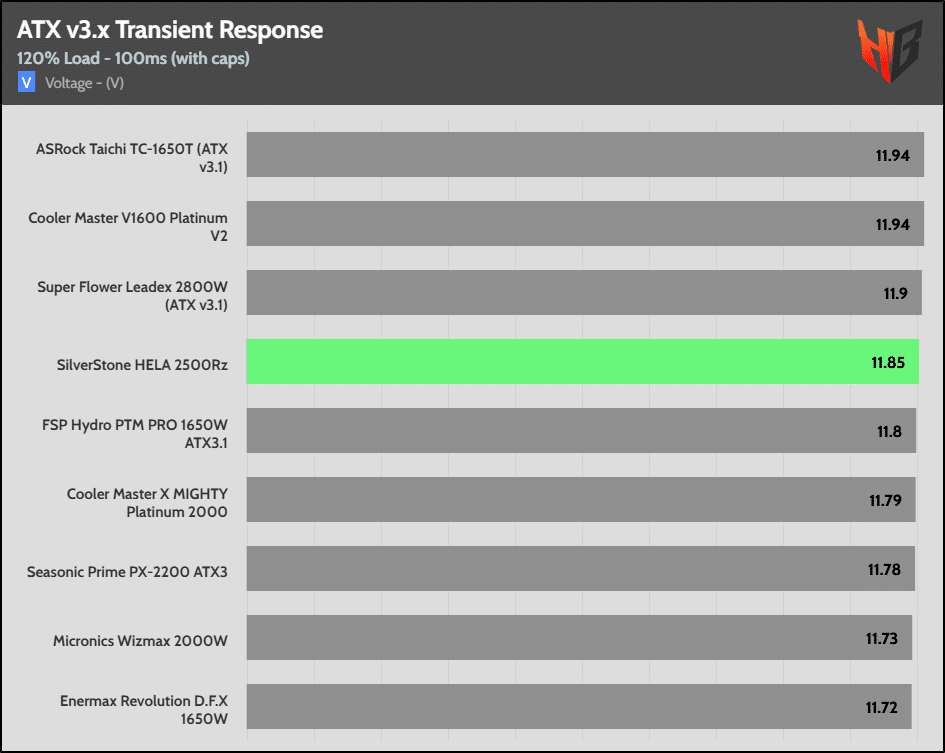

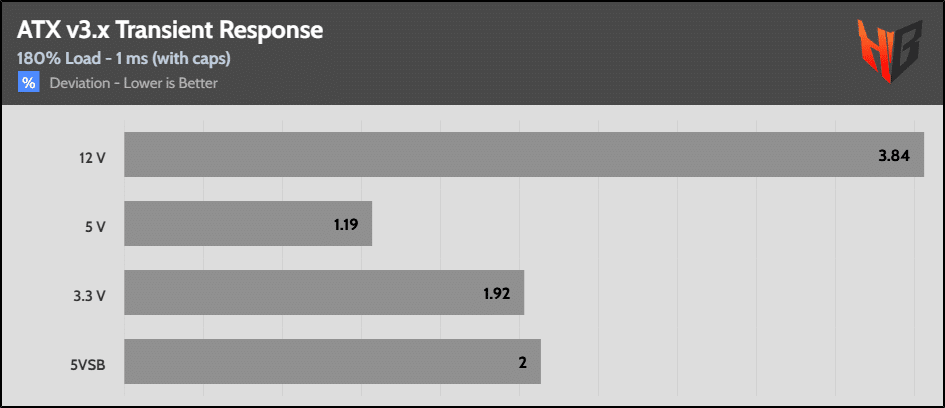

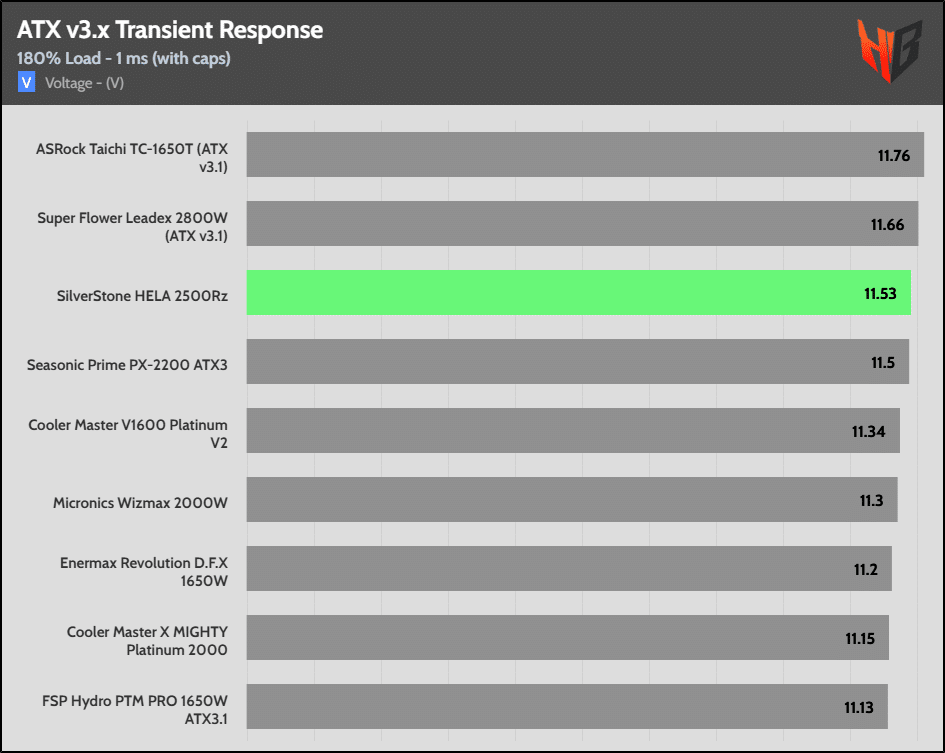

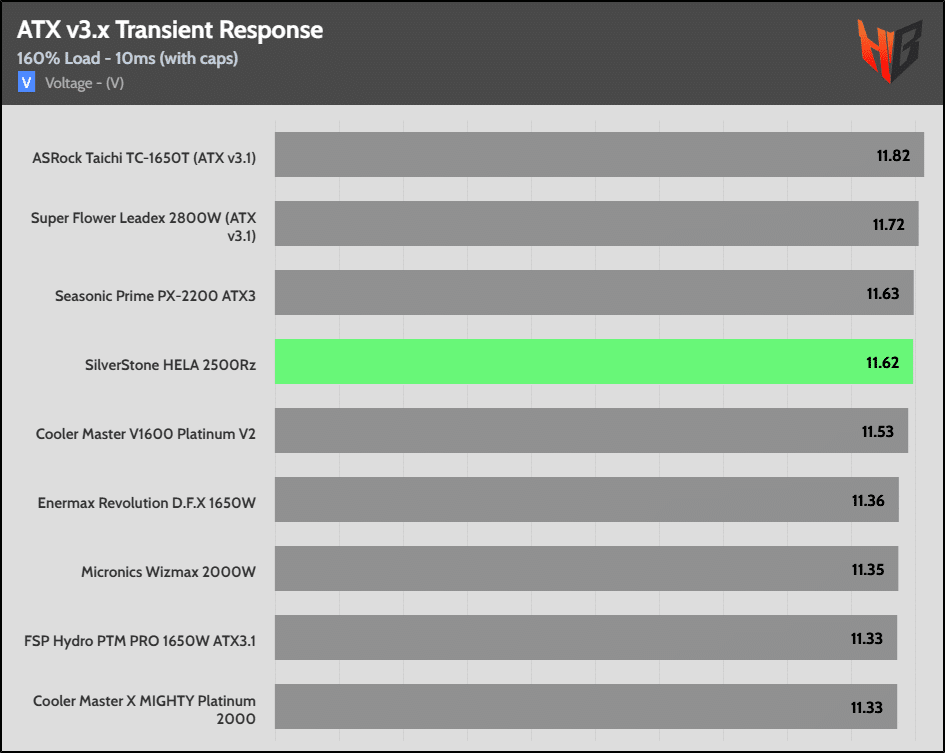

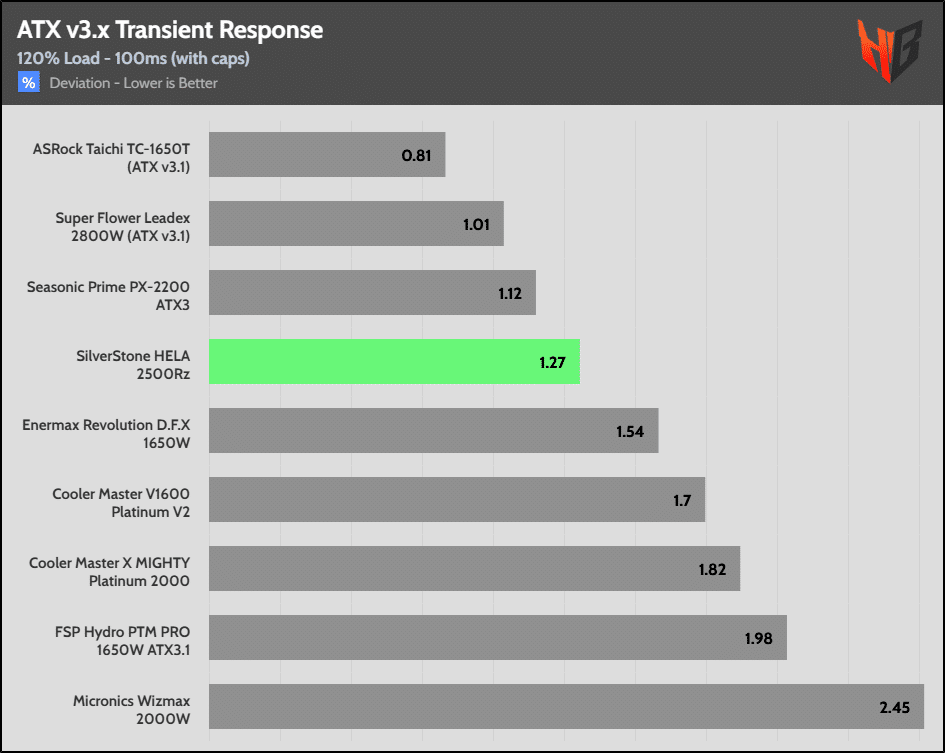

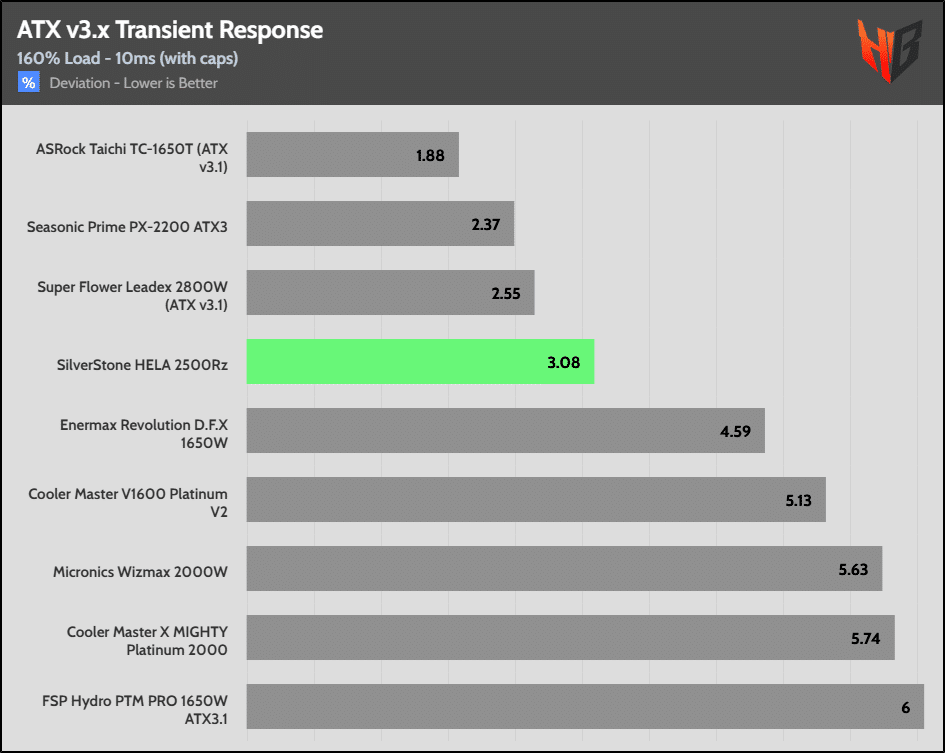

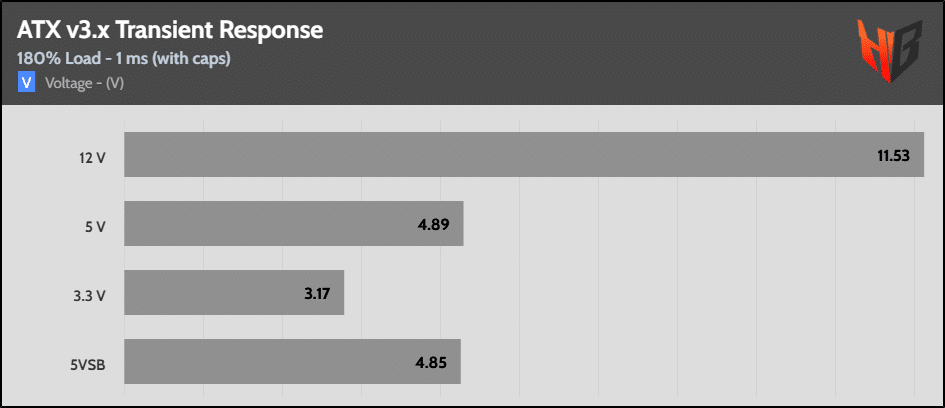

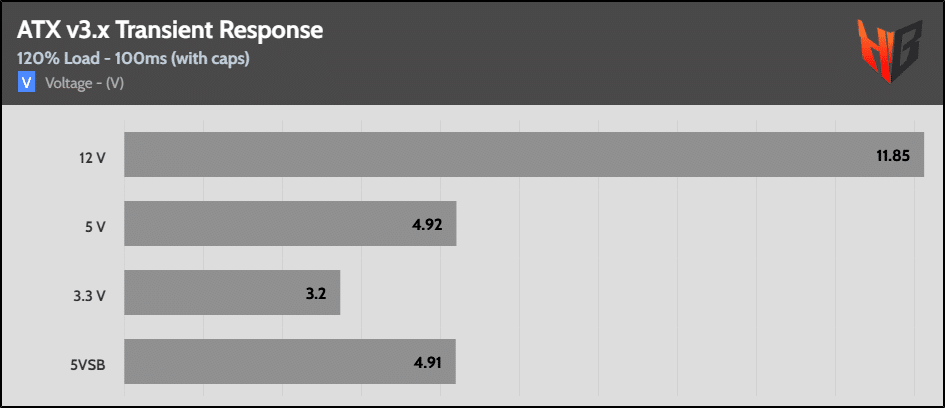

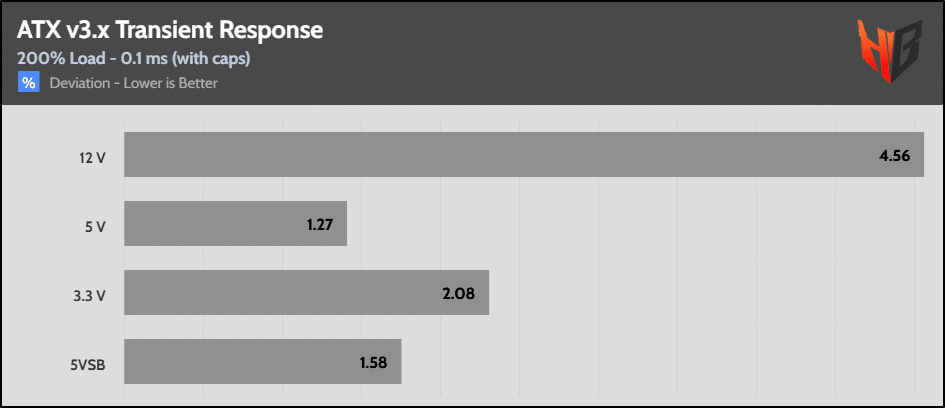

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
The 12V rail’s performance is competitive!
