Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.019V | 11.854V | 1.37% | Pass |
| 5V | 5.062V | 4.984V | 1.53% | Pass |
| 3.3V | 3.335V | 3.224V | 3.32% | Pass |
| 5VSB | 5.043V | 4.993V | 0.99% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 11.989V | 11.909V | 0.67% | Pass |
| 5V | 5.052V | 4.981V | 1.40% | Pass |
| 3.3V | 3.326V | 3.213V | 3.40% | Pass |
| 5VSB | 4.999V | 4.953V | 0.91% | Pass |

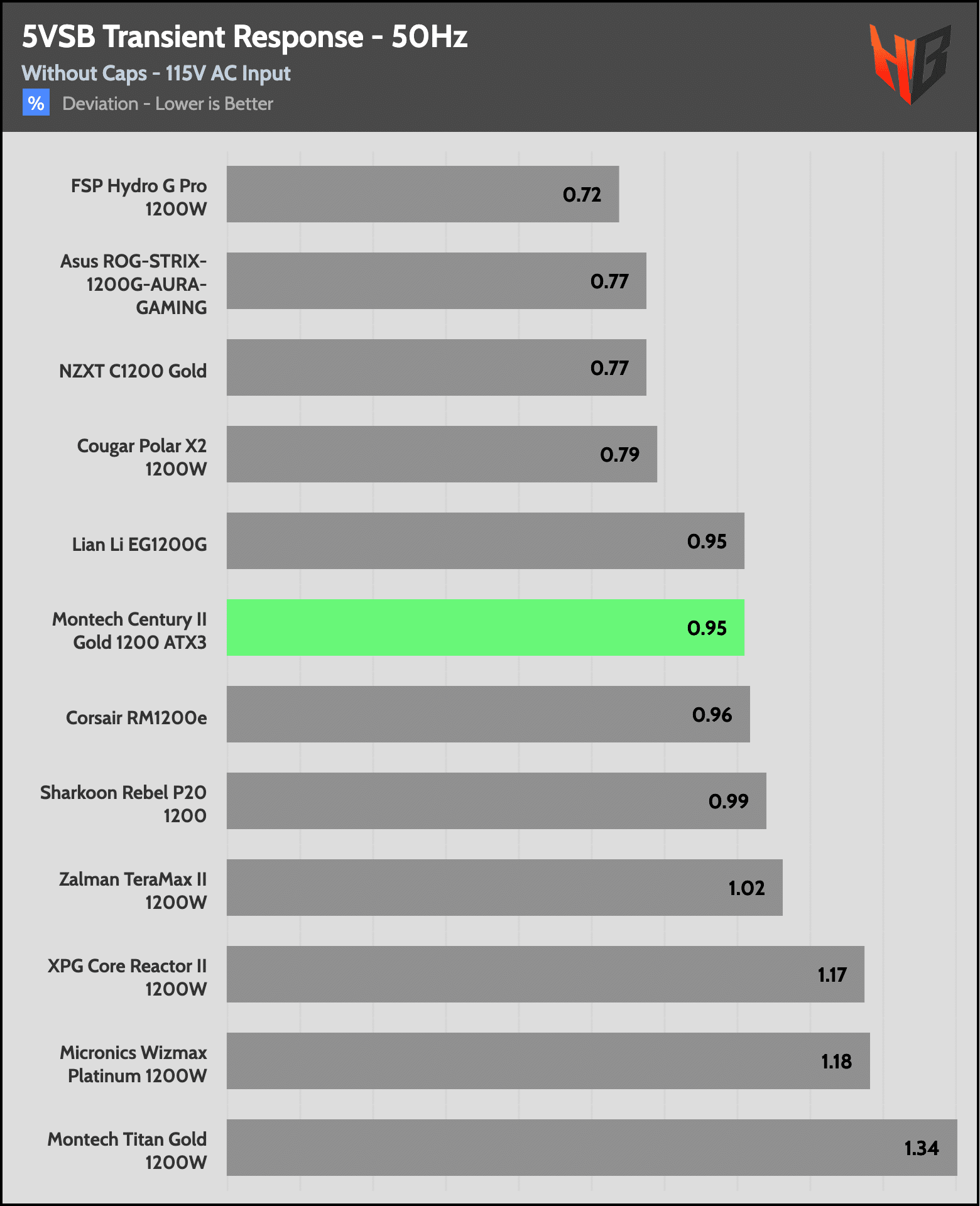

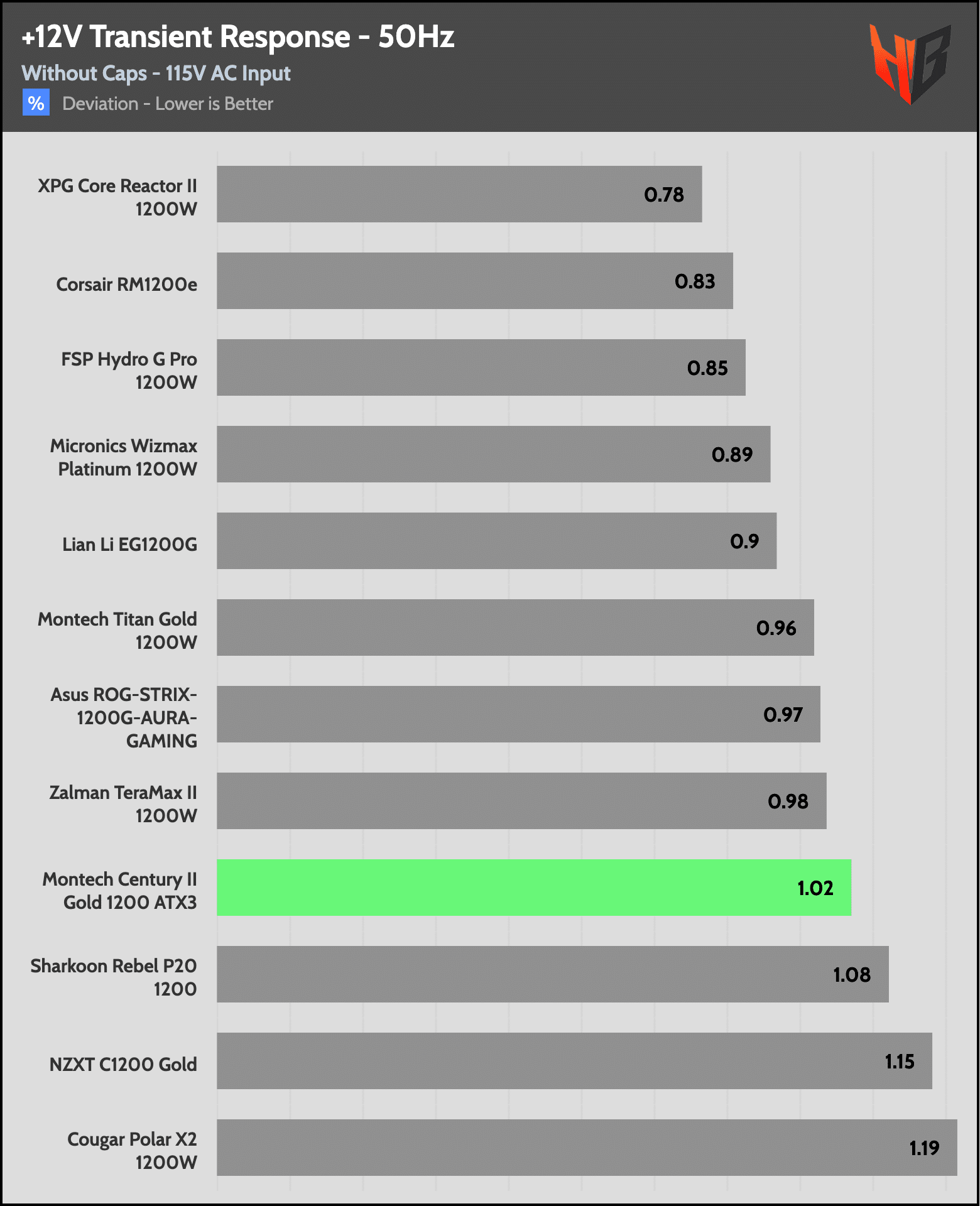

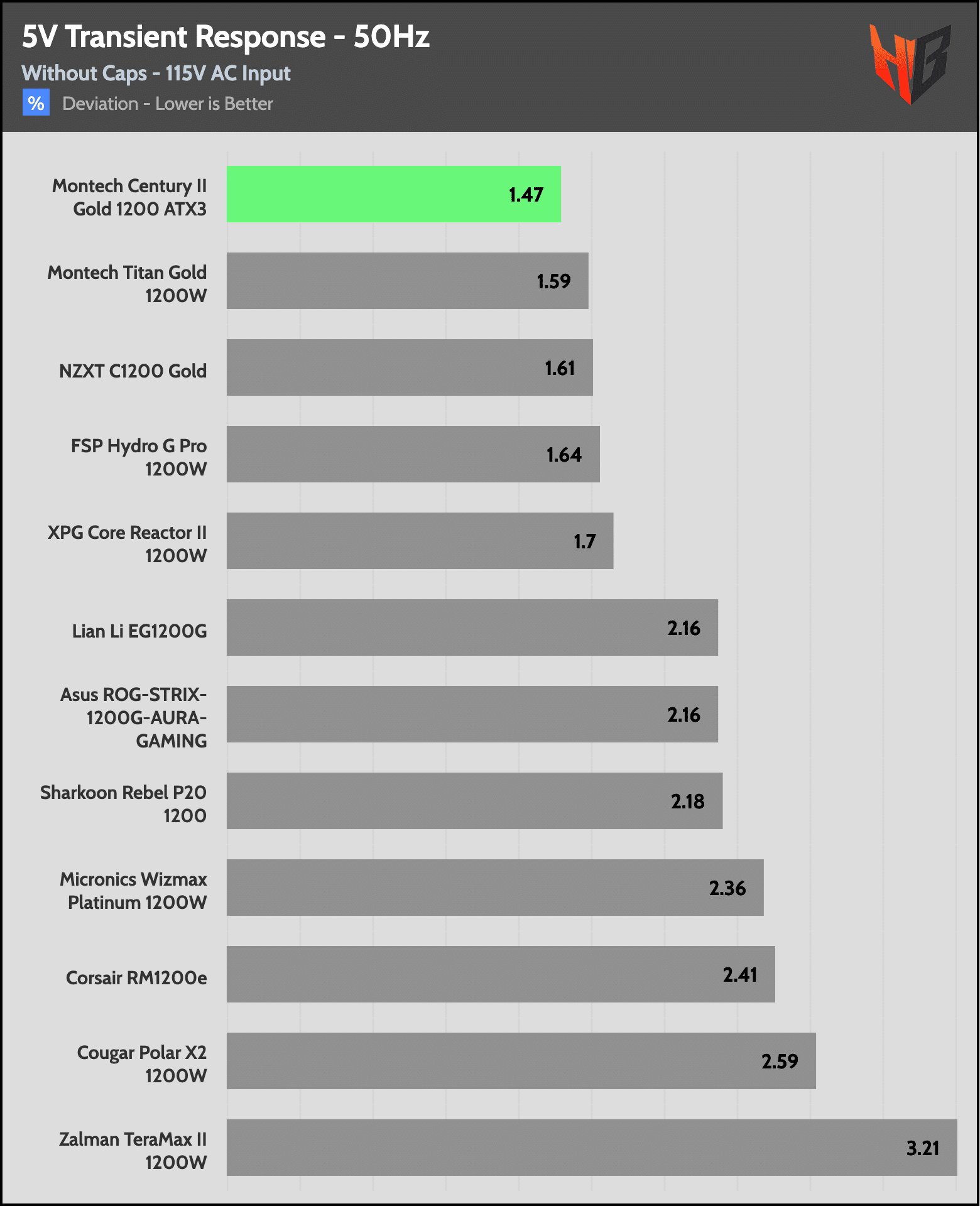

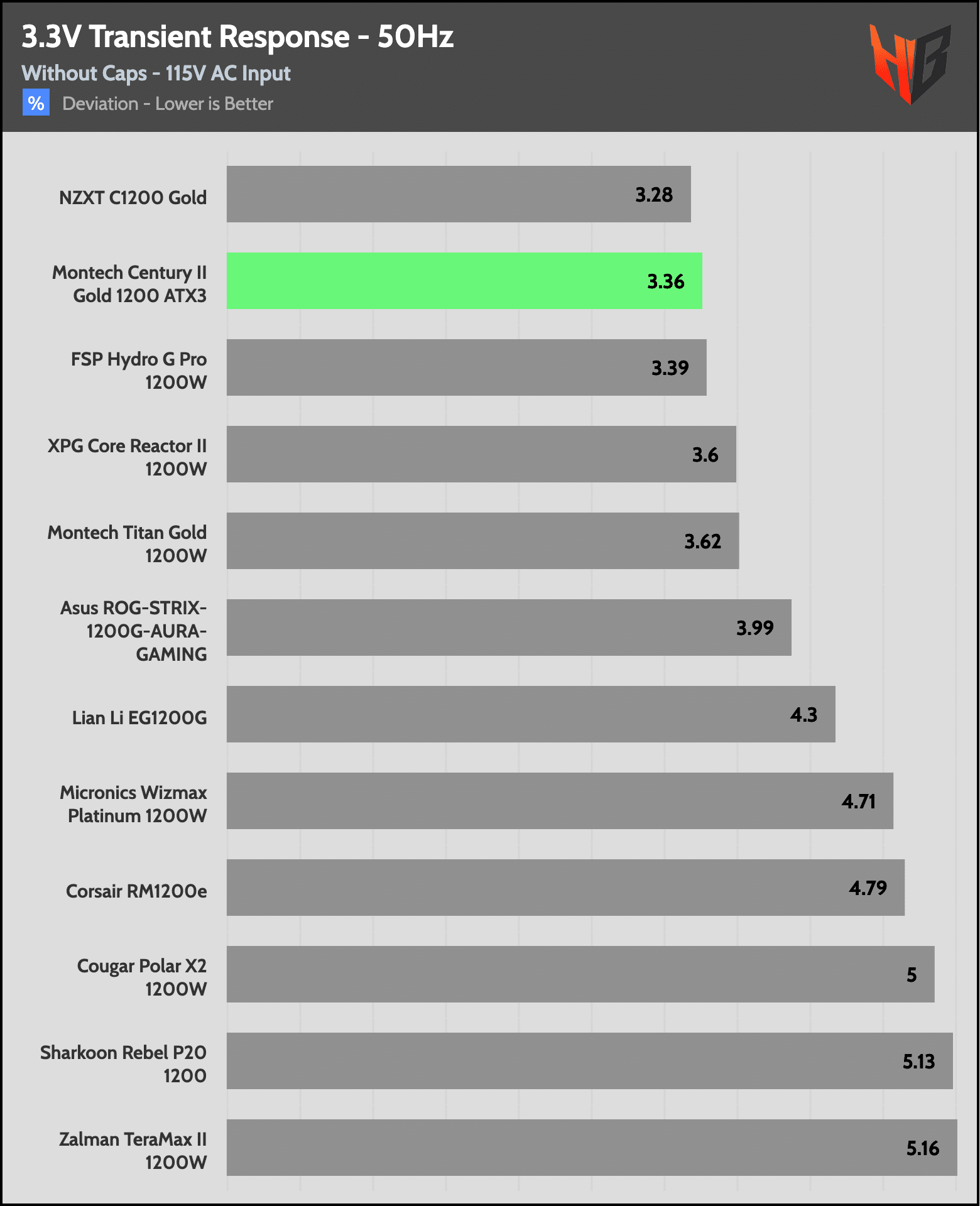

The transient response with normal loads is decent at 12V, and pretty good on the minor rails.

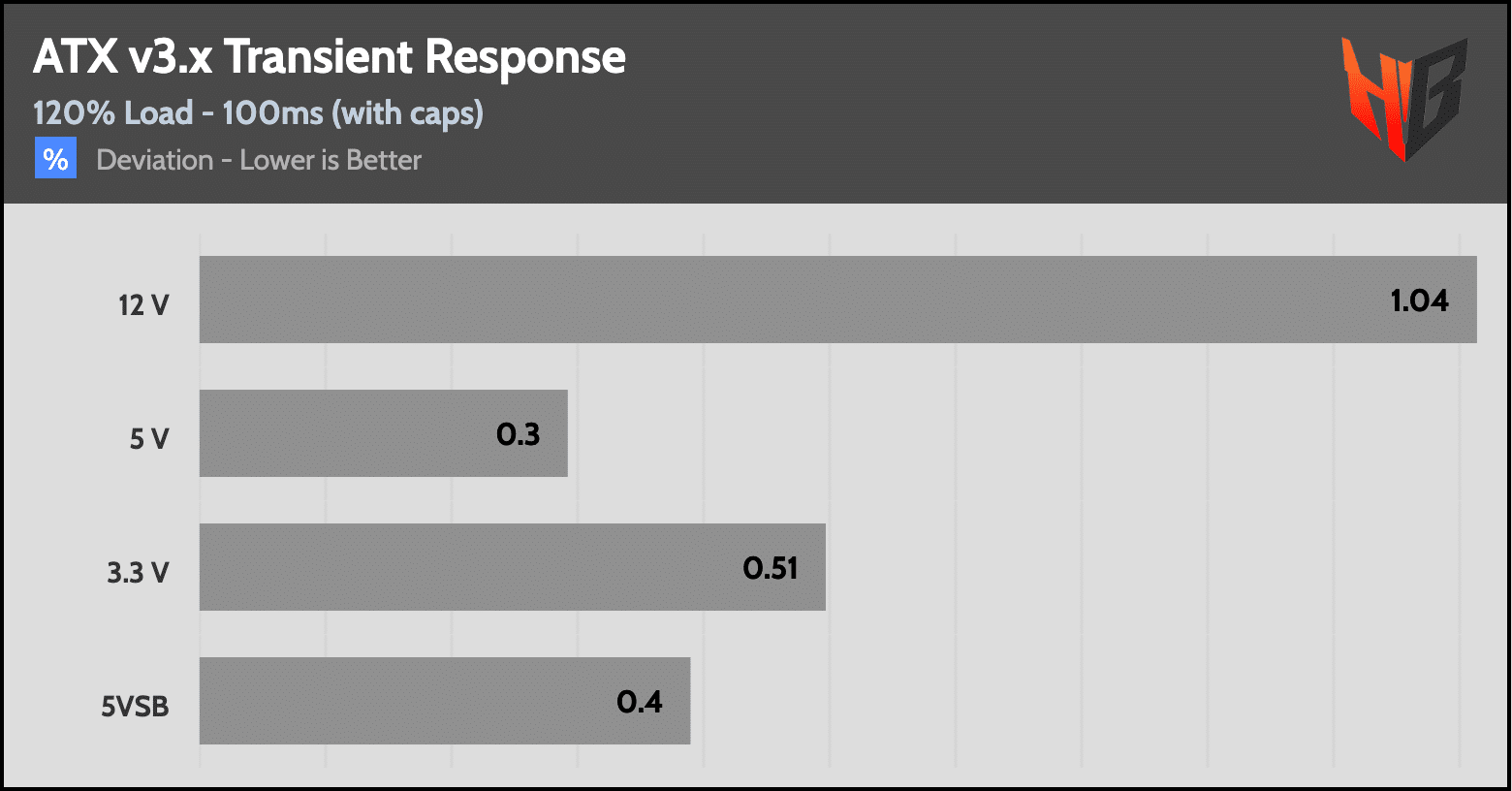

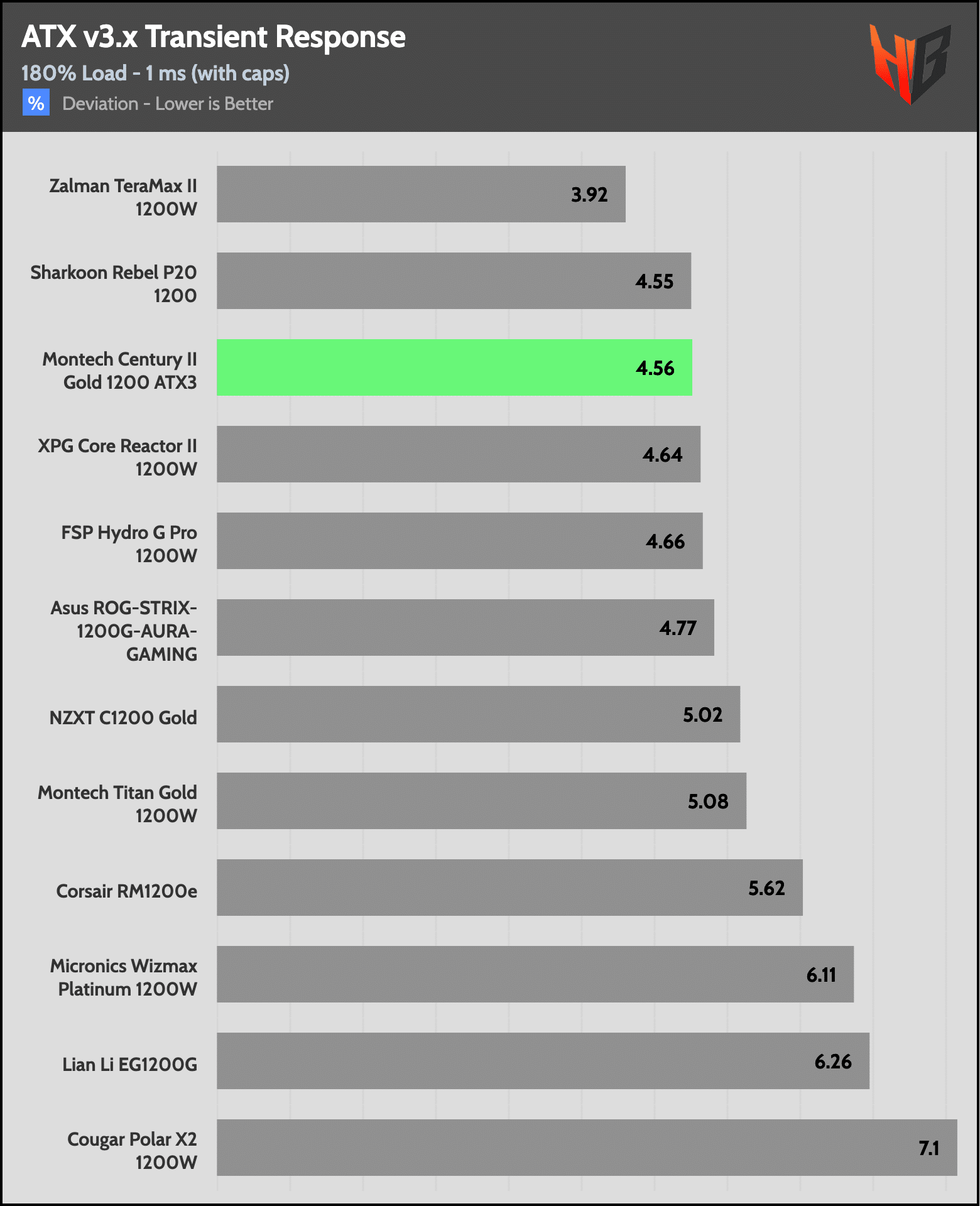

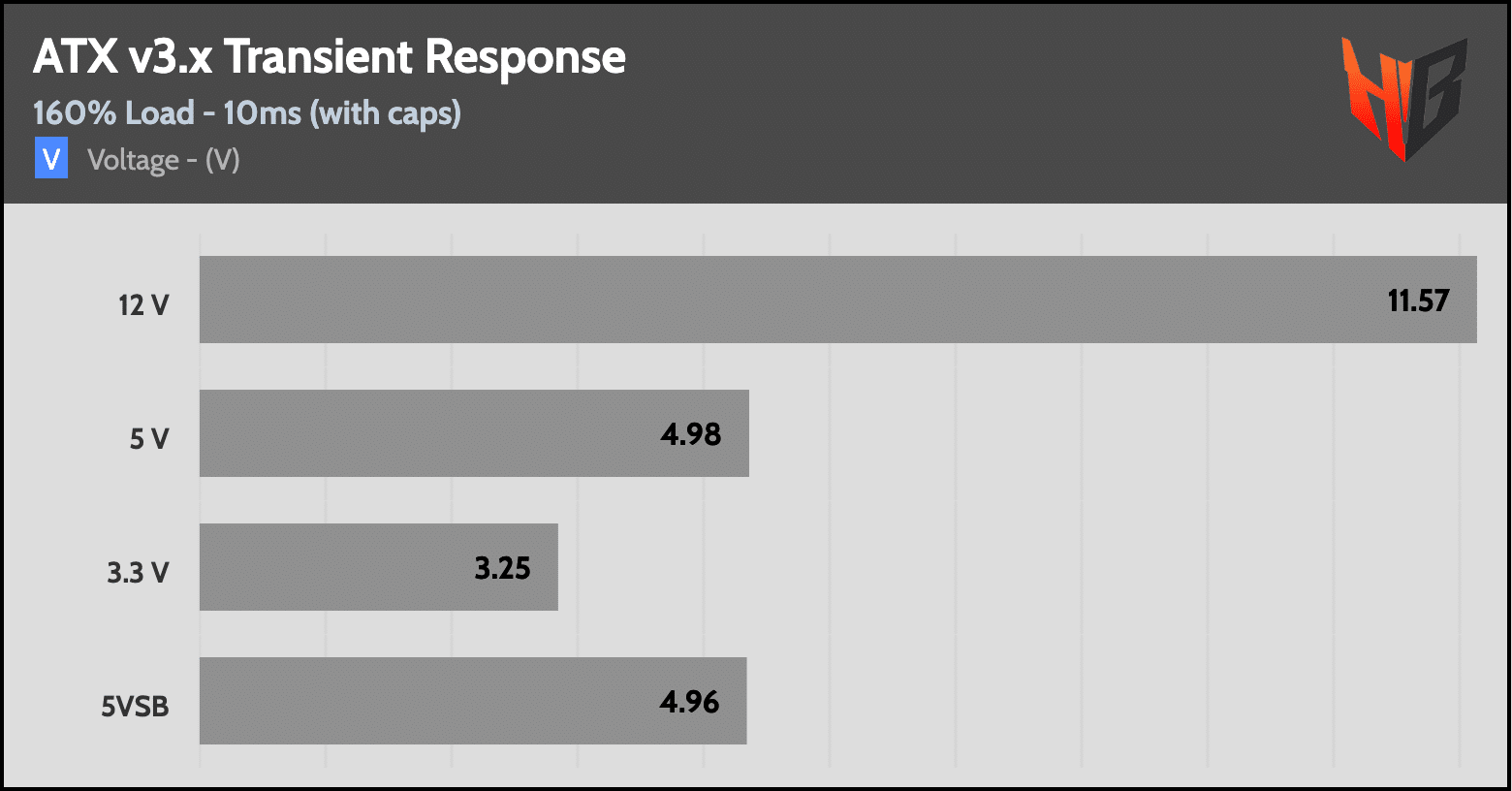

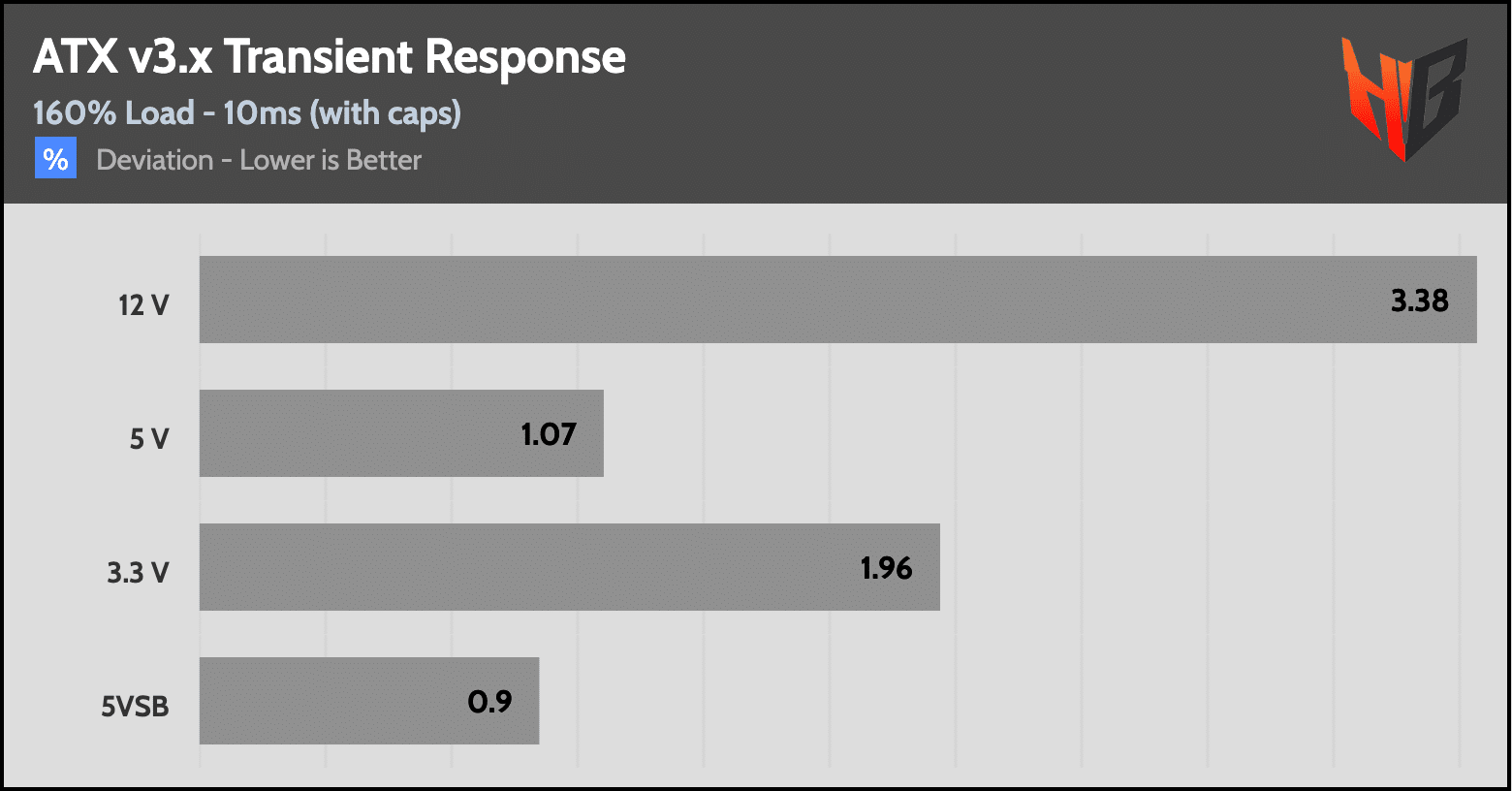

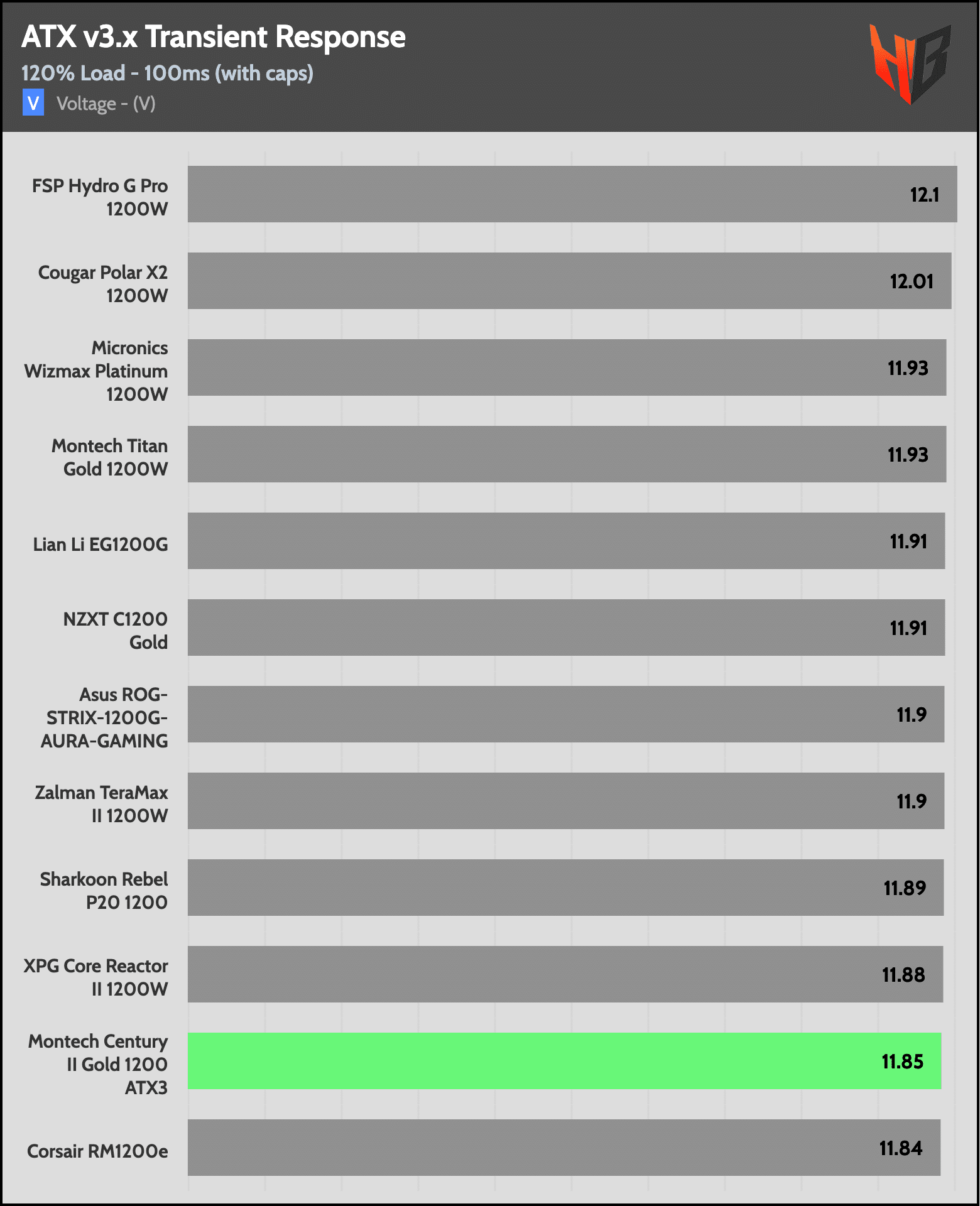

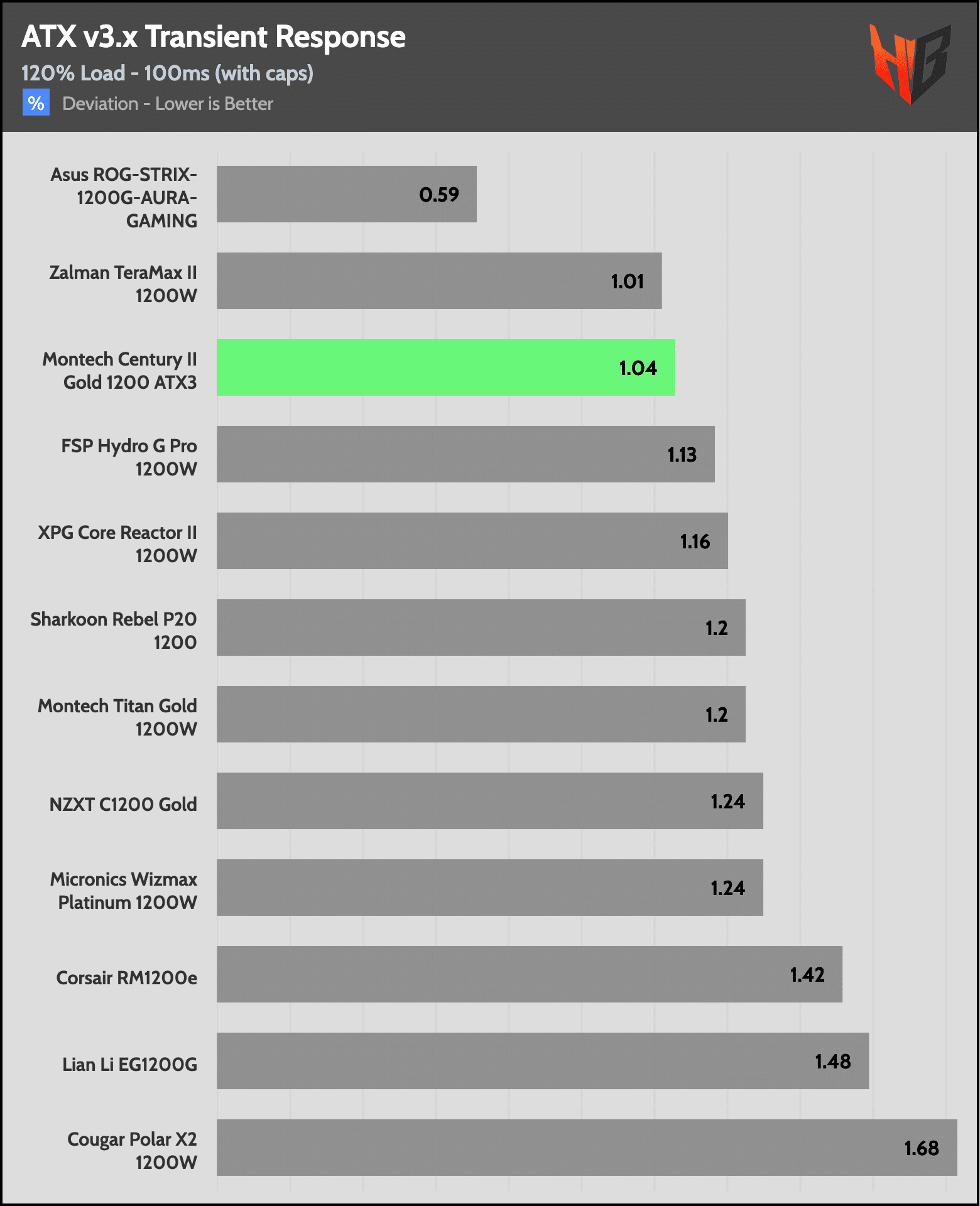

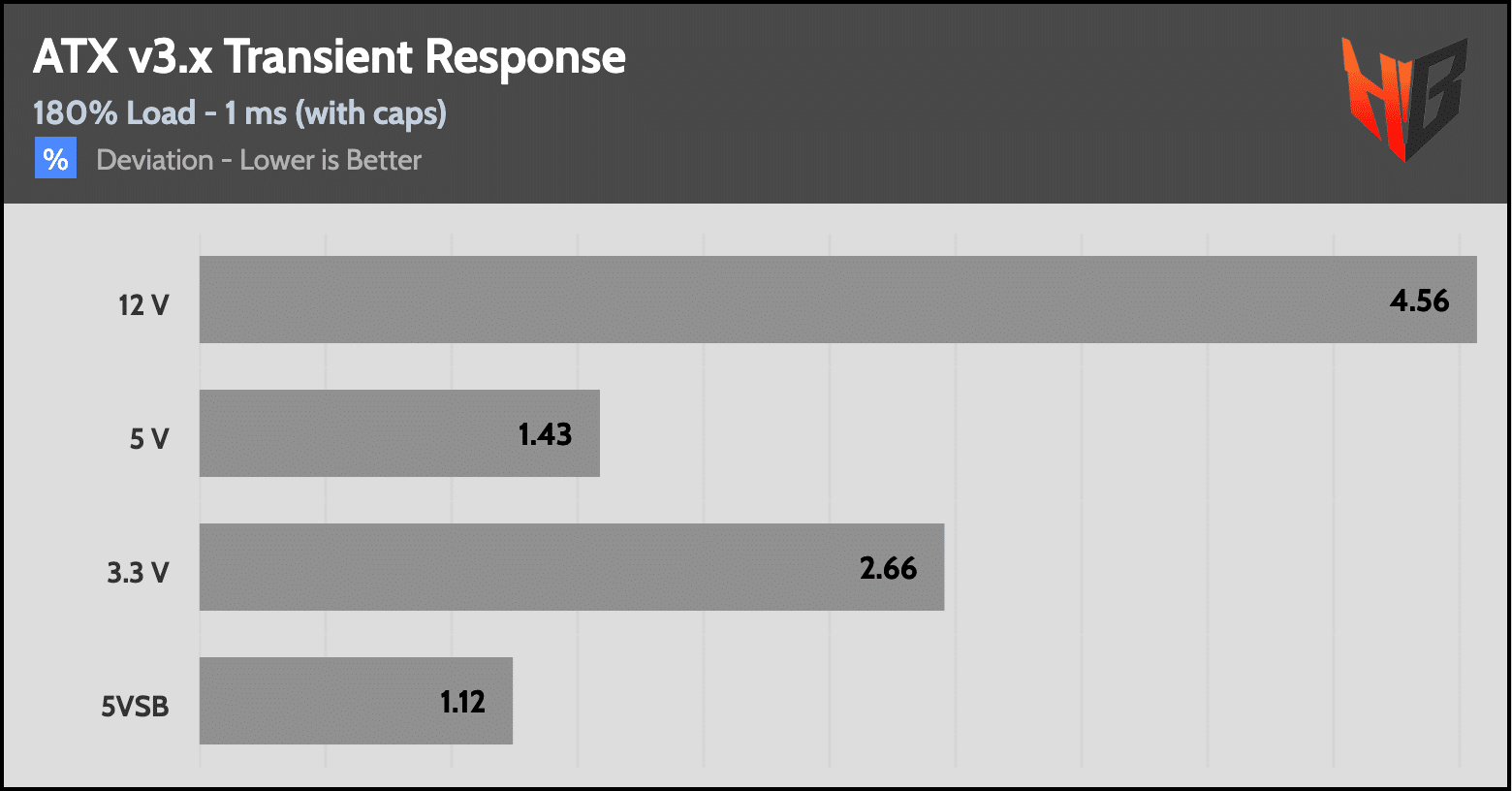

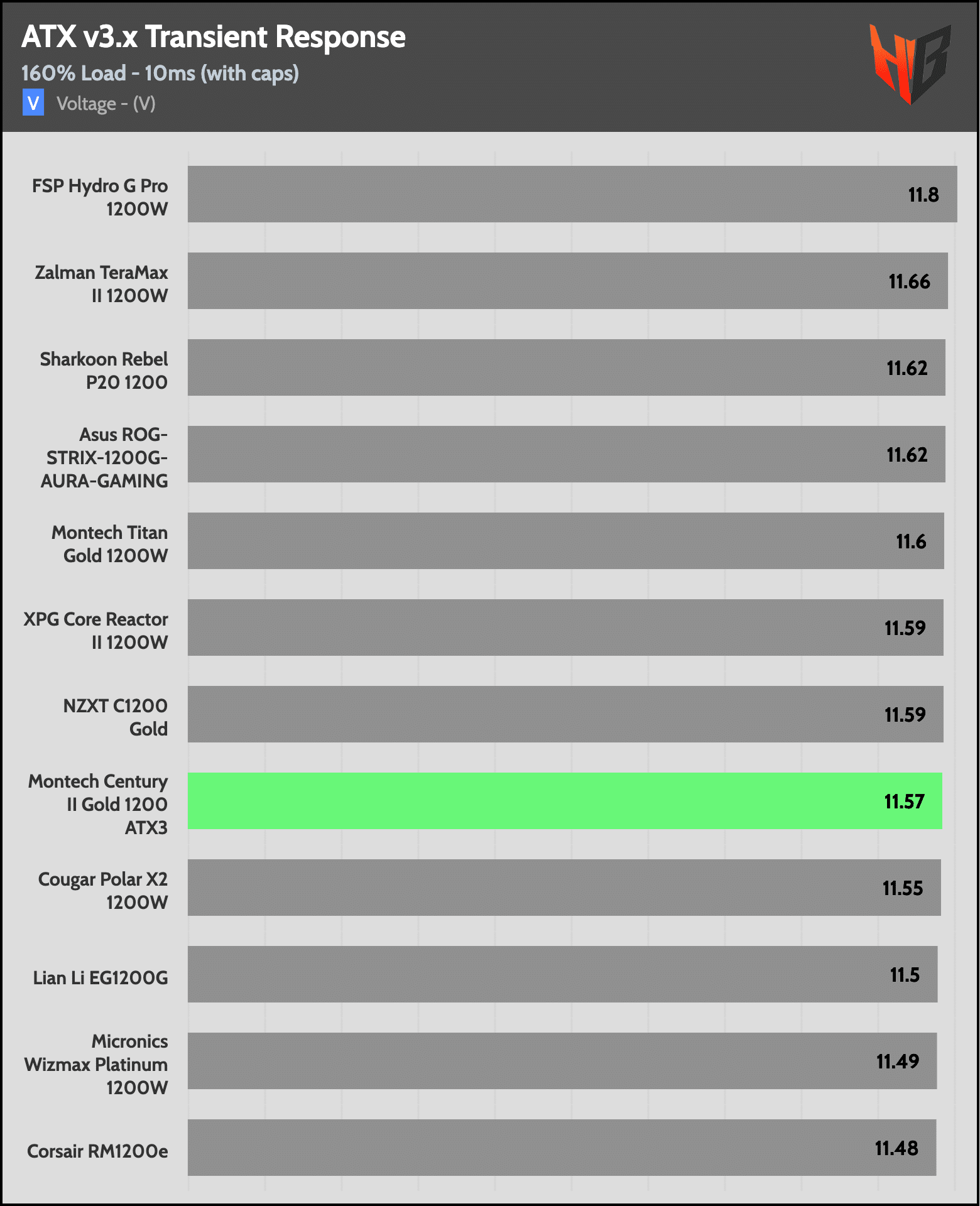

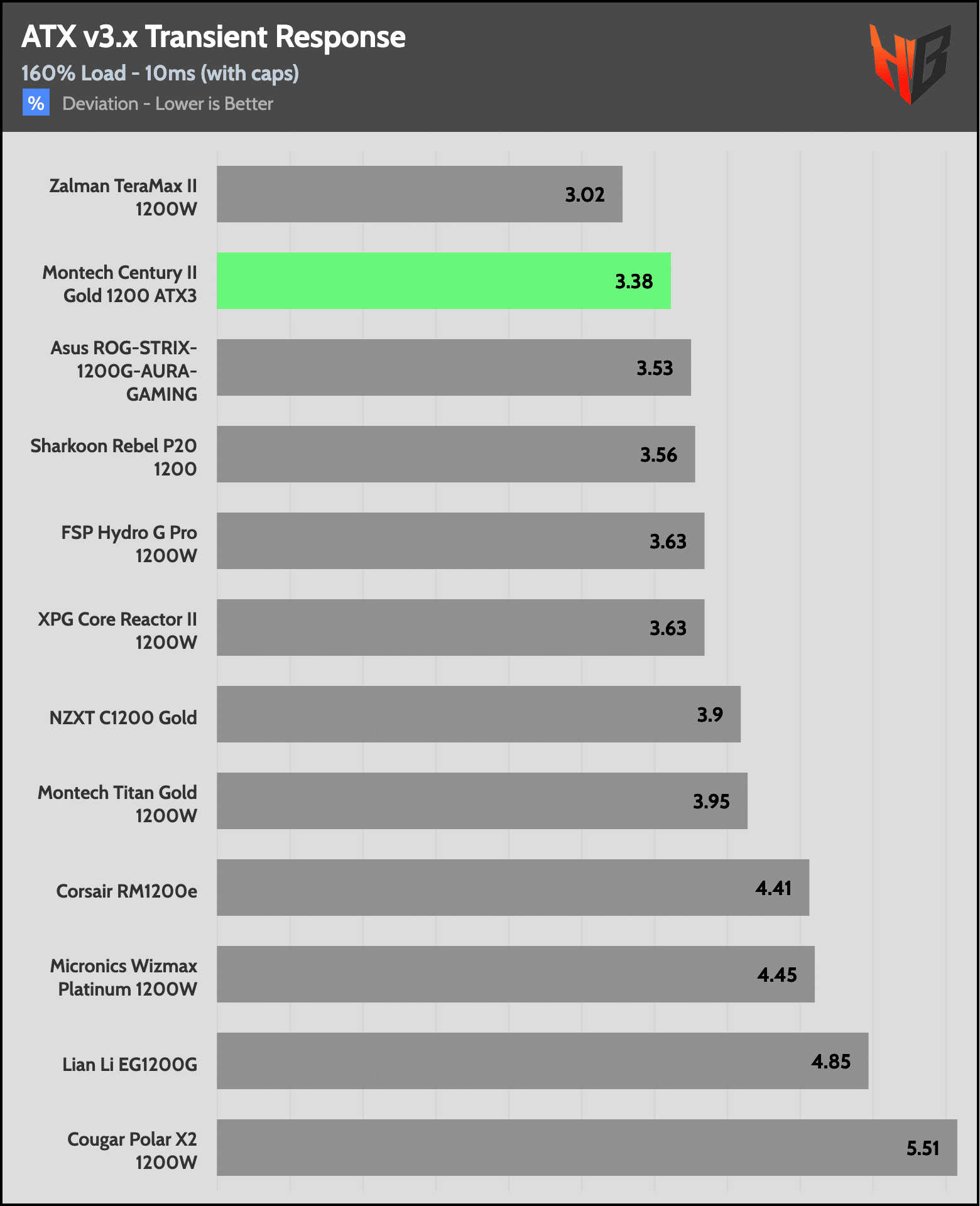

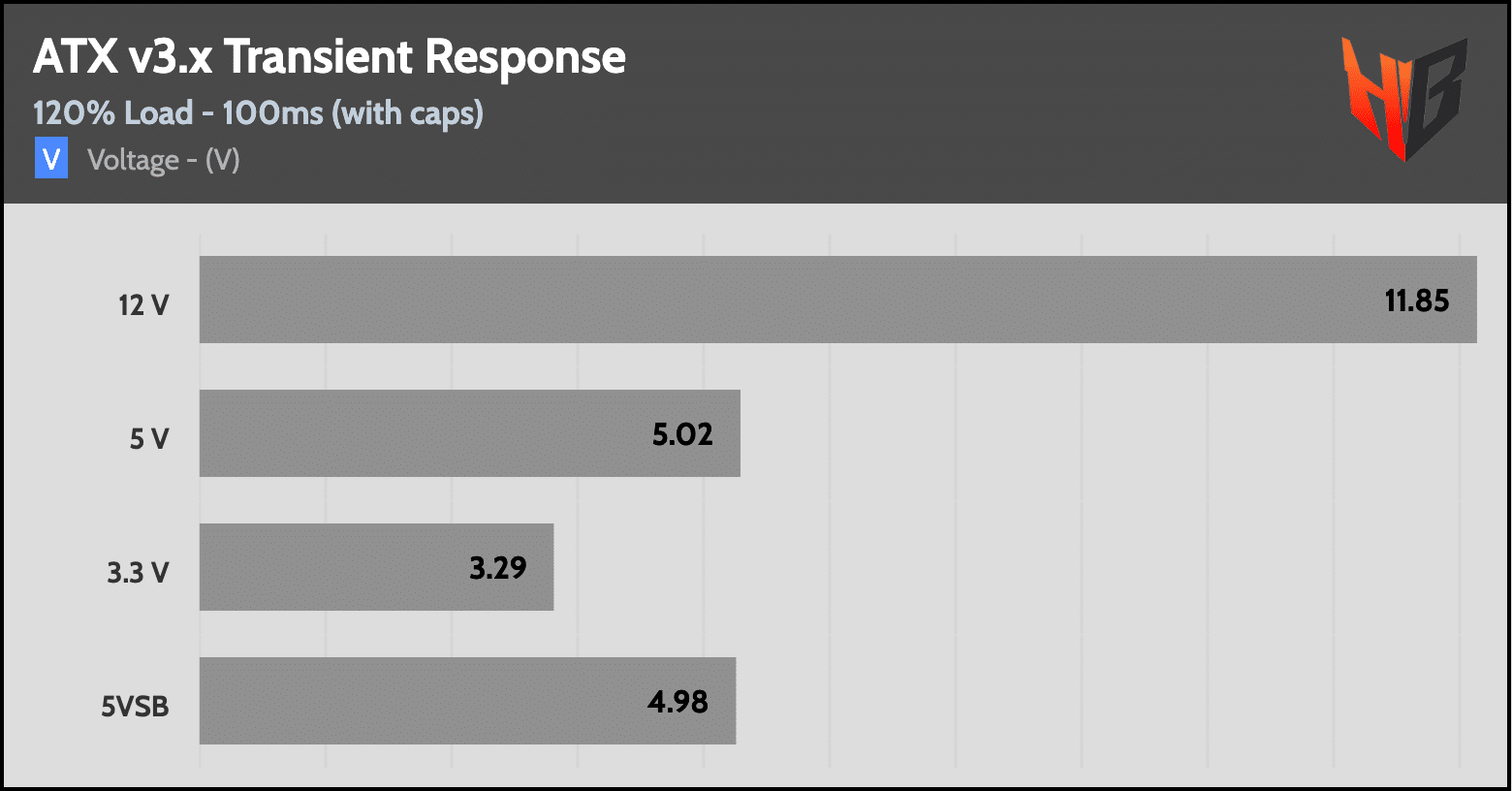

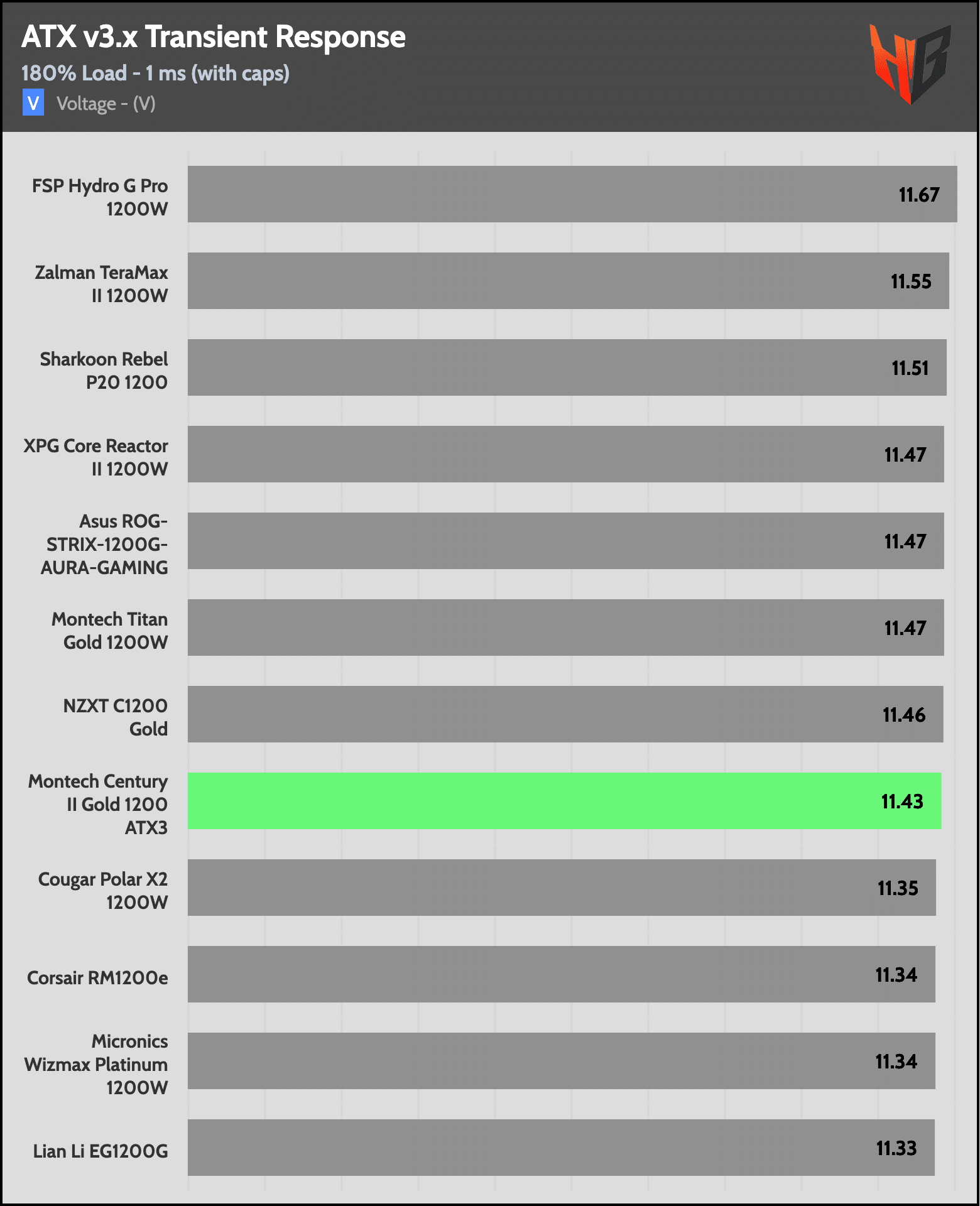

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.

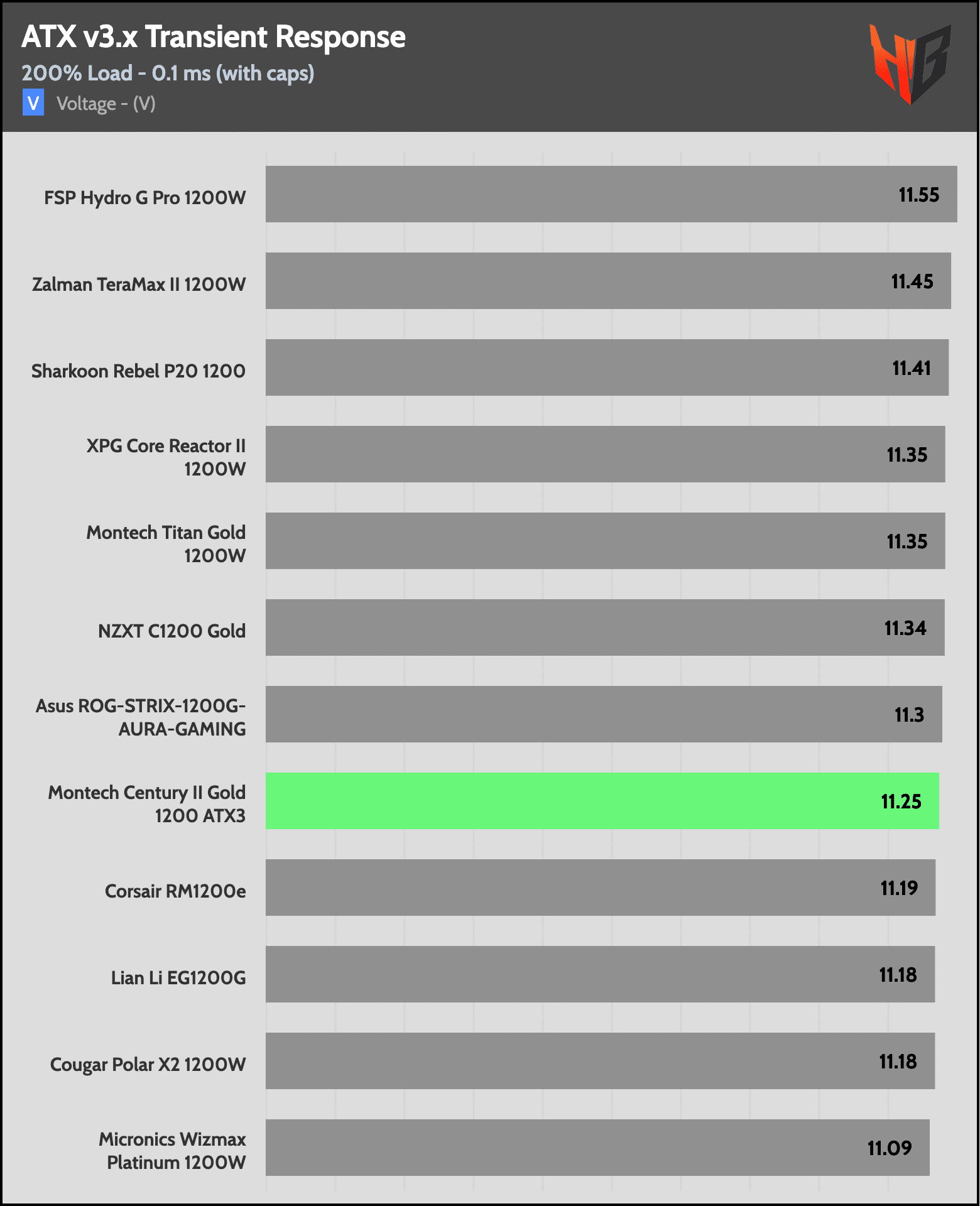

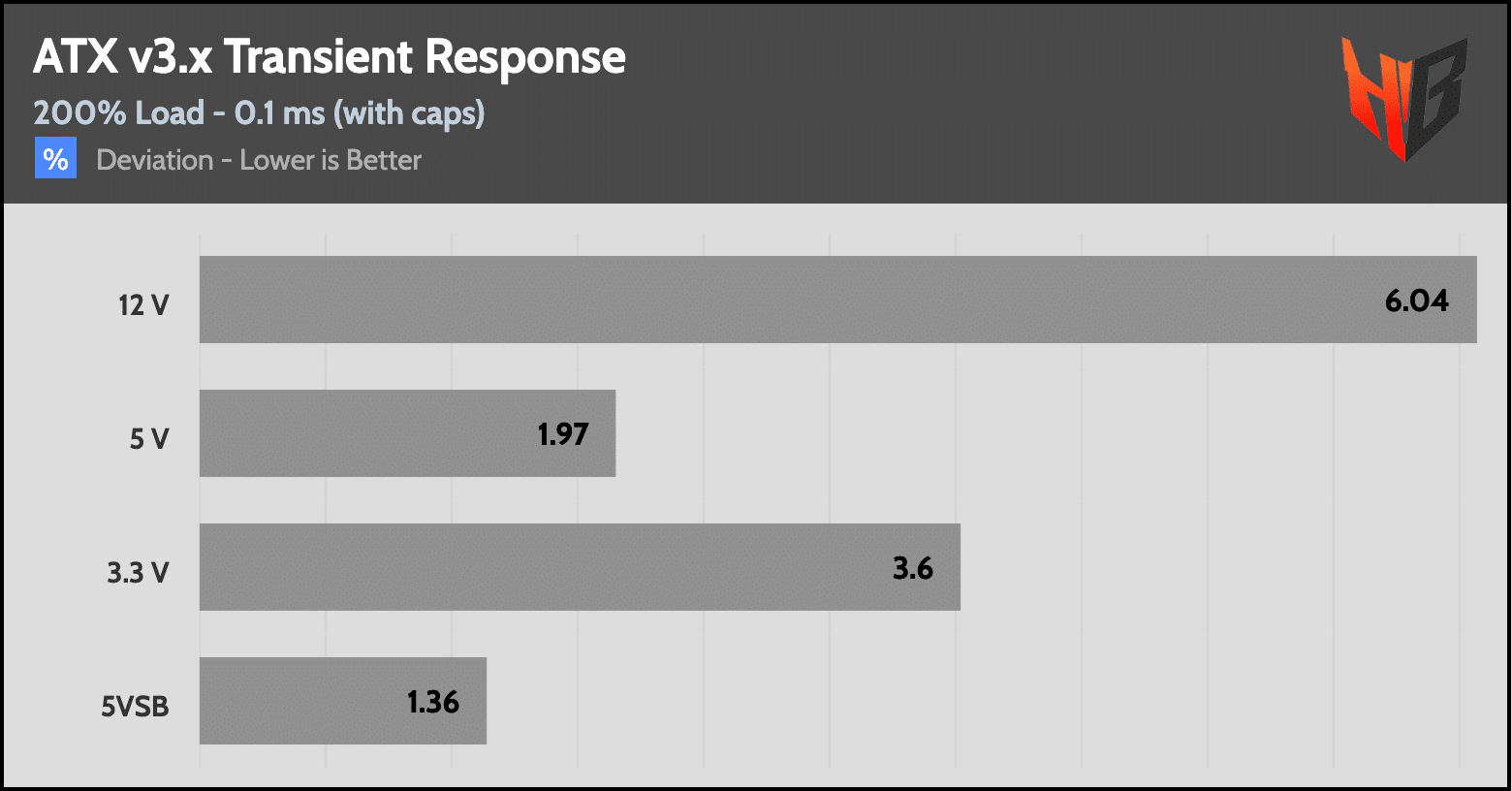

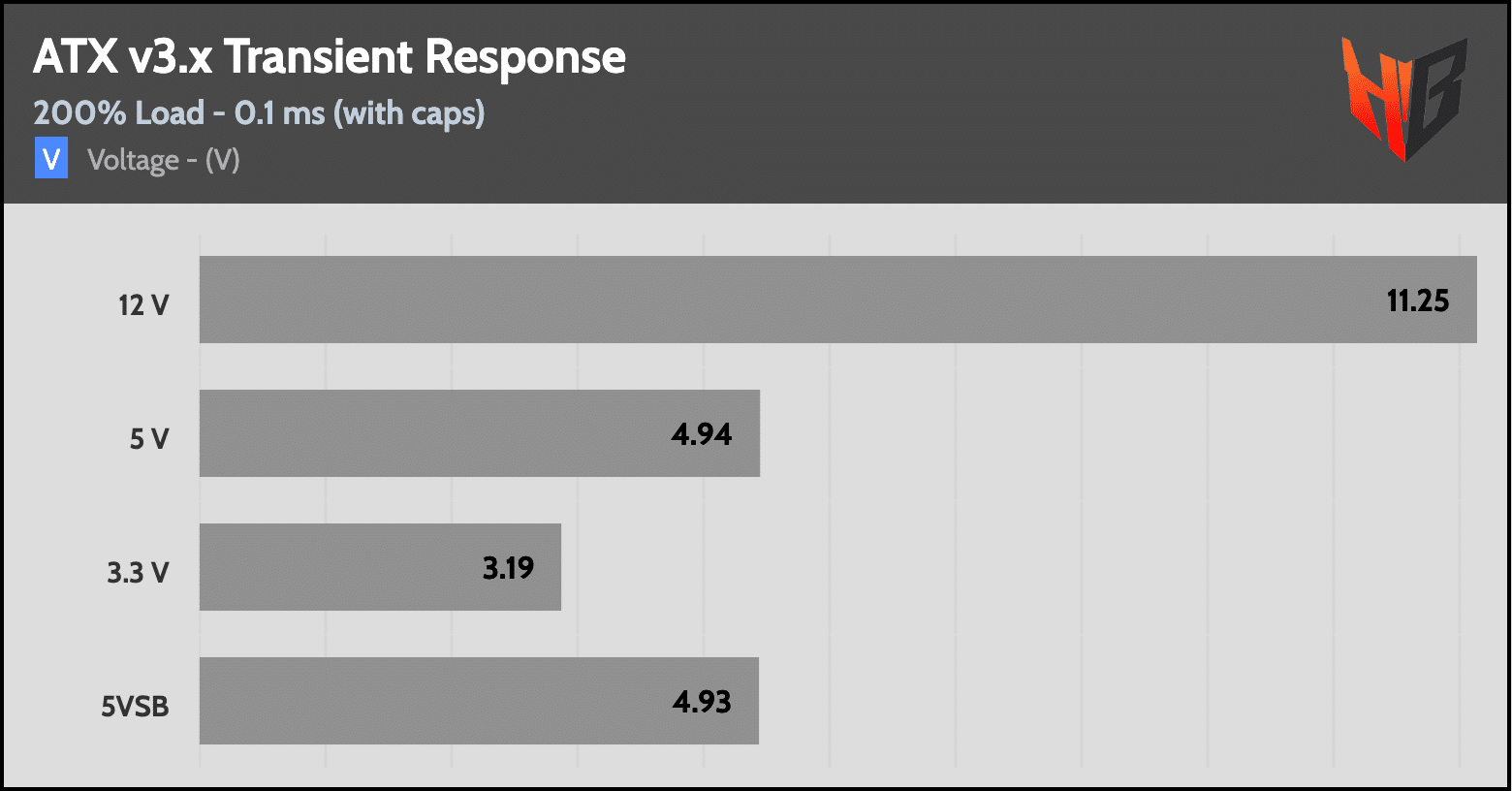

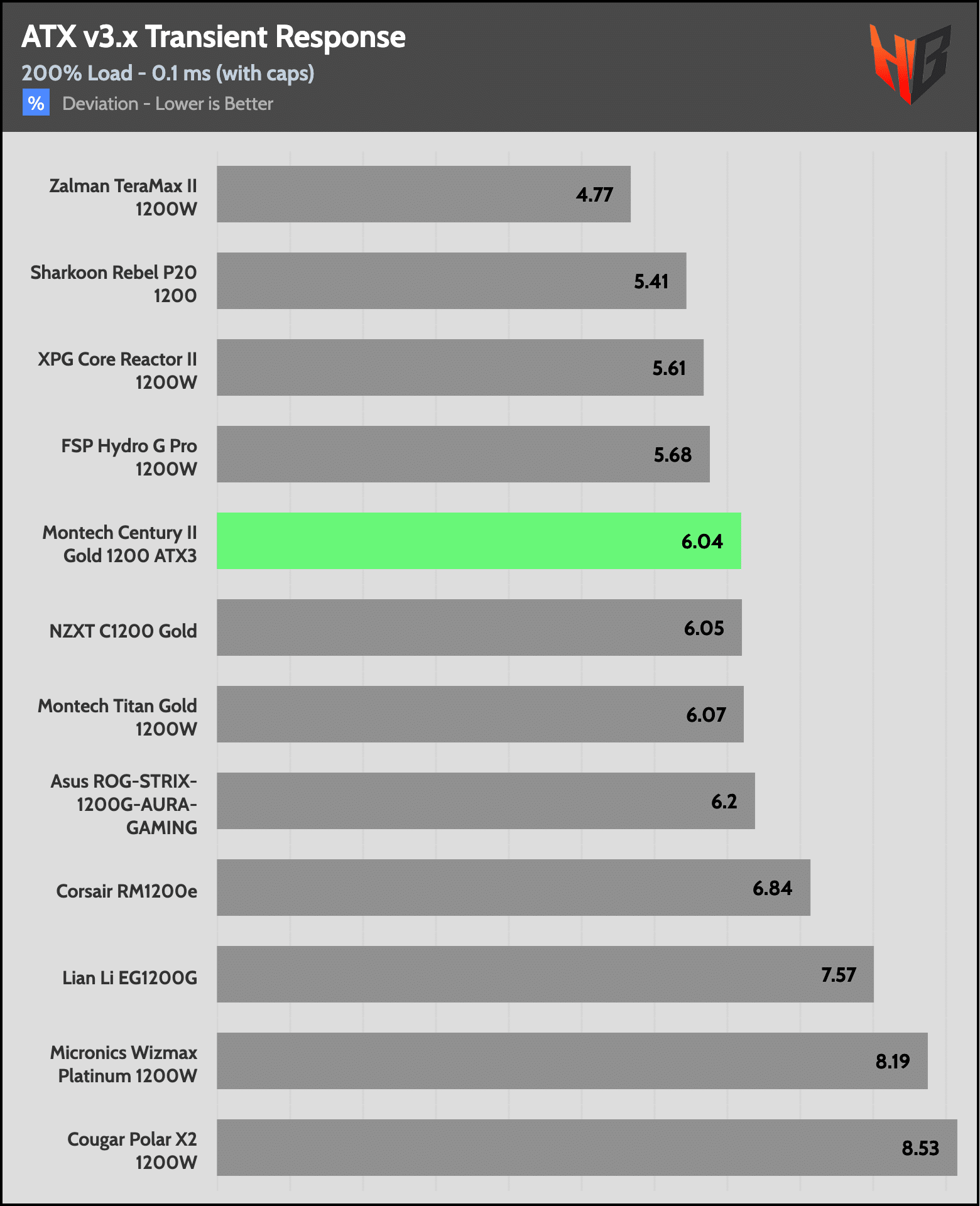

The 12V rail drops low with a 200% transient load.
