Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 8.176A | 1.972A | 1.977A | 0.989A | 120.047 | 89.239% | 1030 | 28.8 | 40.06°C | 0.972 |
| 12.040V | 5.072V | 3.34V | 5.057V | 134.521 | 43.37°C | 114.88V | ||||
| 20% | 17.387A | 2.962A | 2.969A | 1.19A | 240.031 | 91.941% | 1032 | 28.9 | 40.81°C | 0.973 |
| 12.027V | 5.066V | 3.336V | 5.042V | 261.078 | 43.24°C | 114.84V | ||||
| 30% | 26.920A | 3.458A | 3.466A | 1.393A | 359.589 | 92.513% | 1032 | 28.9 | 41.07°C | 0.979 |
| 12.018V | 5.063V | 3.333V | 5.026V | 388.686 | 43.98°C | 114.8V | ||||
| 40% | 36.527A | 3.953A | 3.964A | 1.598A | 479.978 | 92.34% | 1038 | 29 | 41.81°C | 0.985 |
| 12.012V | 5.061V | 3.33V | 5.009V | 519.794 | 46.35°C | 114.77V | ||||
| 50% | 45.746A | 4.944A | 4.96A | 1.803A | 599.73 | 91.871% | 1039 | 29.1 | 42.12°C | 0.988 |
| 12.006V | 5.059V | 3.328V | 4.992V | 652.792 | 48.25°C | 114.73V | ||||
| 60% | 55.017A | 5.937A | 5.958A | 2.001A | 720.215 | 90.835% | 1042 | 29.1 | 42.84°C | 0.991 |
| 12.004V | 5.056V | 3.325V | 4.975V | 792.884 | 50.6°C | 114.7V | ||||
| 70% | 64.230A | 6.931A | 6.957A | 2.22A | 840.011 | 90.009% | 1046 | 29.3 | 43.39°C | 0.993 |
| 12.002V | 5.052V | 3.321V | 4.956V | 933.252 | 53.19°C | 114.67V | ||||
| 80% | 73.518A | 7.925A | 7.957A | 2.328A | 960.002 | 88.977% | 1352 | 36.4 | 43.52°C | 0.994 |
| 11.999V | 5.049V | 3.318V | 4.941V | 1078.942 | 55.72°C | 114.64V | ||||
| 90% | 83.148A | 8.424A | 8.446A | 2.436A | 1079.809 | 87.912% | 1683 | 41.5 | 44.22°C | 0.995 |
| 11.994V | 5.047V | 3.316V | 4.927V | 1228.281 | 57.05°C | 114.59V | ||||
| 100% | 92.599A | 8.924A | 8.967A | 3.066A | 1199.874 | 86.714% | 1912 | 45.1 | 45.72°C | 0.996 |
| 11.989V | 5.044V | 3.313V | 4.894V | 1383.718 | 58.08°C | 114.55V | ||||
| 110% | 101.997A | 9.925A | 10.063A | 3.066A | 1320.427 | 85.155% | 2003 | 46.1 | 46.08°C | 0.994 |
| 11.982V | 5.039V | 3.309V | 4.893V | 1550.623 | 60.13°C | 114.55V | ||||
| CL1 | 0.116A | 11.915A | 11.913A | 0A | 101.315 | 82.514% | 1044 | 29.2 | 40.67°C | 0.972 |
| 12.073V | 5.053V | 3.332V | 5.077V | 122.805 | 51.26°C | 114.92V | ||||
| CL2 | 0.116A | 19.836A | 0A | 0A | 101.402 | 81.367% | 1046 | 29.3 | 40.64°C | 0.968 |
| 12.052V | 5.041V | 3.341V | 5.085V | 124.624 | 46.3°C | 114.91V | ||||
| CL3 | 0.116A | 0A | 19.832A | 0A | 67.397 | 76.427% | 1032 | 28.9 | 41.24°C | 0.966 |
| 12.047V | 5.073V | 3.328V | 5.086V | 88.186 | 44.53°C | 114.92V | ||||
| CL4 | 100.267A | 0A | 0A | 0A | 1200.184 | 87.971% | 1443 | 37.9 | 45.25°C | 0.995 |
| 11.970V | 5.061V | 3.321V | 5.023V | 1364.317 | 55.77°C | 114.6V |

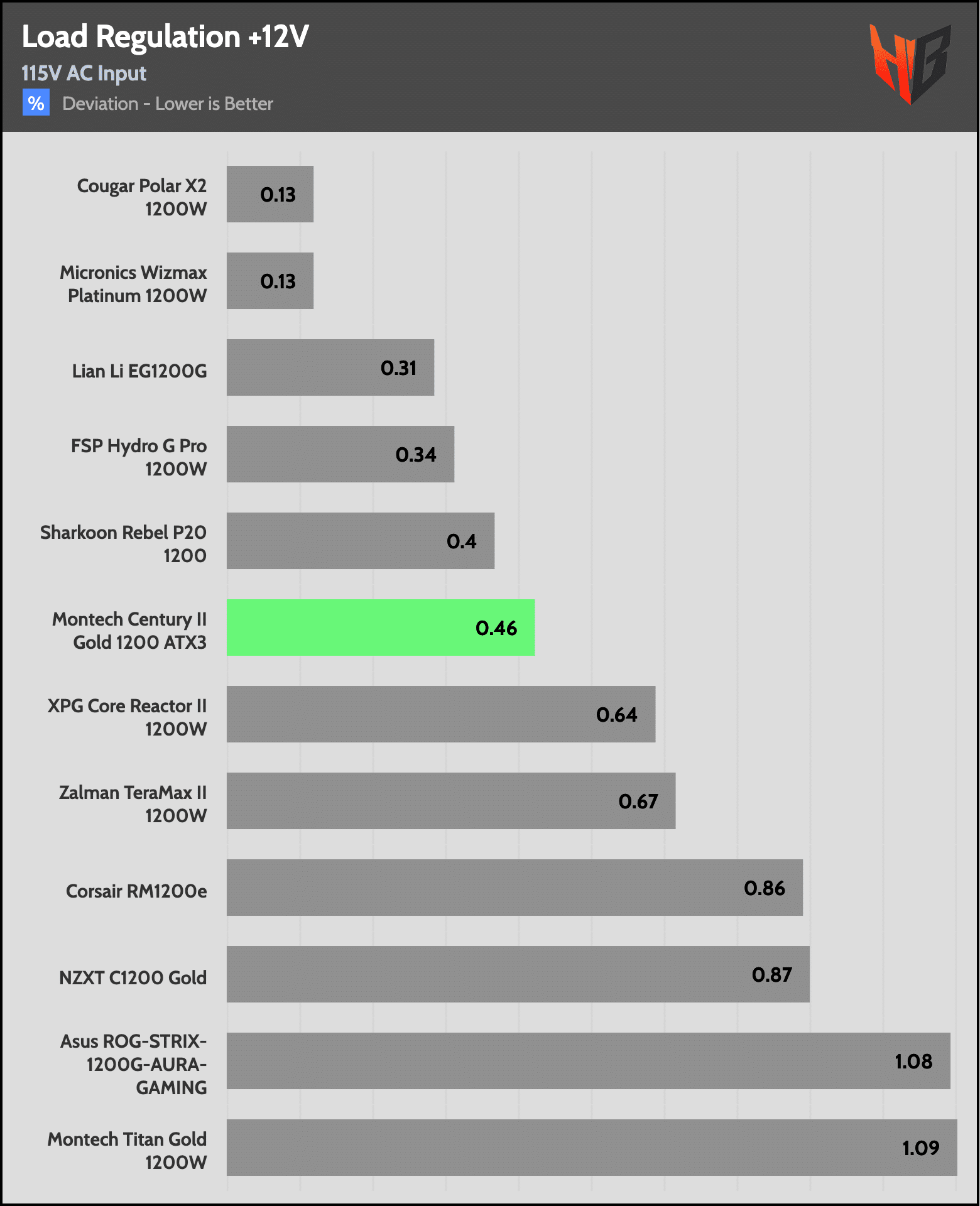

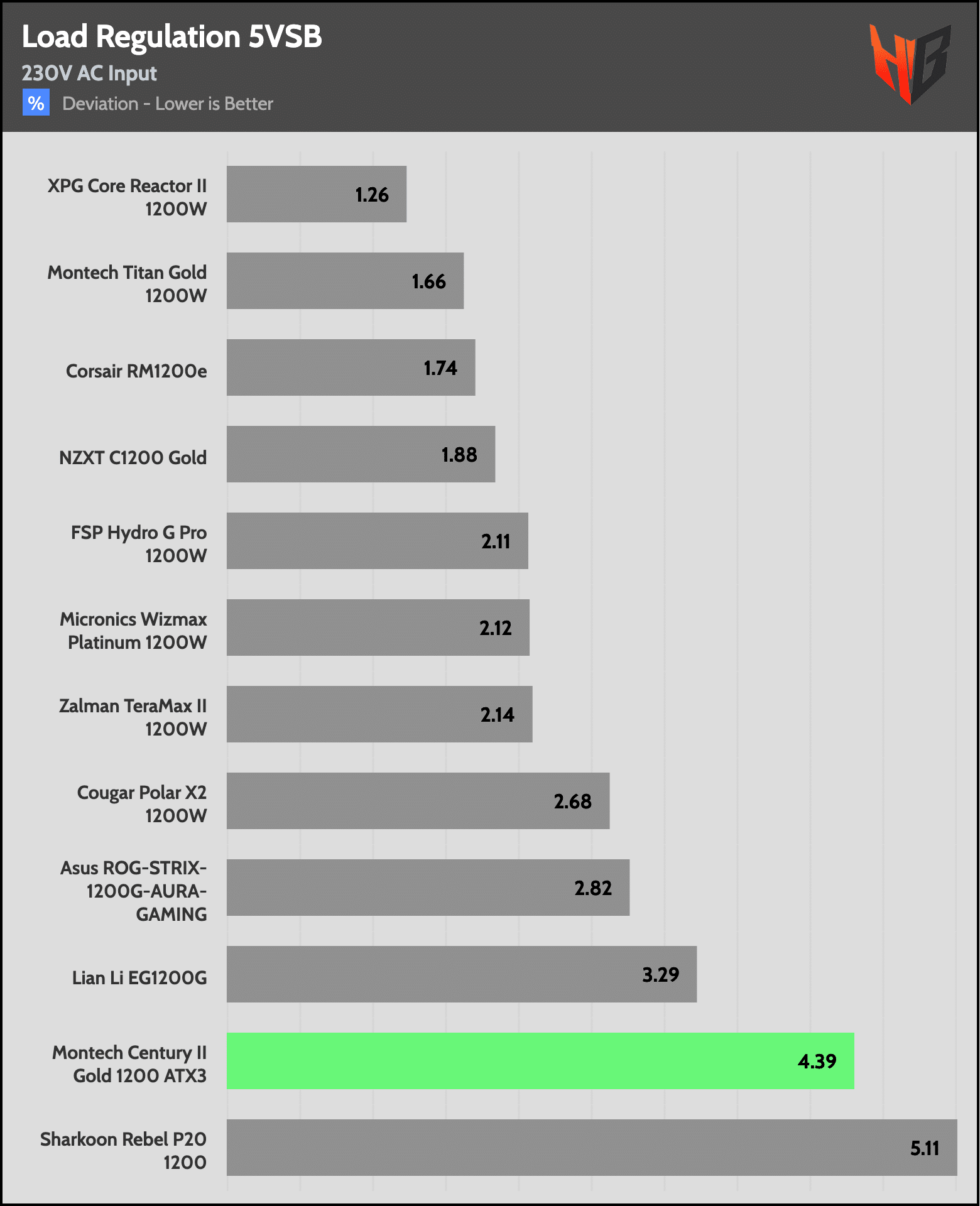

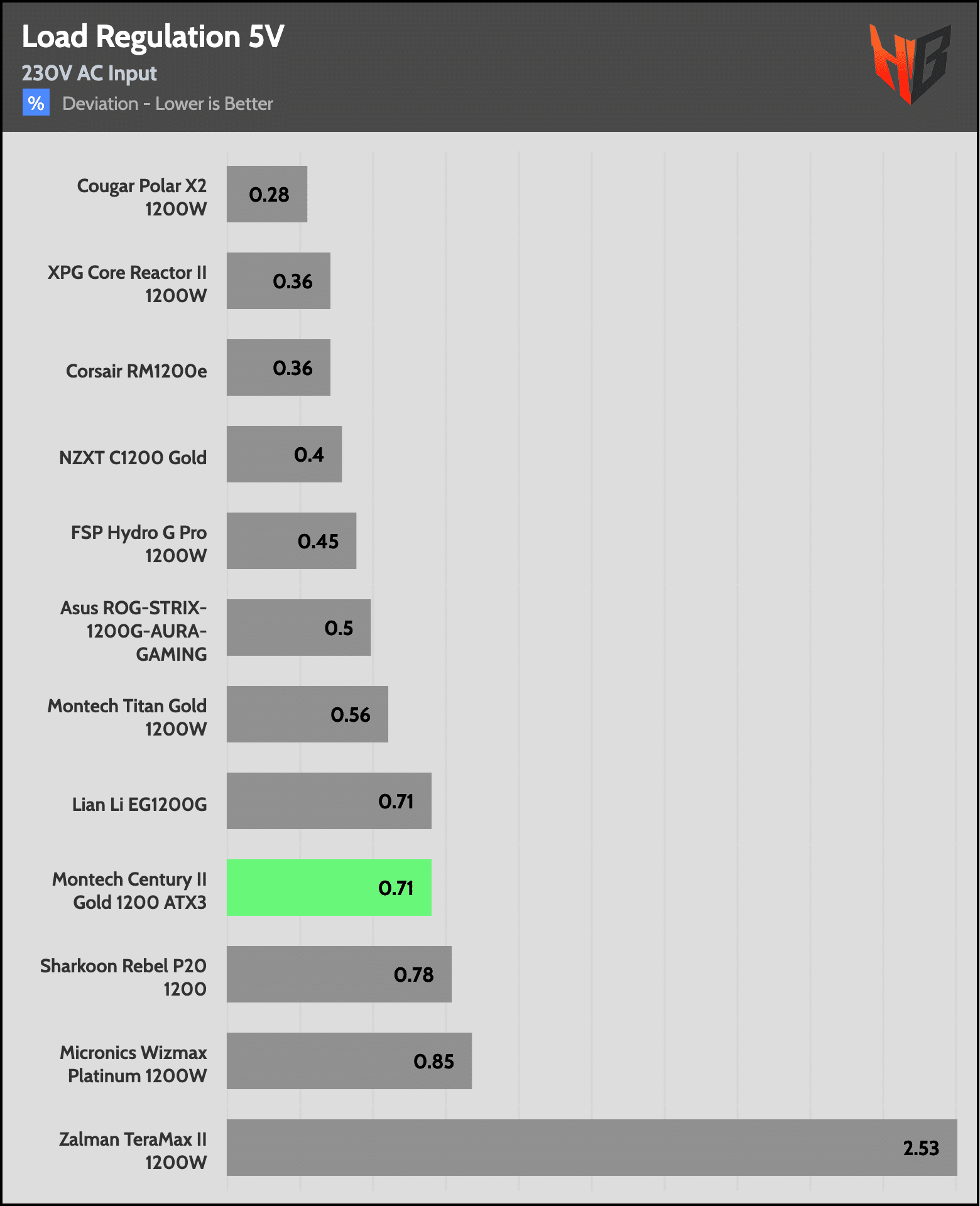

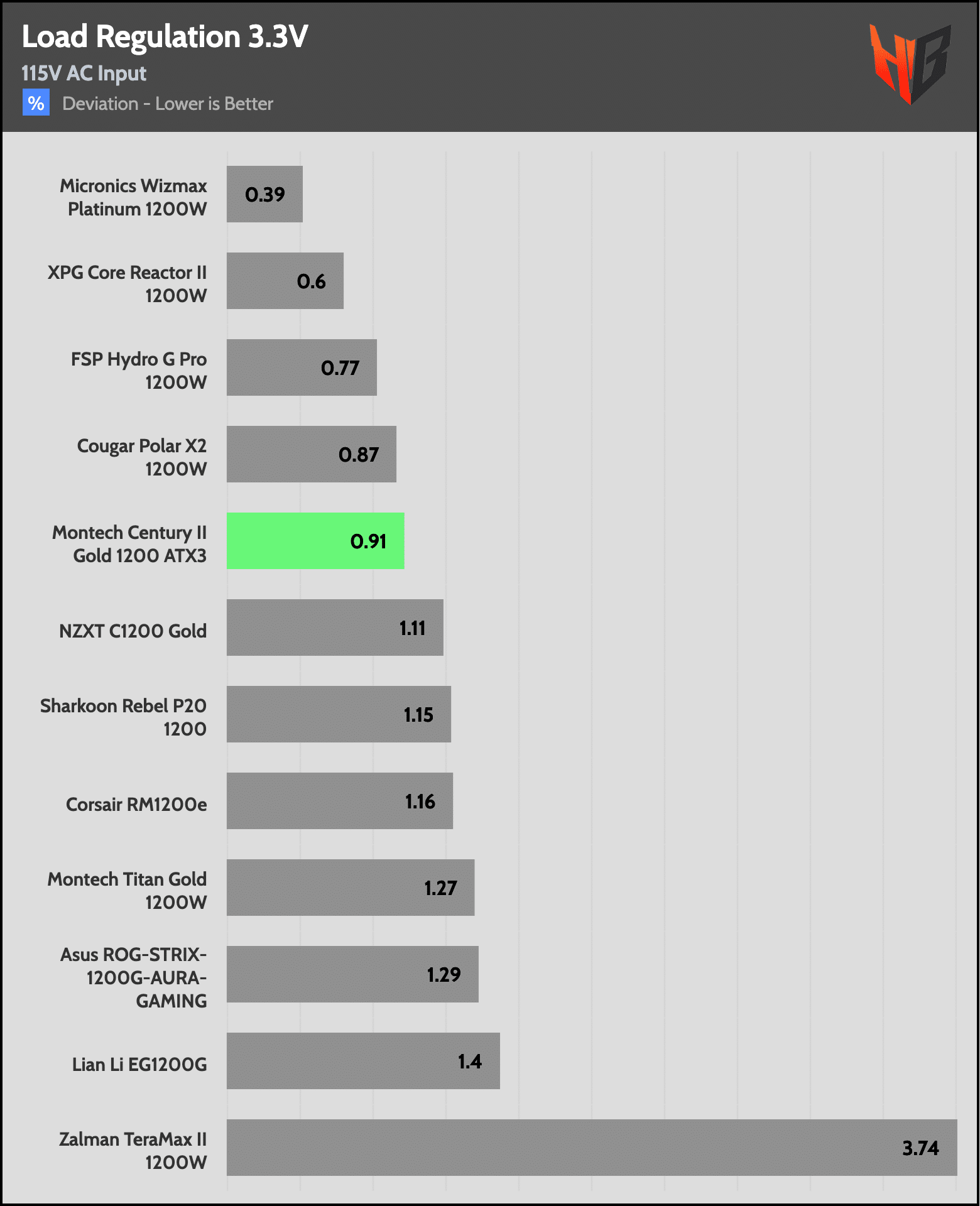

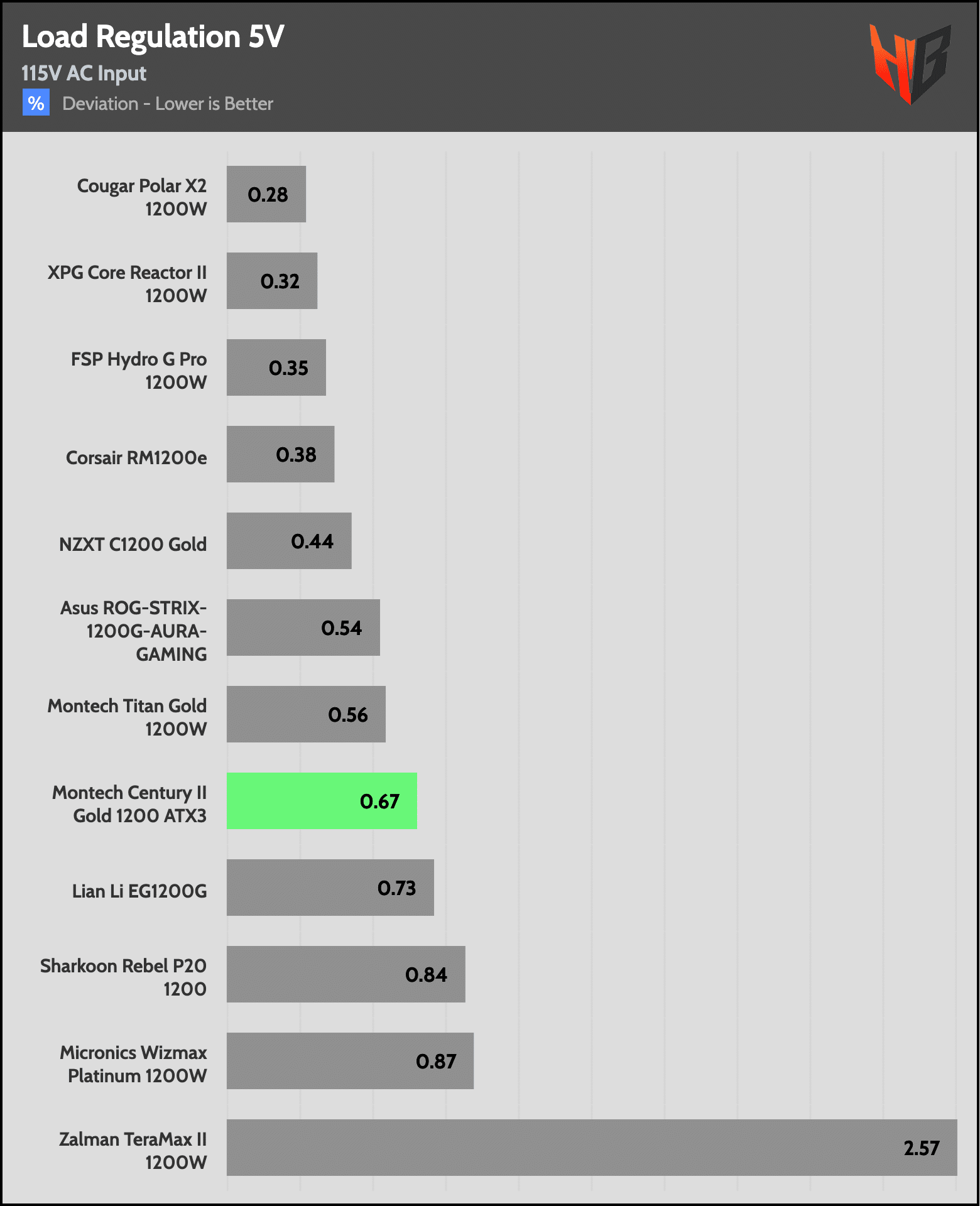

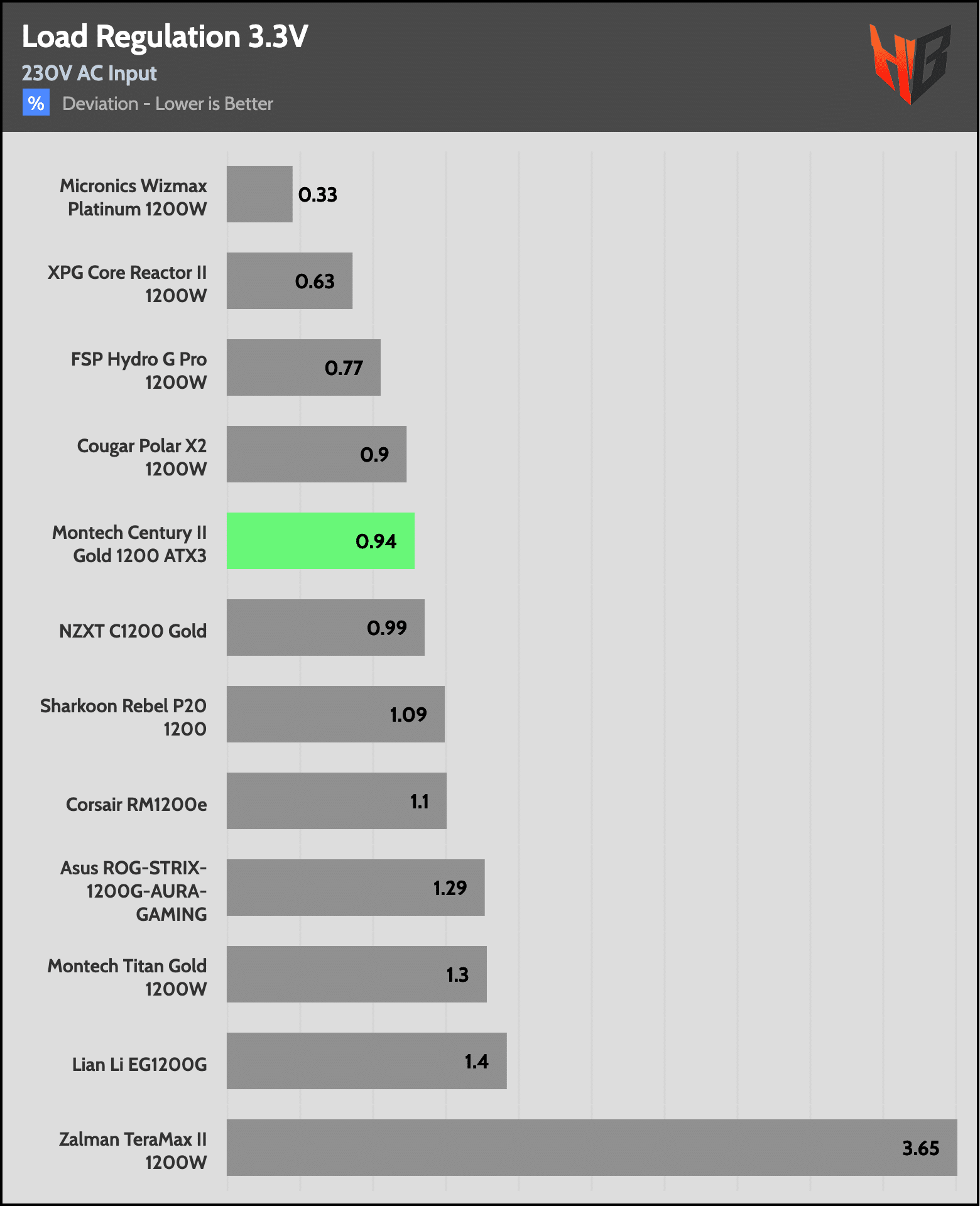

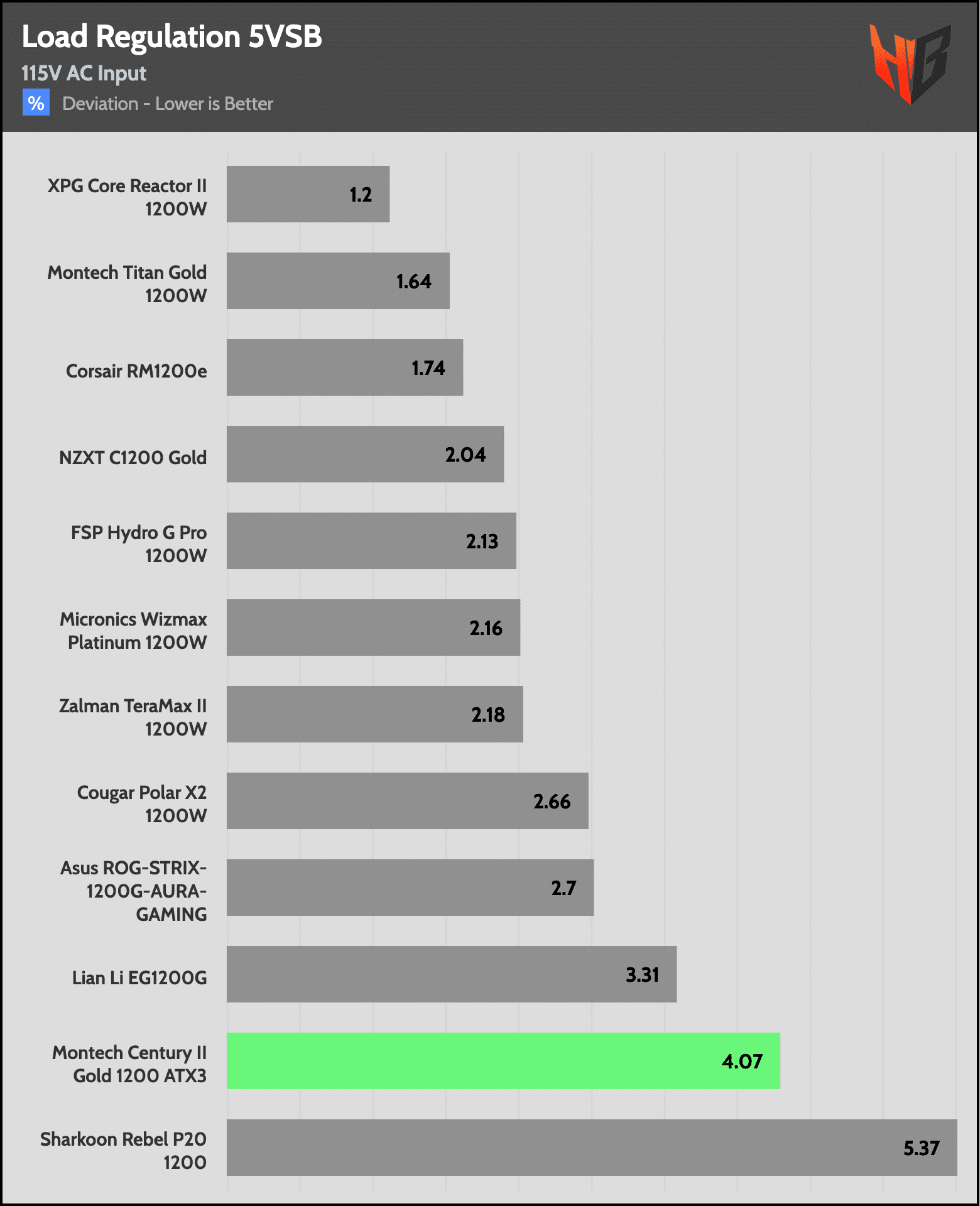

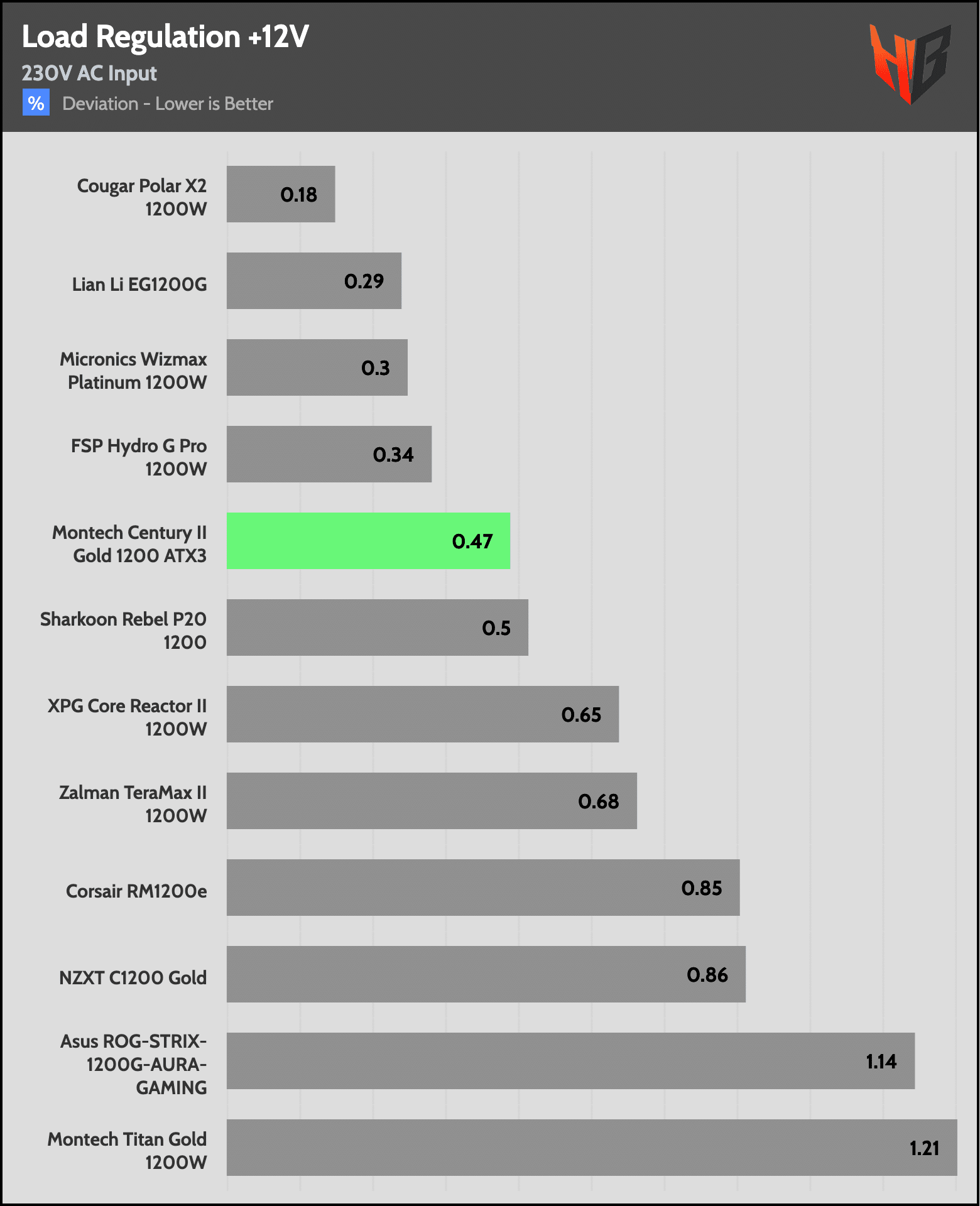

Load regulation is within 1%, so tight enough, on all major rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.234A | 0.493A | 0.494A | 0.196A | 20.014 | 70.045% | 0 | <6.0 | 41.97°C | 0.893 |
| 12.037V | 5.077V | 3.343V | 5.093V | 28.574 | 36.96°C | 114.92V | ||||
| 40W | 2.717A | 0.689A | 0.691A | 0.295A | 40.012 | 81.274% | 0 | <6.0 | 42.69°C | 0.935 |
| 12.035V | 5.078V | 3.343V | 5.088V | 49.232 | 37.55°C | 114.91V | ||||
| 60W | 4.198A | 0.887A | 0.889A | 0.394A | 60.012 | 85.03% | 0 | <6.0 | 43.75°C | 0.954 |
| 12.039V | 5.078V | 3.343V | 5.083V | 70.575 | 38.03°C | 114.9V | ||||
| 80W | 5.676A | 1.084A | 1.086A | 0.493A | 79.992 | 87.456% | 0 | <6.0 | 45.97°C | 0.963 |
| 12.044V | 5.077V | 3.342V | 5.078V | 91.467 | 39.08°C | 114.89V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.

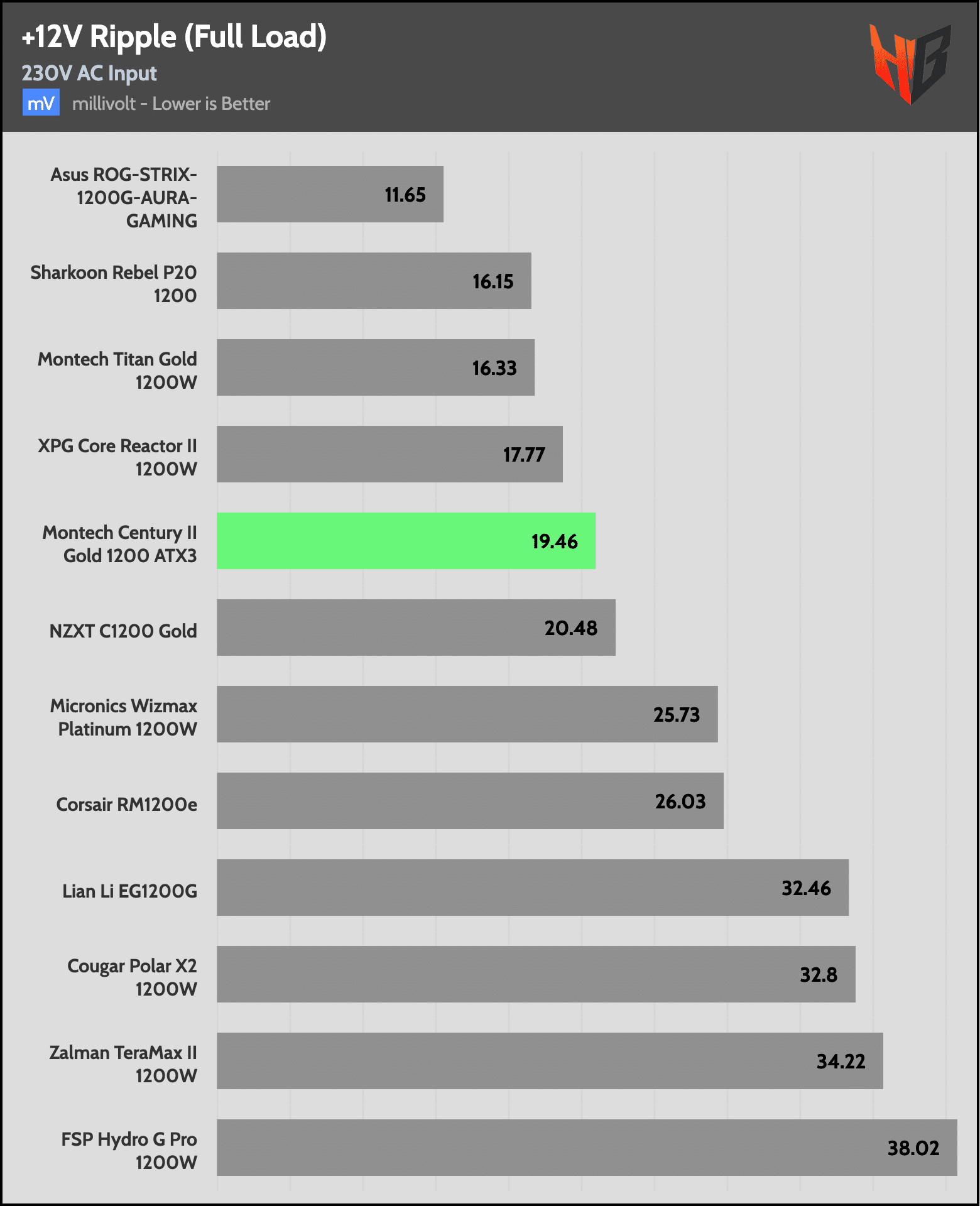

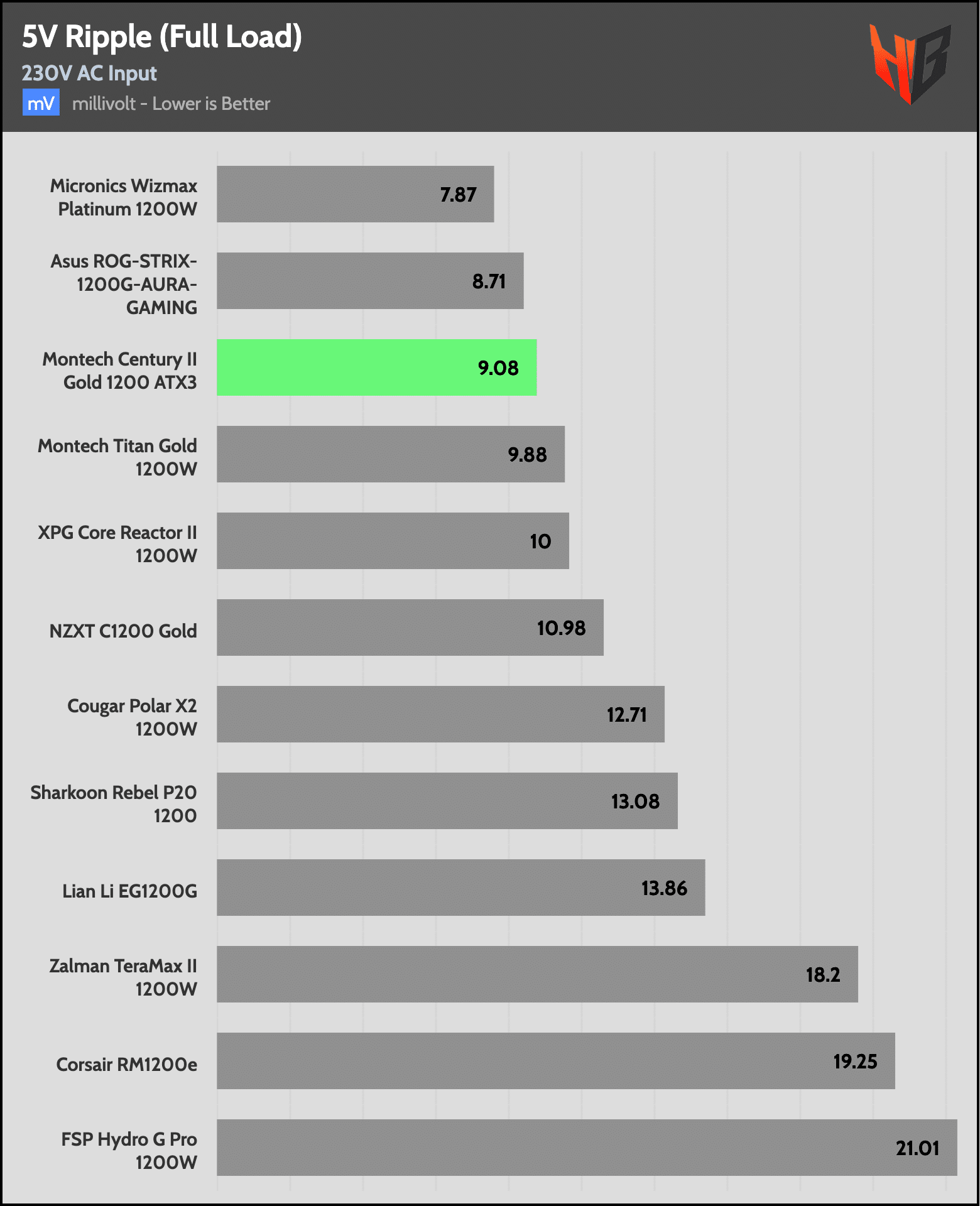

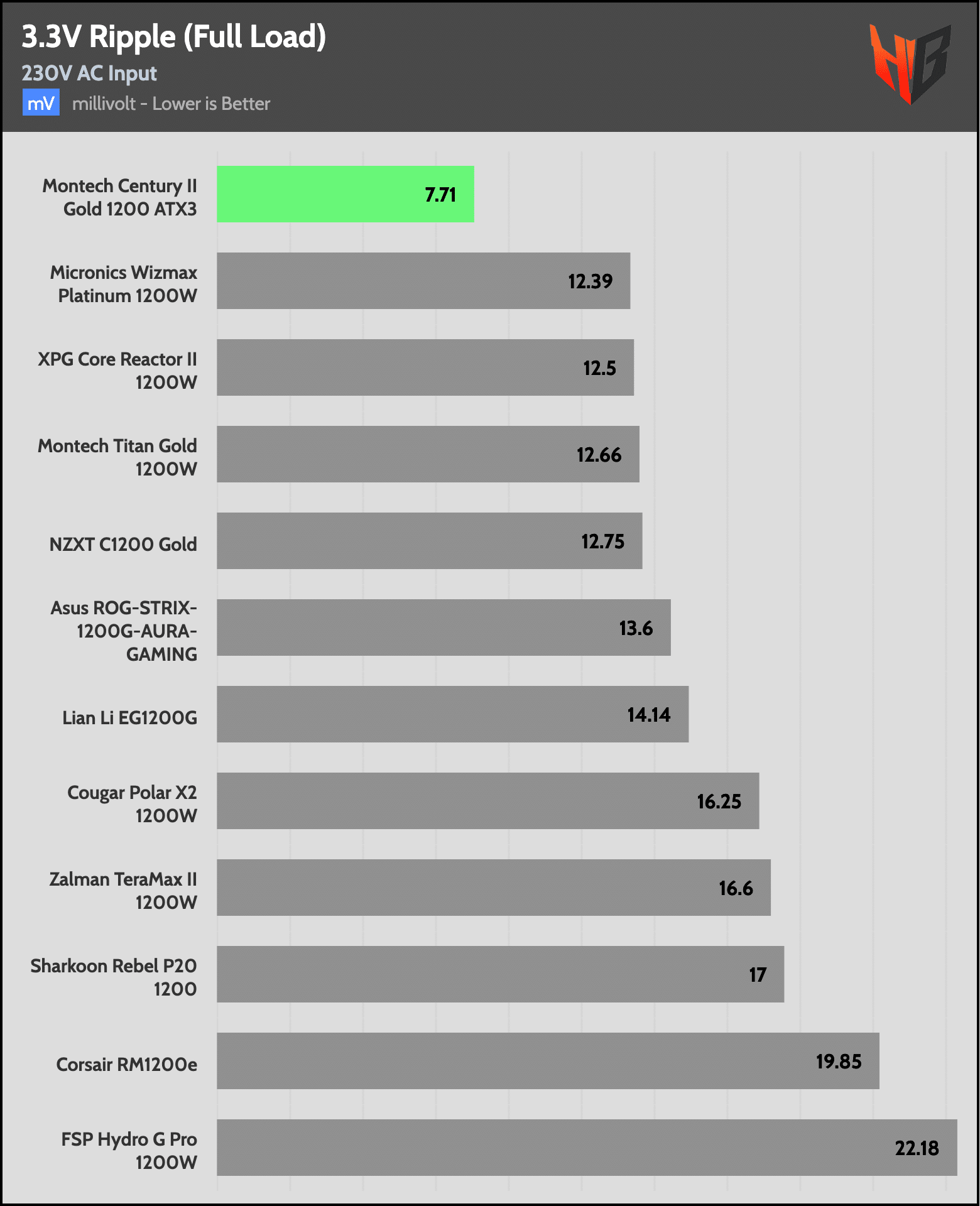

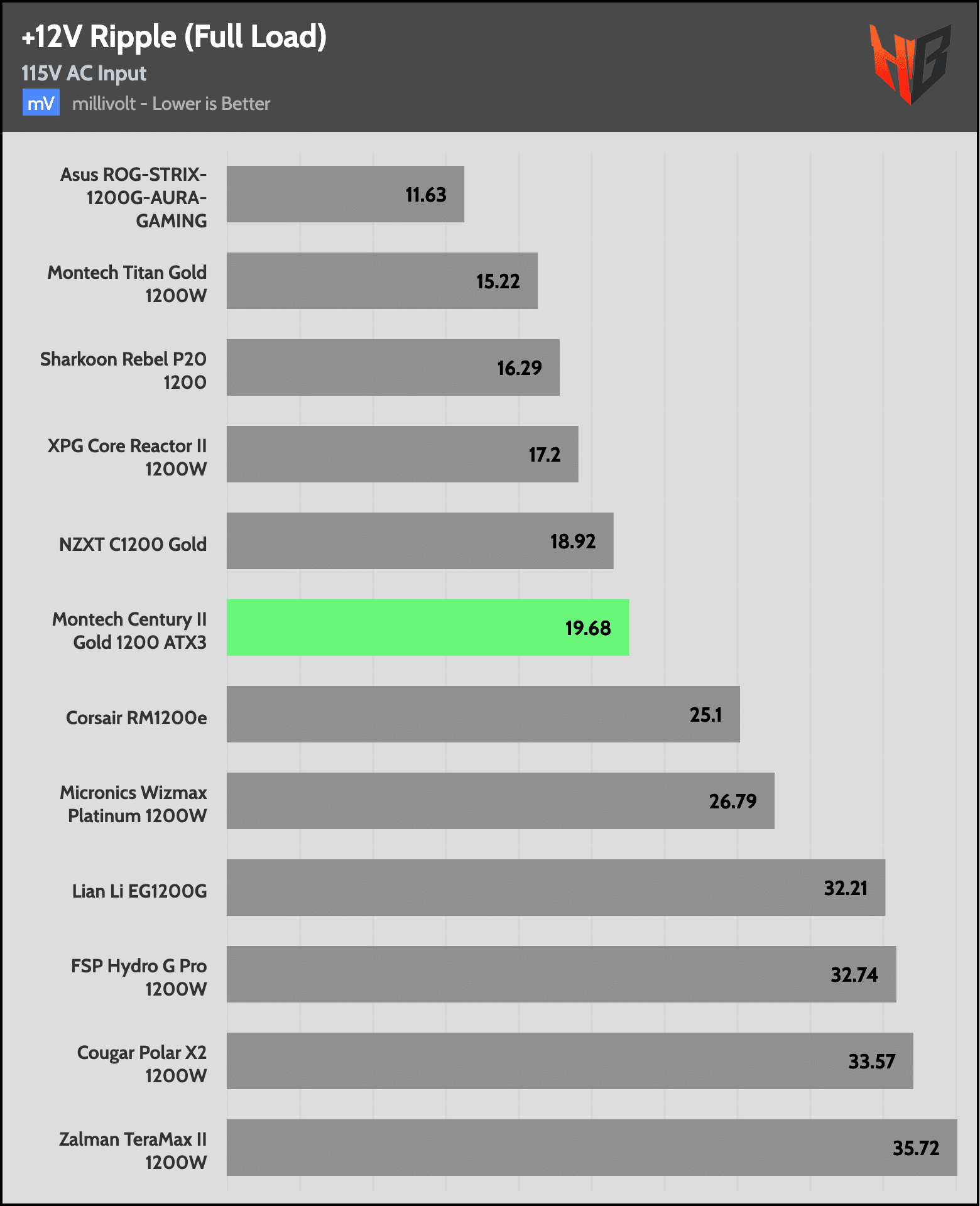

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 13.5 mV | 7.2 mV | 3.9 mV | 6.4 mV | Pass |
| 20% Load | 12.6 mV | 6.7 mV | 4.0 mV | 6.5 mV | Pass |
| 30% Load | 11.8 mV | 7.3 mV | 4.8 mV | 6.5 mV | Pass |
| 40% Load | 11.4 mV | 6.9 mV | 4.1 mV | 6.9 mV | Pass |
| 50% Load | 16.9 mV | 7.0 mV | 4.4 mV | 7.2 mV | Pass |
| 60% Load | 16.2 mV | 7.5 mV | 5.9 mV | 7.7 mV | Pass |
| 70% Load | 11.3 mV | 8.5 mV | 4.5 mV | 7.9 mV | Pass |
| 80% Load | 11.7 mV | 7.7 mV | 7.1 mV | 8.0 mV | Pass |
| 90% Load | 12.3 mV | 7.8 mV | 7.2 mV | 8.7 mV | Pass |
| 100% Load | 19.7 mV | 8.8 mV | 8.5 mV | 11.8 mV | Pass |
| 110% Load | 20.2 mV | 9.3 mV | 8.4 mV | 11.8 mV | Pass |
| Crossload 1 | 18.3 mV | 8.4 mV | 8.1 mV | 7.6 mV | Pass |
| Crossload 2 | 12.3 mV | 7.2 mV | 3.9 mV | 6.9 mV | Pass |
| Crossload 3 | 11.7 mV | 7.0 mV | 9.5 mV | 7.0 mV | Pass |
| Crossload 4 | 17.2 mV | 8.7 mV | 5.5 mV | 11.1 mV | Pass |

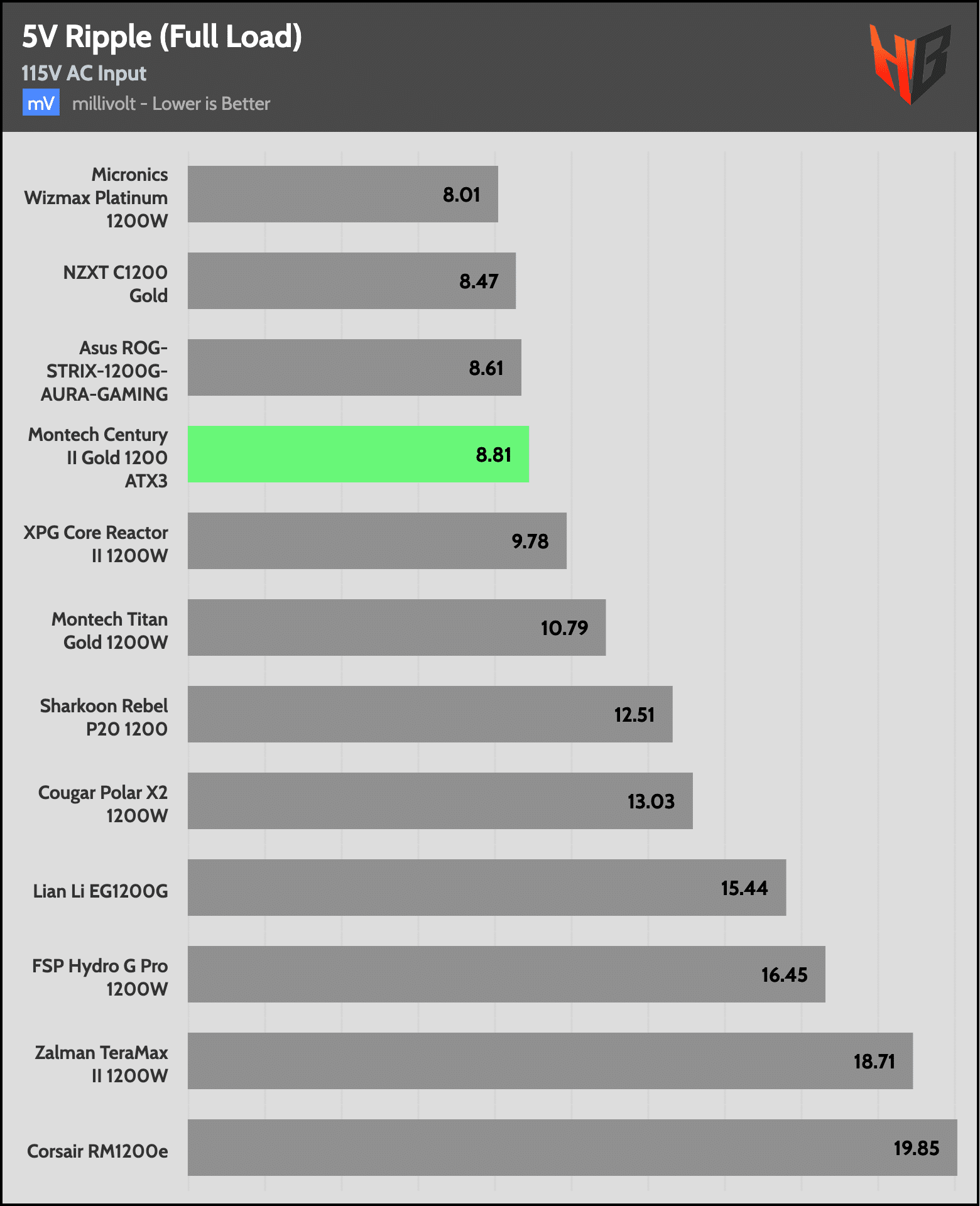

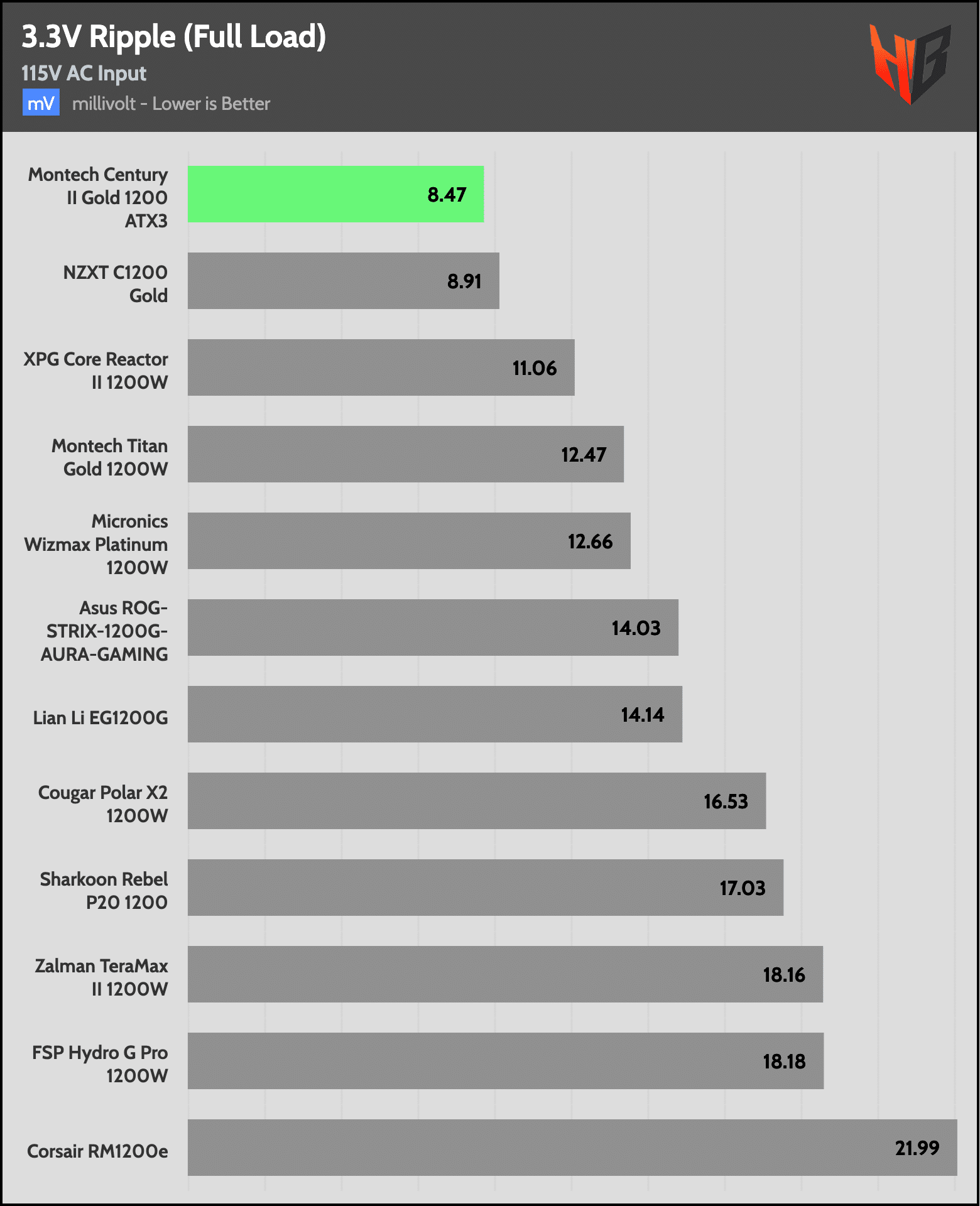

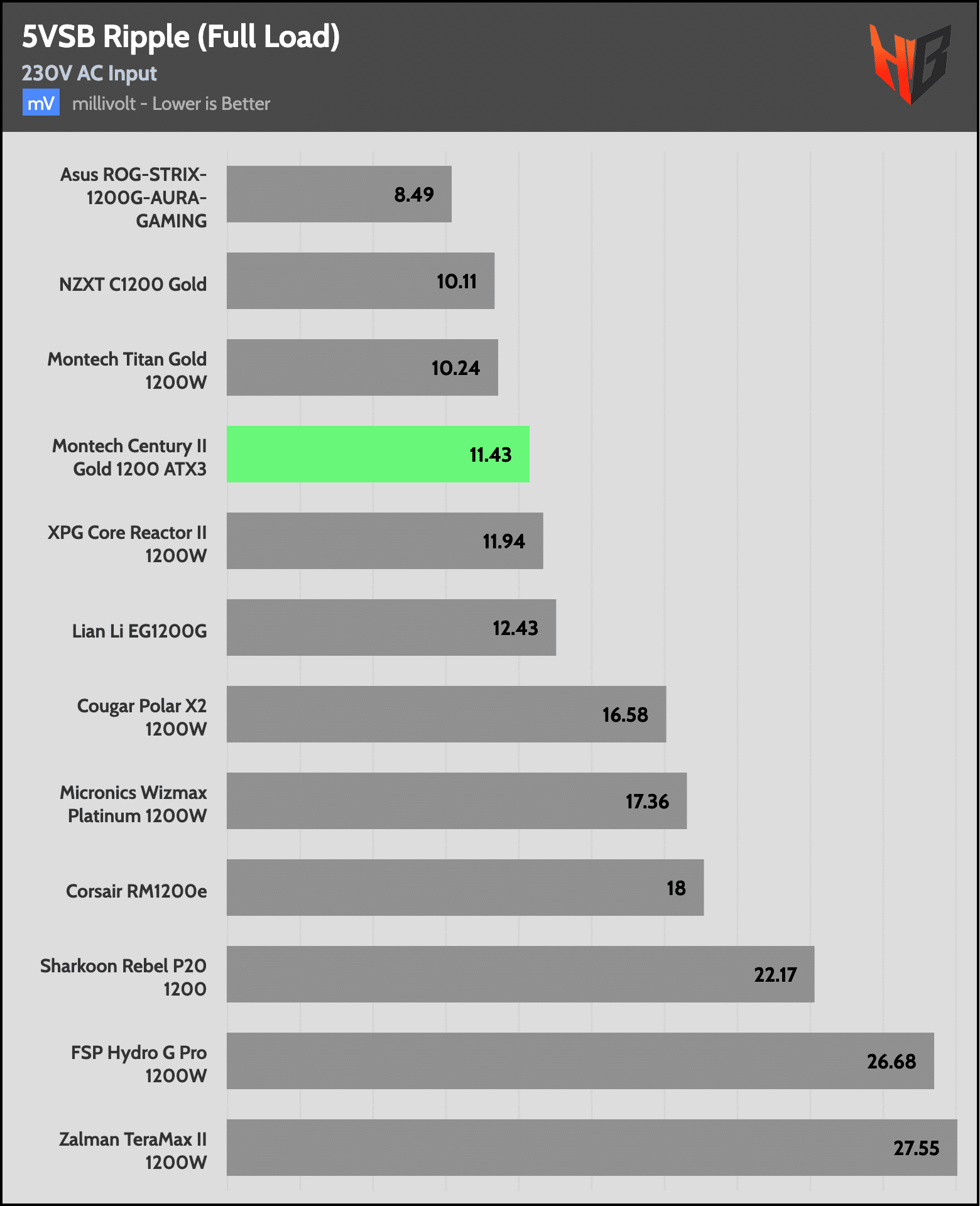

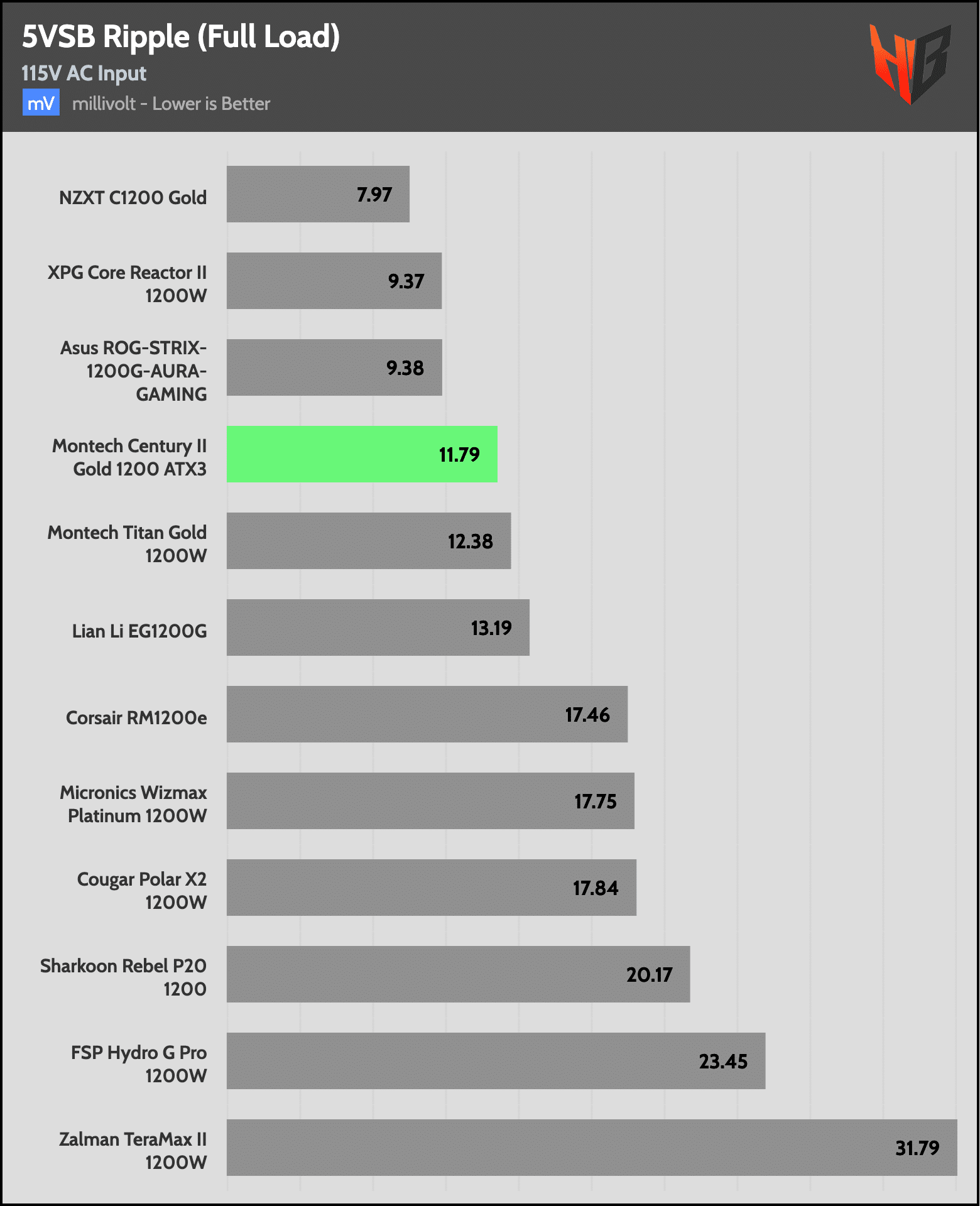

Ripple suppression is good.
