Part Analysis
| General Data | |
| Manufacturer (OEM) | Shenzhen Xinweiye Technology |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 1x NTC Thermistor MF72 10D-20 (10 Ohm) & Relay |
| Bridge Rectifier(s) |
2x GBU25KH (800V, 25A @ 25°C)
|
| APFC MOSFETs |
2x Way-On WMJ53N60F2 (600V, 26A @ 100°C, Rds(on): 0.078Ohm)
|
| APFC Boost Diode |
1x Maplesemi MSNP10065G1 (650V, 10A @ @ 135°C)
|
| Bulk Cap(s) | |
| Main Switchers |
2x Way-On WMJ36N65F2 (650V, 20A @ 100°C, Rds(on): 0.11Ohm)
|
| IC Driver |

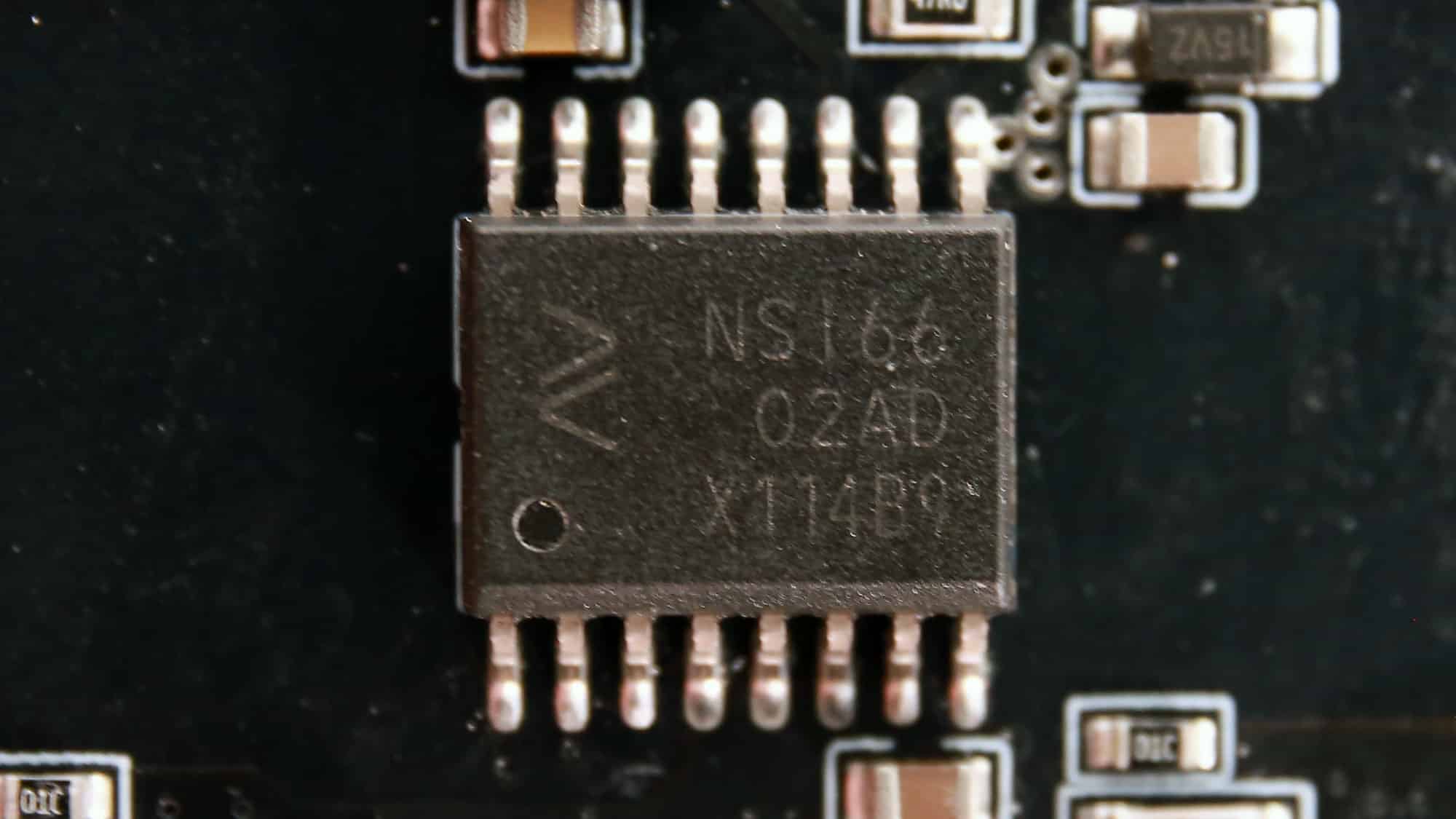

1x Novosense NSi6602
|
| Resonant Controller |
Champion CM6901X
|
| APFC Controller | |
| Topology |
Primary side: APFC, Half-Bridge & LLC Resonant converter
Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x Vishay SiR638DP (40V, 50.2A @ 70°C, Rds(on): 0.00088Ohm) |

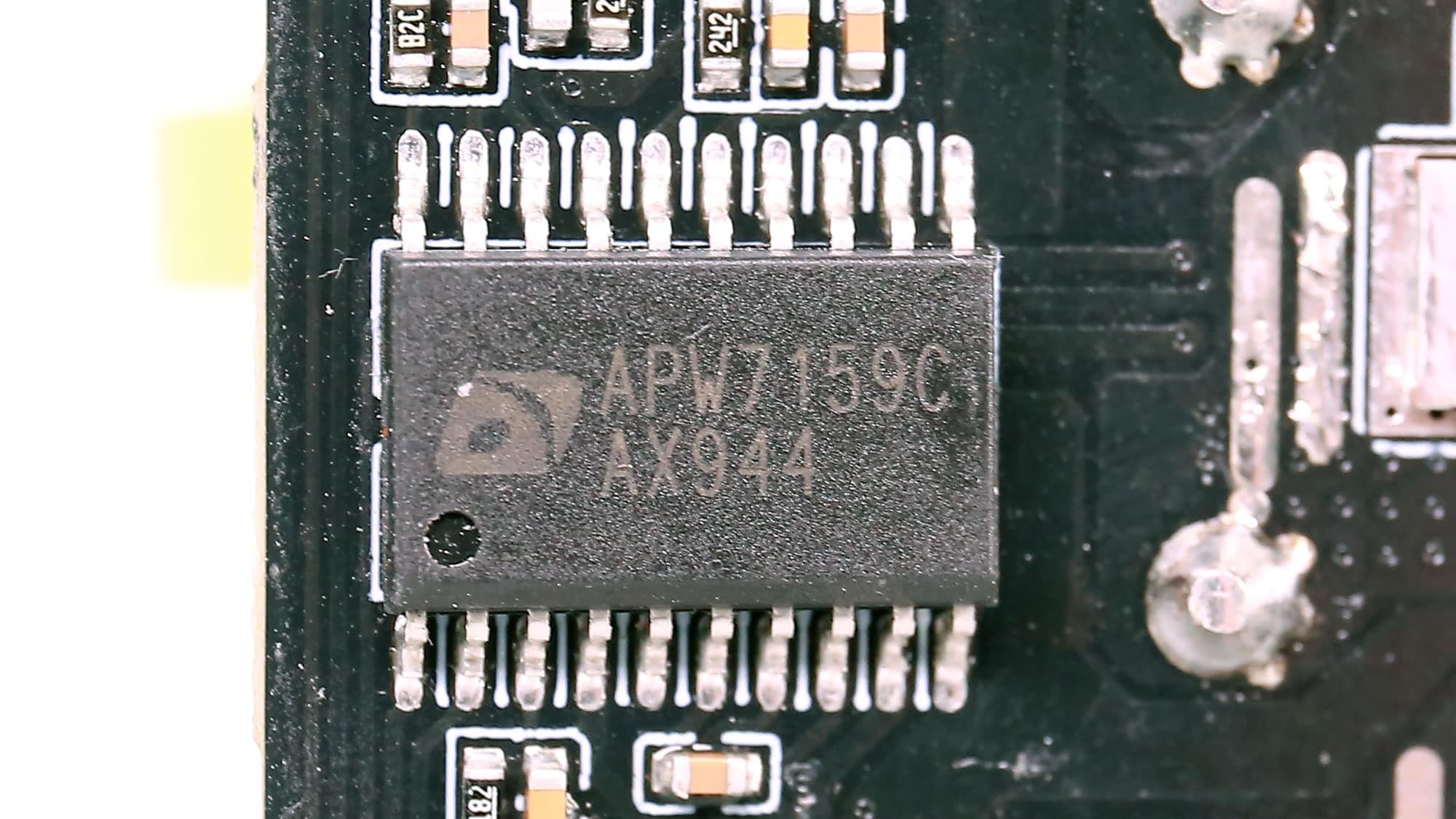

| 5V & 3.3V | DC-DC Converters: 4x Way-On WMO80N03T1 (30V, 50.6A @ 100°C, Rds(on): 5mOhm) PWM Controller(s): Anpec APW7159C |
| Filtering Capacitors | Electrolytic: 4x Nippon Chemi-con (2-5,000h @105°C, KZE) 3x Nippon Chemi-con (@105°C, W) 1x Nippon Chemi-con (5-6,000h @105°C, KZH) 1x Nippon Chemi-con (4-10,000h @105°C, KYA) 2x Rubycon (6-10,000h @105°C, YXG) 2x Rubycon (6-10,000h @105°C, ZLH) Polymer: 6x CapXon (PS), 33x Chemic-con (PXG) |
| Supervisor IC | GRENERGY GR8329E (OVP, UVP, OCP, ) |
| Fan Model | Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan) |
| 5VSB | |
| Rectifier |
1x SB1045L SBR (45V, 10A)
|
| Standby PWM Controller |
Chipown PN8141
|

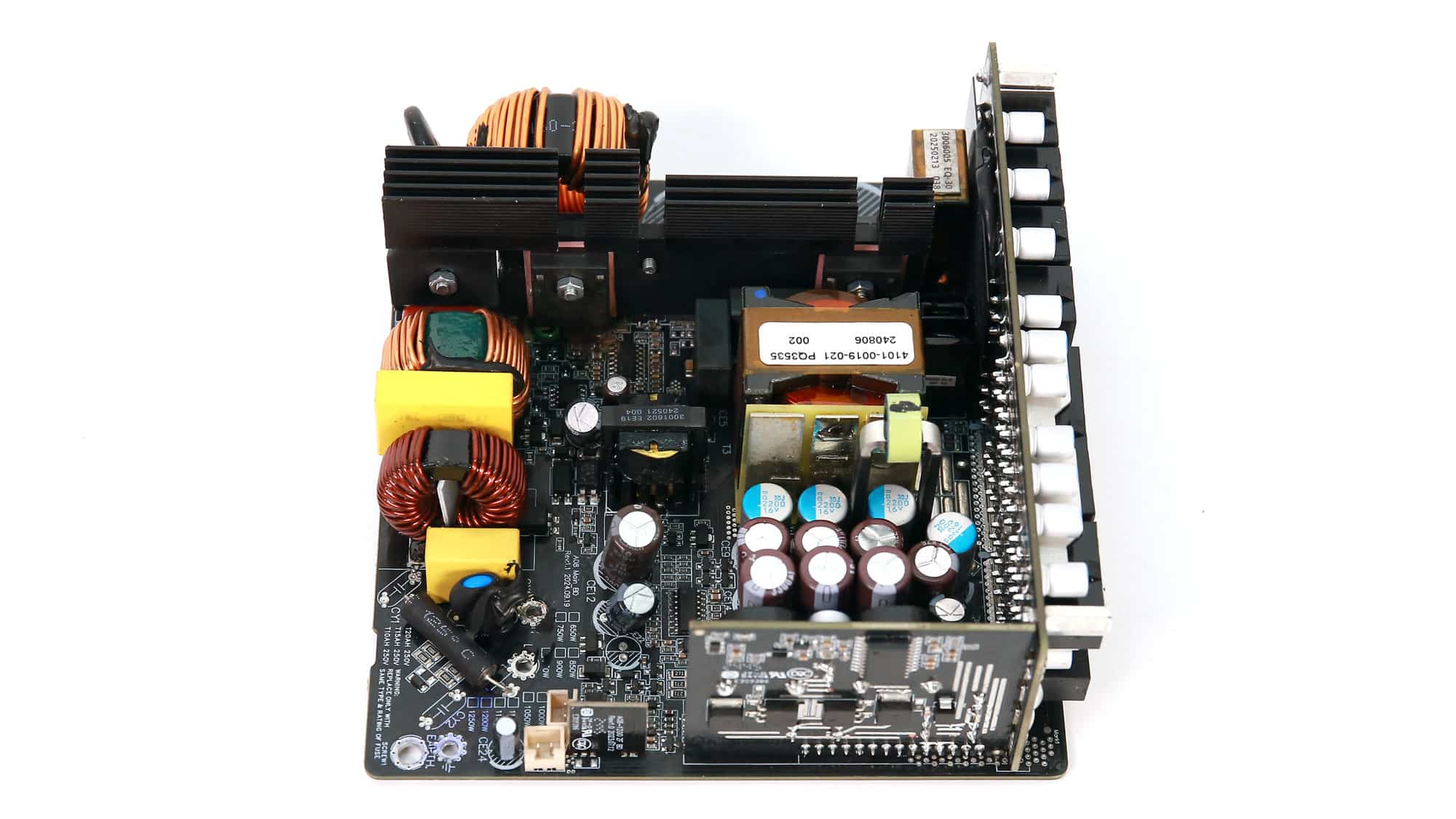

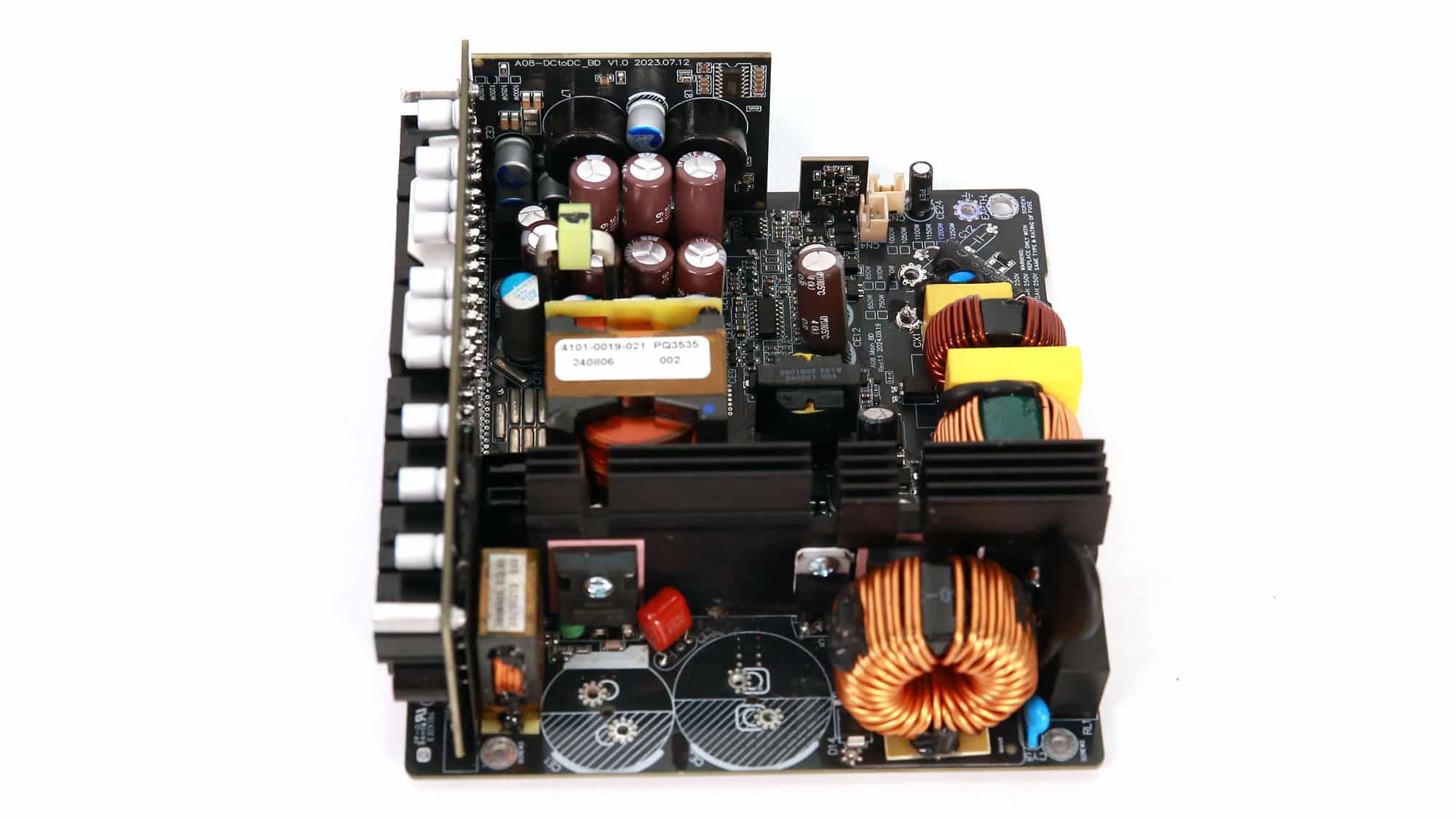

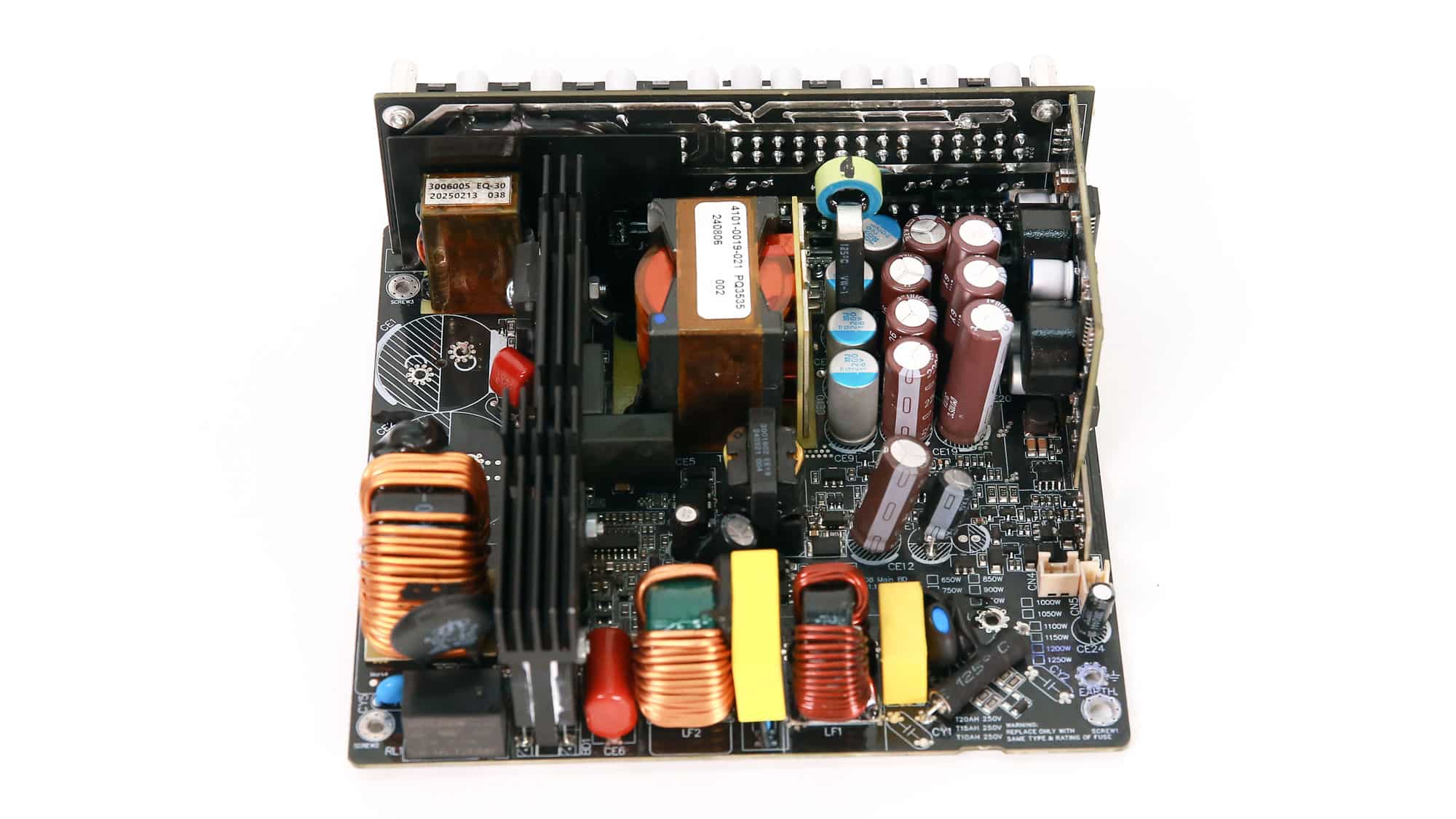

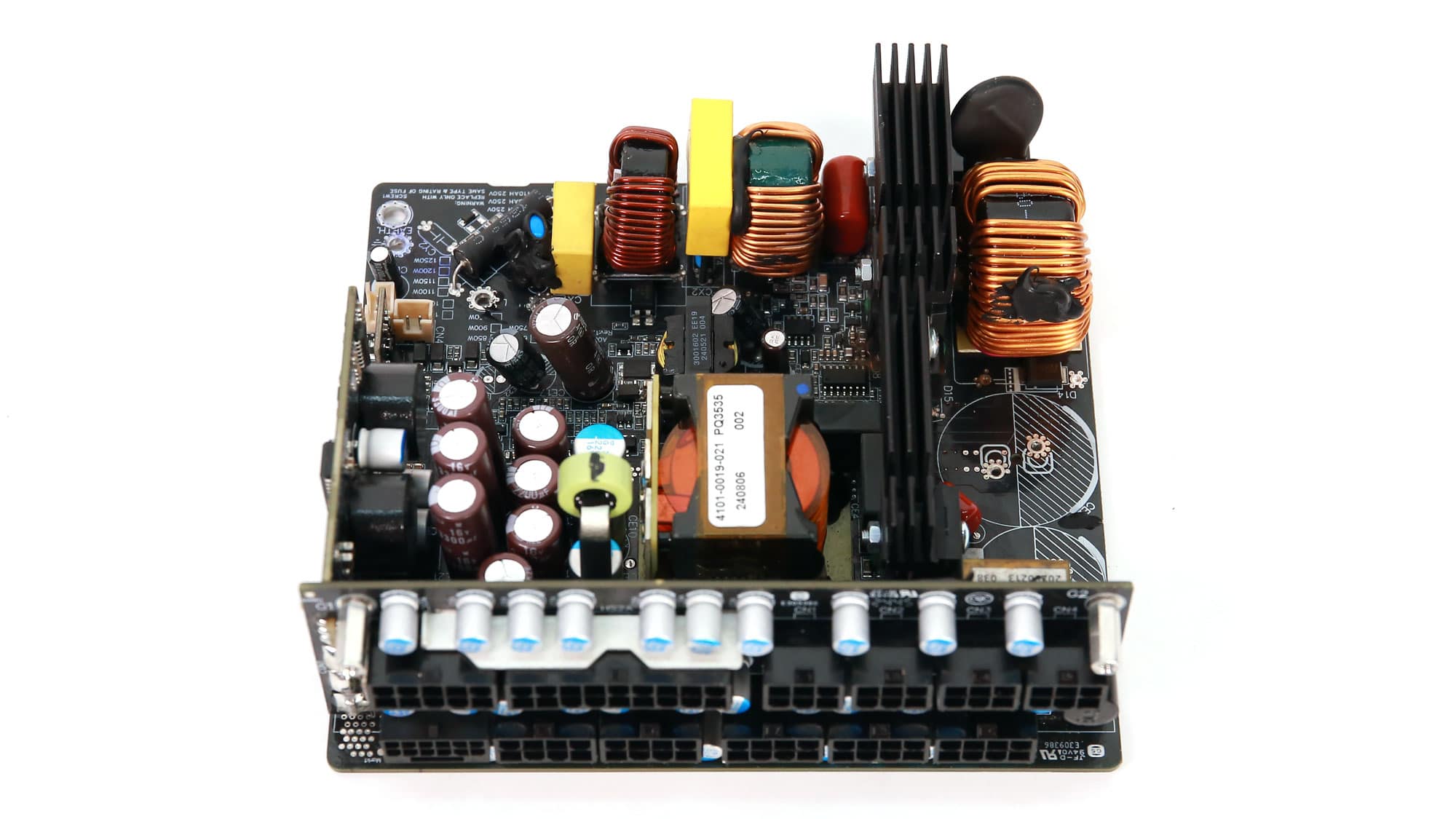

The OEM is Shenzhen Xinweiye Technology, and the platform features a clean design with ample room for adequate cooling, despite its small PCB. The main transformer is compact, occupying minimal space. Right next to it, the vertical PCB hosts the heatsinks and the power transfer traces to the 12V FETs, to drastically reduce the distance and, consequently, power losses. The capacitors on the secondary side are clear, allowing for unobstructed airflow, which boosts their lifetime due to the lower operating temperatures. The DC-DC converters handling the minor rails are also installed on a daughter board, at the side of the main PCB.

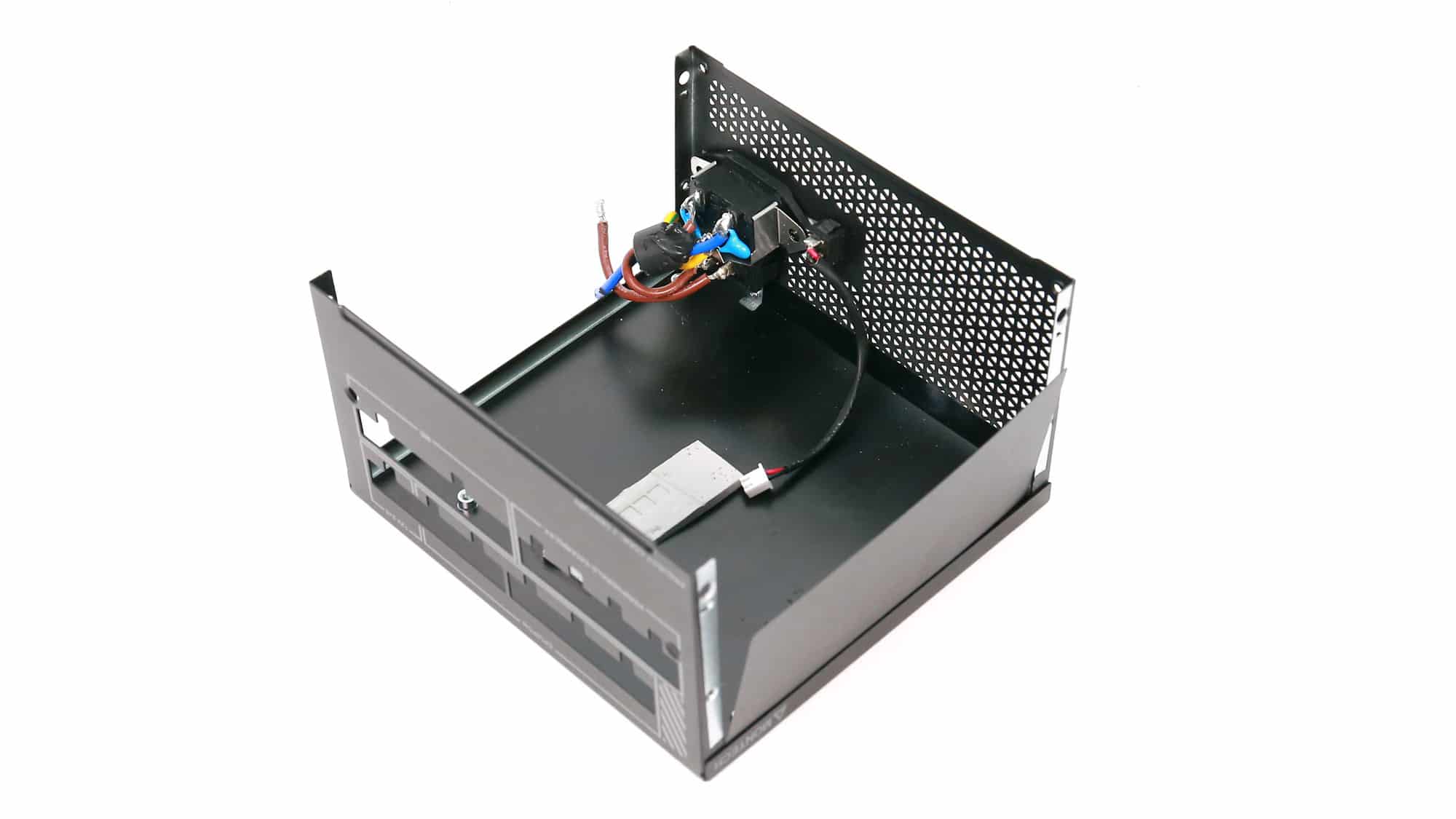

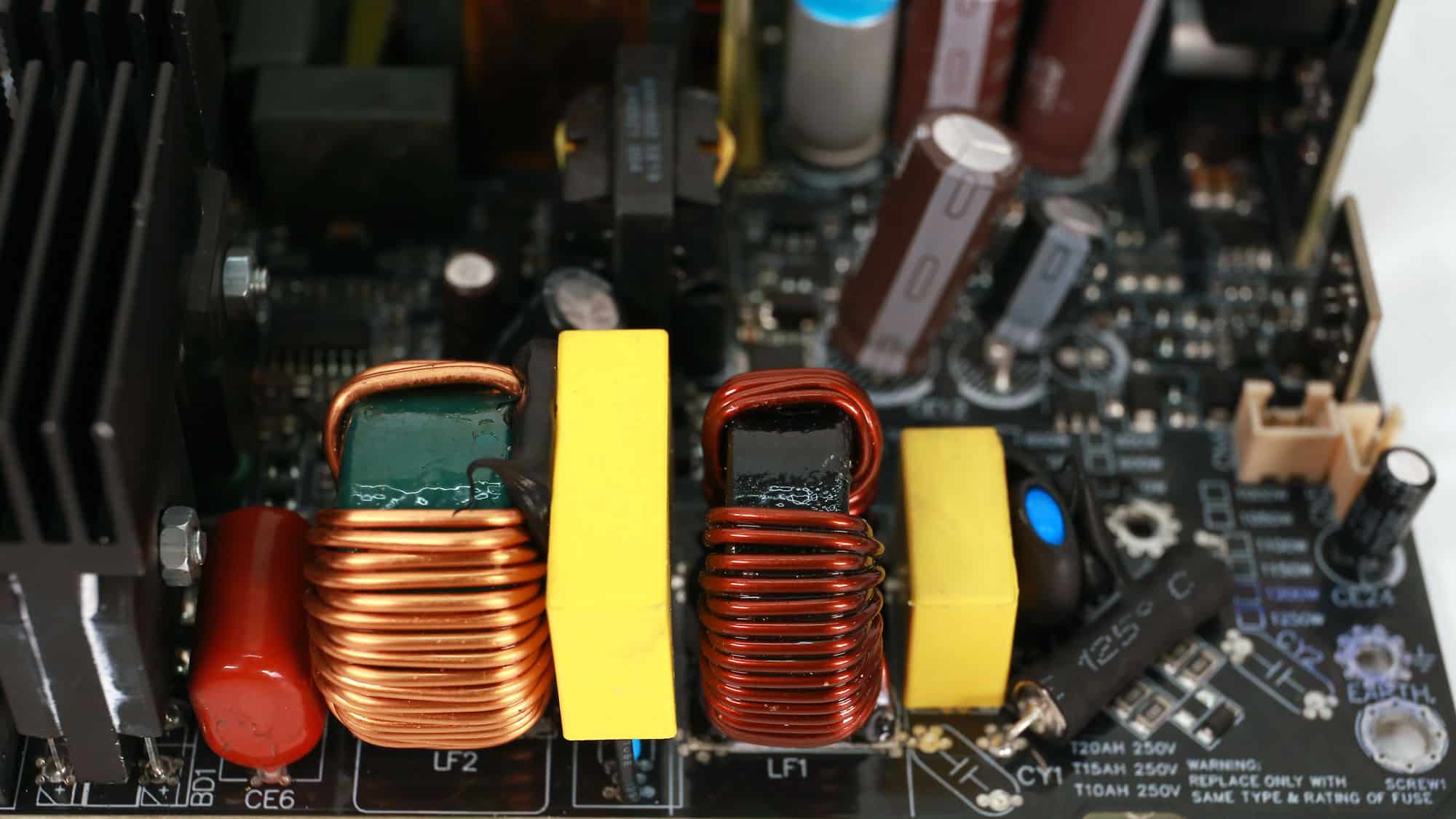

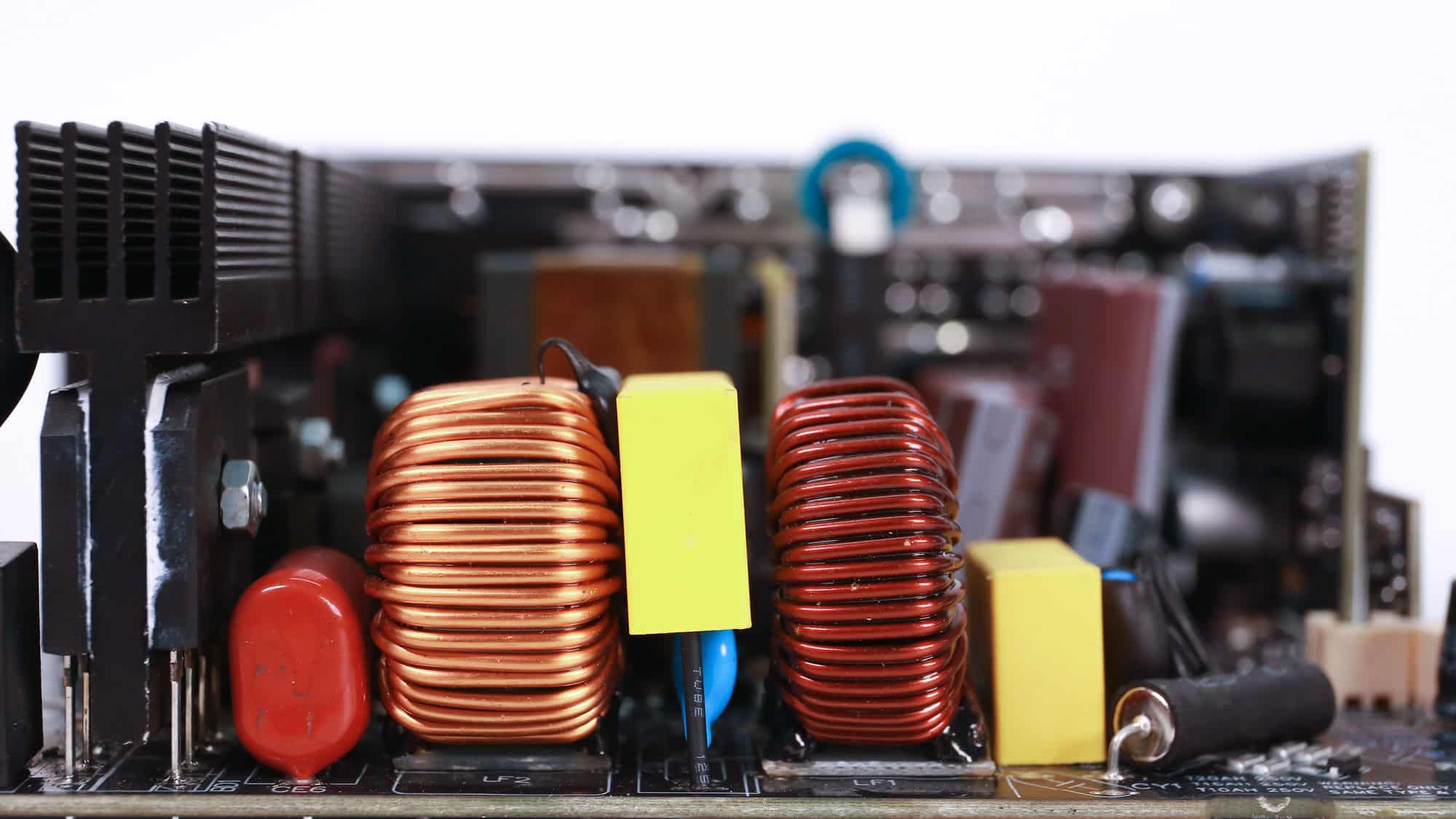

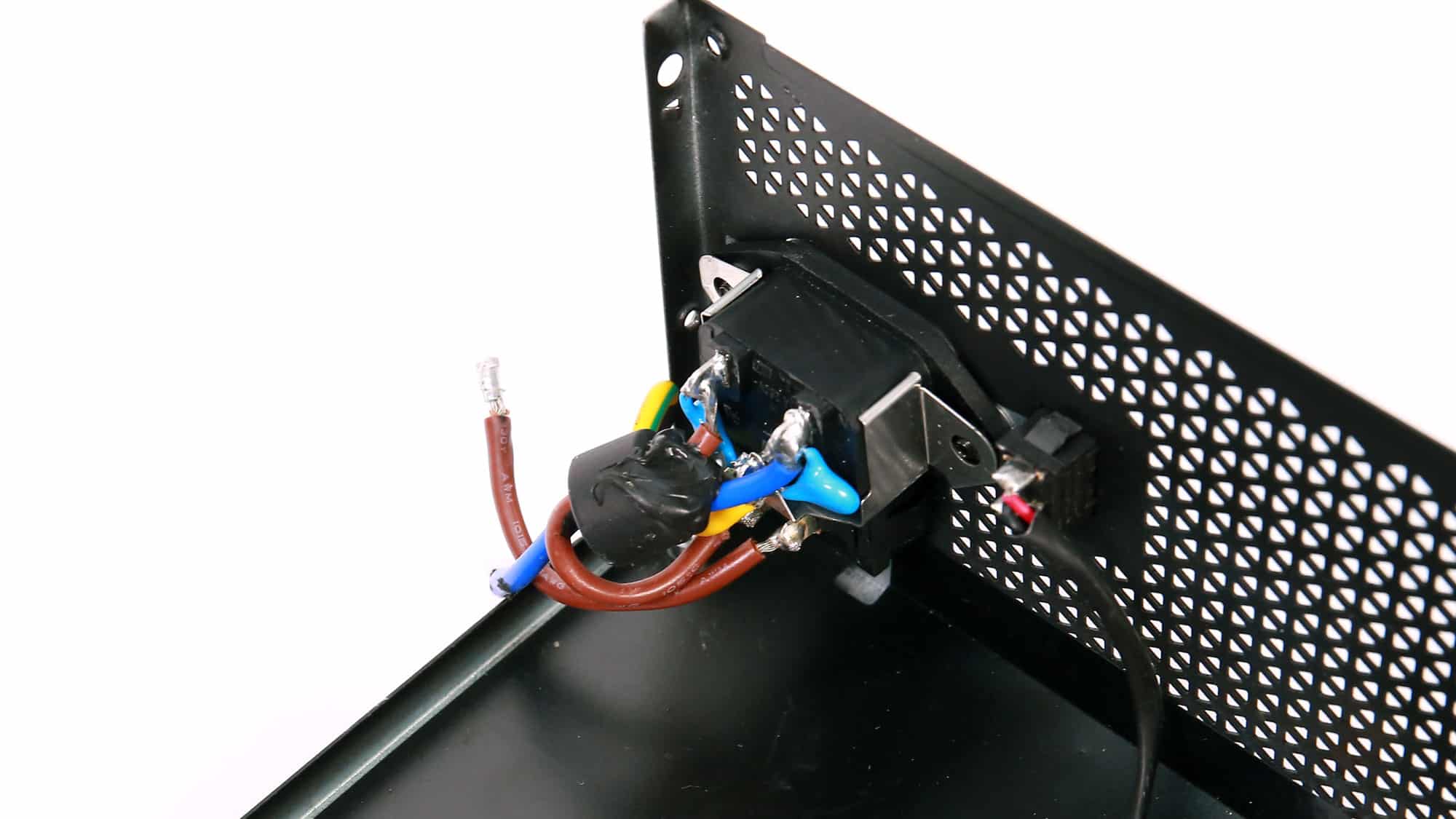

The transient filtering stage has all the necessary parts to block incoming and outgoing EMI emissions. Typically, it starts at the AC receptacle and continues on the main PCB.

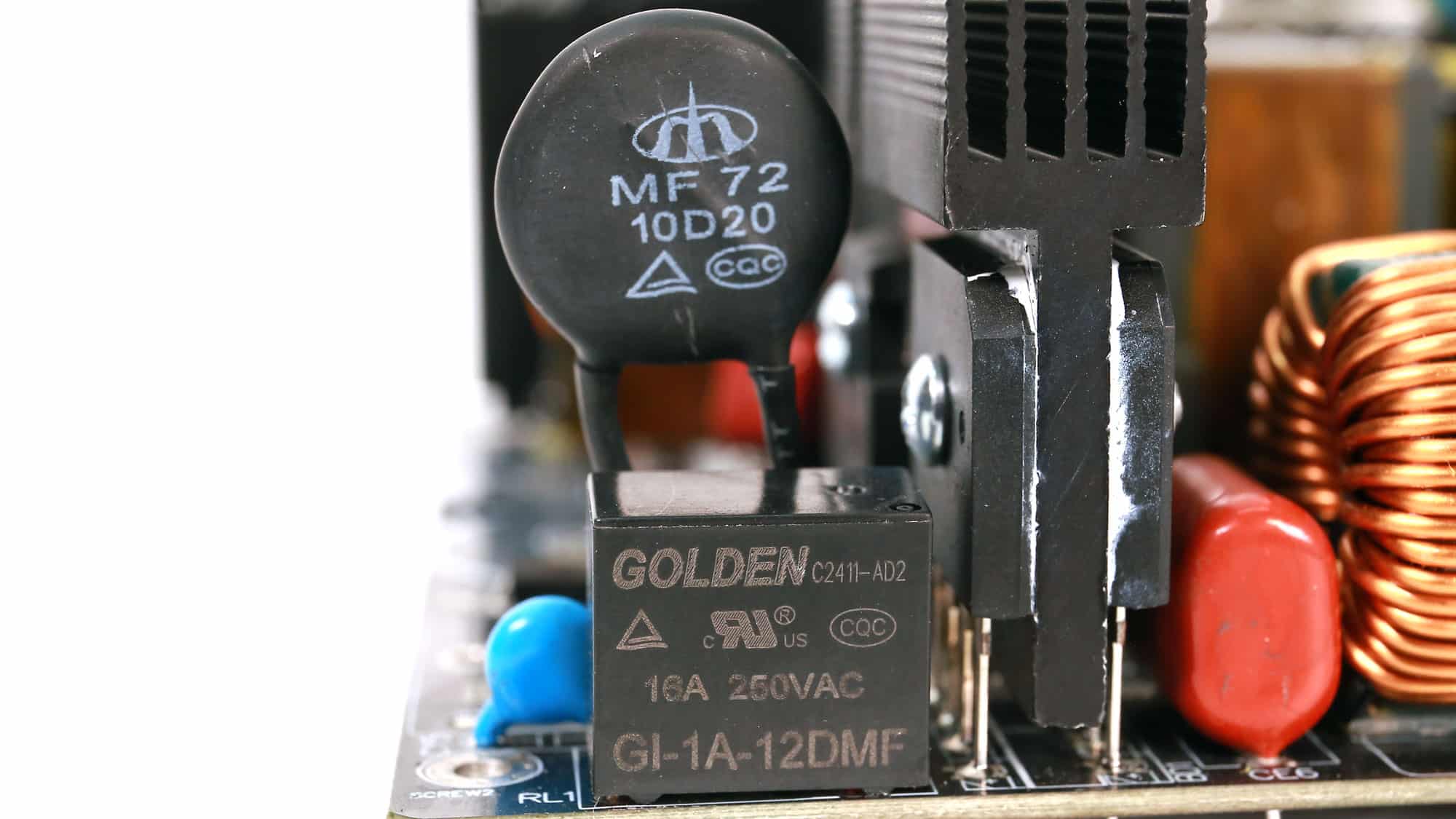

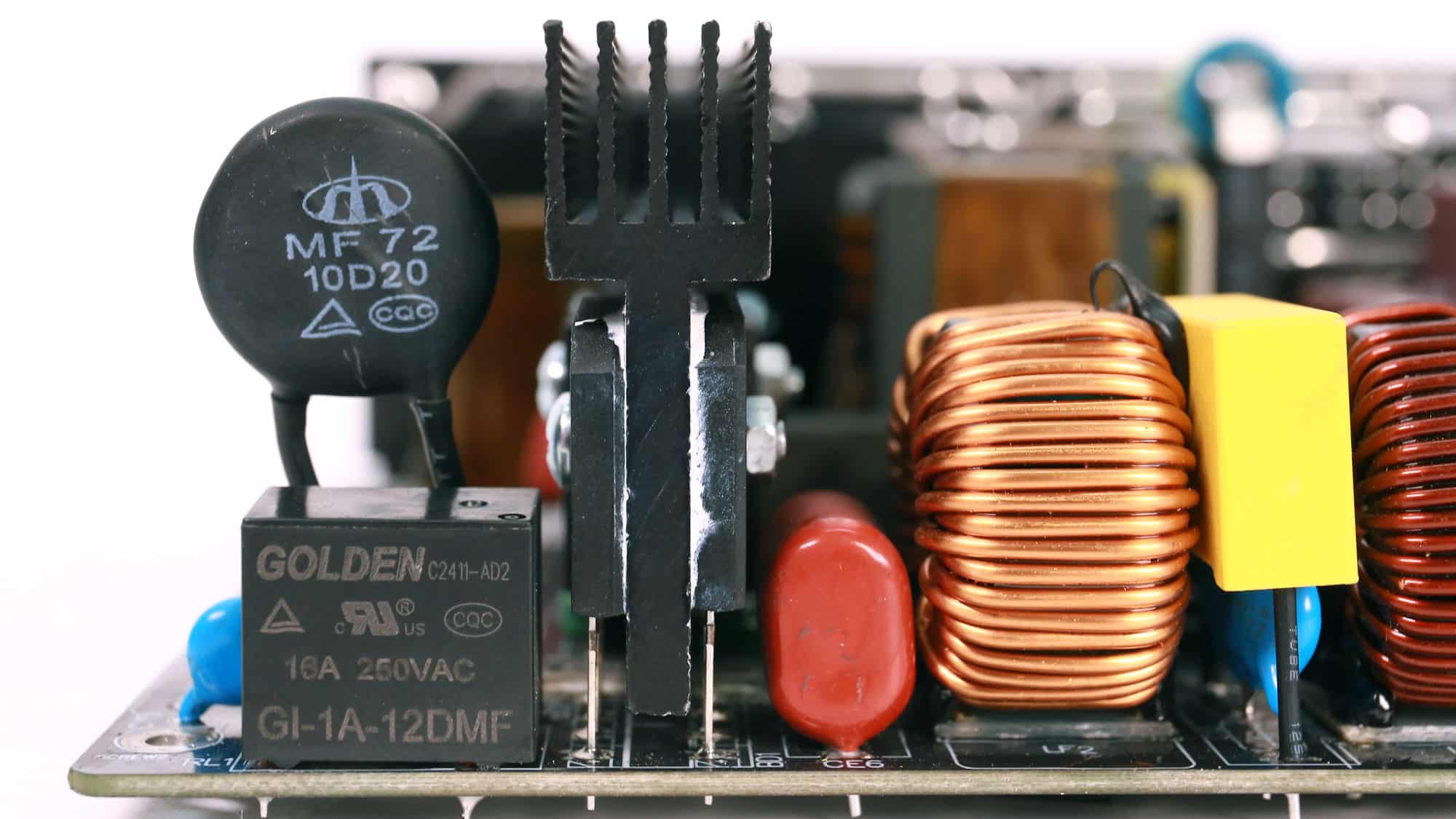

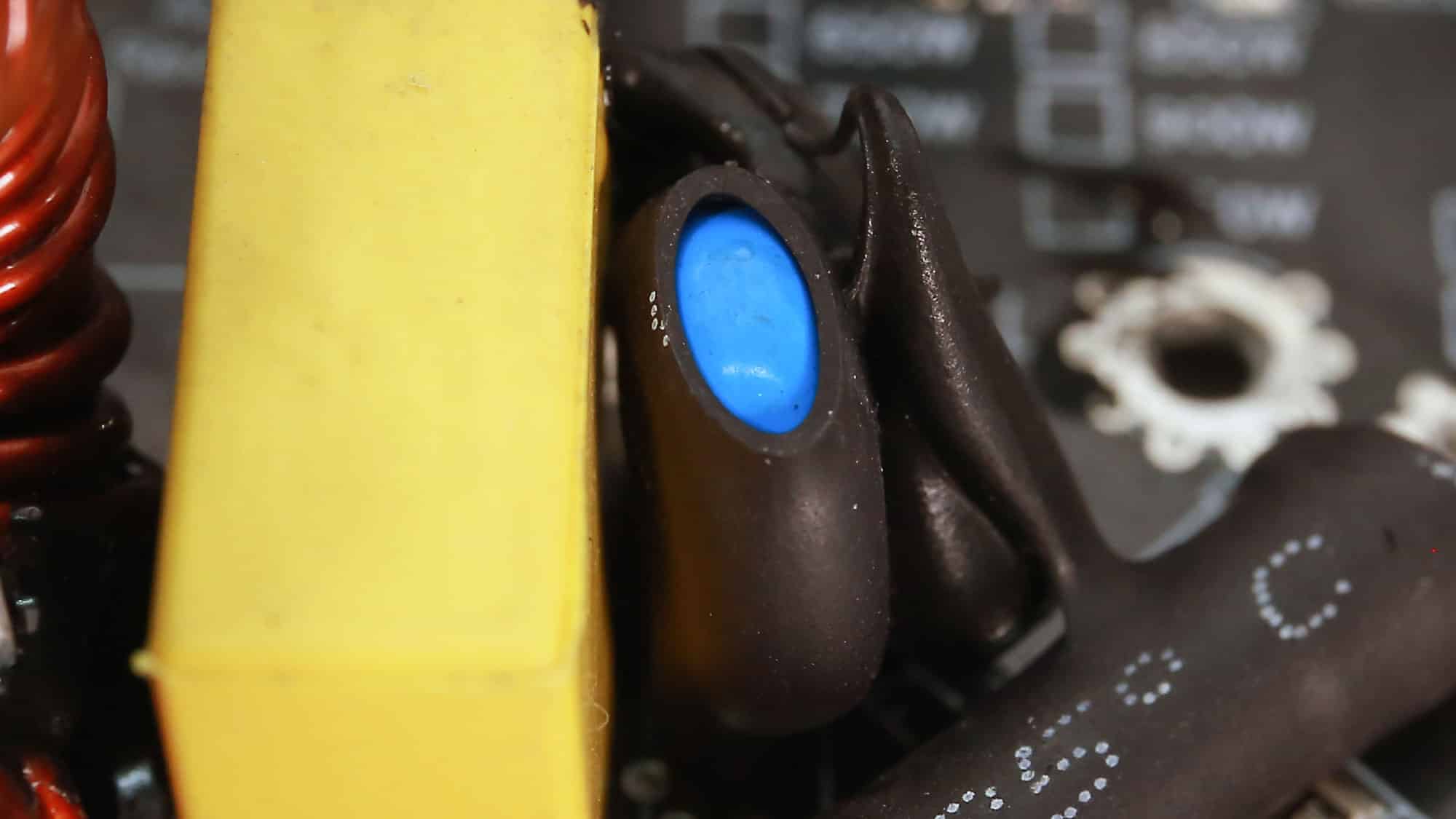

There is an MOV to protect from voltage surges and an NTC thermistor with a resistance of 10 ohms. Moreover, a bypass relay supports the NTC thermistor.

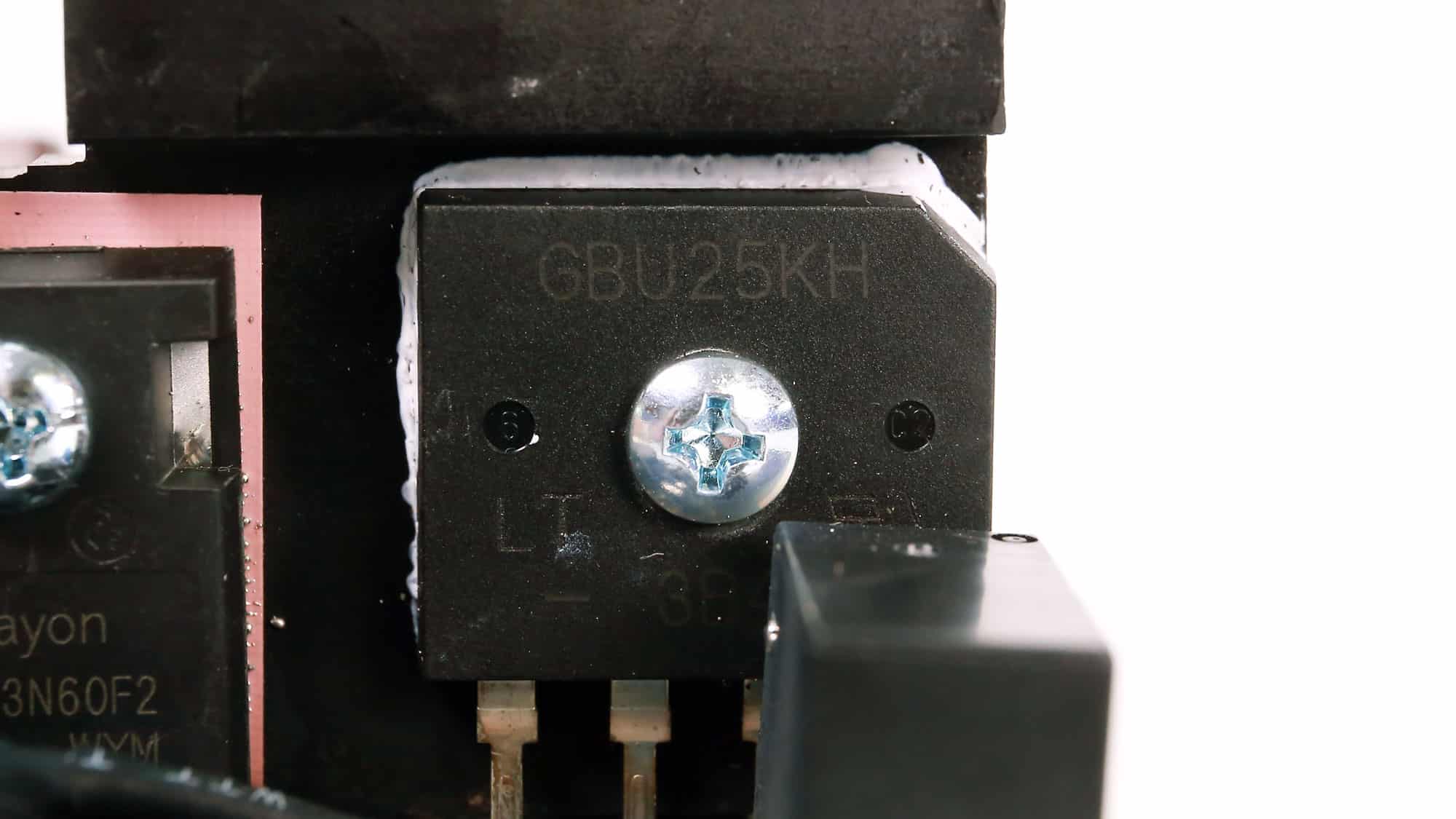

The two GBU25KH parallel bridge rectifiers can handle up to 50A together, so they are more than enough to cover this platform’s needs.

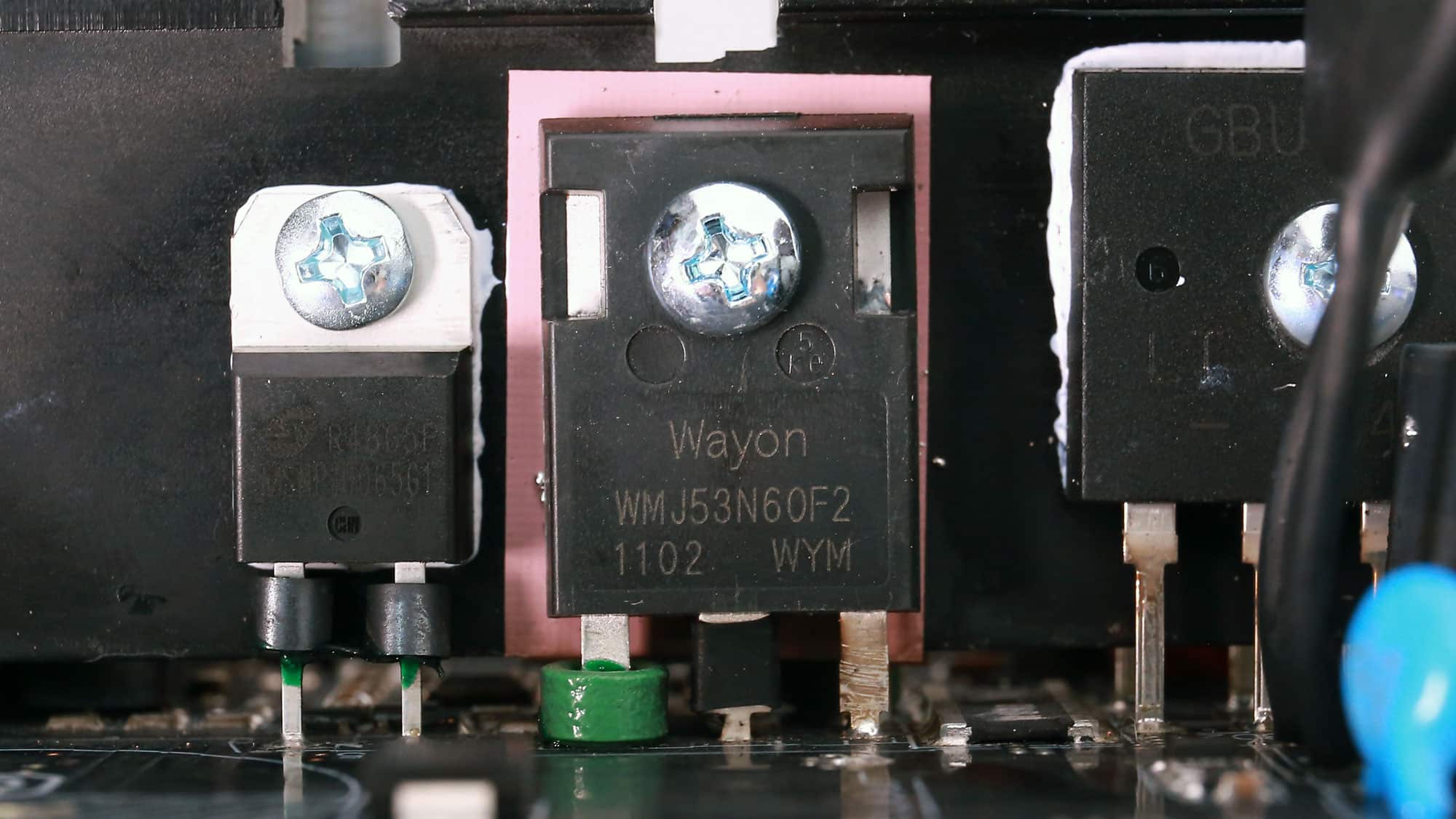

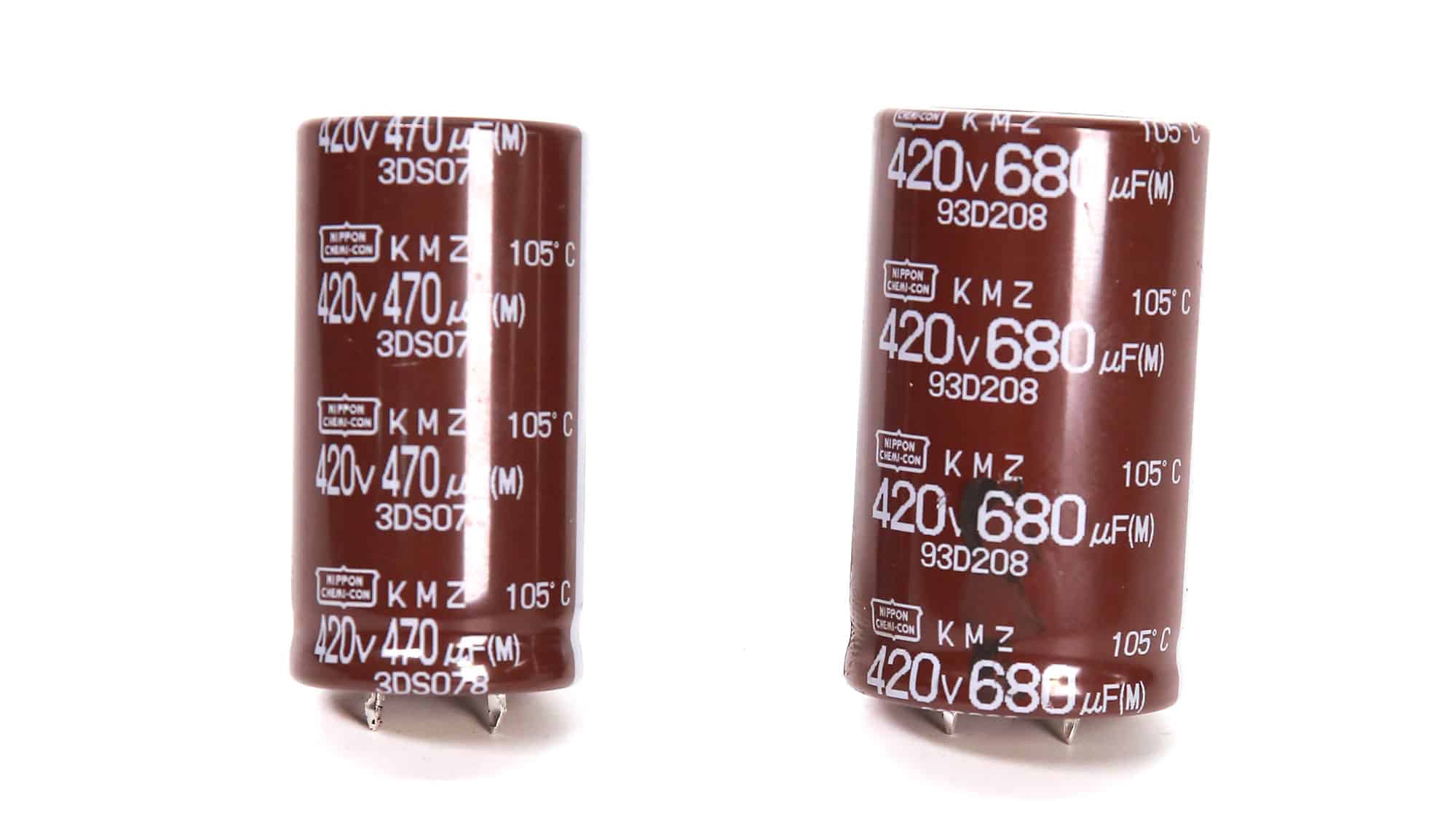

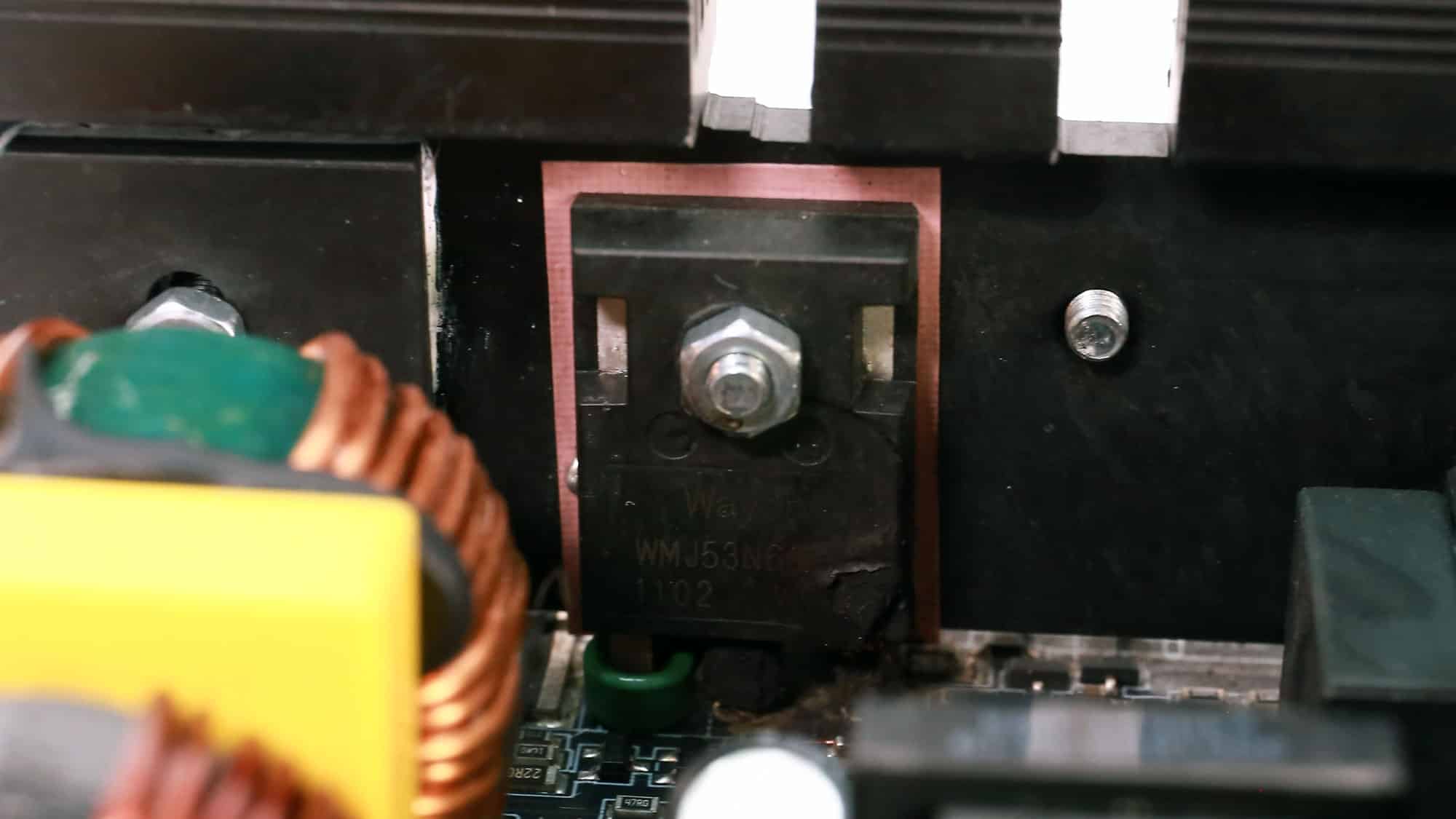

The APFC converter uses two Way-On WMJ53N60F2 FETs and one Maplesemi MSNP10065G1 boost diode. The bulk caps are by Nippon Chemi-con and offer a combined capacity of 1150uF. They are rated for 2,000 h at 105 °C.

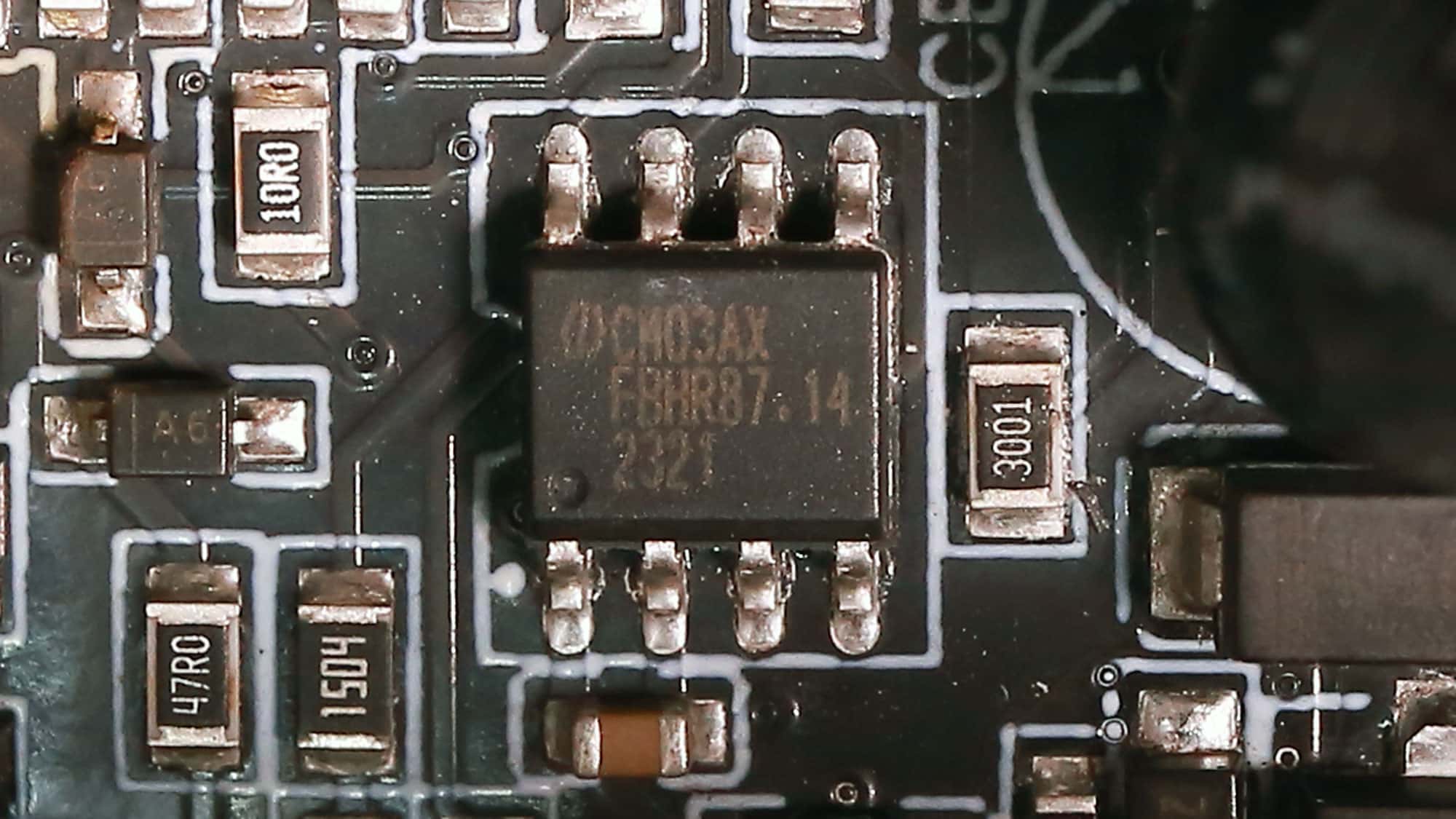

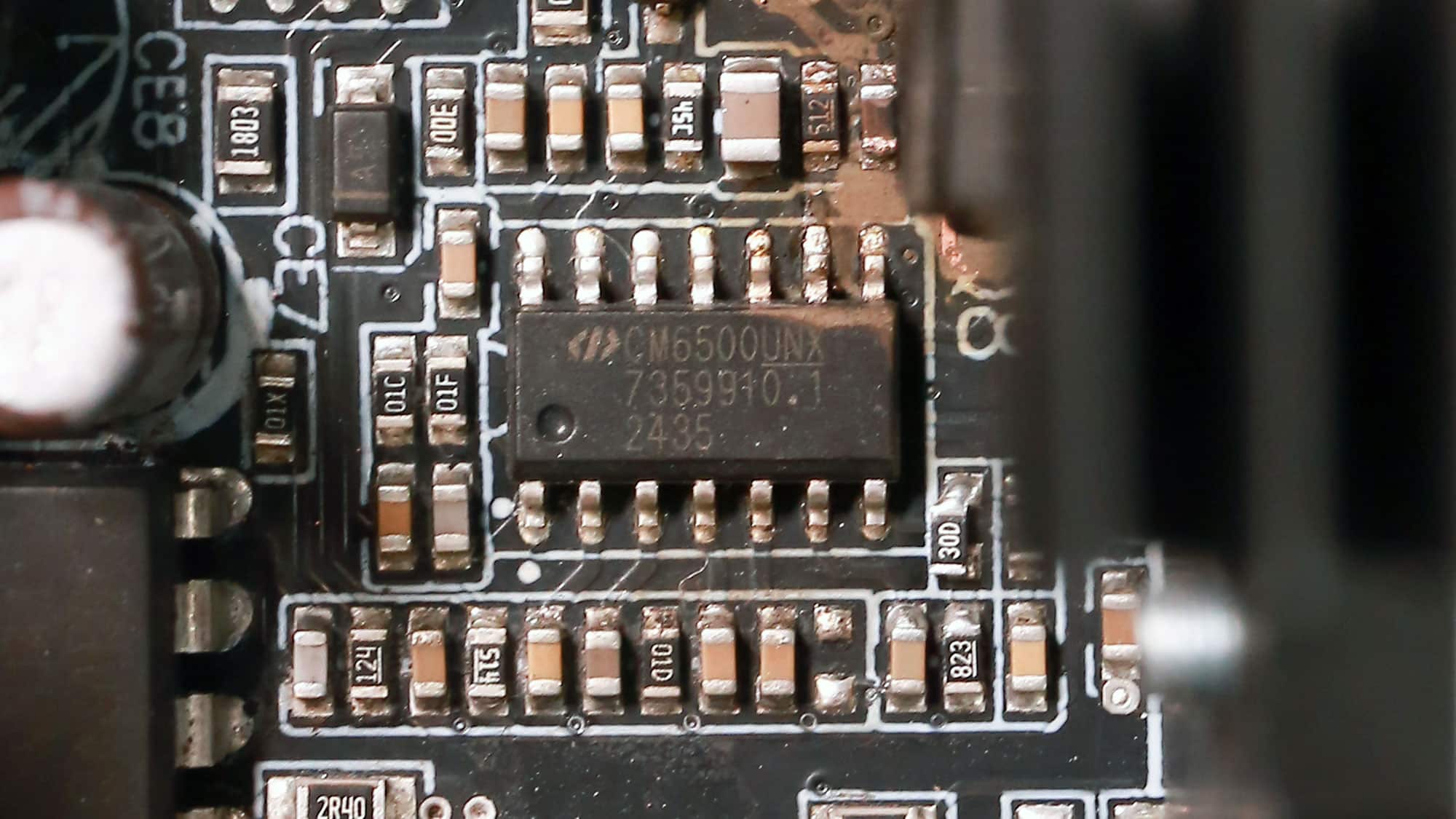

The APFC controller is a Champion CM6500UNX. It is supported by a Champion CM03X, which reduces vampire power consumption.

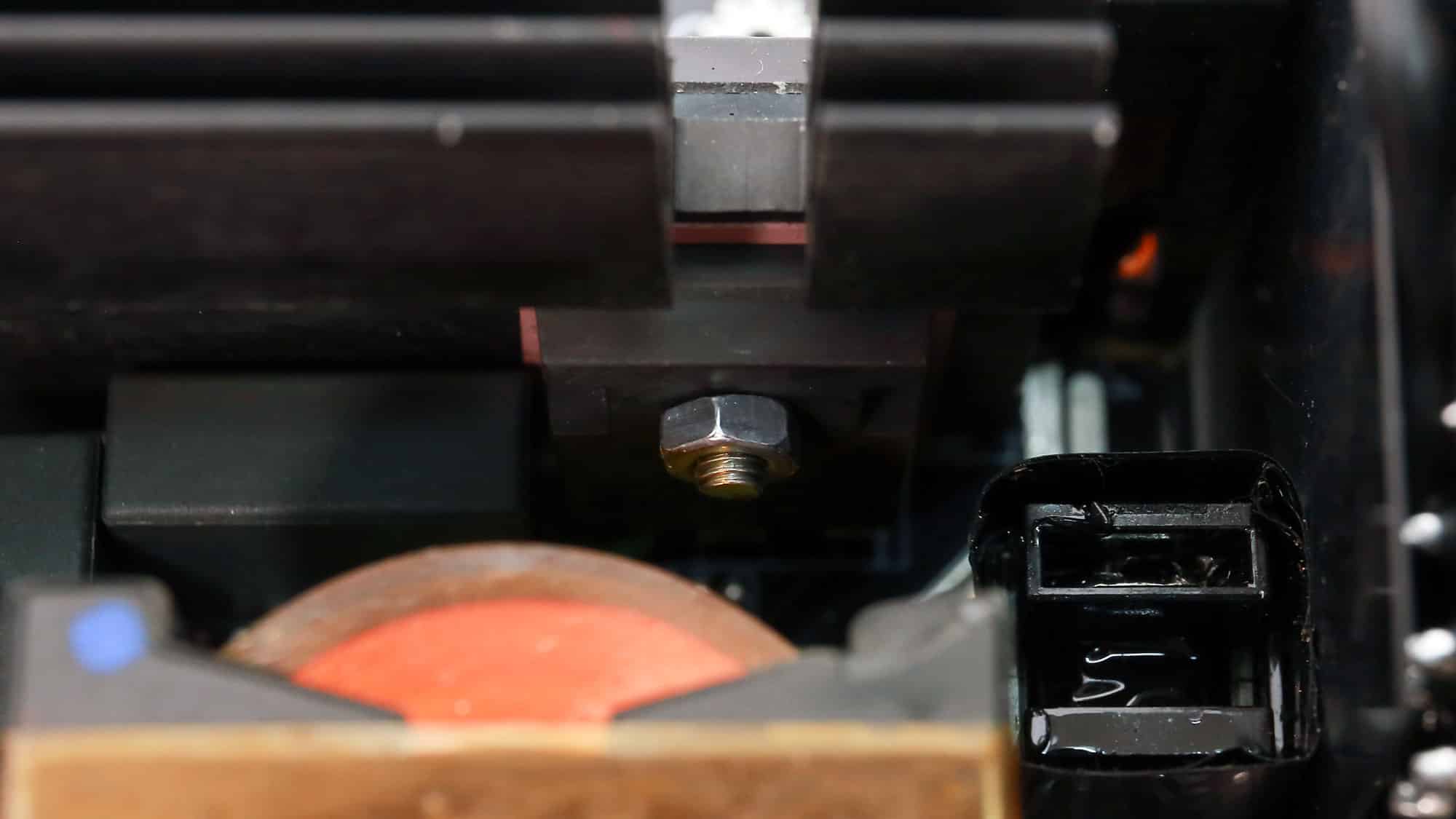

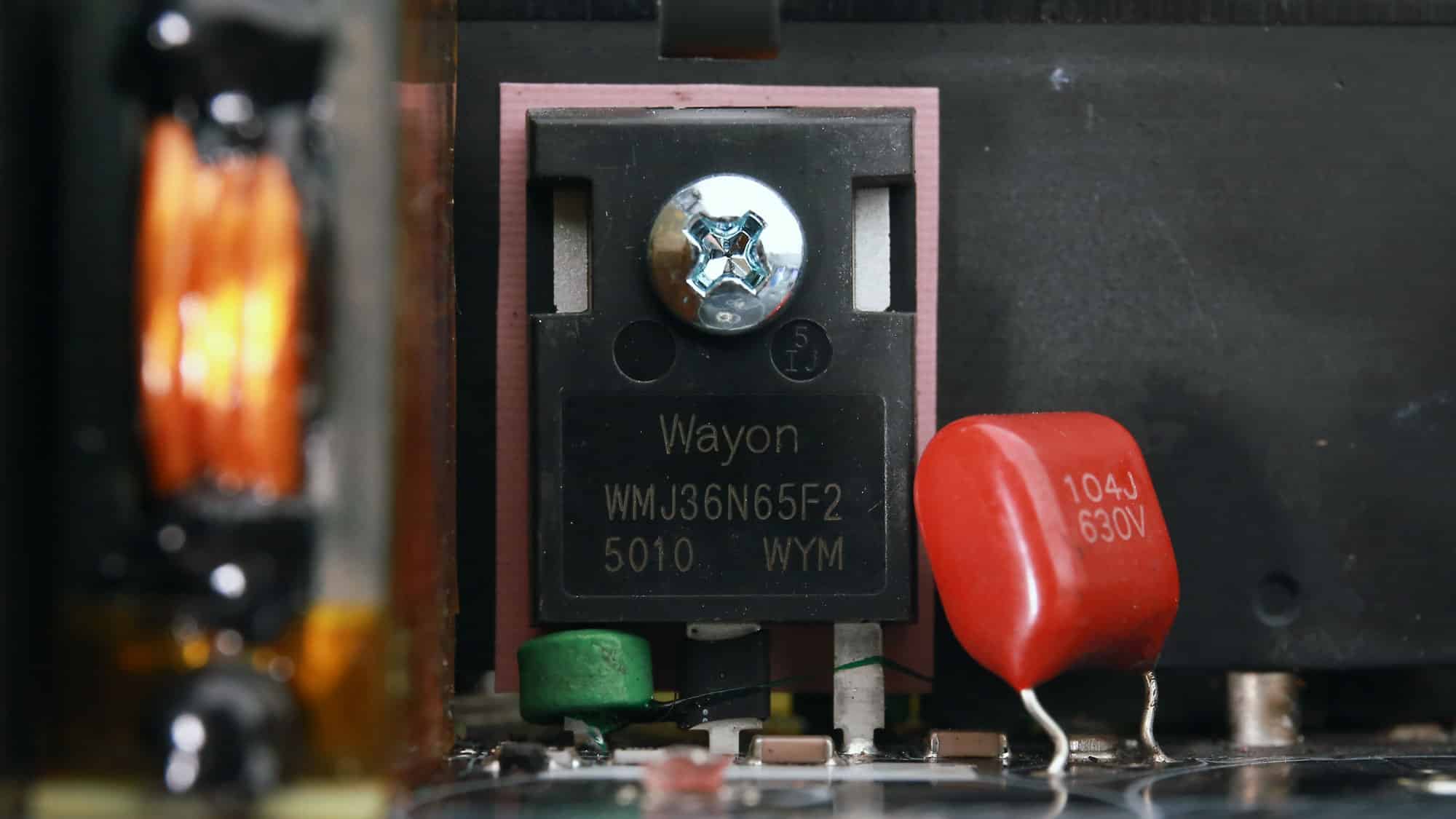

The two InfWay-On WMJ36N65F2 primary switching FETs are installed in a half-bridge topology, and an LLC resonant converter is used for higher efficiency.

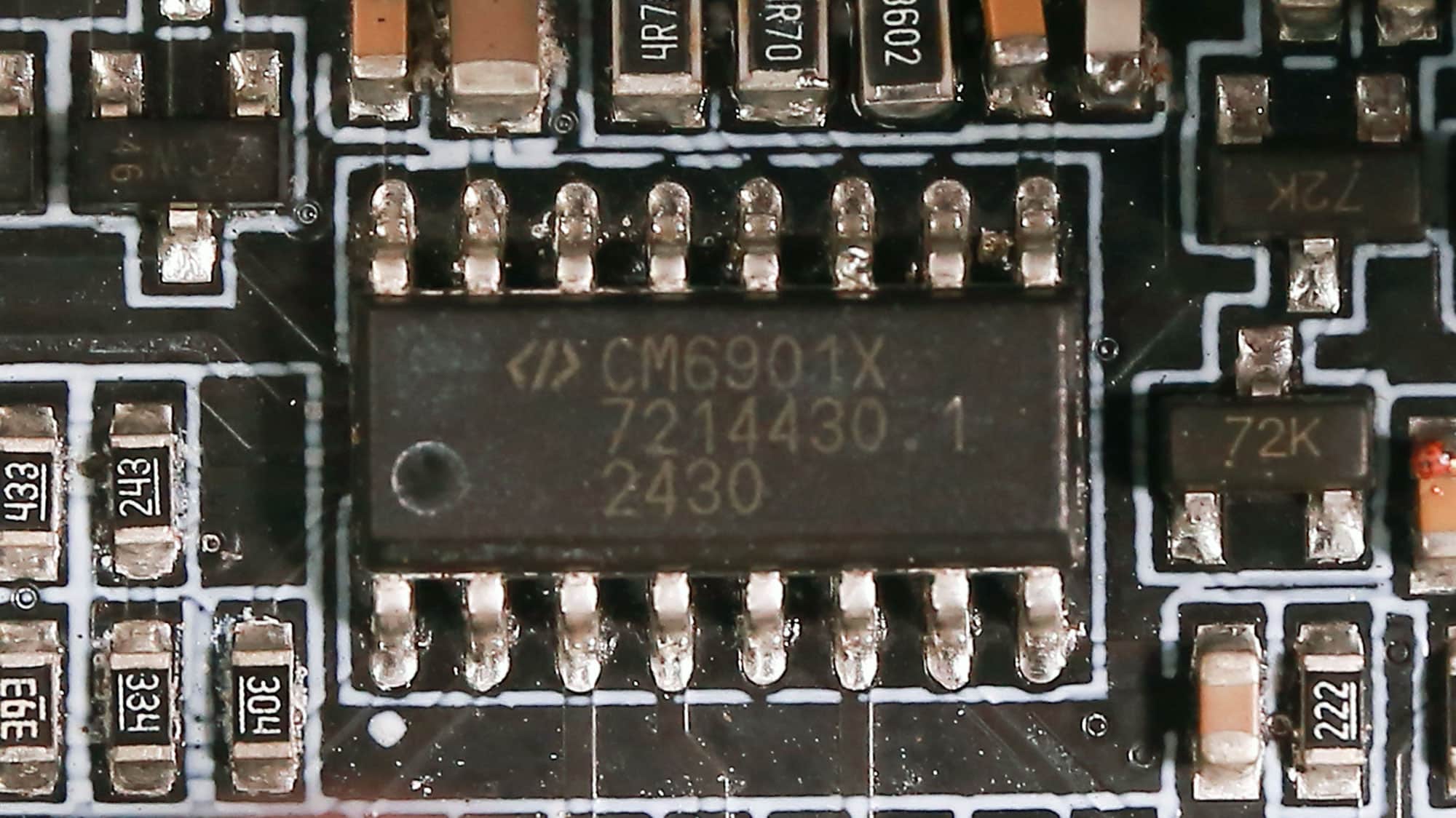

The LLC resonant controller is a Champion CM6901X.

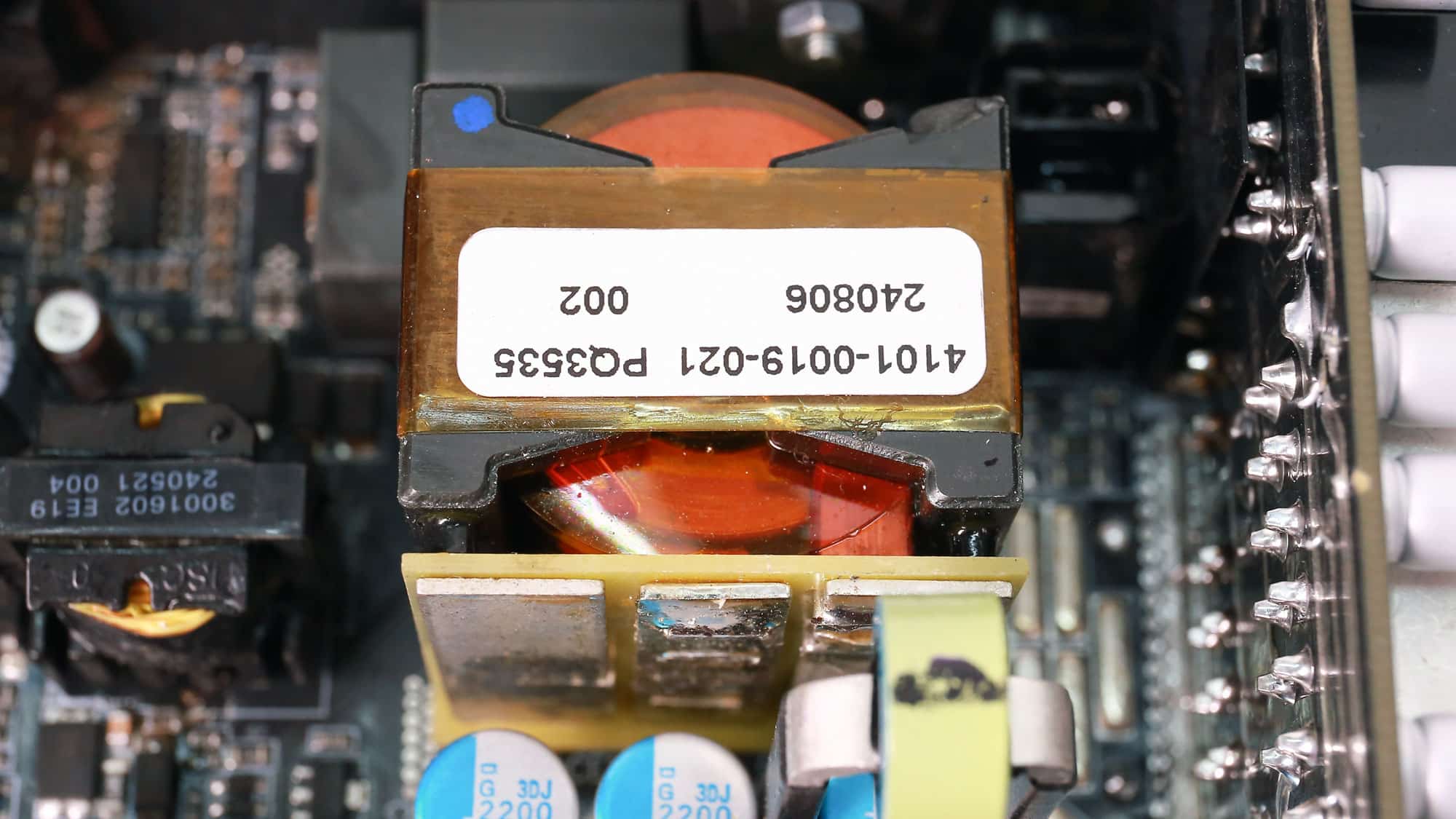

The PSU’s main transformer.

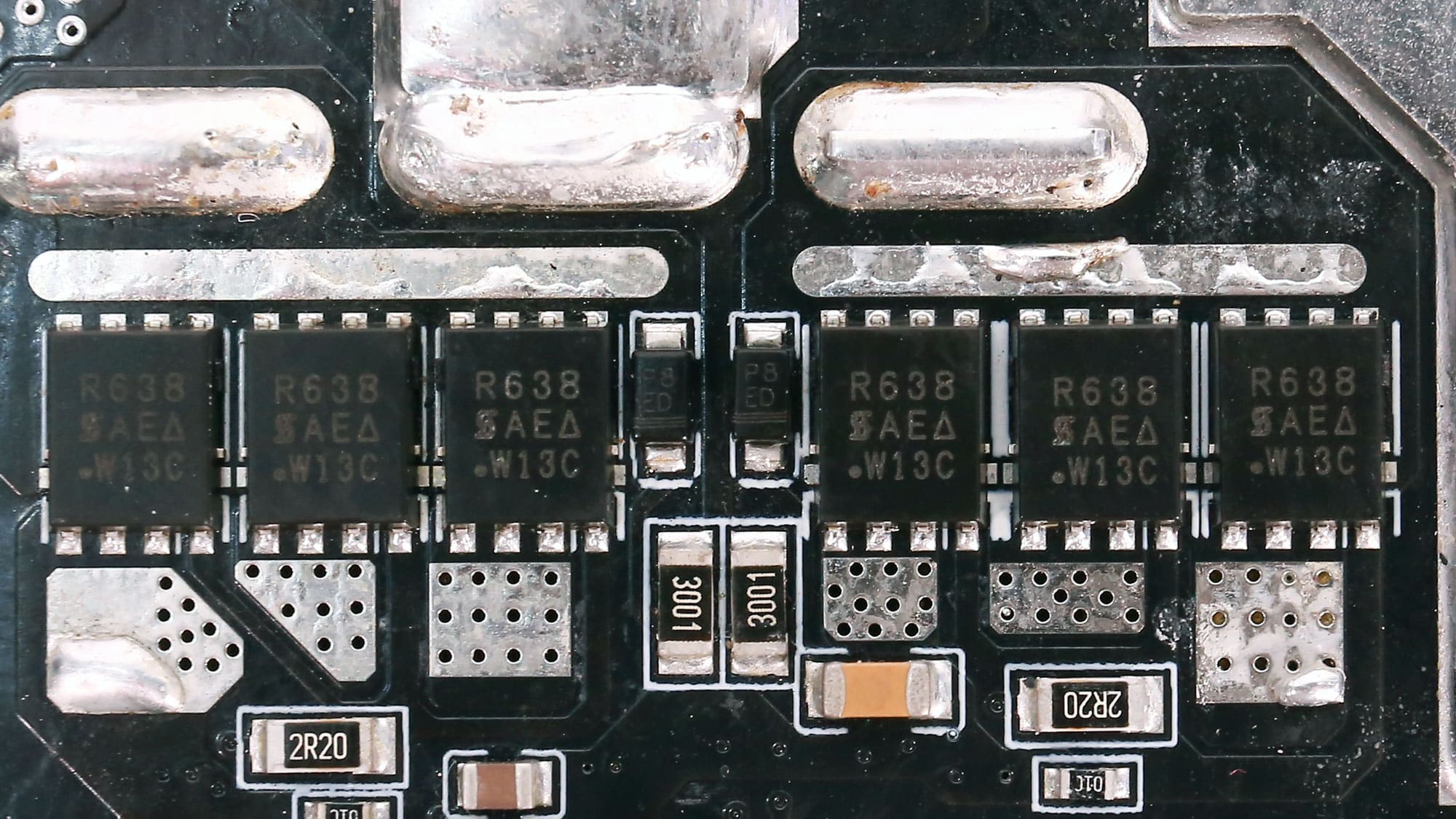

Six Vishay SiR638DP FETs regulate the 12V rail. They are installed on the solder side of the main PCB, and a vertical PCB on the other side transfers power to them, and also assists in their cooling.

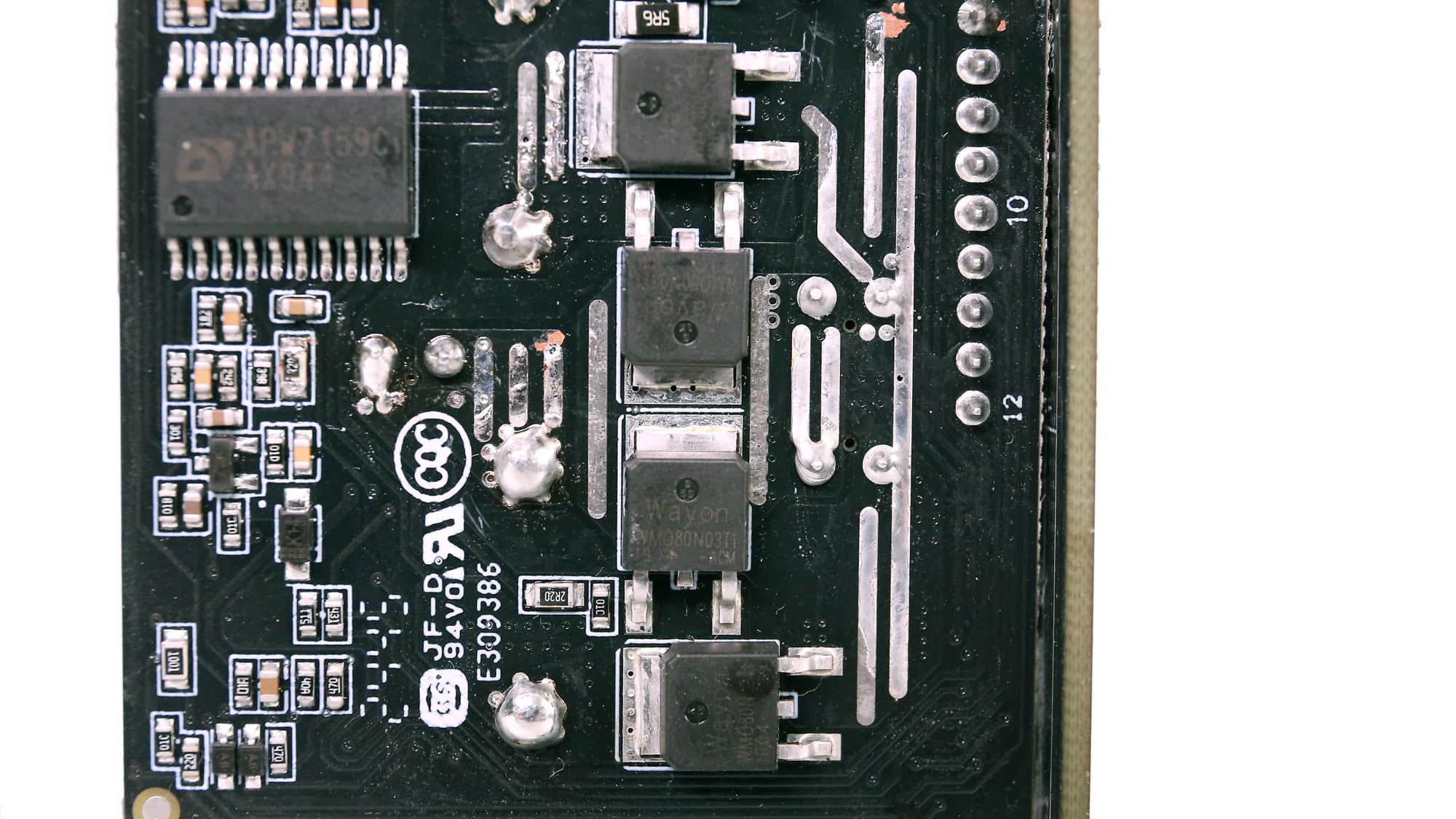

Two DC-DC converters generate the minor rails.

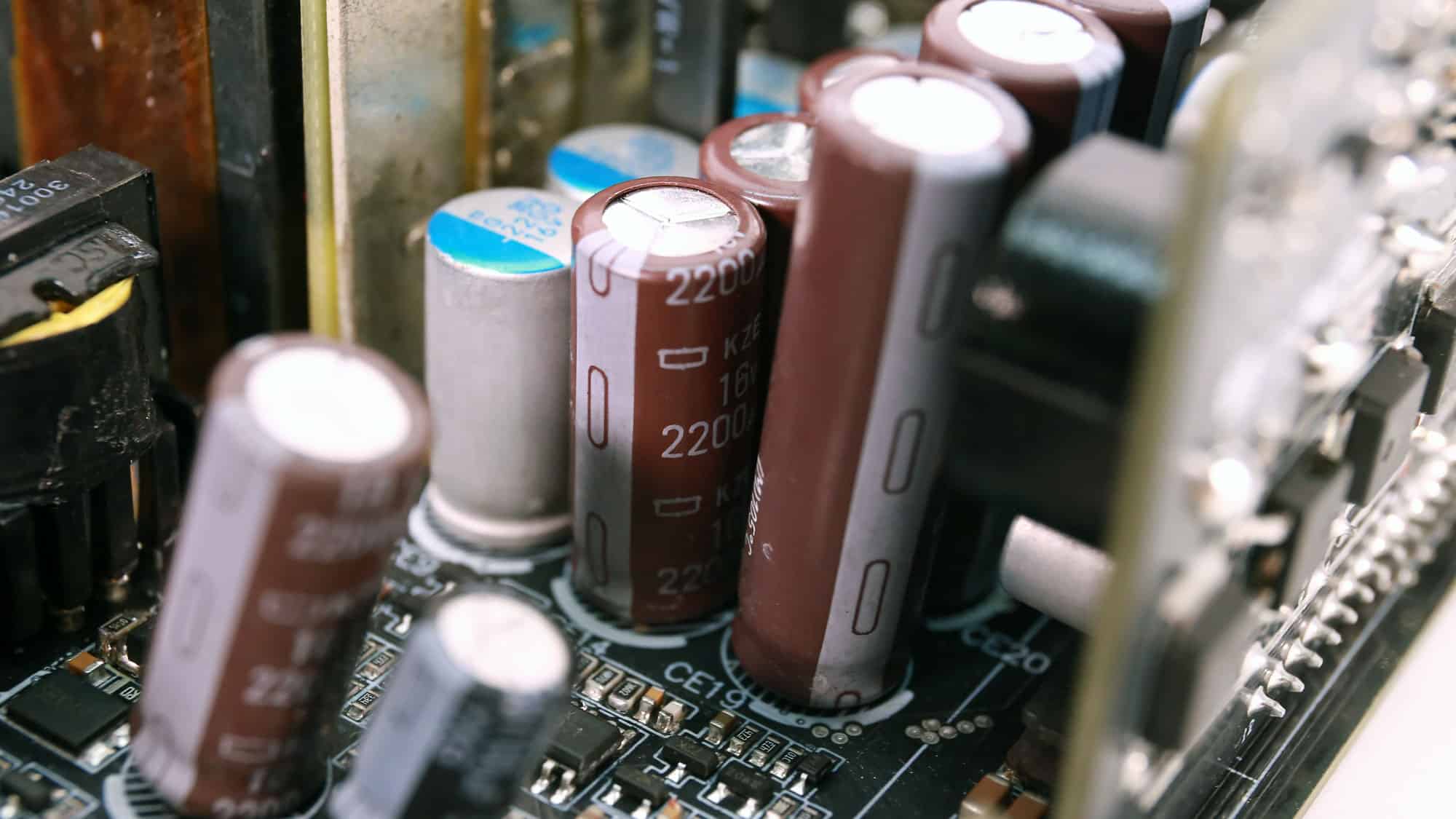

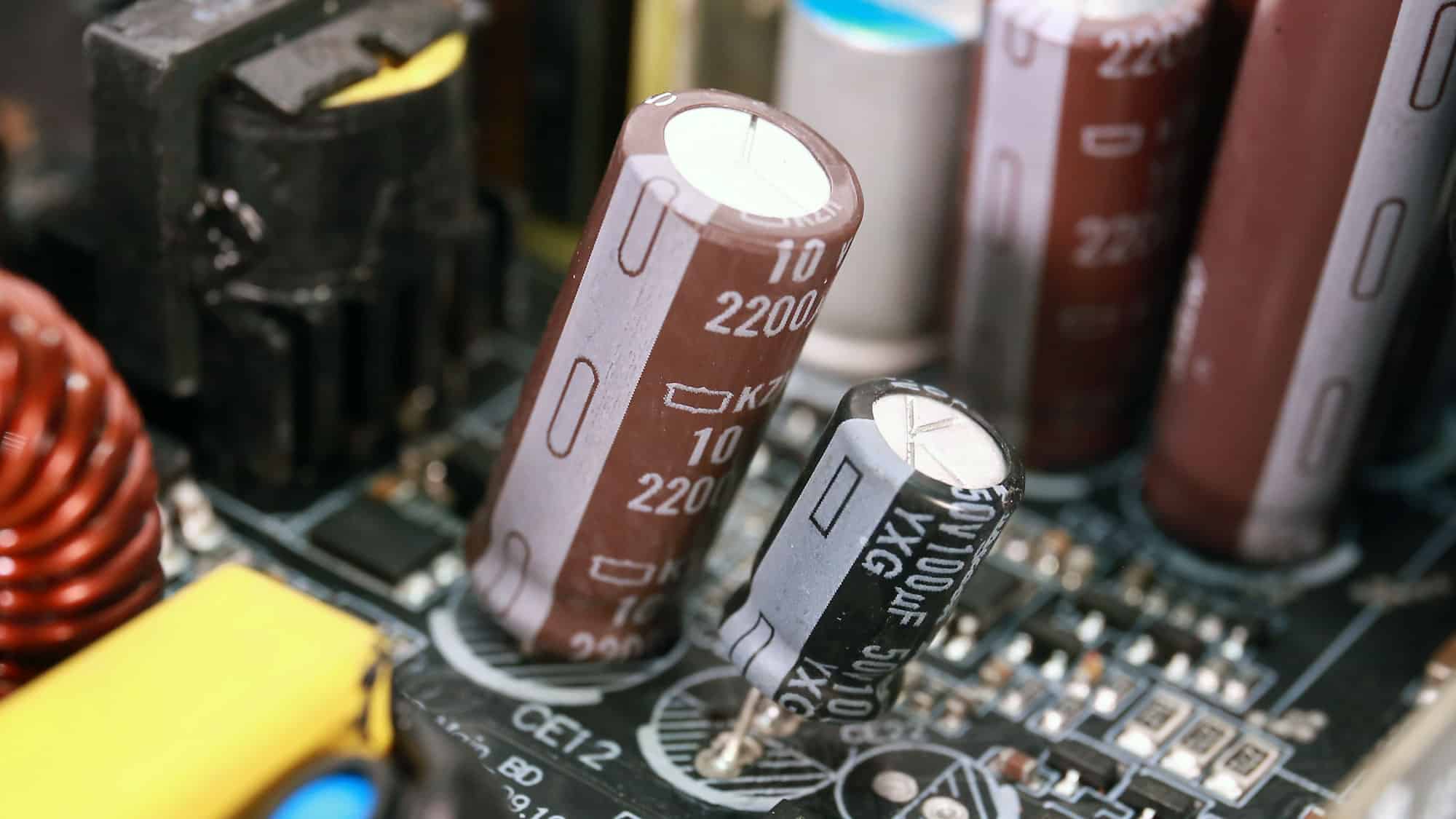

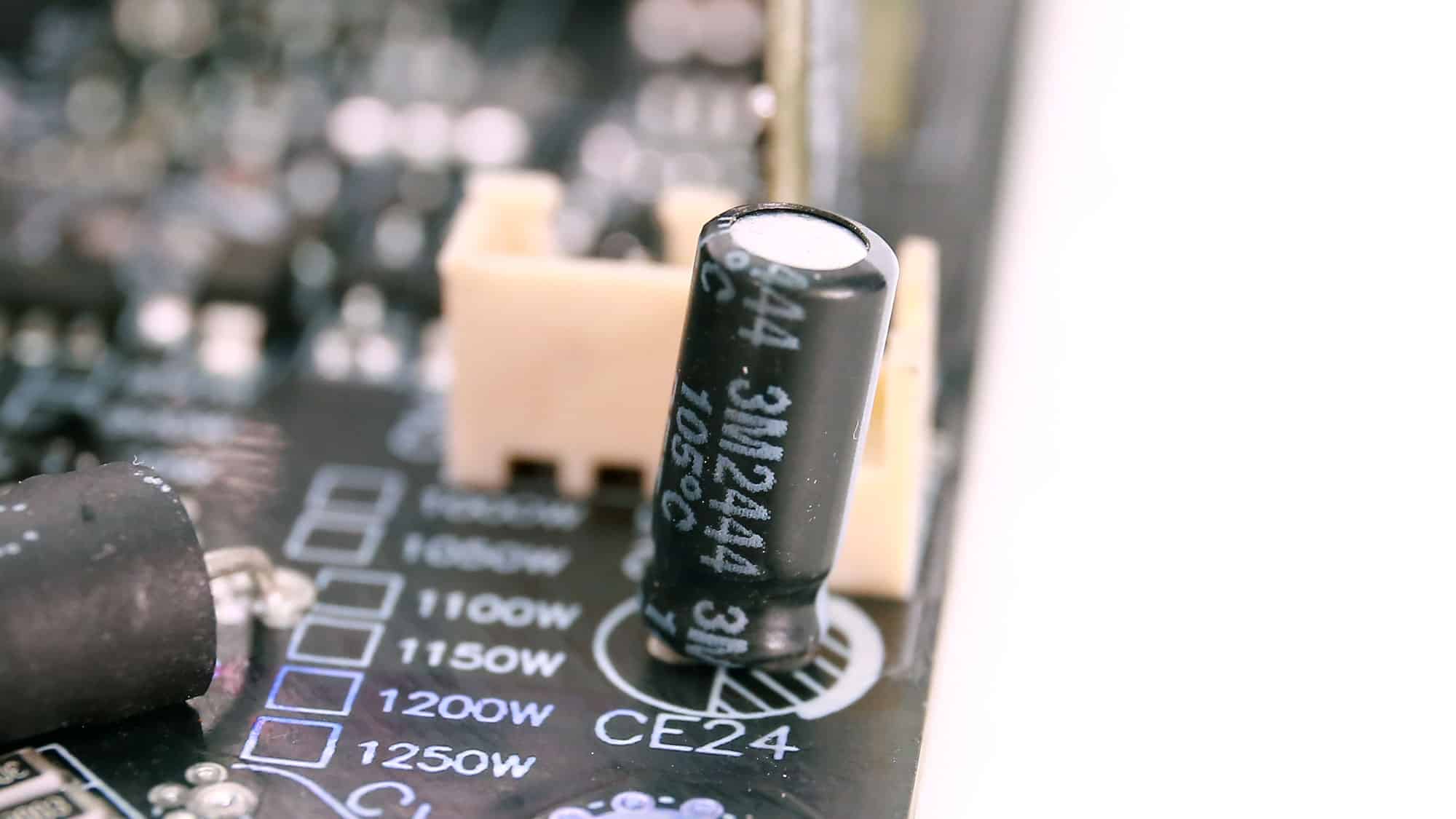

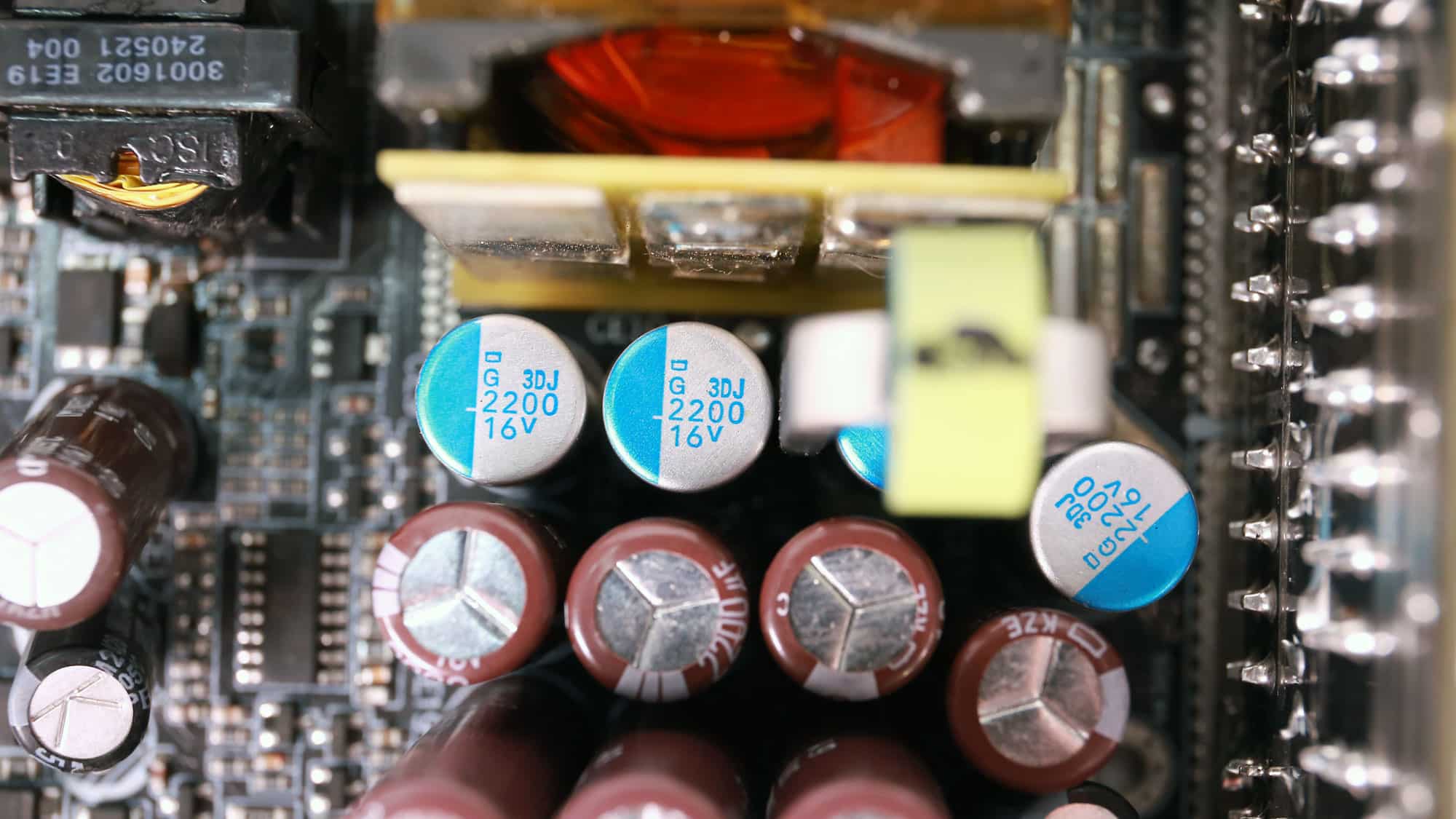

Chemi-Con and Rubycon provide the electrolytic filtering capacitors. CapXon and Chemi-Con make the polymer caps.
You can find more information about capacitor performance and other specs below:

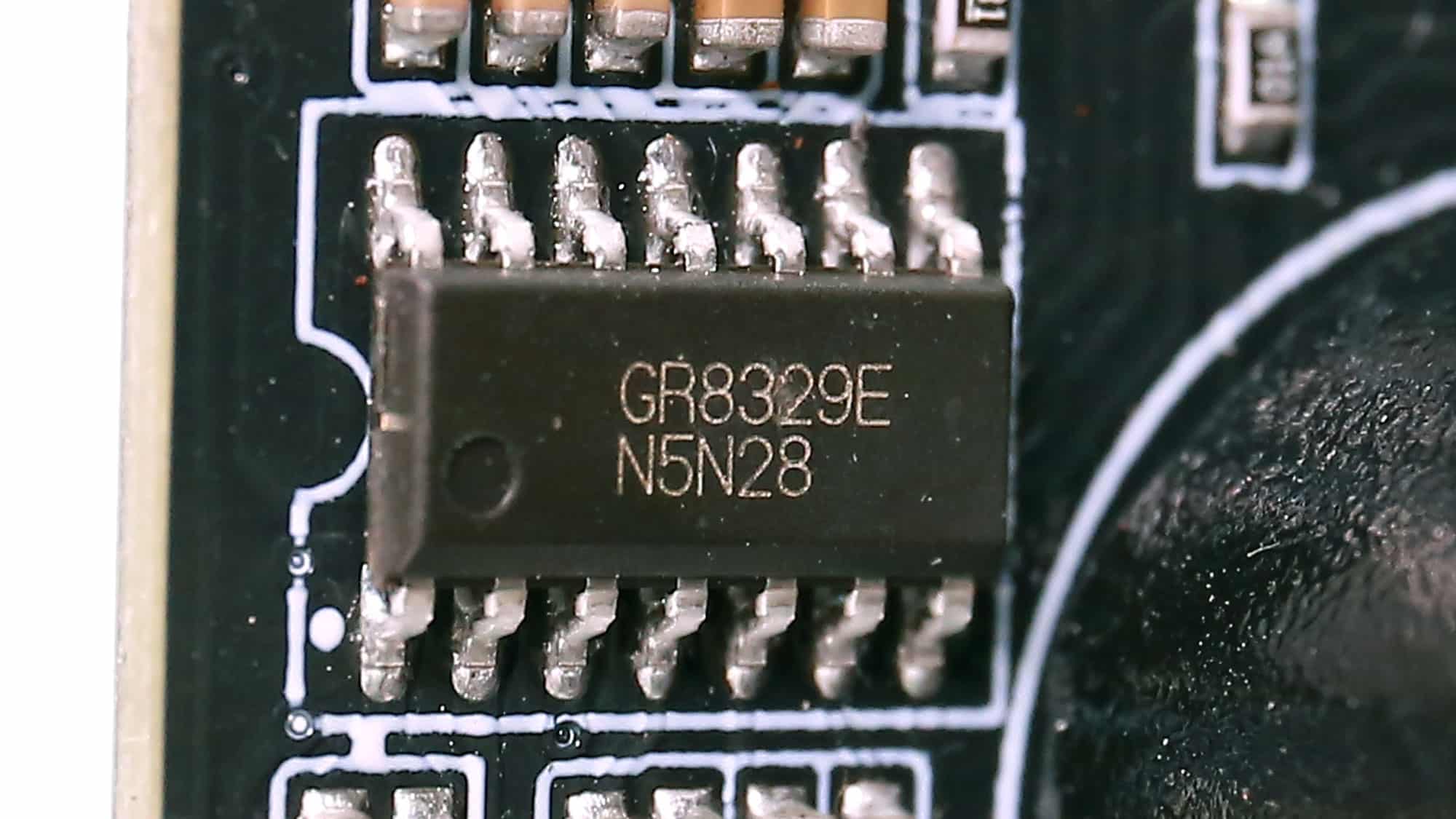

The supervisor controller is a GRENERGY GR8329E.

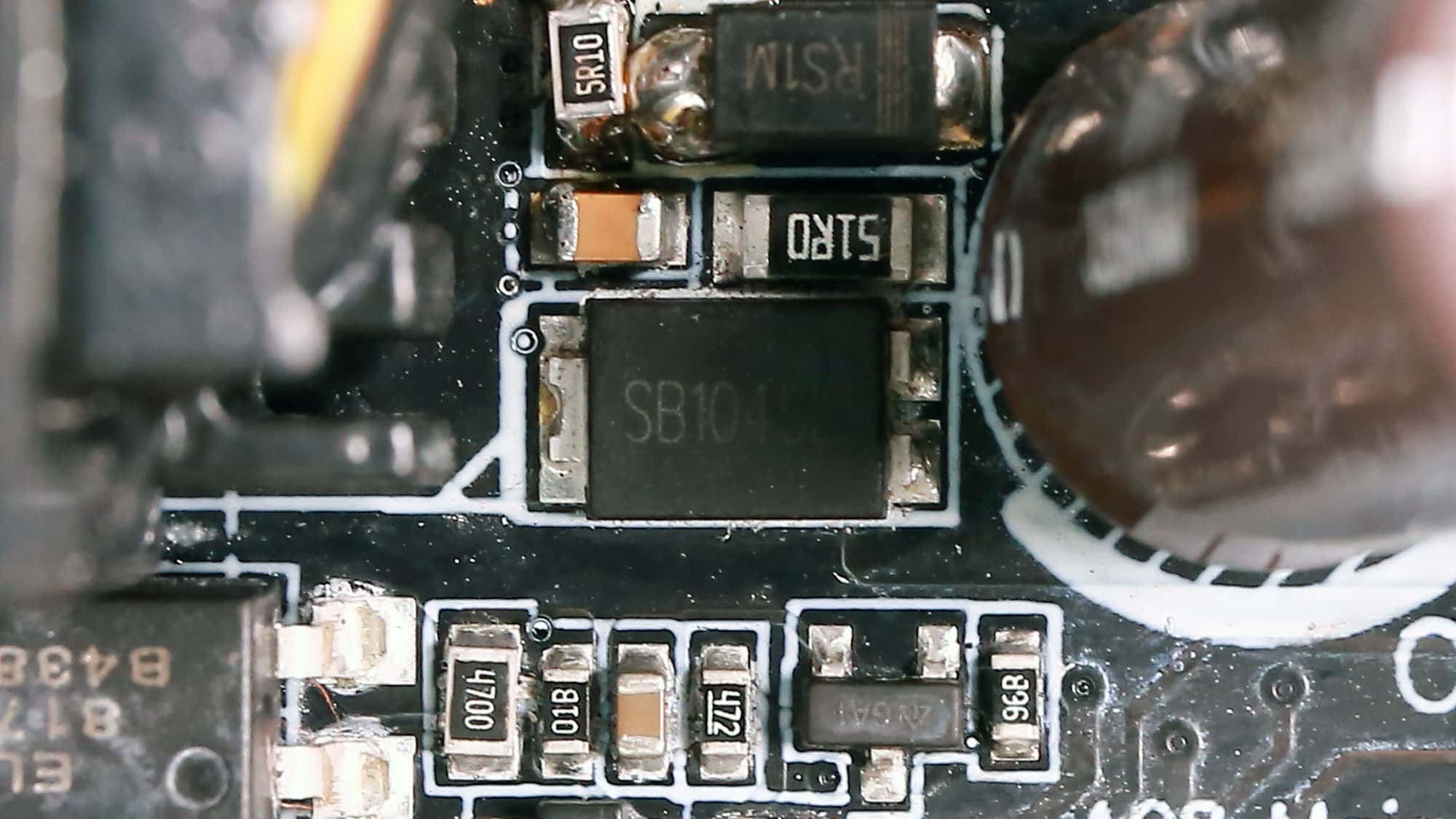

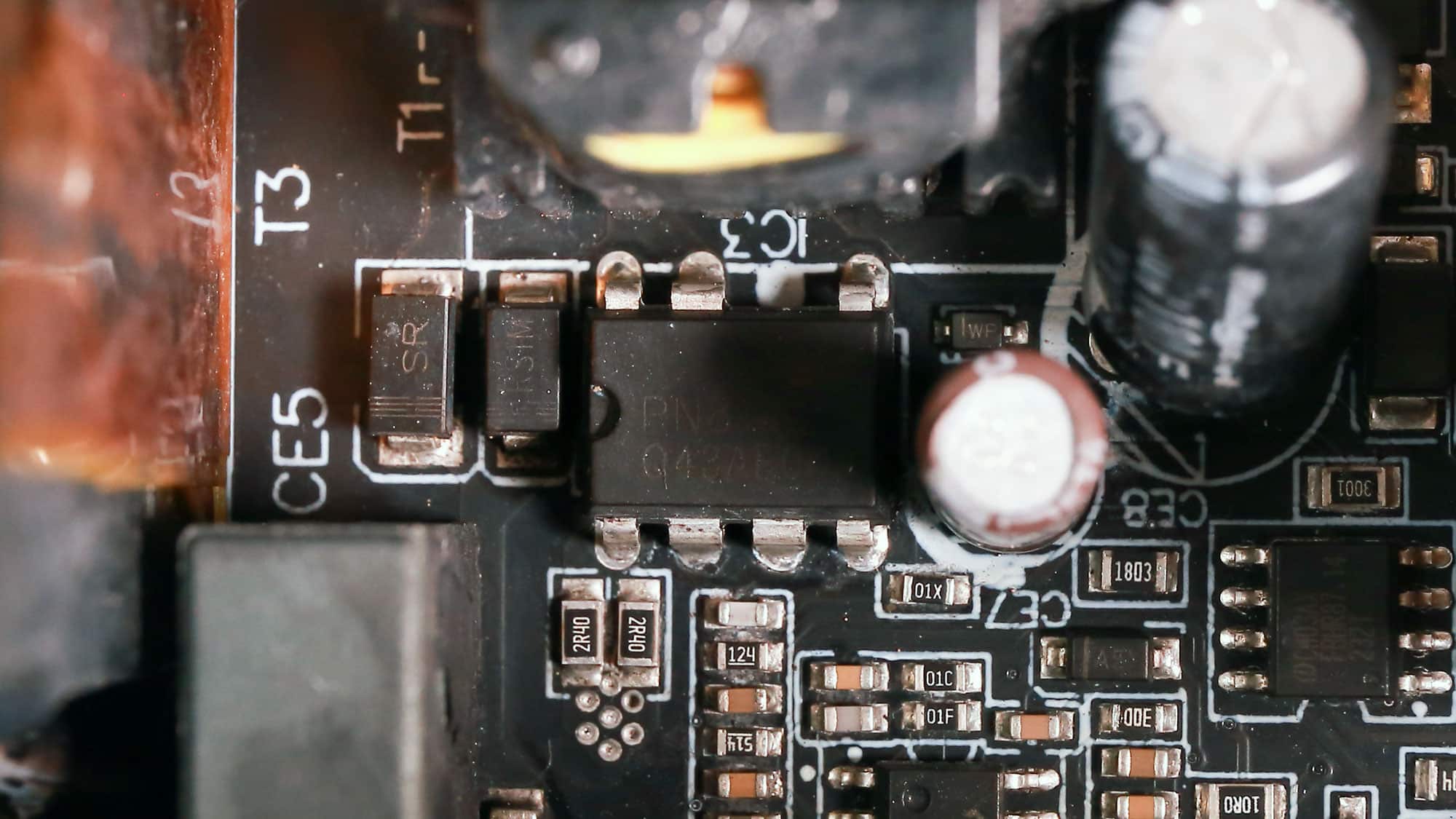

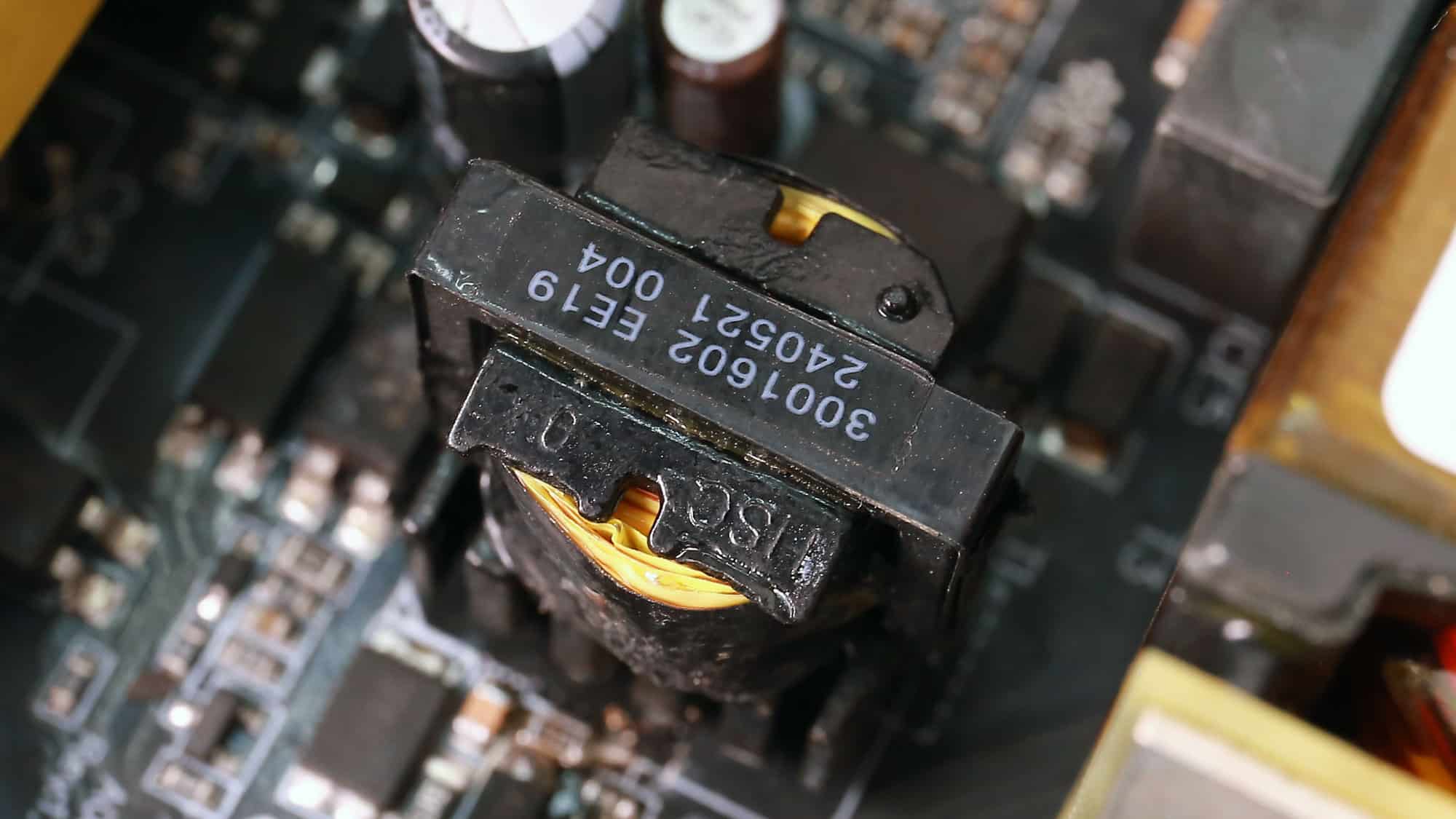

The standby PWM controller is a Chipown PN8141, and the secondary side rectifier is an SB1045L.

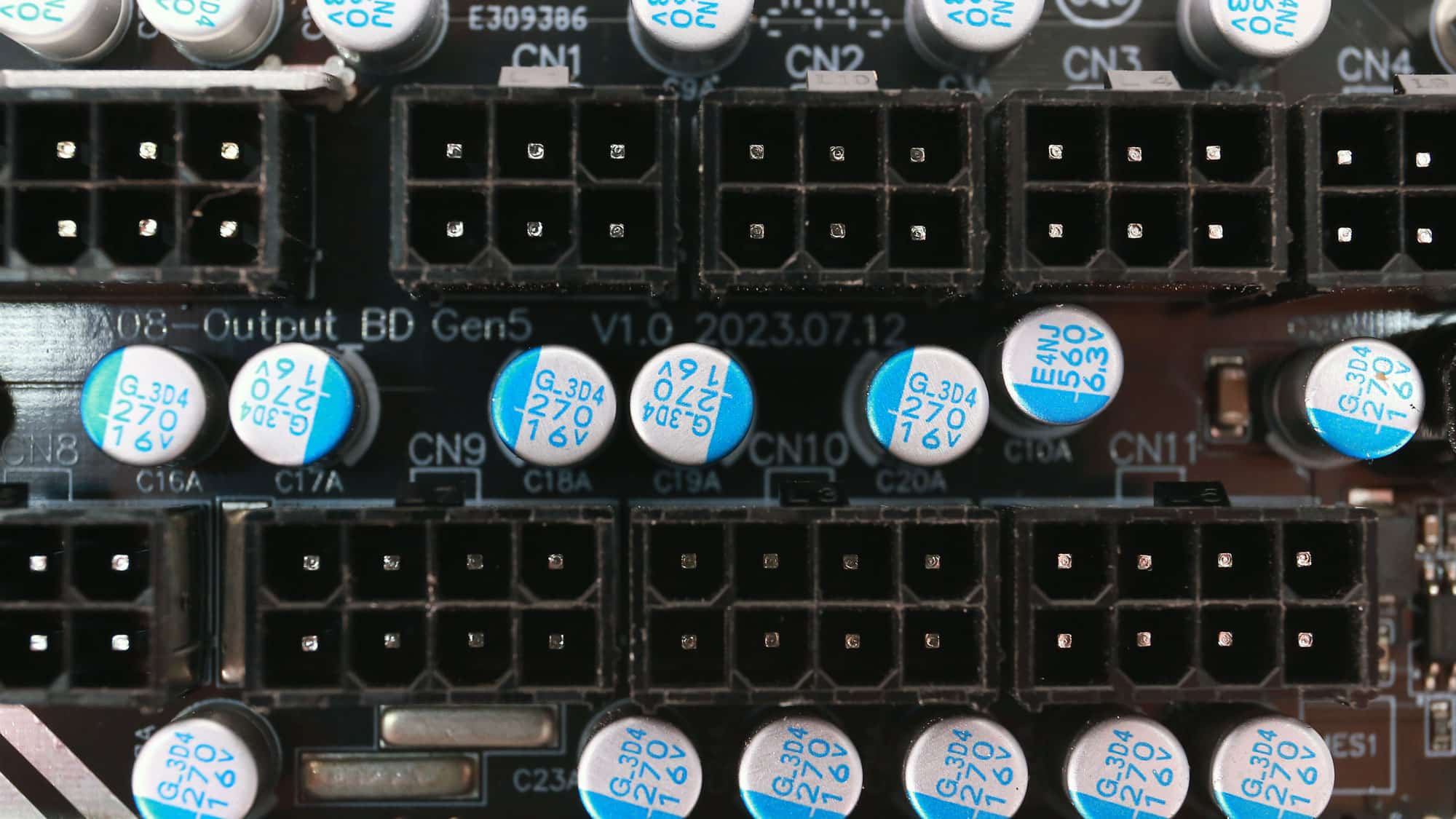

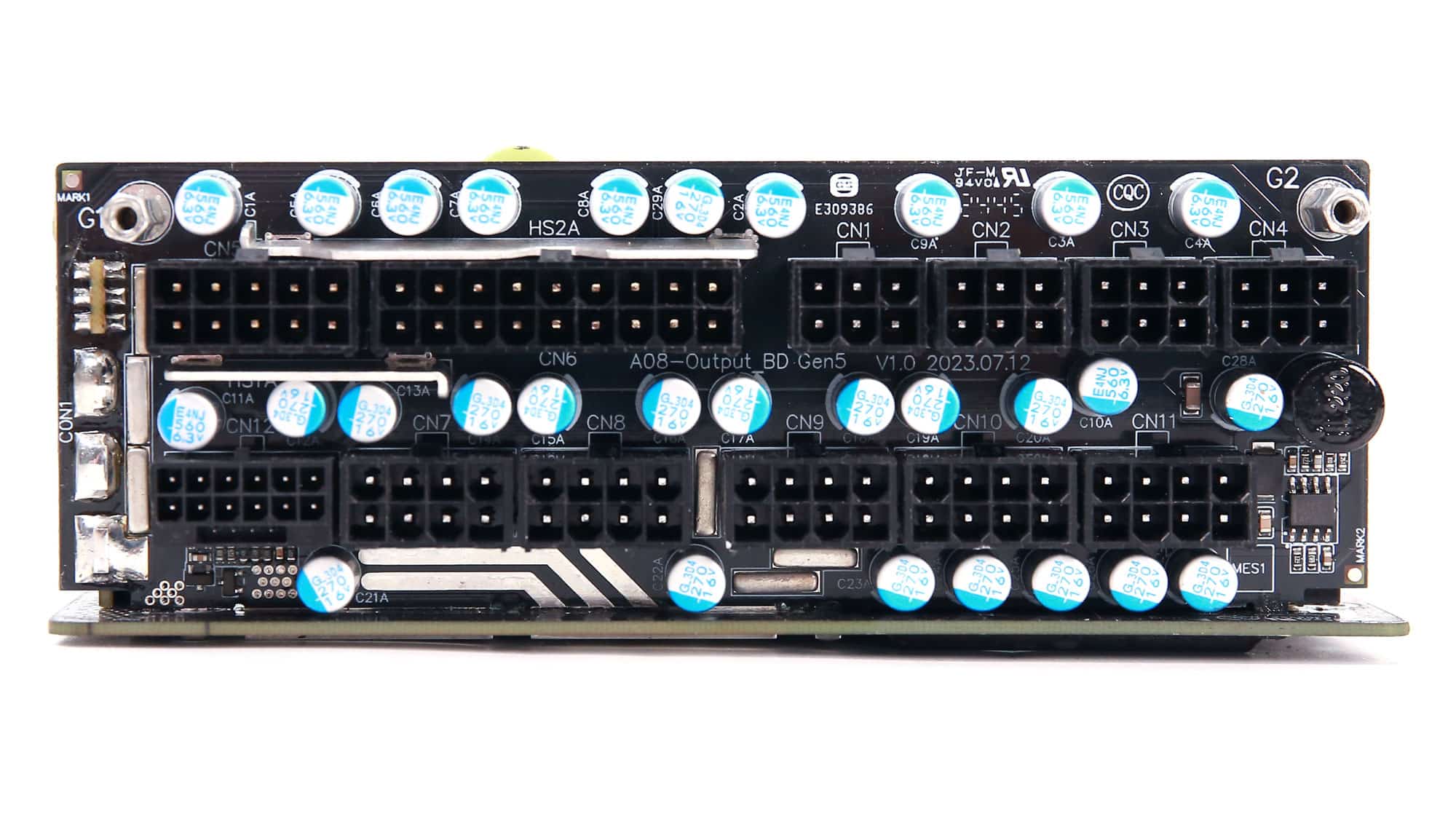

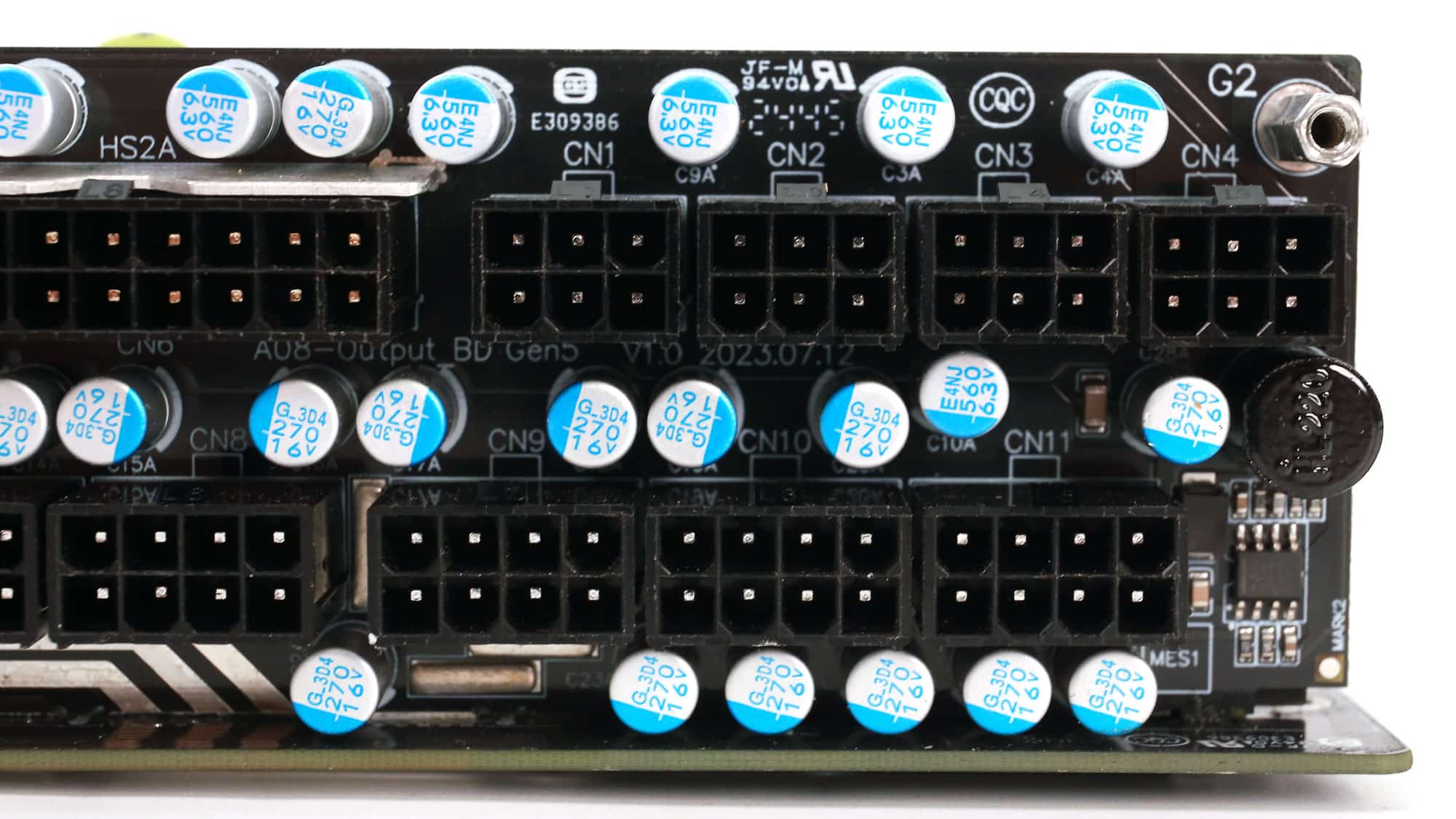

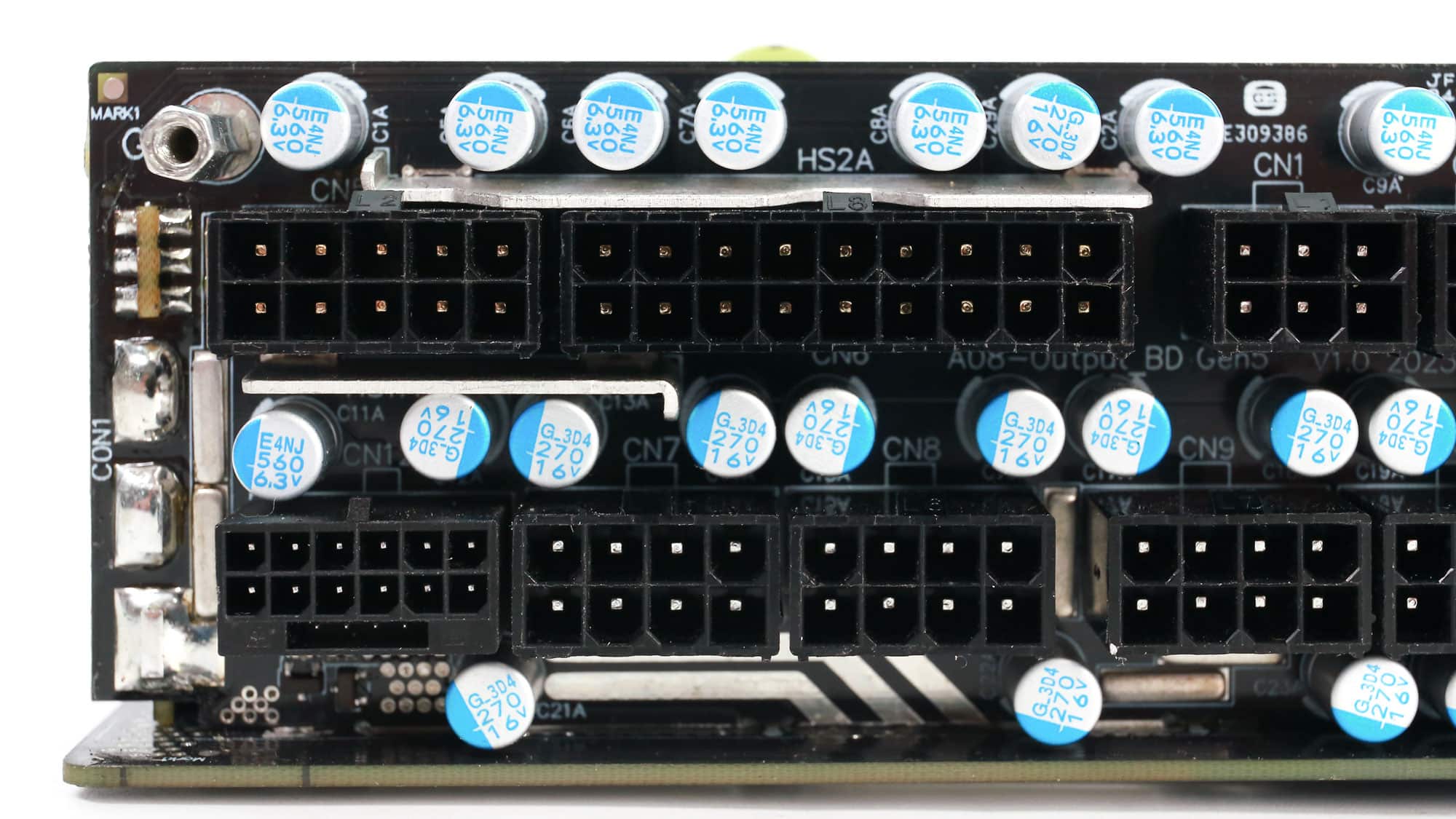

Many polymer caps at the face of the modular panel form an extra ripple-filtering layer.

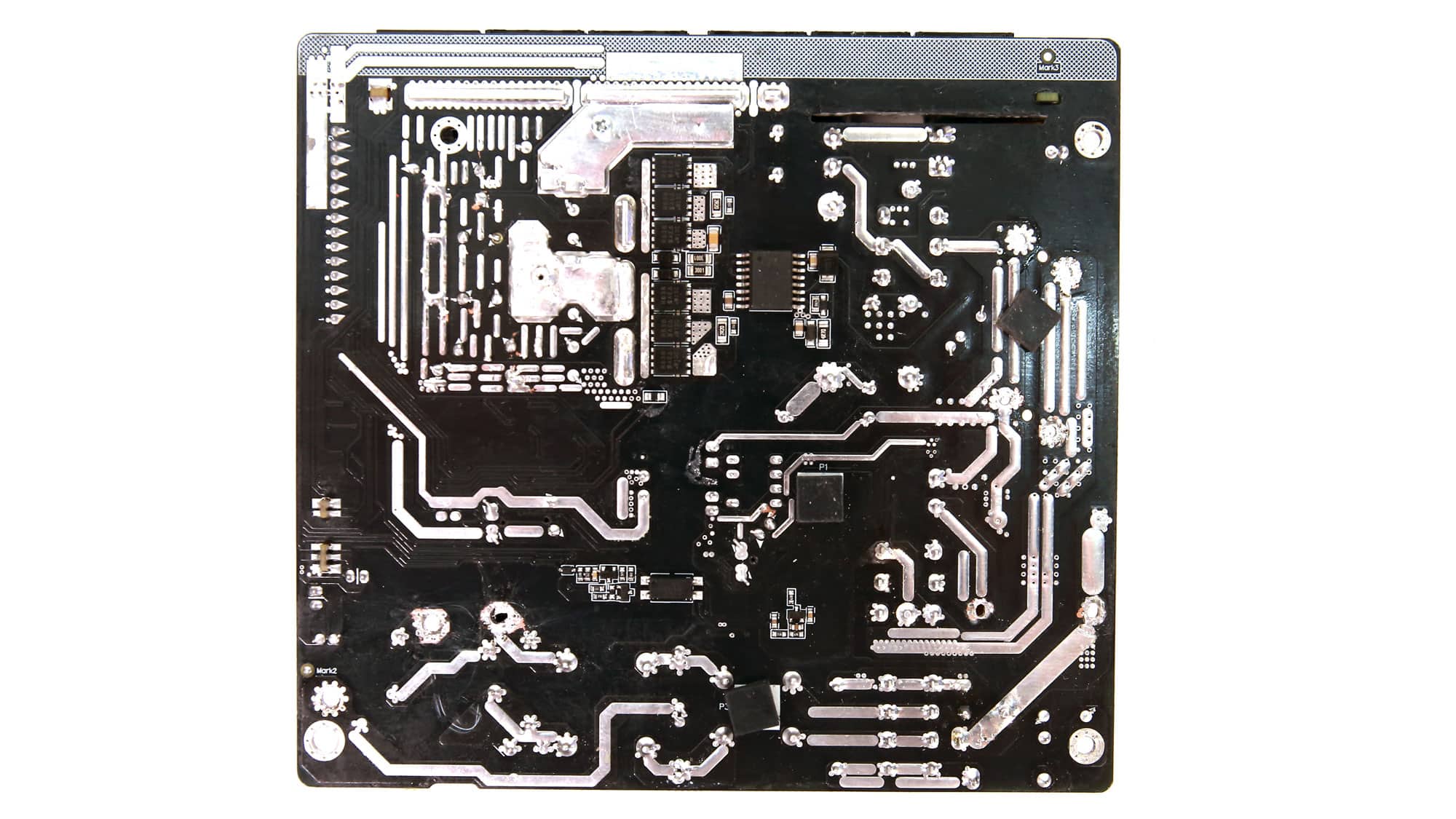

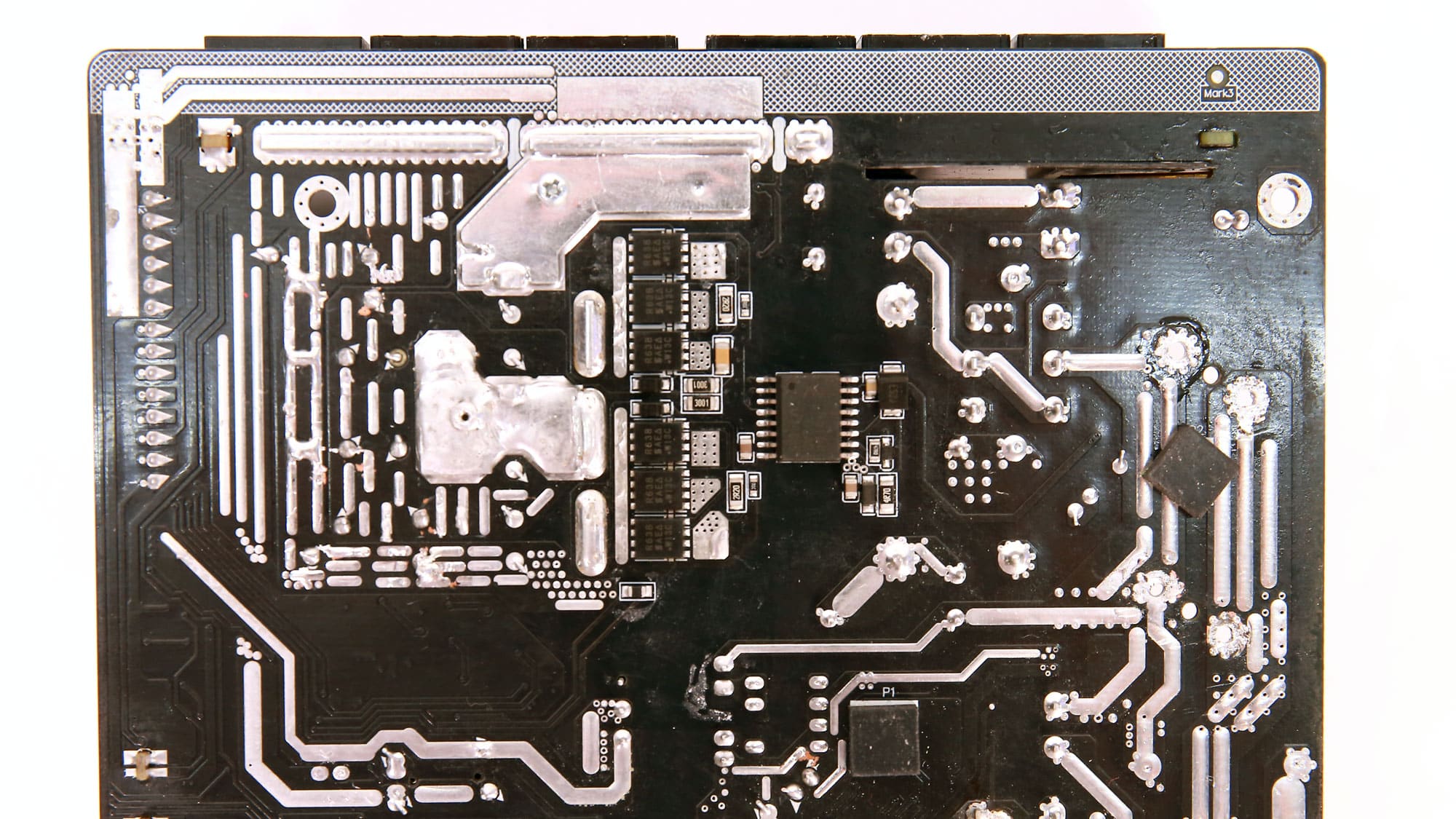

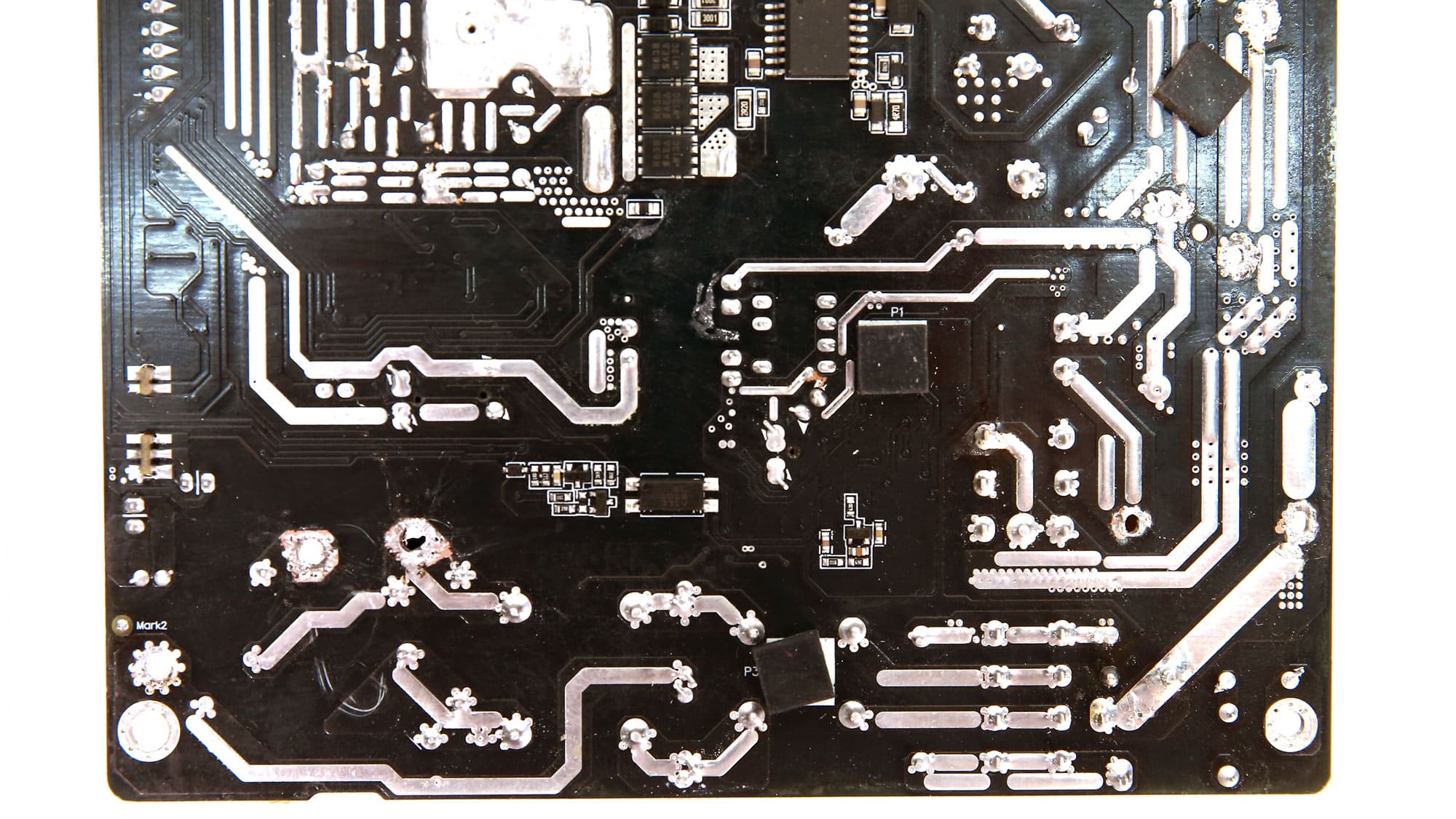

The soldering quality is ok.

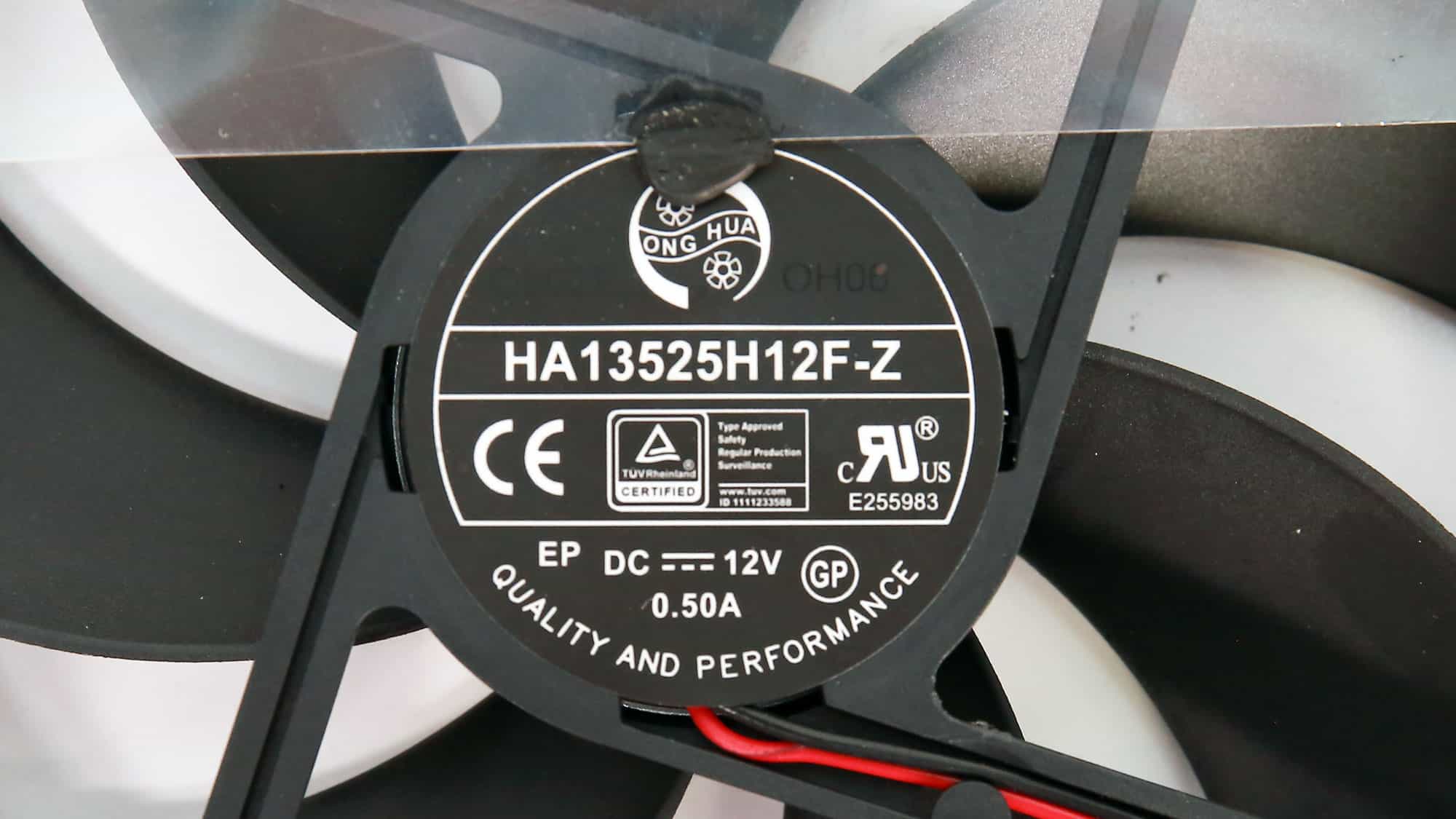

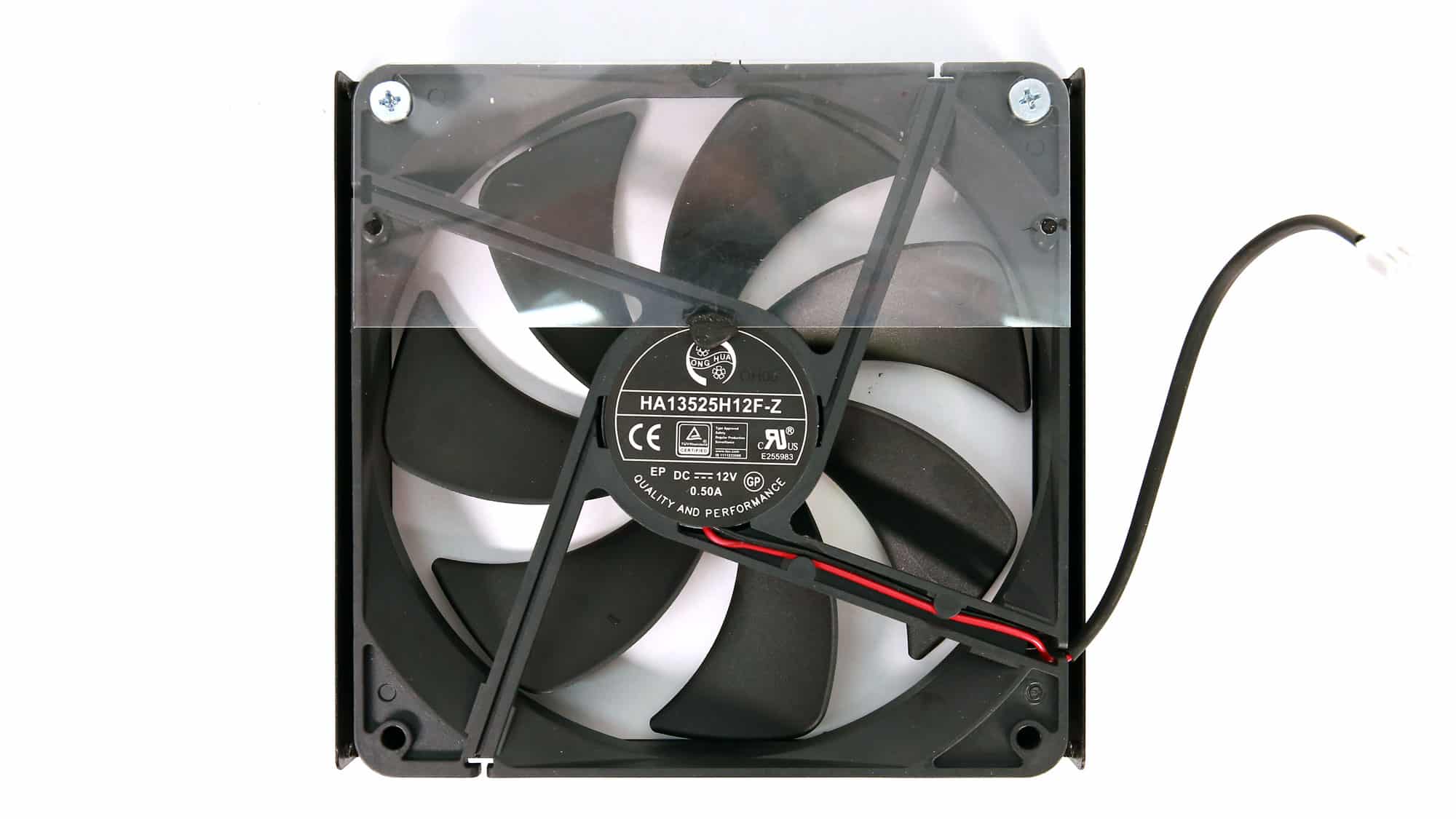

The cooling fan is a Hong Hua HA13525H12F-Z, utilizing a fluid dynamic bearing.
