Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 6.918A | 1.98A | 1.976A | 0.986A | 105.006 | 88.644% | 0 | <6.0 | 48.83°C | 0.979 |
| 12.055V | 5.053V | 3.342V | 5.071V | 118.456 | 40.13°C | 114.89V | ||||
| 20% | 14.864A | 2.972A | 2.966A | 1.187A | 210.025 | 91.392% | 1024 | 28.6 | 40.64°C | 0.985 |
| 12.050V | 5.049V | 3.339V | 5.058V | 229.806 | 45.82°C | 114.86V | ||||
| 30% | 23.170A | 3.477A | 3.467A | 1.388A | 315.059 | 92.138% | 1024 | 28.6 | 41.05°C | 0.988 |
| 12.041V | 5.035V | 3.333V | 5.045V | 341.945 | 47.38°C | 114.83V | ||||
| 40% | 31.474A | 3.976A | 3.965A | 1.59A | 419.989 | 92.245% | 1026 | 28.7 | 41.73°C | 0.992 |
| 12.035V | 5.033V | 3.33V | 5.033V | 455.296 | 47.19°C | 114.8V | ||||
| 50% | 39.464A | 4.97A | 4.959A | 1.794A | 525.323 | 91.975% | 1030 | 28.8 | 42.43°C | 0.994 |
| 12.031V | 5.032V | 3.328V | 5.02V | 571.156 | 48.72°C | 114.78V | ||||
| 60% | 47.380A | 5.967A | 5.955A | 1.998A | 629.888 | 90.905% | 1032 | 28.9 | 42.75°C | 0.995 |
| 12.032V | 5.03V | 3.326V | 5.006V | 692.905 | 50.45°C | 114.75V | ||||
| 70% | 55.363A | 6.964A | 6.953A | 2.204A | 735.229 | 90.327% | 1035 | 29 | 43.06°C | 0.996 |
| 12.032V | 5.029V | 3.324V | 4.992V | 813.969 | 52.87°C | 114.71V | ||||
| 80% | 63.337A | 7.96A | 7.951A | 2.31A | 840.064 | 89.517% | 1376 | 36.6 | 43.81°C | 0.997 |
| 12.033V | 5.027V | 3.321V | 4.98V | 938.446 | 54.6°C | 114.68V | ||||
| 90% | 71.738A | 8.462A | 8.439A | 2.416A | 945.466 | 88.734% | 1639 | 40.6 | 44.31°C | 0.997 |
| 12.030V | 5.024V | 3.319V | 4.969V | 1065.509 | 55.1°C | 114.65V | ||||
| 100% | 79.873A | 8.963A | 8.957A | 3.034A | 1050.259 | 87.847% | 1894 | 44.6 | 45.1°C | 0.998 |
| 12.026V | 5.022V | 3.316V | 4.945V | 1195.551 | 56.12°C | 114.62V | ||||
| 110% | 87.884A | 9.961A | 10.05A | 3.039A | 1154.902 | 86.851% | 1995 | 46 | 46.45°C | 0.998 |
| 12.022V | 5.021V | 3.314V | 4.936V | 1329.752 | 58.55°C | 114.58V | ||||
| CL1 | 0.118A | 11.966A | 11.917A | 0A | 101.34 | 82.511% | 1041 | 29.1 | 40.48°C | 0.981 |
| 12.082V | 5.032V | 3.332V | 5.084V | 122.821 | 48.51°C | 114.89V | ||||
| CL2 | 0.118A | 19.891A | 0A | 0A | 101.415 | 81.09% | 1049 | 29.4 | 40.74°C | 0.981 |
| 12.067V | 5.028V | 3.342V | 5.09V | 125.066 | 47.6°C | 114.89V | ||||
| CL3 | 0.116A | 0A | 19.833A | 0A | 67.412 | 76.371% | 1032 | 28.9 | 41.95°C | 0.968 |
| 12.064V | 5.047V | 3.328V | 5.09V | 88.271 | 45.8°C | 114.9V | ||||
| CL4 | 87.461A | 0A | 0A | 0A | 1049.94 | 88.839% | 1445 | 37.9 | 45.62°C | 0.997 |
| 12.004V | 5.037V | 3.325V | 5.039V | 1181.858 | 55.63°C | 114.63V |

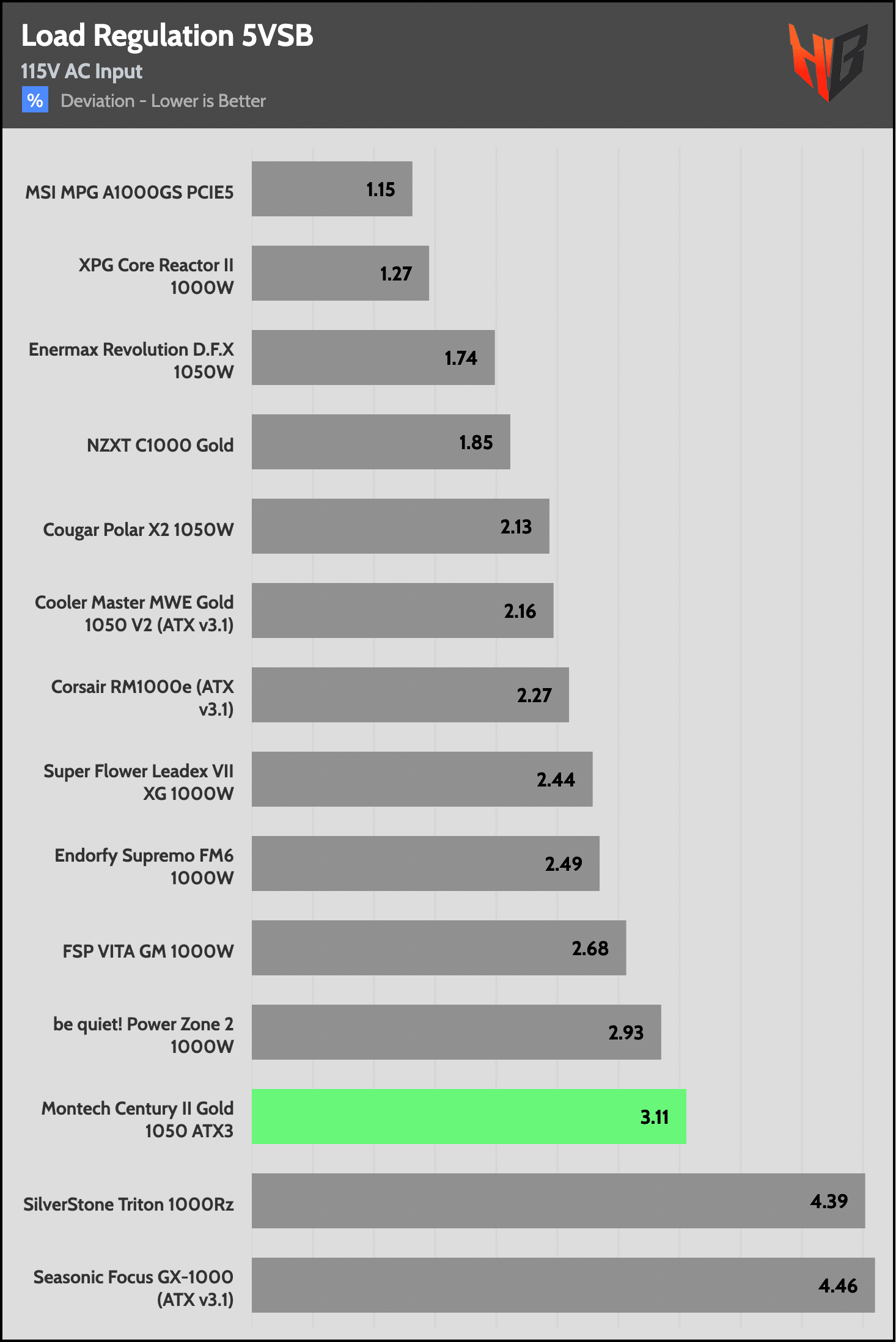

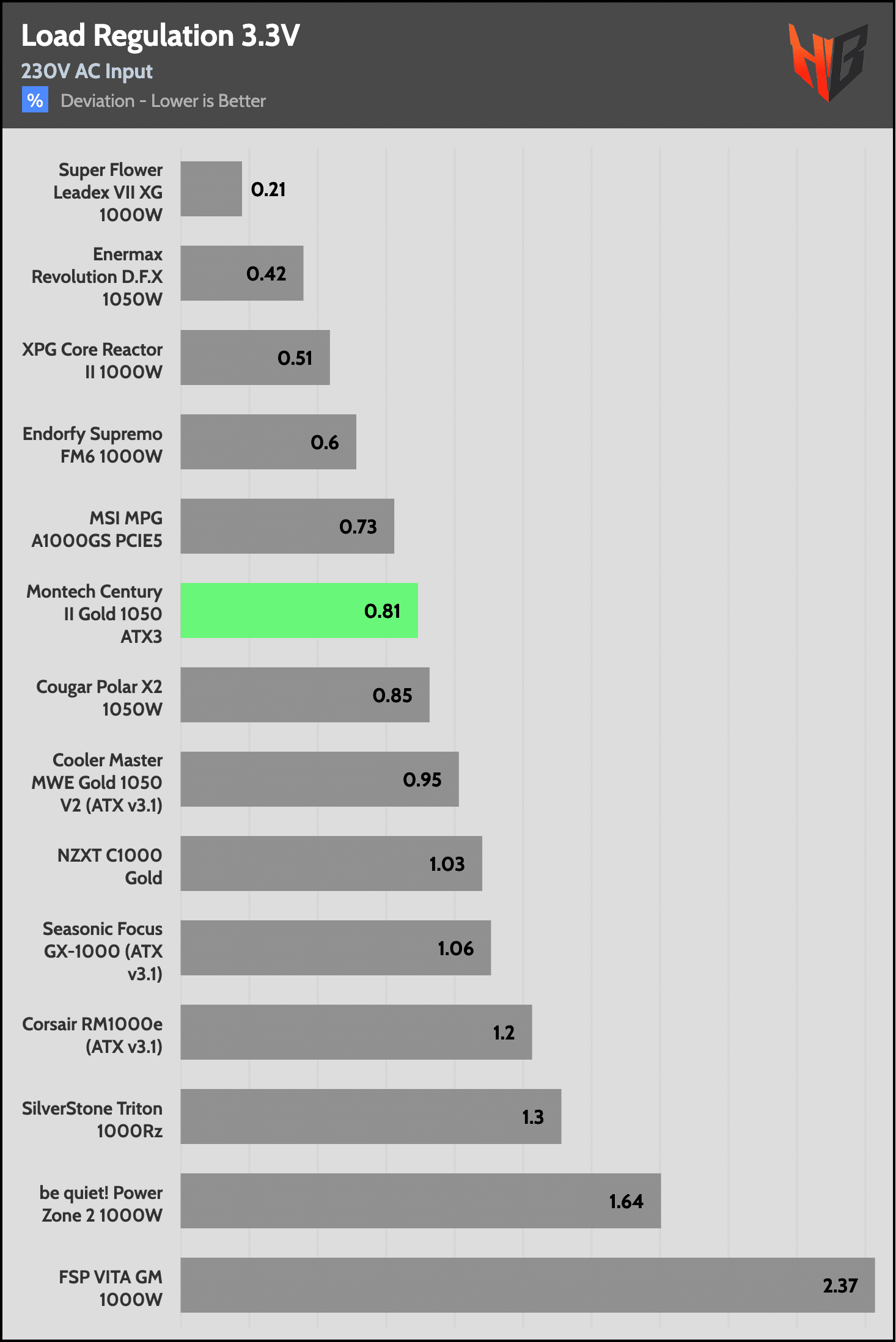

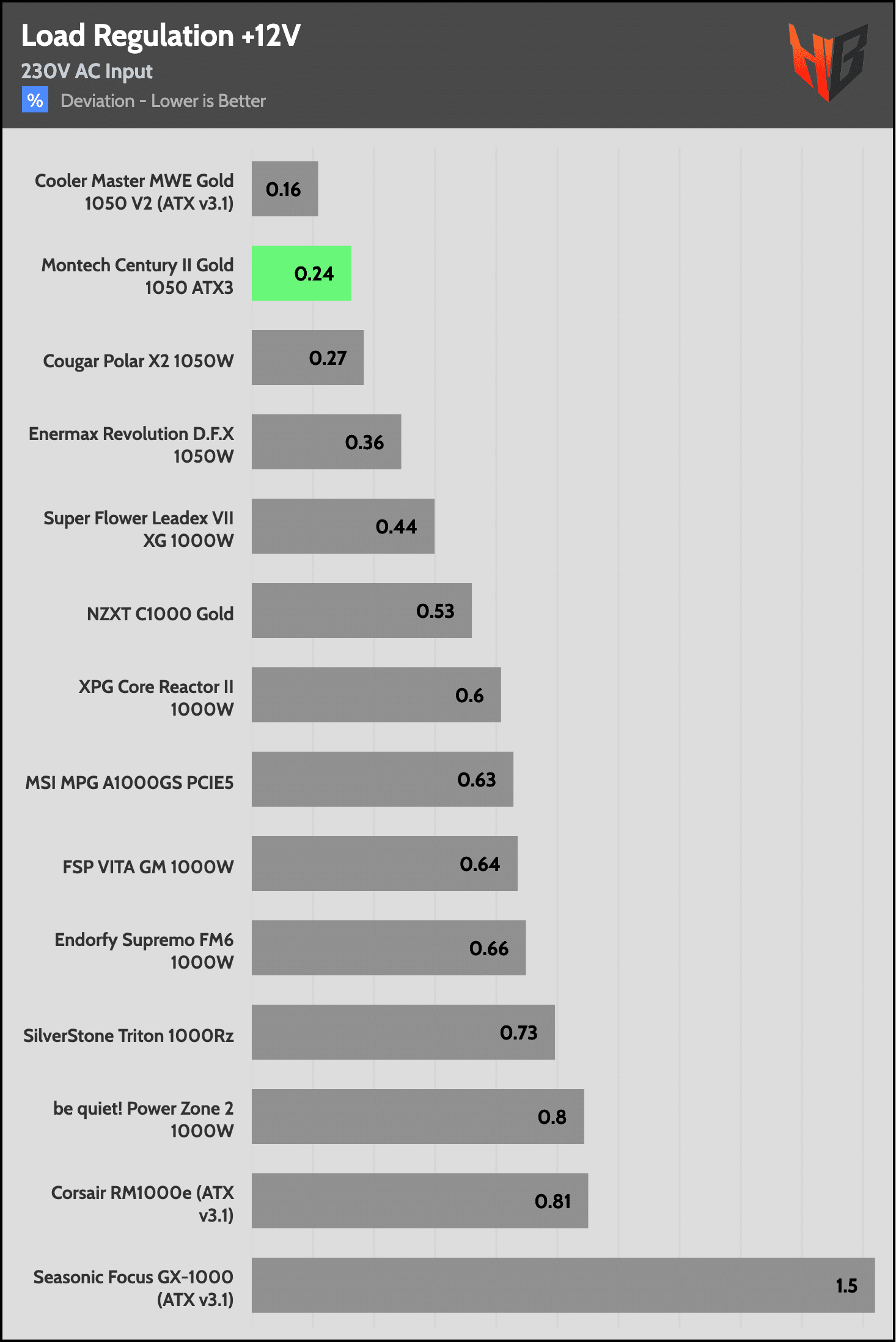

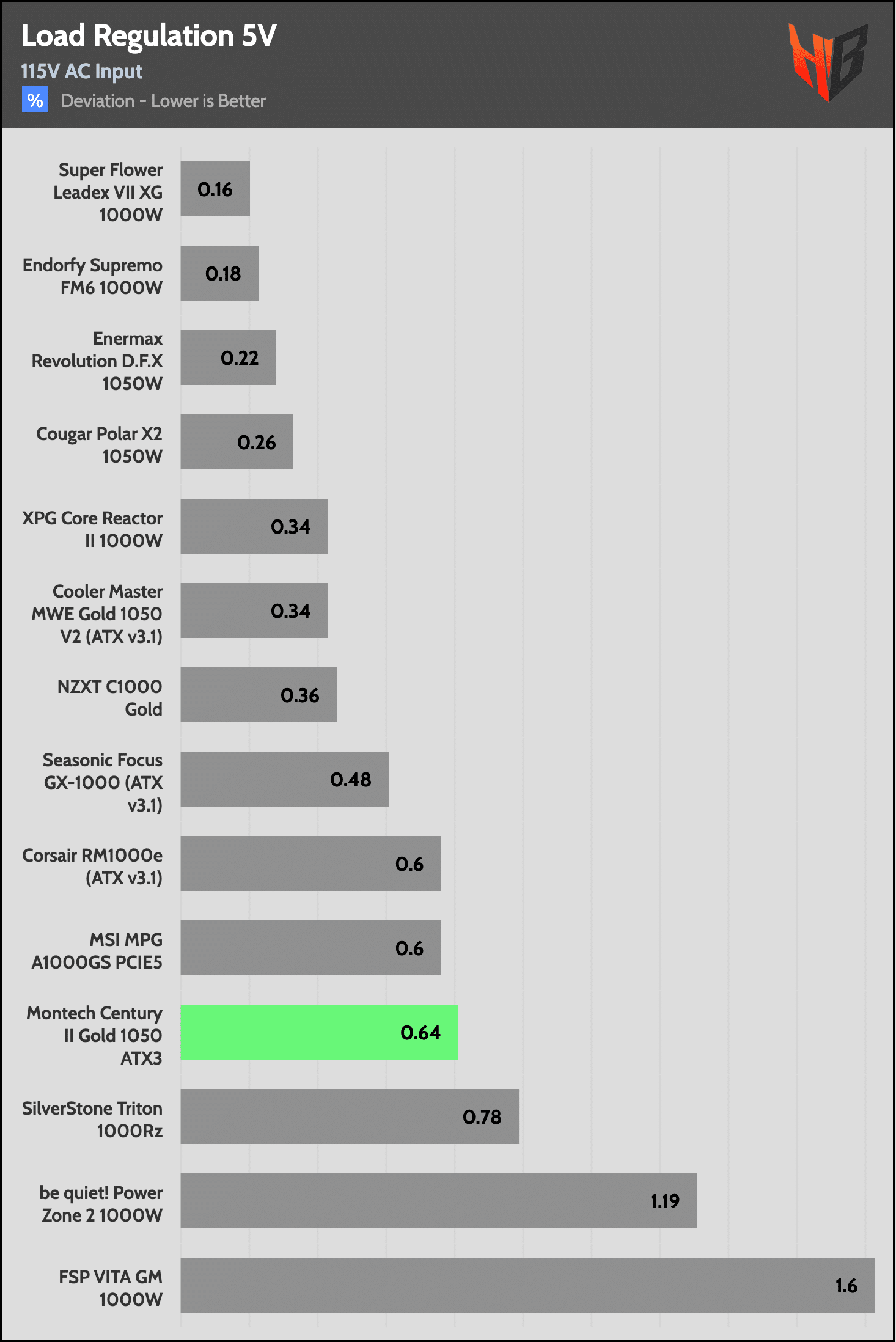

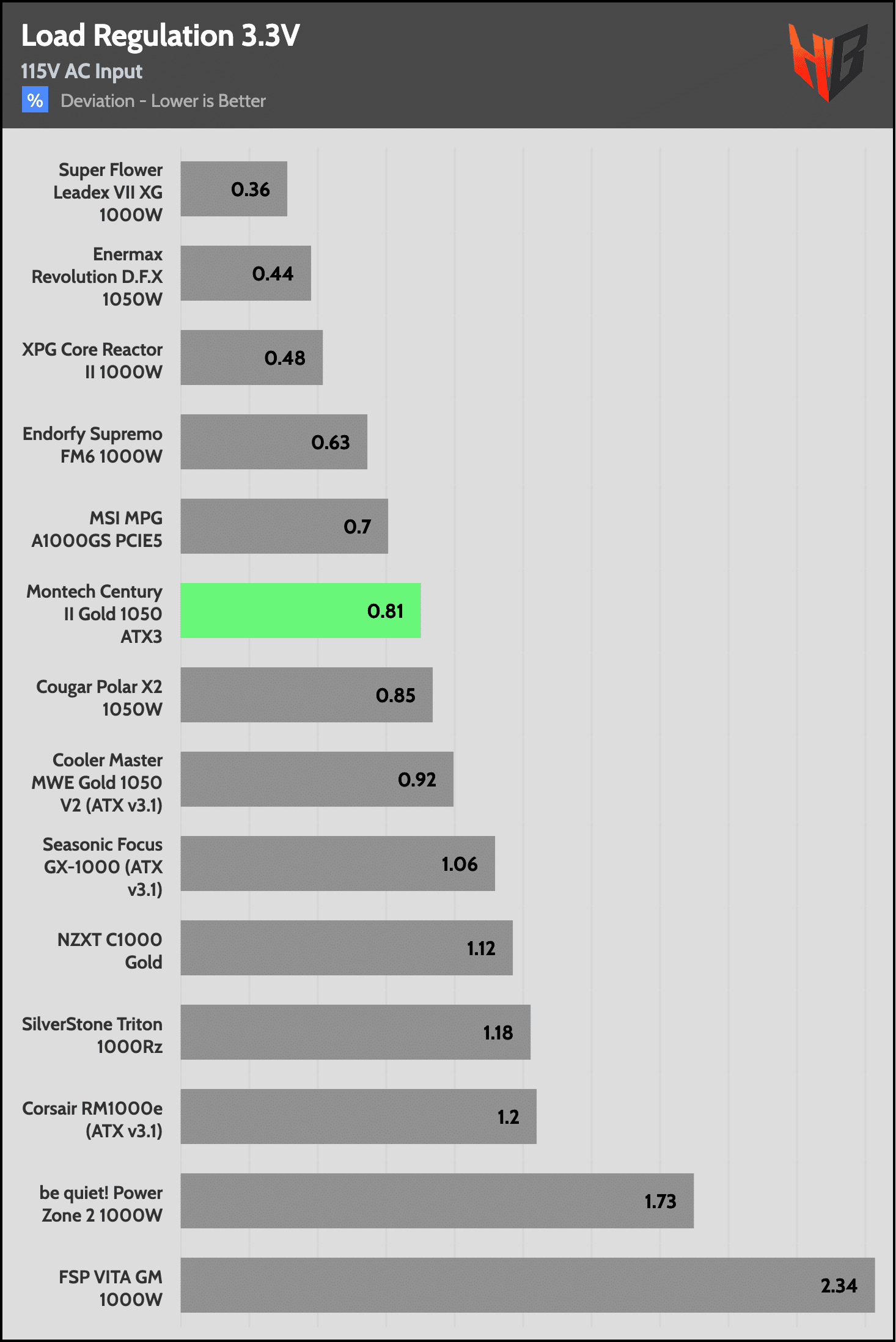

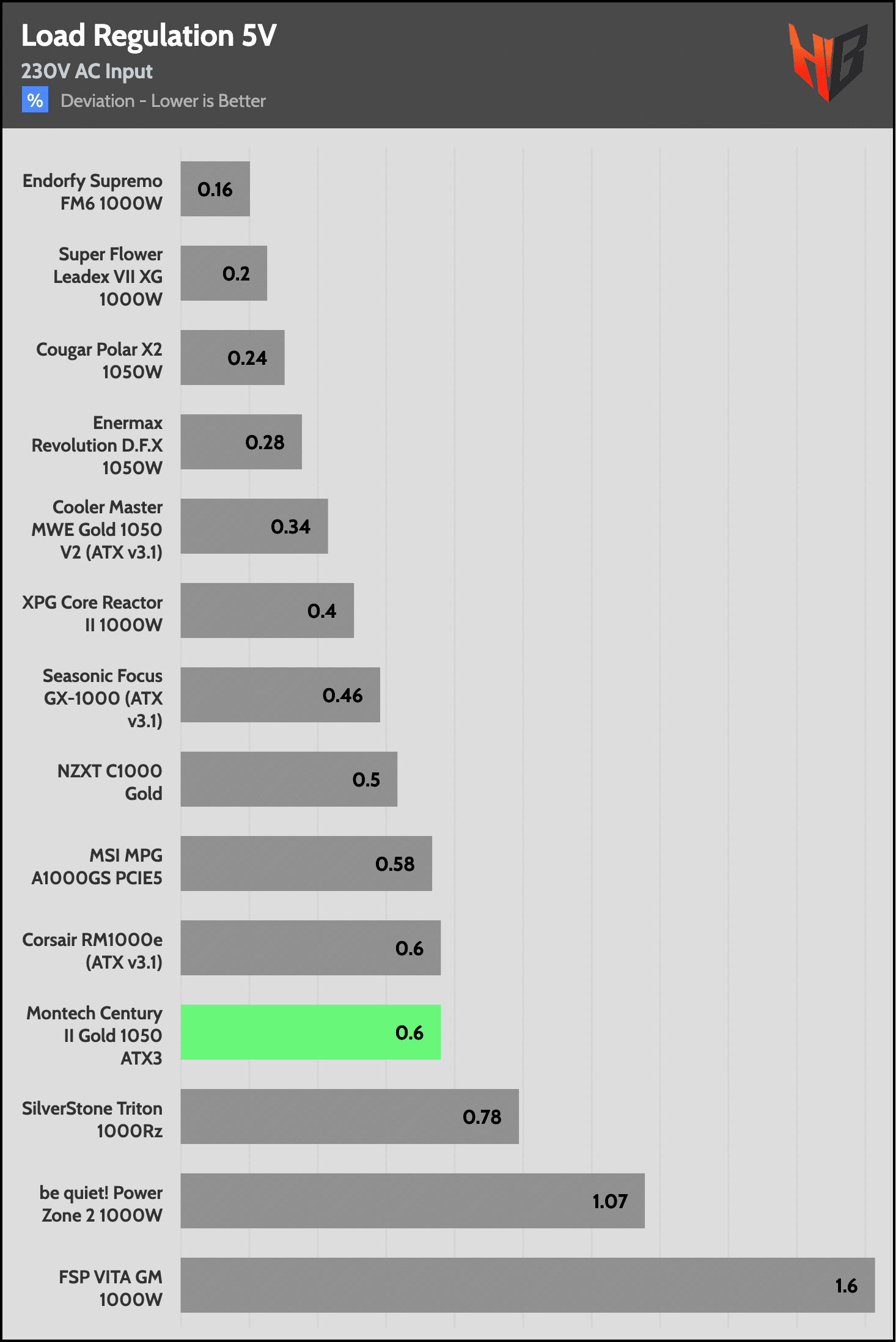

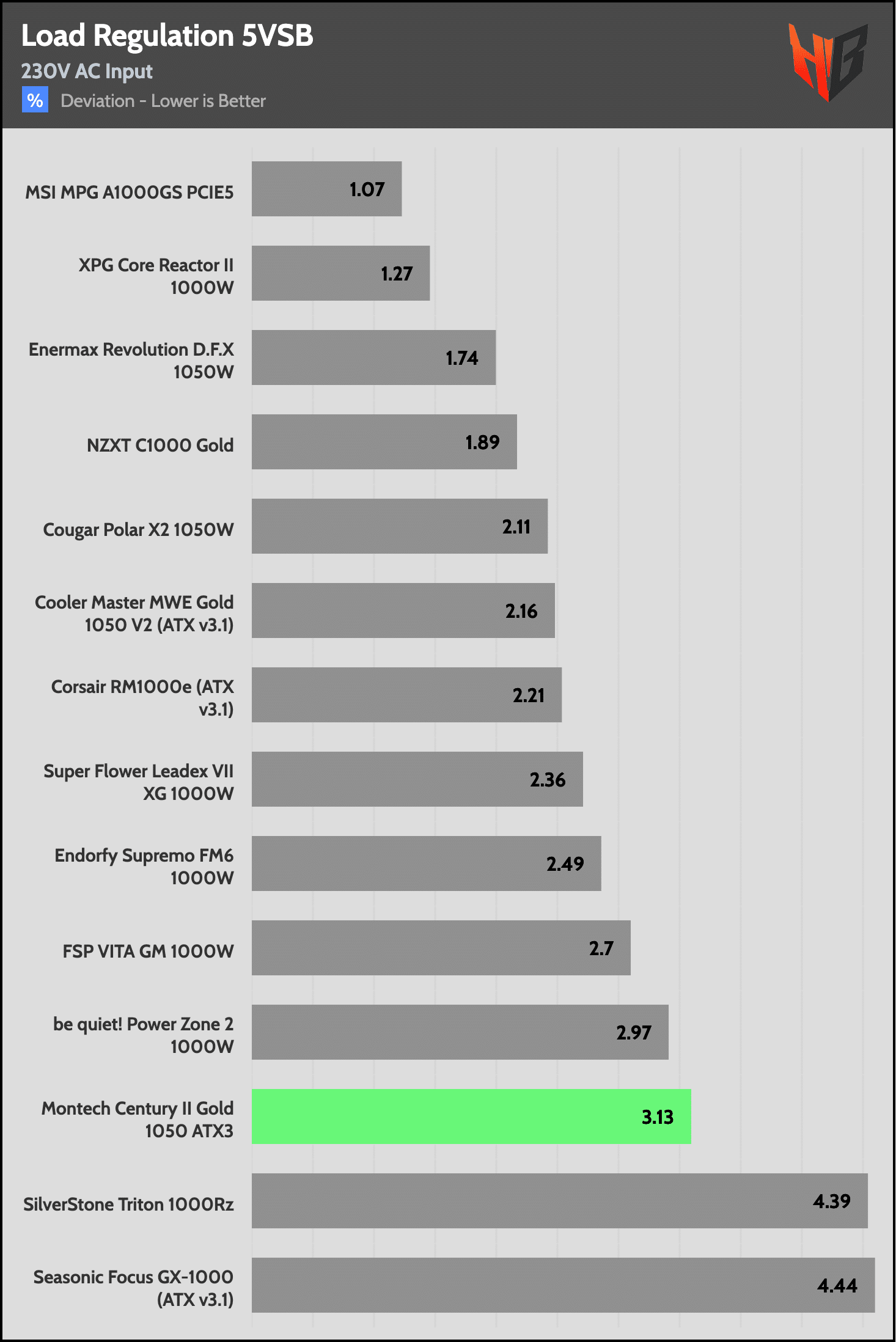

Load regulation is within 1%, so tight enough, on all major rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.234A | 0.495A | 0.494A | 0.196A | 20.015 | 71.953% | 0 | <6.0 | 41.97°C | 0.811 |
| 12.049V | 5.05V | 3.343V | 5.099V | 27.817 | 36.56°C | 114.93V | ||||
| 40W | 2.712A | 0.693A | 0.691A | 0.295A | 40.013 | 81.913% | 0 | <6.0 | 42.95°C | 0.919 |
| 12.057V | 5.052V | 3.343V | 5.095V | 48.848 | 37.48°C | 114.93V | ||||
| 60W | 4.192A | 0.891A | 0.889A | 0.393A | 60.013 | 85.467% | 0 | <6.0 | 43.54°C | 0.958 |
| 12.055V | 5.053V | 3.343V | 5.091V | 70.219 | 38.25°C | 114.92V | ||||
| 80W | 5.670A | 1.089A | 1.086A | 0.492A | 79.994 | 88.197% | 0 | <6.0 | 47.21°C | 0.972 |
| 12.055V | 5.054V | 3.343V | 5.086V | 90.698 | 39.4°C | 114.9V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 12.4 mV | 6.4 mV | 4.7 mV | 6.6 mV | Pass |
| 20% Load | 14.1 mV | 6.4 mV | 4.4 mV | 7.0 mV | Pass |
| 30% Load | 12.5 mV | 7.2 mV | 4.6 mV | 7.2 mV | Pass |
| 40% Load | 12.3 mV | 6.6 mV | 4.7 mV | 7.4 mV | Pass |
| 50% Load | 13.0 mV | 7.0 mV | 5.4 mV | 7.0 mV | Pass |
| 60% Load | 12.8 mV | 6.7 mV | 4.9 mV | 6.9 mV | Pass |
| 70% Load | 12.4 mV | 7.1 mV | 5.4 mV | 7.9 mV | Pass |
| 80% Load | 15.1 mV | 7.0 mV | 8.0 mV | 7.6 mV | Pass |
| 90% Load | 22.1 mV | 7.5 mV | 8.3 mV | 7.7 mV | Pass |
| 100% Load | 22.0 mV | 8.1 mV | 11.5 mV | 10.7 mV | Pass |
| 110% Load | 23.5 mV | 8.3 mV | 12.0 mV | 10.1 mV | Pass |
| Crossload 1 | 18.1 mV | 7.4 mV | 9.1 mV | 7.8 mV | Pass |
| Crossload 2 | 12.2 mV | 7.0 mV | 4.1 mV | 7.1 mV | Pass |
| Crossload 3 | 12.7 mV | 6.6 mV | 10.3 mV | 6.8 mV | Pass |
| Crossload 4 | 20.4 mV | 7.7 mV | 8.5 mV | 9.8 mV | Pass |

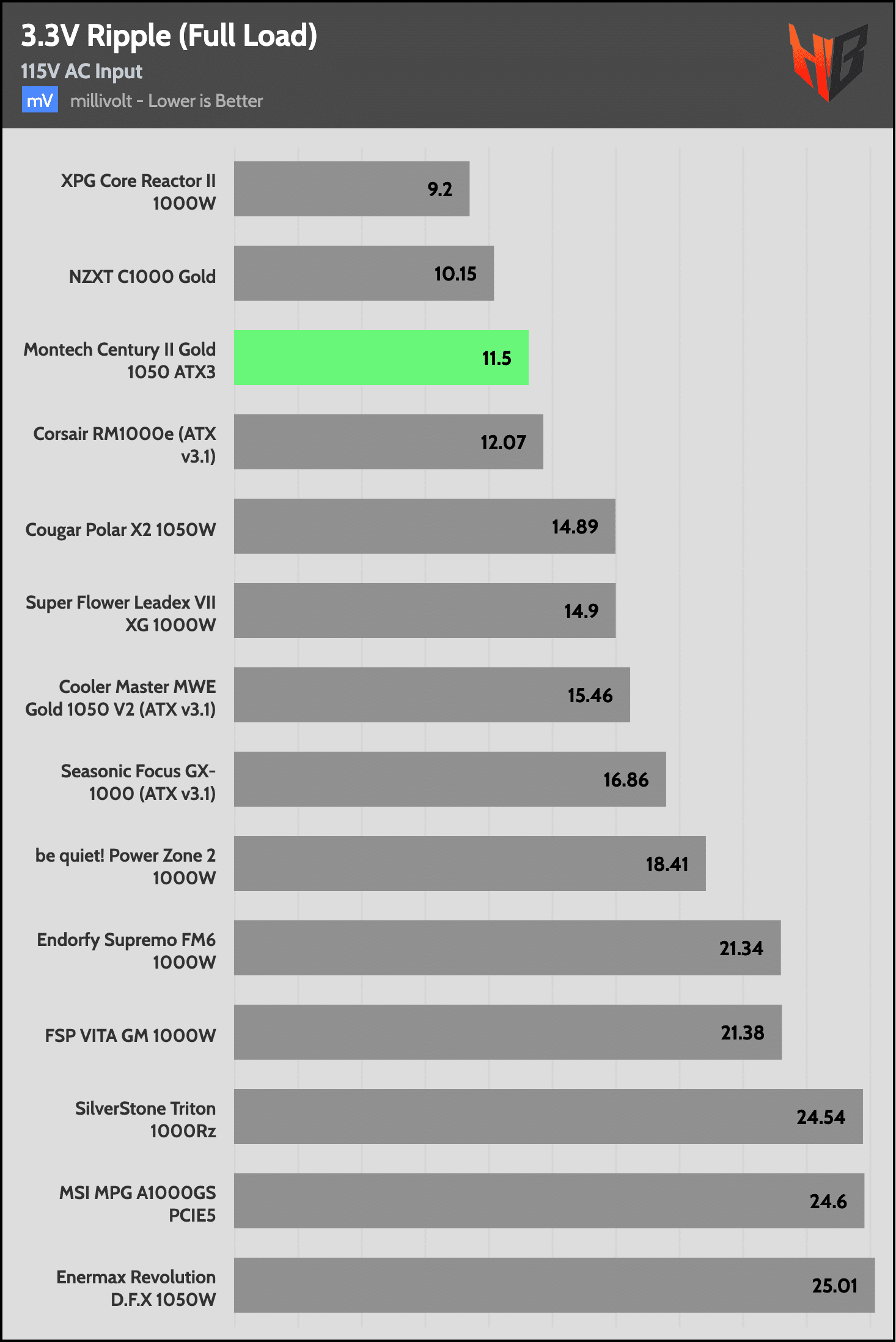

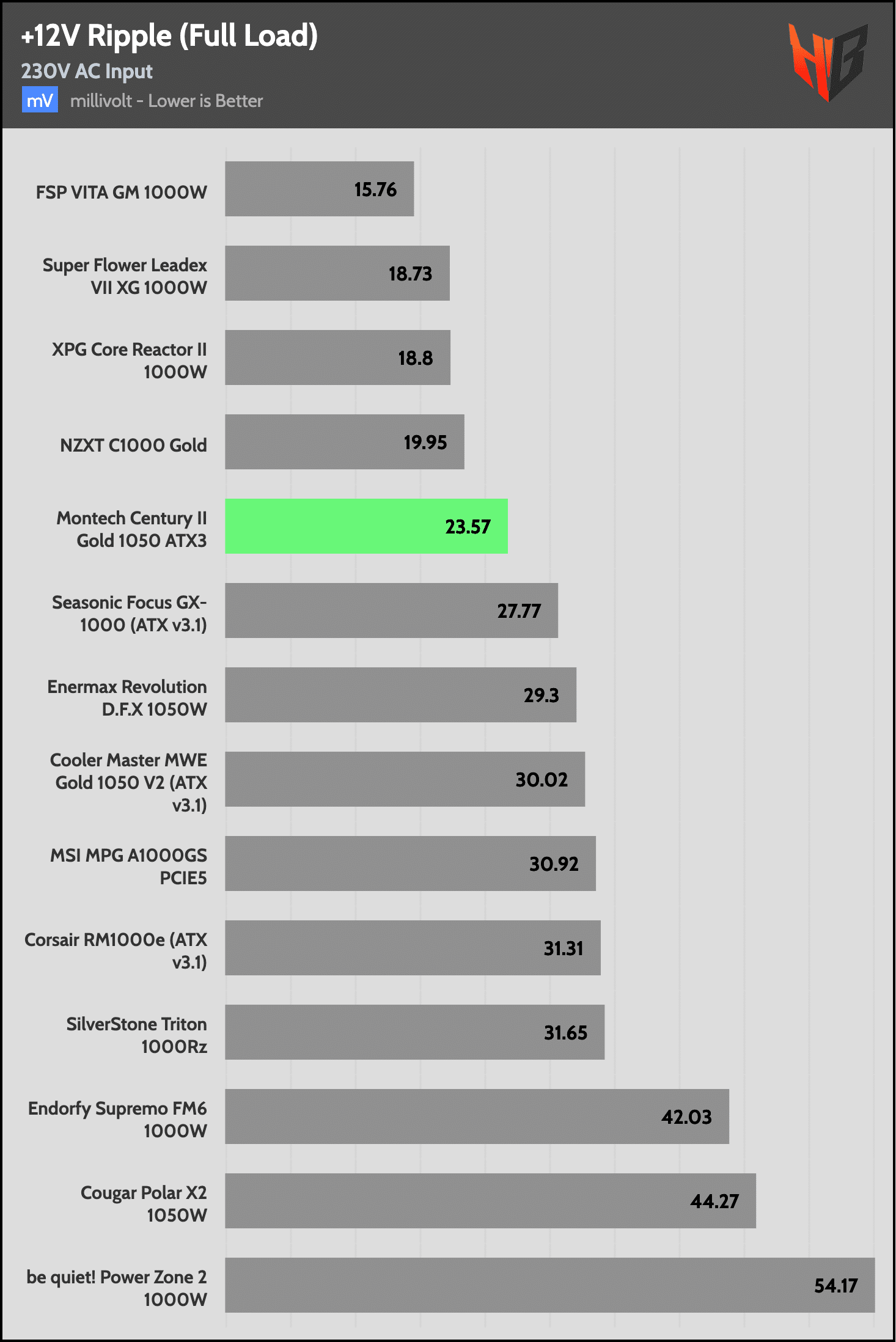

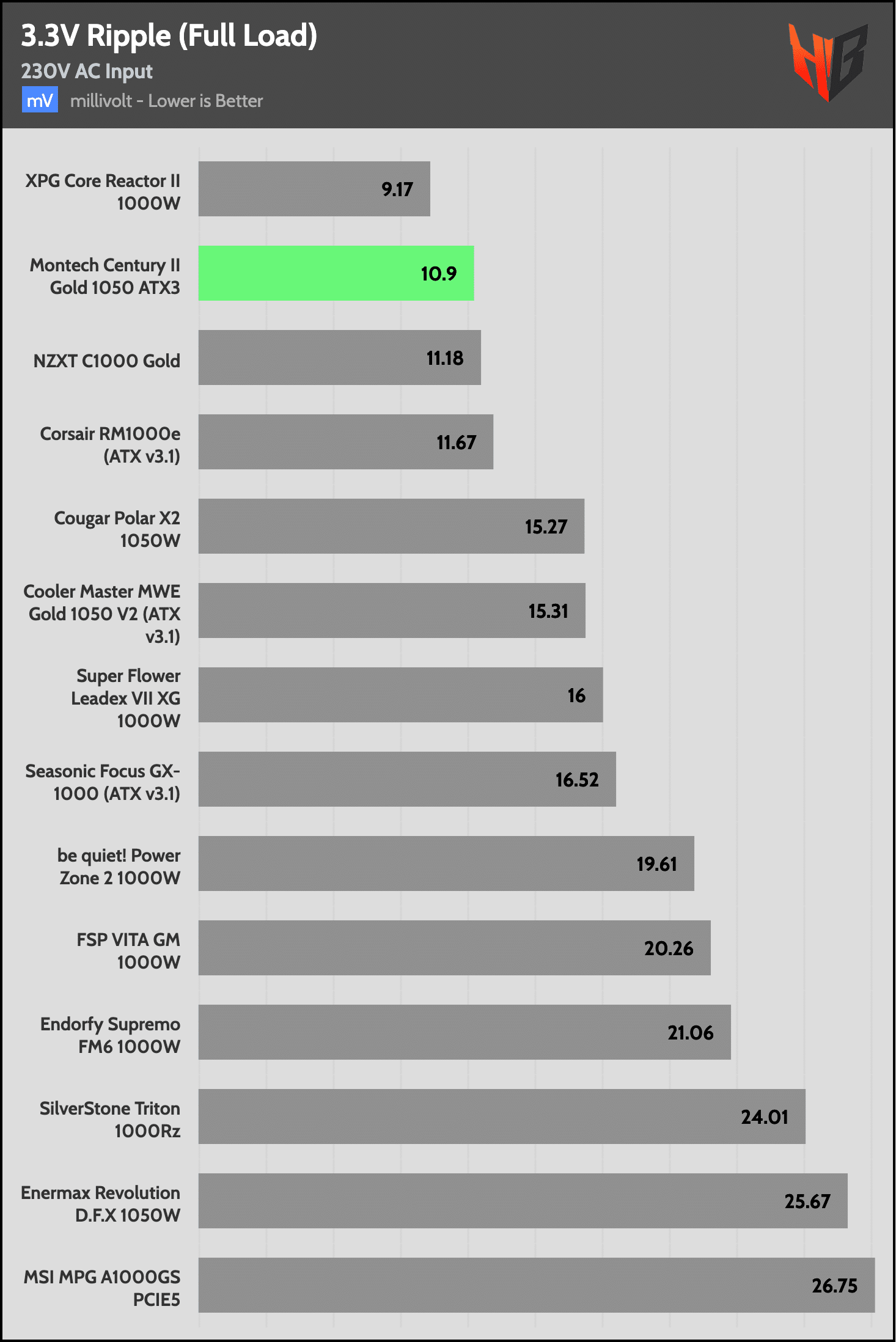

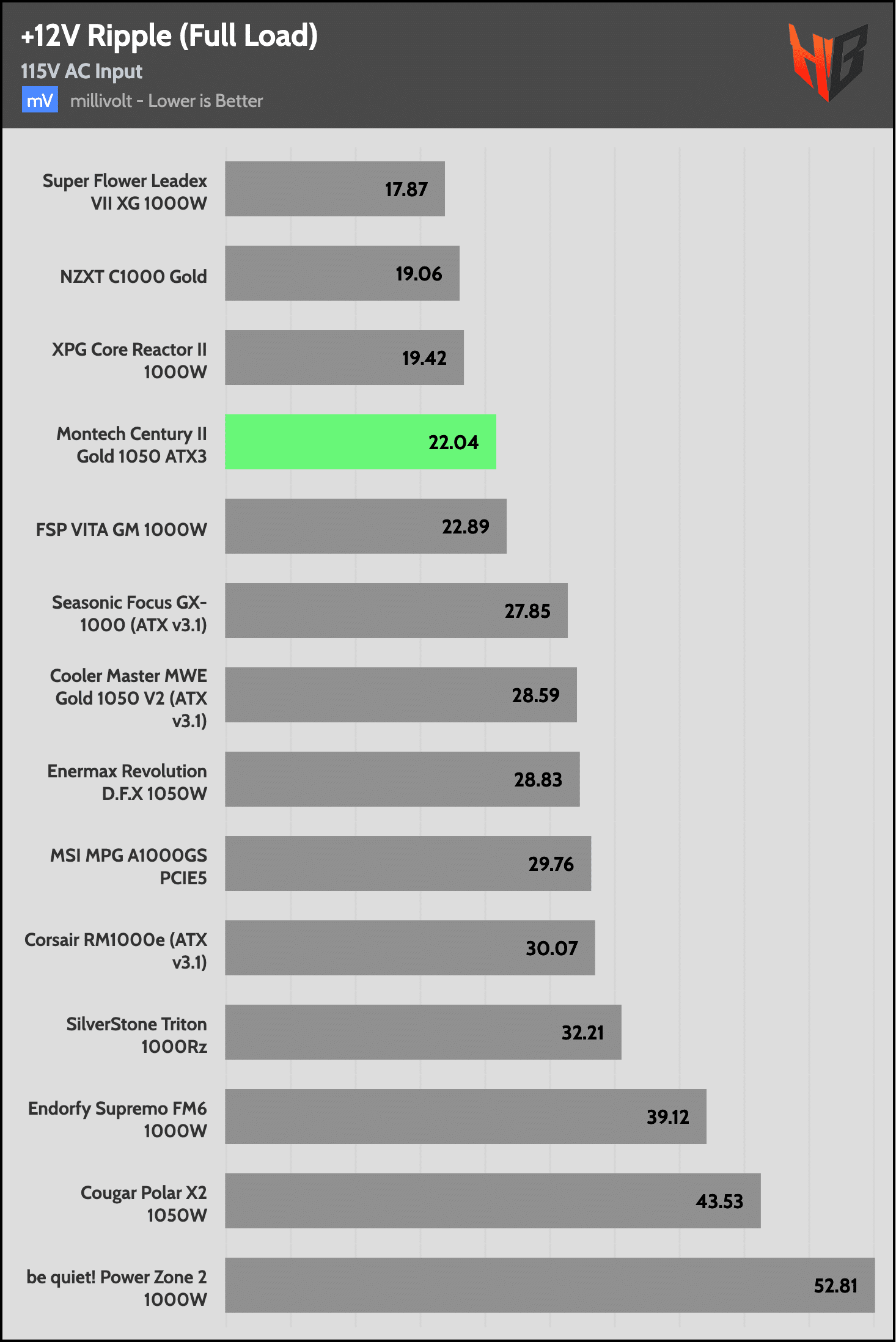

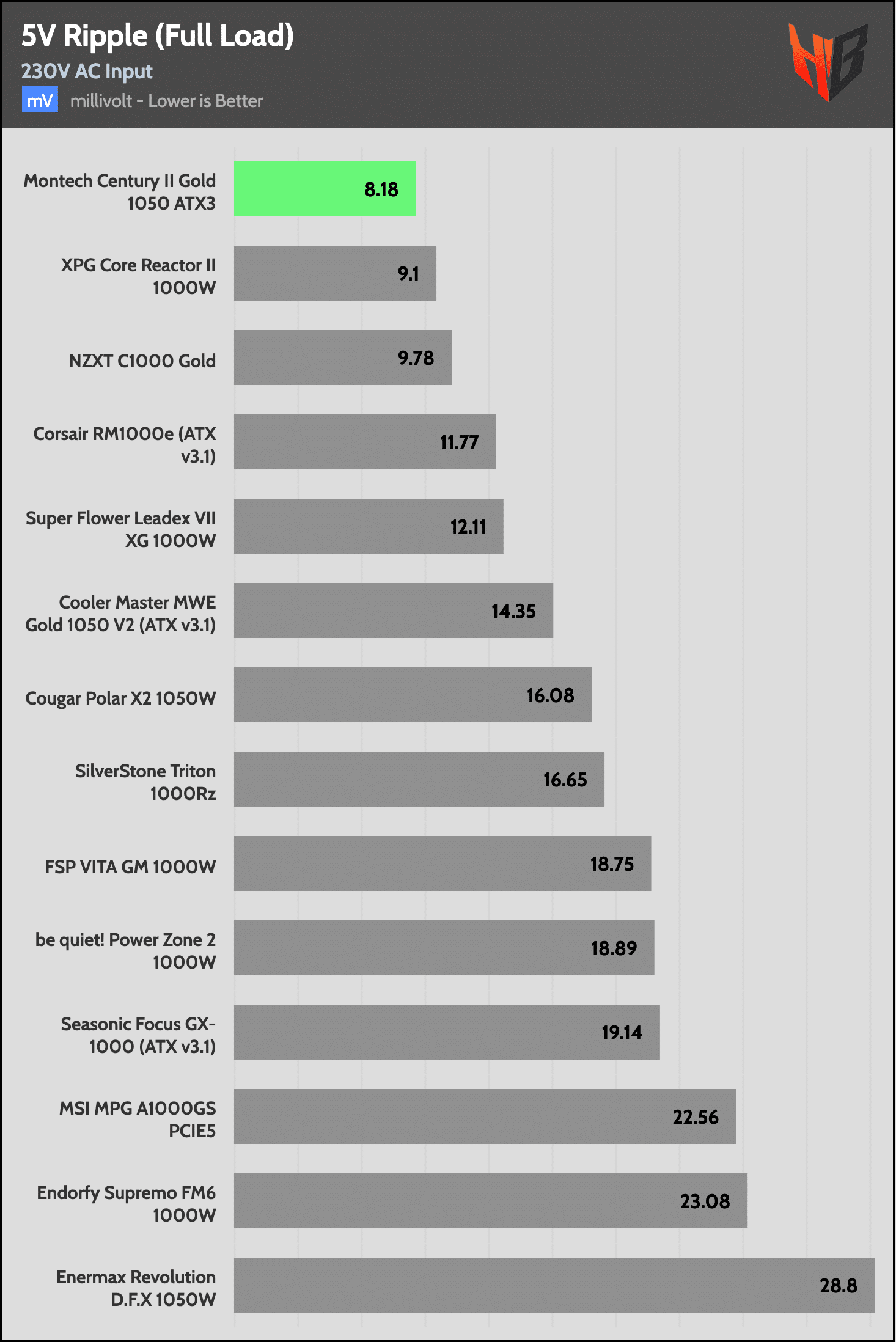

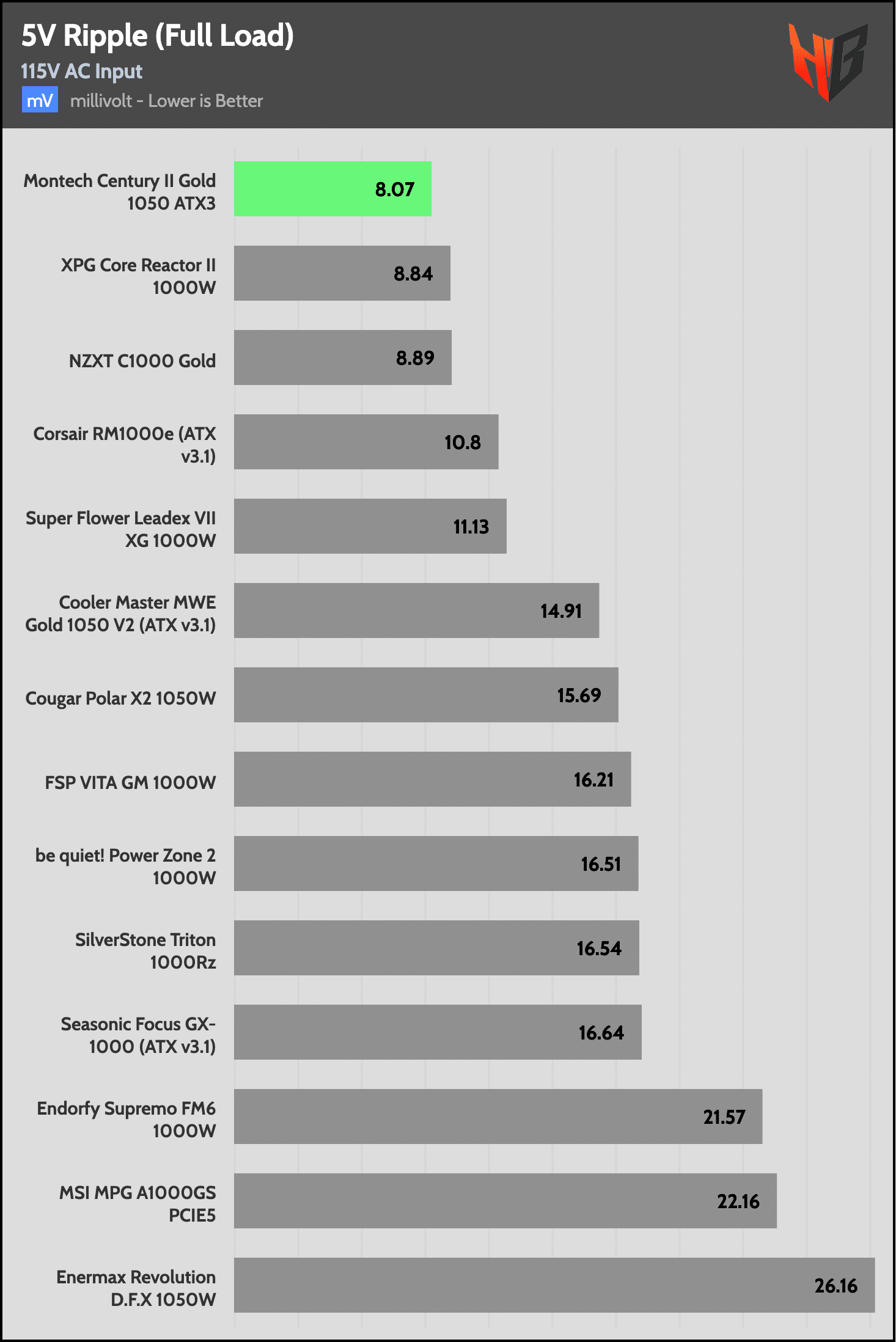

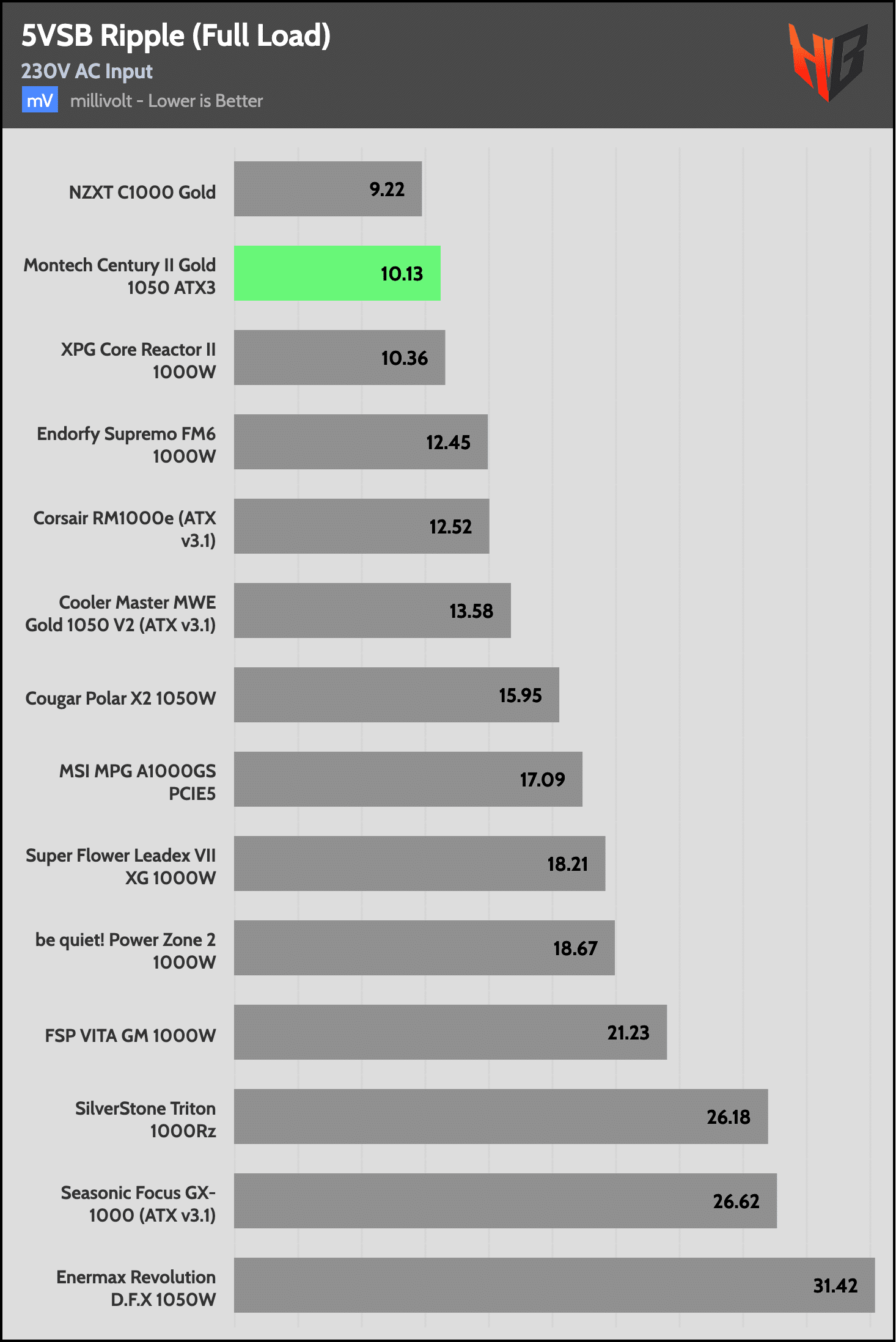

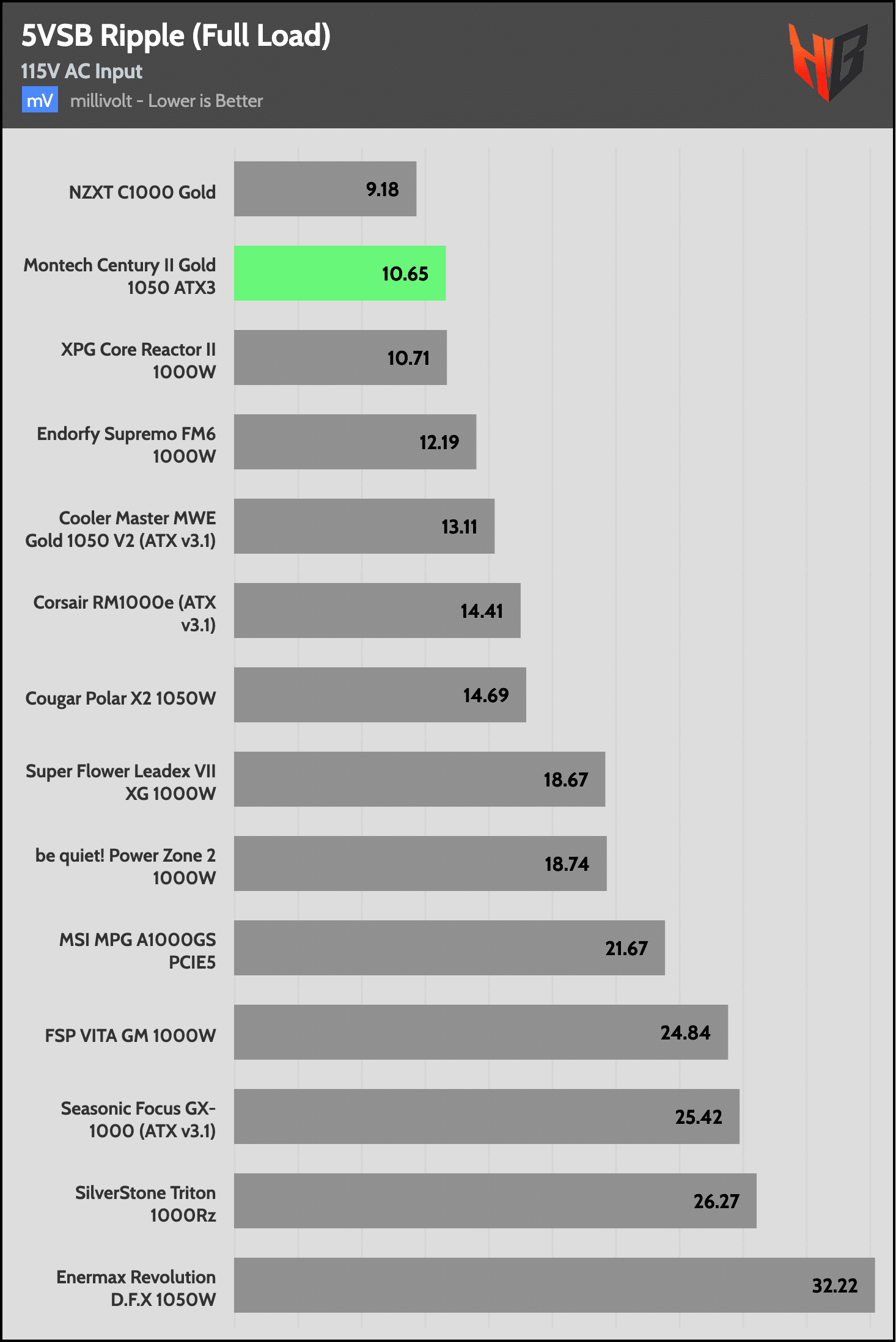

Ripple suppression is good.
