Part Analysis
| General Data | |
| Manufacturer (OEM) | HuntKey |
| PCB Type | Single-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 1x NTC Thermistor Joyin 15S070L (7 ohm) & Relay |
| Bridge Rectifier(s) |
1x GSIB2580 (800V, 25A @ 98°C)
|
| APFC MOSFETs |
2x Infineon IPA60R190P6 (650V, 12.7A @ 100°C, Rds(on): 0.190Ohm)
|
| APFC Boost Diode |
1x WeEn BYC8X600P (650V, 8A @ 130°C)
|
| Bulk Cap(s) |
1x SamXon (450V, 390uF, 2,000h @ 85°C, LP)
|
| Main Switchers |
2x STMicroelectronics STF24N60DM2 (650V, 11A @ 100°C, Rds(on): 0.200Ohm)
|
| Resonant Controller |
HK6288 (NXP TEA2017)
|
| APFC Controller |
Champion CM6500UNX
|
| Topology |
Primary side: APFC, Half-Bridge & LLC Resonant converter
Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 2x Oriental Semiconductor SFS06R02PF (60V, 200A @ 25°C, Rds(on): 2.5mOhm) |
| 5V & 3.3V | DC-DC Converters: 3x Huajing HGQ022N03A (30V, 94A @ 100°C, Rds(on): 2.2mOhm) PWM Controller(s): Anpec APW7159C |
| Filtering Capacitors | Electrolytic: 3x AiSHi (2-4,000h @105°C, RE) 2x AiSHi (3-6,000h @105°C, RF) 2x SamXon (1-4,000h @105°C, GF) 2x SamXon (2,000h @105°C, KM) 1x SamXon (2-5,000h @105°C, GK) Polymer: 9x Polycap, 6x X-Con (ULR) |
| Supervisor IC | Sitronix ST9S313C-DAG |
| Fan Model | HK AS12025H12 (120mm, 12V, 0.25A, Sleeve Bearing Fan) |
| 5VSB | |
| Rectifier |
1x MBR1060CT SBR (60V, 10A)
|
| Standby PWM Controller |
Chipown PN8177
|

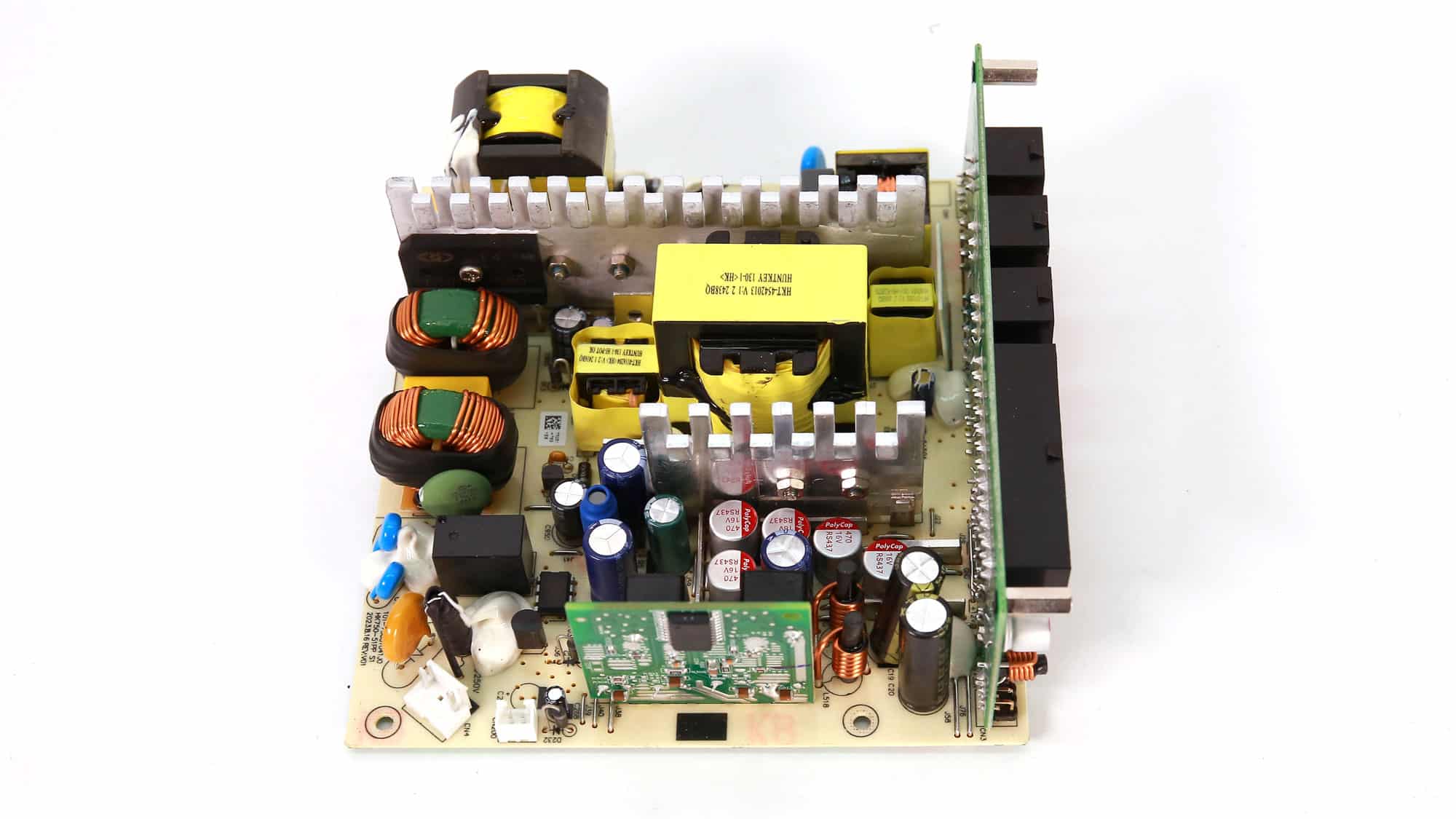

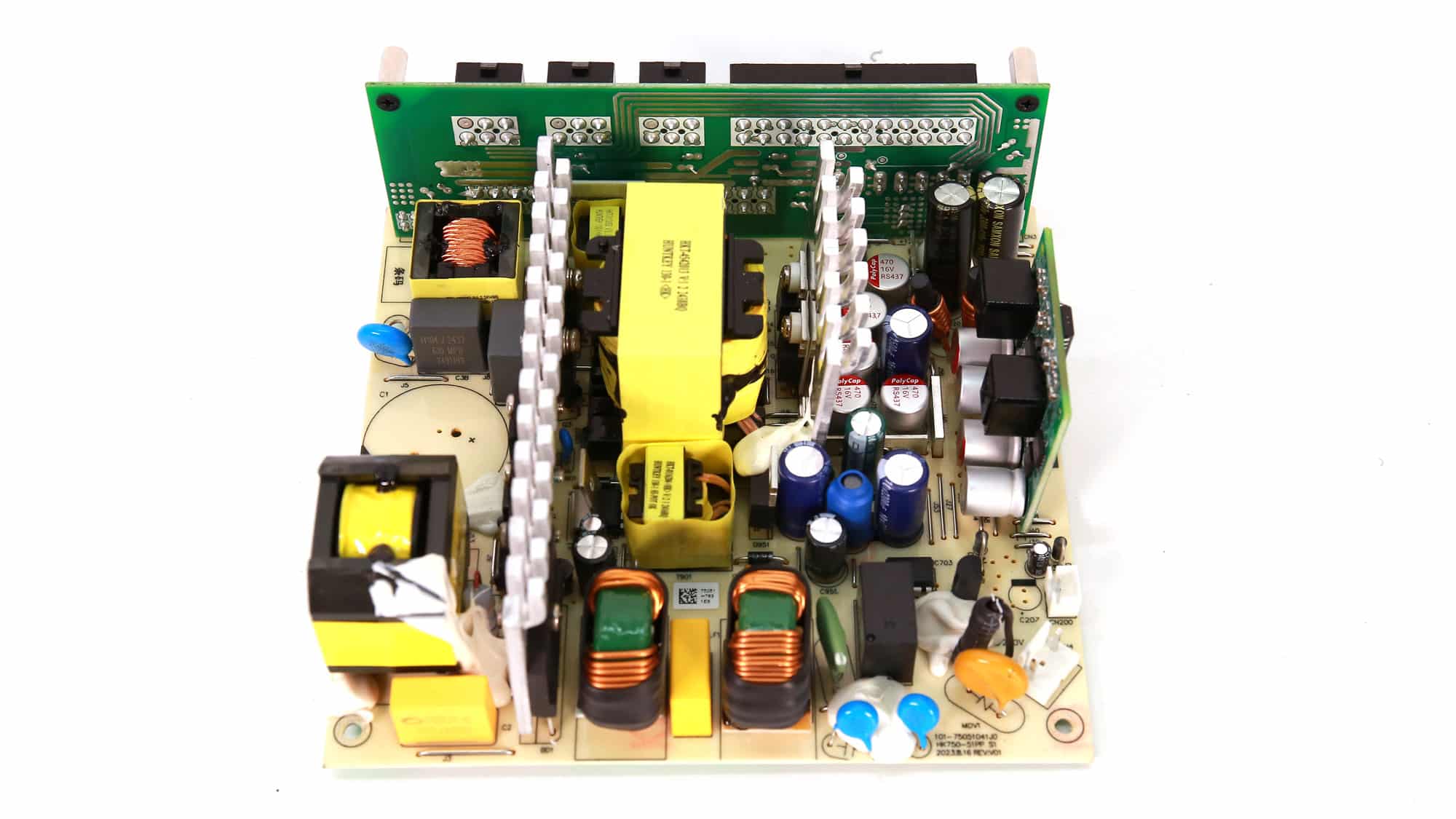

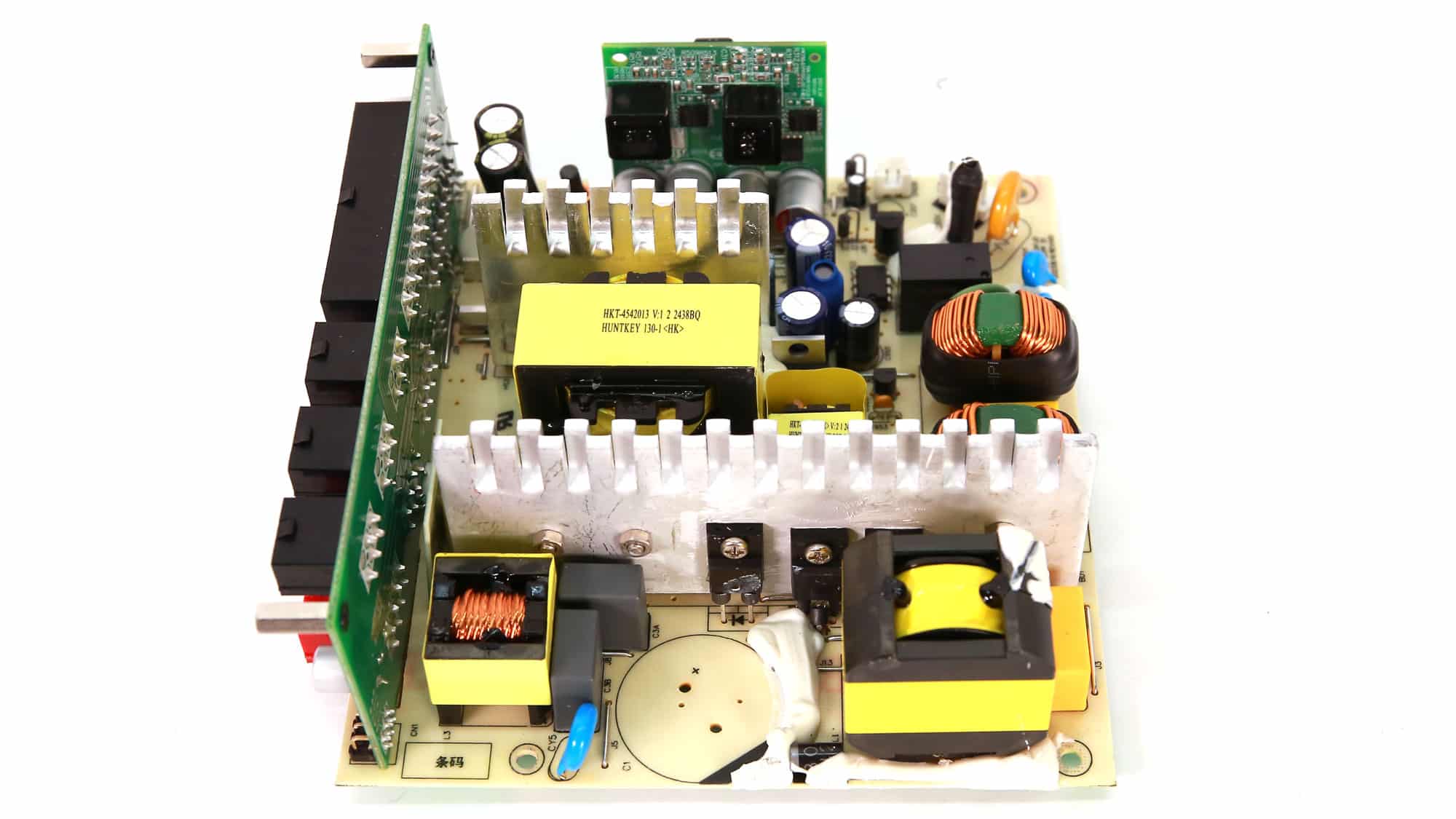

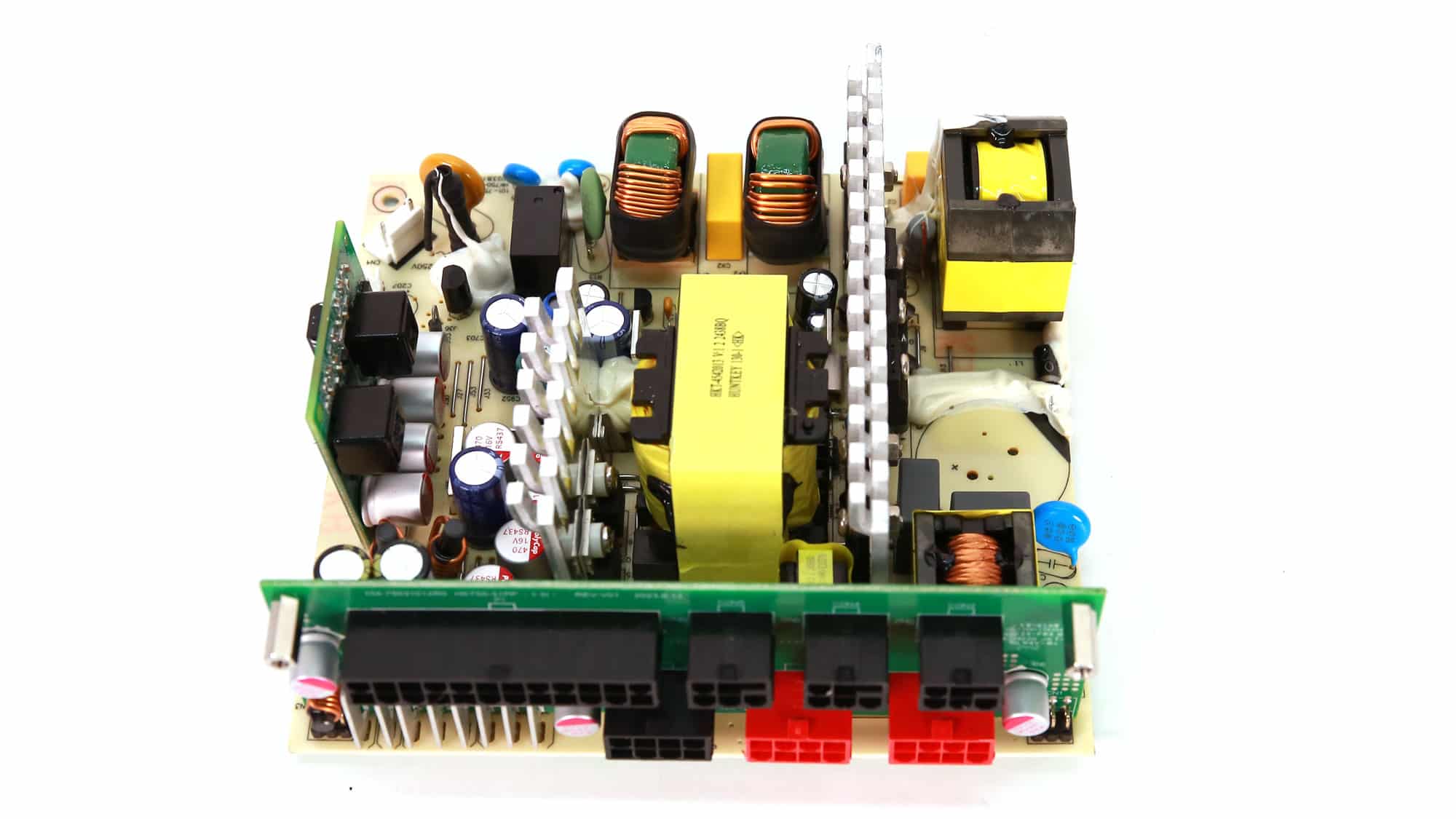

This budget platform uses a cheap single-sided PCB and affordable parts. The design is contemporary, though, with a half-bridge and a resonant converter on the primary side. A synchronous rectification scheme handles the 12V rail on the secondary side, and a pair of DC-DC converters generates the minor rails.

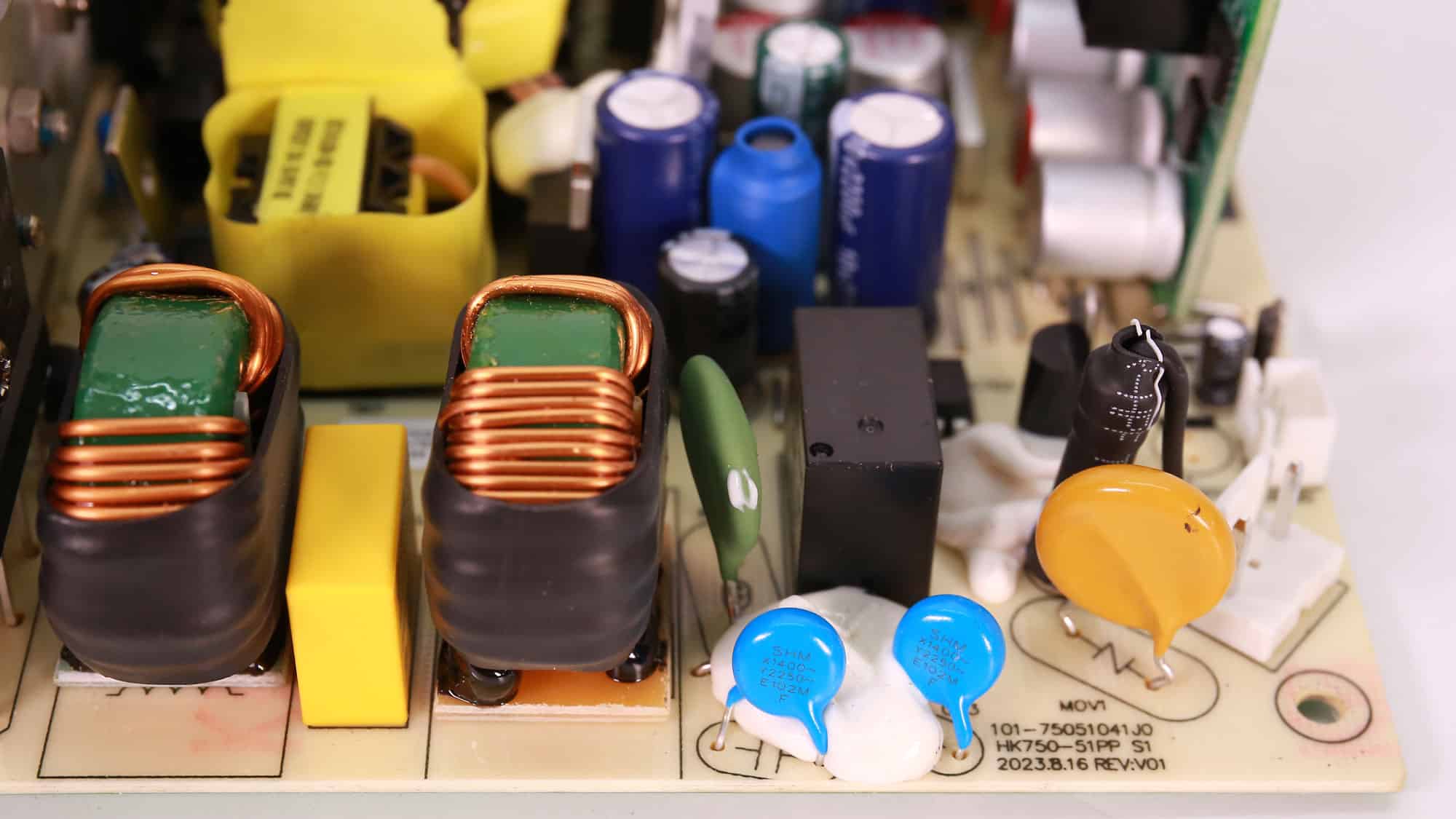

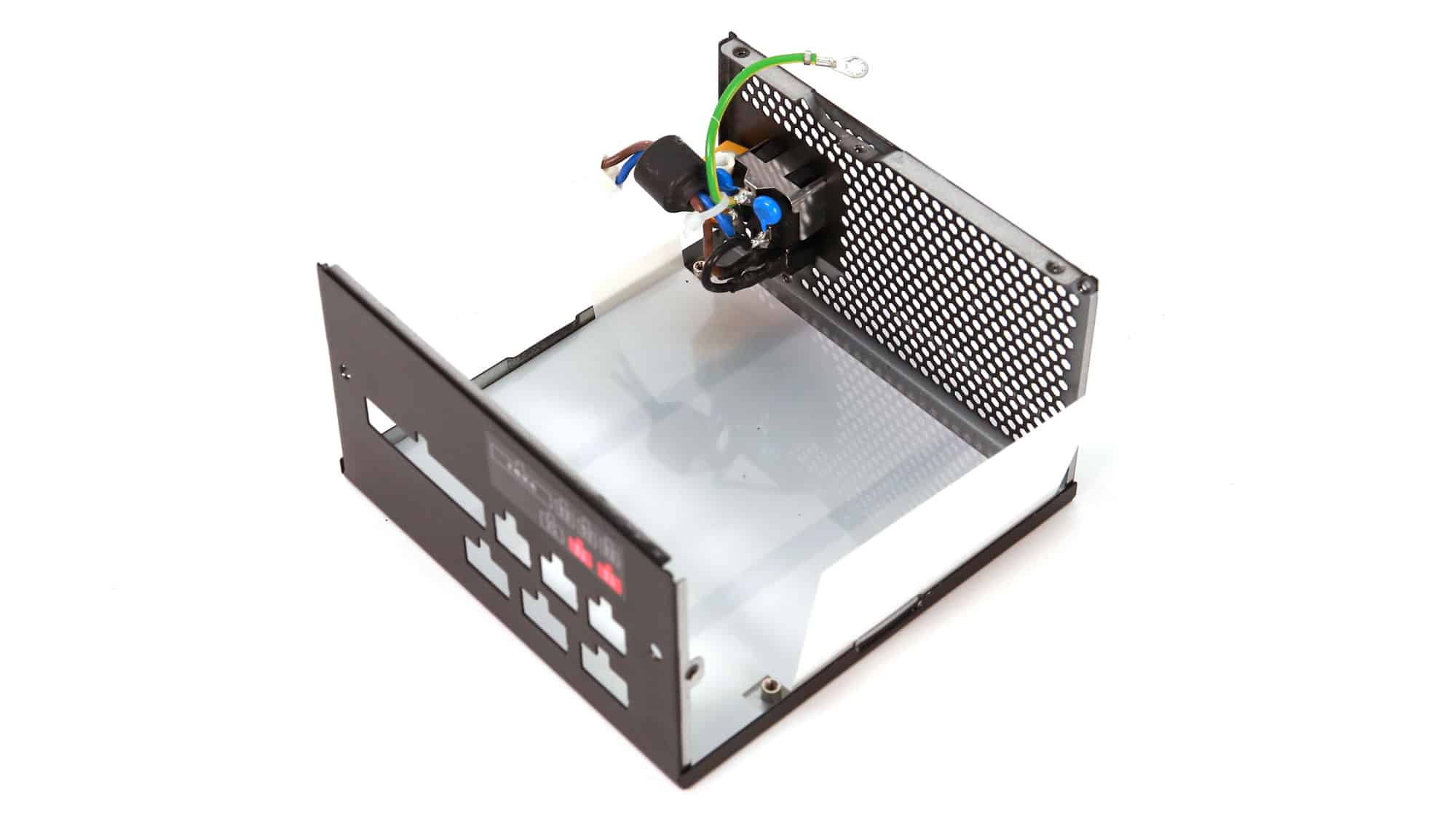

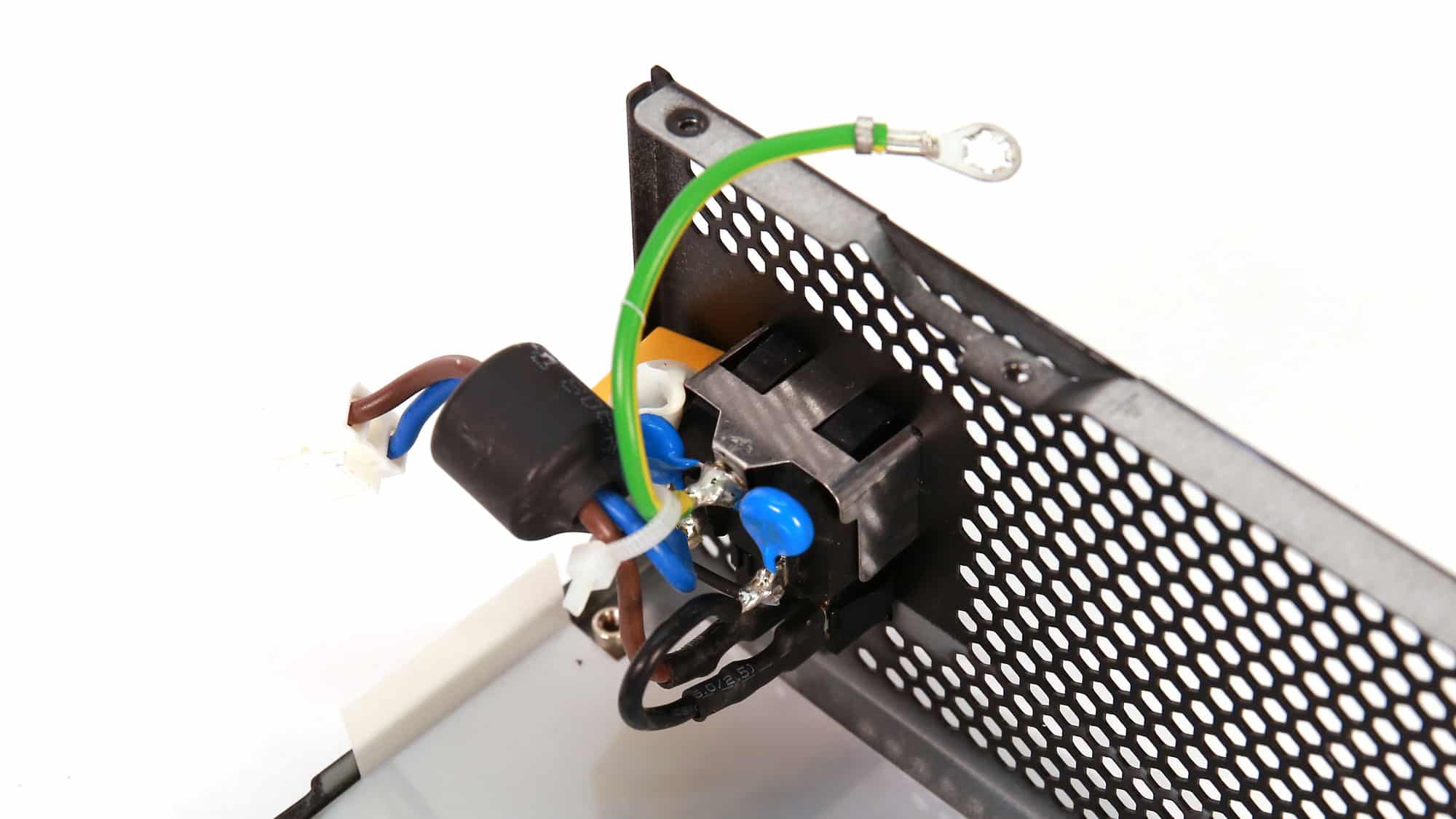

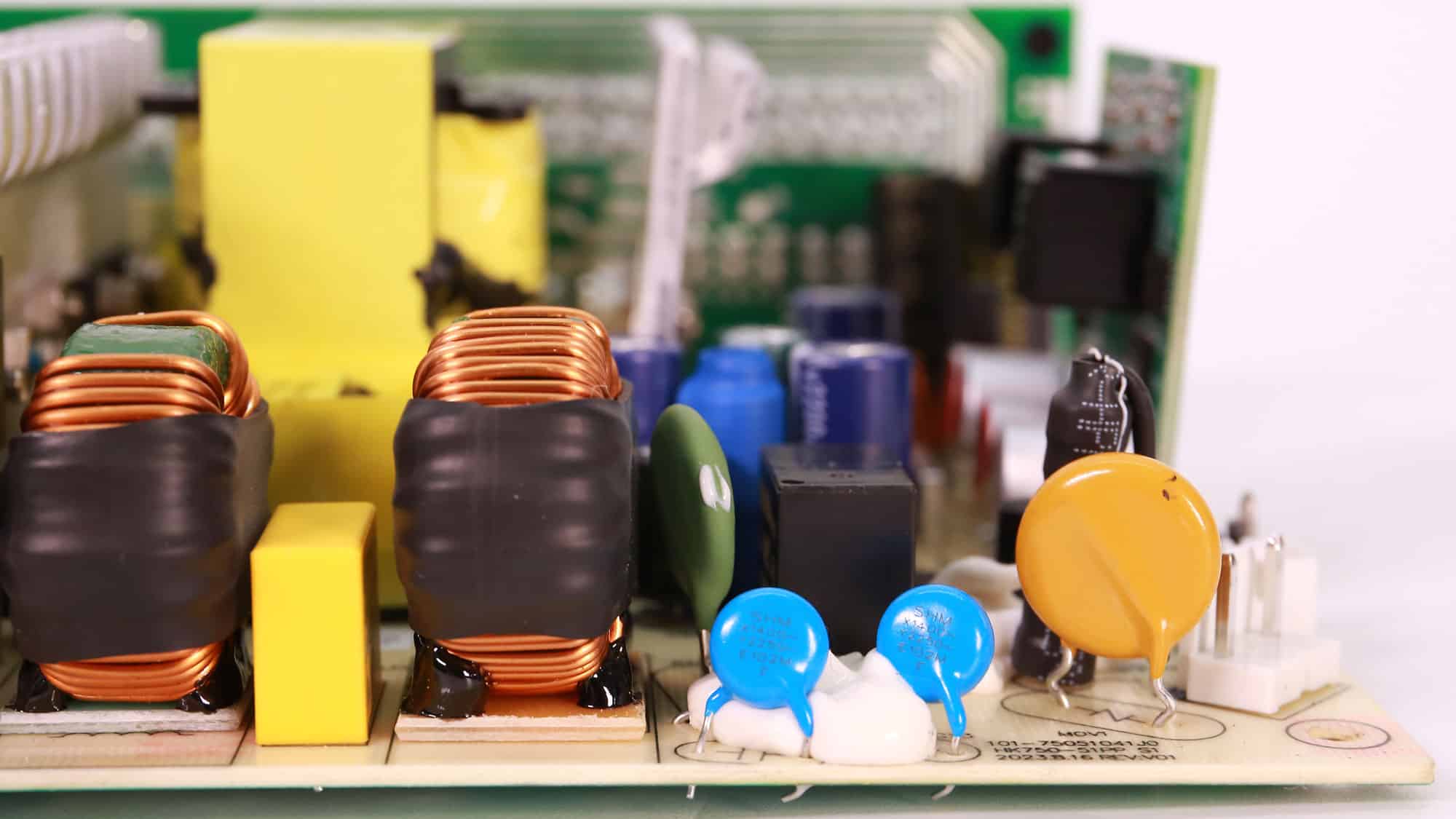

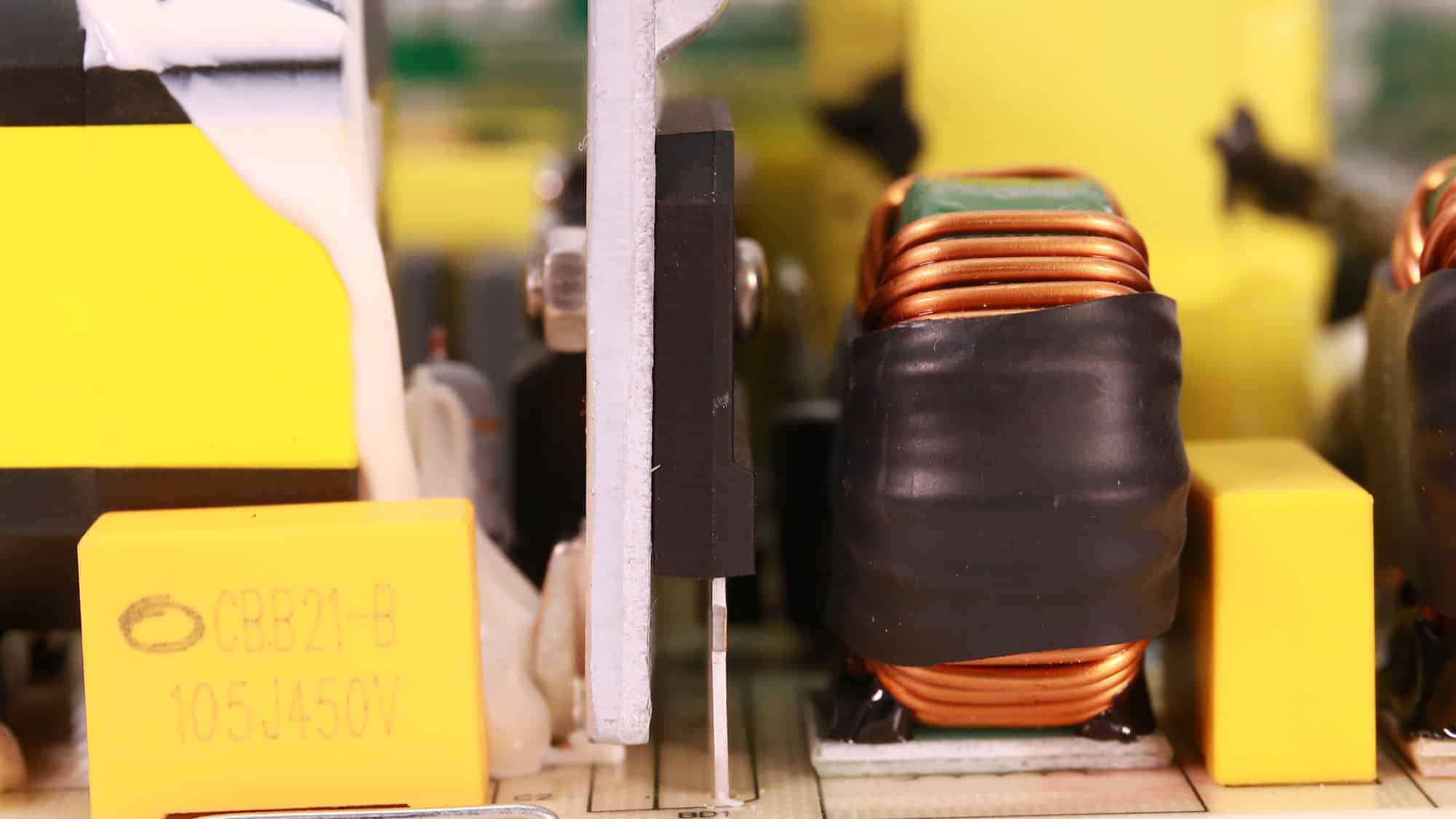

The transient filtering stage has all the necessary parts to block incoming and outgoing EMI emissions. Typically, it starts at the AC receptacle and continues on the main PCB.

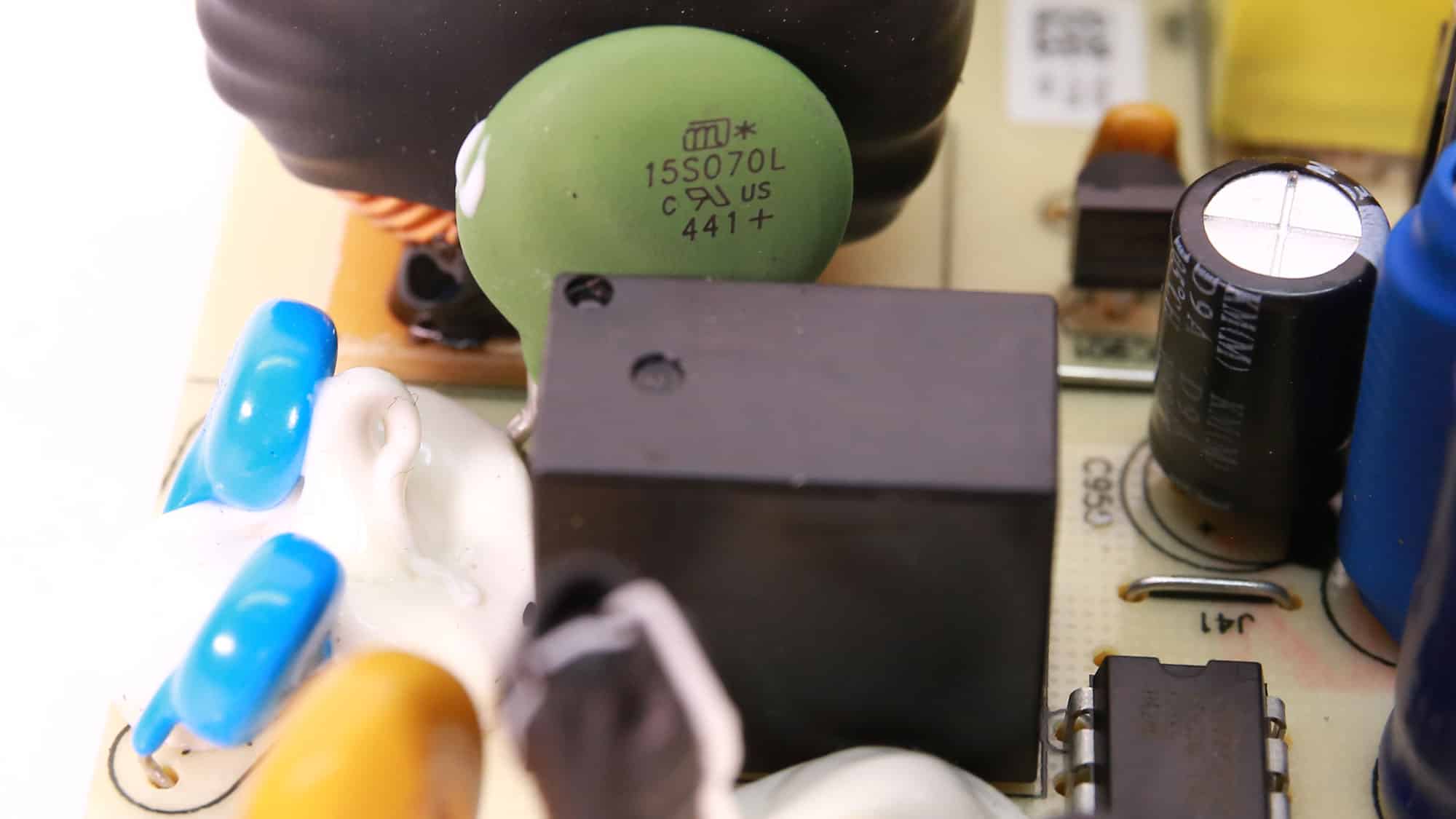

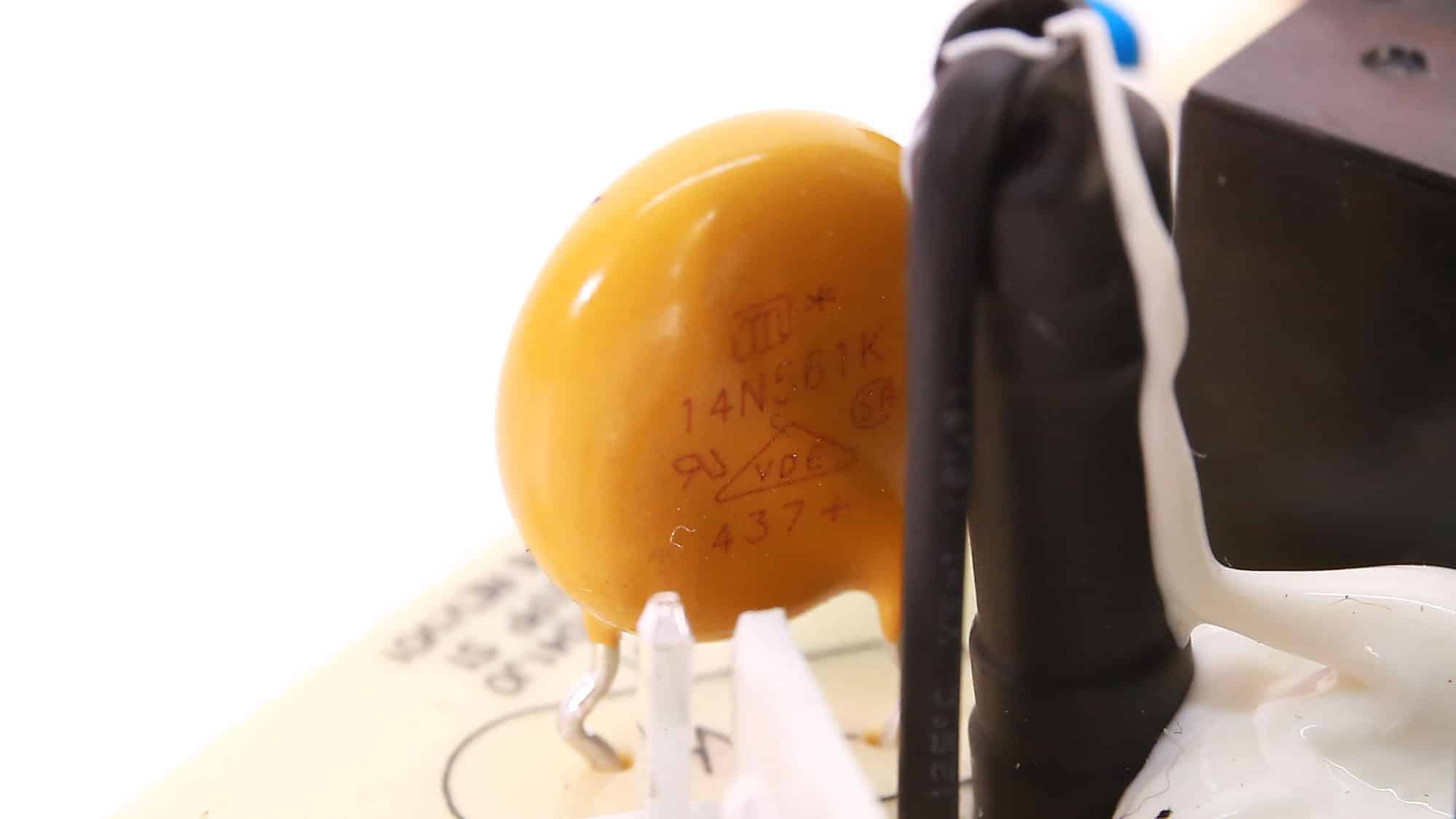

There is an MOV to protect from voltage surges and an NTC thermistor rated at 7 ohms when cold. Moreover, a bypass relay supports the NTC thermistors.

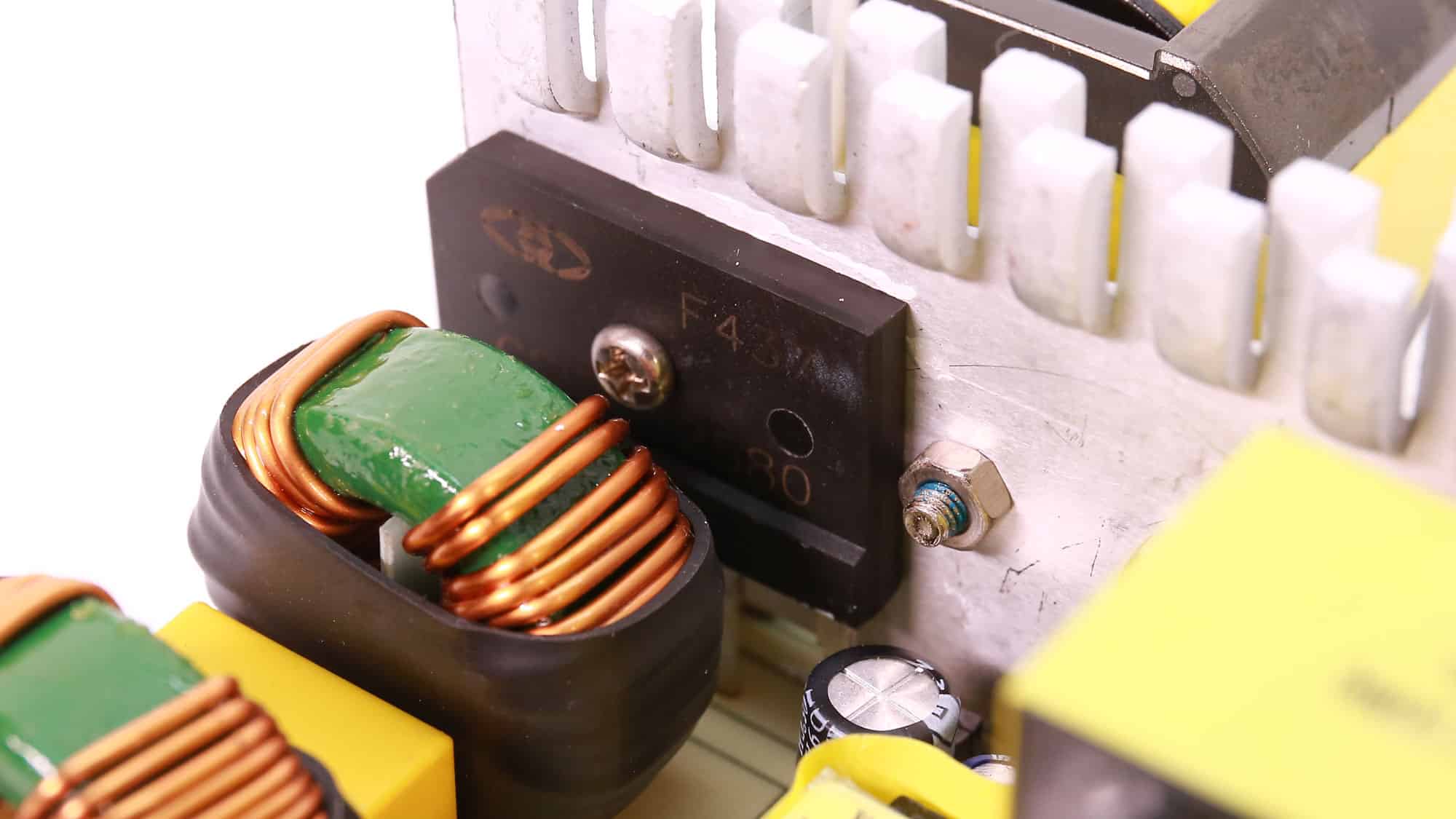

There is a single GSIB2580 bridge rectifier that can handle up to 25A of current, so it is more than enough for this PSU.

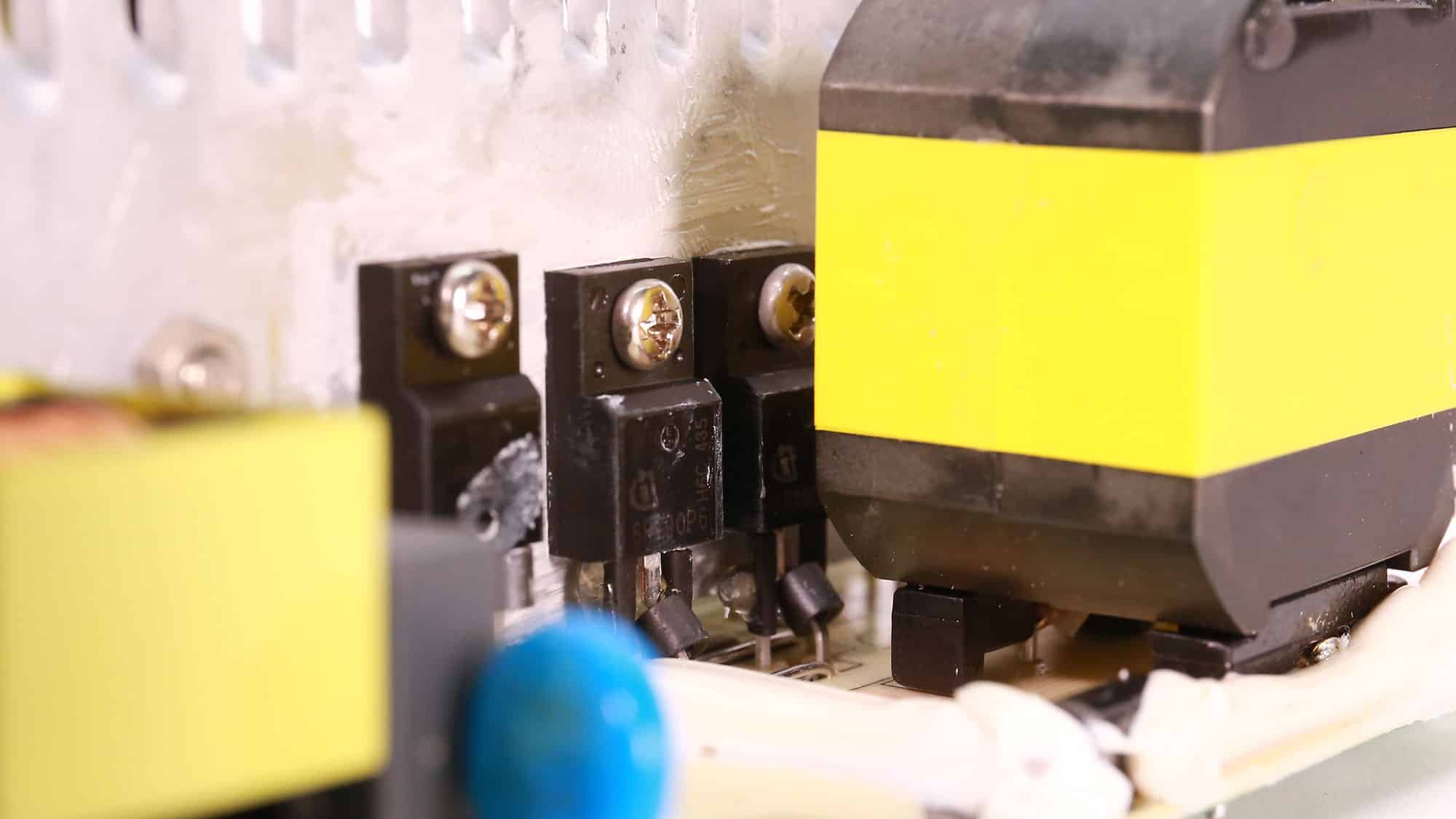

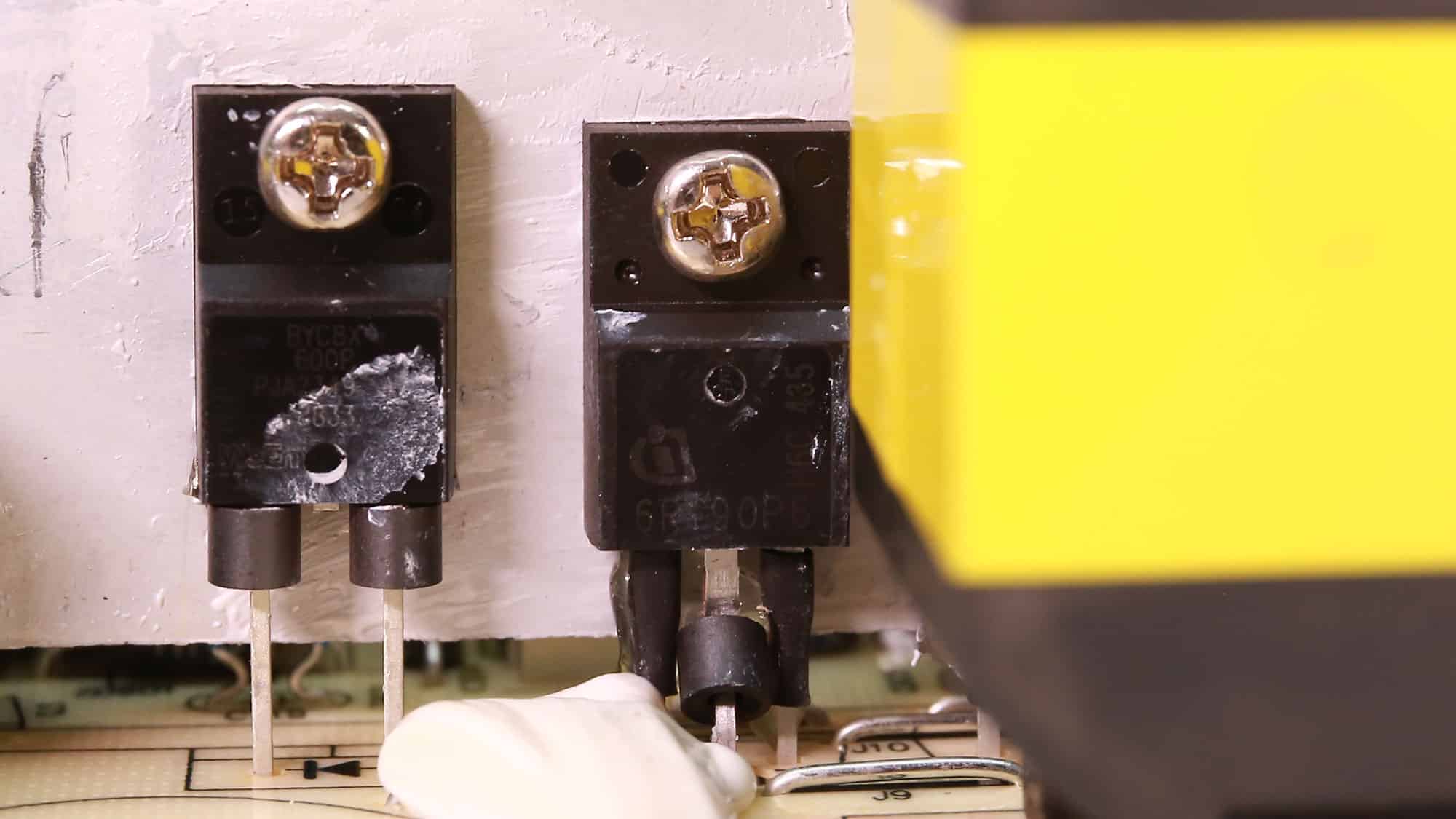

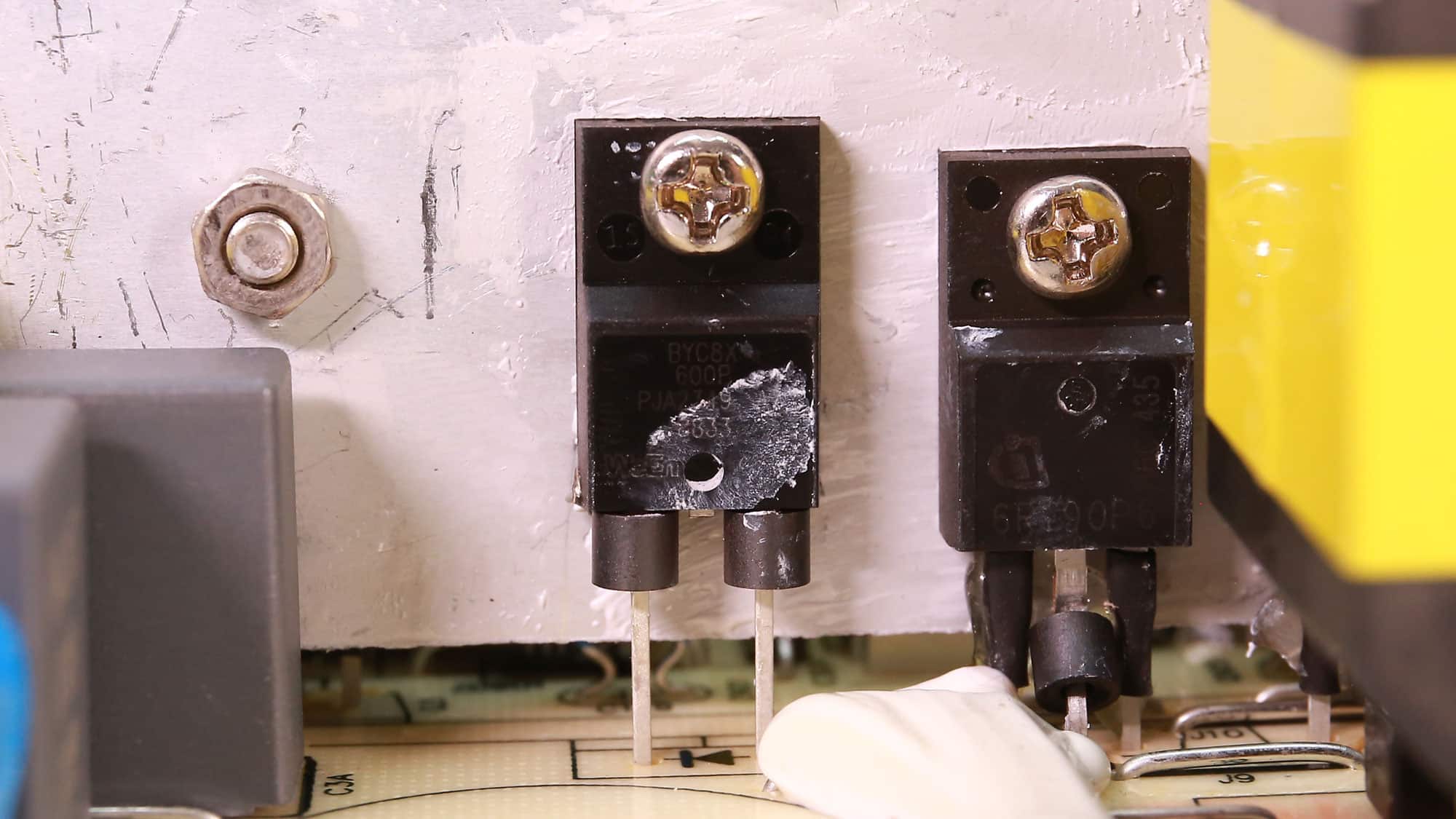

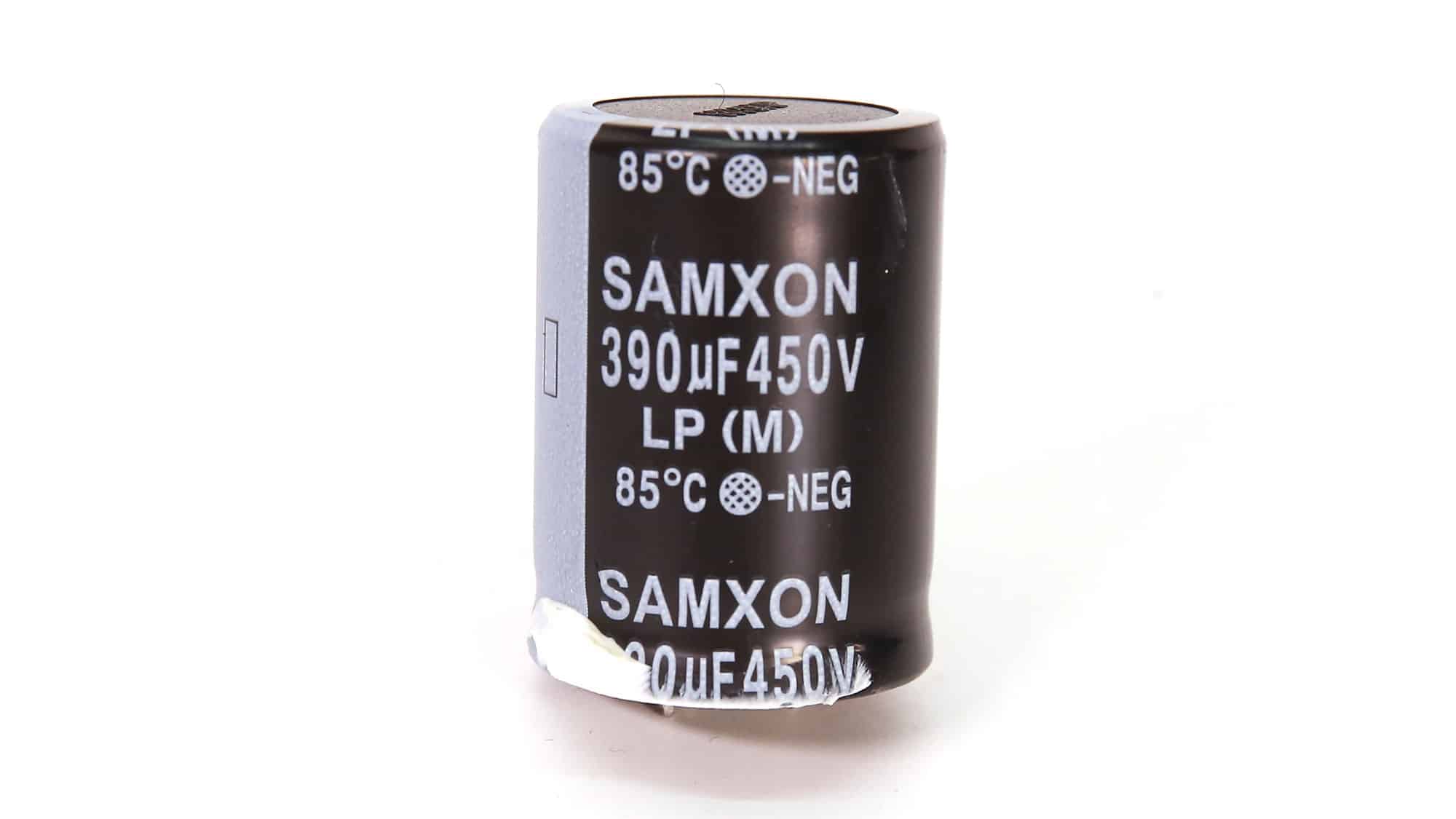

The APFC converter uses two IPA60R190P6 FETs and one WeEn boost diode. The bulk cap is by SamXon, and its capacity is low at 390uF. This is an 85°C cap, so its lifetime is 4x lower than that of a 105°C cap under the same conditions.

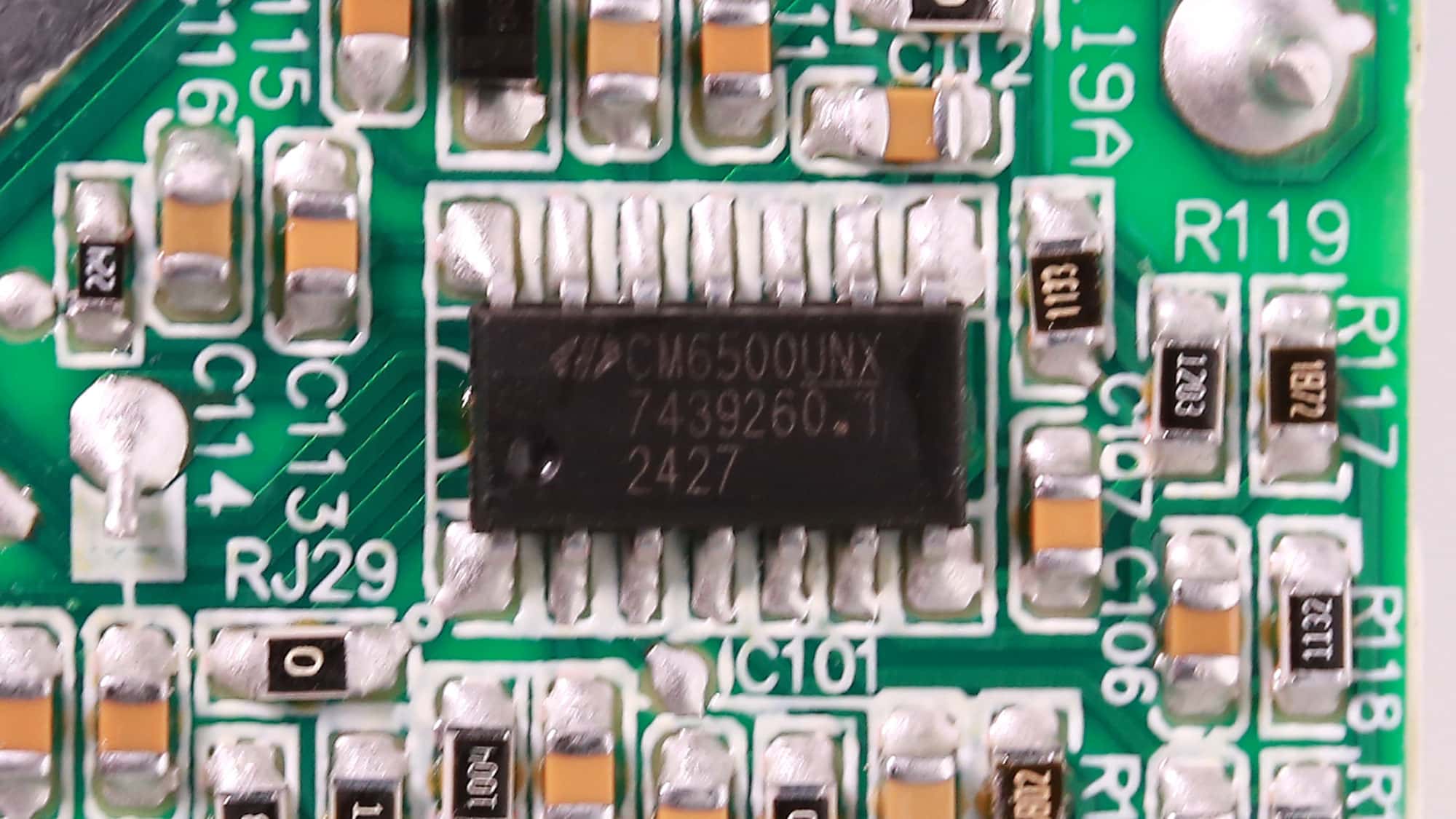

The APFC controller is a Champion CM6502UHHX.

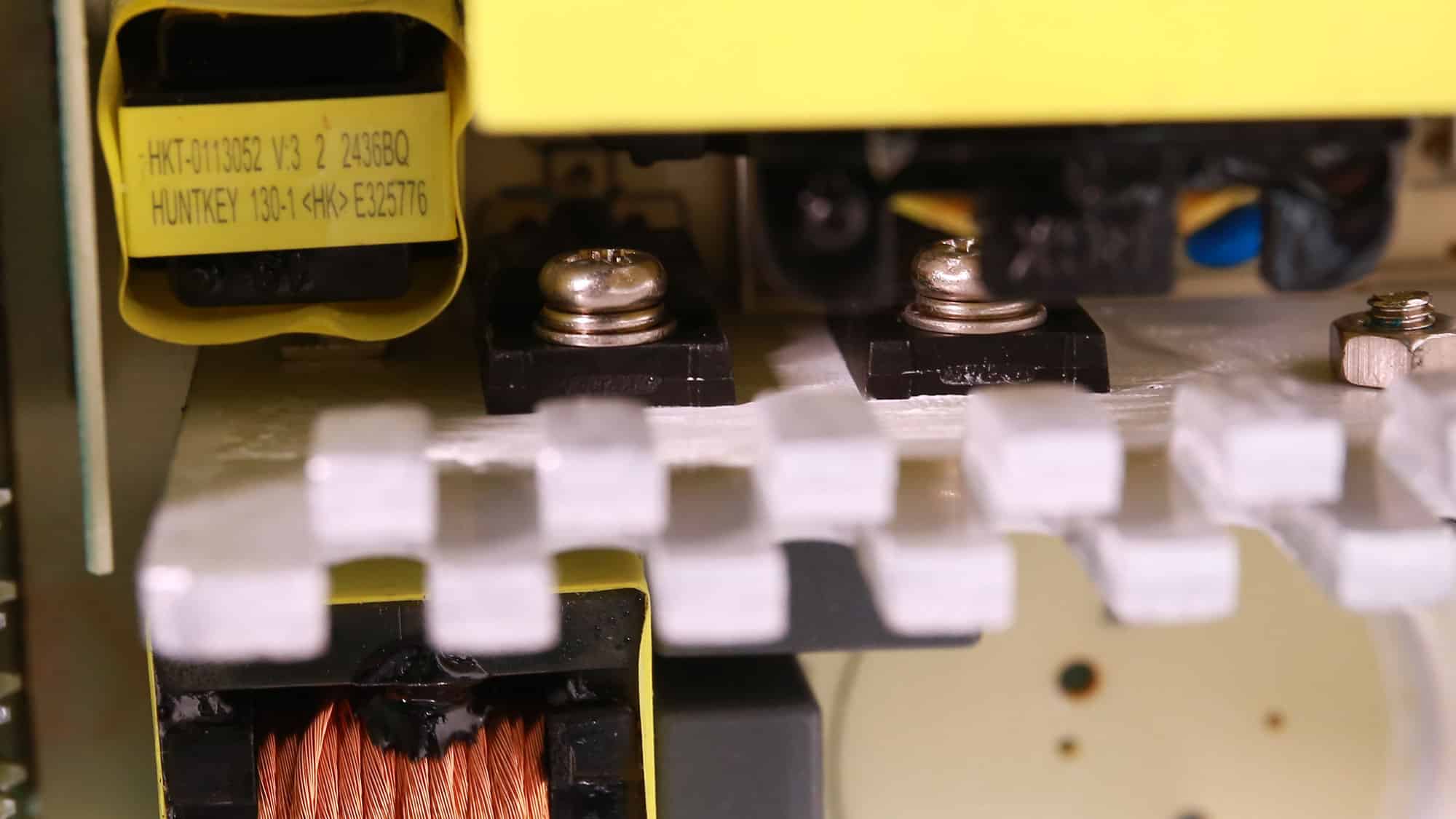

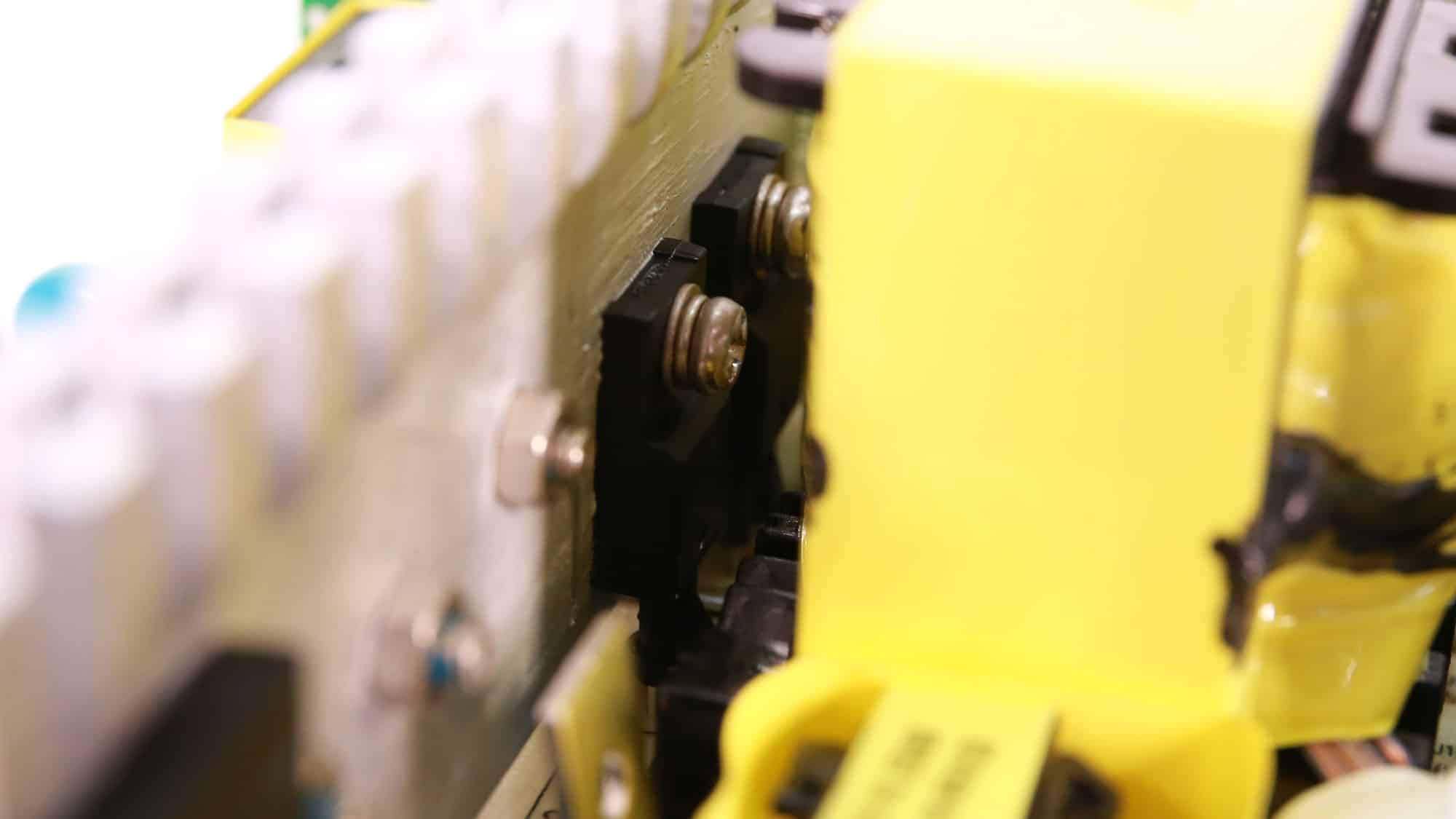

The two STMicroelectronics STF24N60DM2 primary switching FETs are installed in a half-bridge topology, and an LLC resonant converter is used for higher efficiency.

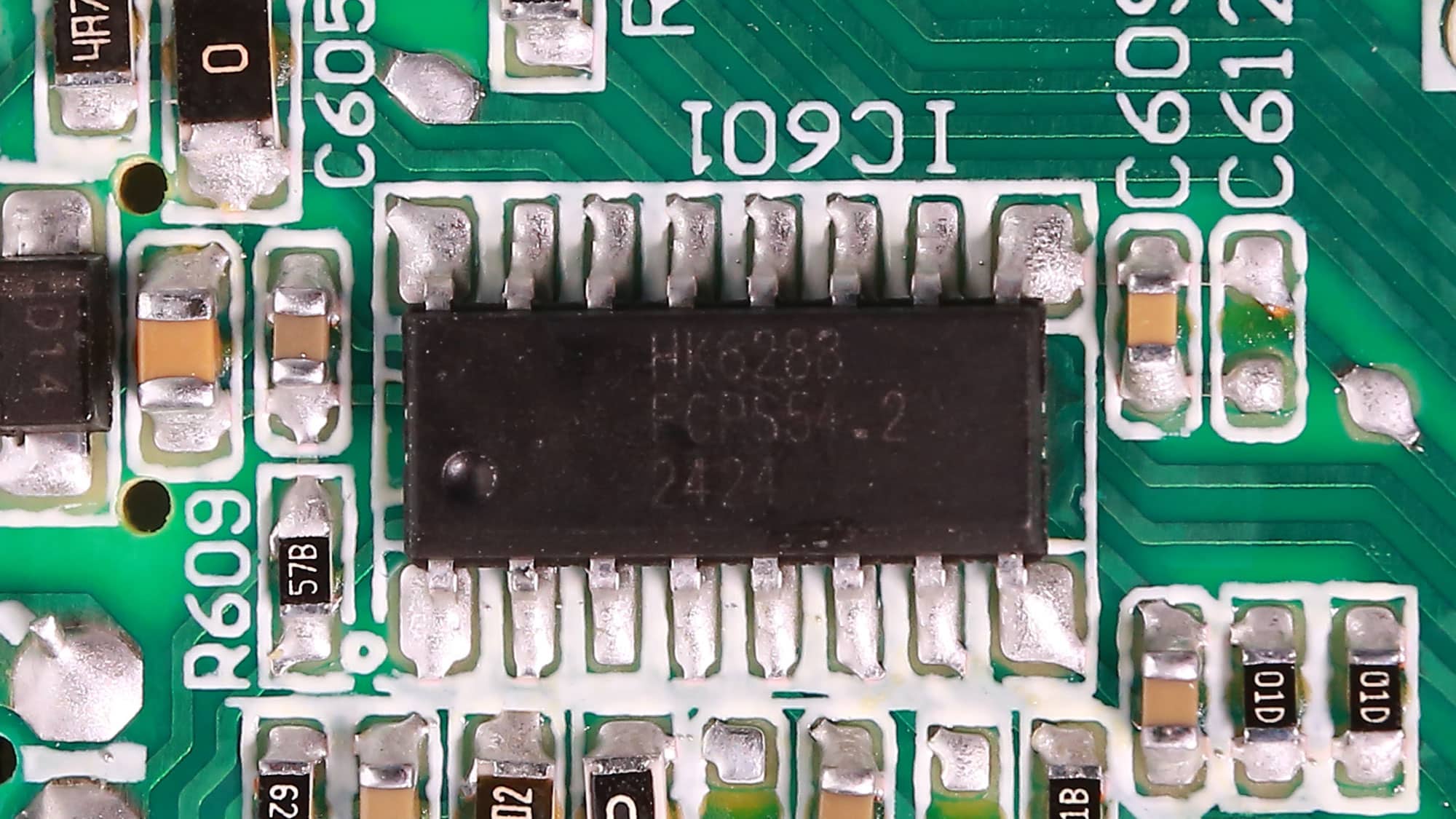

The resonant controller is an HK6288 (NXP TEA2017). This is a digitally configurable LLC and PFC controller.

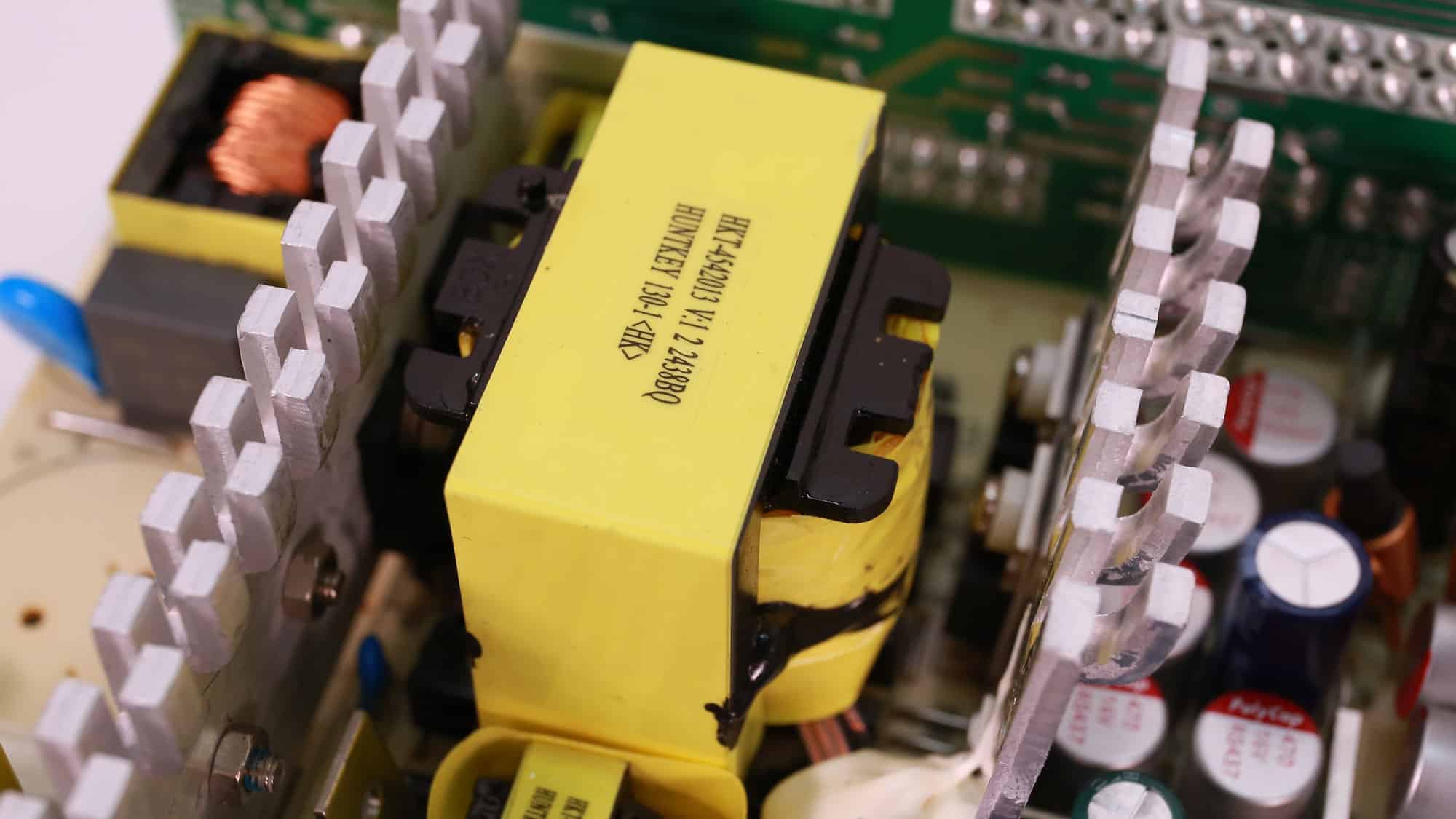

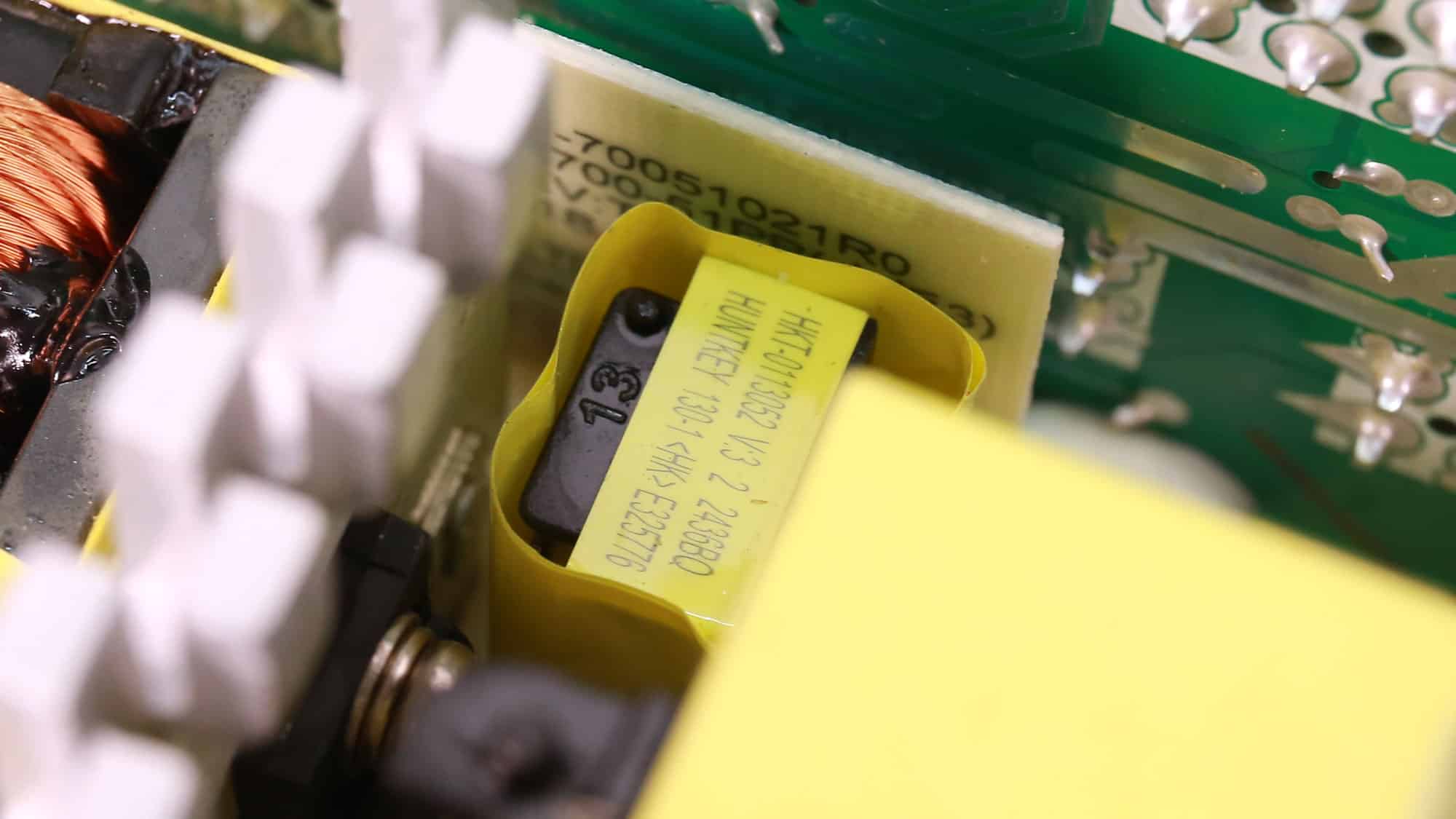

The PSU’s main transformer.

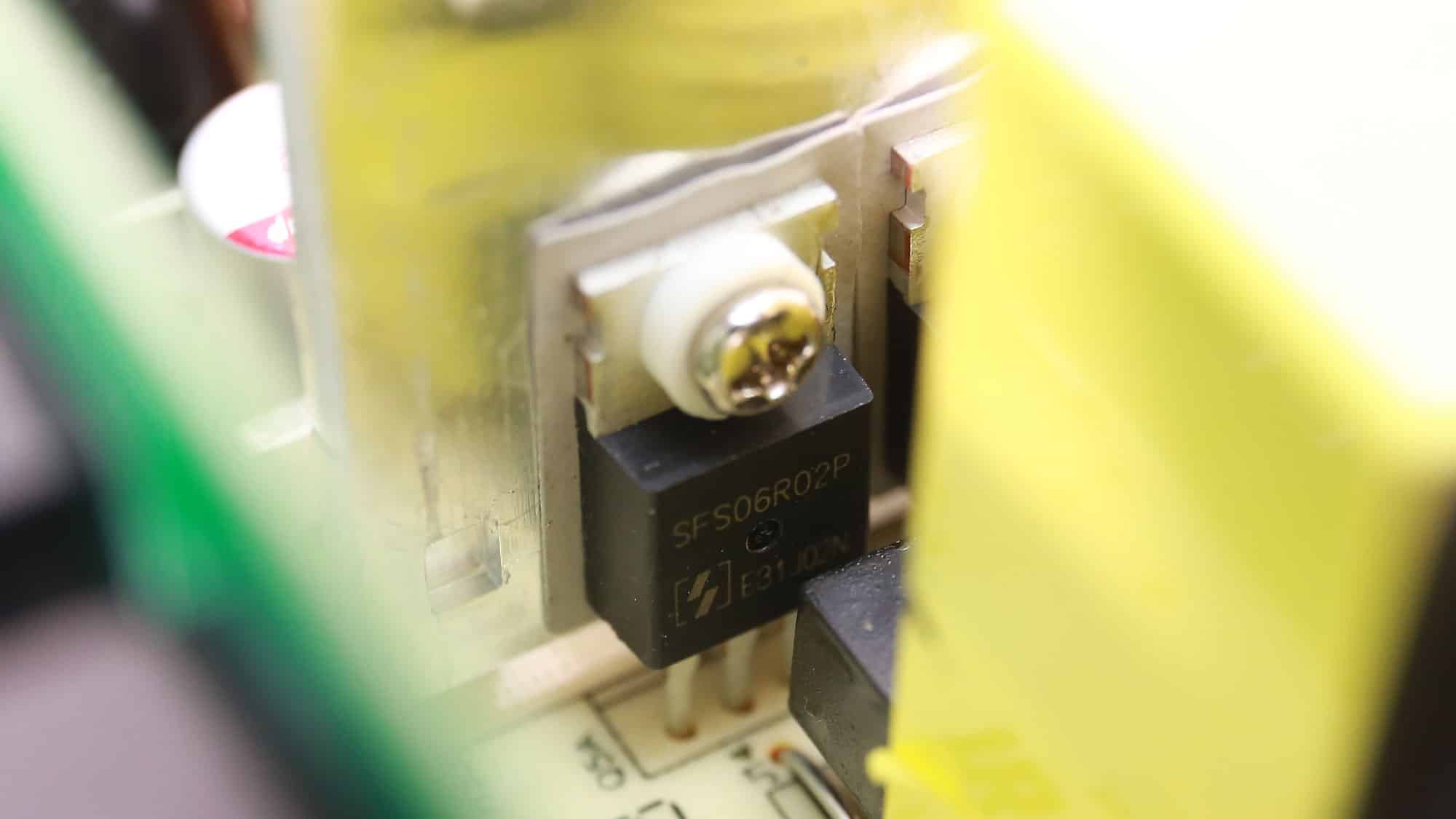

Two Oriental Semiconductor SFS06R02PF FETs regulate the 12V rail.

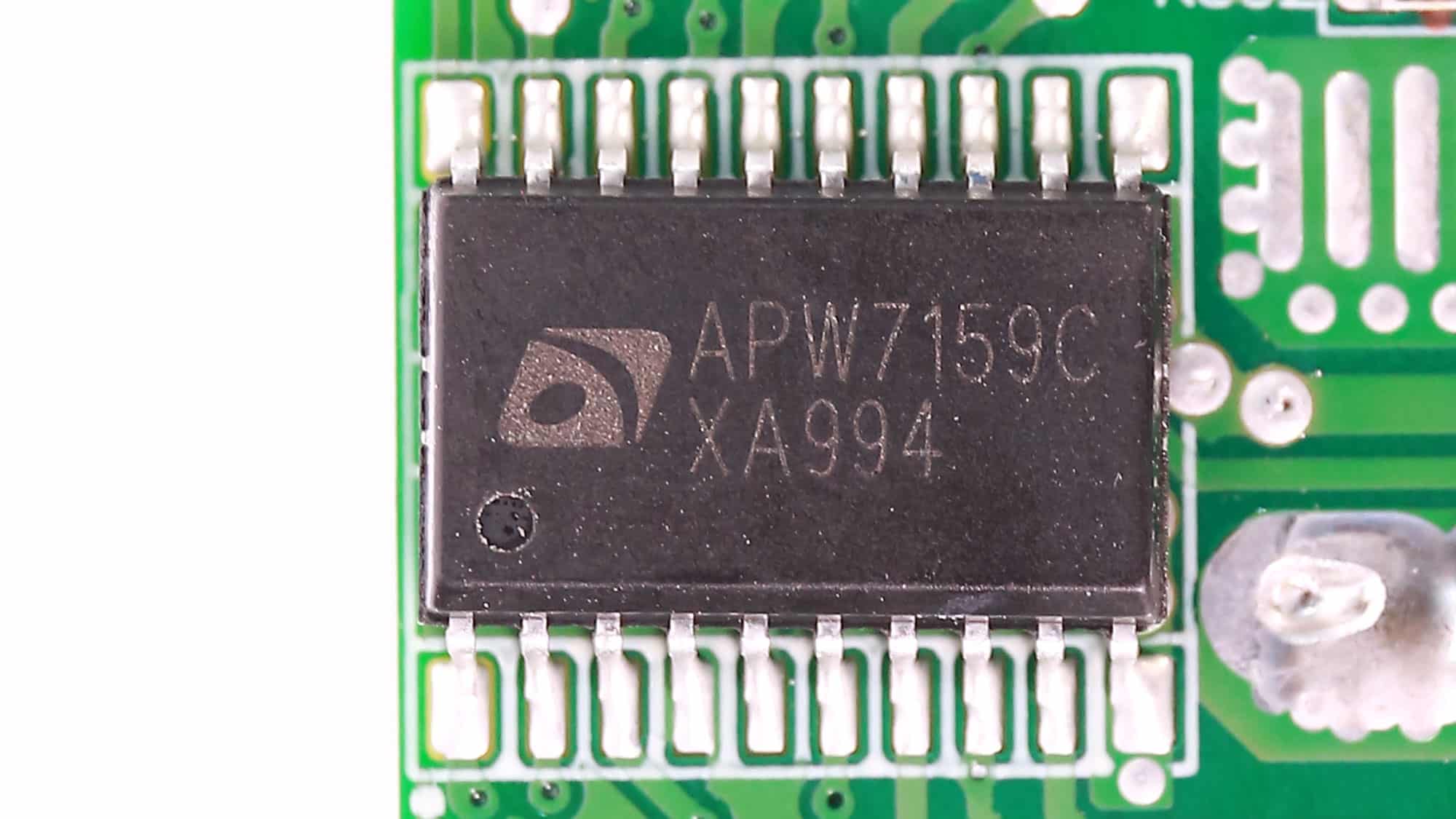

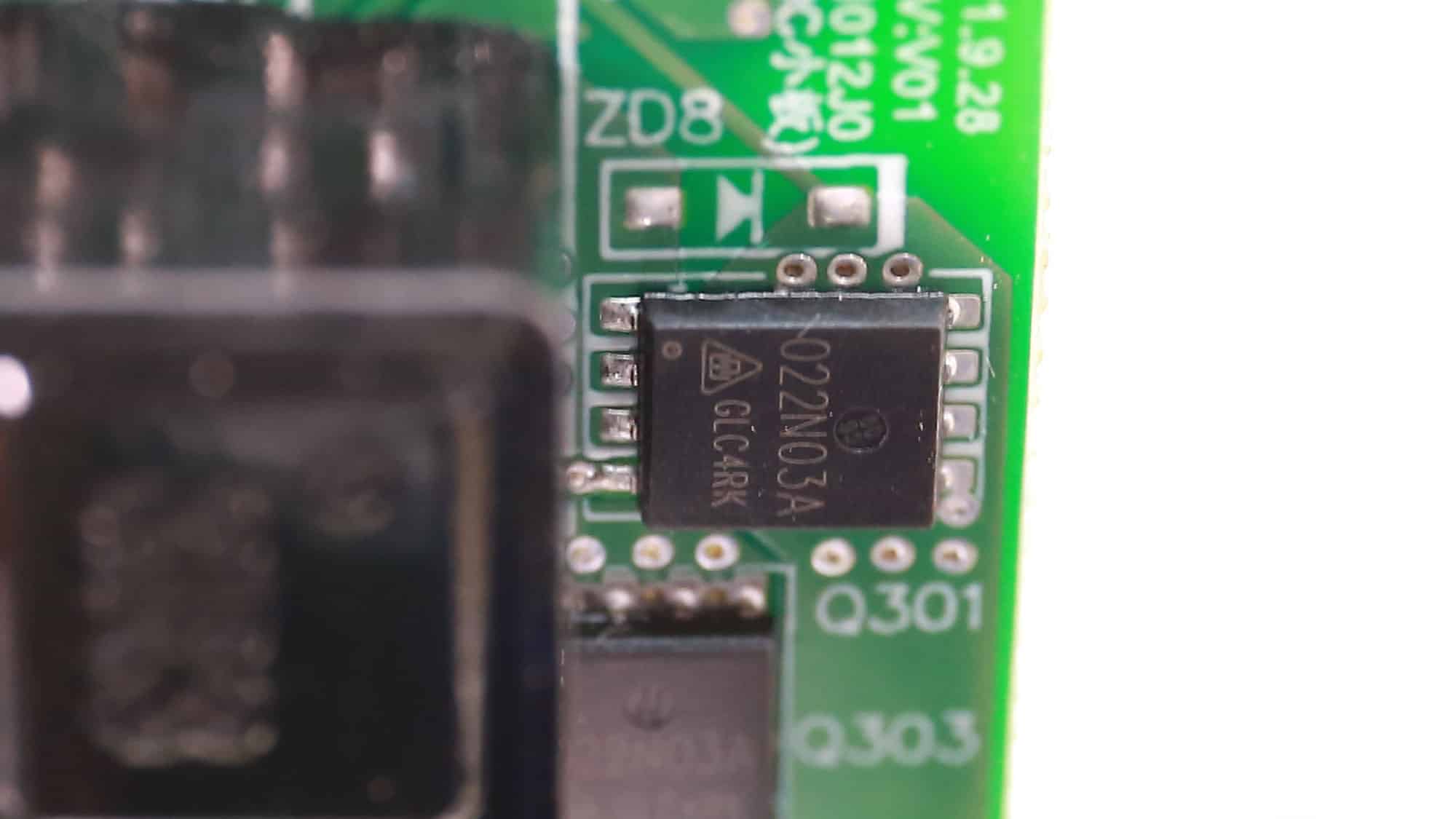

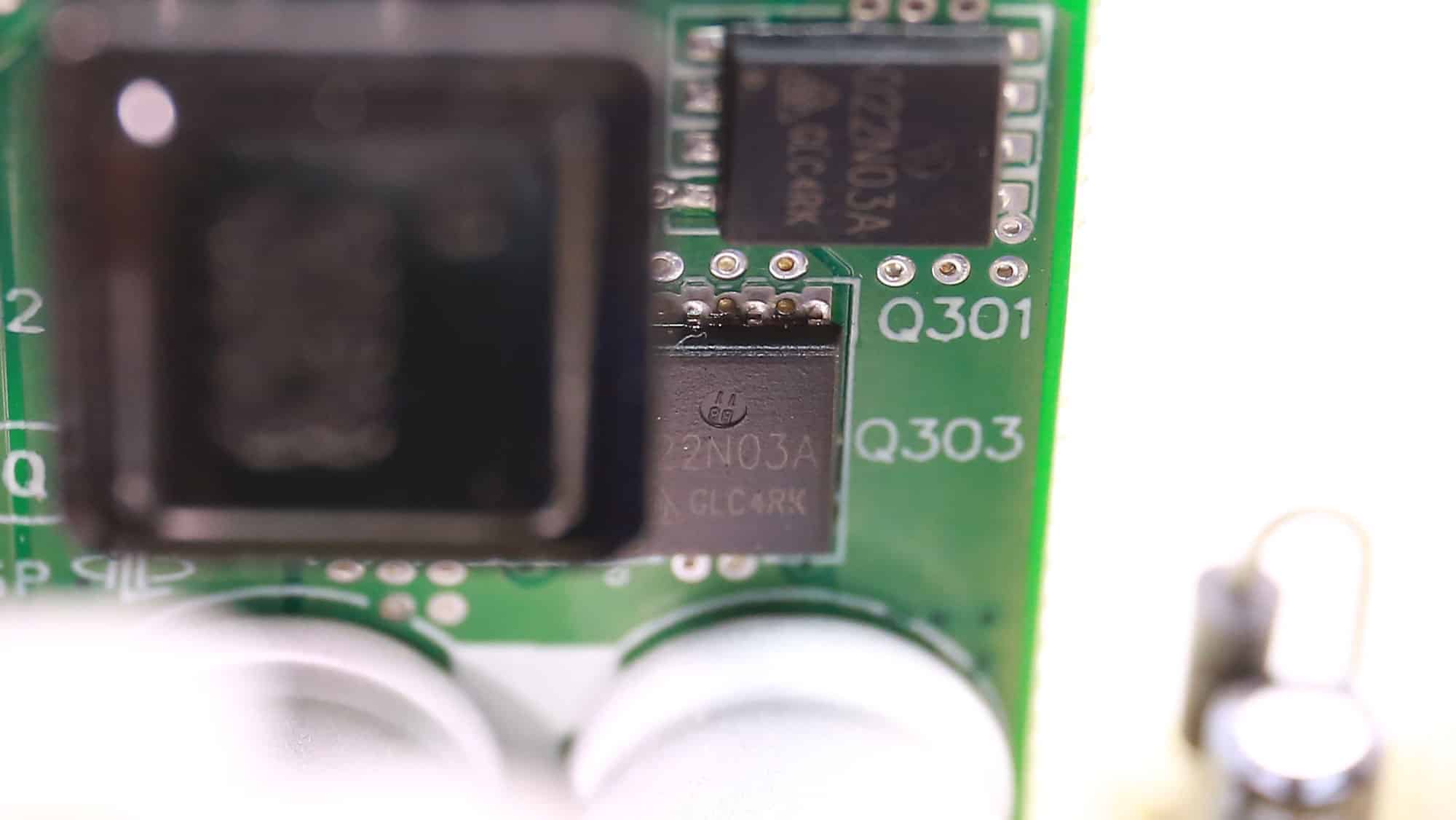

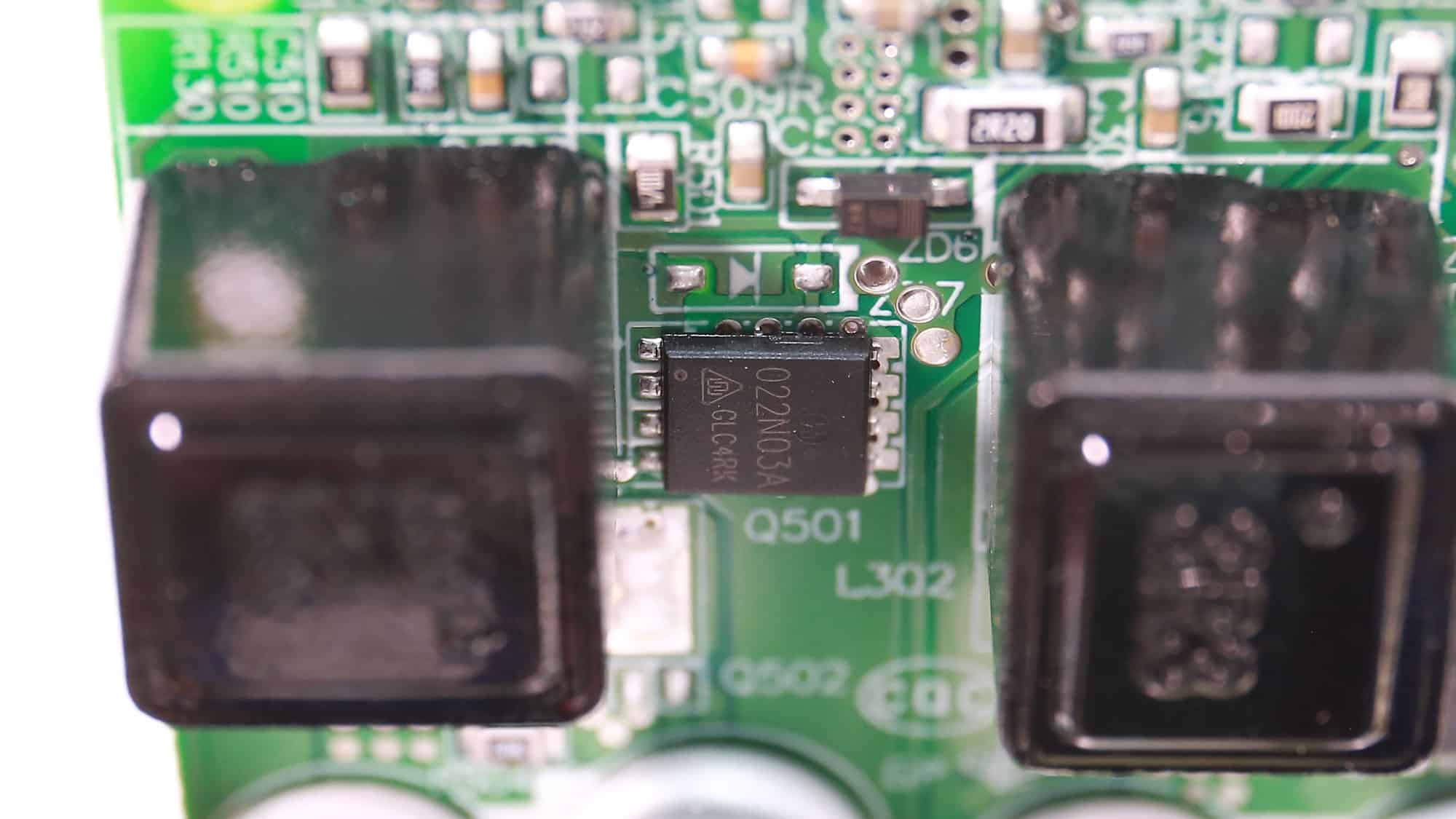

Two DC-DC converters generate the minor rails.

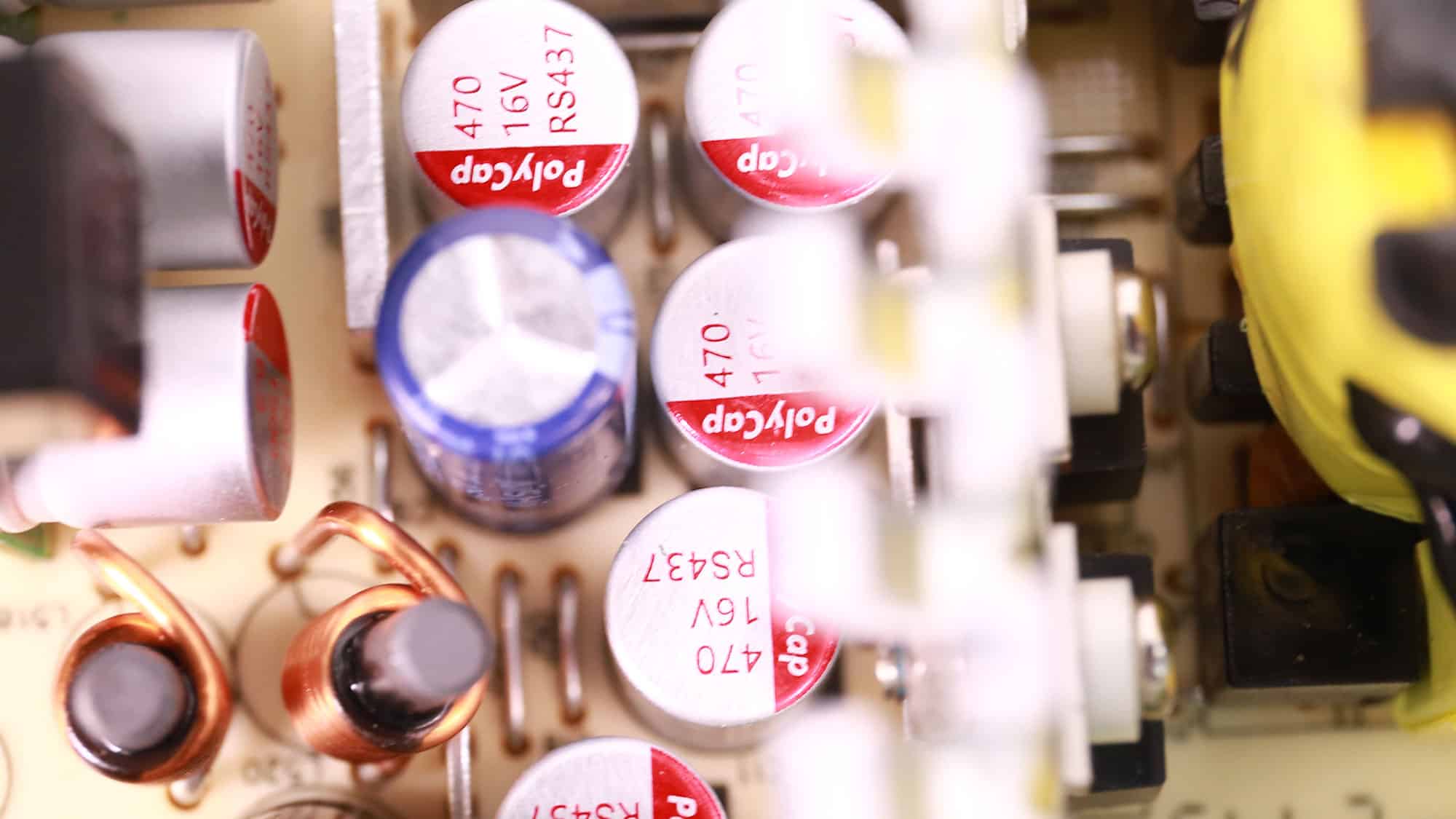

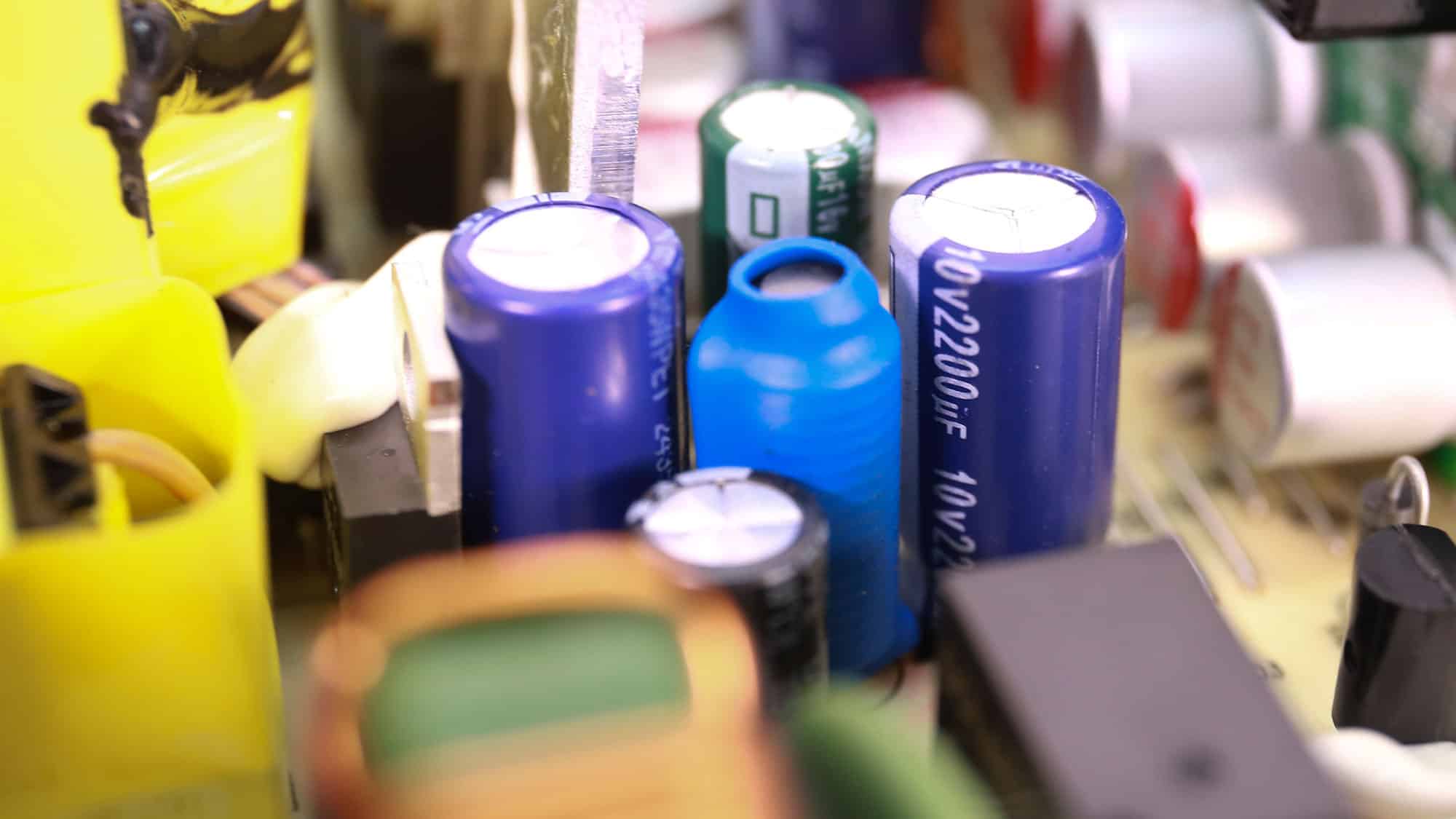

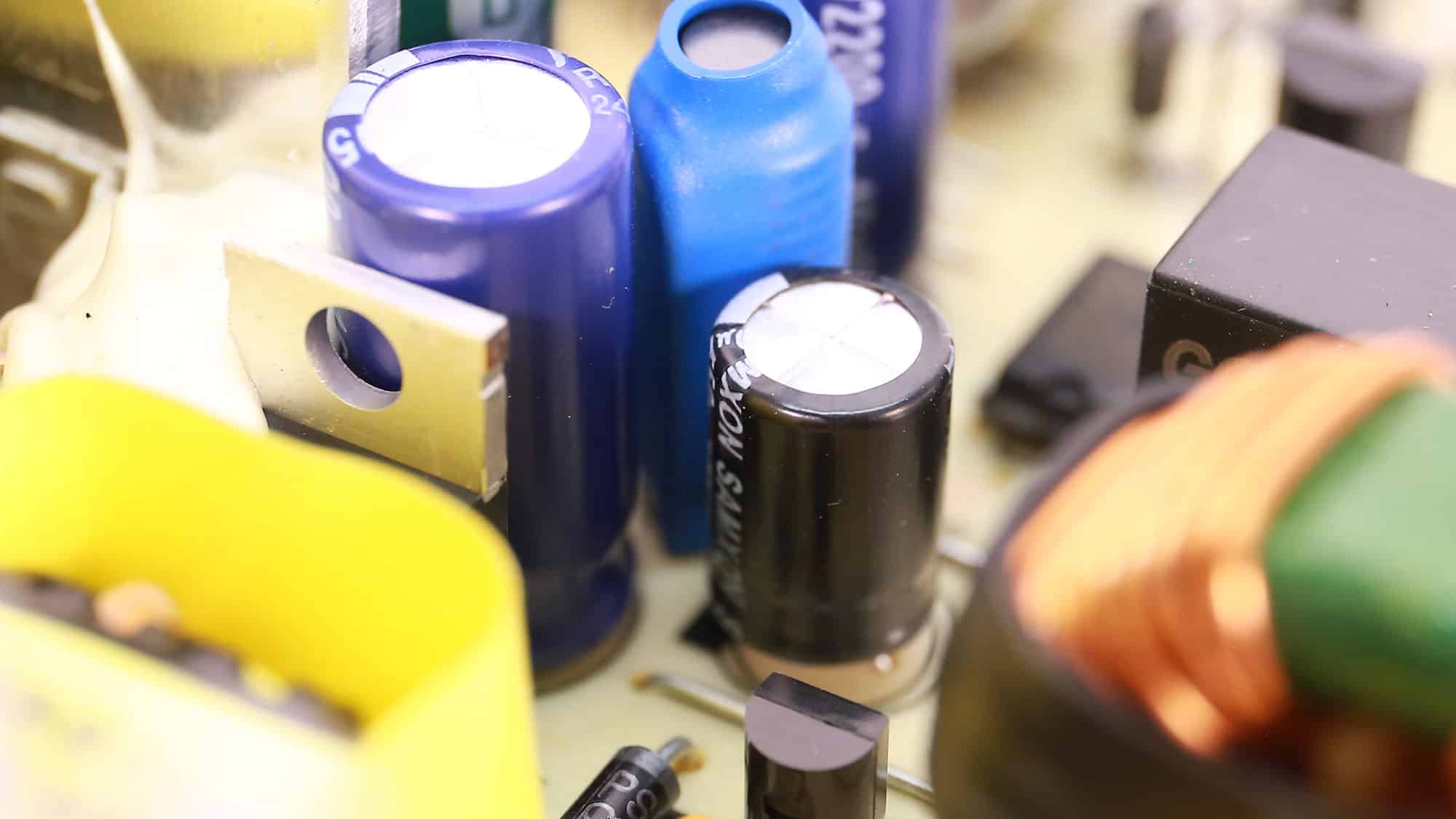

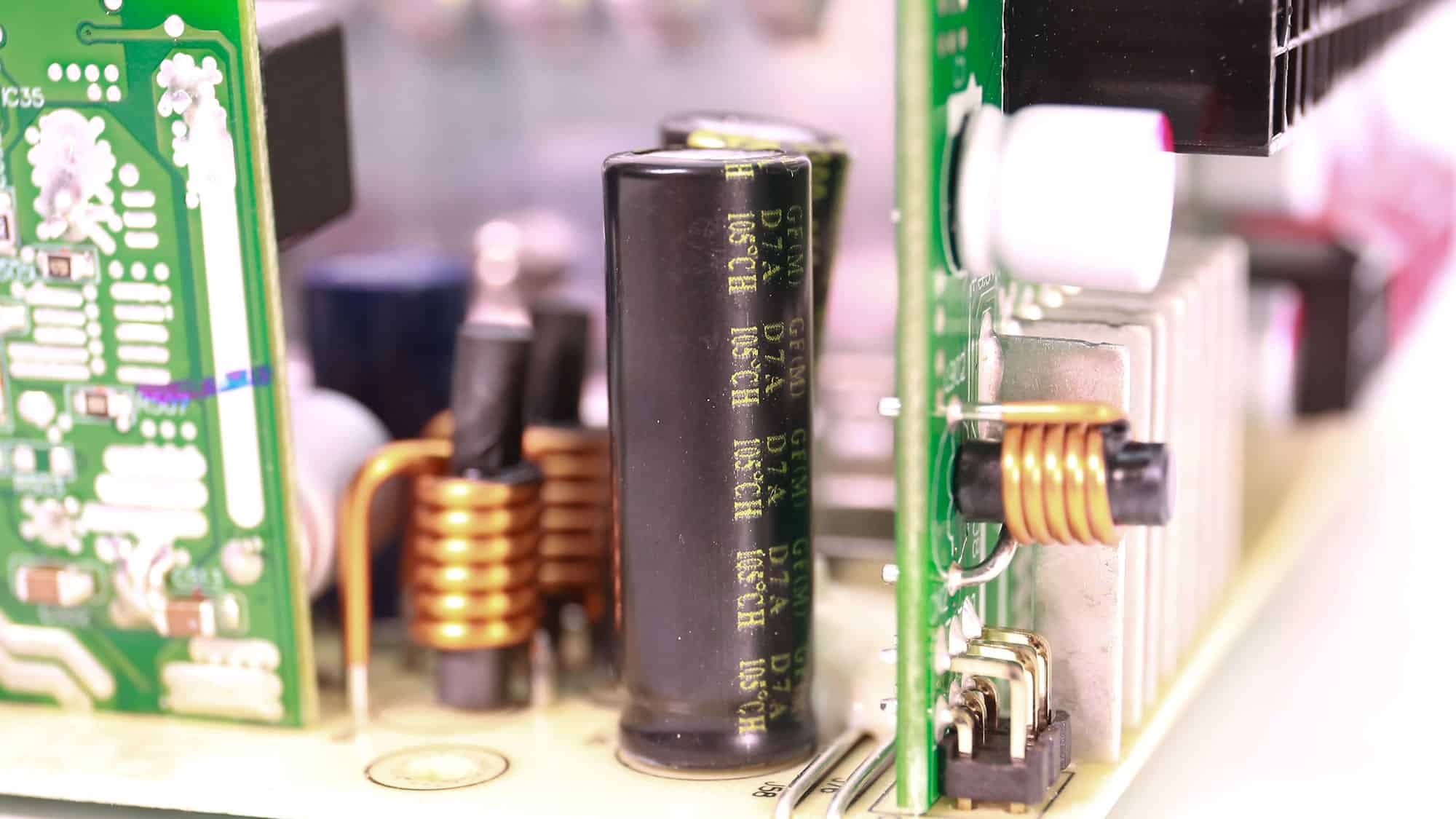

AiSHi and SamXon provide the electrolytic filtering capacitors. Polycap and X-Con make the polymer caps. These caps are of lower quality compared to other popular brands used in affordable PSUs, like Teapo and Elite.
You can find more information about capacitor performance and other specs below:

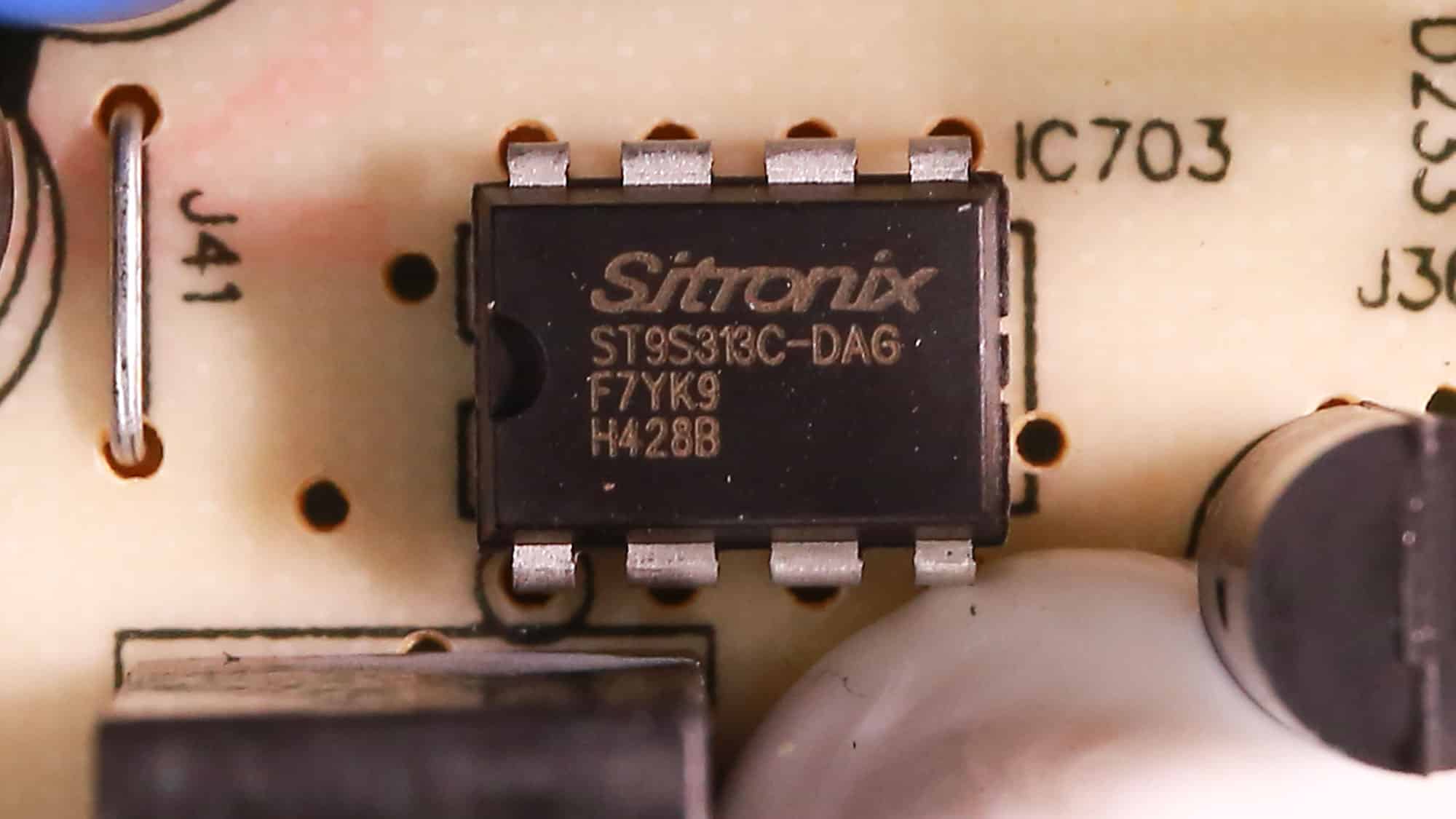

The supervisor controller is a Sitronix ST9S313C-DAG

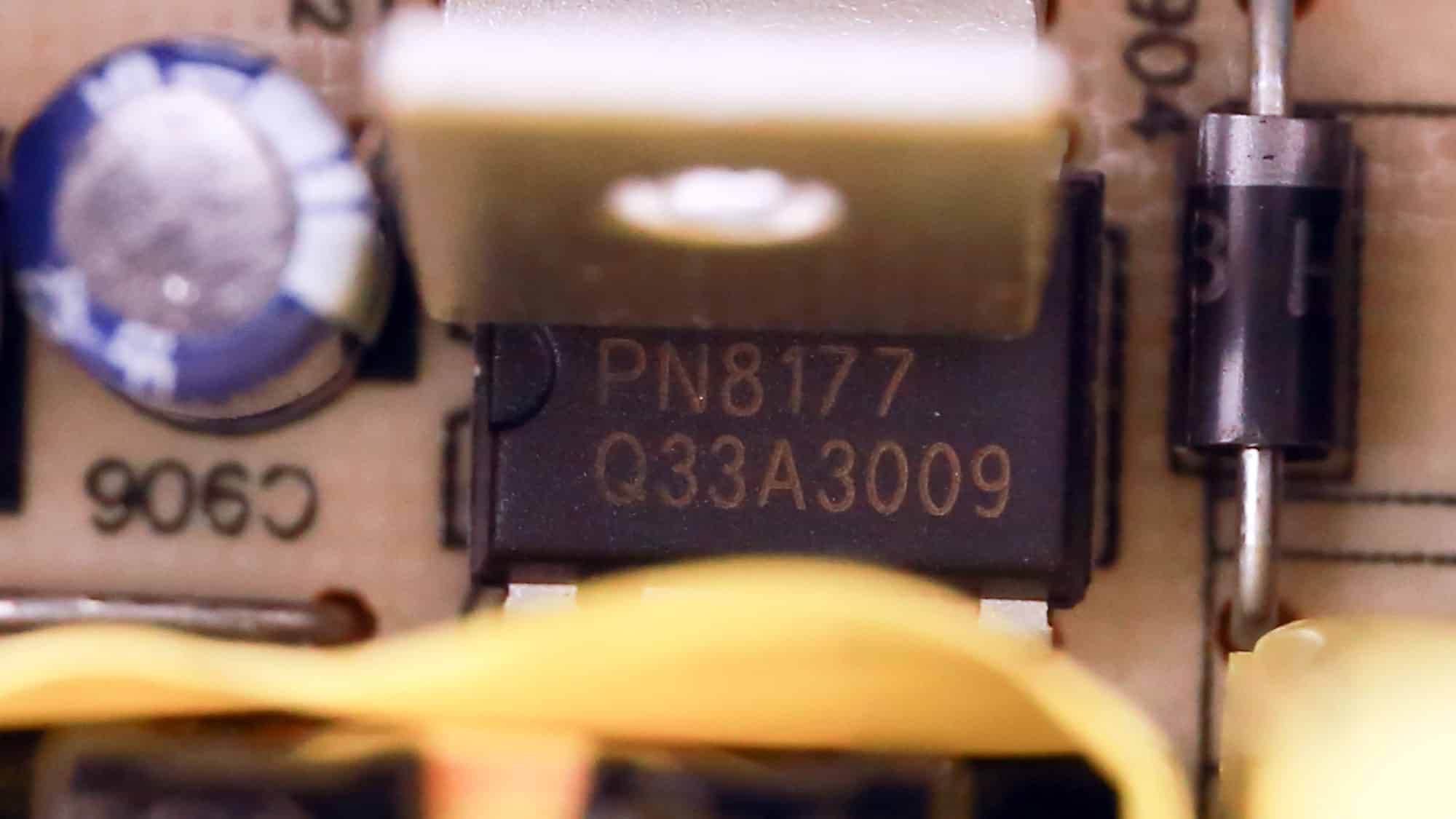

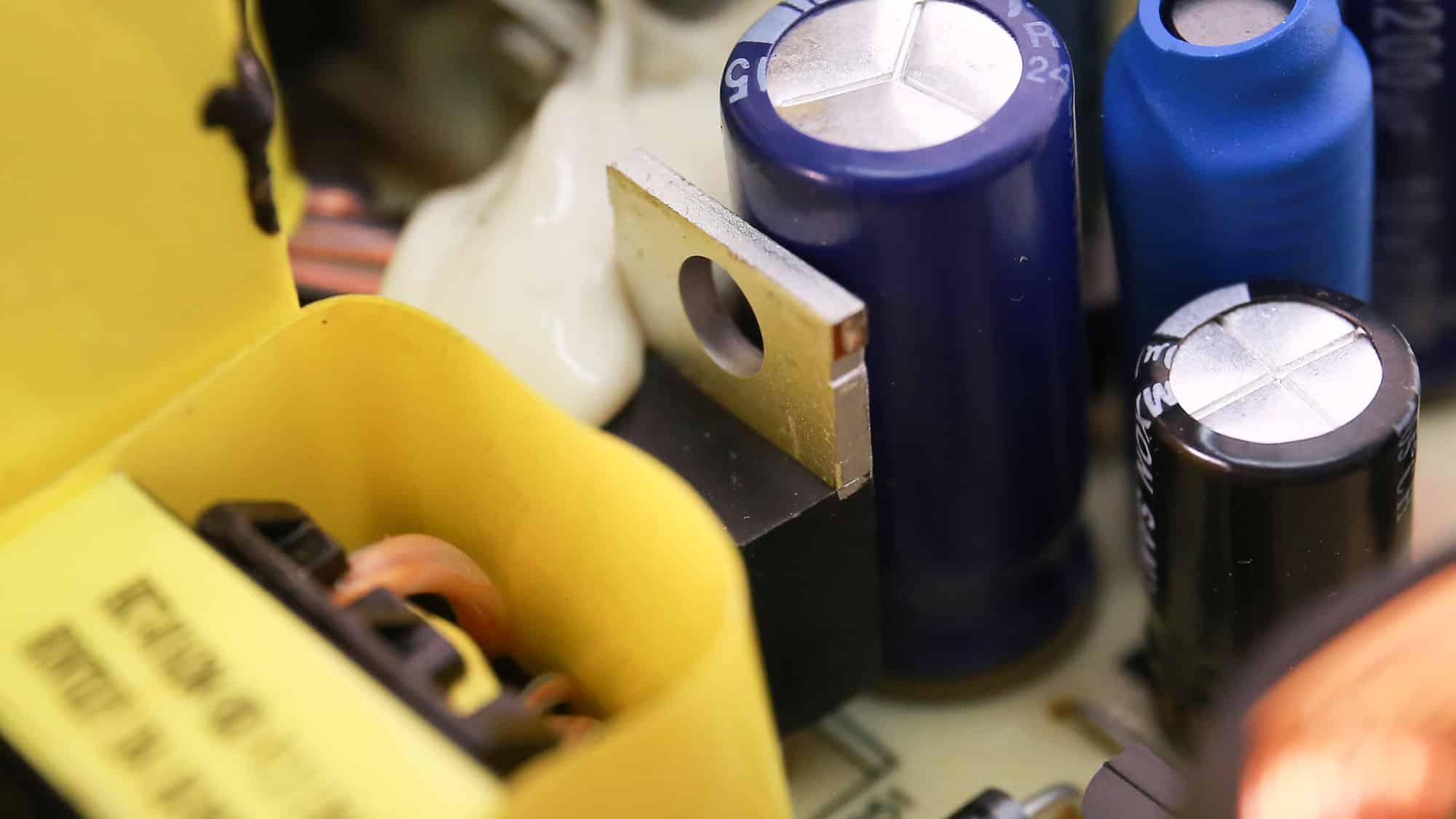

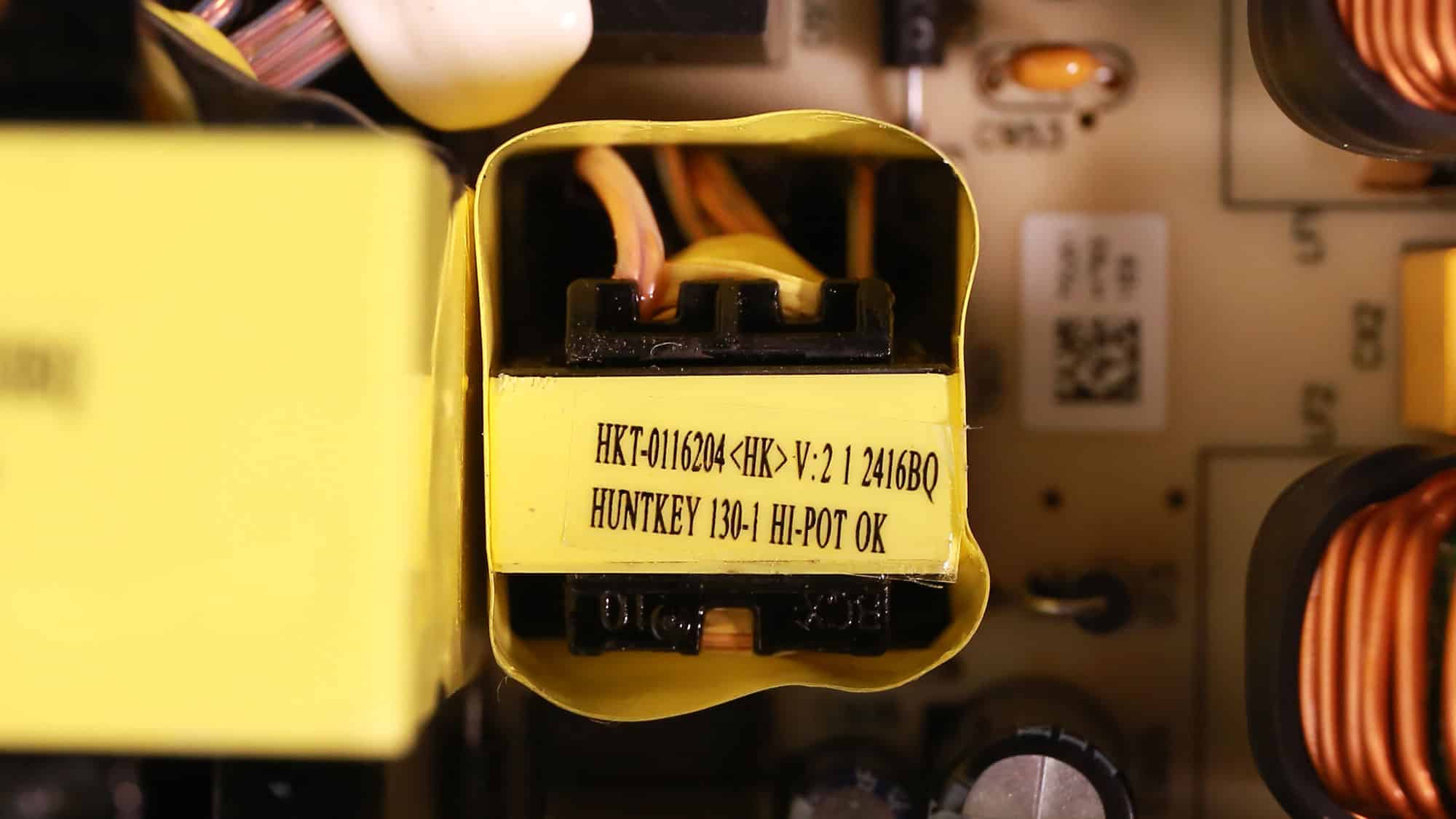

The standby PWM controller is a Chipown PN8177, and the secondary side rectifier is MBR1060CT.

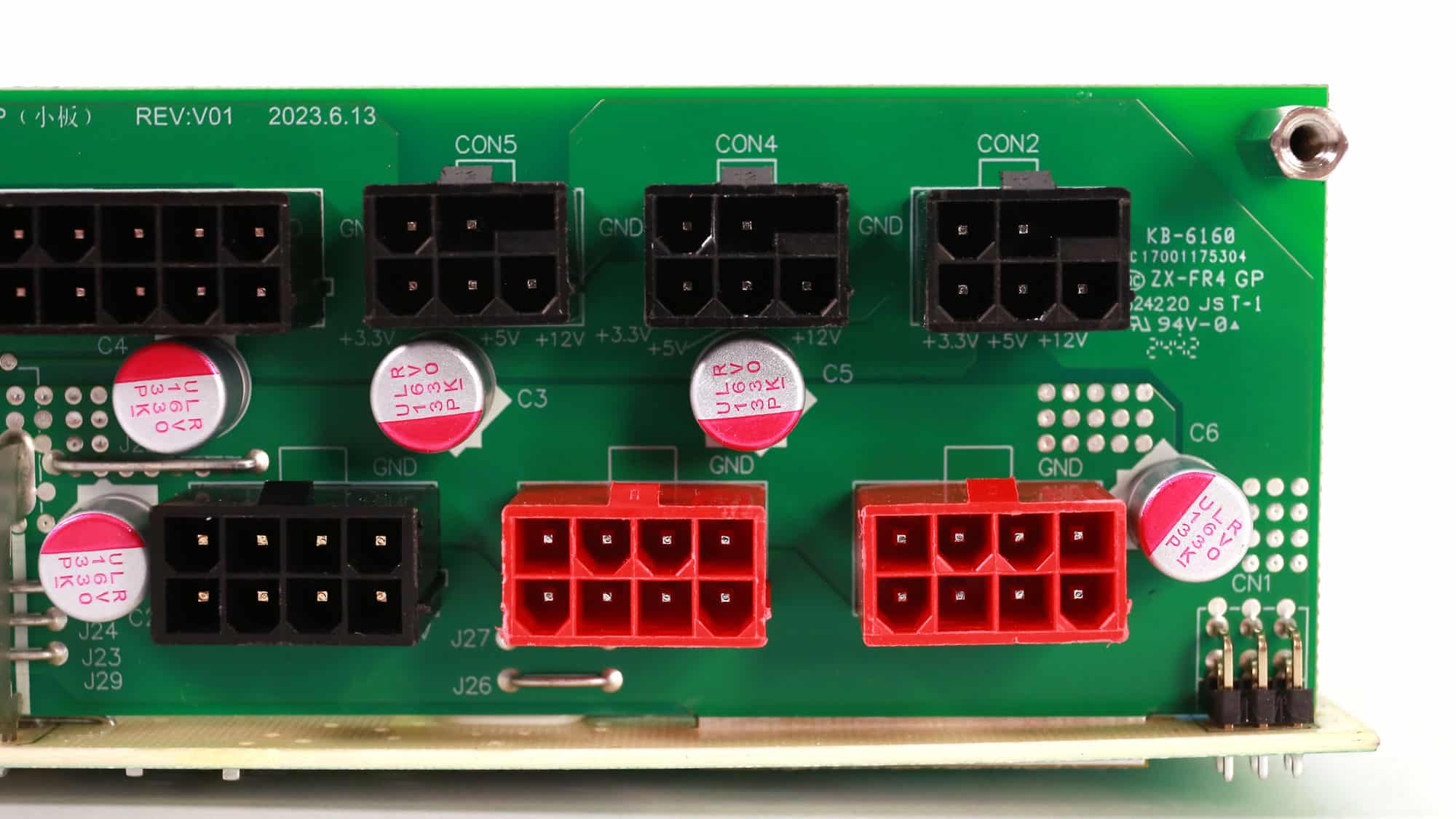

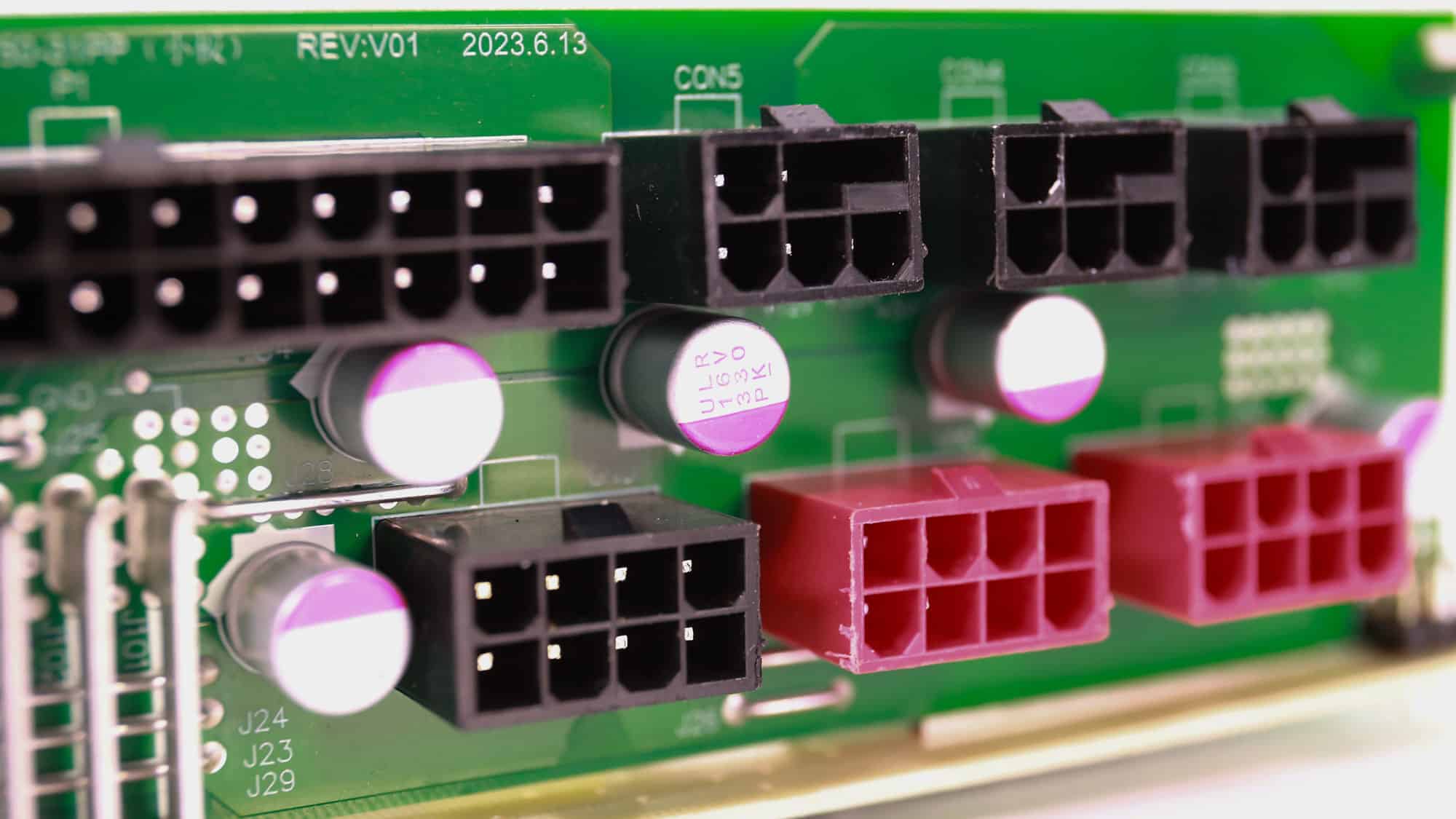

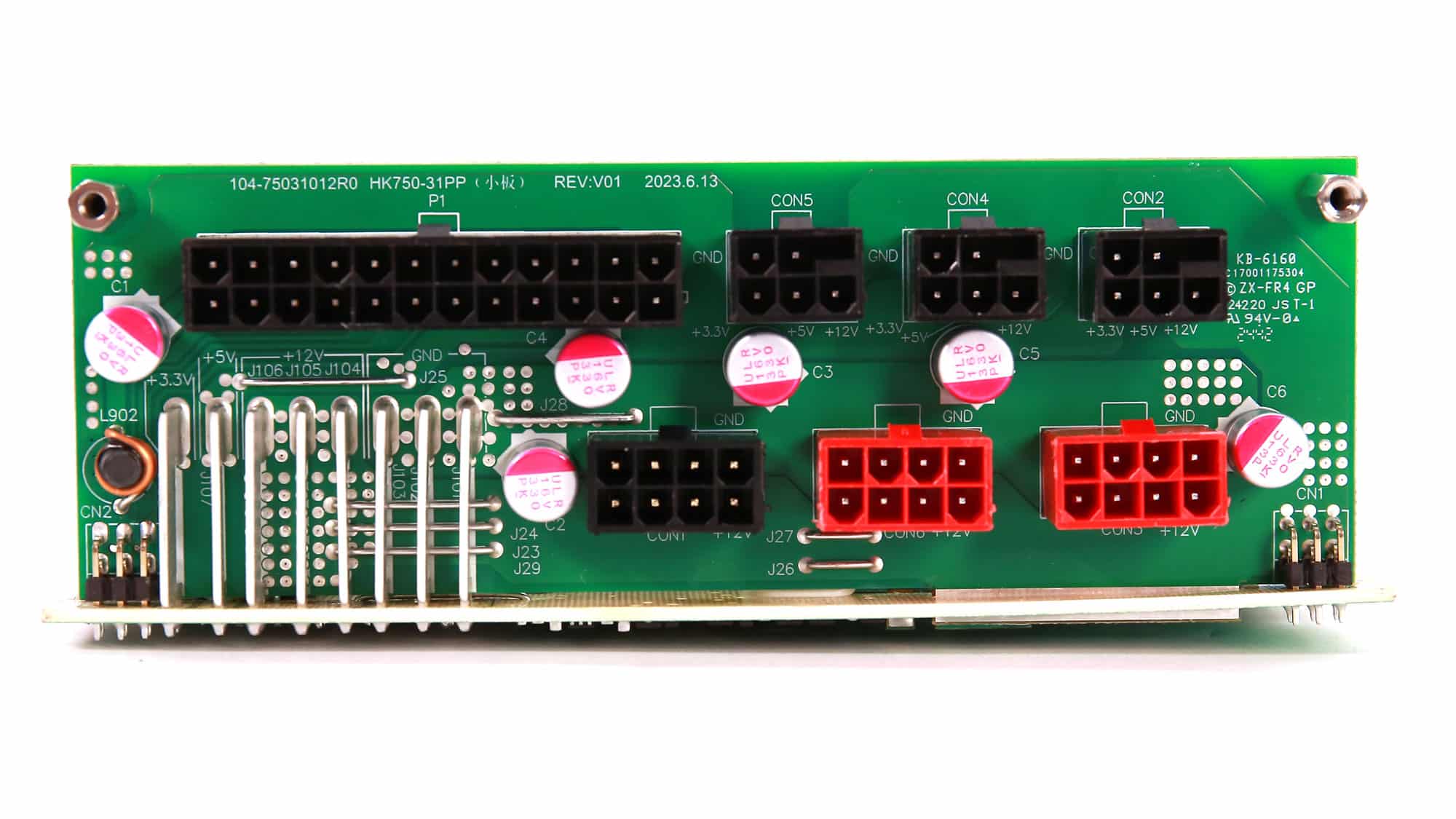

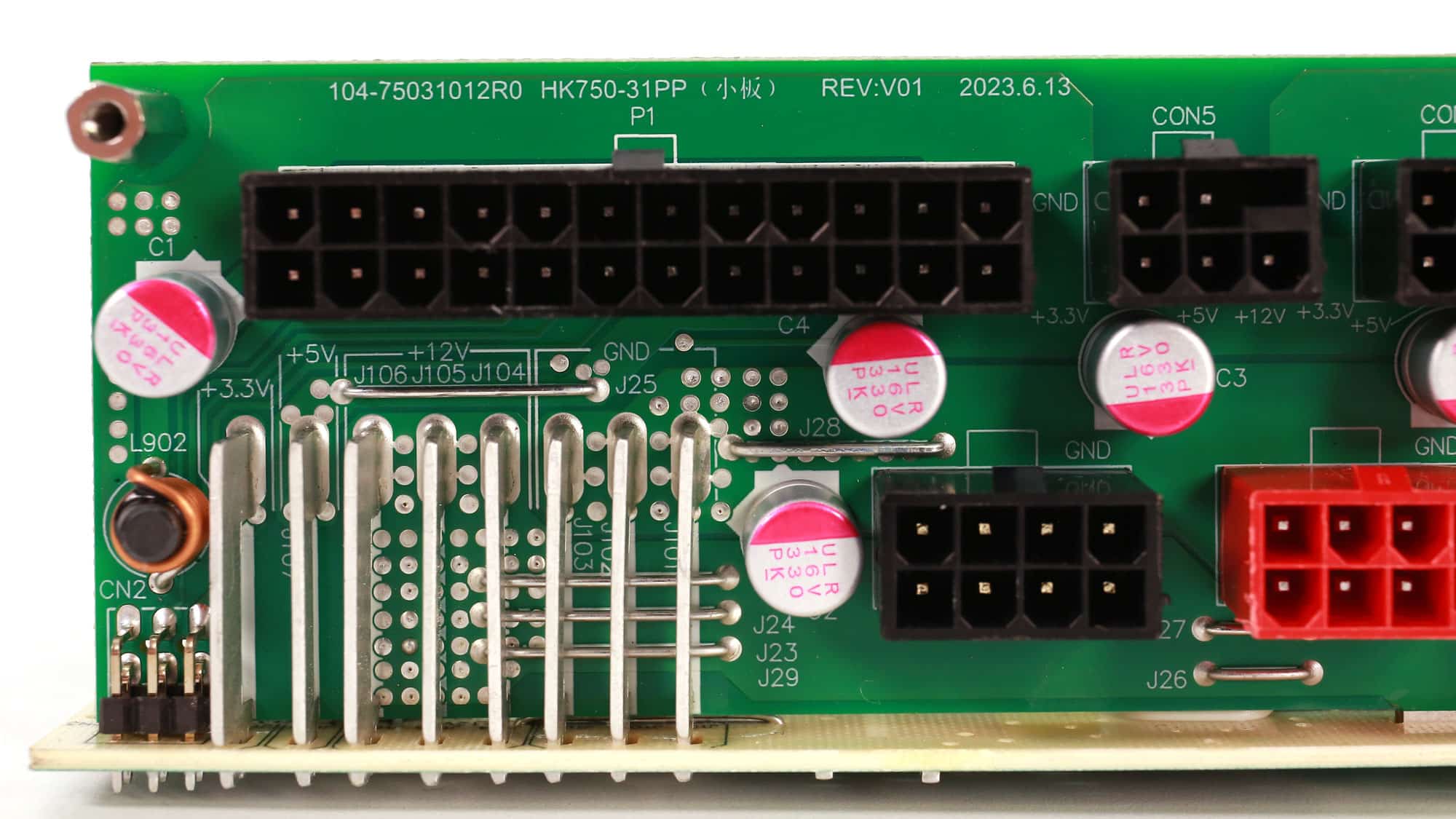

Six polymer caps at the face of the modular panel form an extra ripple-filtering layer.

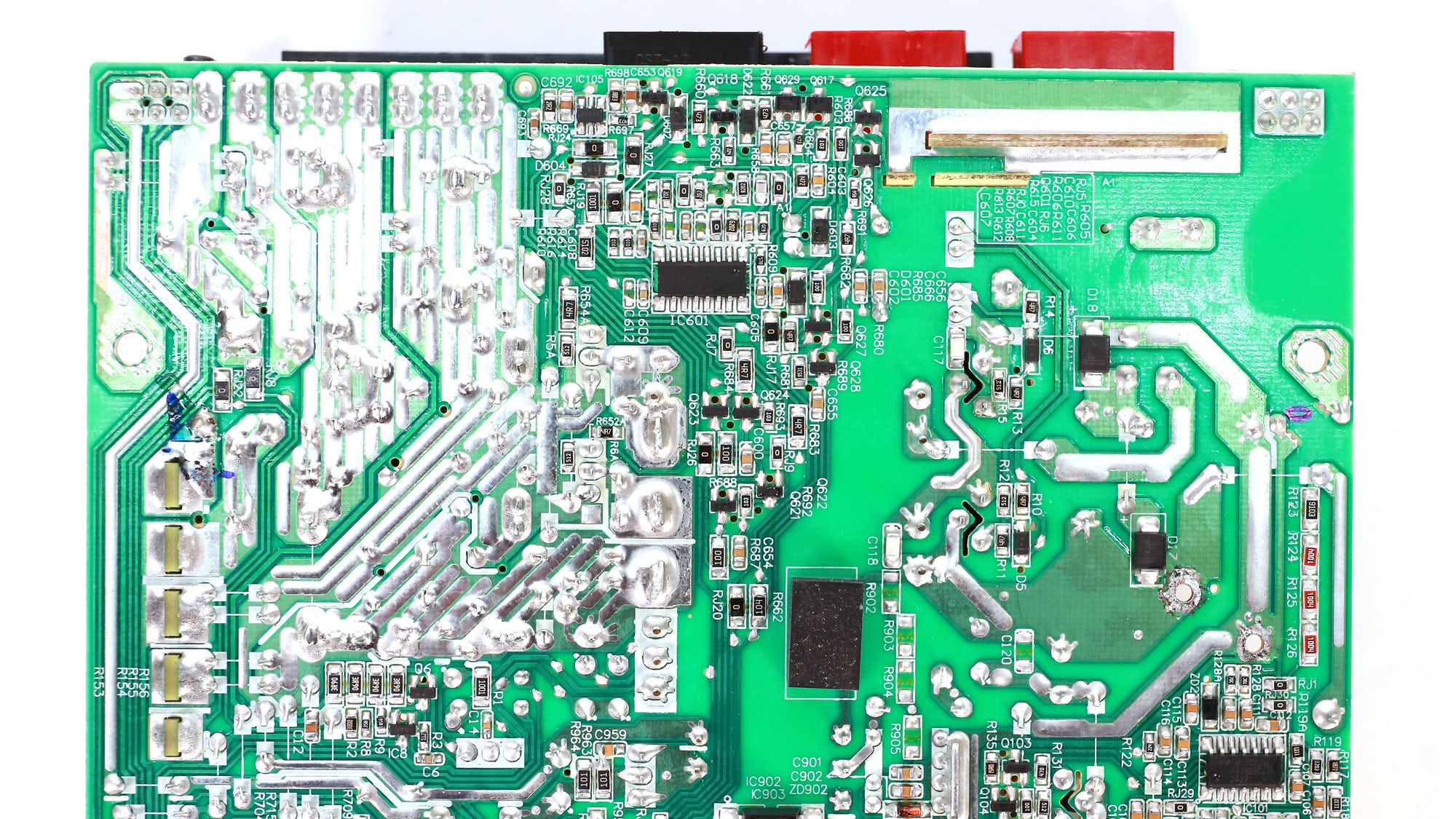

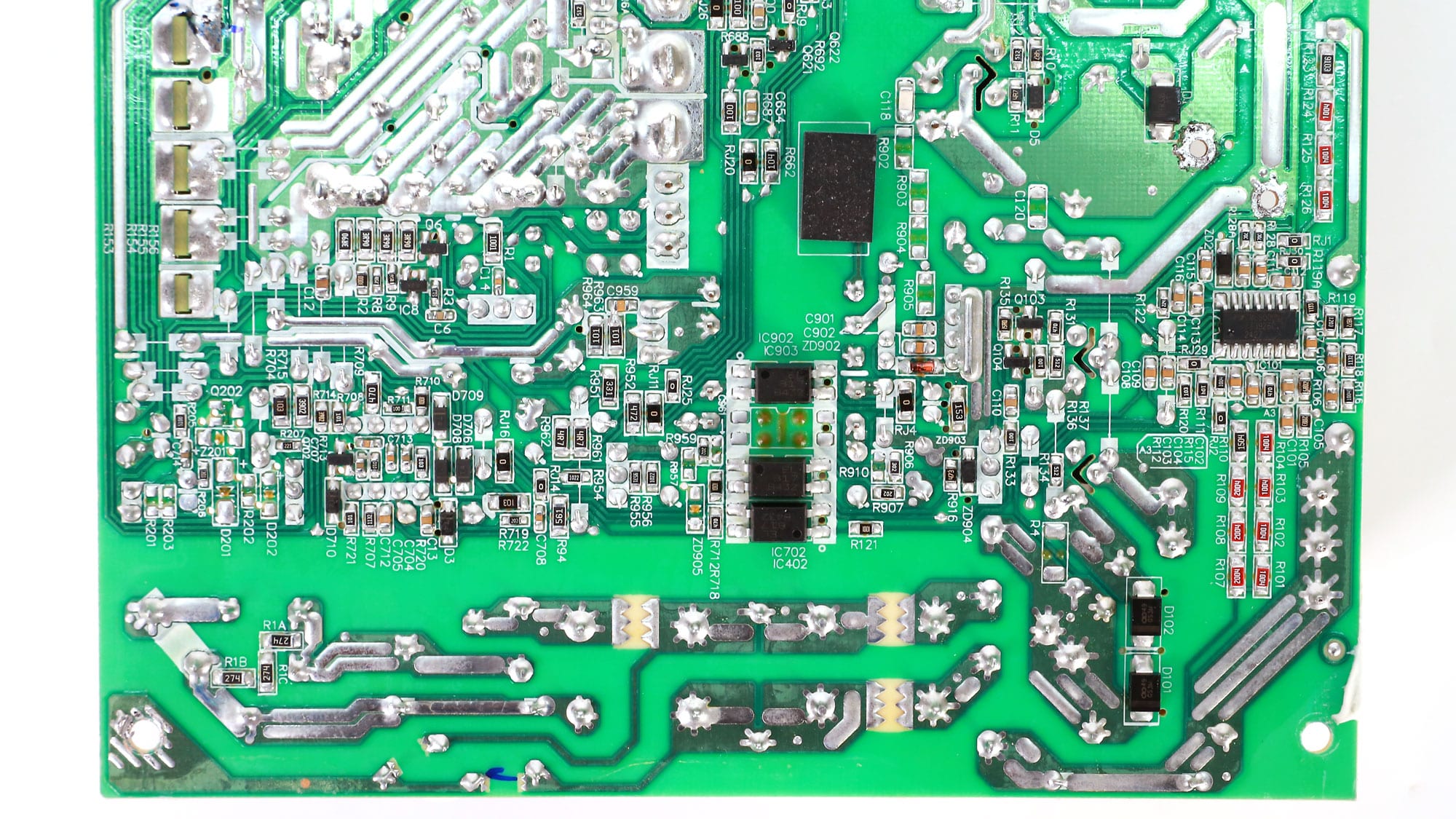

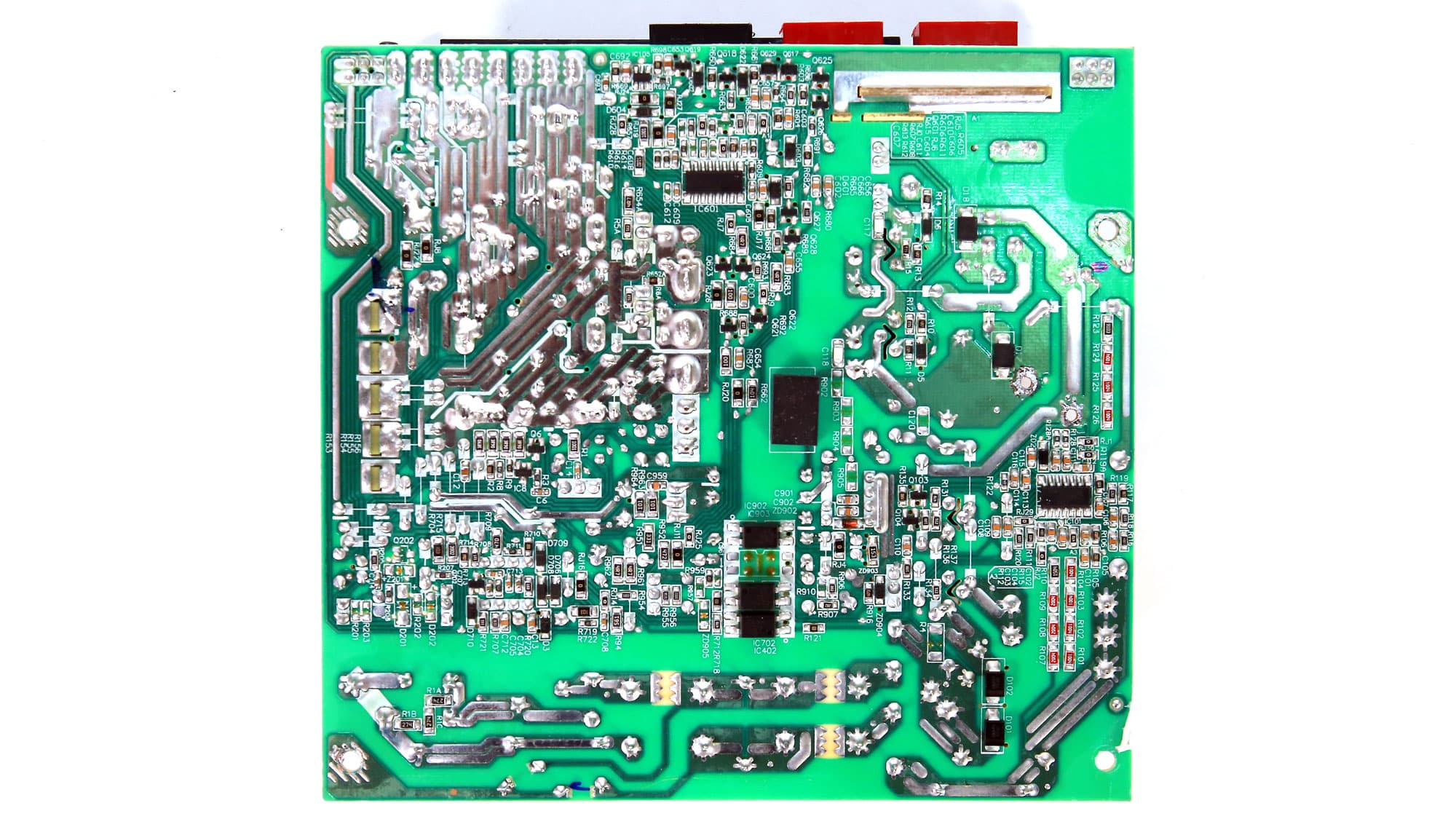

The soldering quality is decent.

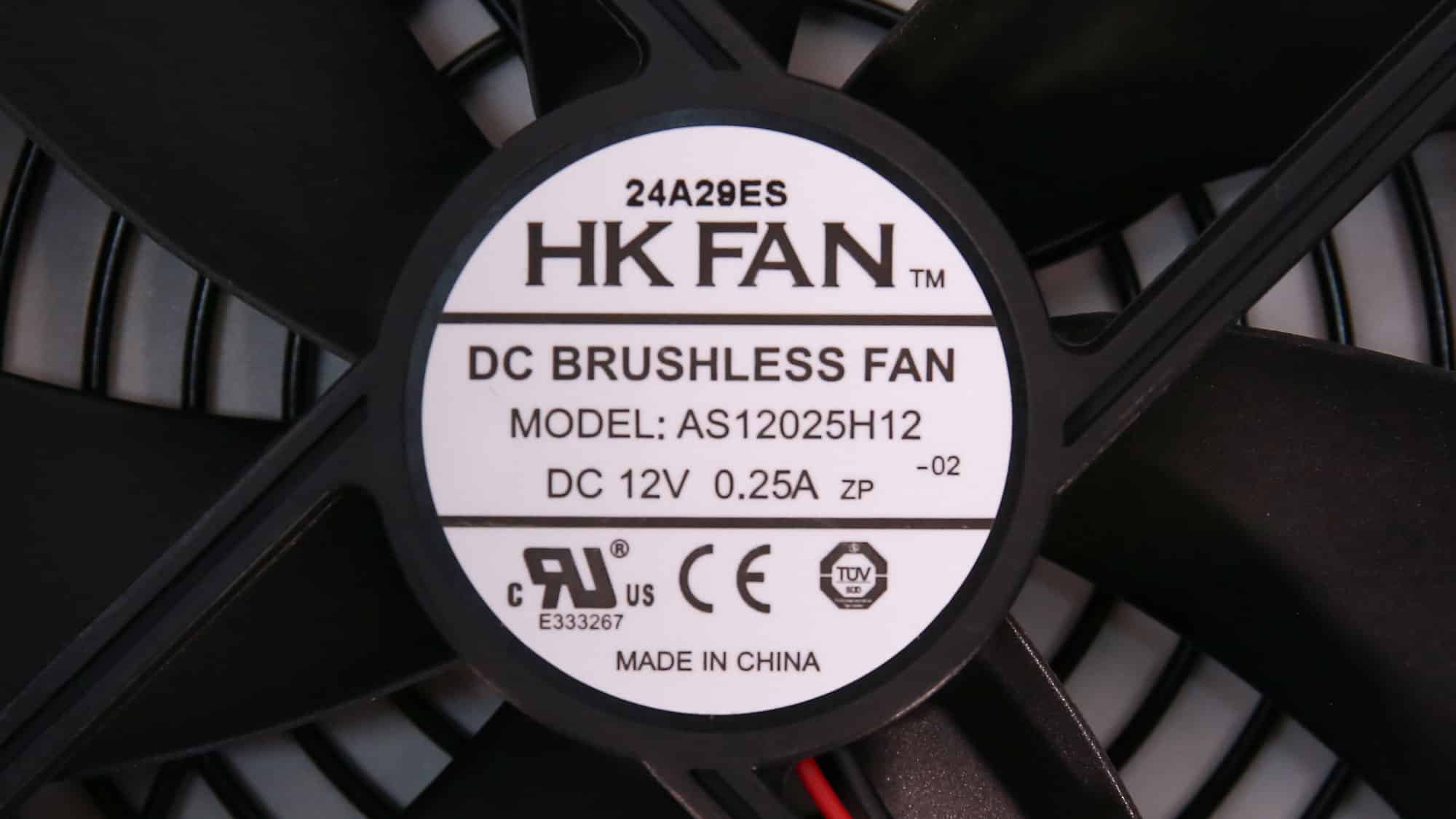

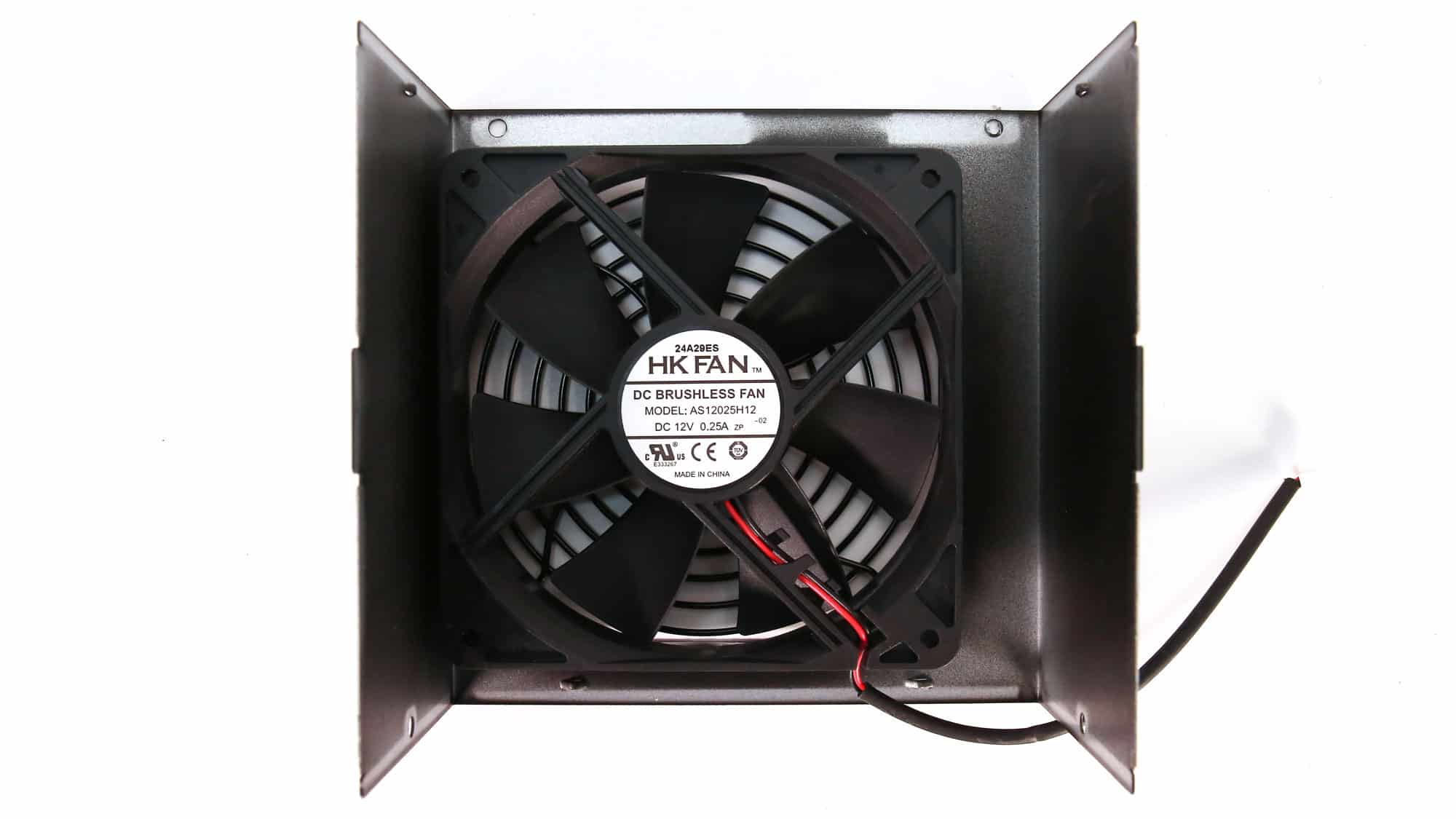

The cooling fan is HK AS12025H12, using a sleeve bearing.
It appears the unit failed to meet the Cybenetics Gold level solely due to 5VSB efficiency. This raises concerns about the potential for misleading conclusions, particularly when that parameter is not included in 80 PLUS certification.
Additionally, the loading values used in your test differ significantly from those defined by the 80 PLUS program. While 80 PLUS includes the -12V rail at 300mA, your data shows discrepancies of 1–2A on the 12V, 3.3V, and 5V rails. These are not trivial differences—they are large enough to prevent any fair or technically valid comparison between results. If the loading methodology is not consistent, any efficiency conclusions drawn across programs are fundamentally flawed.
In the interest of transparency and data integrity, I would be open to independently testing this unit to conduct an inter-laboratory comparison. This could help validate methodologies and clarify any discrepancies in the results.
