The PQ1000M-V2 uses the Seasonic V4 platform, achieving high efficiency but in terms of output noise, it is not among the quietest 1000W PSUs. Read the full review to learn more about this PSU.
The Gamer Storm PQ1000M-V2 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.

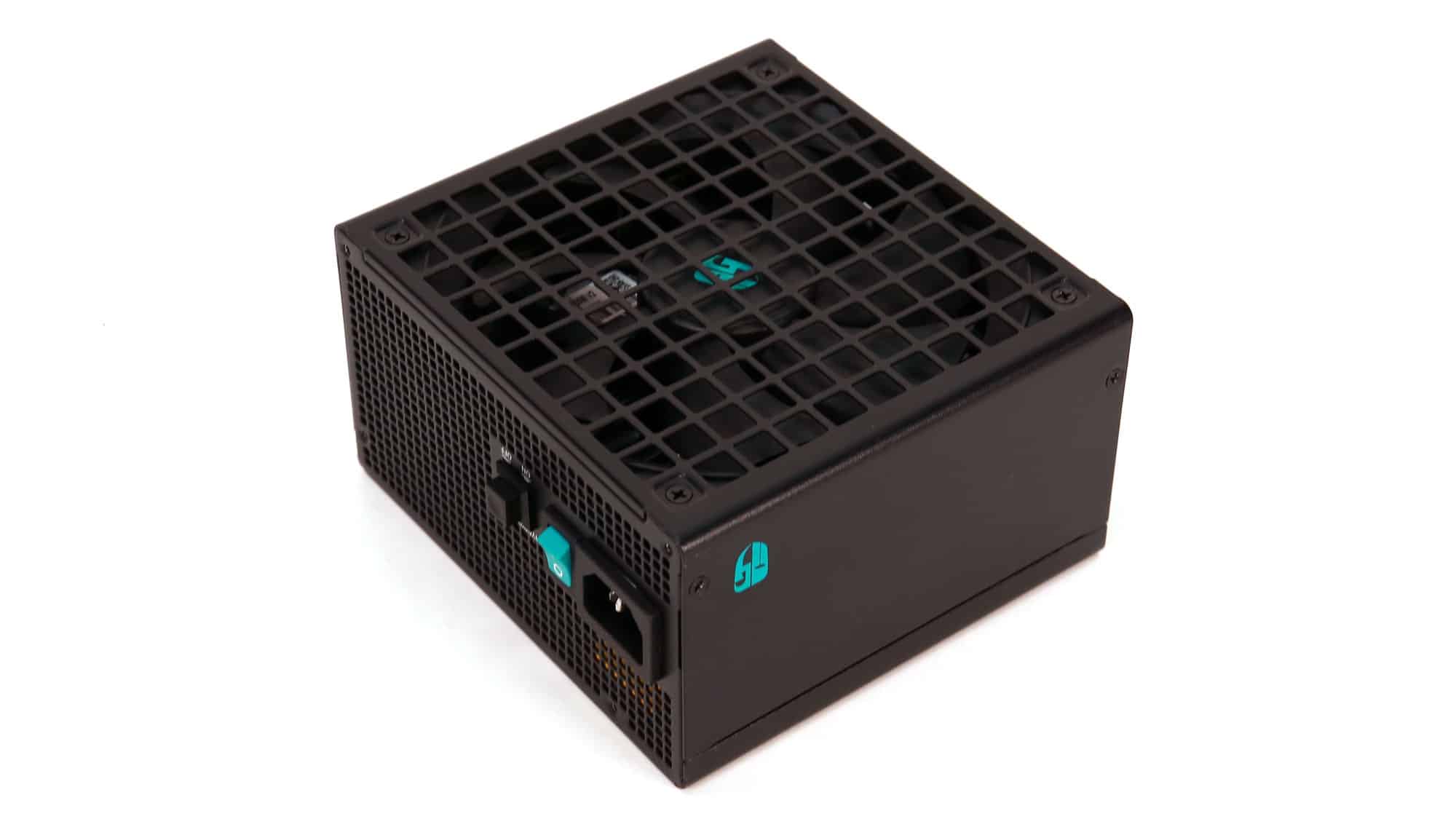

Part of DeepCool products are now under the Gamer Storm brand, which (so far) is not so active in the global market. In today’s review, I will examine the PQ1000M-V2, which, like the other two members of its family, utilizes the Seasonic Focus V4 platform. This is an efficient platform, and the specific PSU achieves Platinum efficiency in the Cybenetics respective scheme (ETA). In noise output, the PQ1000M-V2 scores Cybenetics Standard++, so it is not among the quietest PSUs in the 1000W category.
At the time of the review, there was no mention of the product’s price and release date. Still, I think this is an interesting review, as it involved the popular Seasonic Focus V4 platform. While Seasonic places a great deal of emphasis on the retail market, it also continues to provide platforms for other brands.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
ATX v3.x 1000W PSU Reviews:
- 1st Player NGDP 1000W PSU Review
- ASUS ROG Thor 1000W Platinum III ATX v3.1 PSU Review
- be quiet! Pure Power 11 FM 1000W PSU Review
- be quiet! Power Zone 2 1000W ATX v3.1 PSU Review
- be quiet! Dark Power 13 1000W PSU Review
- Cougar GEX X2 1000W PSU Review
- Endorfy Supremo FM6 1000W ATX v3.1 PSU Review
- FSP Hydro Ti Pro 1000W PSU Review
- FSP Hydro G Pro 1000W ATX v3.0 PSU Review
- FSP VITA GM 1000W ATX v3.1 PSU Review
- Montech Titan Gold 1000W PSU Review
- MSI MAG A1000GLS PCIE5 ATX v3.1 PSU Review
- Seasonic Vertex PX-1000 ATX v3.0 PSU Review
- Super Flower Leadex VII Gold 1000W (SF-1000F14XG) PSU Review
- Super Flower Leadex VII PRO 1000W ATX v3.1 PSU Review
- Sharkoon Rebel P20 1000W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1000W ATX v3.0 PSU Review
- Vetroo 1000W ATX v3.0 PSU Review
- Manufacturer (OEM): Seasonic
- Max Power: 1000W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (89.401%), [230V] Cybenetics Platinum (91.279%)
- Noise: [115V] Cybenetics Standard++ (31.10 dB[A]), [230V] Cybenetics Standard++ (31.72 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 996W
- Number of 12V rails: 1
- Power 5V + 3.3v: 125W
- Power 5VSB: 15W
- Cooling: 135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
- Semi-Passive Operation: ✓ (Selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (3x cables), 1x PCIe 12+4 pin (600W)
- Peripheral Connectors: 9x SATA (3x cables), 3x 4-pin Molex (3x cables)
- ATX Cable Length: 600mm
- EPS Cable Length: 650mm
- 12+4 pin PCIe Cable Length: 605mm
- 6+2 pin PCIe Cable Length: 605mm
- Distance between SATA/4-pin Molex: 120mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.63 kg (3.59 lb)
- Warranty: no info
- MSRP (excluding VAT): no info
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 25 | 25 | 83 | 3 | 0.3 |
| Watts | 125 | 996 | 15 | 3.6 | ||
| Total Max. Power (W) | 1000 | |||||
