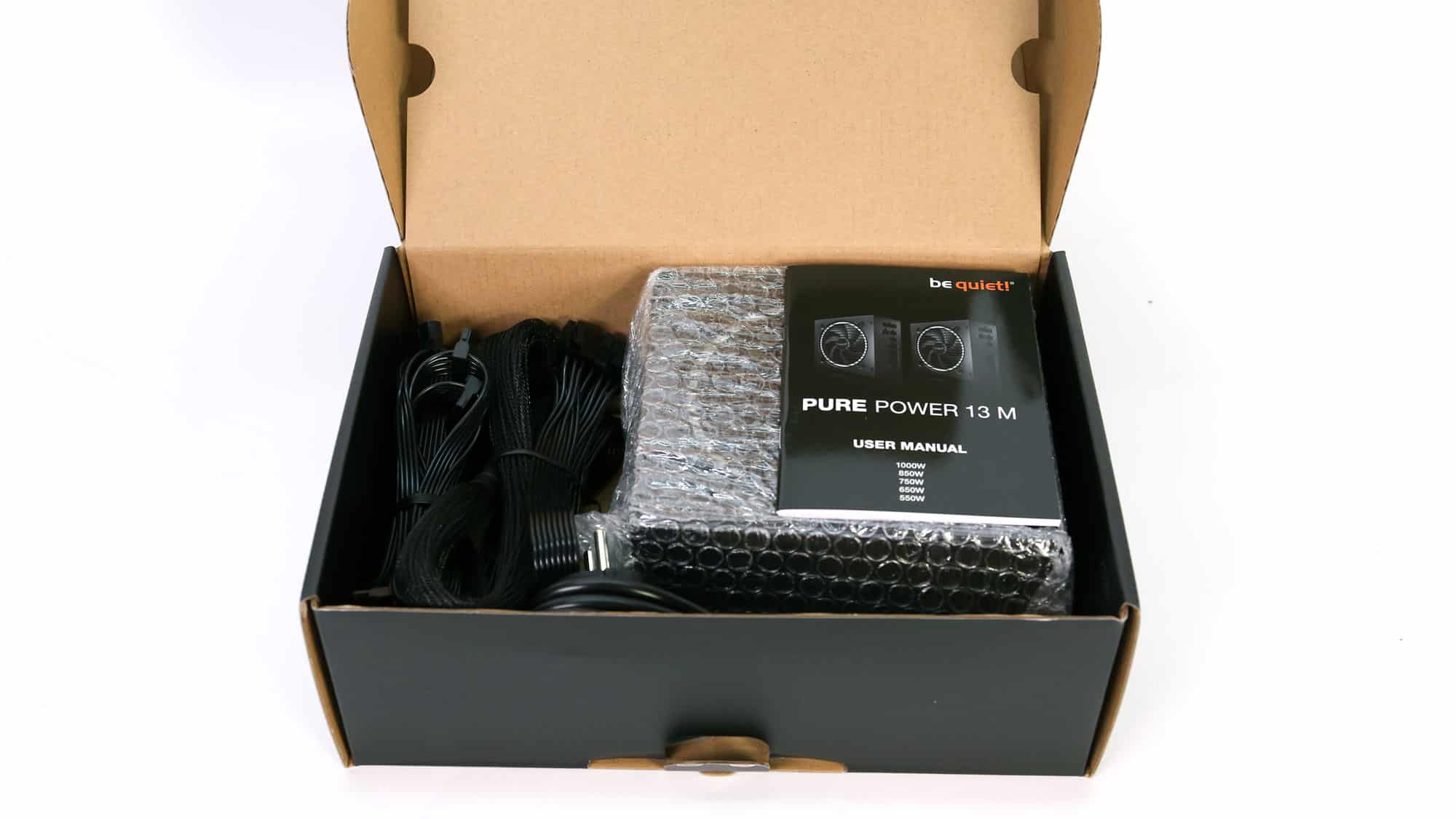

Box & Bundle

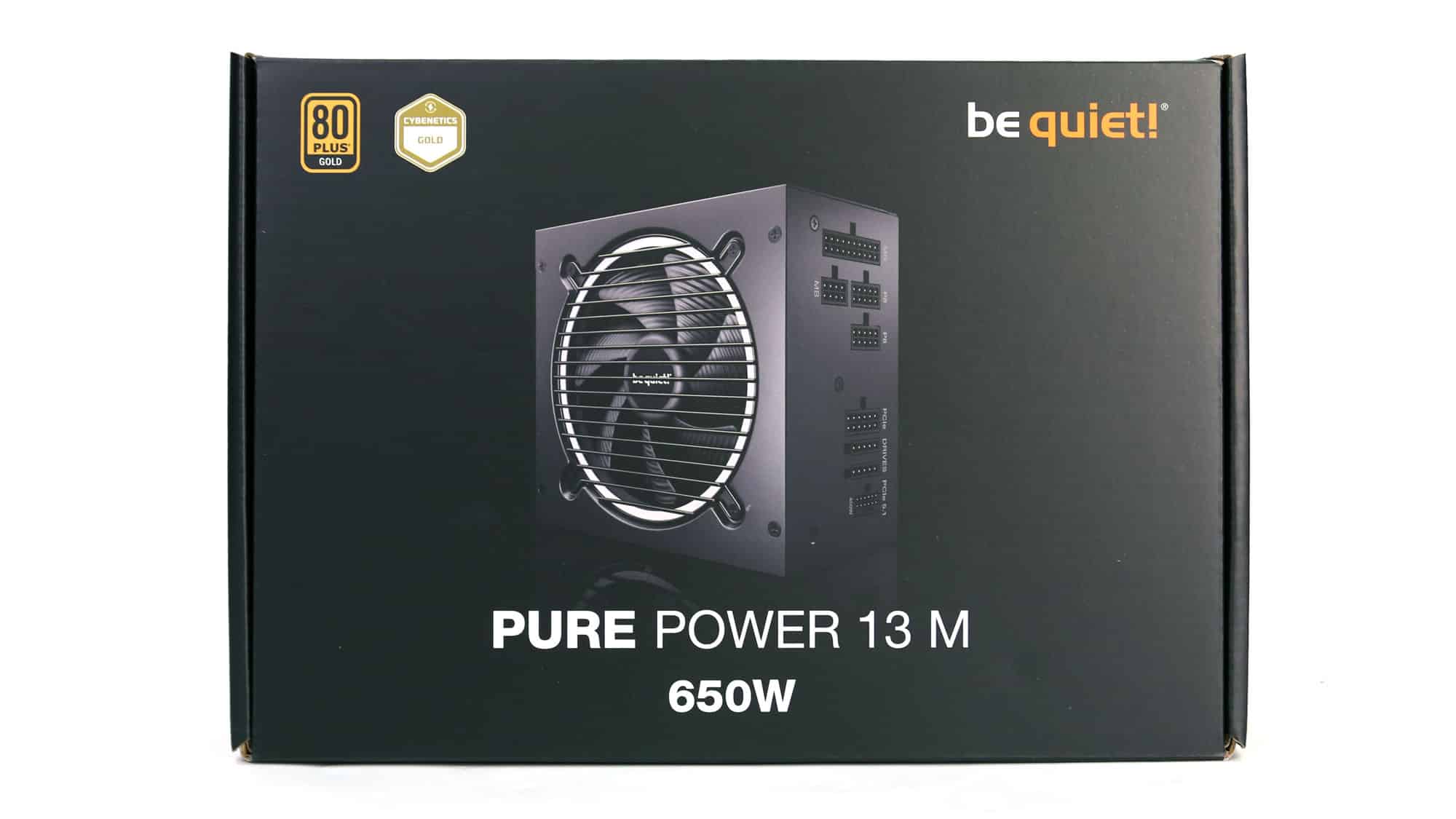

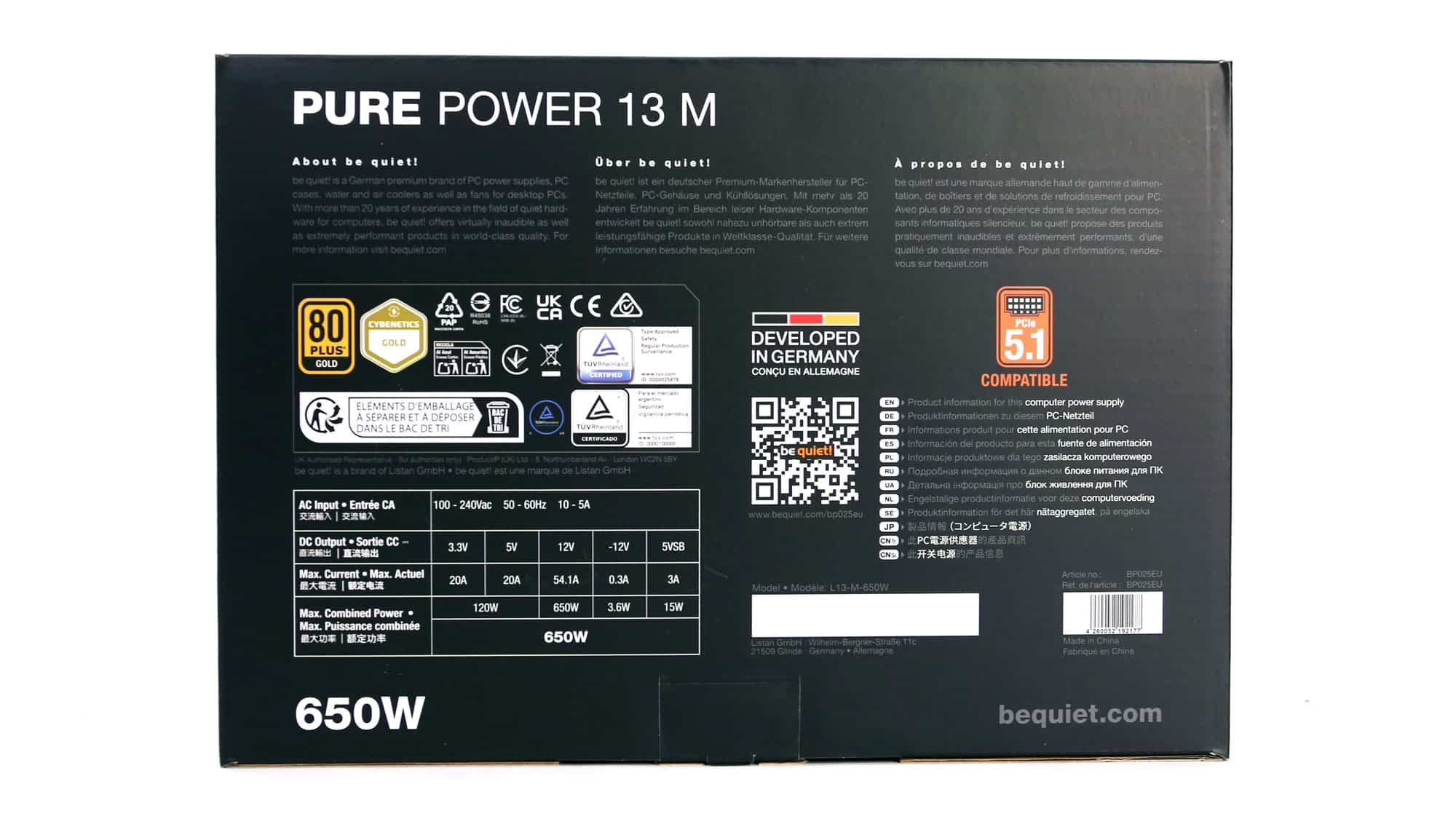

Typically, the box features a photo of the product on its front. On the same side, you will find the efficiency badges and the model number, along with a description of the capacity. Around the back are more details on the product’s technical specifications.
Product Photos

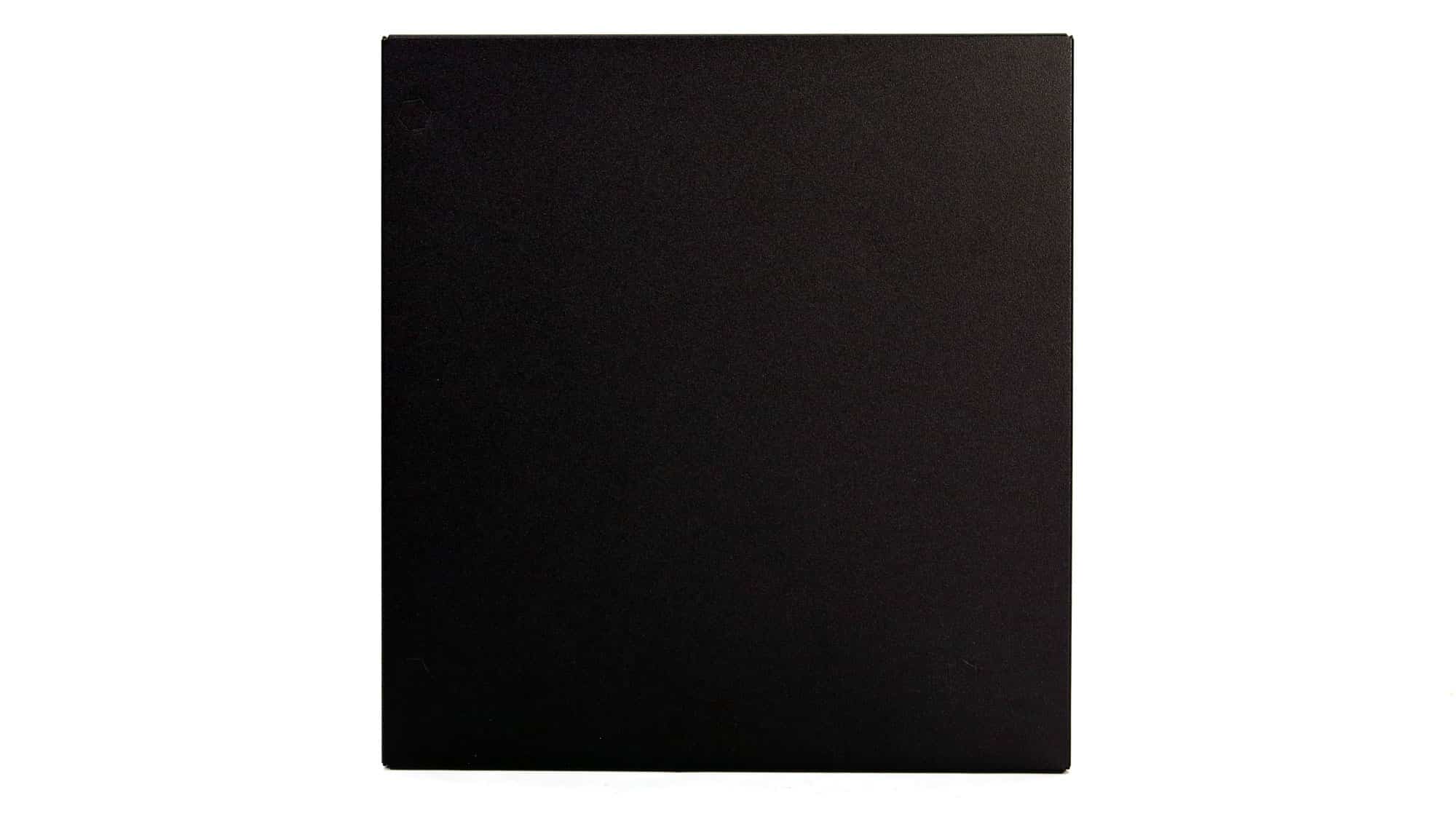

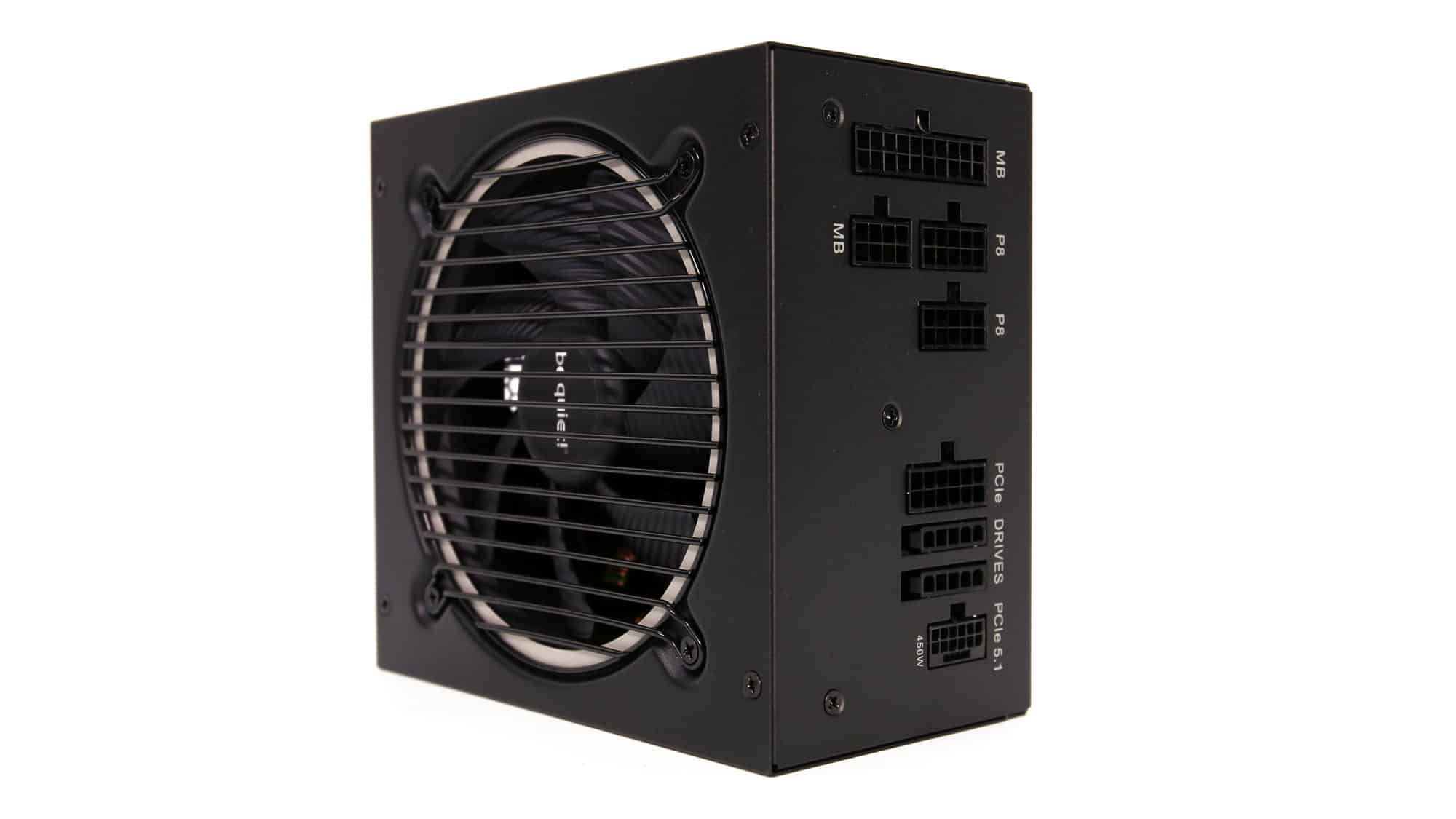

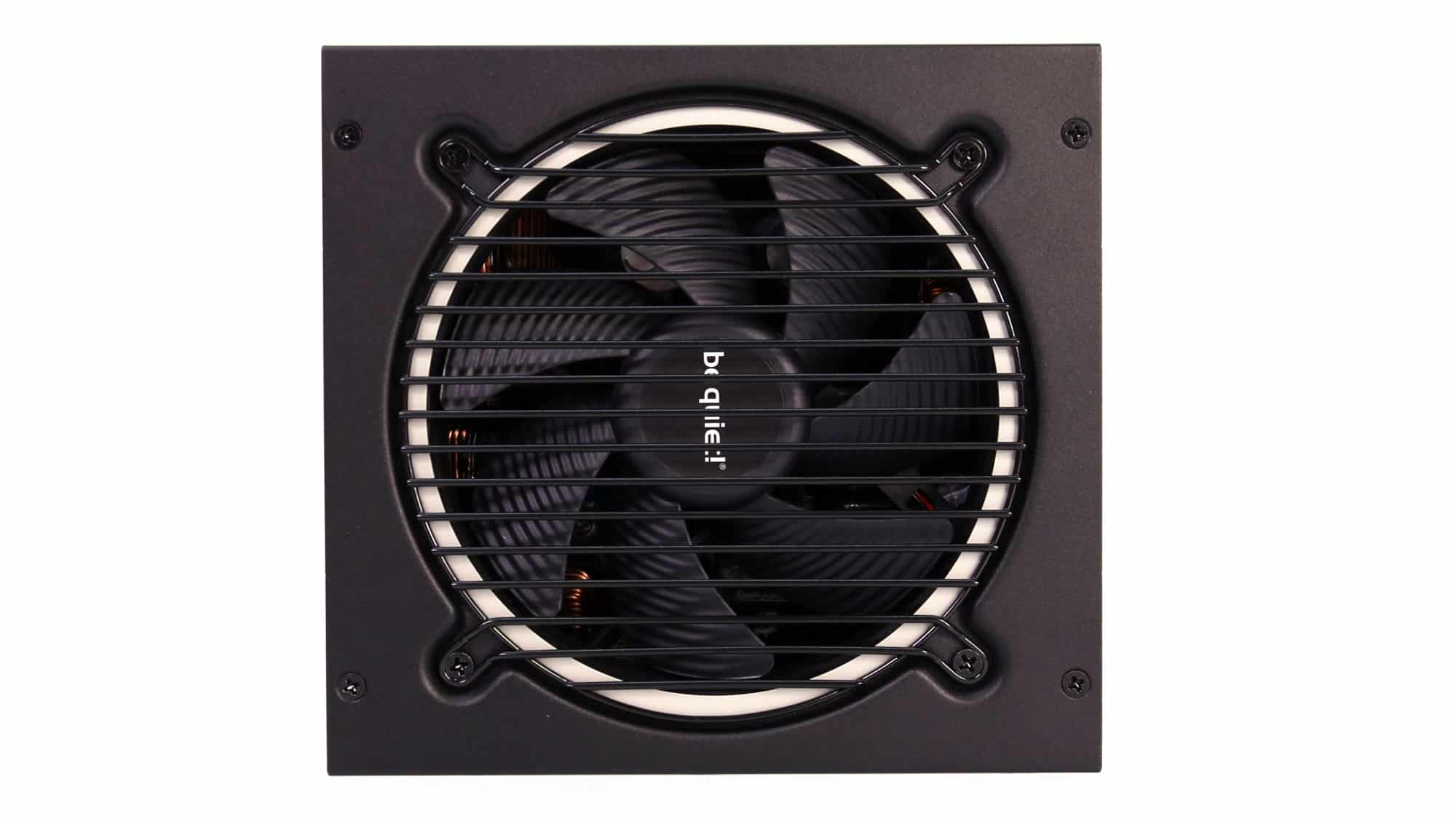

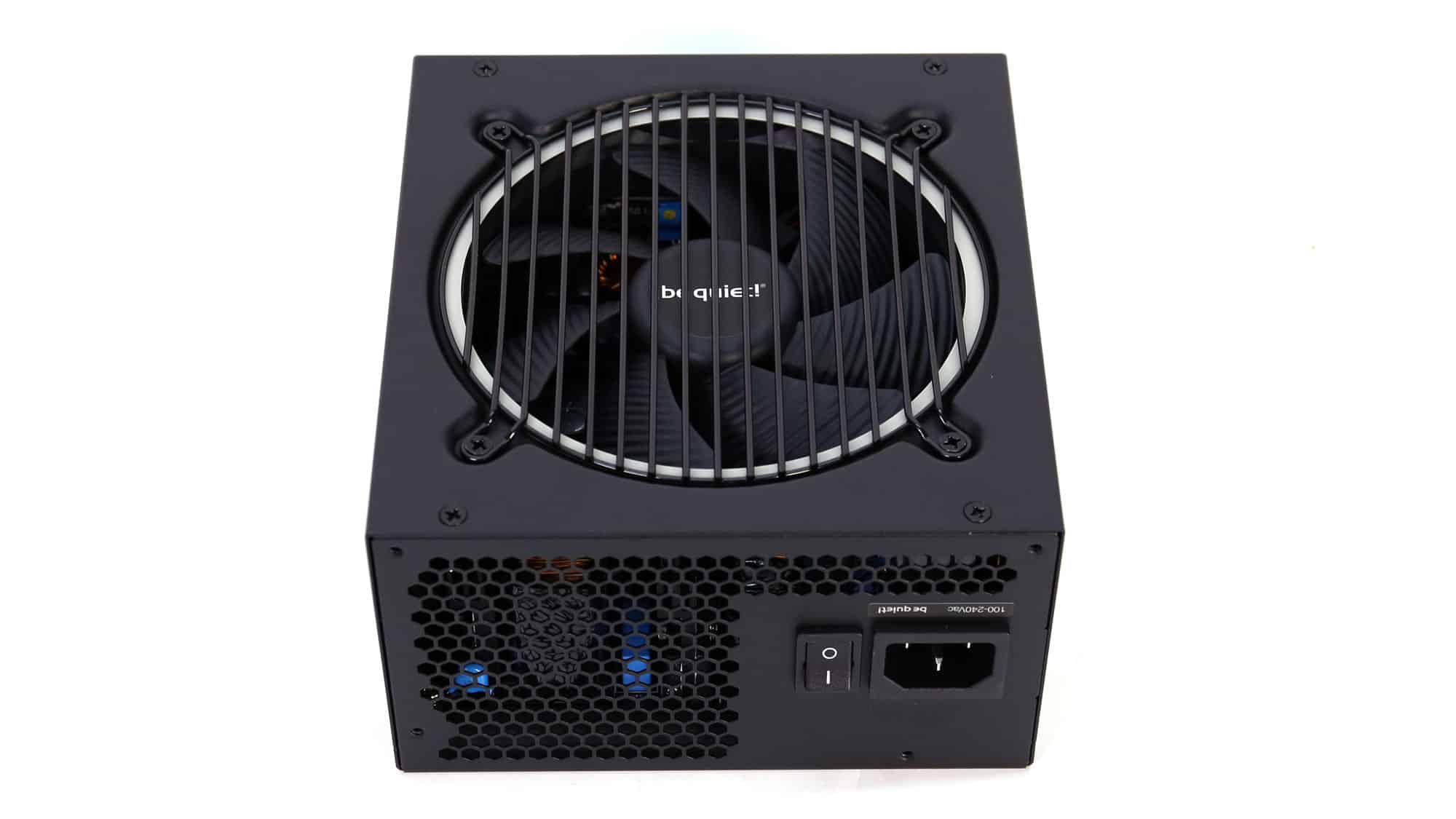

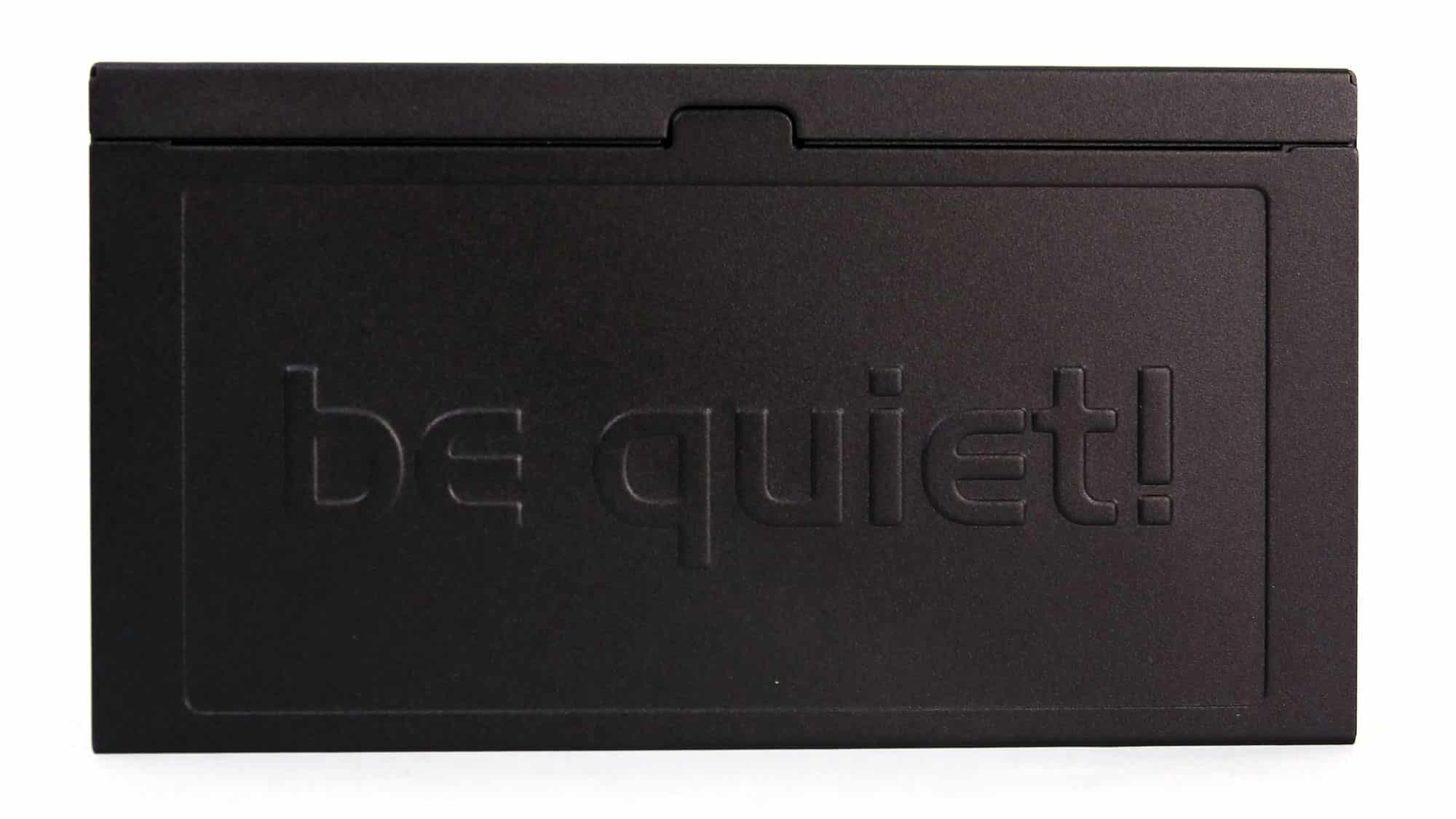

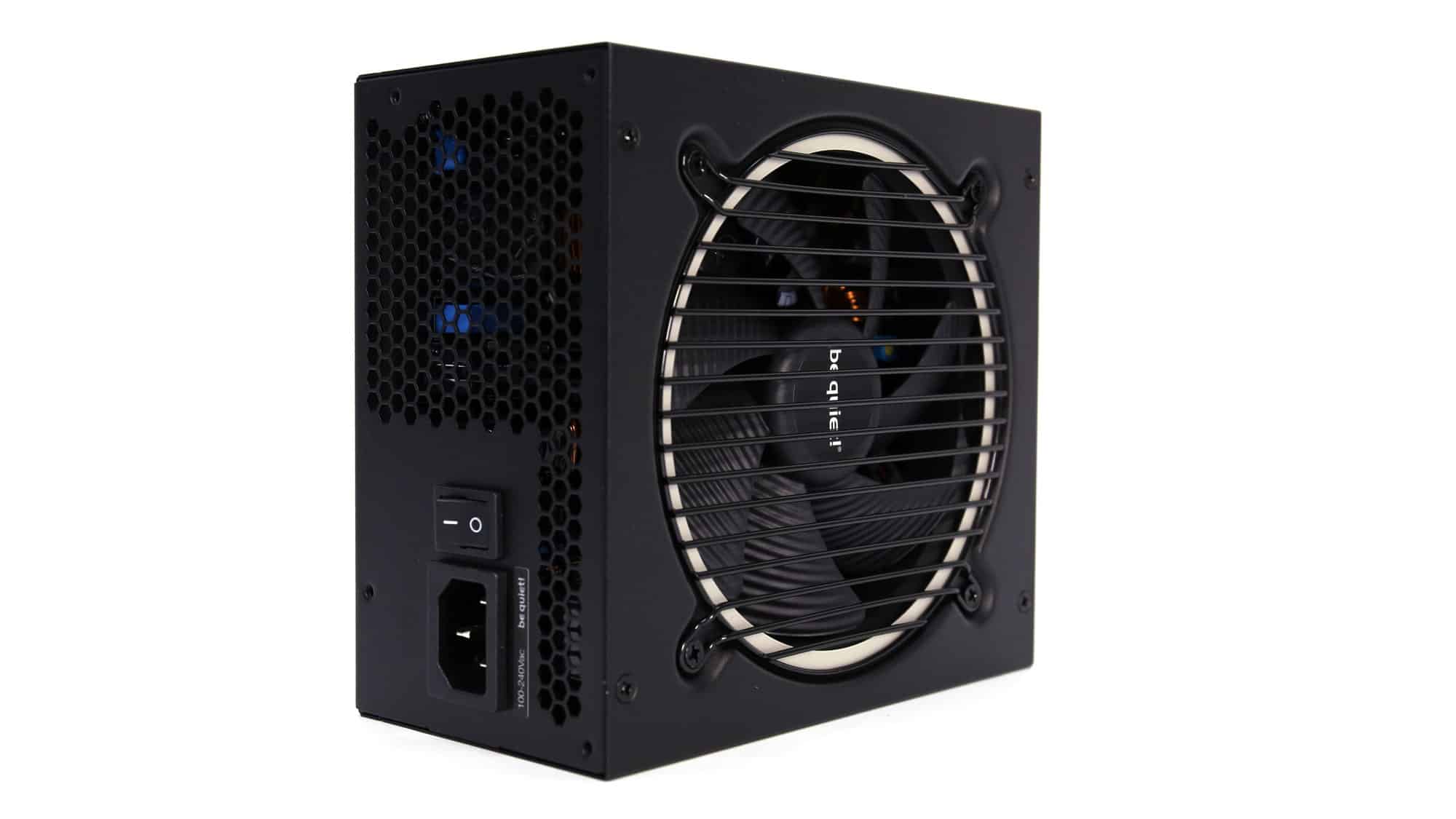

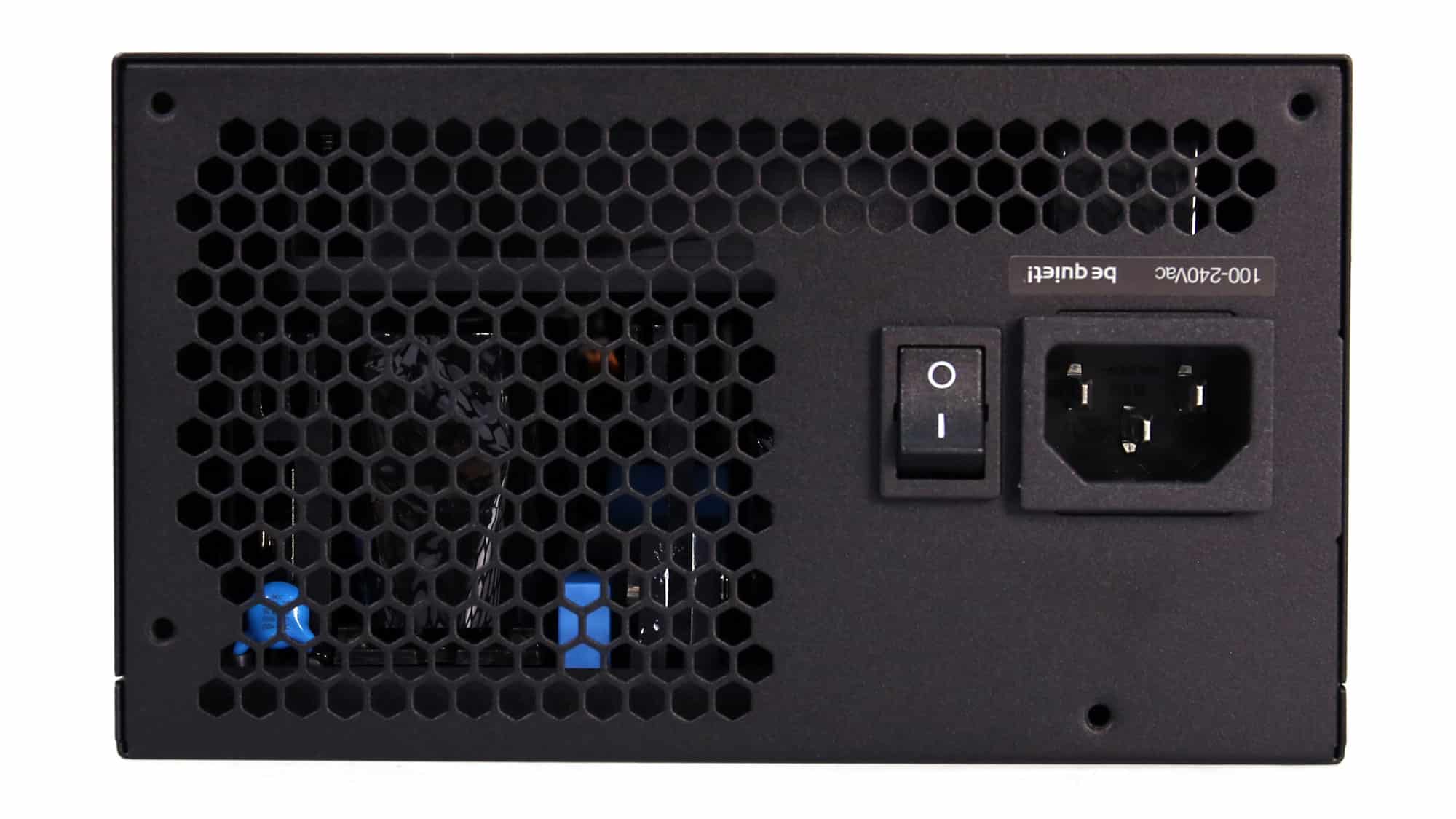

Although the exterior design doesn’t feature any exotic elements, the elegant fan grille, ruffled fan wings, and white accent around the fan form an appealing combination. At the unit’s front side, there is no switch to enable or disable semi-passive operation. On the same side, you will find the AC receptacle and the power switch.

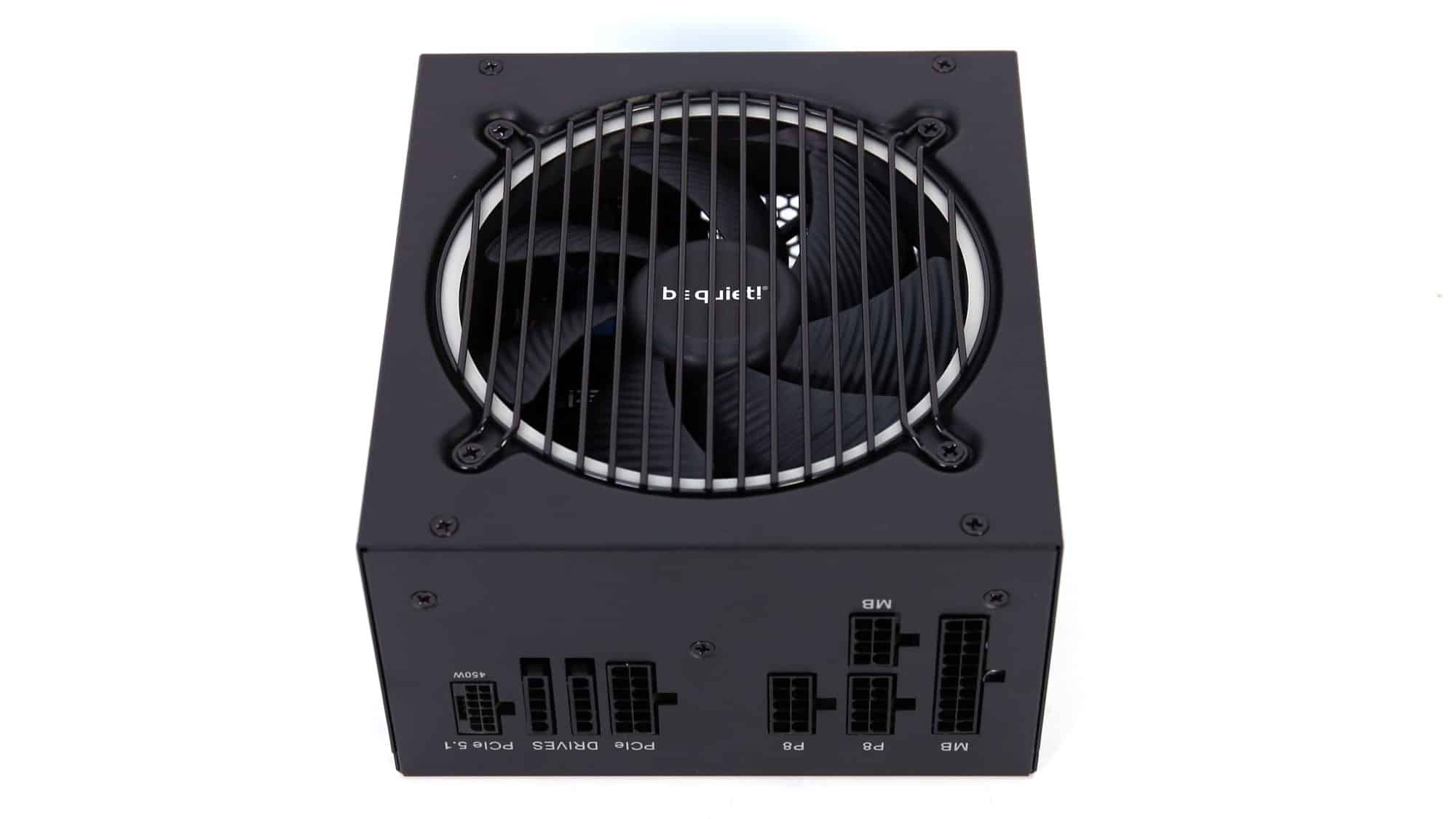

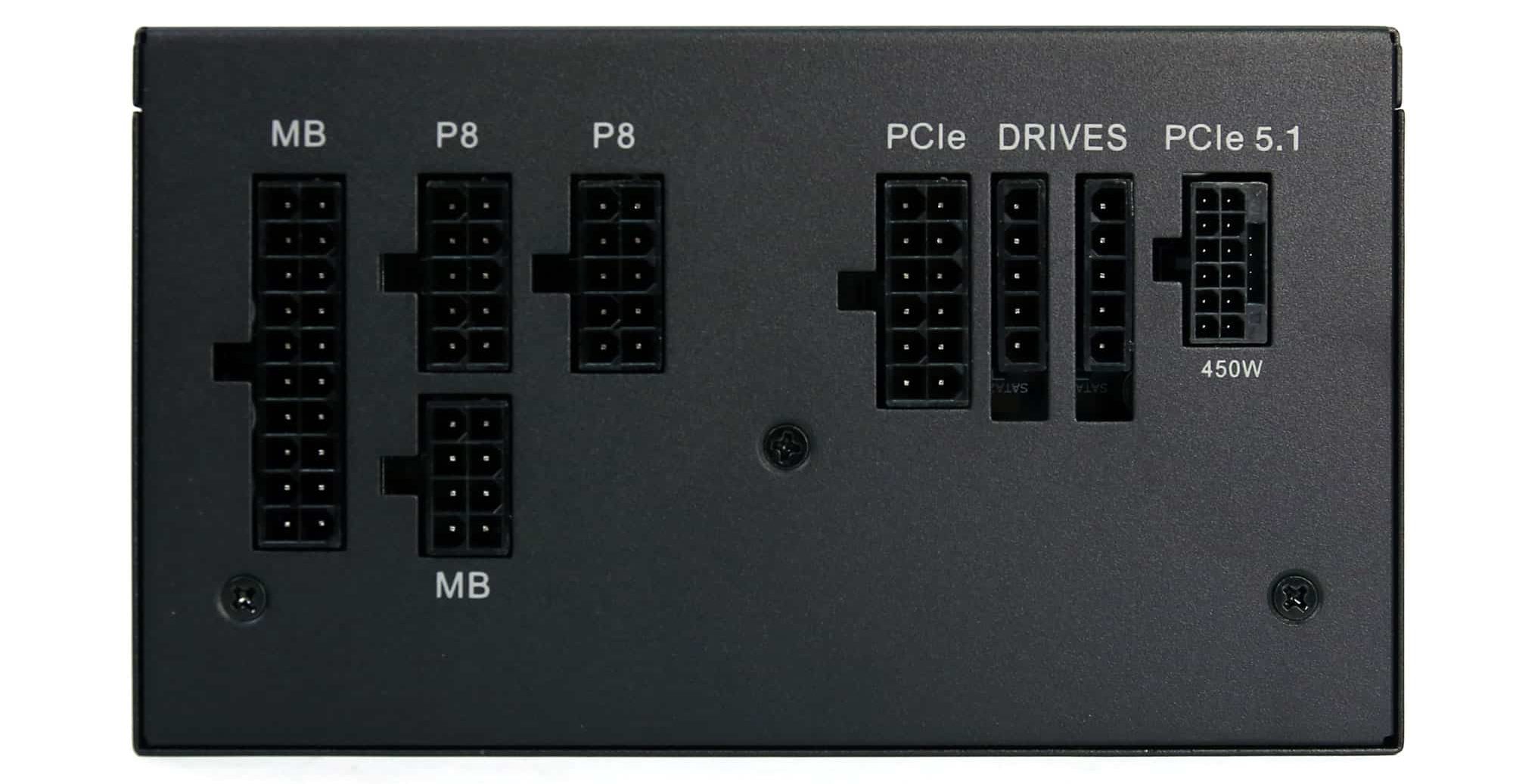

The modular panel has eight sockets, including a native 12V-2×6 header.

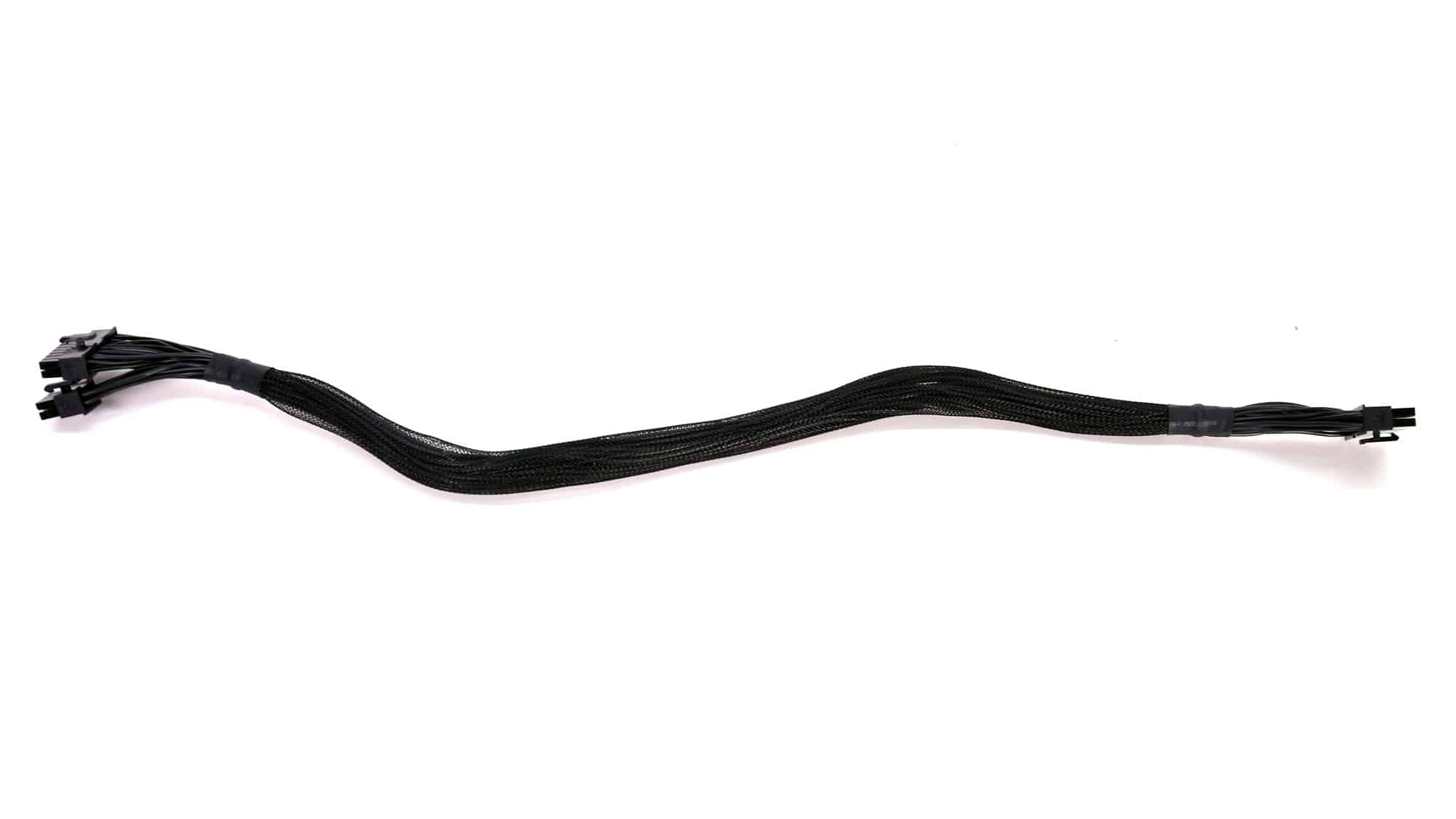

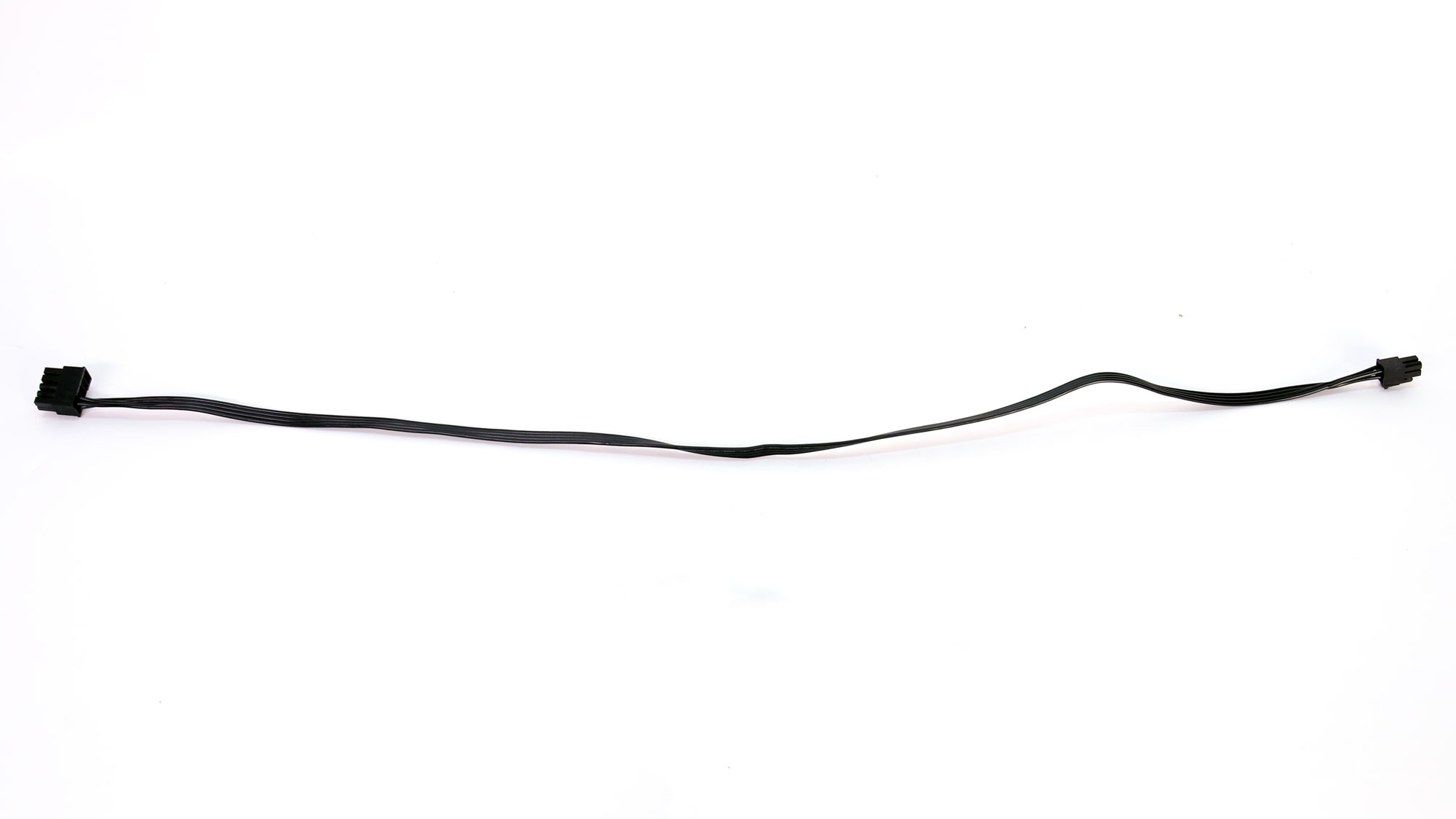

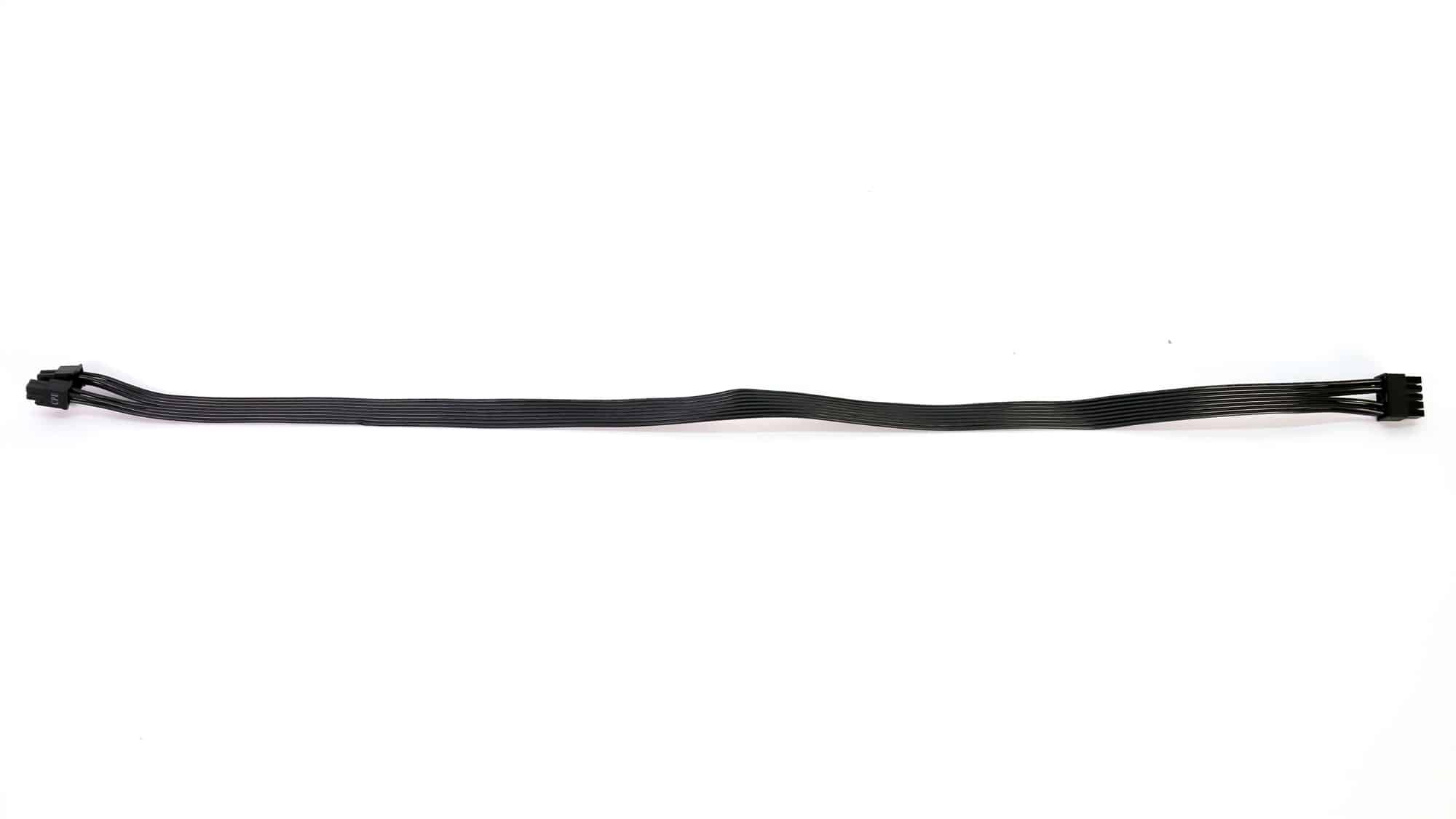

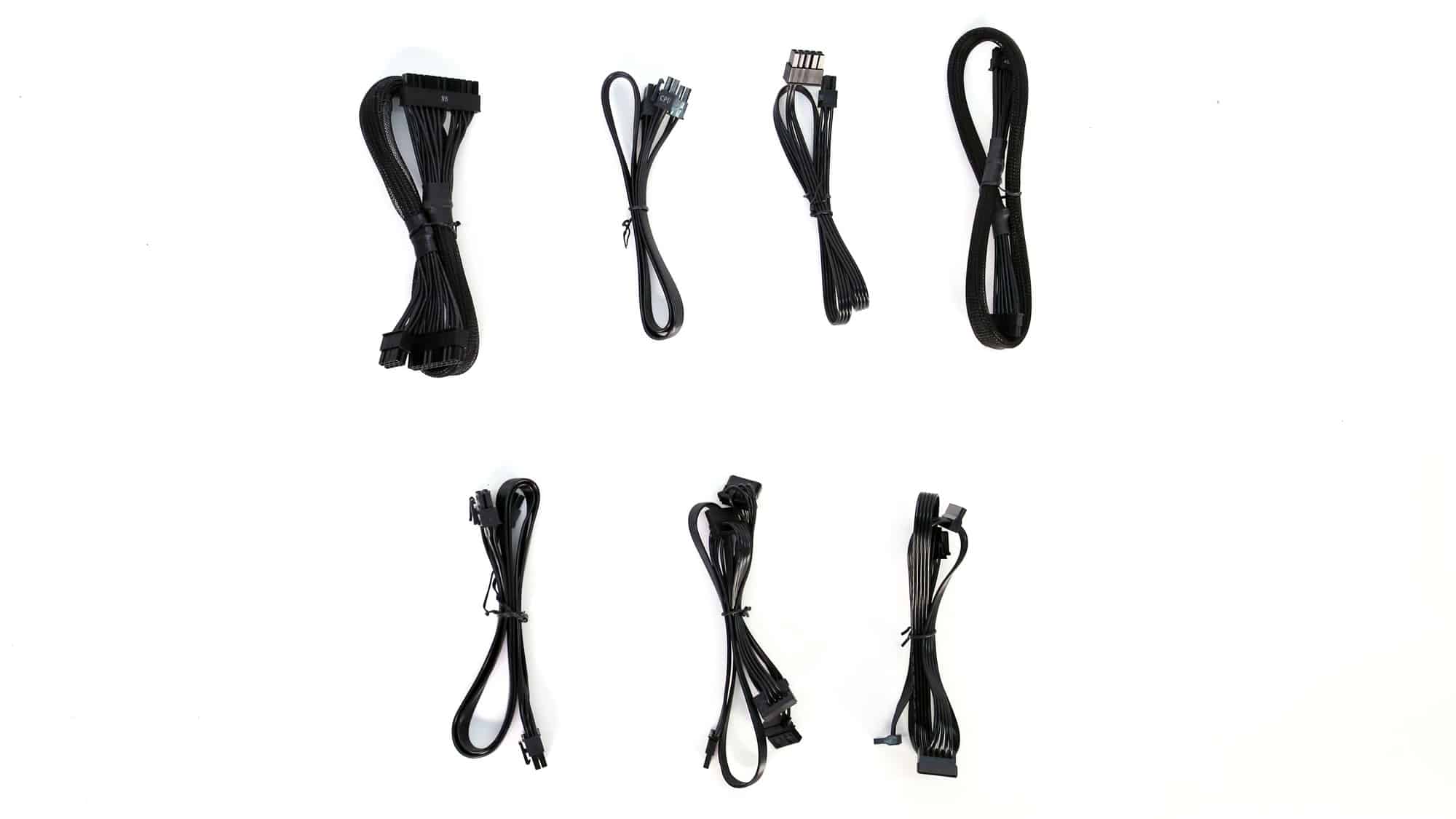

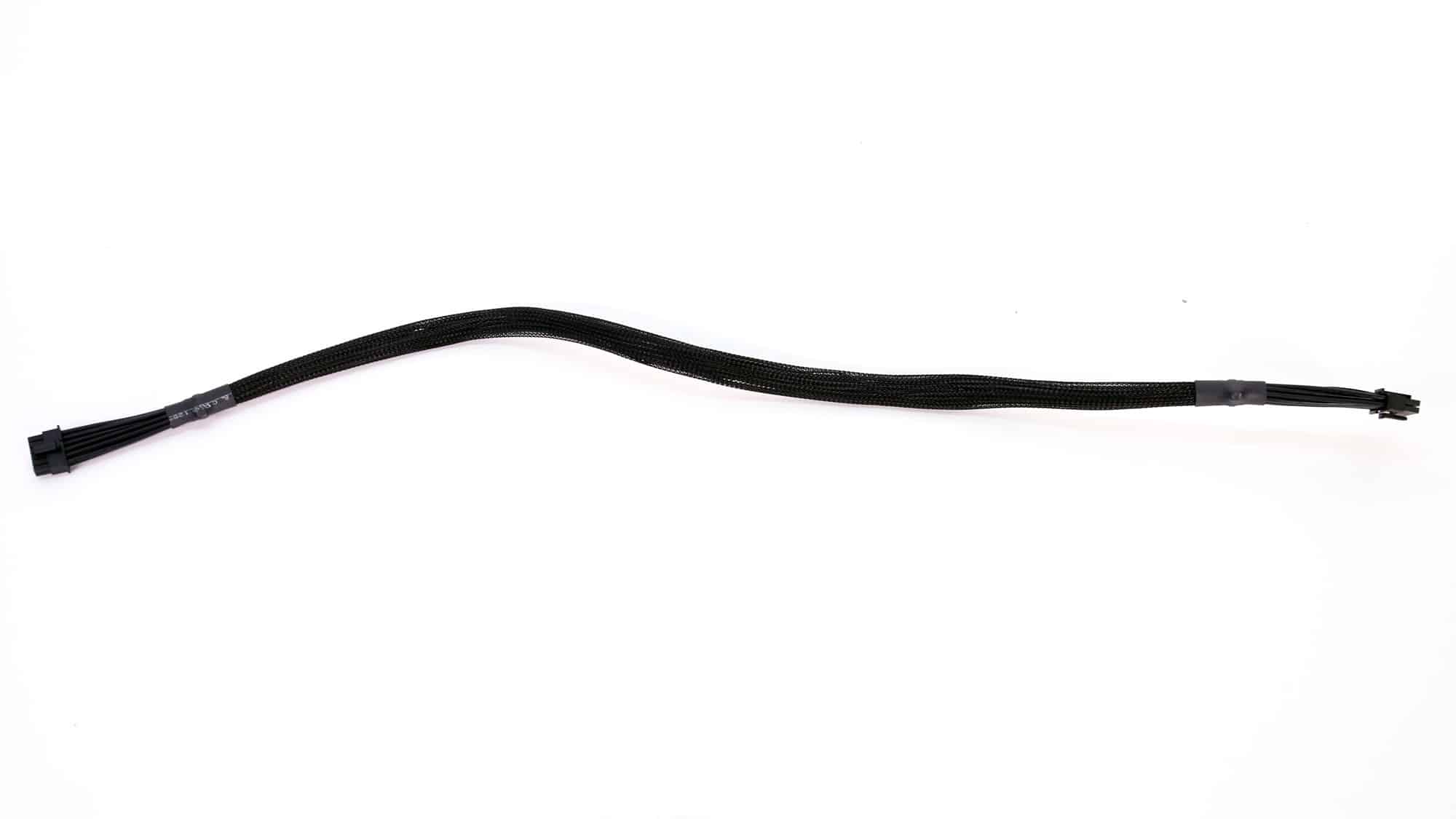

| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|
| ATX connector 24 pin (550mm) | 1 | 1 | 18-22AWG | No |
| 4+4 pin EPS12V (650mm) | 1 | 1 | 18AWG | No |
| 4-pin ATX12V (650mm) | 1 | 1 | 18AWG | No |

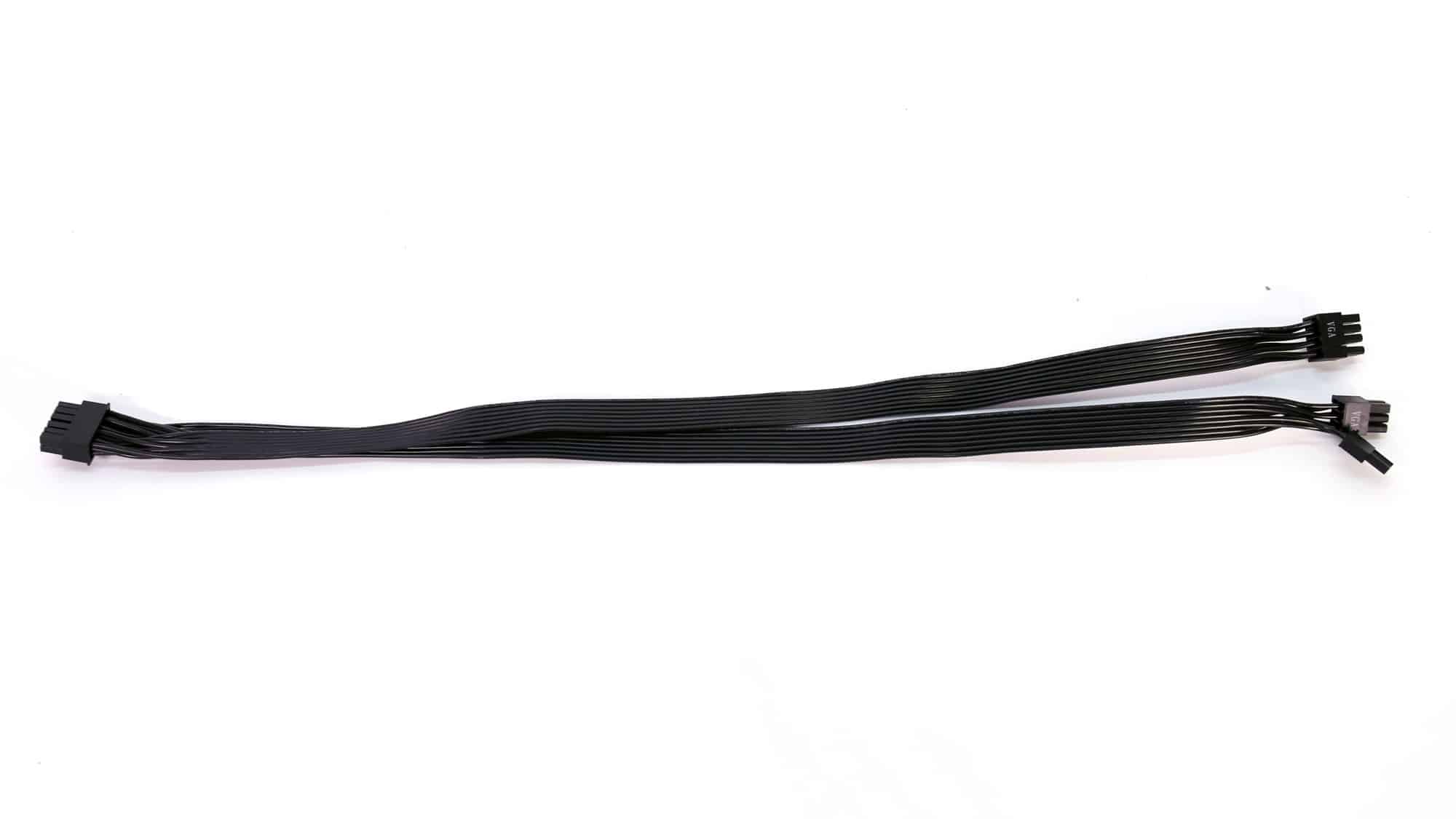

| 2x 6+2 pin PCIe (500mm) | 2 | 2 | 18AWG | No |
| 12+4 pin PCIe (600mm) (450W) | 1 | 1 | 16-28AWG | No |

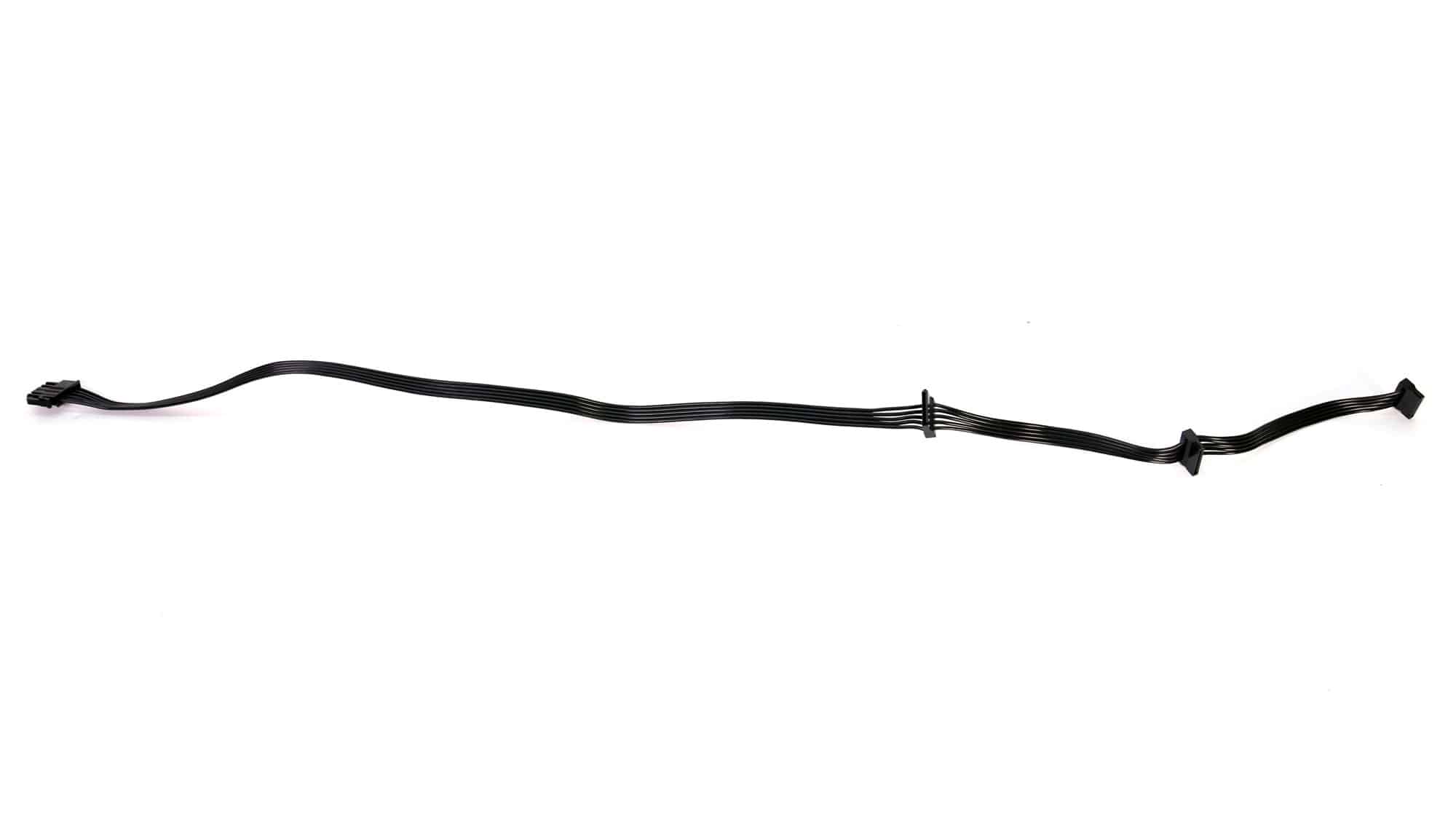

| SATA (500mm+150mm+150mm) | 1 | 3 | 18AWG | No |

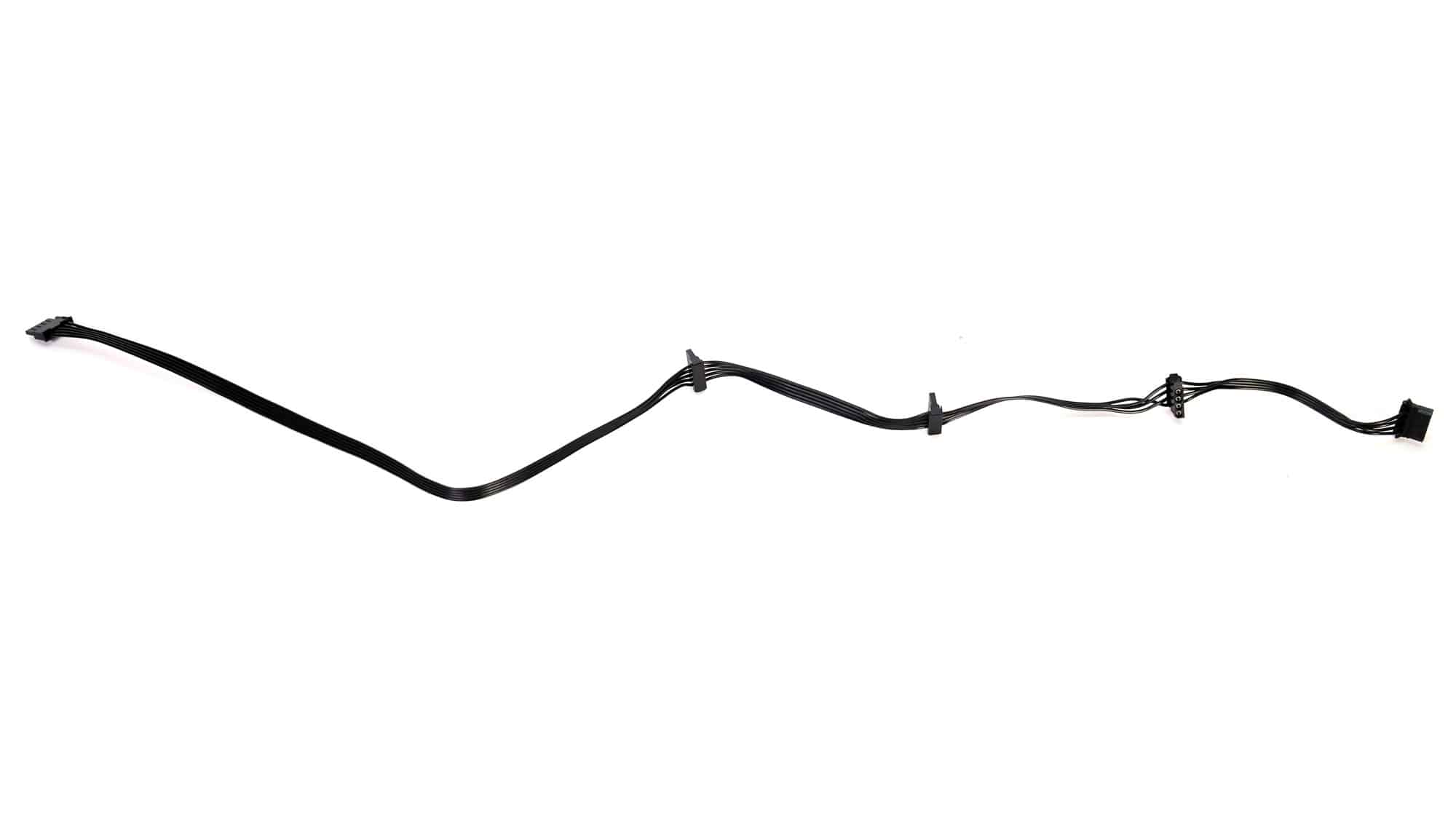

| SATA (510mm+150mm) / 4-pin Molex (+150mm+145mm) | 1 | 2 / 2 | 18AWG | No |

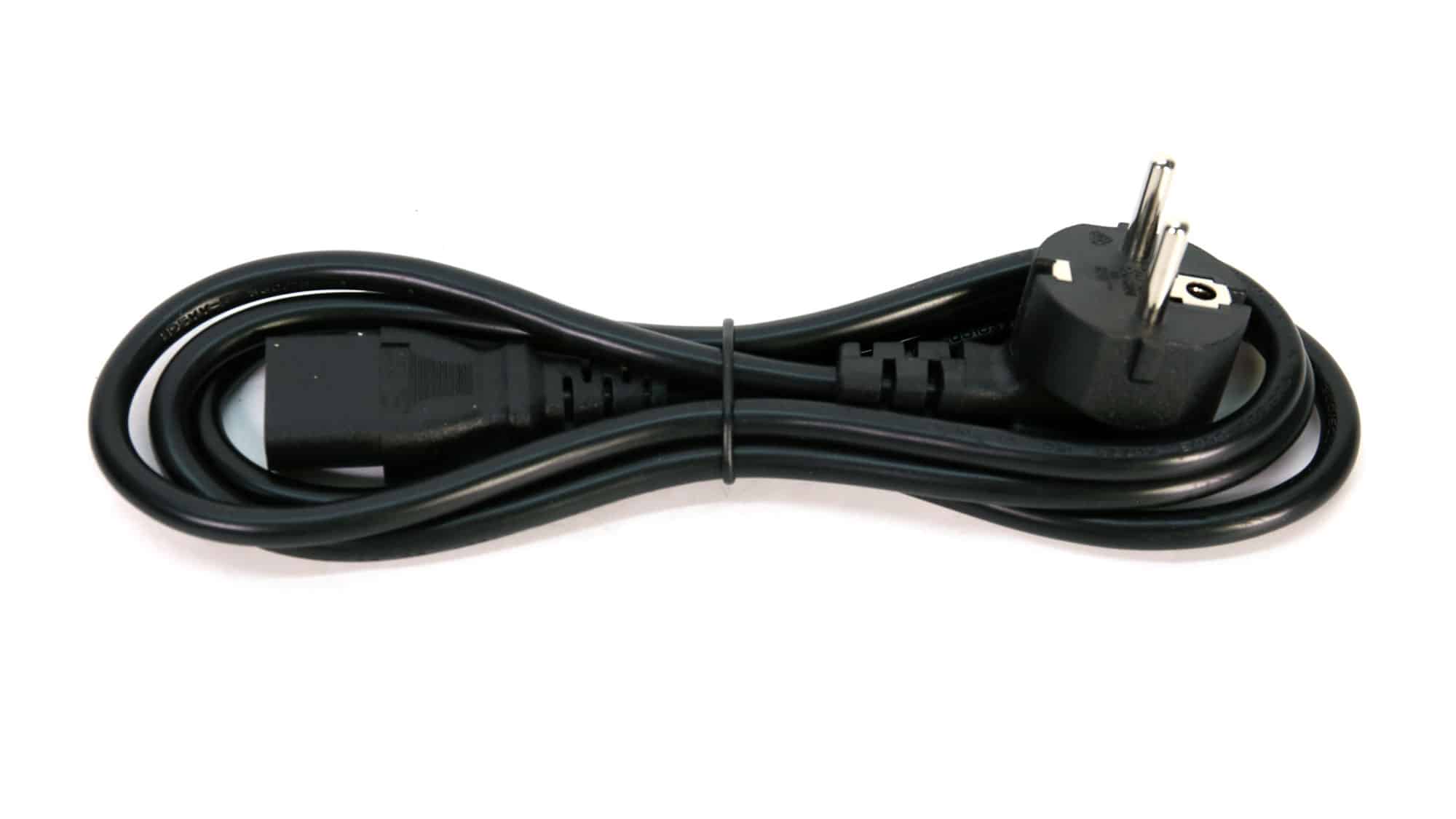

| AC Power Cord (1350mm) – C13 Coupler | 1 | 1 | 18AWG | – |
The number of available cables and connectors is sufficient to handle the PSU’s max power. The same applies to cable length, as a 650W PSU is unlikely to be installed in a chassis of cave-like size. Moreover, the shorter the cables, the lower the energy losses, which is why some brands tend to send PSUs with ultra-short cables for efficiency certification in schemes that do not specify cable length in their reports. Lastly, the distance between the peripheral cables is ideal, at 150mm.
