Frequency Plots

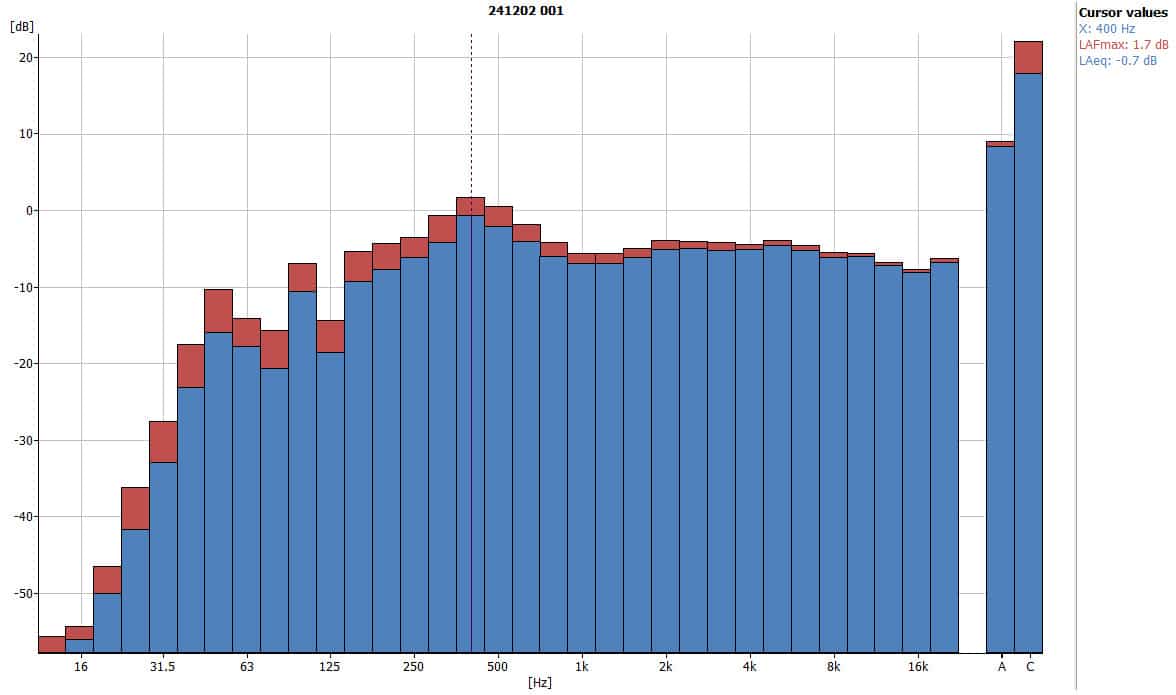

10% Fan Speed
- Peak frequency: 400 Hz

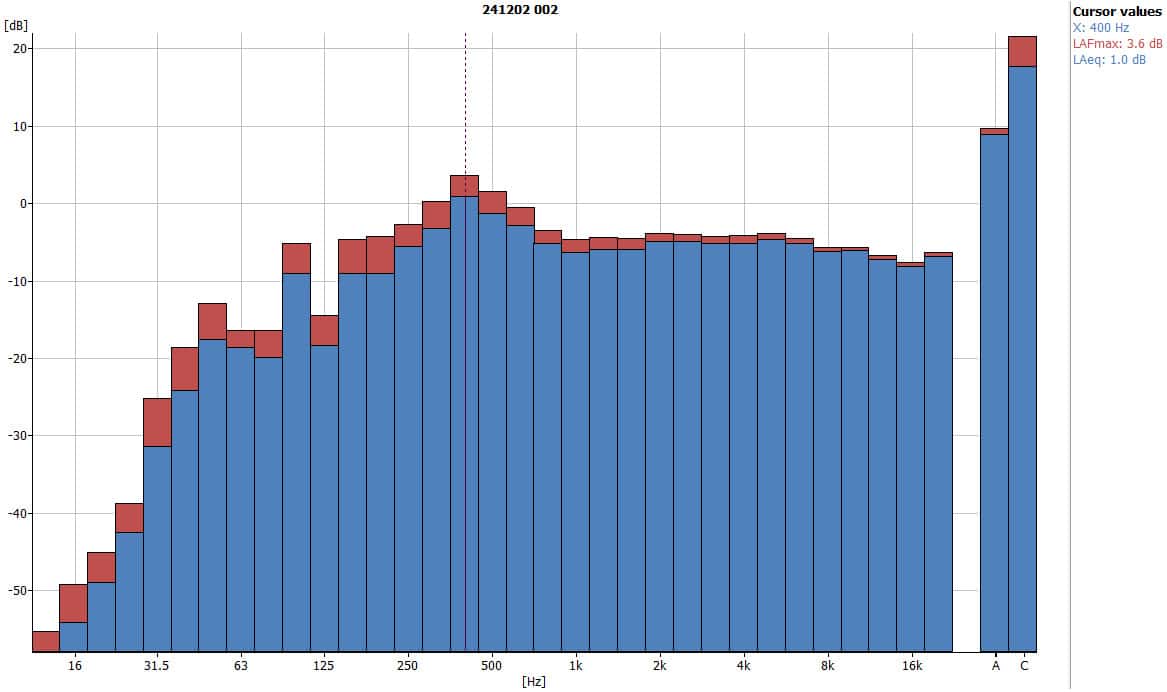

25% Fan Speed
- Peak frequency: 400 Hz

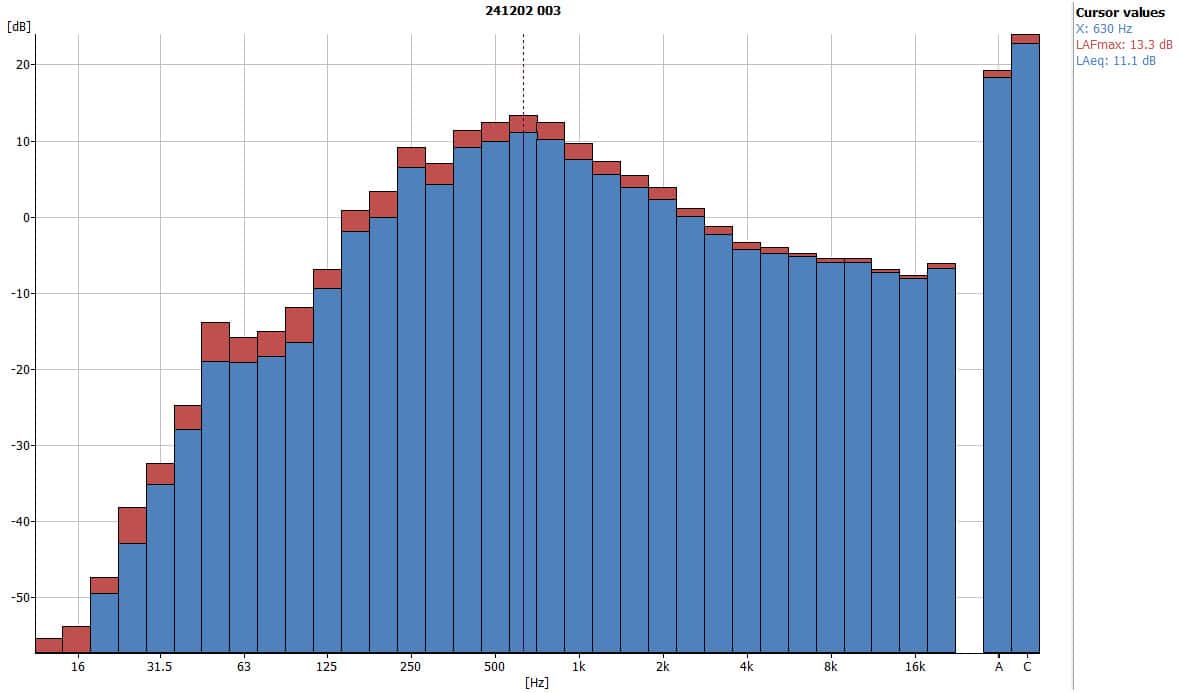

50% Fan Speed
- Peak frequency: 630 Hz

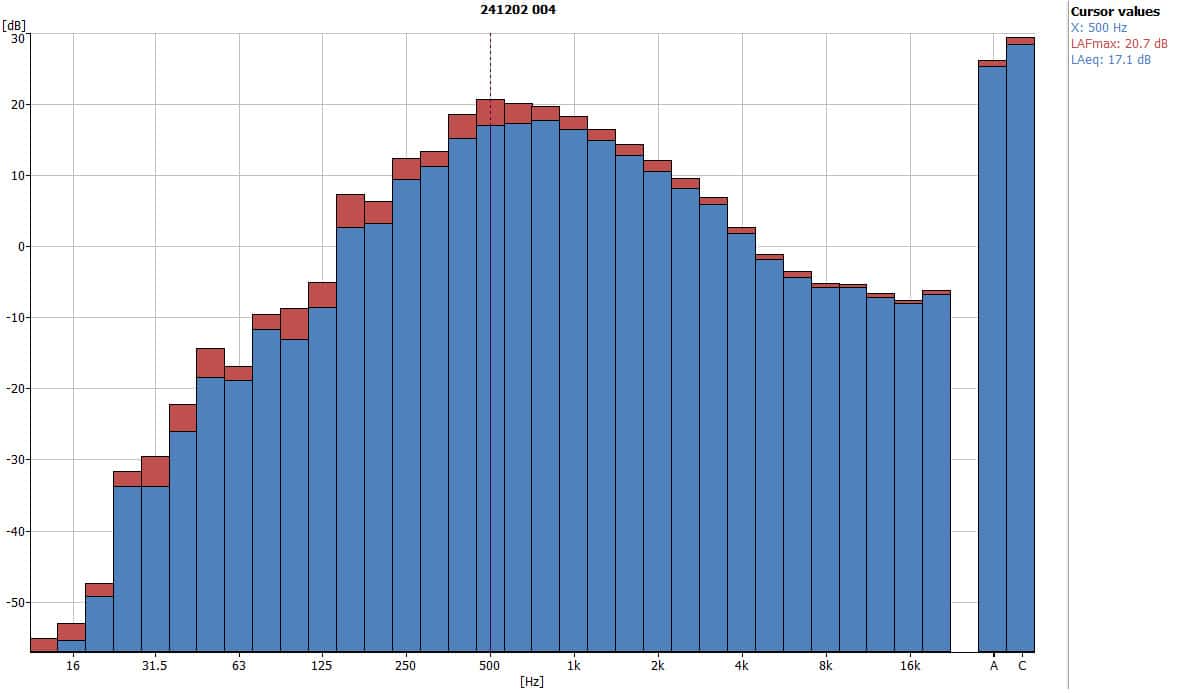

75% Fan Speed
- Peak frequency: 500 Hz

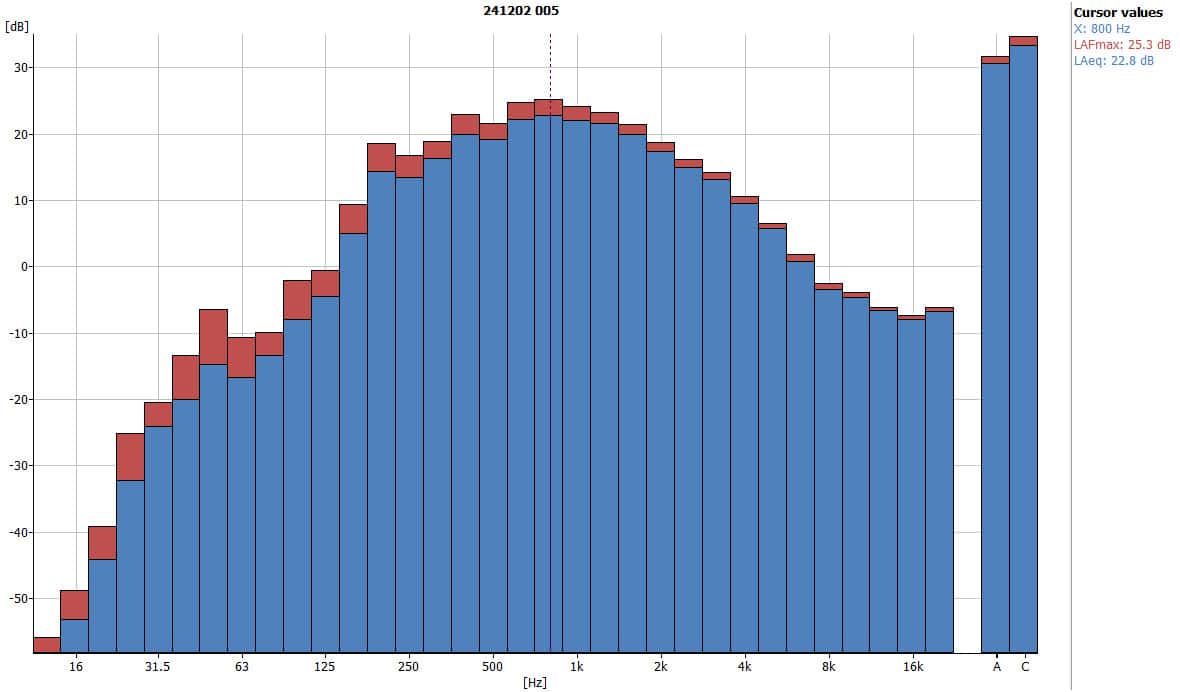

100% Fan Speed
- Peak frequency: 800 Hz
Signal Recordings
I have recorded the signals shown above, but please keep in mind that I’ve enabled Automatic Gain Control (AGC) to do so to make it easier for you to reproduce them. The provided recordings are only offered for aural identification purposes.
10% Fan Speed
25% Fan Speed
50% Fan Speed
75% Fan Speed
100% Fan Speed
