Frequency Plots

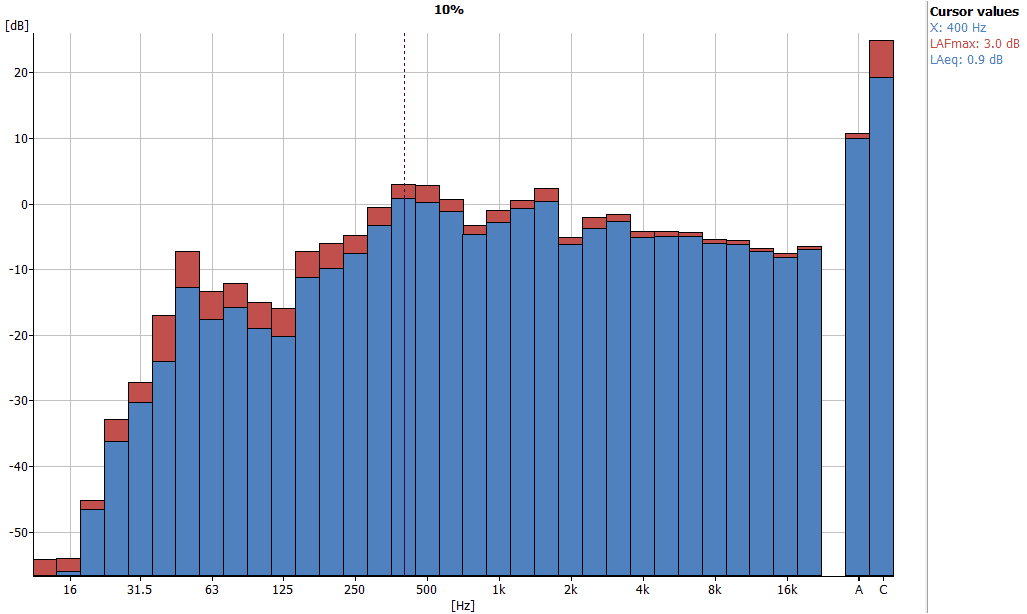

10% Fan Speed
- Peak frequency: 400Hz

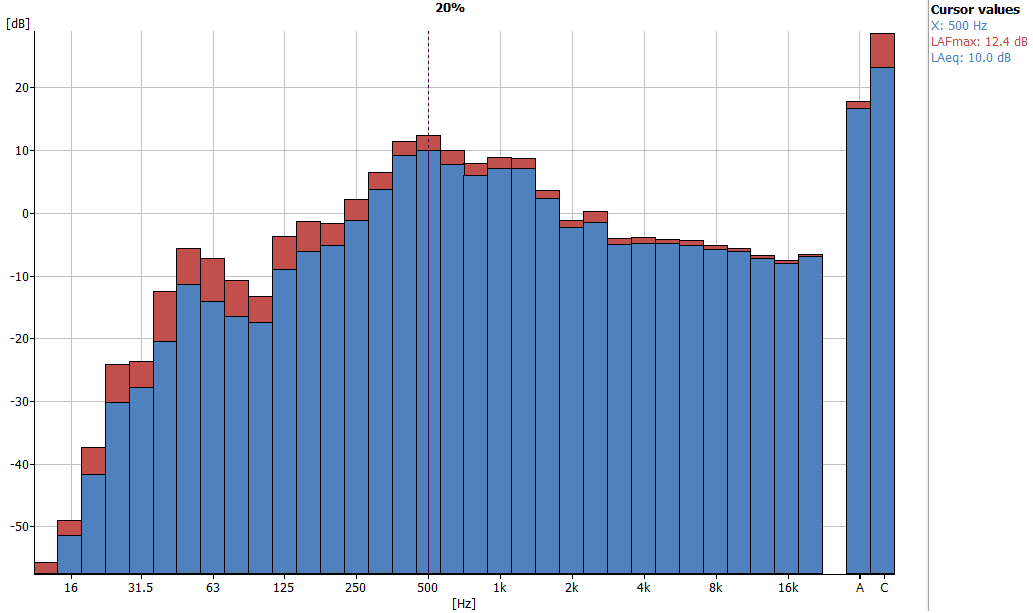

20% Fan Speed
- Peak frequency: 500 Hz

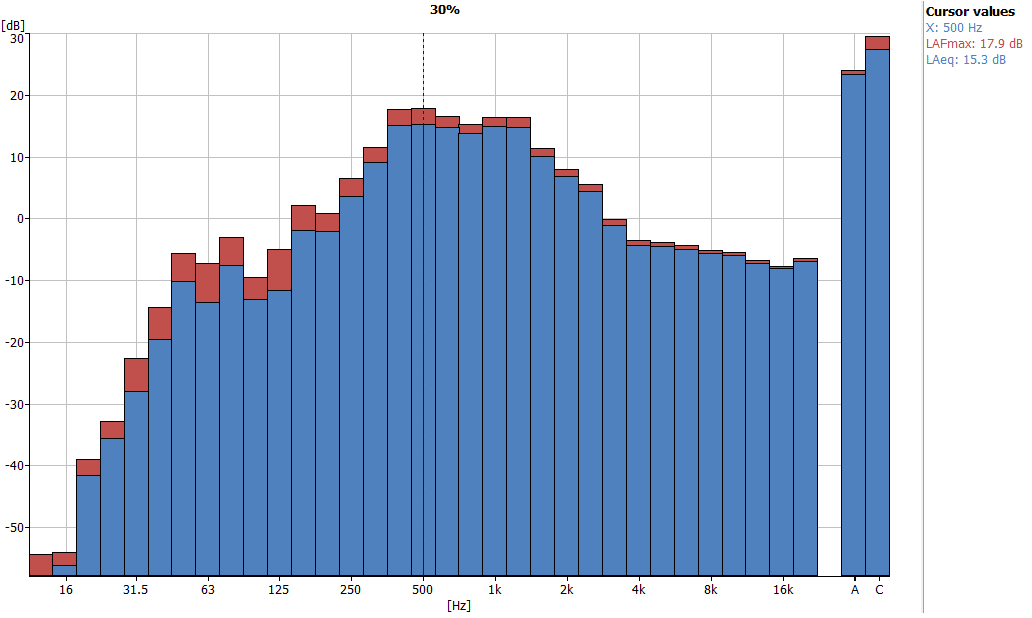

30% Fan Speed
- Peak frequency: 500 Hz

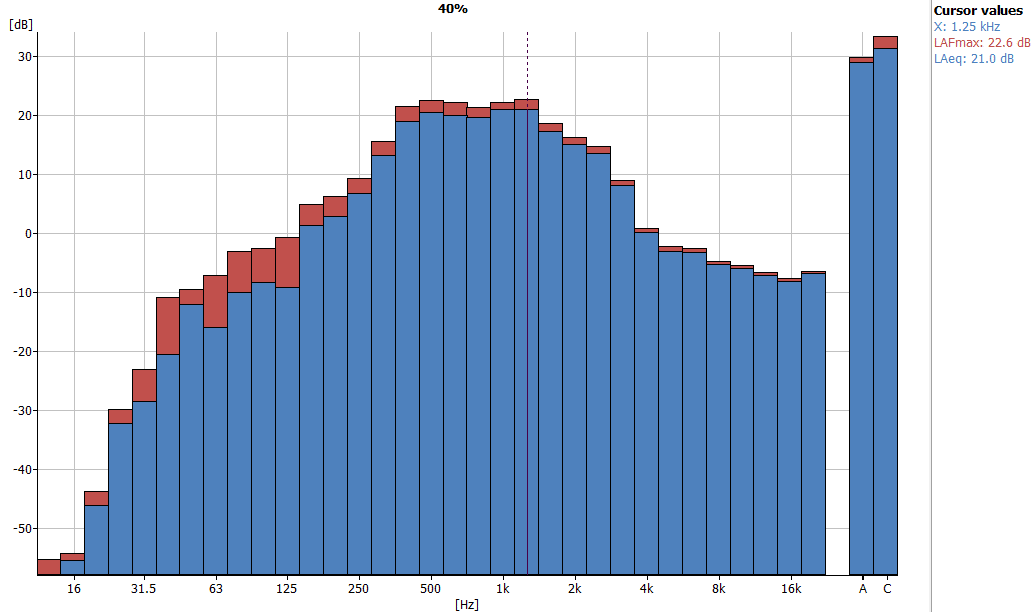

40% Fan Speed
- Peak frequency: 1.25 kHz

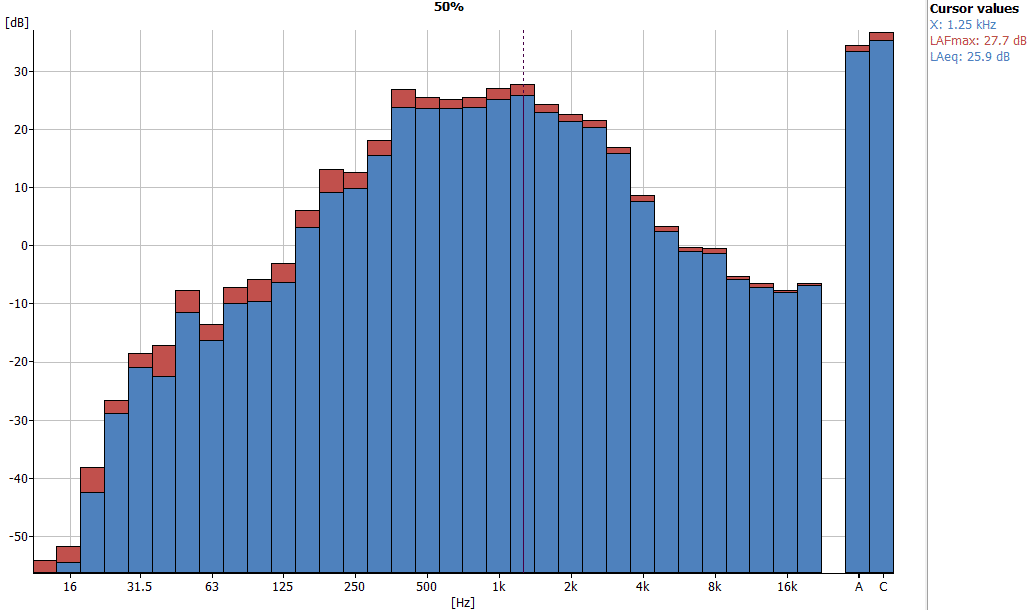

50% Fan Speed
- Peak frequency: 1.25 kHz
60% Fan Speed
- Peak frequency: 500 Hz

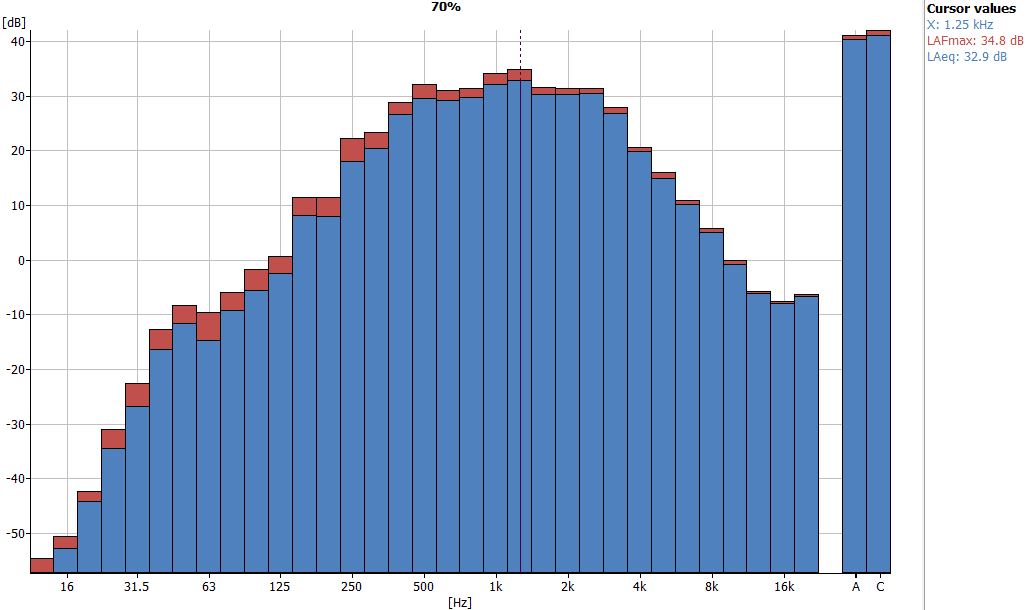

70% Fan Speed
- Peak frequency: 1.25 kHz

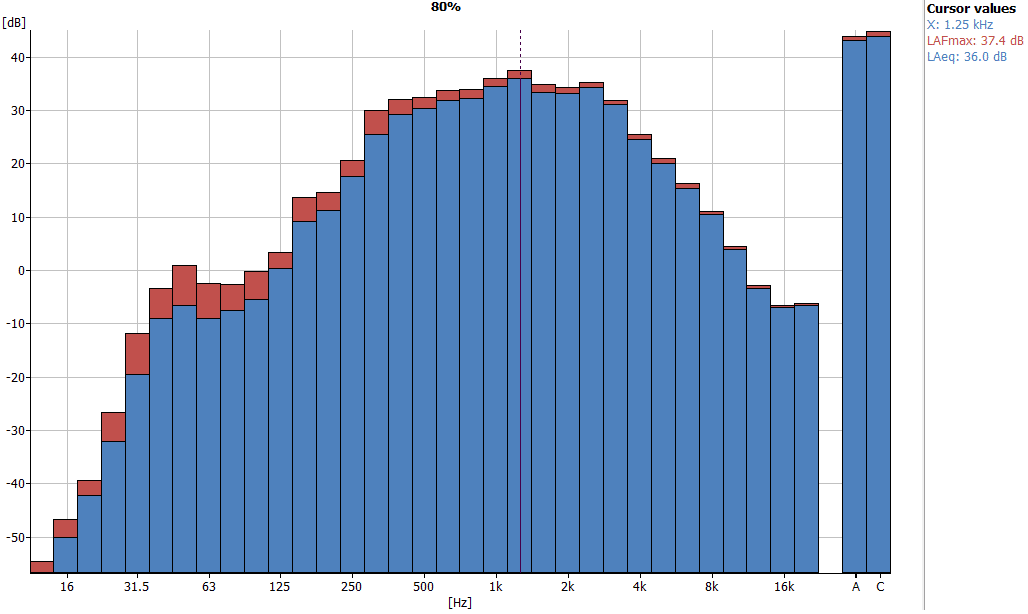

80% Fan Speed
- Peak frequency: 1.25 kHz

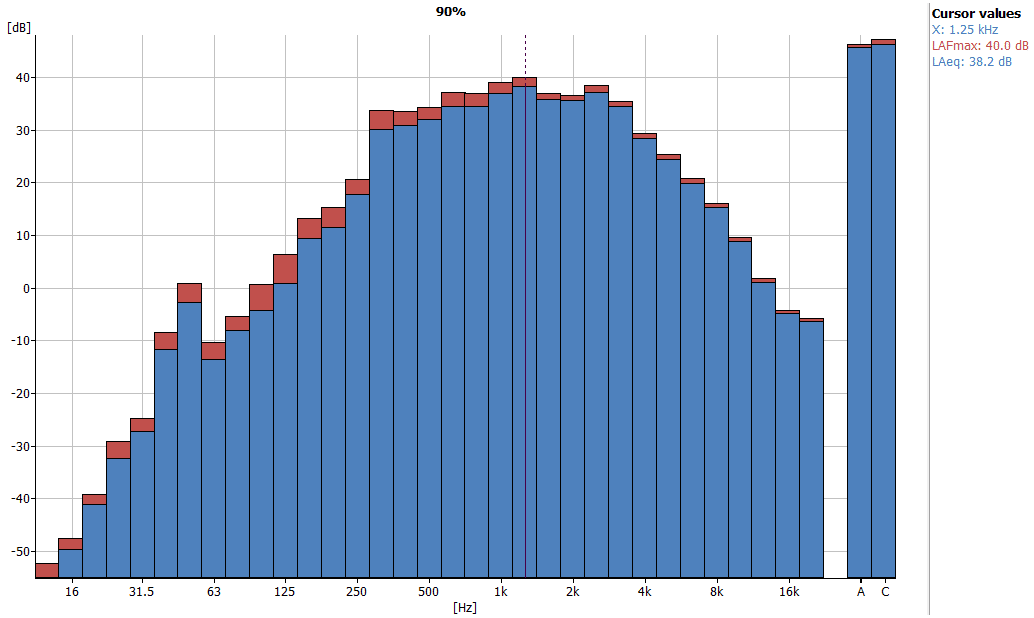

90% Fan Speed
- Peak frequency: 1.25 kHz

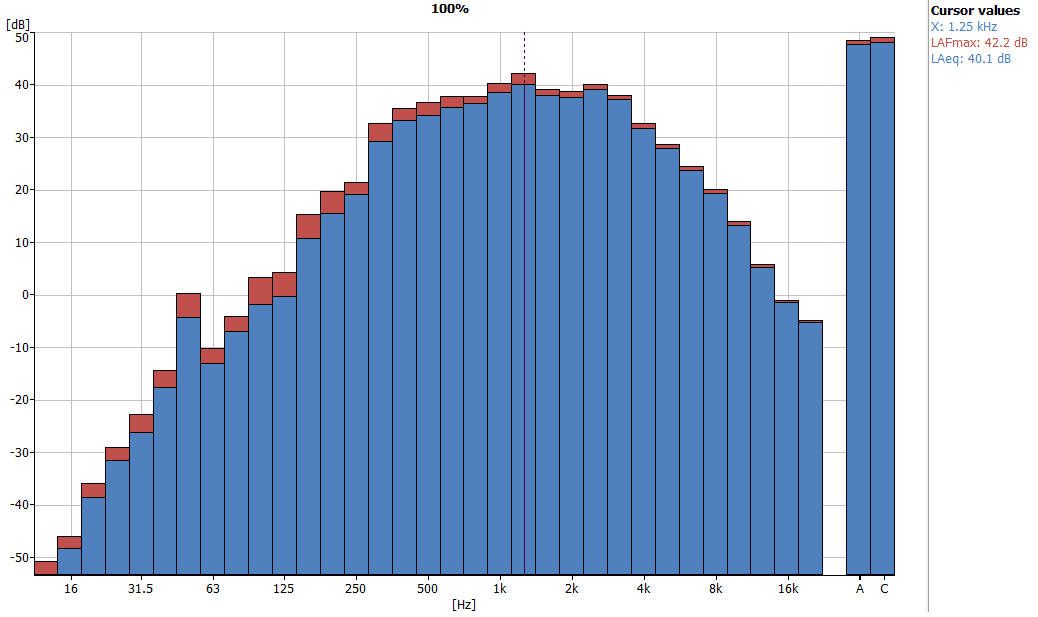

100% Fan Speed
- Peak frequency: 1.25 kHz

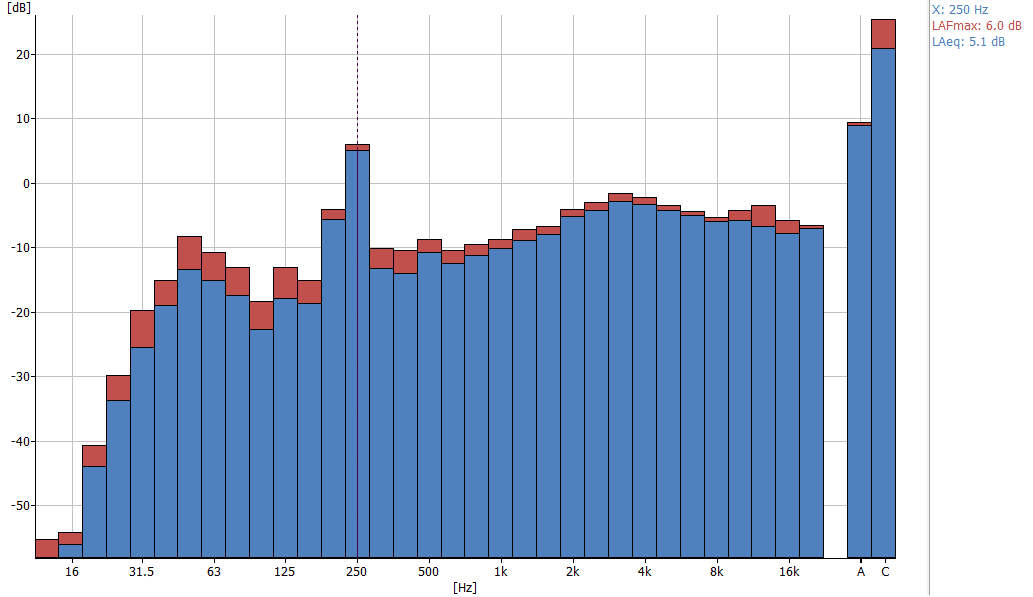

50% Pump Speed
- Peak frequency: 250 kHz

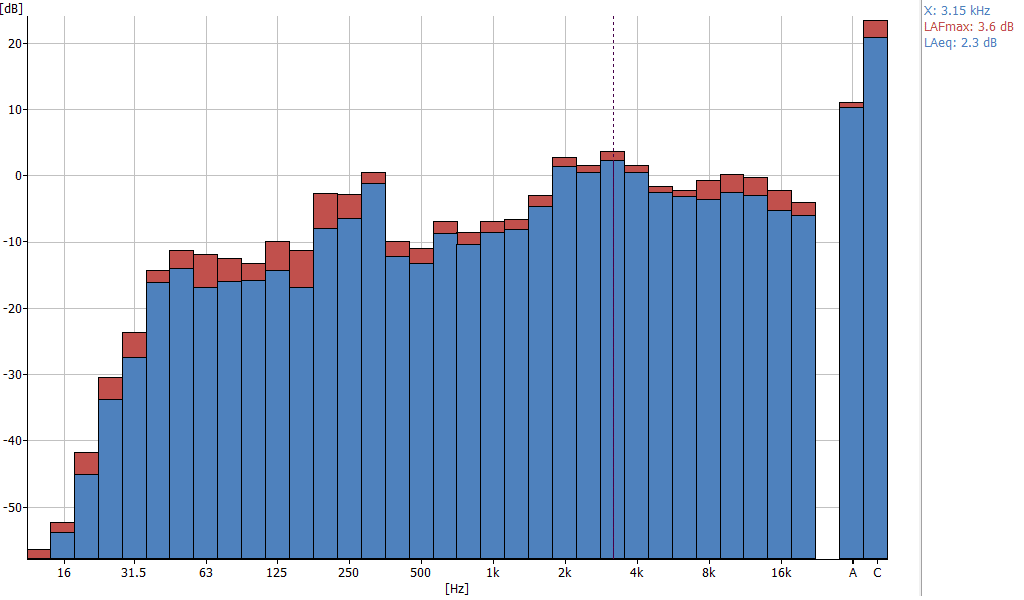

75% Pump Speed
- Peak frequency: 3.15 kHz
- 2nd Peak frequency: 315 Hz

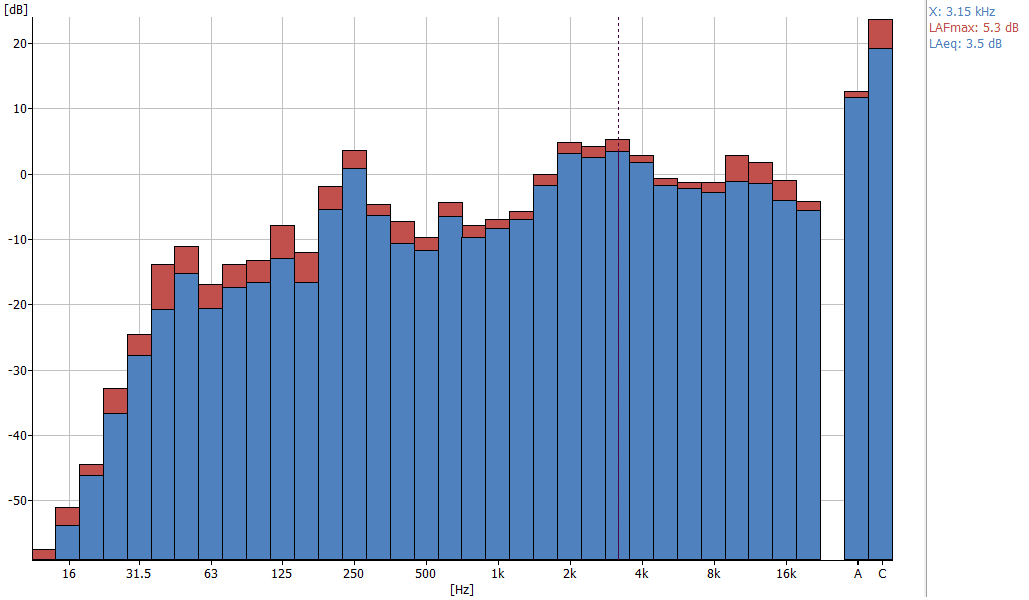

100% Pump Speed
- Peak frequency: 3.15 kHz
- 2nd Peak frequency: 250 Hz
Signal Recordings
I have recorded the signals shown above, but please keep in mind that I’ve enabled Automatic Gain Control (AGC) to do so to make it easier for you to reproduce them. The provided recordings are only offered for aural identification purposes.
10% Fan Speed
20% Fan Speed
30% Fan Speed
40% Fan Speed
50% Fan Speed
60% Fan Speed
70% Fan Speed
80% Fan Speed
90% Fan Speed
100% Fan Speed
50% Pump Speed
75% Pump Speed
100% Pump Speed
